  1. Circuit-breakers (1/3) - 4 different circuit-breaker types up to 100 A (-> 3 accessory ranges) Schneider Electric Moeller ABB Allen Bradley Fuji GE / AEG GV2-M GV2-P GV3 GV7 100 A Sirius: 2 circuit-breaker types up to 100 A (1 standard range of accessories) - Sirius • Wider > 32 A series • >32 A (GV3): 61 mmS2: 55 mm • >63 A (GV7): 105 mmS3: 70 mm

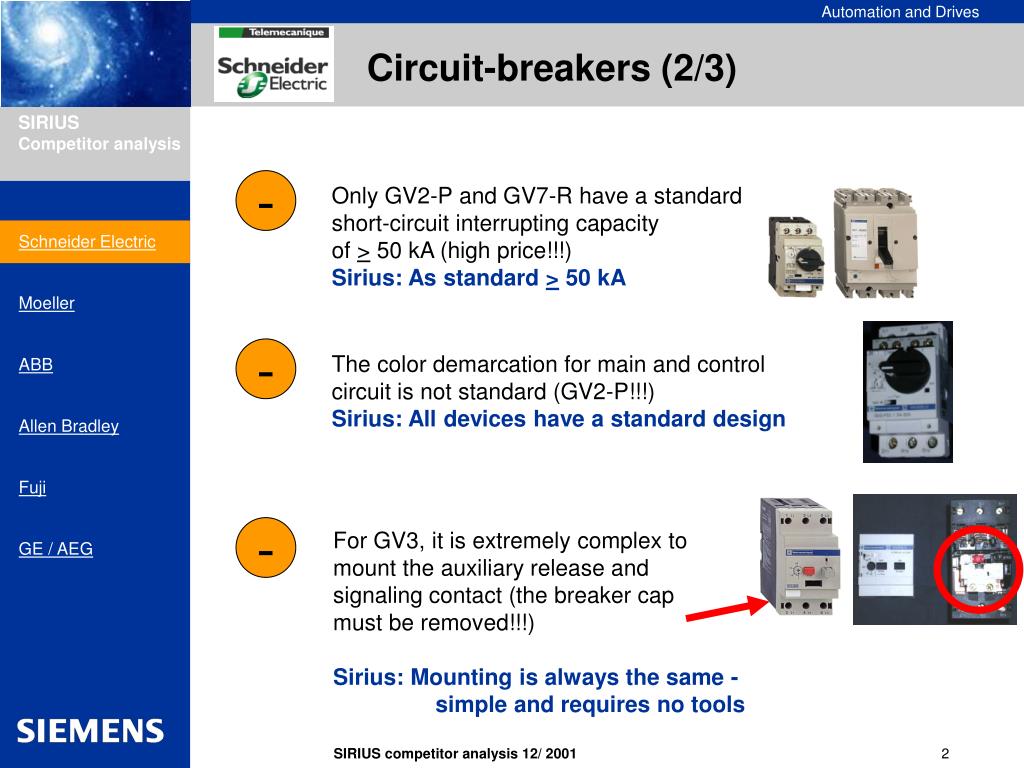

  2. Circuit-breakers (2/3) - Only GV2-P and GV7-R have a standard short-circuit interrupting capacityof > 50 kA (high price!!!) Sirius: As standard > 50 kA Schneider Electric Moeller ABB Allen Bradley Fuji GE / AEG - The color demarcation for main and control circuit is not standard (GV2-P!!!) Sirius: All devices have a standard design - For GV3, it is extremely complex to mount the auxiliary release and signaling contact (the breaker cap must be removed!!!) Sirius: Mounting is always the same - simple and requires no tools

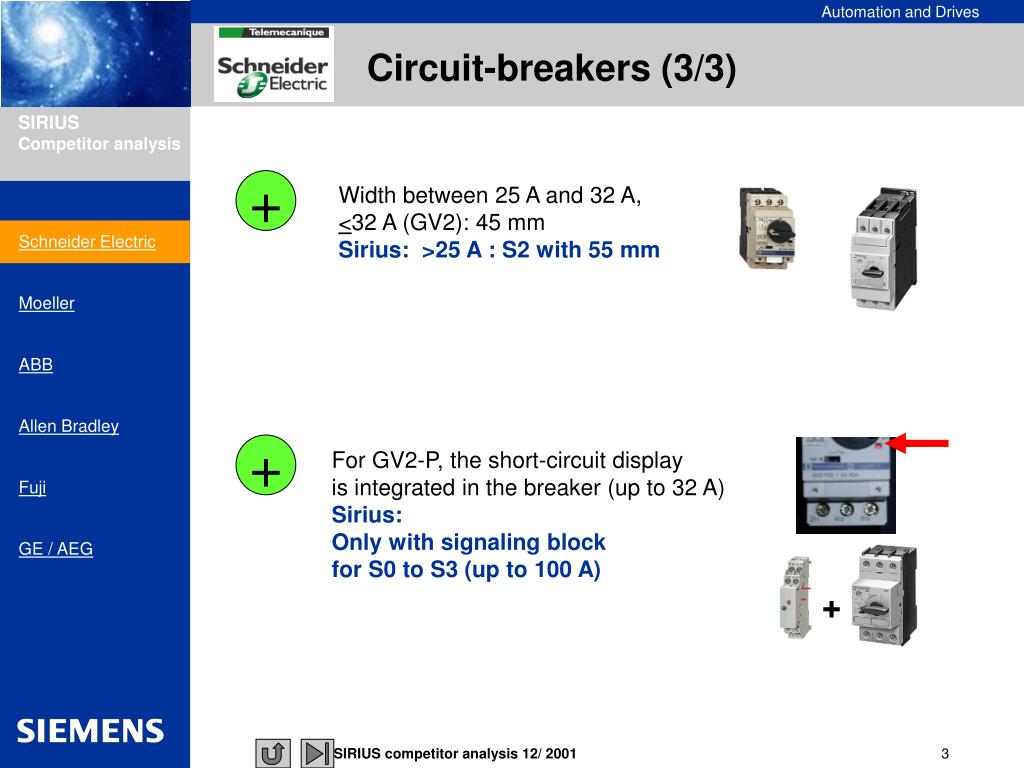

  3. Circuit-breakers (3/3) + Width between 25 A and 32 A, <32 A (GV2): 45 mm Sirius: >25 A : S2 with 55 mm Schneider Electric Moeller ABB Allen Bradley Fuji GE / AEG + For GV2-P, the short-circuit display is integrated in the breaker (up to 32 A) Sirius: Only with signaling blockfor S0 to S3 (up to 100 A) +
