Cycles of the Moon

1. 0 Note that the following lectures include animations and PowerPoint effects such as fly-ins and transitions that require you to be in PowerPoint's Slide Show mode (presentation mode).

2. 0 Cycles of the Moon Chapter 3

3. 0 Guidepost In the previous chapter you studied daily and yearly cycles of the sun. Now you can focus on the next brightest object in the night sky, the moon. The moon moves steadily against the background of stars, changing its appearance and occasionally producing spectacular events called eclipses. This chapter will help you answer four important questions about Earth’s natural satellite: • Why does the moon go through phases? • What causes a lunar eclipse? • What causes a solar eclipse? • How can eclipses be predicted?

4. 0 Guidepost (continued) Understanding the phases of the moon and eclipses will exercise your scientific imagination, and help you enjoy the sight of the moon crossing the sky. Once you have an understanding of your world and its motion, you will be ready to read the next chapter, in which you will see how Renaissance astronomers analyzed what they saw in the sky, used their imagination, and came to a revolutionary conclusion – that Earth is a planet.

5. 0 Outline I. The Changeable Moon A. The Motion of the Moon B. The Cycle of Moon Phases II. Lunar Eclipses A. Earth's Shadow B. Total Lunar Eclipses C. Partial and Penumbral Lunar Eclipses

6. 0 Outline (continued) III. Solar Eclipses A. The Angular Diameter of the Sun and Moon B. The Moon's Shadow C. Features of Solar Eclipses D. Observing an Eclipse IV. Predicting Eclipses A. Conditions for an Eclipse B. The View From Space C. The Saros Cycle

7. 0 The Phases of the Moon (1) • The Moon orbits Earth in a sidereal period of 27.32 days. 27.32 days Moon Earth Fixed direction in space

8. 0 The Phases of the Moon (2) Fixed direction in space 29.53 days Earth Moon Earth orbits around Sun => Direction toward Sun changes! • The Moon’s synodic period (to reach the same position relative to the sun, i.e., the same lunar phase) is 29.53 days (~ 1 month).

9. 0 The Phases of the Moon (3) From Earth, we see different portions of the Moon’s surface lit by the sun, causing the phases of the Moon. Waxing gibbous Full Waxing crescent 1st quarter Last quarter Waning gibbous Waning crescent Full

10. 0 The Phases of the Moon (4) The waxing phases of the moon can be seen primarily in the evening sky: New Moon  First Quarter  Full Moon Evening Sky From night to night, the moon appears to move from west to east (right to left) - opposite to the motion within one night!

11. 0 The Phases of the Moon (5) The waning phases of the moon can be seen primarily in the morning sky: Full Moon  Third Quarter  New Moon Morning Sky

12. 0 The Tidally-Locked Orbit of the Moon The Earth exerts tidal forces on the moon’s rocky interior.  It is rotating with the same period around its axis as it is orbiting Earth (tidally locked).  We always see the same side of the moon facing Earth.

13. 0 Lunar Eclipses (1) If a light source is extended (like a large light bulb), any object casts a shadow that consists of a zone of full shadow, the Penumbra, and a zone of full shadow, the Umbra.

14. 0 Lunar Eclipses (2) Also Earth’s shadow consists of a zone of partial shadow, the Penumbra, and a zone of full shadow, the Umbra. If the moon passes through Earth’s full shadow (Umbra), we see a lunar eclipse. If the entire surface of the moon enters the Umbra, the lunar eclipse is total.

15. 0 A Total Lunar Eclipse (1) Motion of the moon against the background of stars Motion of the moon against the horizon

16. 0 A Total Lunar Eclipse (2) A total lunar eclipse can last up to 1 hour and 40 min. During a total eclipse, the moon has a faint, red glow, reflecting sun light scattered in Earth’s atmosphere.

17. 0 Lunar Eclipses: 2012-2019 There are typically 1 or 2 lunar eclipses per year.

18. 0 Solar Eclipses ≈ 0.5o = 30’ The sun appears approx. as large in the sky (same angular diameter≈ 0.50) as the moon.

19. 0 Solar Eclipses (II)  When the moon passes in front of the sun, the moon can cover the sun completely, causing a total solar eclipse.

20. 0 Total Solar Eclipse Chromosphere and Corona Prominences

21. 0 Earth and Moon’s Orbits Are Slightly Elliptical Apogee = position furthest away from Earth Earth Perihelion = position closest to the sun Moon Perigee = position closest to Earth Sun Aphelion = position furthest away from the sun (Eccentricities greatly exaggerated!)

22. 0 Annular Solar Eclipses The angular sizes of the moon and the sun vary, depending on their distance from Earth. When Earth is near perihelion and the moon is near apogee, we see an annular solar eclipse. Perigee Apogee Perihelion Aphelion

23. 0 Annular Solar Eclipses (2) Almost total, annular eclipse of May 30, 1984

24. 0 Diamond Ring Effect

25. 0 Solar Eclipses: 2012-2019 There are on average about 1 – 2 total solar eclipses per year

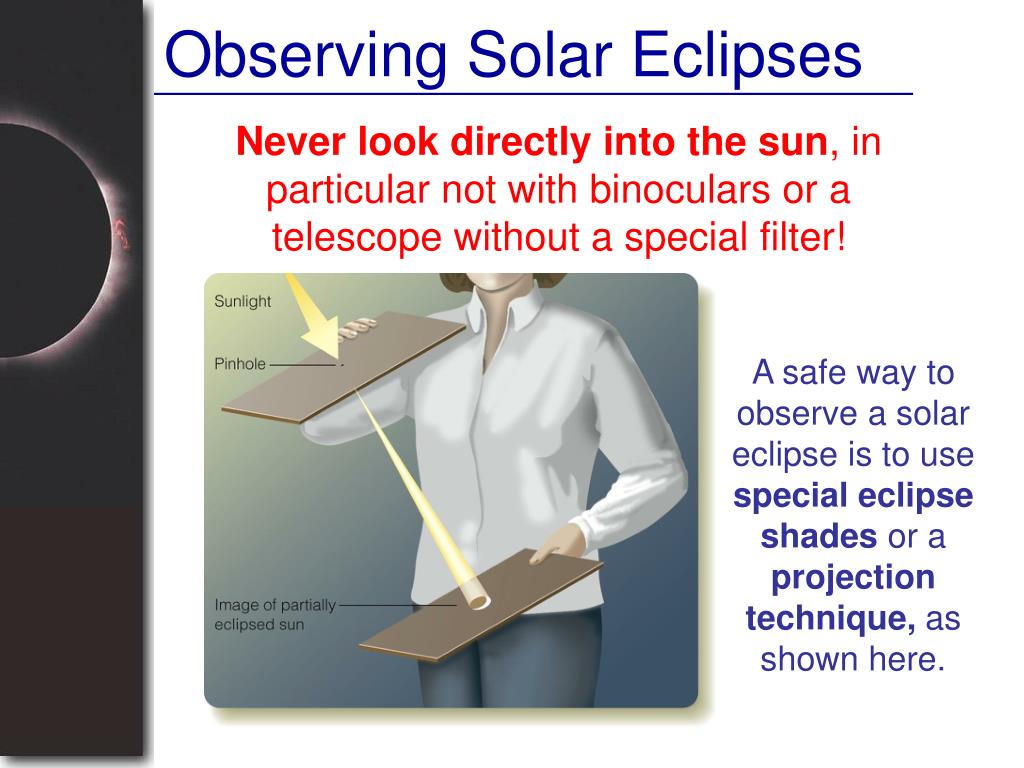

26. 0 Observing Solar Eclipses Never look directly into the sun, in particular not with binoculars or a telescope without a special filter! A safe way to observe a solar eclipse is to use special eclipse shades or a projection technique, as shown here.

27. 0 Conditions for Eclipses (1) The moon’s orbit is inclined against the ecliptic by ~ 50. A lunar eclipse can only occur if the moon passes a node near full moon. A solar eclipse can only occur if the moon passes a node near new moon.

28. 0 Conditions for Eclipses (2) Eclipses occur in a cyclic pattern. Saros cycle: 18 years, 11 days, 8 hours

29. 0 The Saros Cycle
