Photosynthesis

Photosynthesis. Capturing Solar Energy. Overview of Photosynthesis. (glucose) Occurs in some bacteria or chloroplast of plants and protists Carbon dioxide (CO 2 ) is reduced to produce glucose

marlie
Download Presentation

Photosynthesis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Photosynthesis Capturing Solar Energy

  2. Overview of Photosynthesis (glucose) Occurs in some bacteria or chloroplast of plants and protists Carbon dioxide (CO2) is reduced to produce glucose Energy required is captured from the sun by chlorophyll Photosynthesis has a Light reaction and a Dark reaction

  3. Fig. 7.2

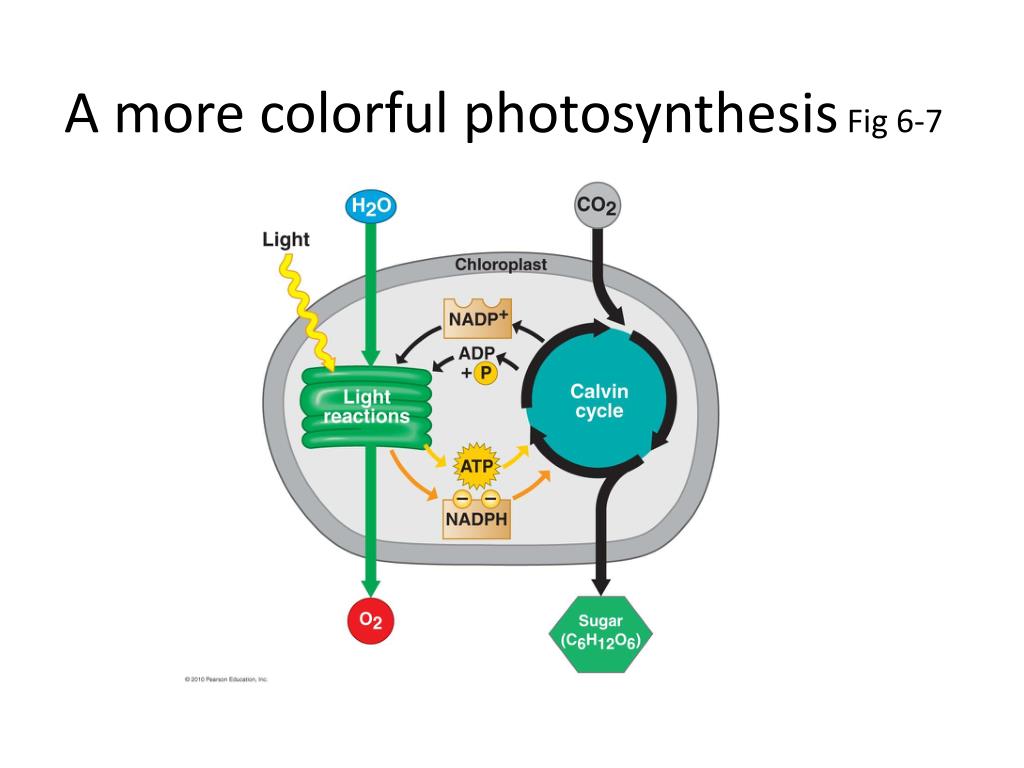

  4. A more colorful photosynthesis Fig 6-7

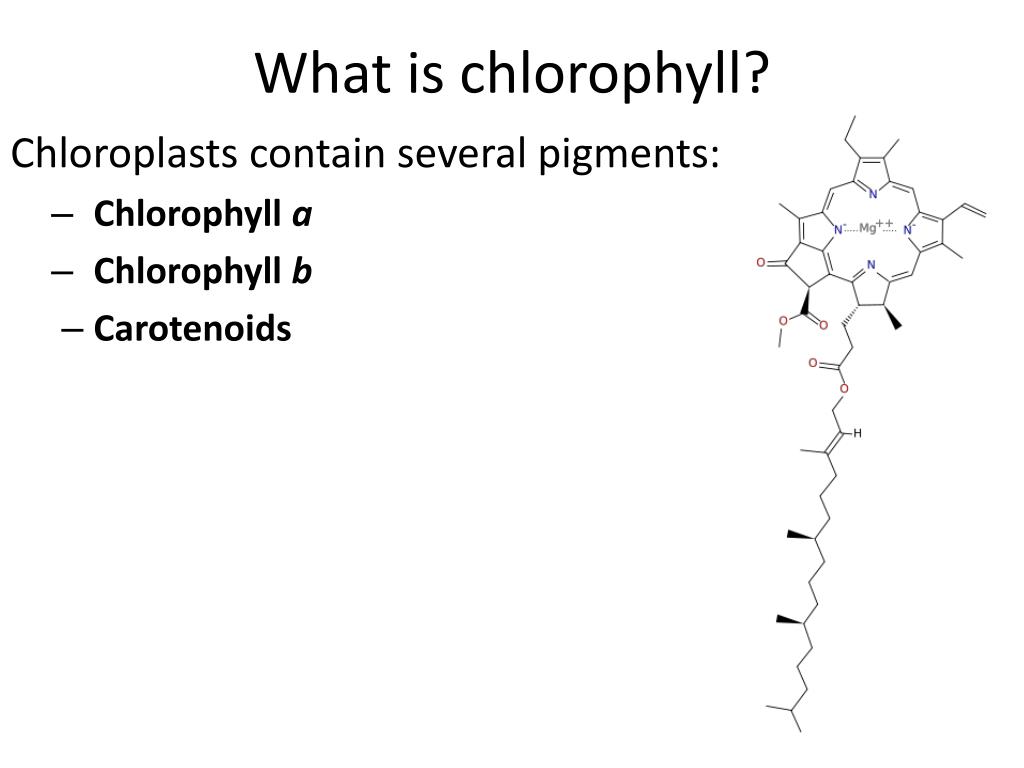

  5. What is chlorophyll? Chloroplasts contain several pigments: Chlorophyll a Chlorophyll b Carotenoids

  6. Chlorophyll absorbs Red and Blue light from the visible spectrum but reflects Green light.

  7. Fig. 6-3

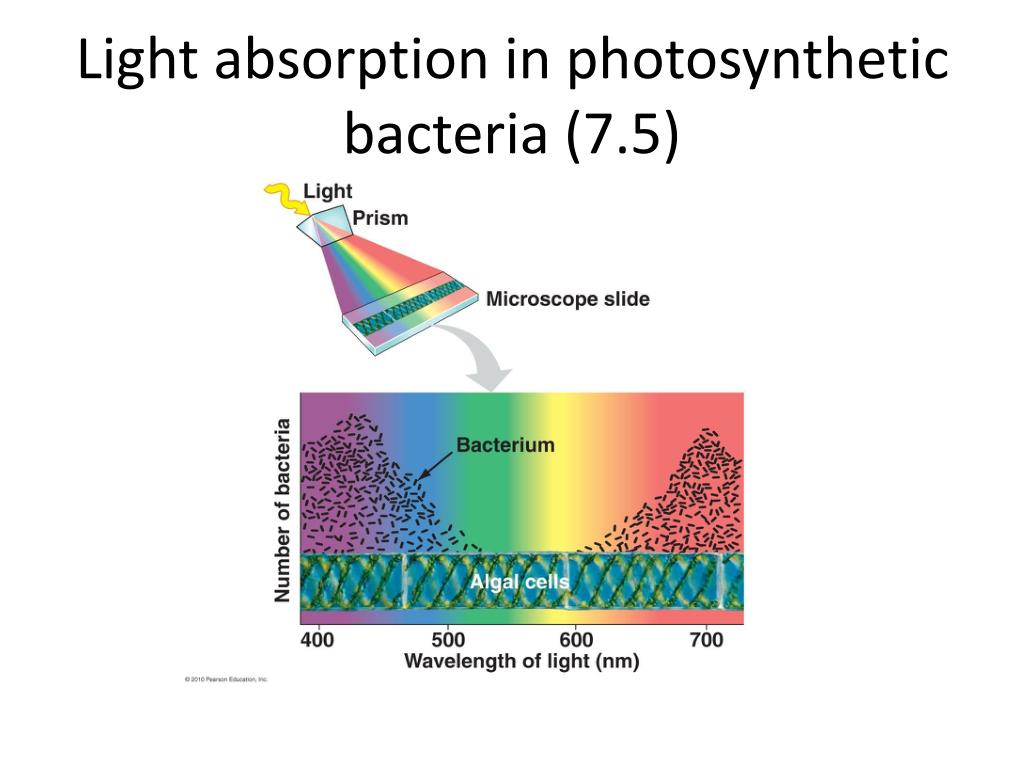

  8. Light absorption in photosynthetic bacteria (7.5)

  9. Light-Dependant Reaction Occurs on thylakoid membranes of the chloroplast Only occurs in the presence of light Two parts: Photosystems and Electron Transport Chains (E.T.C.) Transfers light energy to energy molecules – ATP and NADPH

  10. Light Reaction (7.10)

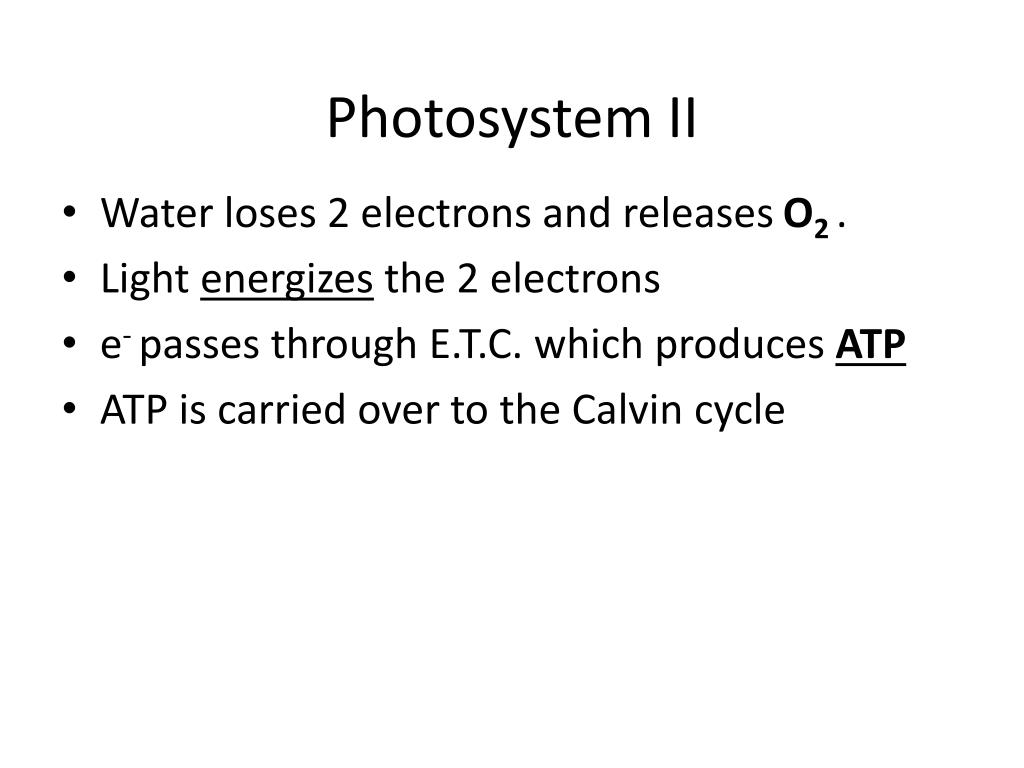

  11. Photosystem II Water loses 2 electrons and releases O2 . Light energizes the 2 electrons e- passes through E.T.C. which produces ATP ATP is carried over to the Calvin cycle

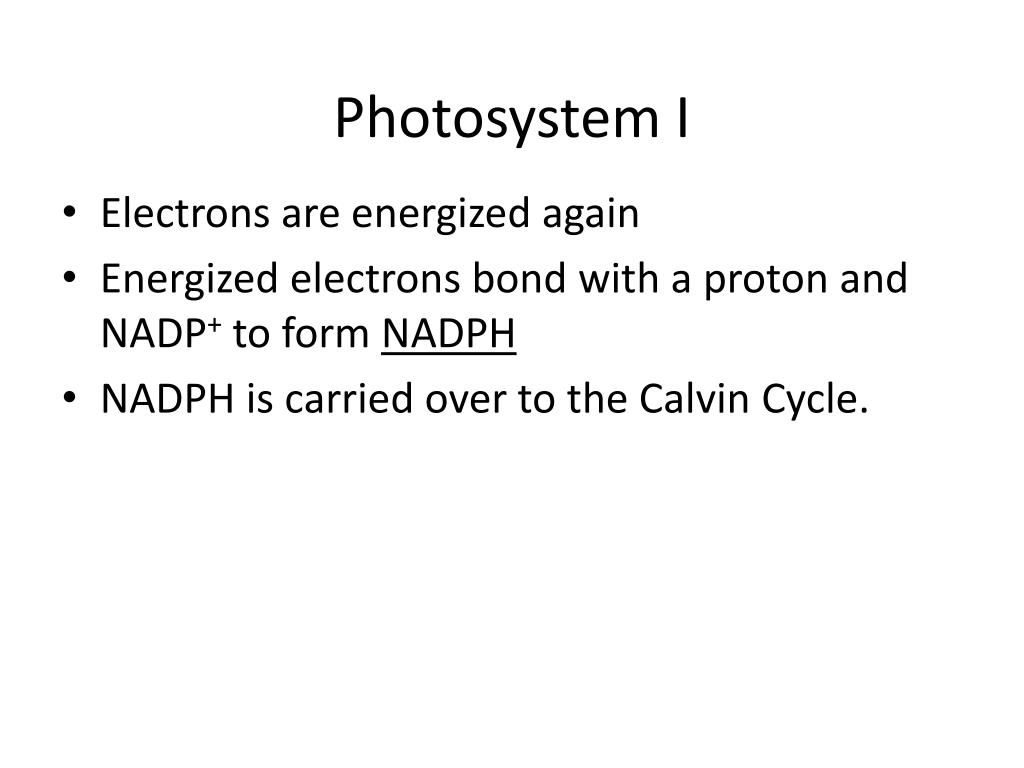

  12. Photosystem I Electrons are energized again Energized electrons bond with a proton and NADP+ to form NADPH NADPH is carried over to the Calvin Cycle.

  13. Light Reaction (7.14)

  14. Light Independent (Dark) Reaction Doesn't require light. Occurs in stroma of the chloroplast

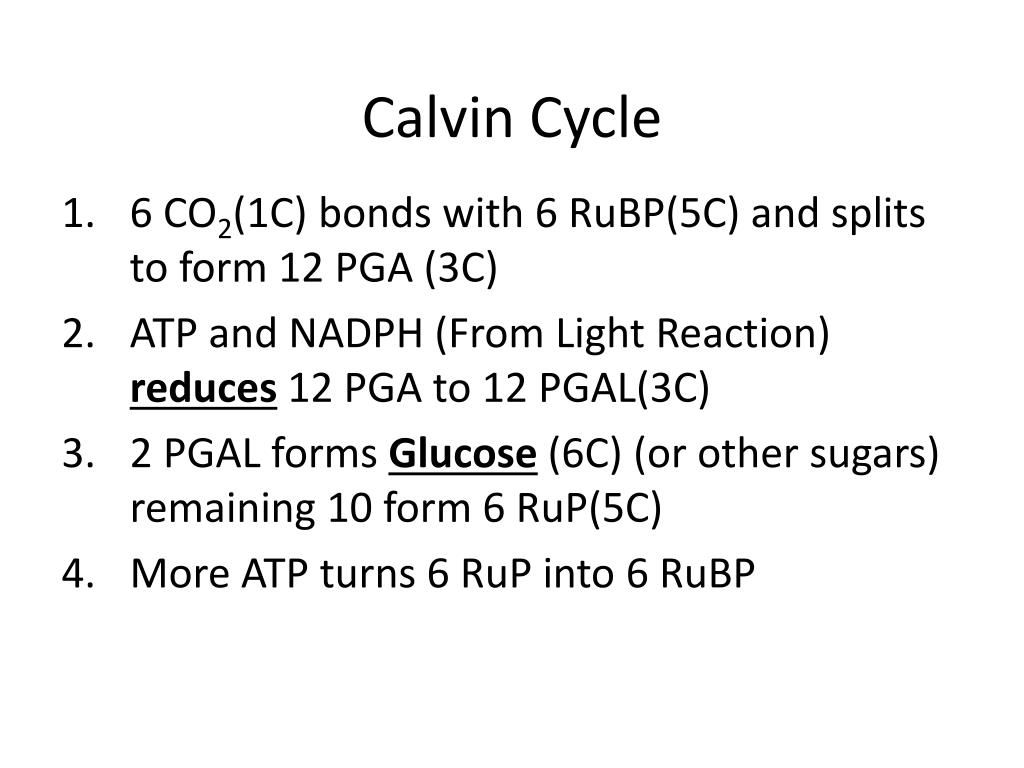

  15. Calvin Cycle 6 CO2(1C) bonds with 6 RuBP(5C) and splits to form 12 PGA (3C) ATP and NADPH (From Light Reaction) reduces 12 PGA to 12 PGAL(3C) 2 PGAL forms Glucose (6C) (or other sugars) remaining 10 form 6 RuP(5C) More ATP turns 6 RuP into 6 RuBP

  16. Dark Reaction

  17. Regulation of Photosynthesis • Require CO2, H2O and Light • Plants need to regulate the absorption of CO2 and H2O • Stomata – openings allow CO2 in, O2 & H2O out.

  18. Stomata – open and close with the help of guard cells (NIB)

  19. Gas exchange (7.2)

  20. Some plants are specialized to survive in dry climates.

  21. Types of Plants • C3 plants: • Use CO2 directly from the air • Are very common and widely distributed • C4 plants: • Close their stomata to save water during hot and dry weather • Can still carry out photosynthesis • CAM plants: • Are adapted to very dry climates • Open their stomata only at night to conserve water

  22. C4 and CAM (7.14)

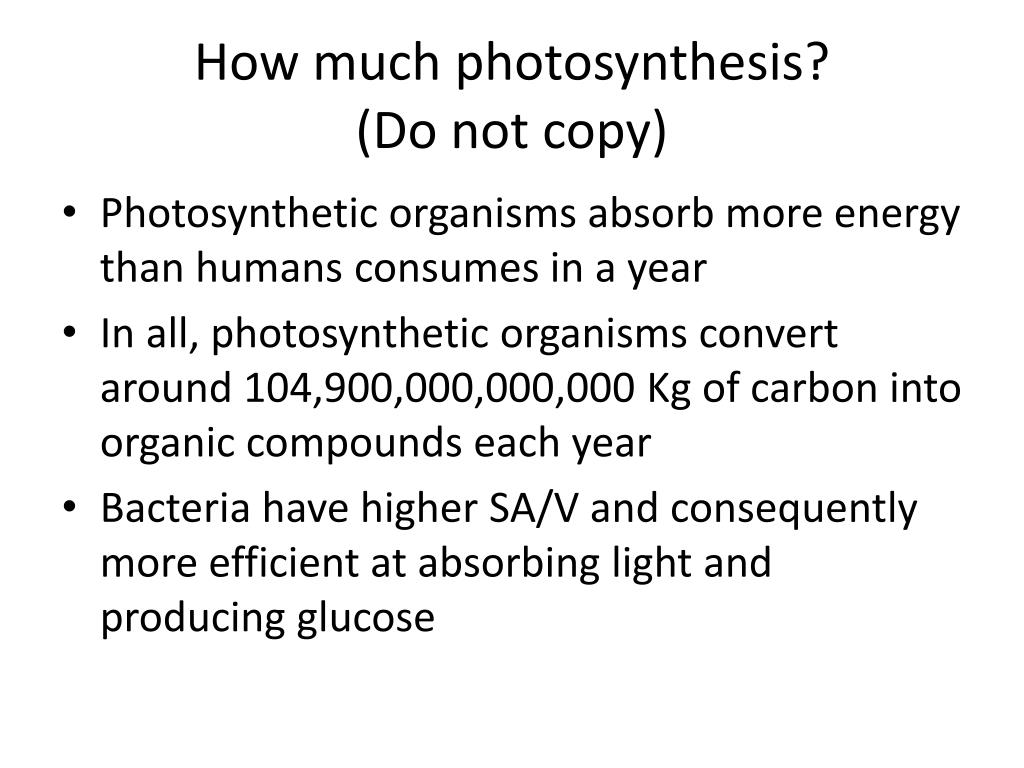

  23. How much photosynthesis? (Do not copy) • Photosynthetic organisms absorb more energy than humans consumes in a year • In all, photosynthetic organisms convert around 104,900,000,000,000 Kg of carbon into organic compounds each year • Bacteria have higher SA/V and consequently more efficient at absorbing light and producing glucose

  24. PhotosynthesisAgain
