  1. IHE Integrating the Healthcare Enterprise Overview of PCD DEC Profile Patient care device Presented by Monroe Pattillo – PHI, LLC (PCD PC)

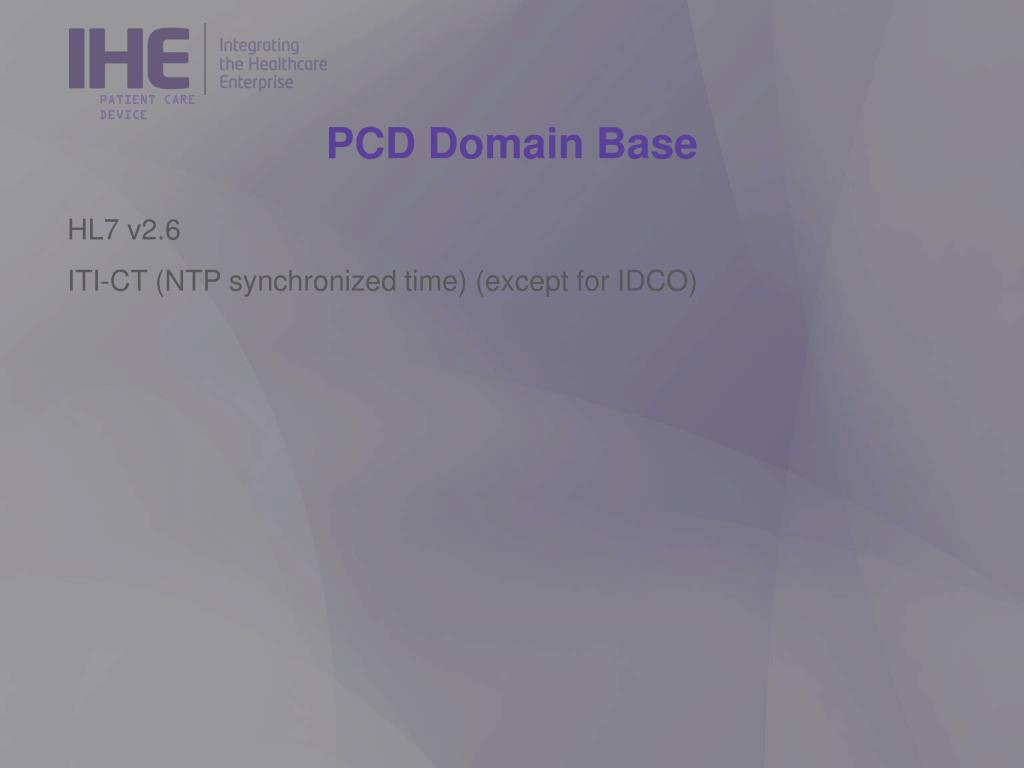

  2. PCD Domain Base HL7 v2.6 ITI-CT (NTP synchronized time) (except for IDCO)

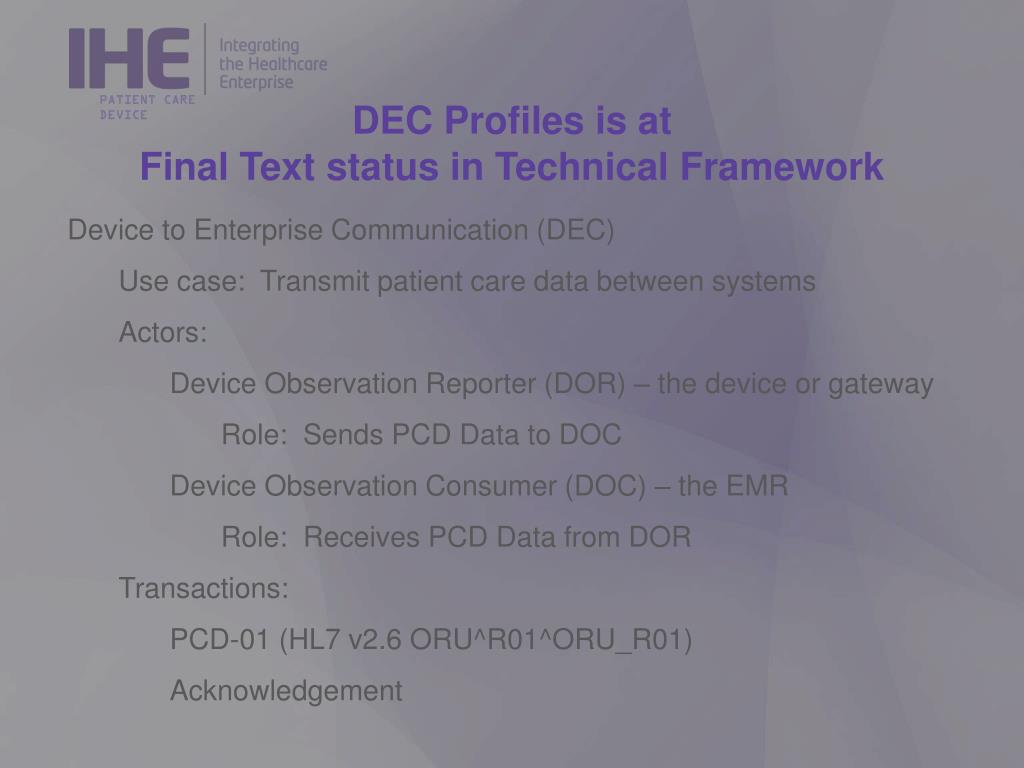

  3. DEC Profiles is at Final Text status in Technical Framework Device to Enterprise Communication (DEC) Use case: Transmit patient care data between systems Actors: Device Observation Reporter (DOR) – the device or gateway Role: Sends PCD Data to DOC Device Observation Consumer (DOC) – the EMR Role: Receives PCD Data from DOR Transactions: PCD-01 (HL7 v2.6 ORU^R01^ORU_R01) Acknowledgement

  4. DEC PCD-01 (ORU^R01^ORU_R01) IHE PCD DEC specific areas Mapping IEEE 11073-10201 DIM to HL7 v2 Timestamps purposes which HL7 timestamps serve what purpose IHE PCD profile identification by OID (MSH-21) IHE PCD equipment instance unique identification (EUI-64) Observation containment dot notation OBX-4 – MDS, VMD, CHAN, METRIC

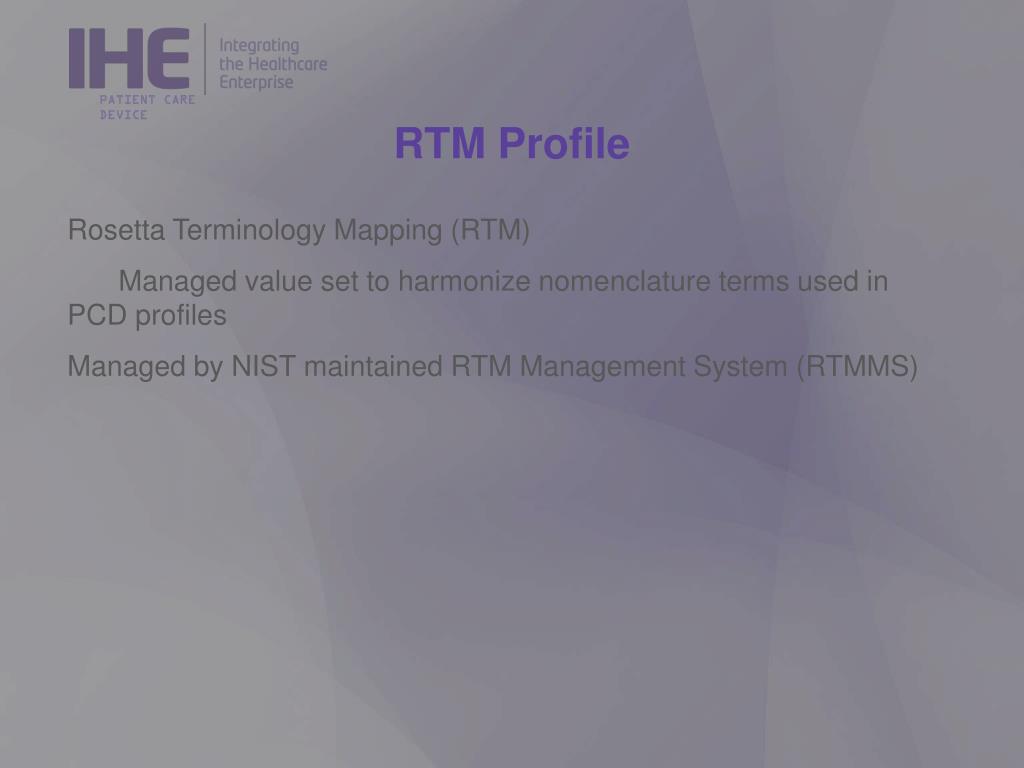

  5. RTM Profile Rosetta Terminology Mapping (RTM) Managed value set to harmonize nomenclature terms used in PCD profiles Managed by NIST maintained RTM Management System (RTMMS)

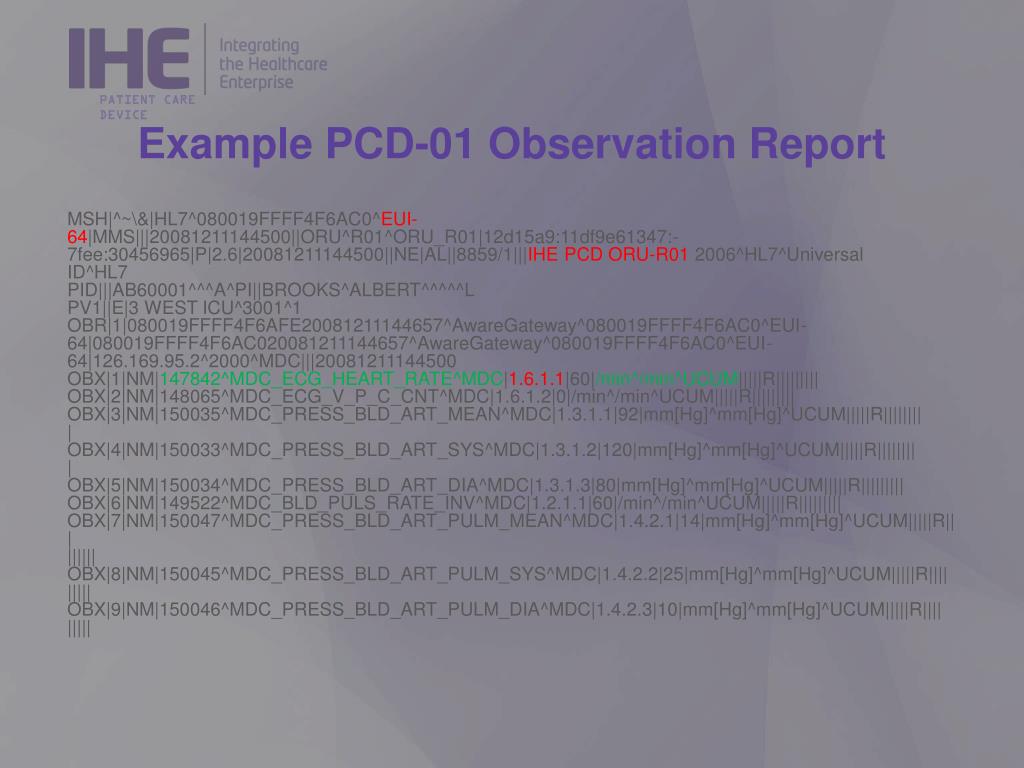

  6. Example PCD-01 Observation Report MSH|^~\&|HL7^080019FFFF4F6AC0^EUI- 64|MMS|||20081211144500||ORU^R01^ORU_R01|12d15a9:11df9e61347:- 7fee:30456965|P|2.6|20081211144500||NE|AL||8859/1|||IHE PCD ORU-R01 2006^HL7^Universal ID^HL7 PID|||AB60001^^^A^PI||BROOKS^ALBERT^^^^^L PV1||E|3 WEST ICU^3001^1 OBR|1|080019FFFF4F6AFE20081211144657^AwareGateway^080019FFFF4F6AC0^EUI- 64|080019FFFF4F6AC020081211144657^AwareGateway^080019FFFF4F6AC0^EUI- 64|126.169.95.2^2000^MDC|||20081211144500 OBX|1|NM|147842^MDC_ECG_HEART_RATE^MDC|1.6.1.1|60|/min^/min^UCUM|||||R||||||||| OBX|2|NM|148065^MDC_ECG_V_P_C_CNT^MDC|1.6.1.2|0|/min^/min^UCUM|||||R||||||||| OBX|3|NM|150035^MDC_PRESS_BLD_ART_MEAN^MDC|1.3.1.1|92|mm[Hg]^mm[Hg]^UCUM|||||R|||||||| | OBX|4|NM|150033^MDC_PRESS_BLD_ART_SYS^MDC|1.3.1.2|120|mm[Hg]^mm[Hg]^UCUM|||||R|||||||| | OBX|5|NM|150034^MDC_PRESS_BLD_ART_DIA^MDC|1.3.1.3|80|mm[Hg]^mm[Hg]^UCUM|||||R||||||||| OBX|6|NM|149522^MDC_BLD_PULS_RATE_INV^MDC|1.2.1.1|60|/min^/min^UCUM|||||R||||||||| OBX|7|NM|150047^MDC_PRESS_BLD_ART_PULM_MEAN^MDC|1.4.2.1|14|mm[Hg]^mm[Hg]^UCUM|||||R||| |||||| OBX|8|NM|150045^MDC_PRESS_BLD_ART_PULM_SYS^MDC|1.4.2.2|25|mm[Hg]^mm[Hg]^UCUM|||||R|||| ||||| OBX|9|NM|150046^MDC_PRESS_BLD_ART_PULM_DIA^MDC|1.4.2.3|10|mm[Hg]^mm[Hg]^UCUM|||||R|||| |||||
