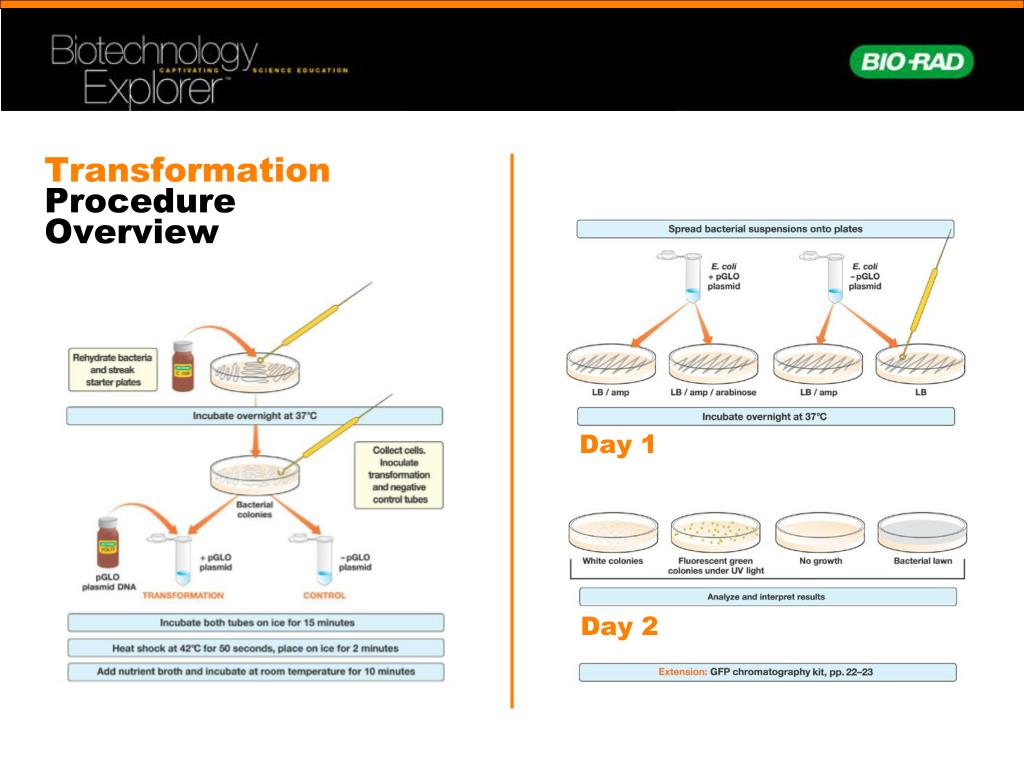

  1. Transformation Procedure Overview Day 2 Day 1

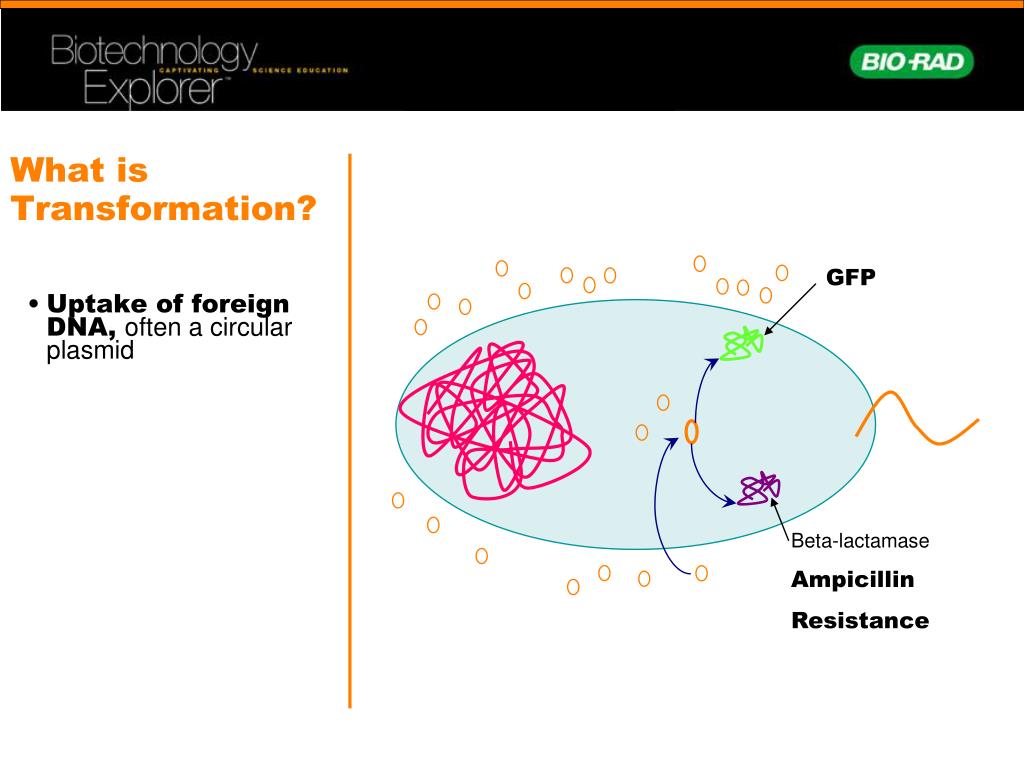

  2. What is Transformation? • Uptake of foreign DNA, often a circular plasmid GFP Beta-lactamase Ampicillin Resistance

  3. Bacterial DNA Bacterial cell Plasmid DNA Genomic DNA

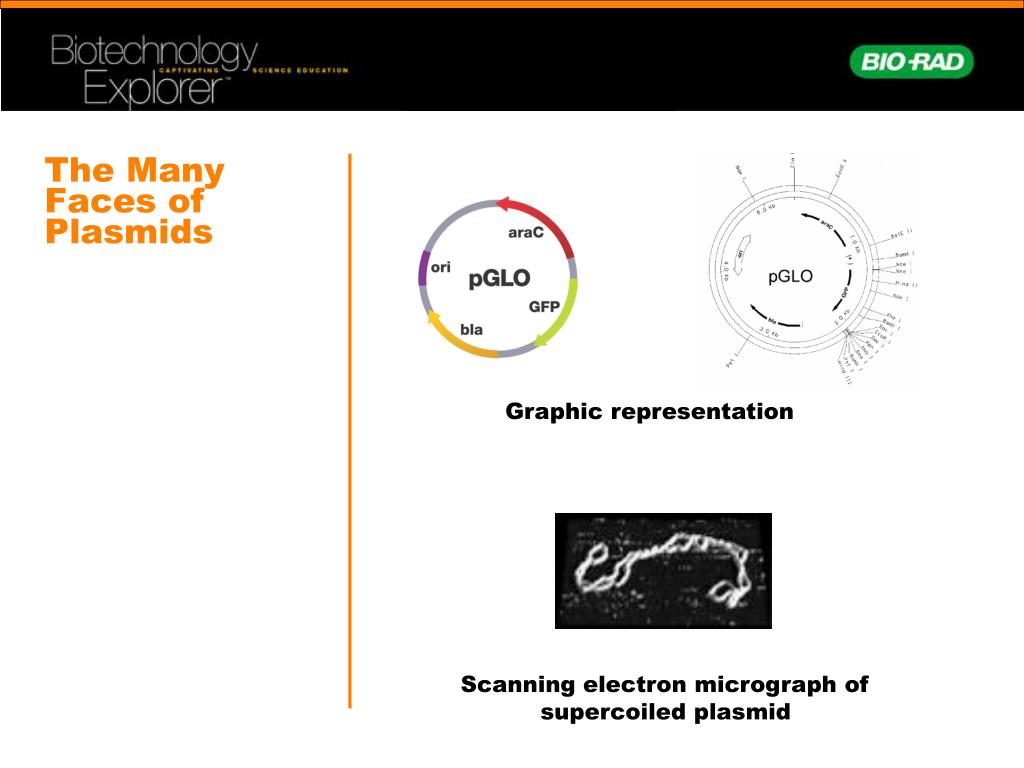

  4. The Many Faces of Plasmids Graphic representation Scanning electron micrograph of supercoiled plasmid

  5. GeneExpression • Beta Lactamase • Ampicillin resistance • Green Fluorescent Protein (GFP) • Aequorea victoria jellyfish gene • araC regulator protein • Regulates GFP transcription

  6. Bacterial Transformation Cell wall GFP Bacterial chromosomal DNA Beta lactamase (ampicillin resistance) pGLO plasmids

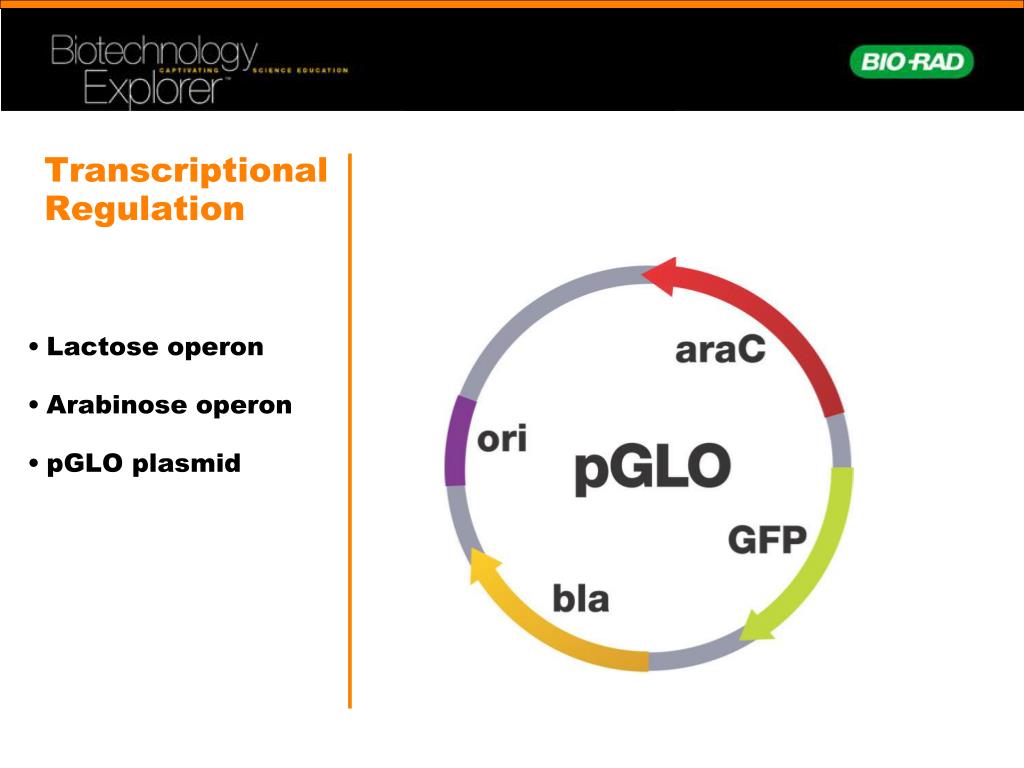

  7. Transcriptional Regulation • Lactose operon • Arabinose operon • pGLO plasmid

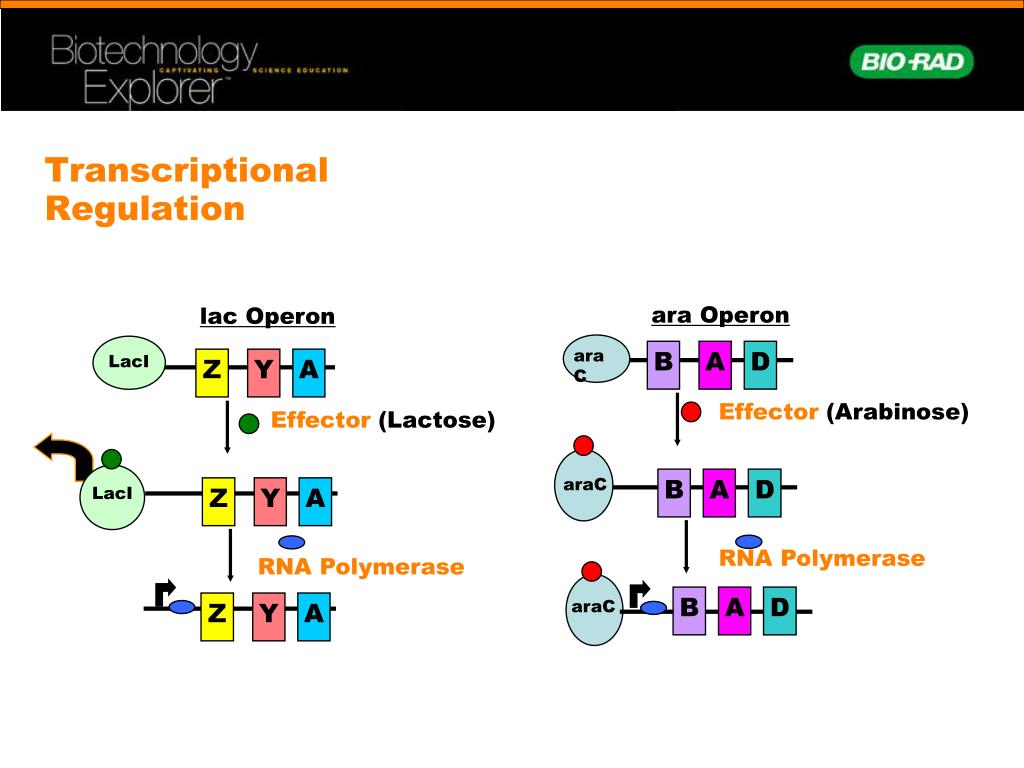

  8. ara Operon lac Operon araC B A D LacI Z Y A Effector (Arabinose) Effector(Lactose) araC B A D LacI Z Y A RNA Polymerase RNA Polymerase B A D araC Z Y A Transcriptional Regulation

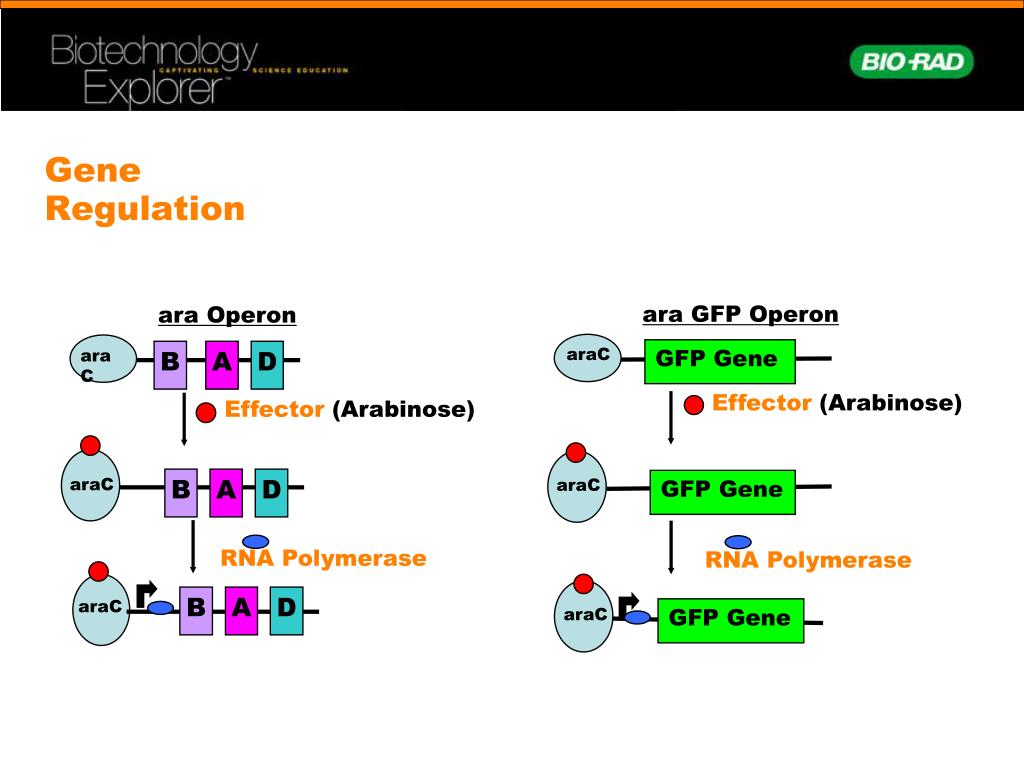

  9. ara GFP Operon ara Operon araC GFP Gene araC B A D Effector(Arabinose) Effector (Arabinose) araC B A D araC GFP Gene RNA Polymerase RNA Polymerase B A D araC araC GFP Gene Gene Regulation

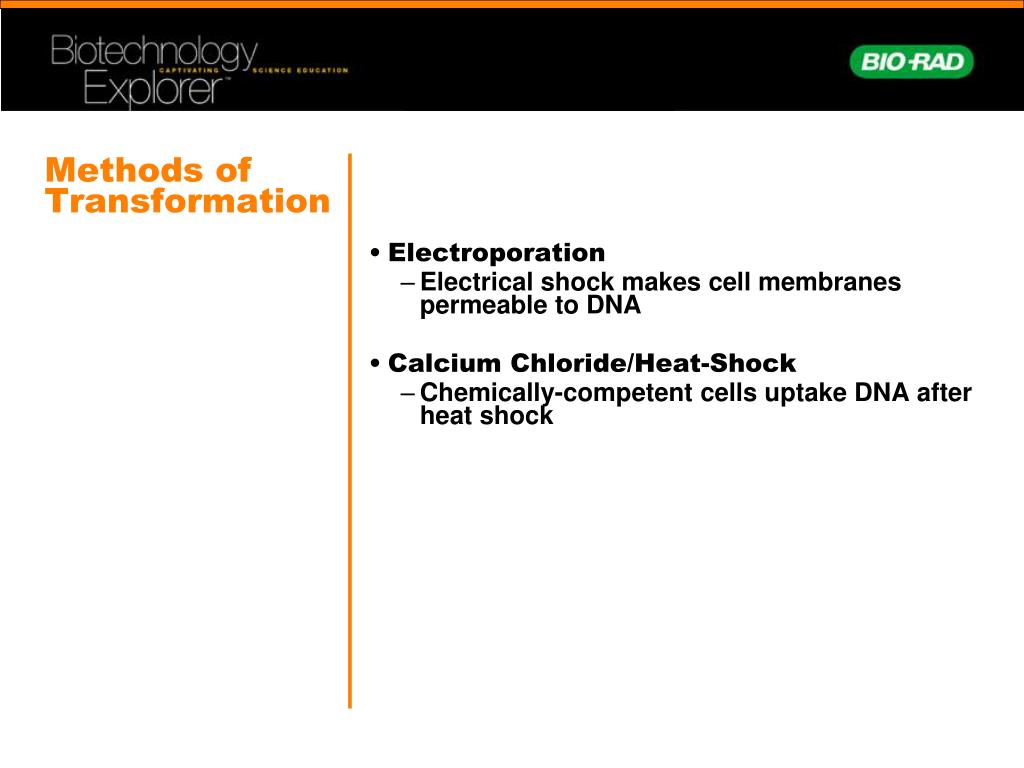

  10. Methods of Transformation • Electroporation • Electrical shock makes cell membranes permeable to DNA • Calcium Chloride/Heat-Shock • Chemically-competent cells uptake DNA after heat shock

  11. Transformation Procedure • Suspend bacterial colonies in Transformation solution • Add pGLO plasmid DNA • Place tubes on ice • Heat-shock at 42°C and place on ice • Incubate with nutrient broth • Streak plates

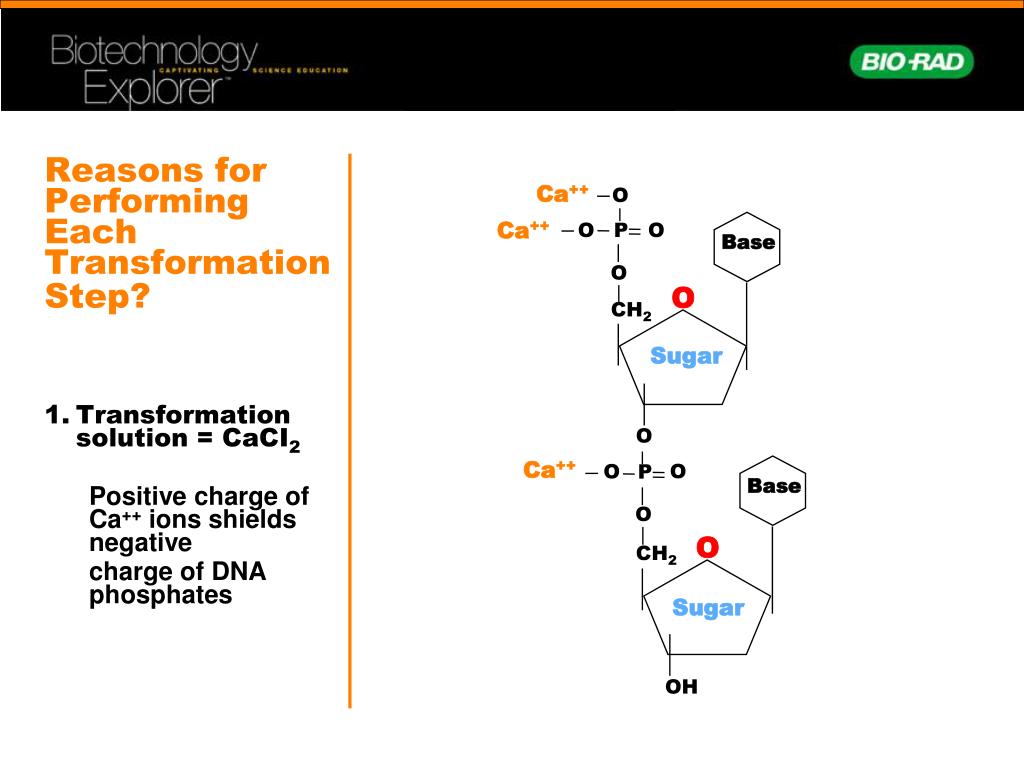

  12. Reasons for Performing Each Transformation Step? Ca++ O Ca++ O P O Base • Transformation solution = CaCI2 Positive charge of Ca++ ions shields negative charge of DNA phosphates O O CH2 Sugar O Ca++ O O P Base O O CH2 Sugar OH

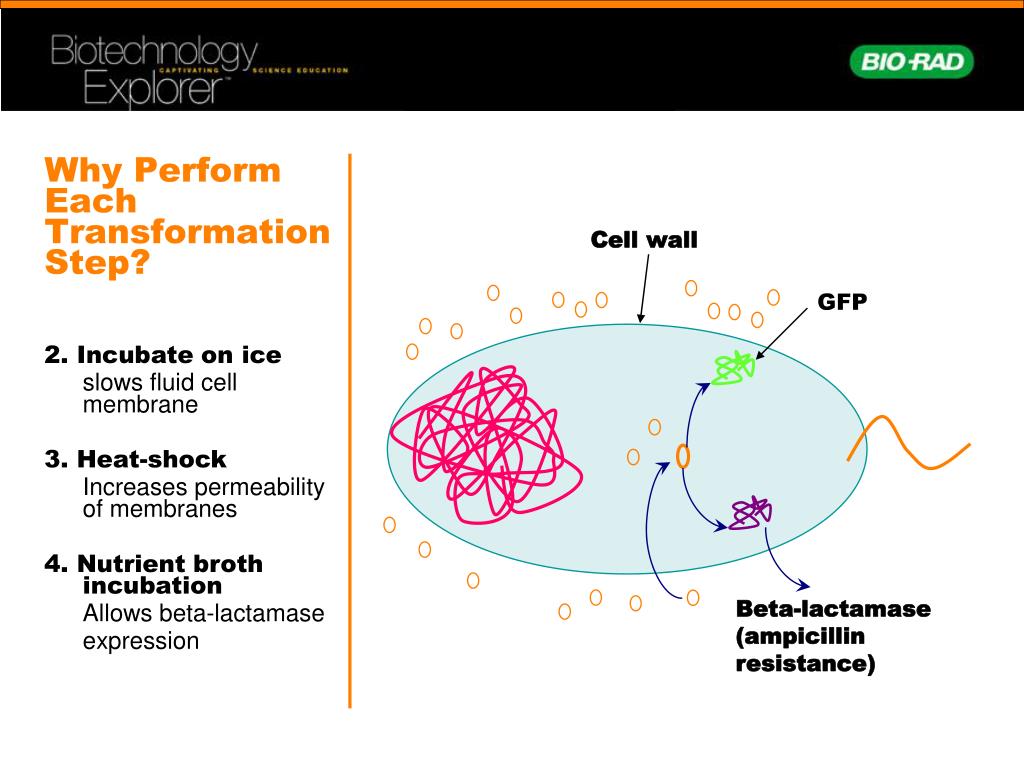

  13. Why Perform Each Transformation Step? Cell wall GFP 2. Incubate on ice slows fluid cell membrane 3. Heat-shock Increases permeability of membranes 4. Nutrient broth incubation Allows beta-lactamase expression Beta-lactamase (ampicillin resistance)

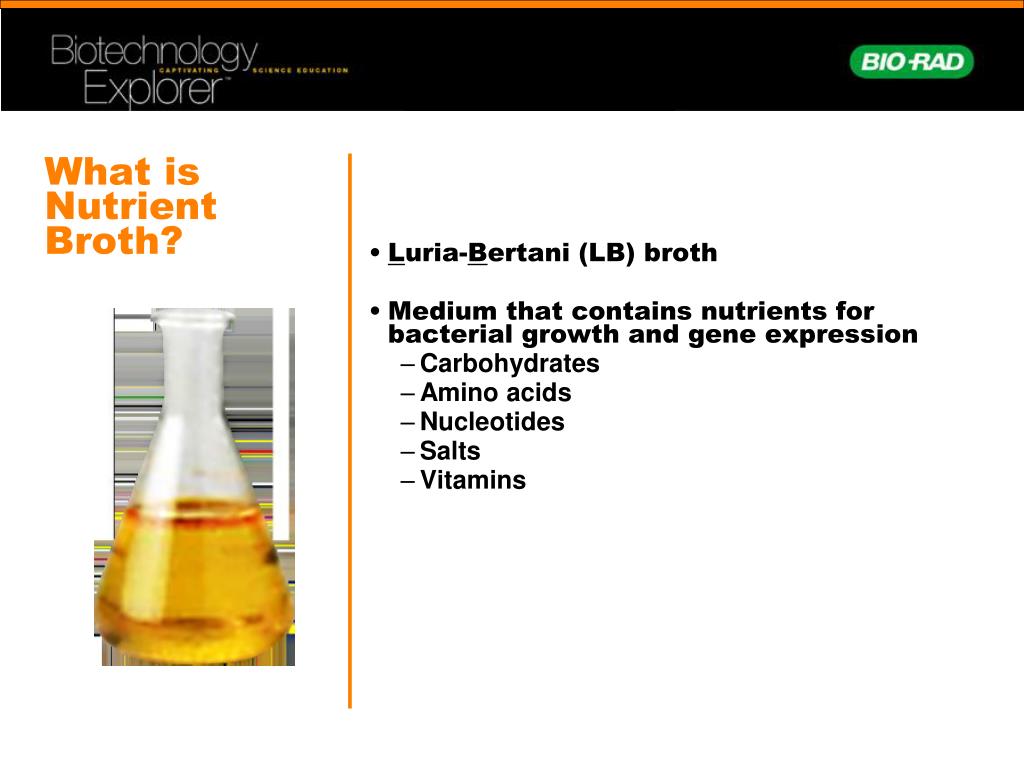

  14. What is Nutrient Broth? • Luria-Bertani (LB) broth • Medium that contains nutrients for bacterial growth and gene expression • Carbohydrates • Amino acids • Nucleotides • Salts • Vitamins

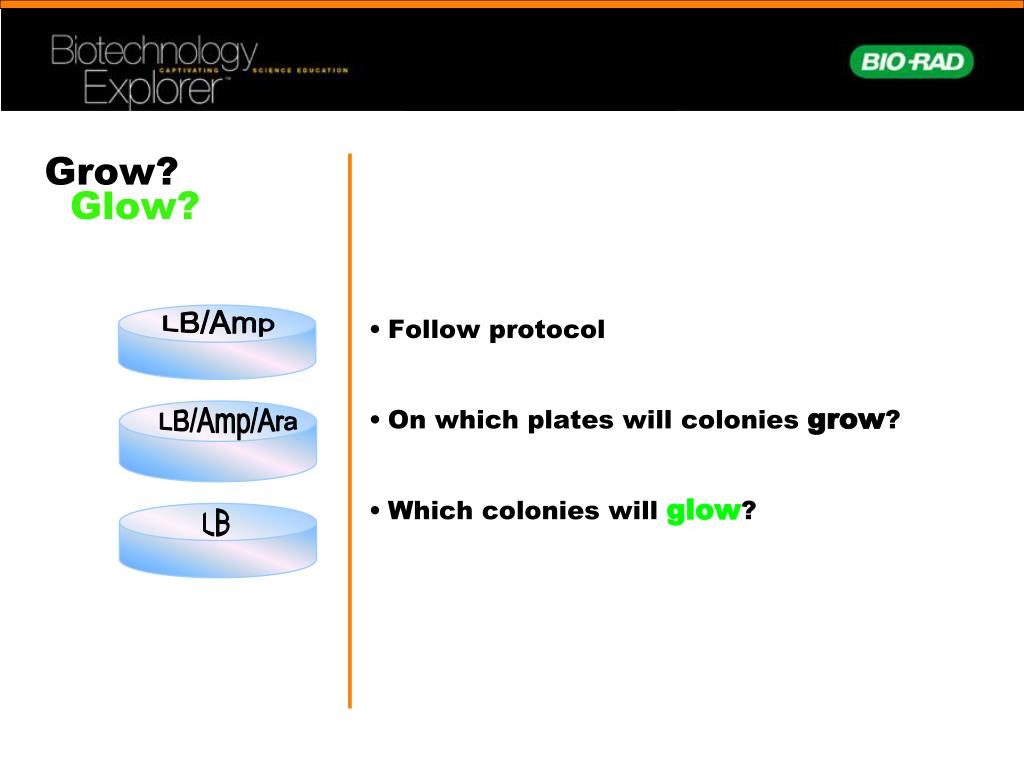

  15. LB/Amp LB/Amp/Ara LB Grow?Glow? • Follow protocol • On which plates will colonies grow? • Which colonies will glow?
