  1. The Structure of DNA

  2. DNA or Protein? • Walter Sutton discovered chromosomes were made of DNA and Protein • However, scientists were NOT sure which one (protein or DNA) was the actual genetic material of the cell

  3. DNA! • Frederick Griffith in 1928 showed the DNA was the cell’s genetic material • In 1944, Oswald Avery demonstrated that DNA is the material responsible for transformation.

  4. DNA’s role Revealed • In 1952, Alfred Hershey and Martha Chase, proved that the DNA of a virus is injected into the bacterial cells. That then causes the bacterial cells to produce more viral DNA and proteins.

  5. DNA • DNAis often called the blueprint of life. • In simple terms, DNA contains the instructions for making proteins within the cell that make up you.

  6. Why do we study DNA? We study DNA for many reasons: • Important to all life on Earth • Medical benefits such as cures for diseases • Better food crops

  7. What is a Gene? • Gene – segment of DNA that is located in a chromosome and that codes for a specific hereditary trait. • Basic unit of heredity. • Each cell in the human body contains about 25,000 to 35,000 genes, which carry information that determines your traits. • Our genes are on our chromosomes.

  8. Chromosomes and DNA • Chromosomes are made up of a chemical called DNA and proteins. • Chromosomes come in pairs, and there are hundreds, sometimes thousands, of genes in one chromosome. • There are 46 chromosomes in each human cell. • Draw and explain Figure 2 Chromosome structure on p.119 on the left side of your notebook.

  9. DNA • Deoxyribonucleic acid • Stores hereditary information • Found in all cells • Organic Comound made up of C, H, O, N and P

  10. Watson & Crick in the 1950’s built the 1st model of DNA With the help of Chargraff’s observations and Wilkins and Franklin’s photographs (x-ray diffraction)

  11. The Shape of DNA • DNA is a very long polymer. • The basic shape is like two strands twisted around each other, like a winding staircase. • This is called a double helix. • Read the first paragraph on p. 194; then summarize what you read in your notes.

  12. The Double Helix Molecule • The DNA double helix has two strands twisted together.

  13. What are Nucleotides? • Each DNA strand is made of linked nucleotides. • Nucleotides are the subunits of DNA • Each nucleotide is made up of 3 parts: 1. phosphate group 2. 5 carbon sugar (deoxyribose) 3. nitrogen base

  14. One Strand of DNA phosphate • The backbone of the molecule is alternating phosphates and deoxyribose sugar • The teeth are nitrogenousbases. deoxyribose bases

  15. O -P O O -P O O -P O O O O O O O C C ribose ATP Nucleotides One deoxyribose together with its phosphate and base make a nucleotide. Nitrogenous base O Phosphate C C C Deoxyribose O

  16. One Strand of DNA nucleotide • One strand of DNA is a polymer of nucleotides. • One strand of DNA has many millions of nucleotides.

  17. Four nitrogenous bases • Cytosine C • Thymine T • Adenine A • Guanine G DNA has four different bases:

  18. N N C N C C C N N C Two Kinds of N Bases in DNA • Pyrimidines are single ring bases. • Purines are double ring bases. N N C O C C N C

  19. N O N N C C O C C O C C C N C N C thymine cytosine Thymine and Cytosine are pyrimidines • Thymine and cytosine each have one ring of carbon and nitrogen atoms.

  20. O N N N C C N C C C C N N N C N C C Guanine Adenine C N N Adenine and Guanine are purines • Adenine and guanine each have two rings of carbon and nitrogen atoms.

  21. Two Stranded DNA • Remember, DNA has two strands that fit together something like a zipper. • The teeth are the nitrogenous bases but why do they stick together?

  22. O N C N N C C C N N C N N C O C C N C Hydrogen Bonds • The bases attract each other because of hydrogen bonds. • Hydrogen bonds are weak but there are millions and millions of them in a single molecule of DNA. • The bonds between cytosine and guanine are shown here with dotted lines

  23. O N C O C C C N C N N C C C N N C C N Hydrogen Bonds, cont. • When making hydrogen bonds, cytosine always pairs up with guanine • Adenine always pairs up with thymine • Adenine is bonded to thymine here

  24. Chargraff’s Rule: Adenine and Thymine always join together A T Cytosine and Guanine always join together C G

  25. The earth is 150 billion m or 93 million miles from the sun. DNA by the Numbers • Each cell has about 2m of DNA. • The average human has 75 trillion cells. • The average human has enough DNA to go from the earth to the sun more than 400 times. • DNA has a diameter of only 0.000000002 m.

  26. What is the complimentary strand according to the base pairing rules:ATCCATTGGACGA

  27. TAGGTAACCTGCT

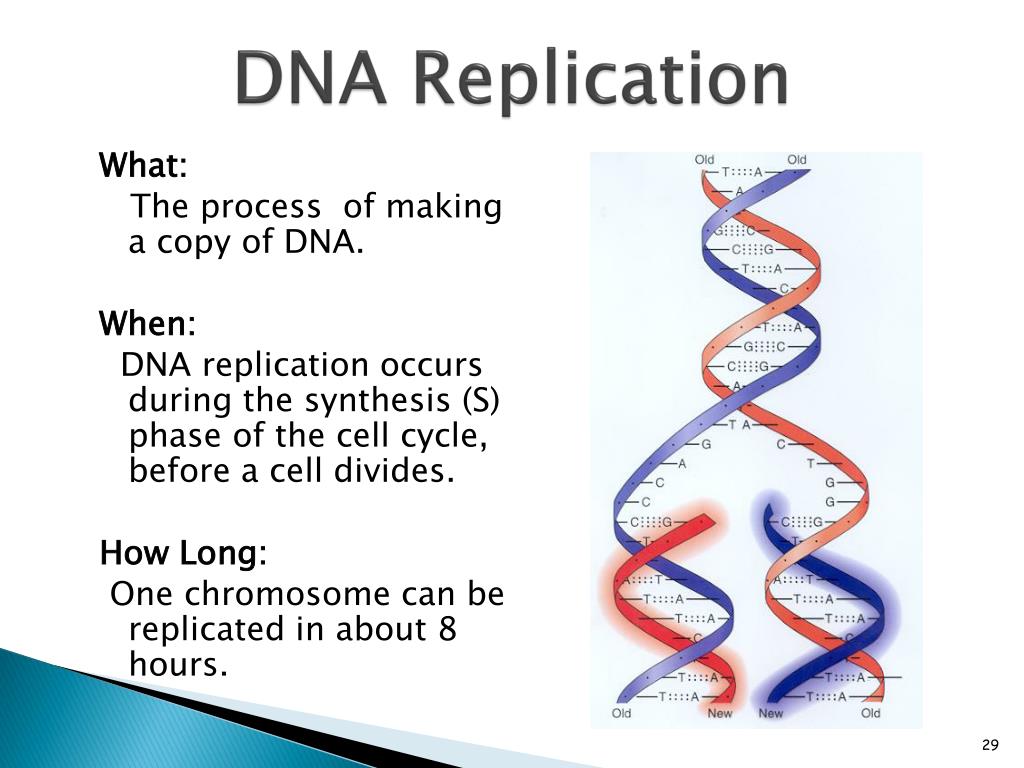

  28. DNA Replication What: The process of making a copy of DNA. When: DNA replication occurs during the synthesis (S) phase of the cell cycle, before a cell divides. How Long: One chromosome can be replicated in about 8 hours.

  29. Step 1 : DNA replication • Double helix unwinds • DNA helicasesopen the double helix by breaking the hydrogen bonds that link the complementary nitrogen bases.

  30. Replication Fork • The areas where the double helix separates are called replication forks because of their Y shape. Once the 2 strands are separated, additional proteins attach to each strand, holding them apart.

  31. Step 2: DNA replication • At the replication fork, enzymes known as DNA polymerases add nucleotides to the exposed nitrogen bases, according to the base-pairing rules. • As it moves along, two new double helixes are formed.

  32. Step 3: DNA replication • Process continues until all of the DNA has been copied and the polymerases are signaled to detach. • Results in two identical DNA strands.

  33. Checking for Errors • Errors sometimes occur and the wrong nucleotide is added to the new strand. • An important feature of DNA replication is that DNA polymerases have a “proofreading” role. • It can backtrack to remove the incorrect nucleotide. • Reduces errors in DNA replication to about one error per 1 billion nucleotides.

  34. RNA

  35. RNA Differs from DNA 1. RNA has a sugar ribose DNA has a sugar deoxyribose 2. RNA contains the nitrogen base uracil (U) so.. A pairs with U and C pairs with G DNA has thymine (T) 3. RNA molecule is single-stranded DNA is double-stranded Just like DNA…RNA is made up of the subunits called nucleotides.

  36. Structure of RNA

  37. Three Main Types of RNA . • Messenger RNA (mRNA) carries genetic information to the ribosomes • Ribosomal RNA (rRNA), along with protein, makes up the ribosomes • Transfer RNA (tRNA) transfers amino acids to the ribosomes where proteins are synthesized • More recently discovered RNA: • Interference RNA (RNAi) inhibit gene expression
