Olefin Isomerization

Olefin Isomerization. RuHCl(PPh 3 ) 3 will hydrogenate olefins in the presence of H 2 , but it also isomerizes a -olefins to internal olefins through reactions of the Ru-H bond. Olefin Isomerization - Product Distribution. 4-centred planar transition state.

marva
Download Presentation

Olefin Isomerization

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

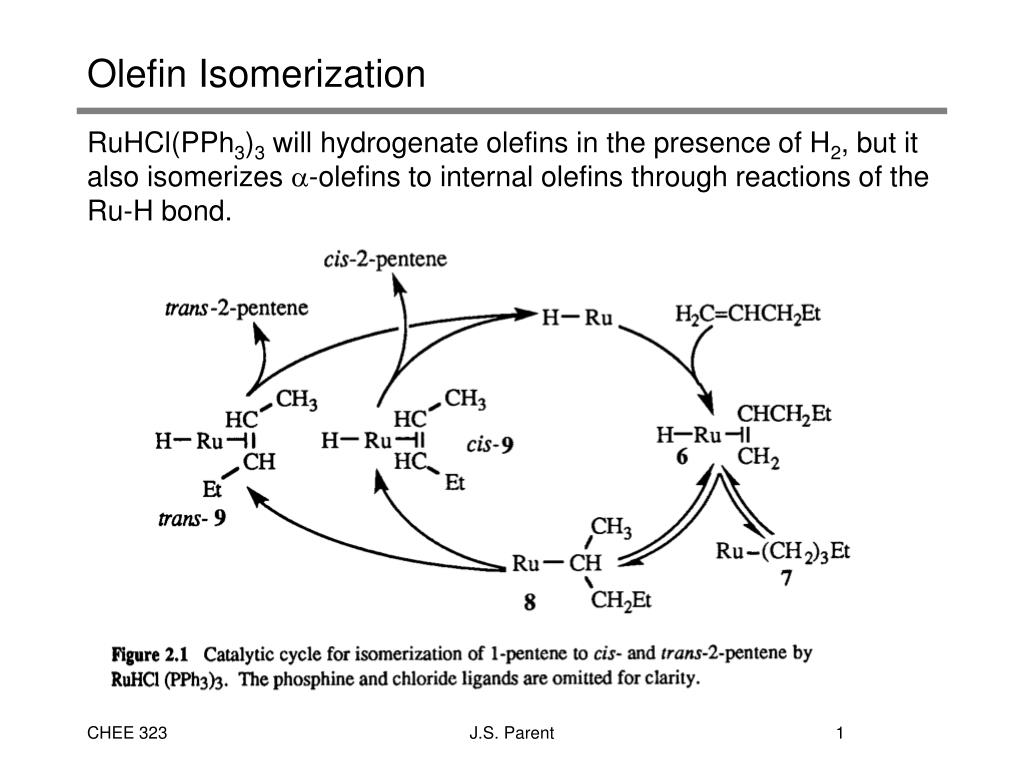

  1. Olefin Isomerization • RuHCl(PPh3)3 will hydrogenate olefins in the presence of H2, but it also isomerizes a-olefins to internal olefins through reactions of the Ru-H bond. J.S. Parent

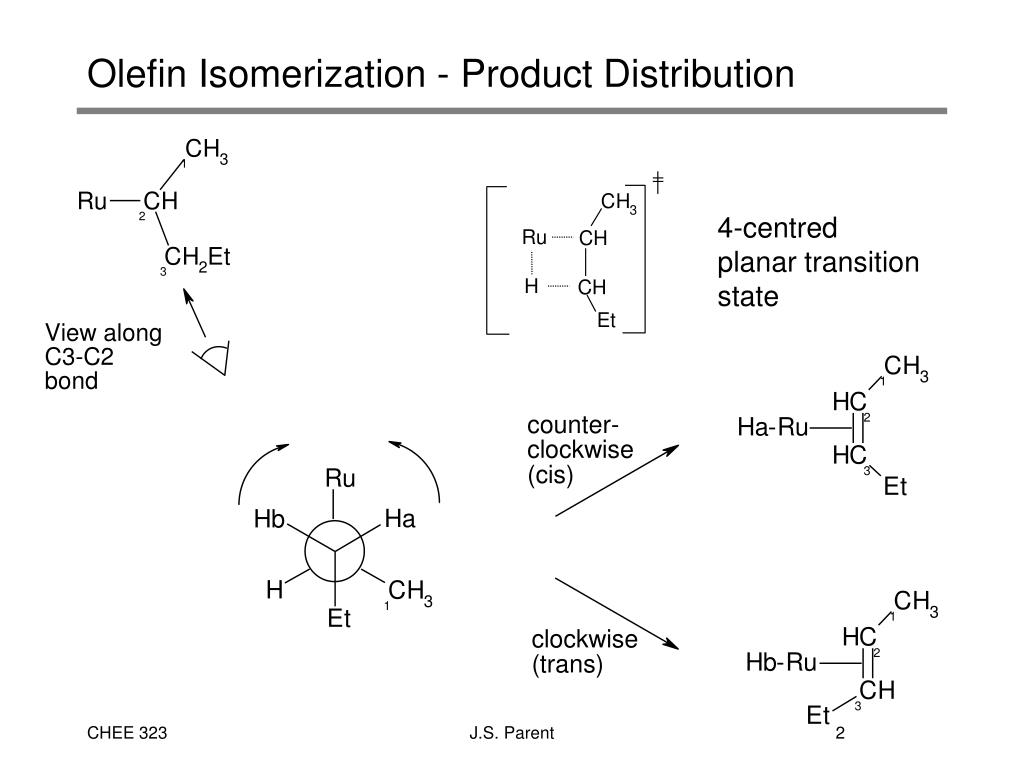

  2. Olefin Isomerization - Product Distribution 4-centred planar transition state J.S. Parent

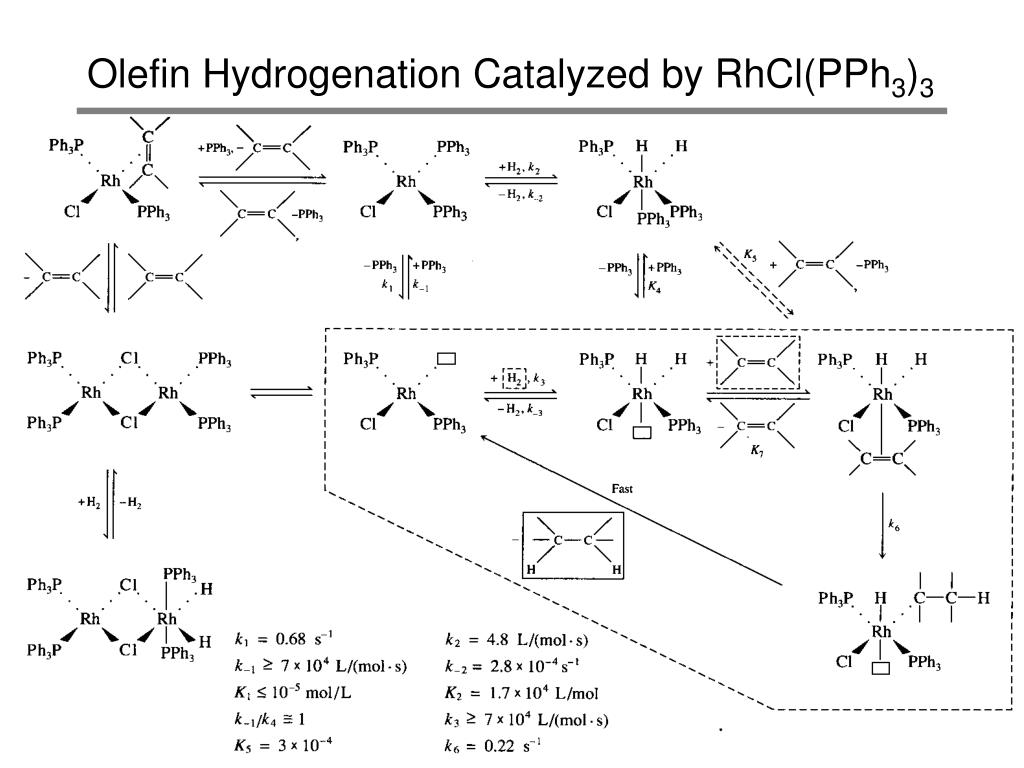

  3. Olefin Hydrogenation Catalyzed by RhCl(PPh3)3 J.S. Parent

  4. Modeling - Not Just for Beautiful People • Using our proposed catalytic mechanism, we can derive a design equation which expresses the hydrogenation rate as a function of process conditions. • This expression can be used to test the mechanism against experimental data • Fitting the expression to the data can yield a model of the reaction for use in process design and control • We will apply the “hydride” pathway as opposed to the “olefin” pathway. 1 K1 K2 K3 2 3 5 r.d.s. k4 irreversible 4 J.S. Parent

  5. Modeling RhCl(PPh3)3 Catalyzed Olefin Hydrogenation • The rate of hydrogenation, as defined by the mechanism, is that of the rate determining step, r4: • Therefore, the reaction rate is: • However, this is not a useful design equation, given that the concentration of RhClH2(C=C)(PPh3)2 cannot be measured. • Treating the mechanism as a sequence of elementary reactions, we can express the reaction rate as: J.S. Parent

  6. Modeling RhCl(PPh3)3 Catalyzed Olefin Hydrogenation • We now have an equation that represents the reaction rate as a function of the process conditions. A simplified form is consistent with experimental data: • If the reaction is run under constant pressure and kinetic control (as opposed to mass transfer limited) we expect the rate of olefin hydrogenation to be: • where: J.S. Parent

  7. Hydrogenation of High-vinyl Polybutadiene • As predicted, the hydrogenation rate is linear with respect to the olefin concentration • the reaction is therefore first-order with respect to [C=C], meaning hydrogenation rates are relatively fast at low olefin conversions, but become quite slow as [C=C] decreases. J.S. Parent

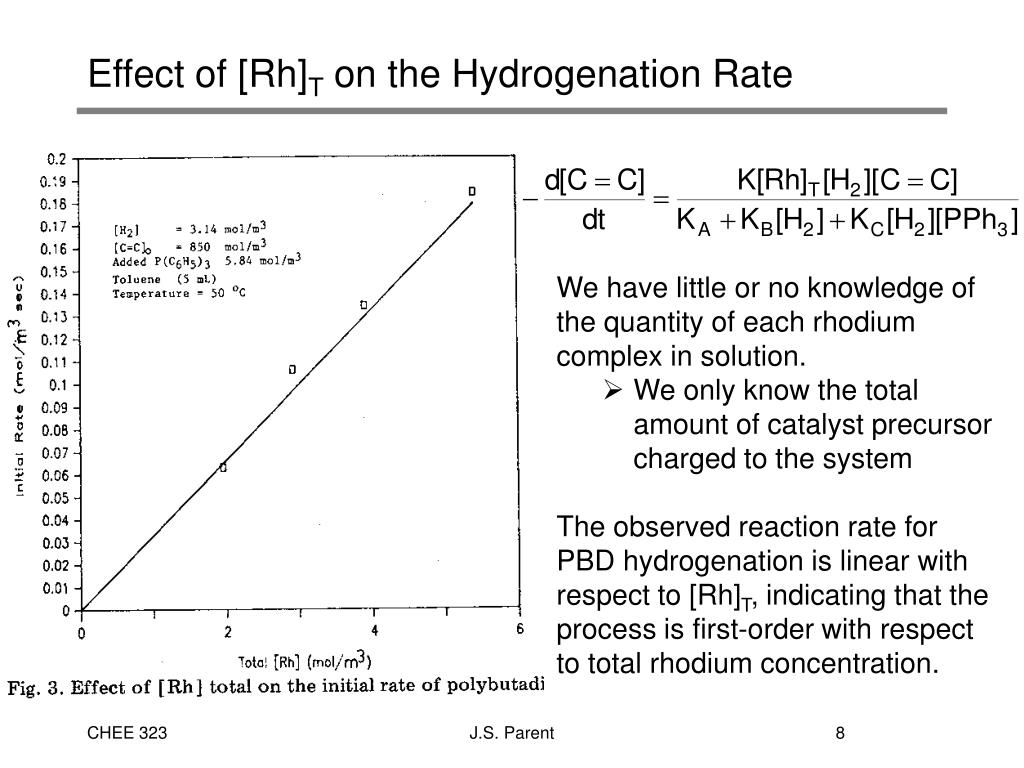

  8. Effect of [Rh]T on the Hydrogenation Rate • We have little or no knowledge of the quantity of each rhodium complex in solution. • We only know the total amount of catalyst precursor charged to the system • The observed reaction rate for PBD hydrogenation is linear with respect to [Rh]T, indicating that the process is first-order with respect to total rhodium concentration. J.S. Parent

  9. Effect of [H2] on the Hydrogenation Rate • The influence of H2 pressure on the reaction rate is complex • At low pressure, the reaction is first-order with respect to [H2] • As the pressure increases, the reaction order diminishes towards zero-order behaviour. • This results from a saturation of the catalytic system with hydrogen. • Once reaction 2 is displaced towards the dihydride, the influence of further H2 is reduced. J.S. Parent

  10. Effect of [PPh3] on the Hydrogenation Rate • PPh3 should be added to the reaction mixture to limit the extent of Rh dimerization (a side reaction shown in Slide 2). • Our kinetic model predicts that additional phosphine will inhibit the hydrogenation rate by displacing reaction 1 towards the tris phosphine complex. • This is demonstrated quite clearly in the hydrogenation of PBD. J.S. Parent
