  1. Tellus&V-Server Data Acquisition And Remote Monitor

  2. Contents • What is Tellus&V-Server?? 2. How to order. 3. Demonstration

  3. 1: What is Tellus&V-Server?? • Tellus&V-Server consists of two different software “Tellus” and “V-Server”. • V-Server is a software for - Data logging - Transfer recipe - and etc. • Tellus has 3 different functions. - Tellus HMI - Tellus Remote - Tellus Emulate

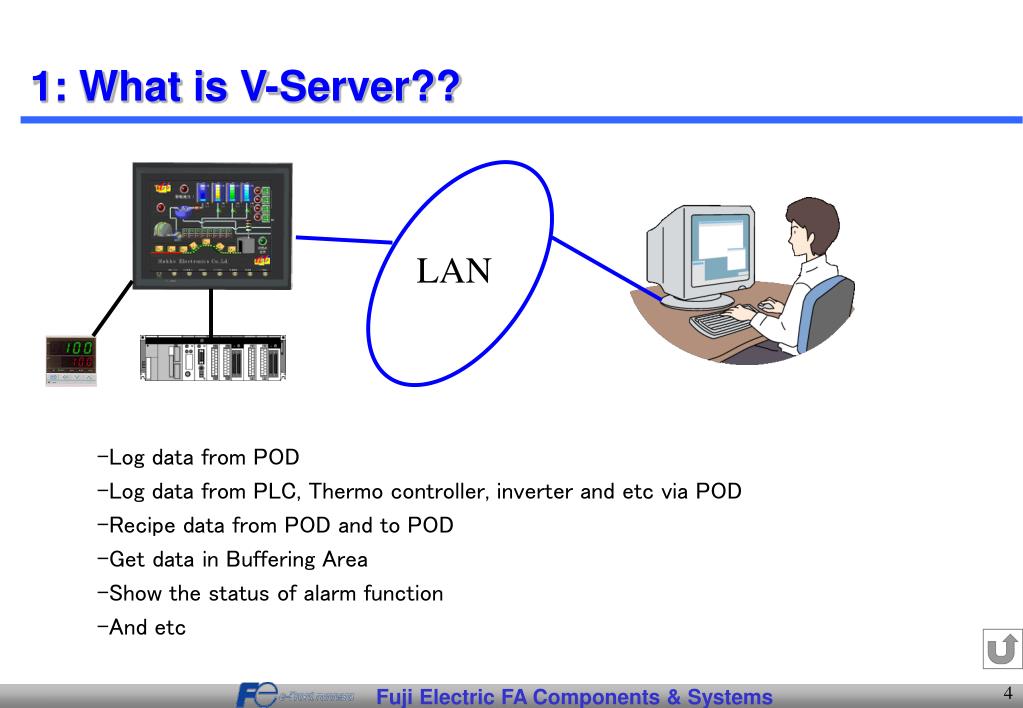

  4. 1: What is V-Server?? LAN • Log data from POD • Log data from PLC, Thermo controller, inverter and etc via POD • Recipe data from POD and to POD • Get data in Buffering Area • Show the status of alarm function • And etc

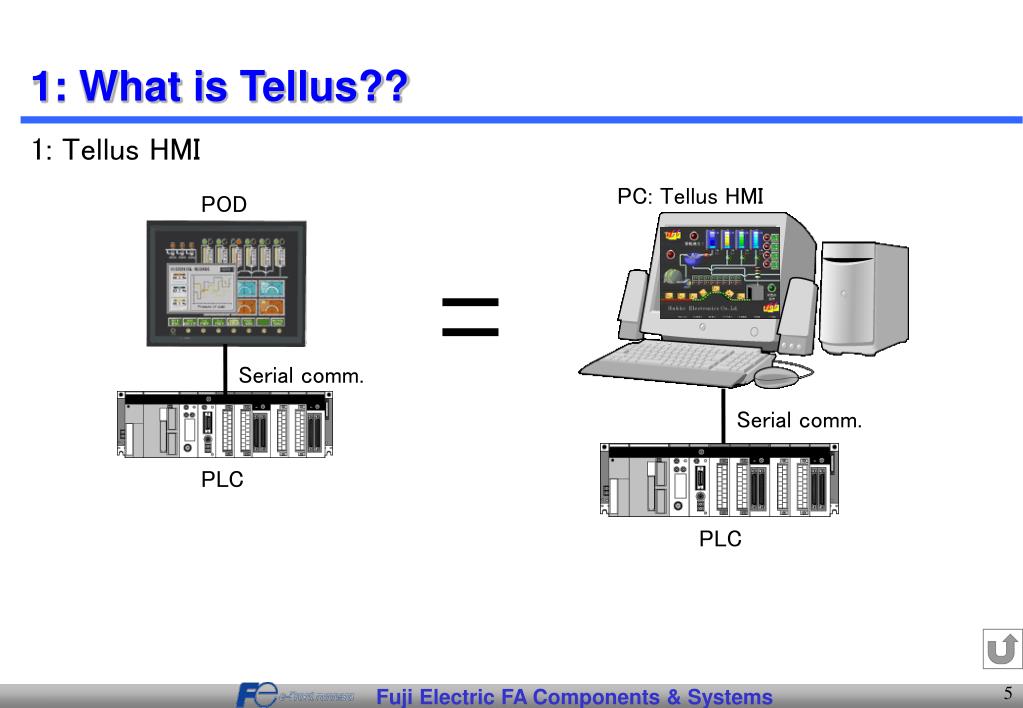

  5. 1: What is Tellus?? 1: Tellus HMI PC: Tellus HMI POD = Serial comm. Serial comm. PLC PLC

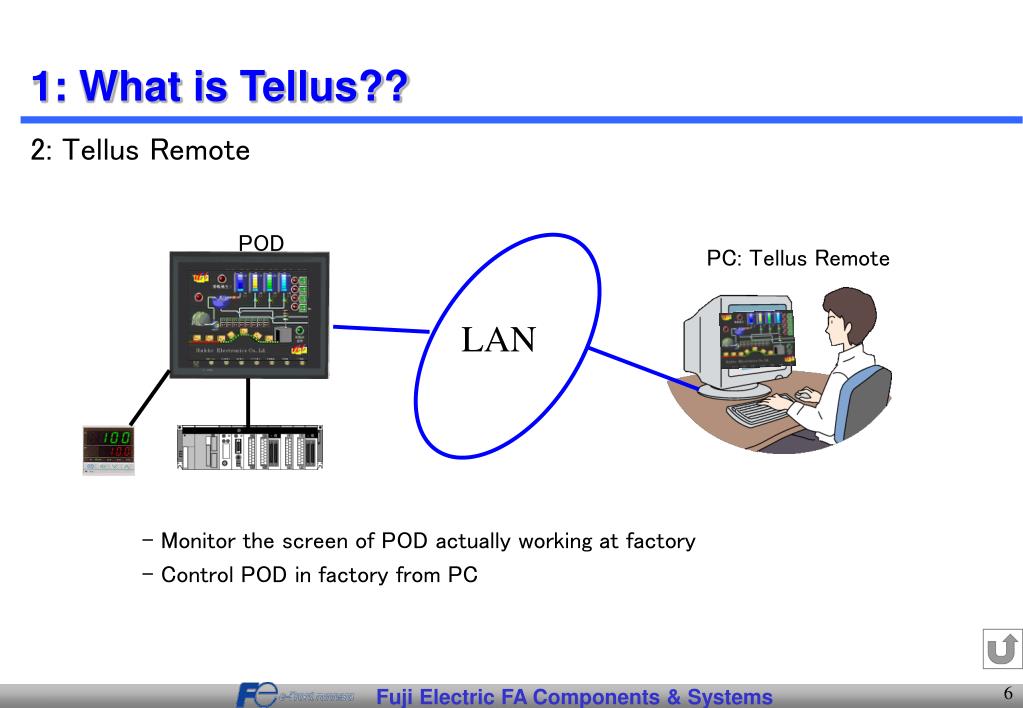

  6. 1: What is Tellus?? 2: Tellus Remote POD PC: Tellus Remote LAN • Monitor the screen of POD actually working at factory • Control POD in factory from PC

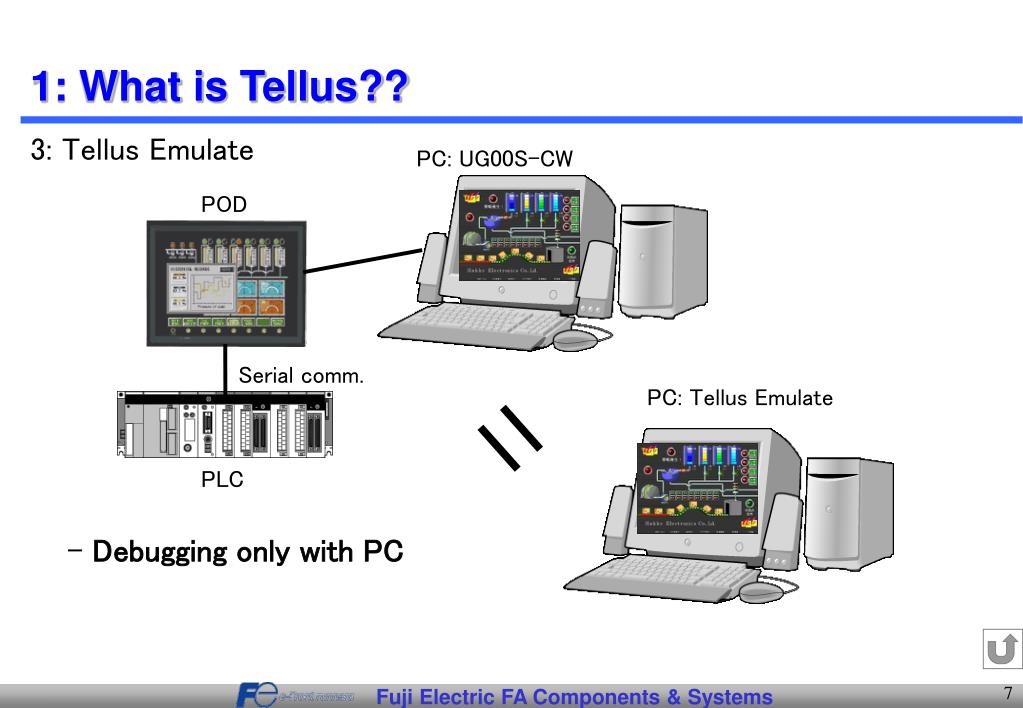

  7. 1: What is Tellus?? 3: Tellus Emulate PC: UG00S-CW POD = Serial comm. PC: Tellus Emulate PLC • Debugging only with PC

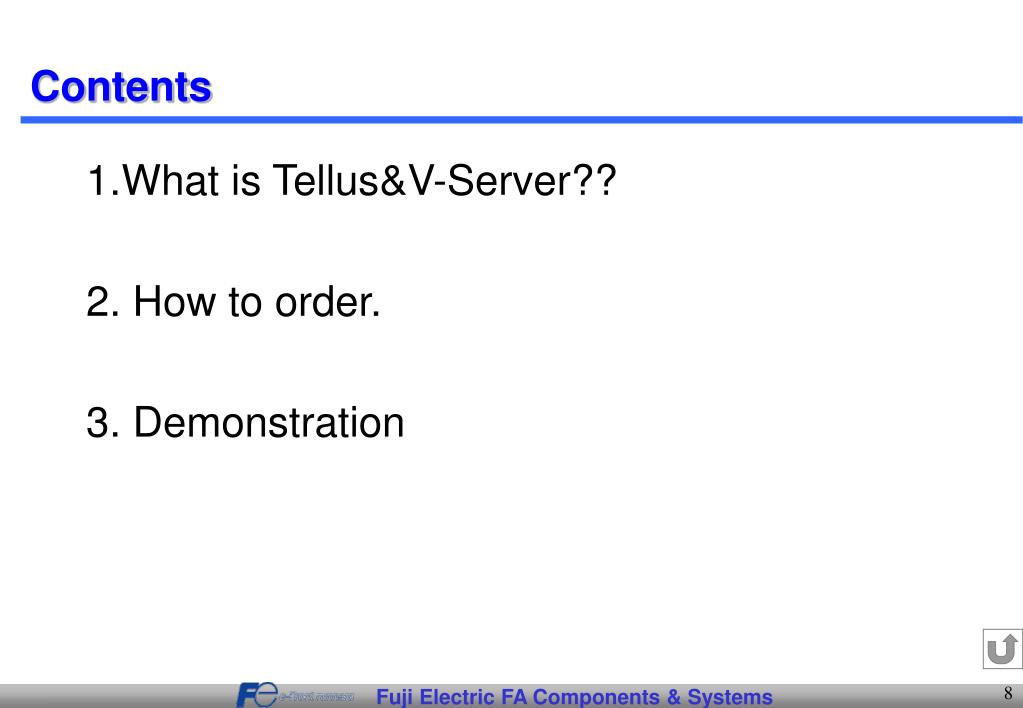

  8. Contents • What is Tellus&V-Server?? 2. How to order. 3. Demonstration

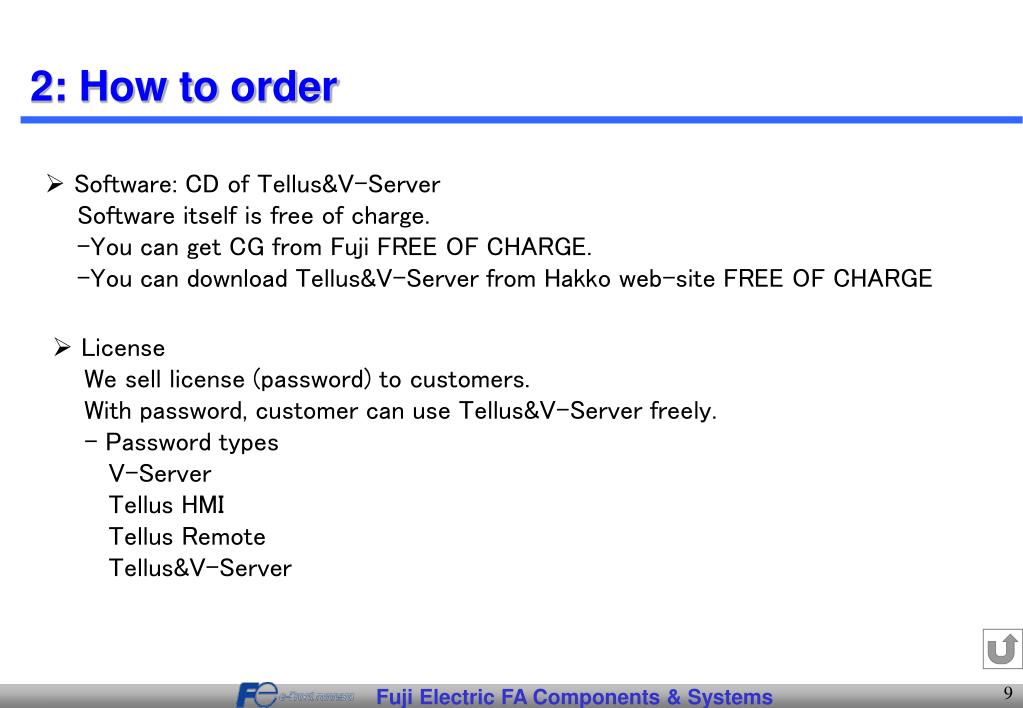

  9. 2: How to order • Software: CD of Tellus&V-Server Software itself is free of charge. -You can get CG from Fuji FREE OF CHARGE. -You can download Tellus&V-Server from Hakko web-site FREE OF CHARGE • License We sell license (password) to customers. With password, customer can use Tellus&V-Server freely. - Password types V-Server Tellus HMI Tellus Remote Tellus&V-Server

  10. 2: How to order • License Without License, - Tellus&V-Server application stops after 1 hour. - Tellus Remote works only 100 times. *Tellus Emulate works without any limitation even without license.

  11. Contents • What is Tellus&V-Server?? 2. How to order. 3. Demonstration

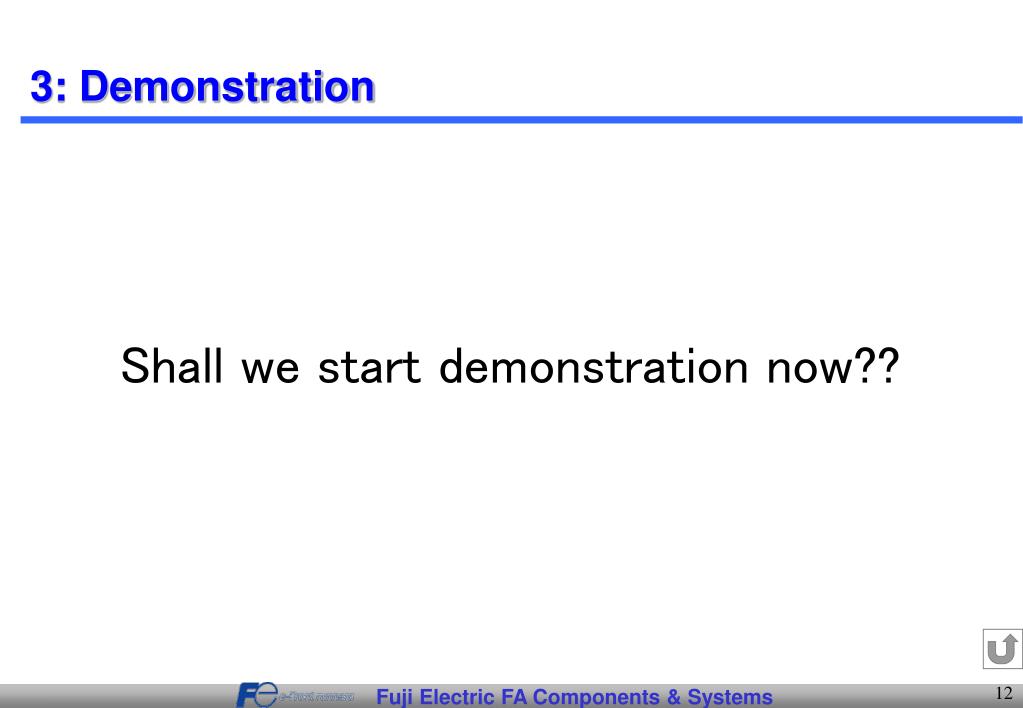

  12. 3: Demonstration Shall we start demonstration now??
