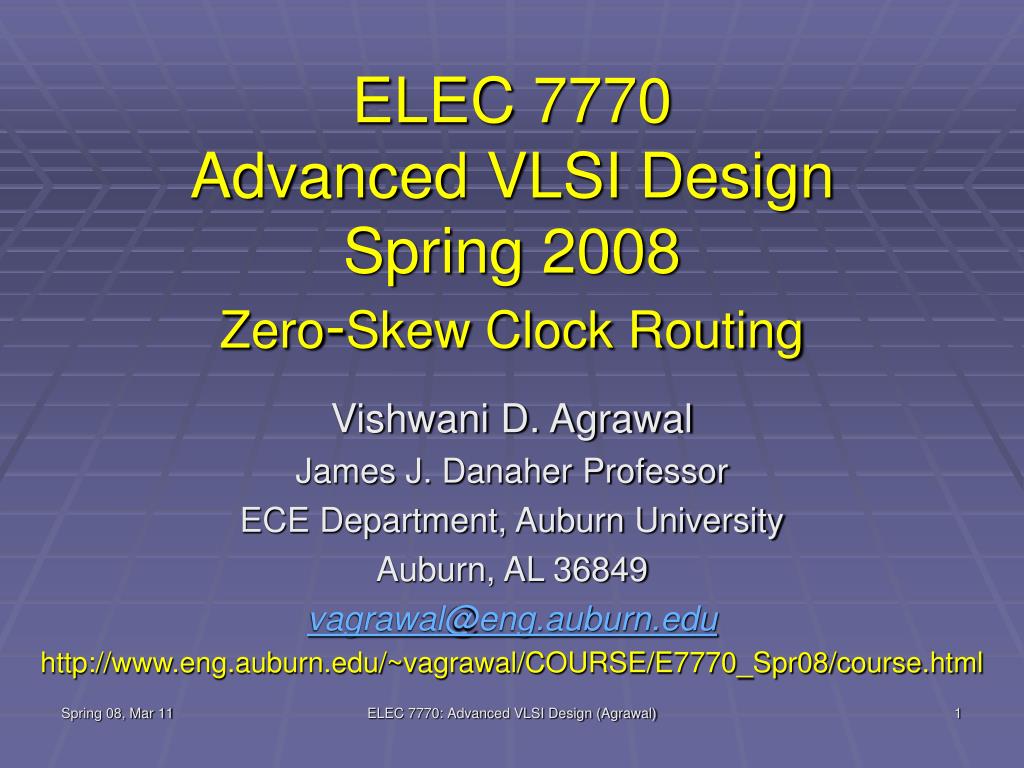

  1. ELEC 7770Advanced VLSI DesignSpring 2008Zero-Skew Clock Routing Vishwani D. Agrawal James J. Danaher Professor ECE Department, Auburn University Auburn, AL 36849 vagrawal@eng.auburn.edu http://www.eng.auburn.edu/~vagrawal/COURSE/E7770_Spr08/course.html ELEC 7770: Advanced VLSI Design (Agrawal)

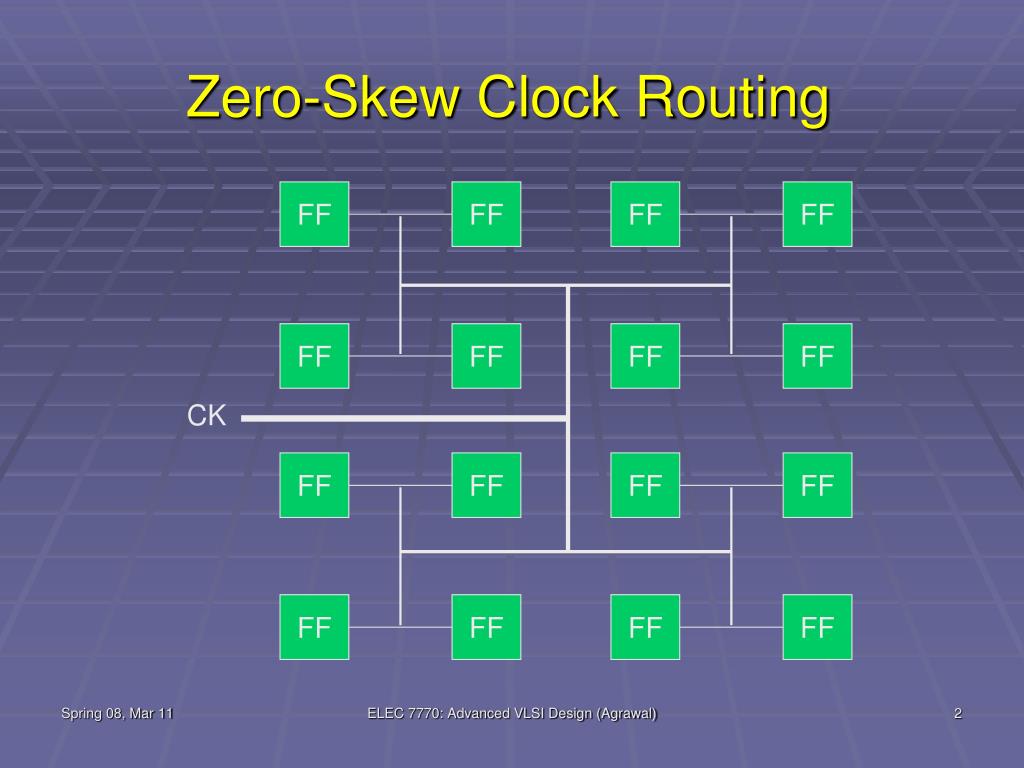

  2. Zero-Skew Clock Routing FF FF FF FF FF FF FF FF CK FF FF FF FF FF FF FF FF ELEC 7770: Advanced VLSI Design (Agrawal)

  3. Zero-Skew: References • H-Tree • A. L. Fisher and H. T. Kung, “Synchronizing Large Systolic Arrays,” Proc. SPIE, vol. 341, pp. 44-52, May 1982. • A. Kahng, J. Cong and G. Robins, “Hig-Performance Clock Routing Based on Recursive Geomrtric Matching,” Proc. Design Automation Conf., June 1991, pp. 322-327. • M. A. B. Jackson, A. Srinivasan and E. S. Kuh, “Clock Routing for High-Performance IC’s,” Proc. Design Automation Conf., June 1990, pp. 573-579. ELEC 7770: Advanced VLSI Design (Agrawal)

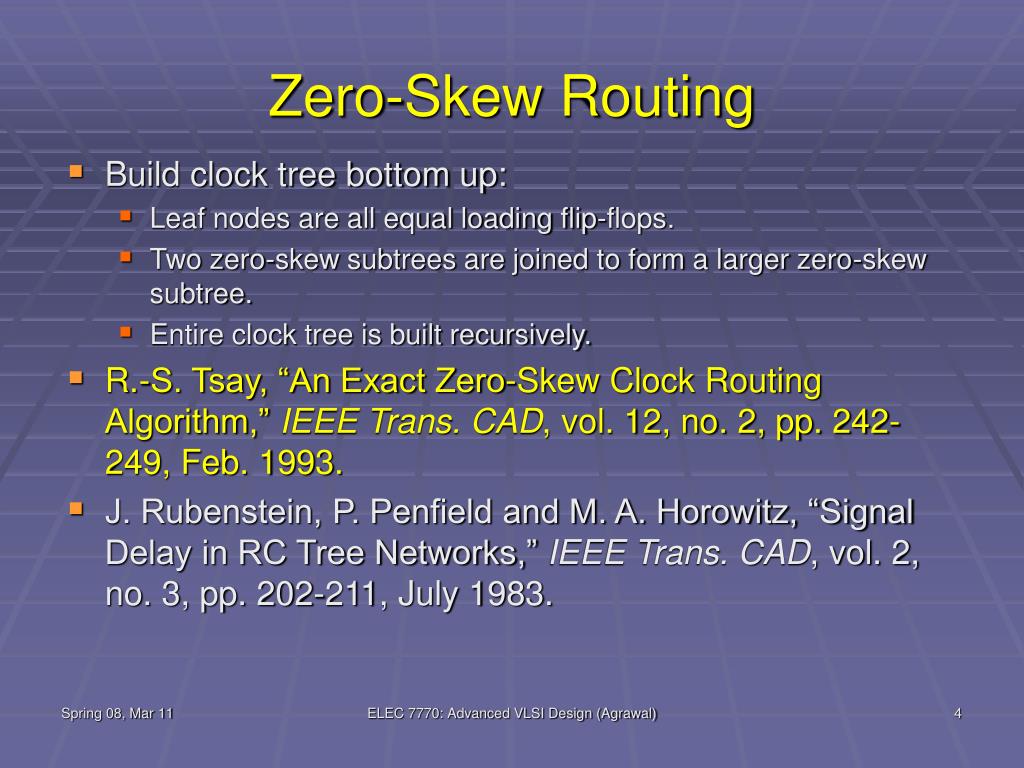

  4. Zero-Skew Routing • Build clock tree bottom up: • Leaf nodes are all equal loading flip-flops. • Two zero-skew subtrees are joined to form a larger zero-skew subtree. • Entire clock tree is built recursively. • R.-S. Tsay, “An Exact Zero-Skew Clock Routing Algorithm,” IEEE Trans. CAD, vol. 12, no. 2, pp. 242-249, Feb. 1993. • J. Rubenstein, P. Penfield and M. A. Horowitz, “Signal Delay in RC Tree Networks,” IEEE Trans. CAD, vol. 2, no. 3, pp. 202-211, July 1983. ELEC 7770: Advanced VLSI Design (Agrawal)

  5. Balancing Subtrees (1) xL r1 A t1 c1/2 c1/2 C1 Subtree 1 Tapping point (1 – x)L r2 B t2 c2/2 c2/2 C2 Subtree 2 ELEC 7770: Advanced VLSI Design (Agrawal)

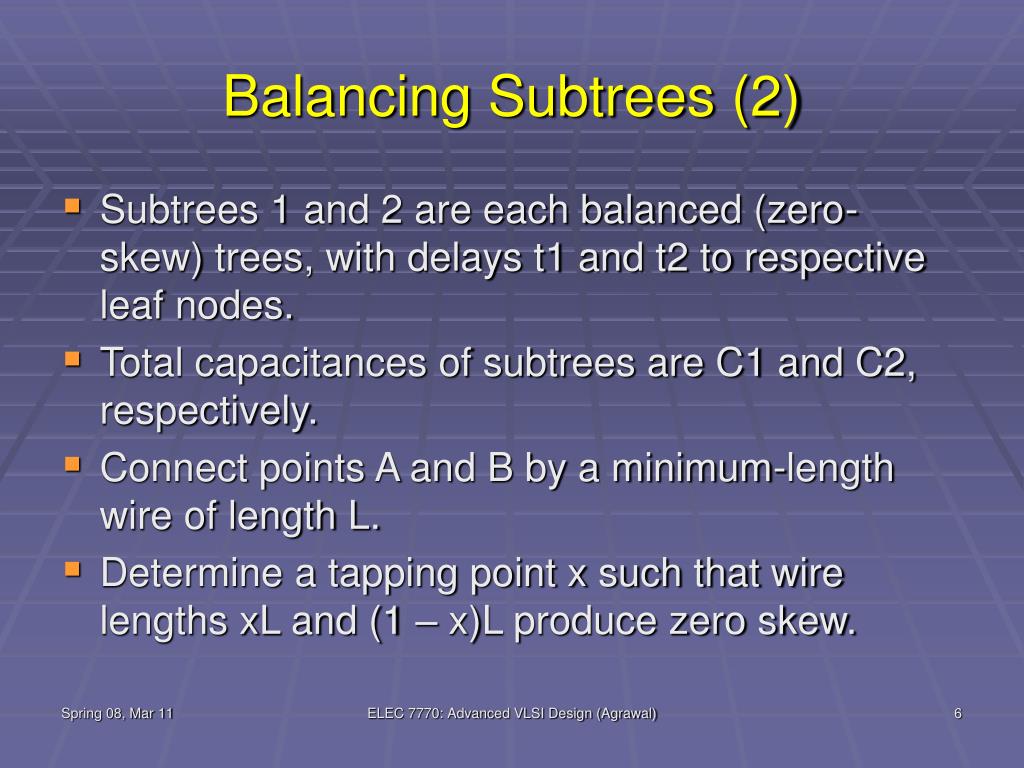

  6. Balancing Subtrees (2) • Subtrees 1 and 2 are each balanced (zero-skew) trees, with delays t1 and t2 to respective leaf nodes. • Total capacitances of subtrees are C1 and C2, respectively. • Connect points A and B by a minimum-length wire of length L. • Determine a tapping point x such that wire lengths xL and (1 – x)L produce zero skew. ELEC 7770: Advanced VLSI Design (Agrawal)

  7. Balancing Subtrees (3) • Use Elmore delay formula: r1(C1 + c1/2) + t1 = r2(C2 + c2/2) + t2 • Substitute: • r1 = axL, r2 = a(1 – x)L • c1 = bxL, c2 = b(1 –x)L abL2x + aL(C1+C2)x = (t2 – t1) + aL(C2+bL/2) • Then solve for x: (t2 – t1) + aL (C2 + bL/2) x = ──────────────── aL(bL + C1 + C2) ELEC 7770: Advanced VLSI Design (Agrawal)

  8. Balancing Subtrees Example 1 • Subtree parameters: • Subtree 1: t1 = 5ps, C1 = 3pF • Subtree 2: t2 = 10ps, C2 = 6pF • Interconnect: • L = 1mm • Wire parameters: a = 100Ω/cm, b = 1pF/cm • Tapping point: (t2 – t1) + aL (C2 + bL/2) (10–5) + 100×0.1(6 + 1×0.1/2) x = ──────────────── = ────────────────── aL (bL + C1 + C2) 100×0.1(1×0.1+3+6) = (5 + 60.5)/(10×9.1) = 0.7198 ELEC 7770: Advanced VLSI Design (Agrawal)

  9. Example 1 FF t1 = 5ps, C1 = 3pF FF 0.7198mm FF Subtree 1 FF To next level FF 0.2802mm t2 = 10ps, C2 = 6pF FF FF Subtree 2 ELEC 7770: Advanced VLSI Design (Agrawal)

  10. Balancing Subtrees, x > 1 • Tapping point set at root of tree with larger loading (C2, t2). • Wire to the root of other tree is elongated to provide additional delay. Wire length L found as follows: • Set x = 1 in abL2x + aL(C1+C2)x = (t2 – t1) + aL(C2+bL/2) i.e., L2 + (2C1/b)L – 2(t2 – t1)/(ab) = 0 • Wire length is given by: [(aC1)2+2ab(t2 – t1)]½ – aC1 L = ────────────────── a b • R.-S. Tsay, “An Exact Zero-Skew Clock Routing Algorithm,” IEEE Trans. CAD, vol. 12, no. 2, pp. 242-249, Feb. 1993. ELEC 7770: Advanced VLSI Design (Agrawal)

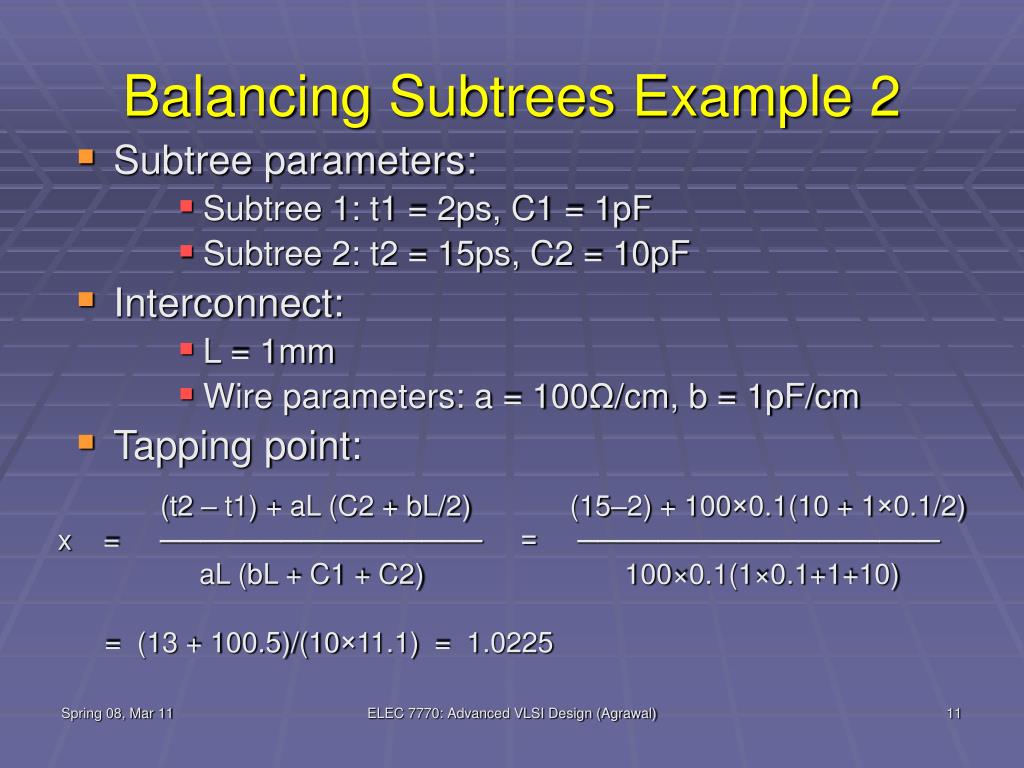

  11. Balancing Subtrees Example 2 • Subtree parameters: • Subtree 1: t1 = 2ps, C1 = 1pF • Subtree 2: t2 = 15ps, C2 = 10pF • Interconnect: • L = 1mm • Wire parameters: a = 100Ω/cm, b = 1pF/cm • Tapping point: (t2 – t1) + aL (C2 + bL/2) (15–2) + 100×0.1(10 + 1×0.1/2) x = ──────────────── = ────────────────── aL (bL + C1 + C2) 100×0.1(1×0.1+1+10) = (13 + 100.5)/(10×11.1) = 1.0225 ELEC 7770: Advanced VLSI Design (Agrawal)

  12. Example 2, x = 1.0225 Setting x = 1.0, [(aC1)2+2ab(t2 – t1)]½ – aC1 L = ────────────────── a b [(100×1)2+2100×1(15 – 2)]½ – 100×1 = ─────────────────────── 100×1 = 0.1225cm ELEC 7770: Advanced VLSI Design (Agrawal)

  13. Example 2, L = 1.255mm FF t1 = 2ps, C1 = 1pF FF FF Subtree 1 L = 1.225mm FF FF To next level t2 = 15ps, C2 = 10pF FF FF Subtree 2 ELEC 7770: Advanced VLSI Design (Agrawal)

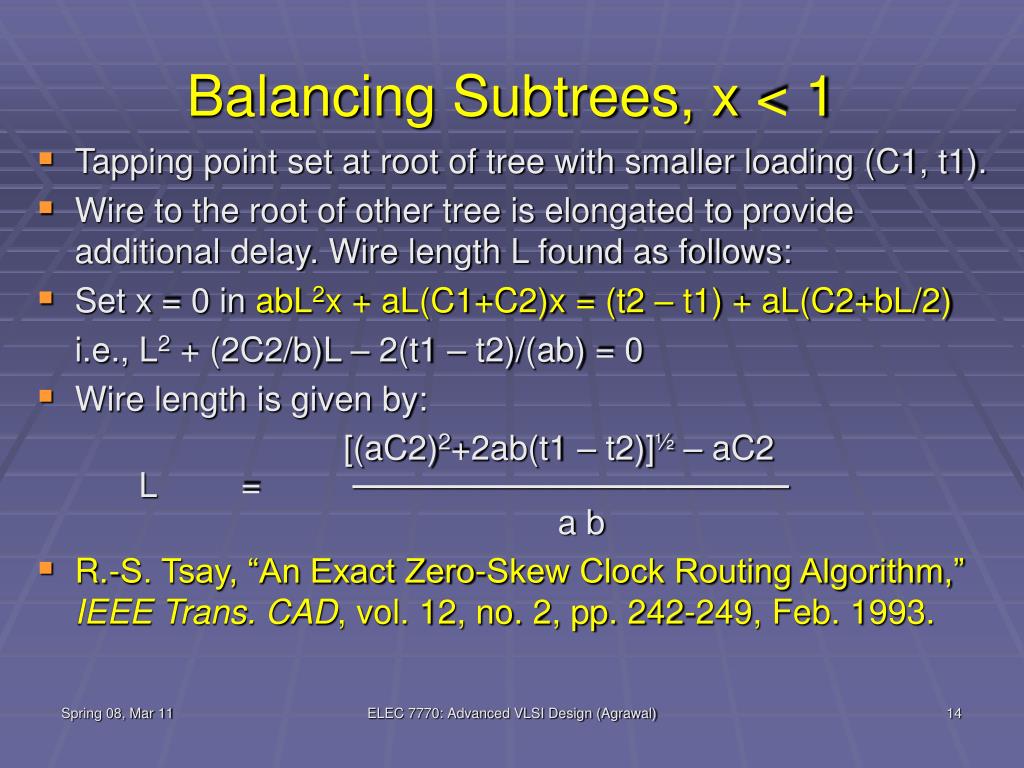

  14. Balancing Subtrees, x < 1 • Tapping point set at root of tree with smaller loading (C1, t1). • Wire to the root of other tree is elongated to provide additional delay. Wire length L found as follows: • Set x = 0 in abL2x + aL(C1+C2)x = (t2 – t1) + aL(C2+bL/2) i.e., L2 + (2C2/b)L – 2(t1 – t2)/(ab) = 0 • Wire length is given by: [(aC2)2+2ab(t1 – t2)]½ – aC2 L = ────────────────── a b • R.-S. Tsay, “An Exact Zero-Skew Clock Routing Algorithm,” IEEE Trans. CAD, vol. 12, no. 2, pp. 242-249, Feb. 1993. ELEC 7770: Advanced VLSI Design (Agrawal)

  15. Balancing Subtrees Example 3 • Subtree parameters: • Subtree 1: t1 = 15ps, C1 = 10pF • Subtree 2: t2 = 2ps, C2 = 1pF • Interconnect: • L = 1mm • Wire parameters: a = 100Ω/cm, b = 1pF/cm • Tapping point: (t2 – t1) + aL (C2 + bL/2) (2–15) + 100×0.1(1 + 1×0.1/2) x = ──────────────── = ────────────────── aL (bL + C1 + C2) 100×0.1(1×0.1+1+10) = ( – 13 + 10.5)/(10×11.1) = – 0.0225 ELEC 7770: Advanced VLSI Design (Agrawal)

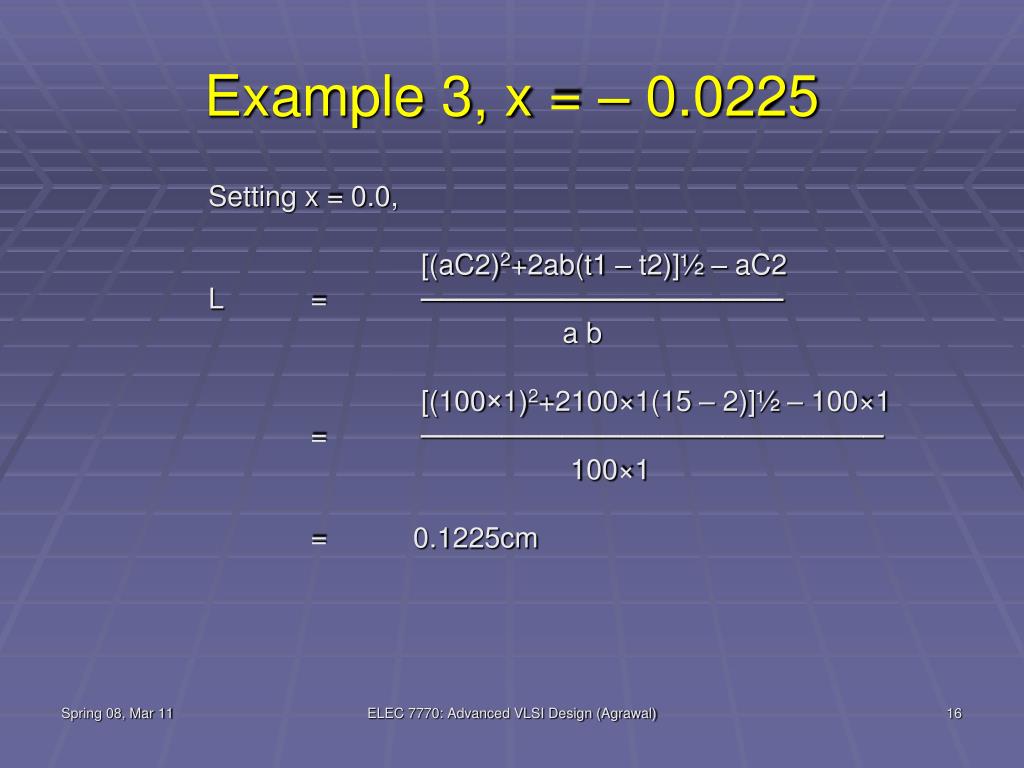

  16. Example 3, x = – 0.0225 Setting x = 0.0, [(aC2)2+2ab(t1 – t2)]½ – aC2 L = ────────────────── a b [(100×1)2+2100×1(15 – 2)]½ – 100×1 = ─────────────────────── 100×1 = 0.1225cm ELEC 7770: Advanced VLSI Design (Agrawal)

  17. Example 3, L = 1.255mm FF FF To next level t1 = 15ps, C1 = 10pF FF FF Subtree 1 L = 1.225mm FF t2 = 2ps, C2 = 1pF FF FF Subtree 2 ELEC 7770: Advanced VLSI Design (Agrawal)

  18. Zero-Skew Design Delay =75ns Delay = 50ns FF A FF B FF C Comb. Comb. CK CK time Tck = 75ns Single-cycle path delay ELEC 7770: Advanced VLSI Design (Agrawal)

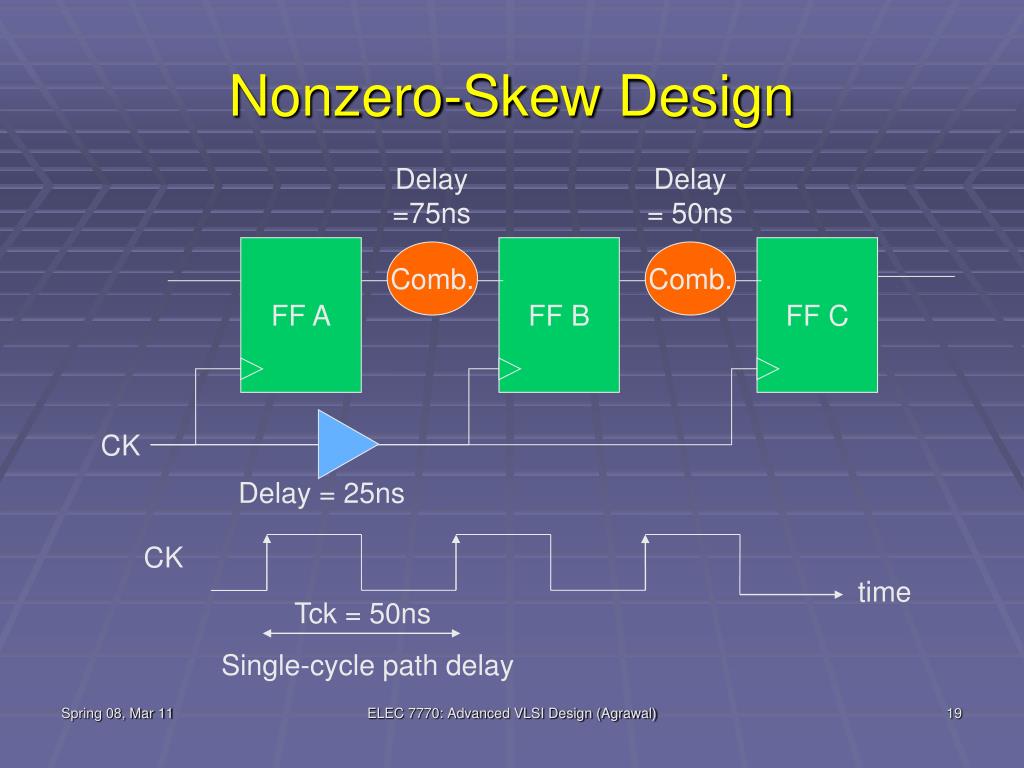

  19. Nonzero-Skew Design Delay =75ns Delay = 50ns FF A FF B FF C Comb. Comb. CK Delay = 25ns CK time Tck = 50ns Single-cycle path delay ELEC 7770: Advanced VLSI Design (Agrawal)

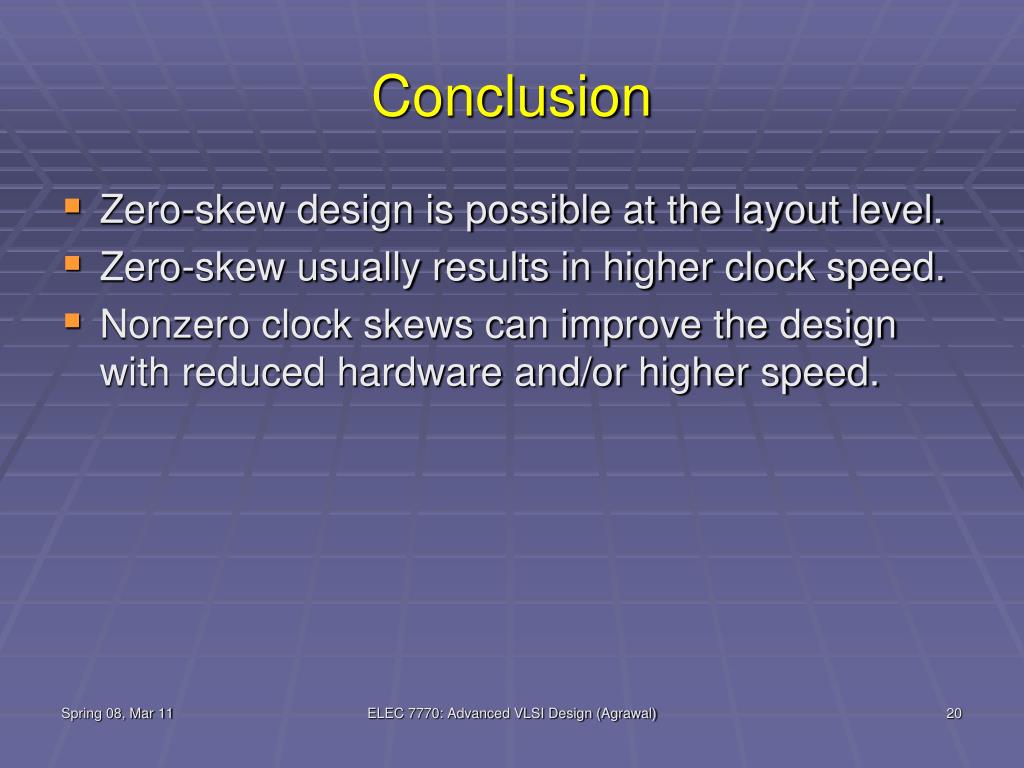

  20. Conclusion • Zero-skew design is possible at the layout level. • Zero-skew usually results in higher clock speed. • Nonzero clock skews can improve the design with reduced hardware and/or higher speed. ELEC 7770: Advanced VLSI Design (Agrawal)
