  1. PW2_HOOK_LEVER_BACK 2010/10/25 Rev1回覆 客戶:WISTRON 審查: 吳玠玞 檢討人:蔡川典 報告製作人:吳玠玞 報告日期:2010/10/25

  2. 大綱

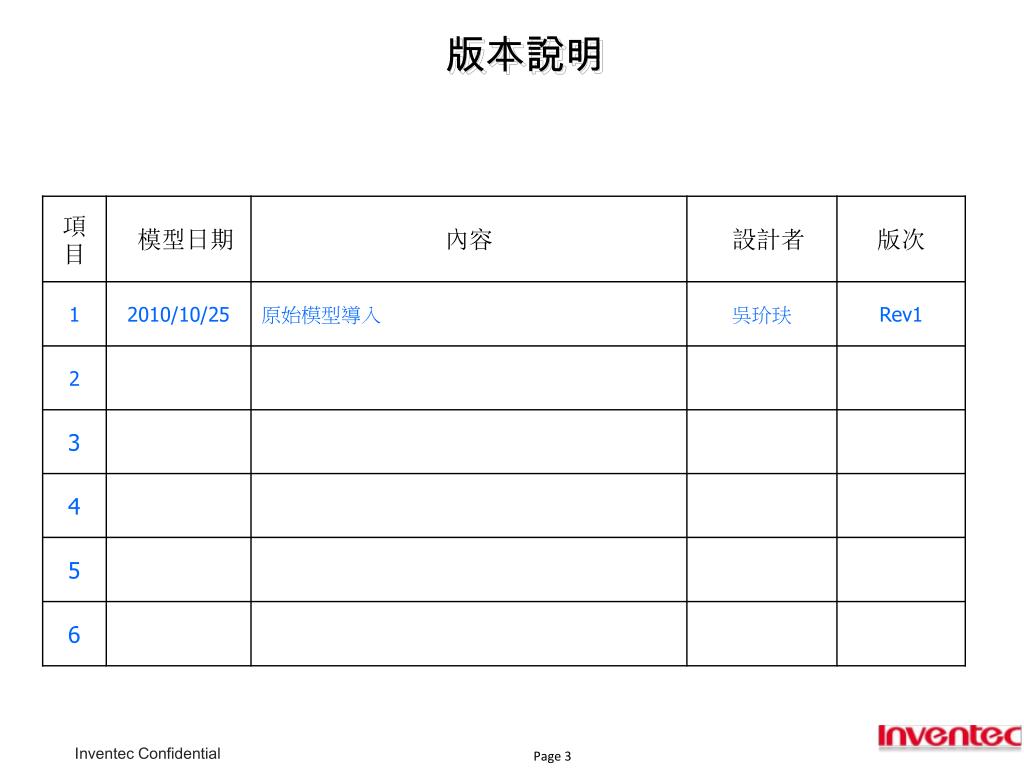

  3. 版本說明

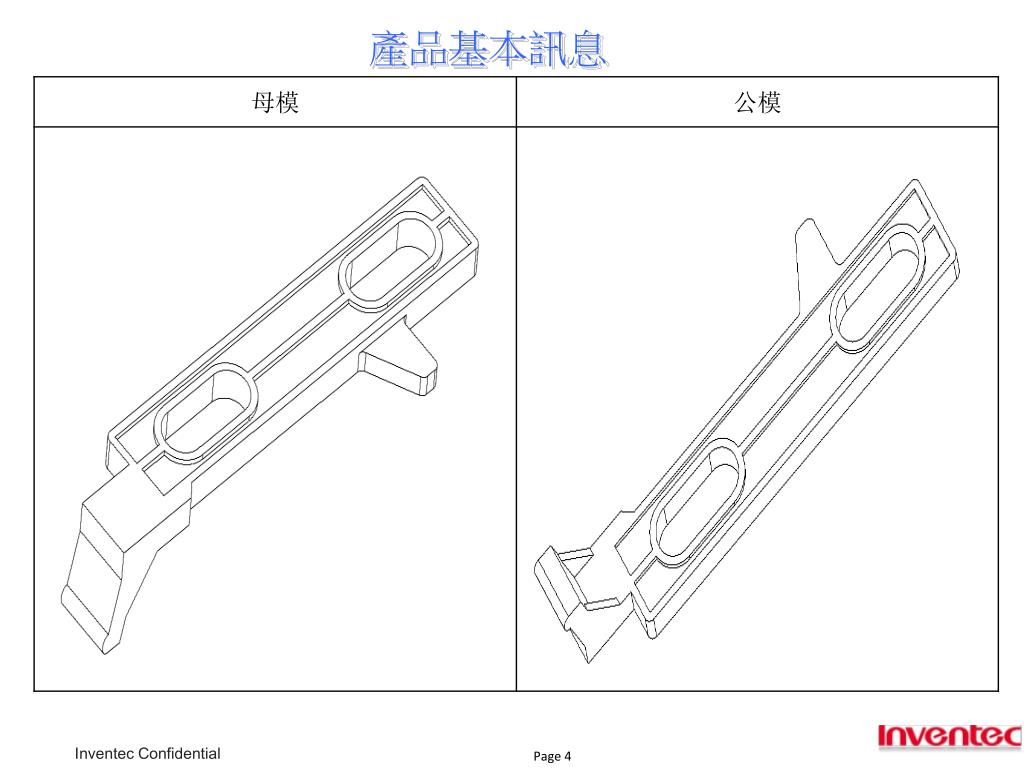

  4. 產品基本訊息

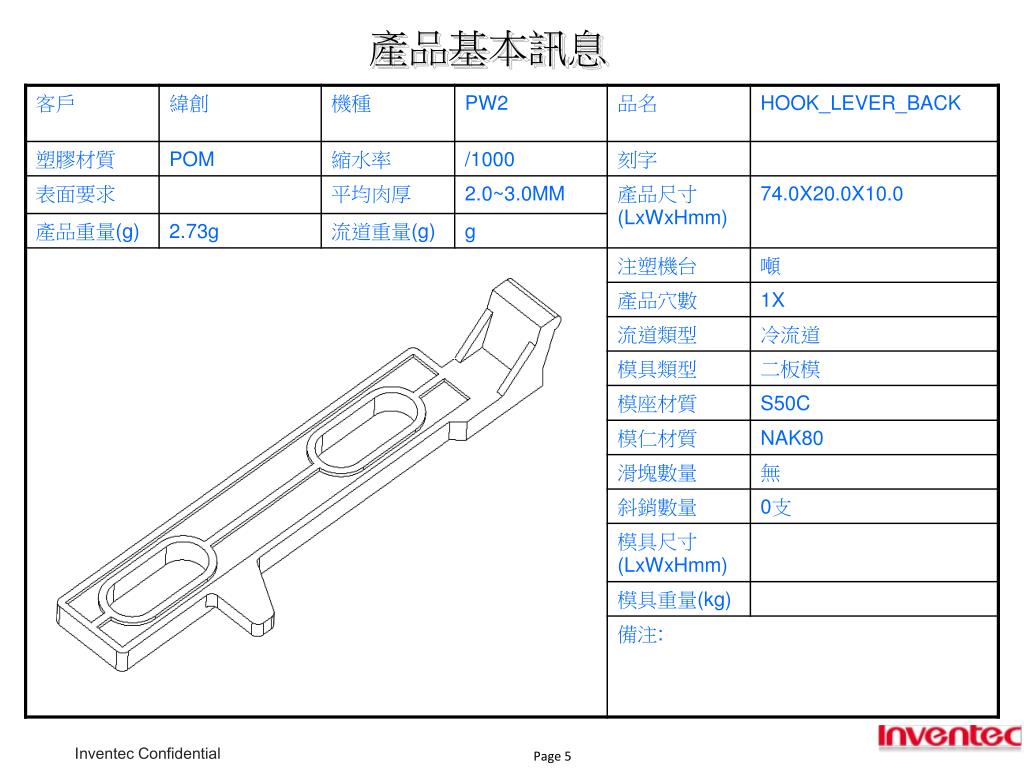

  5. 產品基本訊息

  6. 產品基本訊息 1.外觀是否噴漆？或印刷？電鍍？鐳雕位置或範圍？ 成品面是否咬花？若咬花﹐請指明咬花區域及規格? 2.產品外觀及公模刻字內容和位置？

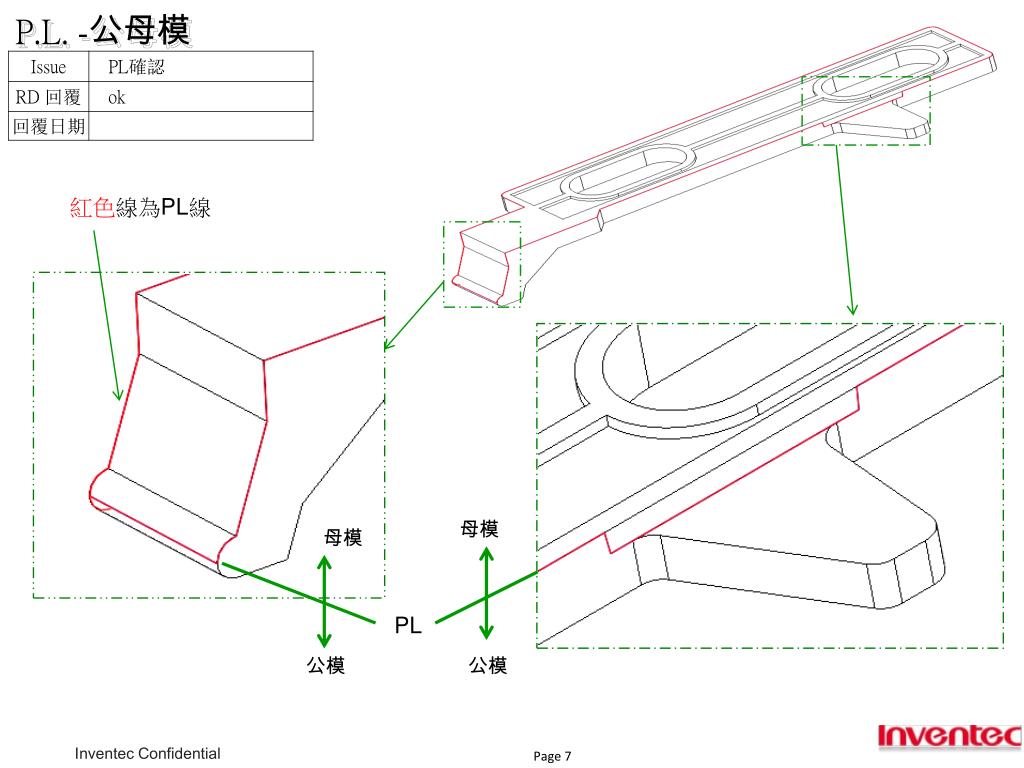

  7. P.L. -公母模 紅色線為PL線 母模 母模 PL 公模 公模

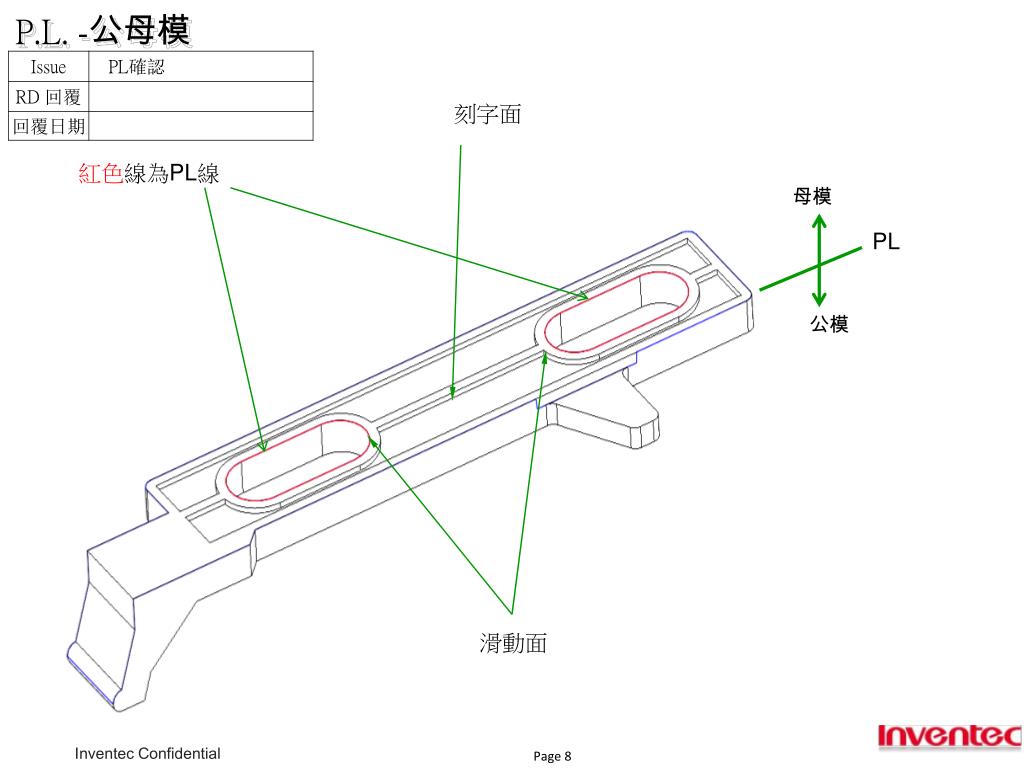

  8. P.L. -公母模 刻字面 紅色線為PL線 母模 PL 公模 滑動面

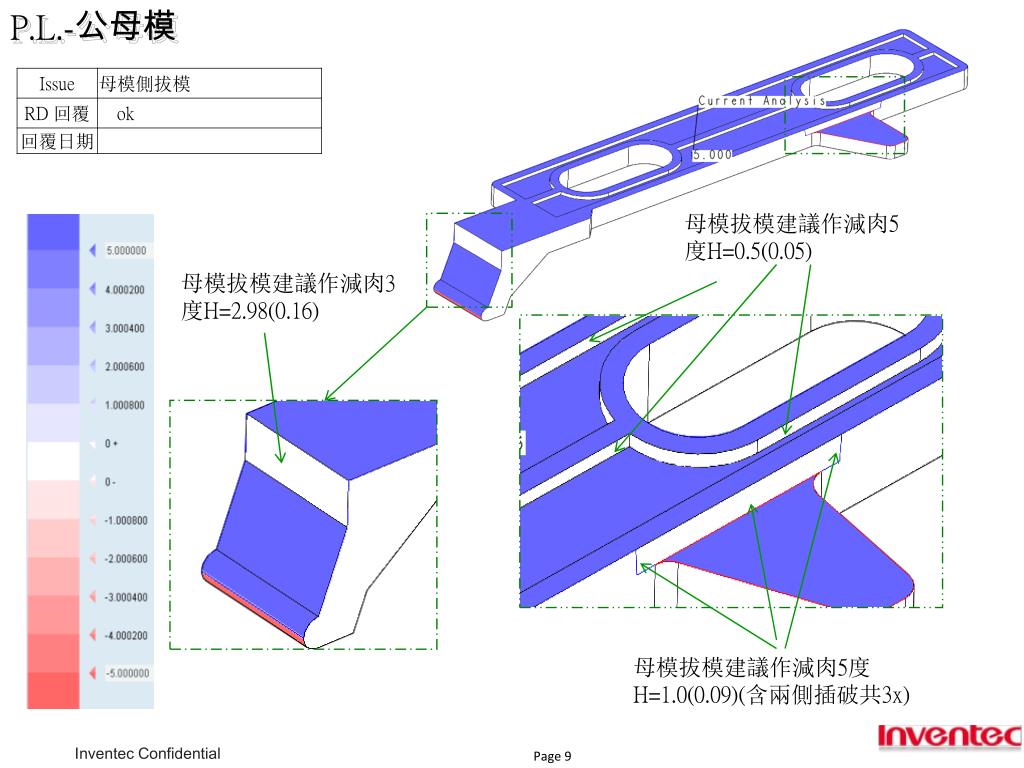

  9. P.L.-公母模 母模拔模建議作減肉5度H=0.5(0.05) 母模拔模建議作減肉3度H=2.98(0.16) 母模拔模建議作減肉5度H=1.0(0.09)(含兩側插破共3x)

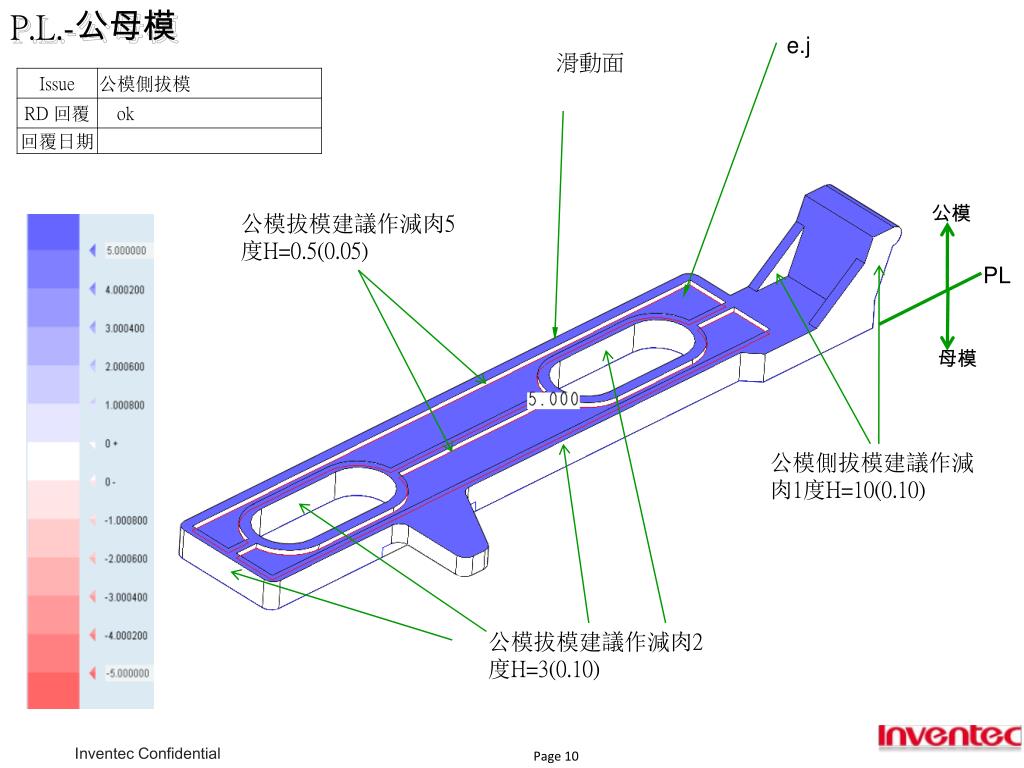

  10. P.L.-公母模 e.j 滑動面 公模 公模拔模建議作減肉5度H=0.5(0.05) PL 母模 公模側拔模建議作減肉1度H=10(0.10) 公模拔模建議作減肉2度H=3(0.10)

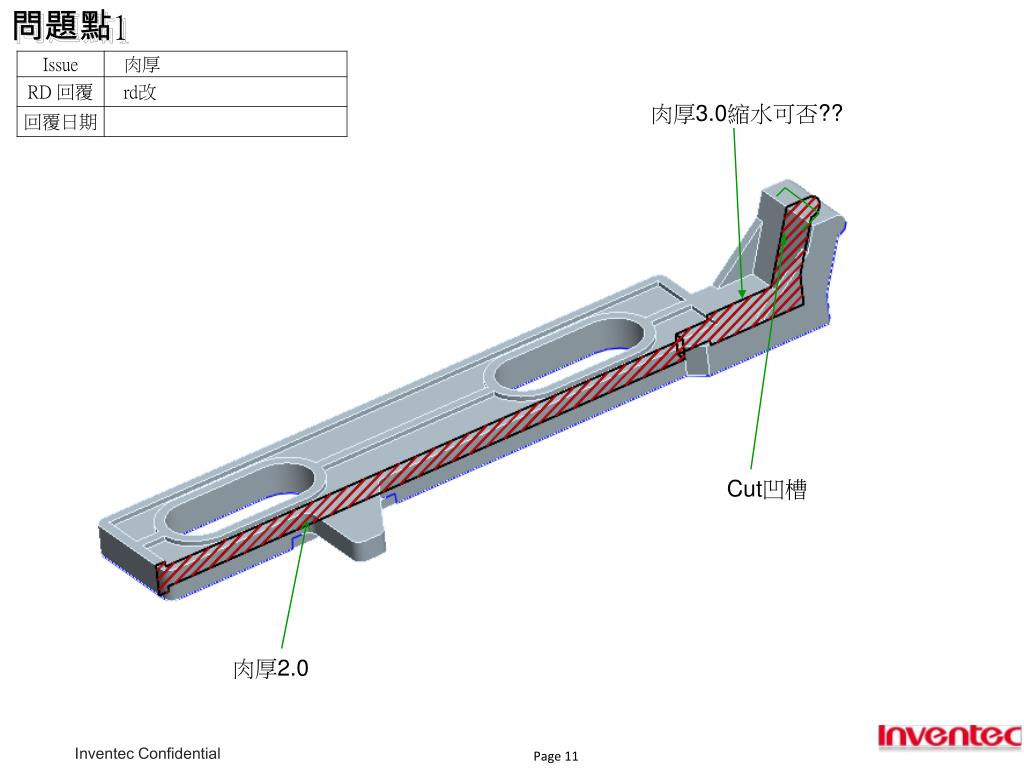

  11. 問題點1 肉厚3.0縮水可否?? Cut凹槽 肉厚2.0

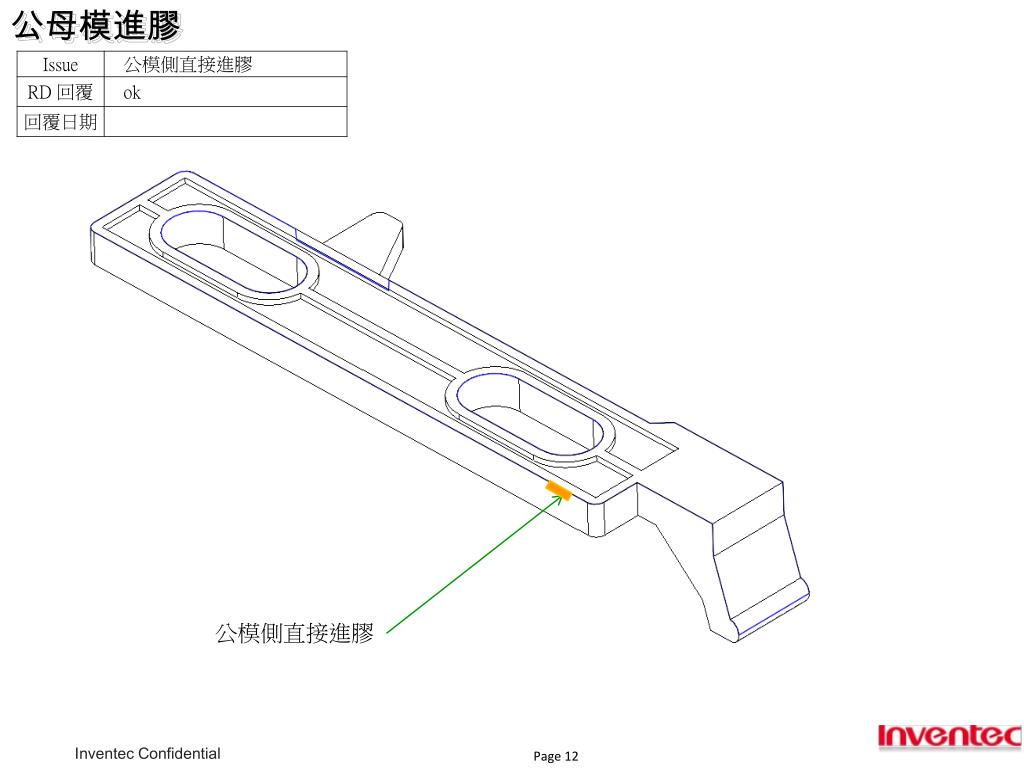

  12. 公母模進膠 公模側直接進膠

  13. Questions and Answers
