  1. Lab 12: Dissolved Oxygen Ms. B Let's begin by looking at factors that influence the availability of oxygen… Adapted from: http://www.phschool.com/science/biology_place/labbench/lab12/concepts.html

  2. Oxygen is essential for cellular respiration in most organisms • factors that affect amount of dissolved O2 in water: • temperature • as water temperature, its ability to hold O2 decreases • photosynthetic activity • in bright light, aquatic plants produce more O2 • decomposition activity • as organic matter decays, microbial respiration consumes O2 • mixing & turbulence • wave action, waterfalls & rapids aerate H2O & O2 • salinity • as water becomes more salty, its ability to hold O2 decreases

  3. Primary Productivity • Rate at which plants and other photosynthetic organisms produce organic compounds in an ecosystem. • Gross productivity = the entire photosynthetic production of organic compounds in an ecosystem • Net productivity = the organic materials that remain after photosynthetic organisms in the ecosystem have used some of these compounds for their cellular energy needs (cellular respiration).

  4. Lab 12: Dissolved Oxygen • primary productivity • measured in 3 ways: • amount of CO2 used • rate of sugar (biomass) formation • rate of O2 production

  5. Measuring O2 saturation: Using a Nomograph • To measure how much oxygen water can hold (saturation), you need to be able to read a nomograph. • Many kits and testing procedures are available for measuring dissolved oxygen.

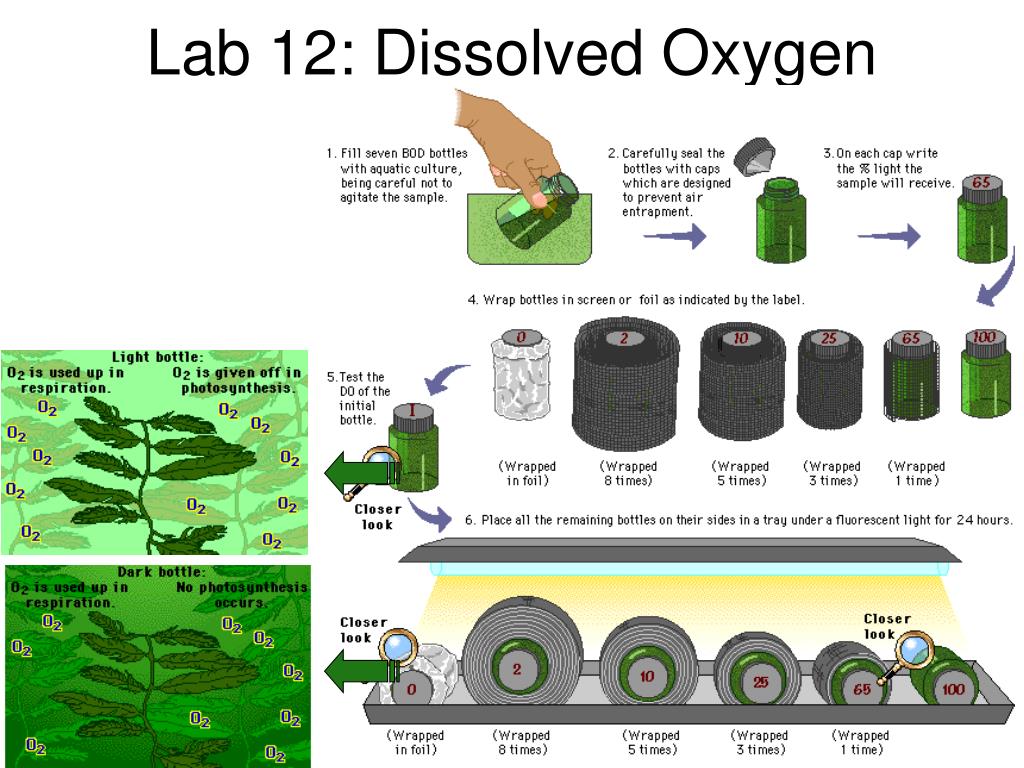

  6. Lab Procedure • Monitor the effect of varying light levels on dissolved oxygen in an algae-rich water culture • Amount of light available for photosynthesis drops off sharply with increasing depth in an aquatic environment • Can model this condition by wrapping water-sample bottles with increasing layers of screen

  7. Lab 12: Dissolved Oxygen

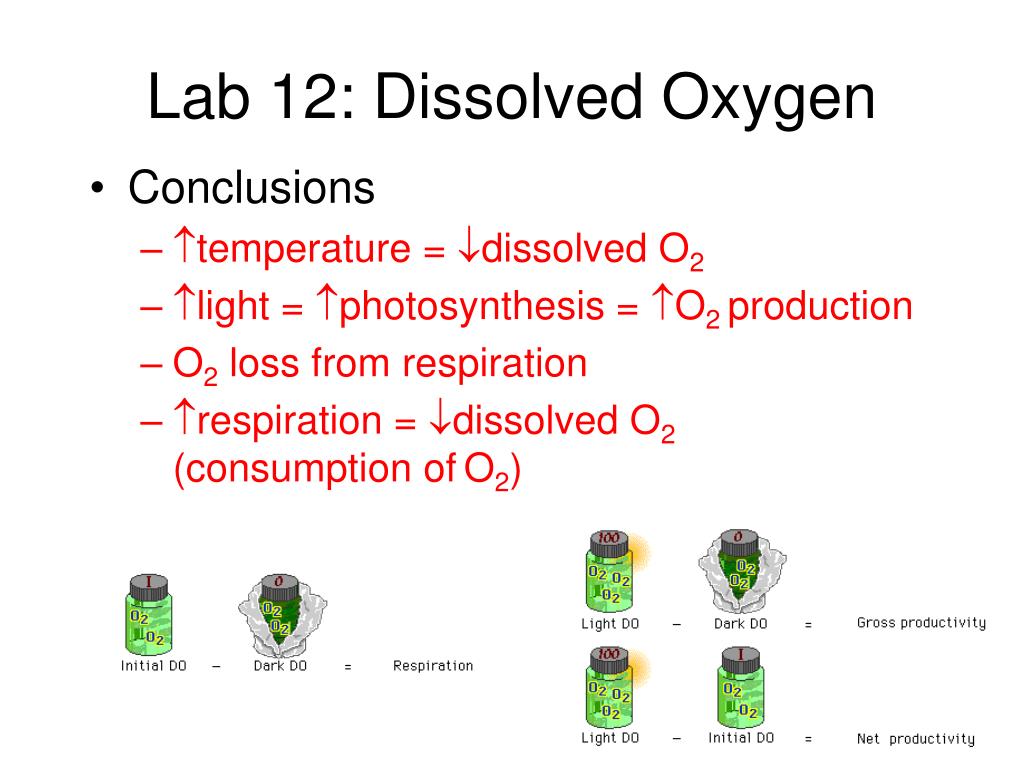

  8. Lab 12: Dissolved Oxygen • Conclusions • temperature = dissolved O2 • light = photosynthesis = O2 production • O2 loss from respiration • respiration = dissolved O2 (consumption ofO2)

  9. FRQ 2001 A biologist measured dissolved oxygen in the top 30 centimeters of a moderately eutrophic (mesotrophic) lake in the temperate zone. The day was bright and sunny and the wind was calm. The results of the observation are presented below. • Using the graph paper provided, plot the results that were obtained. Then, using the same set of axes, draw and label an additional line/curve representing the results that you would predict had the day been heavily overcast. • Explain the biological processes that are operating in the lake to produce the observed data. Explain also how these processes would account for your prediction of results for a heavily overcast day. • Describe how the introduction of high levels of nutrients such as nitrates and phosphates into the lake would affect subsequent observations. Explain your predictions.

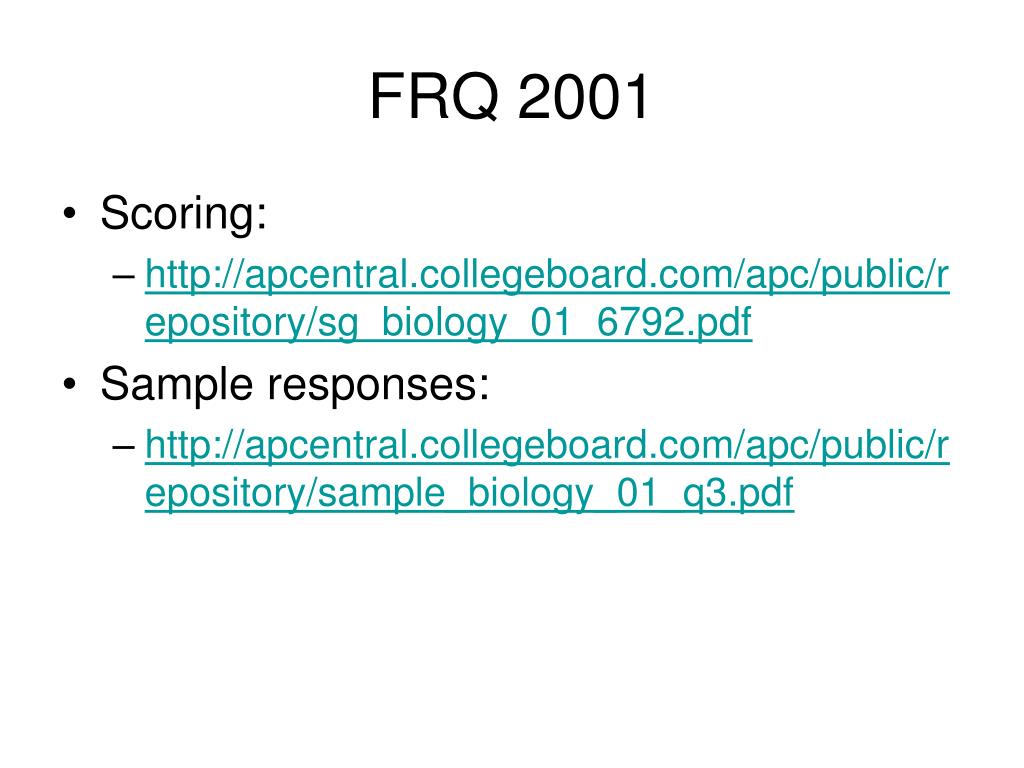

  10. FRQ 2001 • Scoring: • http://apcentral.collegeboard.com/apc/public/repository/sg_biology_01_6792.pdf • Sample responses: • http://apcentral.collegeboard.com/apc/public/repository/sample_biology_01_q3.pdf

  11. Lab 12: Dissolved Oxygen ESSAY 2004B In most aquatic environments, primary production is affected by light available to the community of organisms. Using measurements of dissolved oxygen concentration to determine primary productivity, design a controlled experiment to test the hypothesis that primary productivity is affected by either the intensity of light or the wavelength of light. In your answer, be sure to include the following. • A statement of the specific hypothesis that you are testing • A description of your experimental design (Be sure to include a description of what data you would collect and how you would present and analyze the data using a graph.) • A description of results that would support your hypothesis

  12. Eutrophication • A nutrient overload causes an algal bloom • Algal bloom • Thick layer of algae growth at surface of water • Blocks sunlight from penetrating lower levels of water body

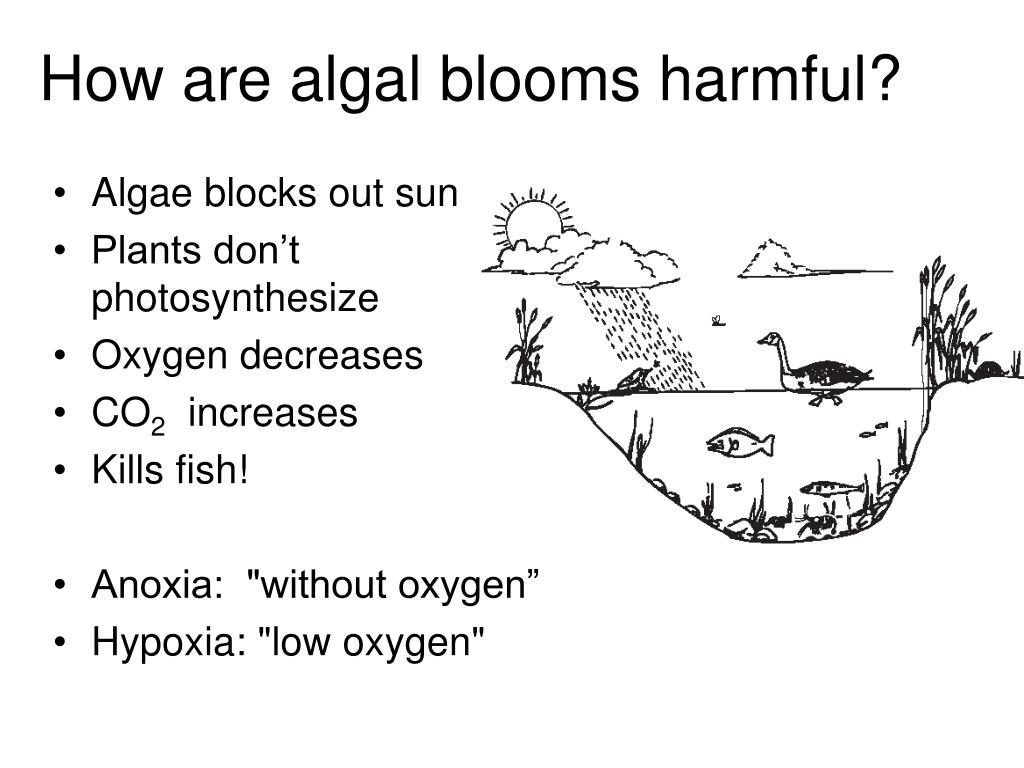

  13. How are algal blooms harmful? • Algae blocks out sun • Plants don’t photosynthesize • Oxygen decreases • CO2 increases • Kills fish! • Anoxia: "without oxygen” • Hypoxia: "low oxygen"

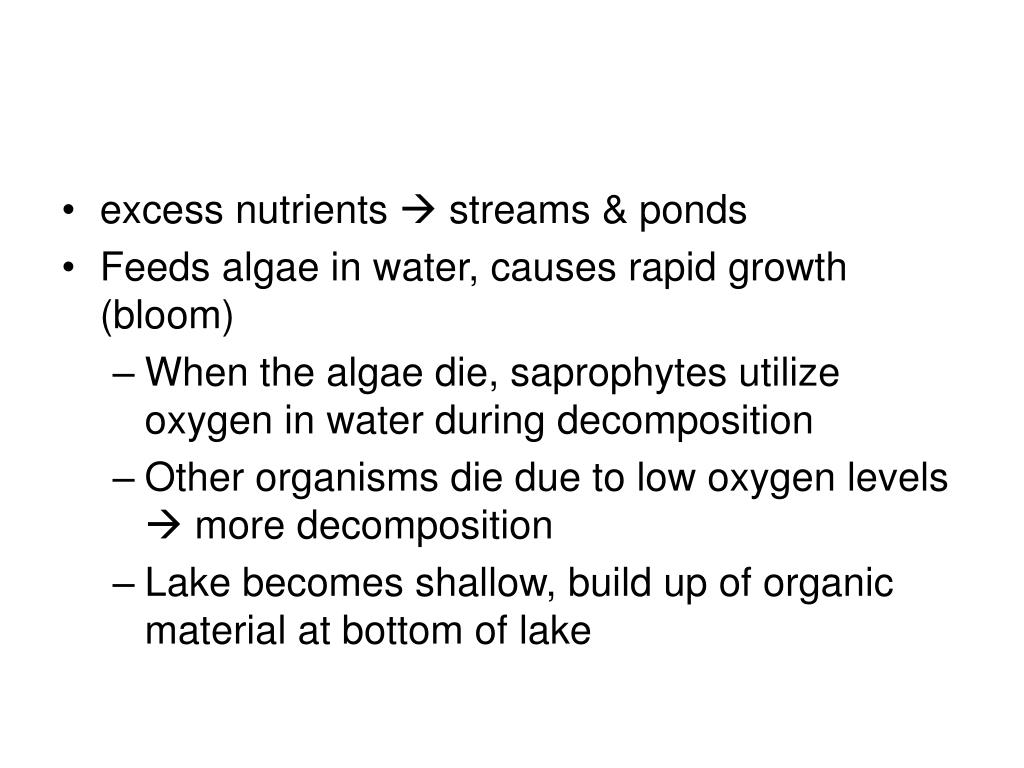

  14. excess nutrients  streams & ponds • Feeds algae in water, causes rapid growth (bloom) • When the algae die, saprophytes utilize oxygen in water during decomposition • Other organisms die due to low oxygen levels  more decomposition • Lake becomes shallow, build up of organic material at bottom of lake

  15. Sources of Nutrients… #1: Agricultural Runoff (fertilizer)

  16. #2: Urban Runoff

  17. #3 Leaky septic tanks and sewage

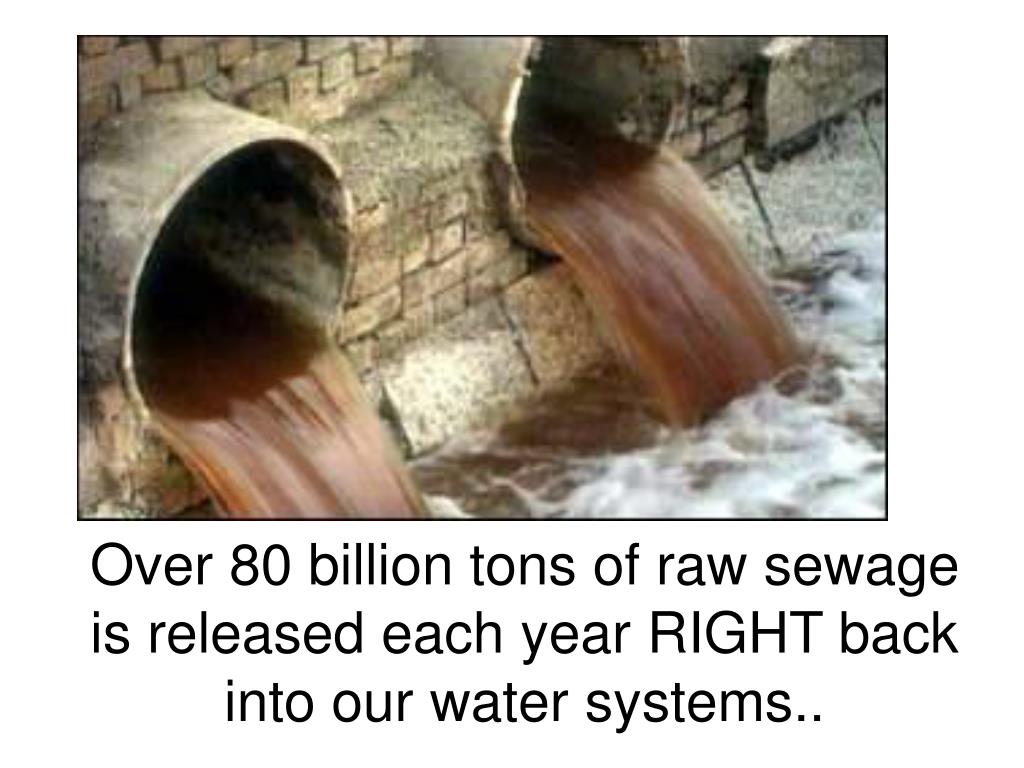

  18. Over 80 billion tons of raw sewage is released each year RIGHT back into our water systems..

  19. #4 Stream Bank Erosion How can an eroded stream bank allow for a nutrient overload?

  20. http://apcentral.collegeboard.com/apc/members/exam/exam_questions/1996.htmlhttp://apcentral.collegeboard.com/apc/members/exam/exam_questions/1996.html • http://apbio.biosci.uga.edu/exam/Essays/html/index.html
