  1. NAIS –High Level Operational View

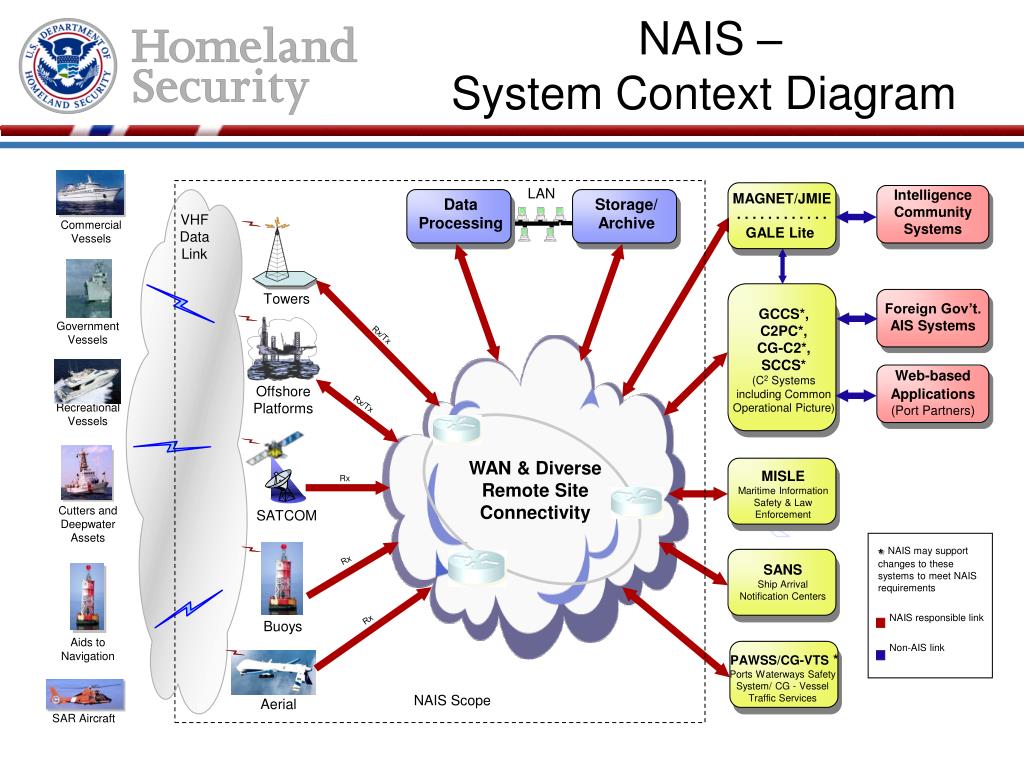

  2. Intelligence Community Systems MAGNET/JMIEGALE Lite LAN Data Processing . . . . . . . . . . . . VHF Data Link Commercial Vessels Storage/ Archive Towers GCCS*,C2PC*,CG-C2*,SCCS*(C2 Systems including Common Operational Picture) Government Vessels Rx/Tx Web-based Applications(Port Partners) Offshore Platforms Rx/Tx Recreational Vessels Foreign Gov’t. AIS Systems WAN & Diverse Remote Site Connectivity MISLEMaritime Information Safety & Law Enforcement Rx Cutters andDeepwaterAssets SATCOM Aids to Navigation Rx SANSShip Arrival Notification Centers *NAIS may support changes to these systems to meet NAIS requirements NAIS responsible link Non-AIS link Buoys Rx PAWSS/CG-VTS*Ports Waterways Safety System/ CG - Vessel Traffic Services NAIS Scope Aerial SAR Aircraft NAIS – System Context Diagram
