Semi-inclusive DIS: factorization. Feng Yuan Lawrence Berkeley National Laboratory RBRC, Brookhaven National Laboratory. Outline. Introduction Low P T region: TMD parton distributions and QCD factorization High P T region: quark-gluon-quark correlation (ETQS mechanism) Summary.
E N D

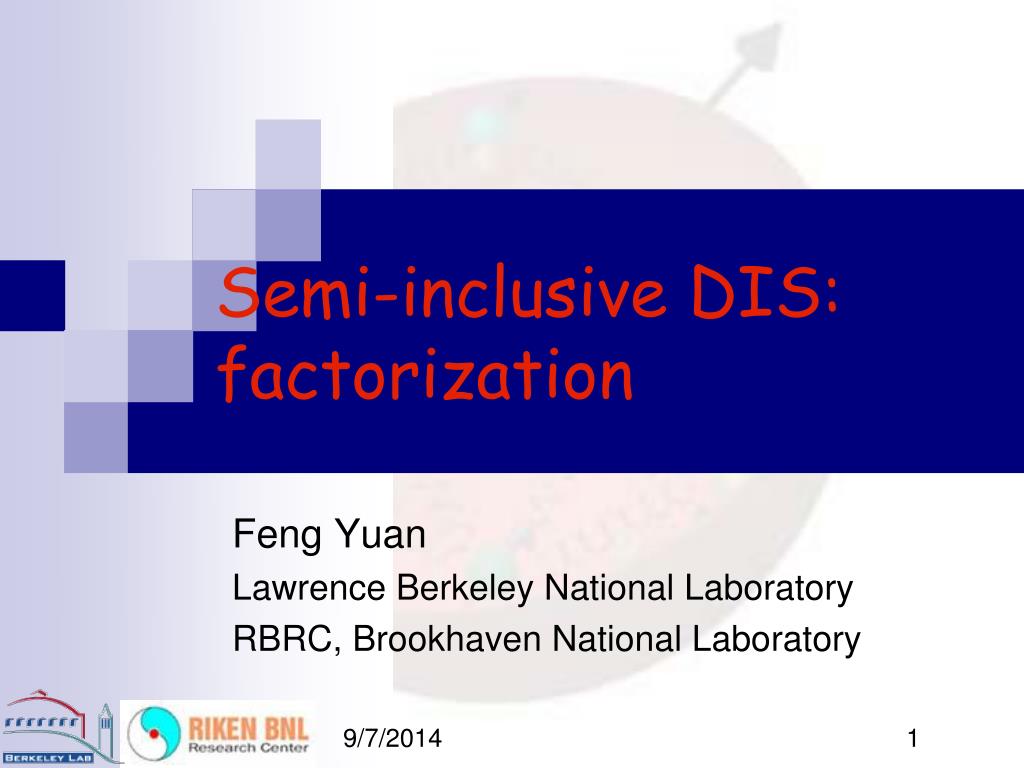

Semi-inclusive DIS: factorization Feng Yuan Lawrence Berkeley National Laboratory RBRC, Brookhaven National Laboratory
Outline • Introduction • Low PT region: TMD parton distributions and QCD factorization • High PT region: quark-gluon-quark correlation (ETQS mechanism) • Summary

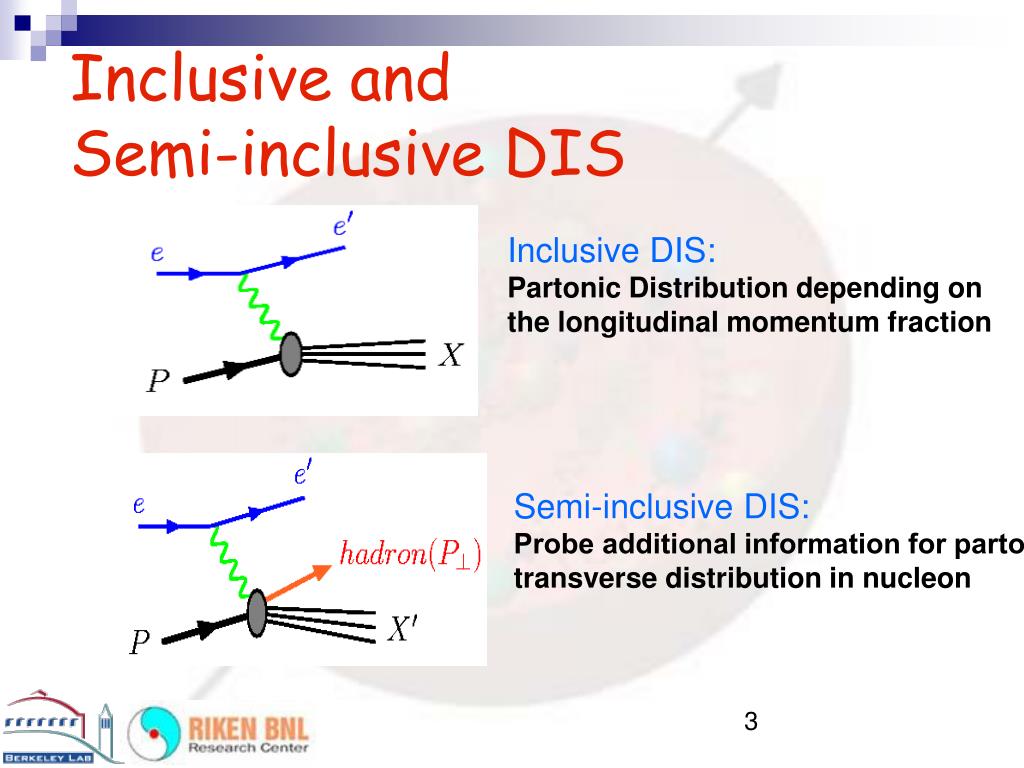

Inclusive andSemi-inclusive DIS Inclusive DIS: Partonic Distribution depending on the longitudinal momentum fraction Semi-inclusive DIS: Probe additional information for partons’ transverse distribution in nucleon

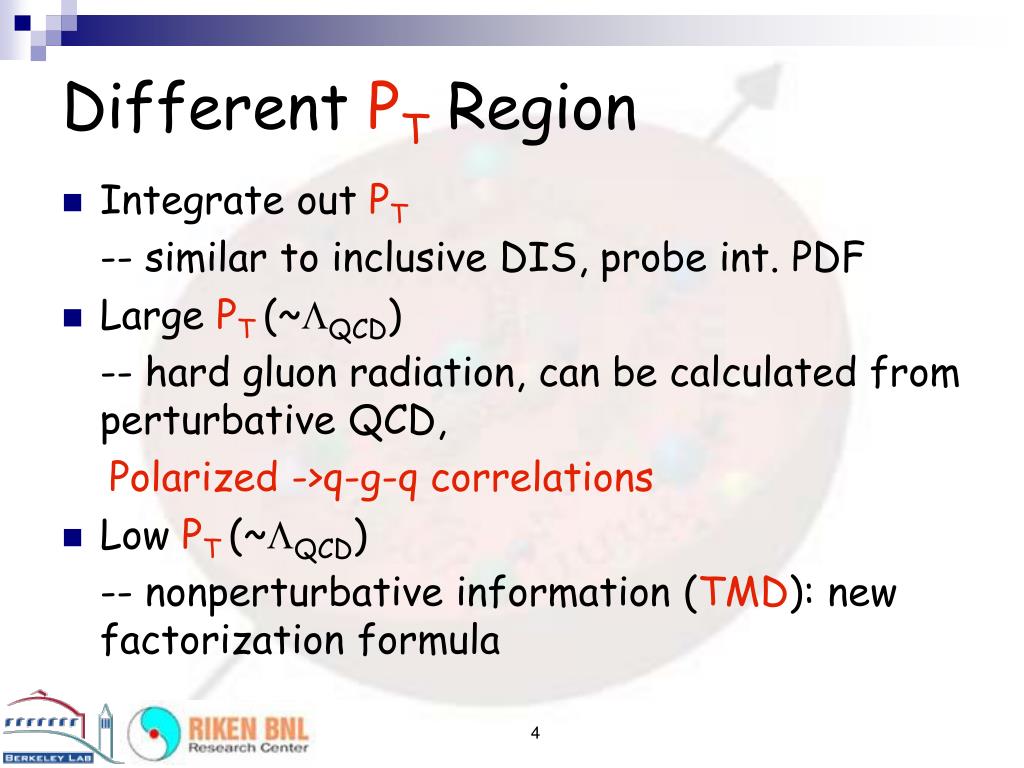

Different PT Region • Integrate out PT -- similar to inclusive DIS, probe int. PDF • Large PT (~QCD) -- hard gluon radiation, can be calculated from perturbative QCD, Polarized ->q-g-q correlations • Low PT (~QCD) -- nonperturbative information (TMD): new factorization formula

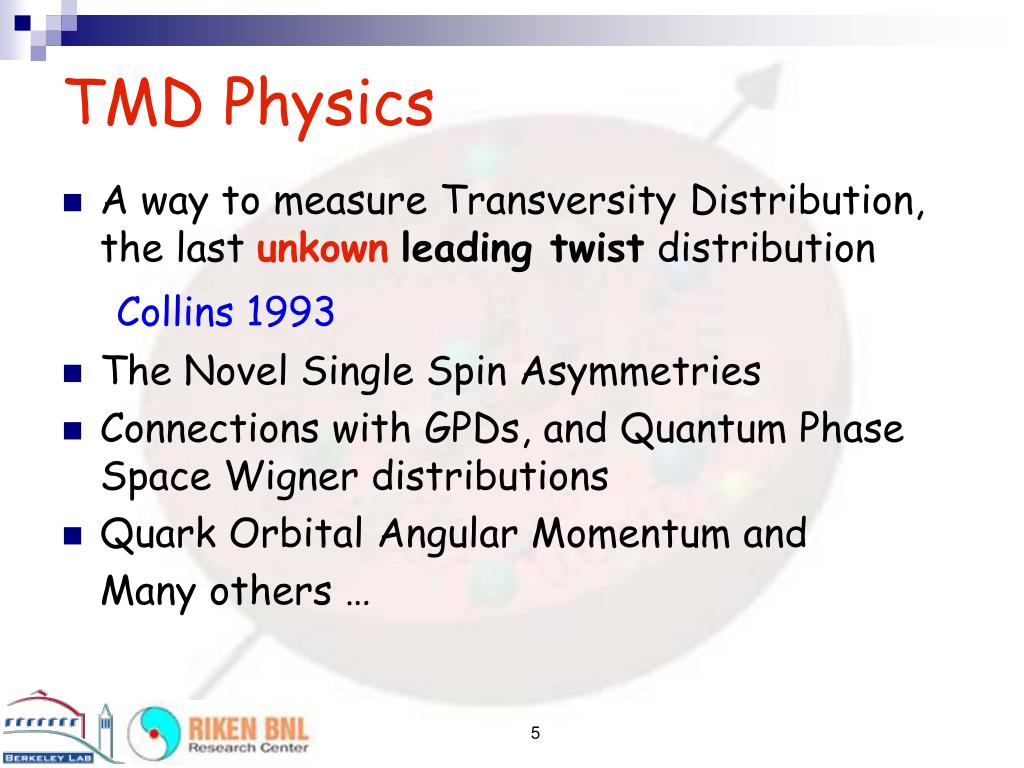

TMD Physics • A way to measure Transversity Distribution, the last unkownleading twist distribution Collins 1993 • The Novel Single Spin Asymmetries • Connections with GPDs, and Quantum Phase Space Wigner distributions • Quark Orbital Angular Momentum and Many others …
TMD Distribution: the definition Gauge Invariance requires the Gauge Link Brodsky,Hwang,Schmidt 02’ Collins 02’ Belitsky,Ji,Yuan 02’
This definition is also consistent with the QCD factorization

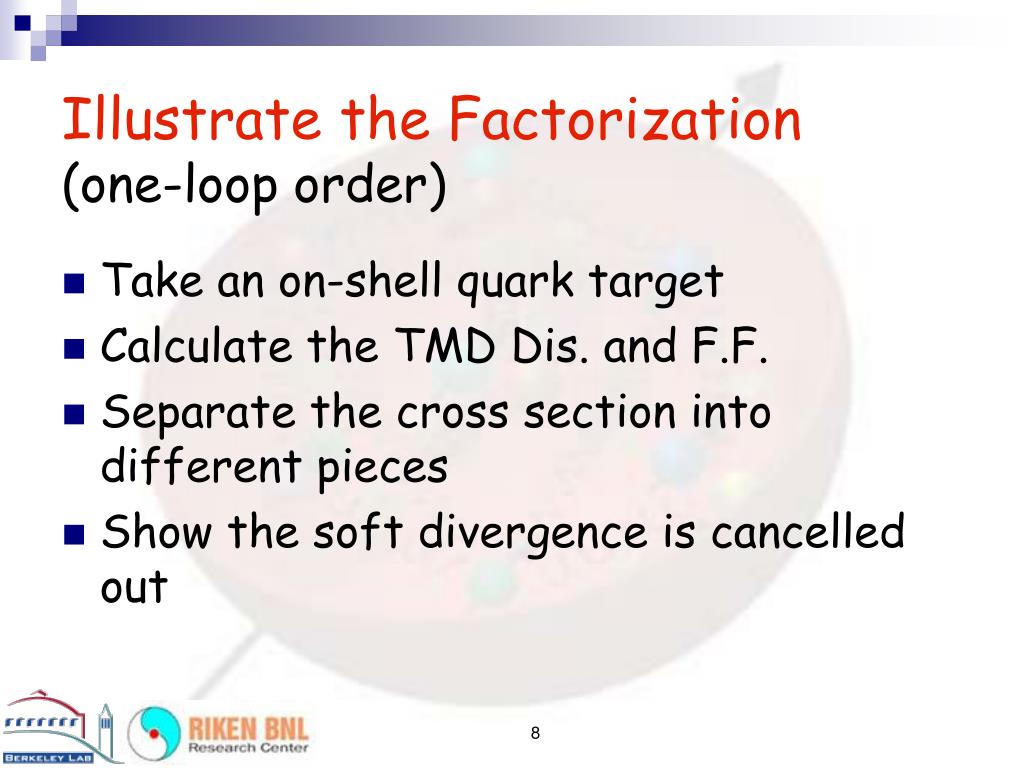

Illustrate the Factorization(one-loop order) • Take an on-shell quark target • Calculate the TMD Dis. and F.F. • Separate the cross section into different pieces • Show the soft divergence is cancelled out
No soft divergence • Collinear divergence : ln(m2) • Double Logarithms: ln2(2 b2) --- Collins-Soper equation
One-loop Factorization: virtual • Vertex corrections (single quark target) p′ k p Four possible regions for the gluon momentum k: 1) k is collinear to p (parton distribution) 2) k is collinear to p′ (fragmentation) 3) k is soft (Soft factor) 4) k is hard (pQCD correction)
Gluon Radiation (single quark target) One-Loop Factorization: real p′ k p Three reagions for the gluon momentum k: 1) k is collinear to p (parton distribution) 2) k is collinear to p′ (fragmentation) 3) k is soft (Soft factor)
All Orders in Perturbation Theory • Consider an arbitrary Feynman diagram • Find the singular contributions from different regions of the momentum integrations • Power counting to determine the leading regions • Factorize the soft (Grammer-Yennie) and collinear gluons (Ward Identity) • Factorization theorem. (Collins, Soper, Sterman, Perturbative QCD, Mueller ed.)
Factorization Soft Factor SIR05 JLab
The Factorization Applies to • Semi-inclusive DIS (polarized and unpolarized) • Drell-Yan at Low transverse momentum • Di-hadron production in e+e- annihilation (extract the Collins function) • Many others, … • Except for dijet-correlation at hadron colliders because of mixture of ISI and FSI effects • Collins-Qiu, 07; Vogelsang-Yuan, 07; Mulders et al, 04-07 • Heavy quarkonium production in pp collision, Yuan, 08

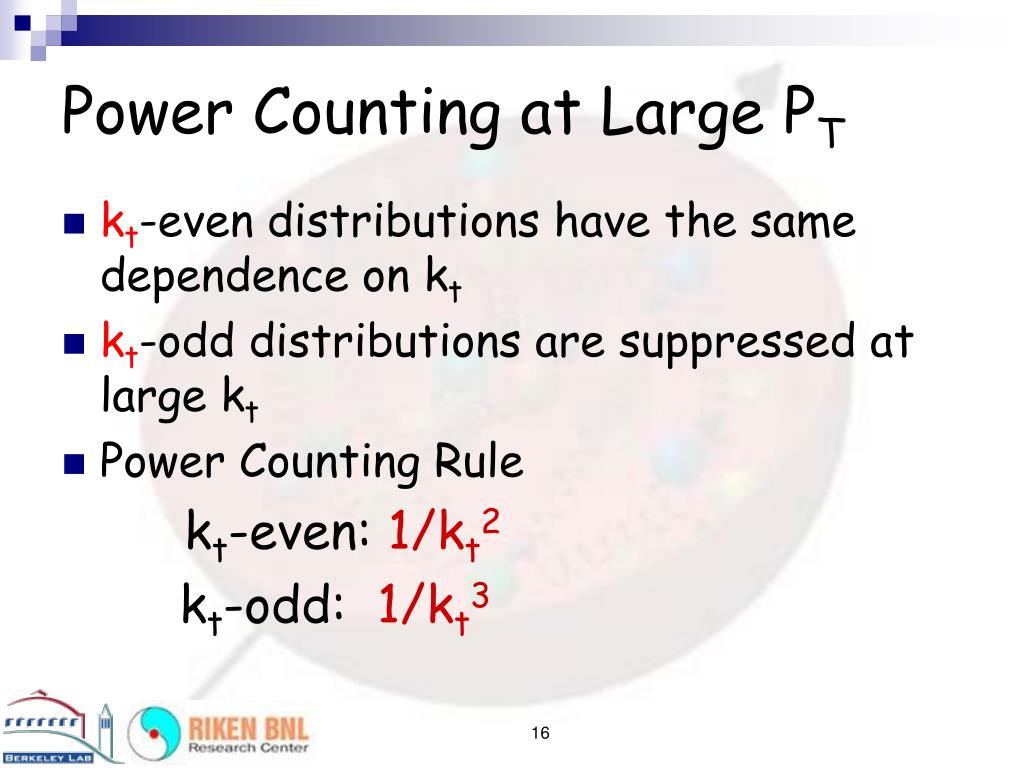

Power Counting at Large PT • kt-even distributions have the same dependence on kt • kt-odd distributions are suppressed at large kt • Power Counting Rule kt-even: 1/kt2 kt-odd: 1/kt3
SIDIS: at Large PT • Large PT SIDIS can be calculated from perturbative QCD (same for TMDs) • Polarized scattering depends on the quark-gluon correlations in the nucleon • Single Spin Asymmetry (Sivers and Collins) at large PT is not suppressed by 1/Q, but by 1/PT

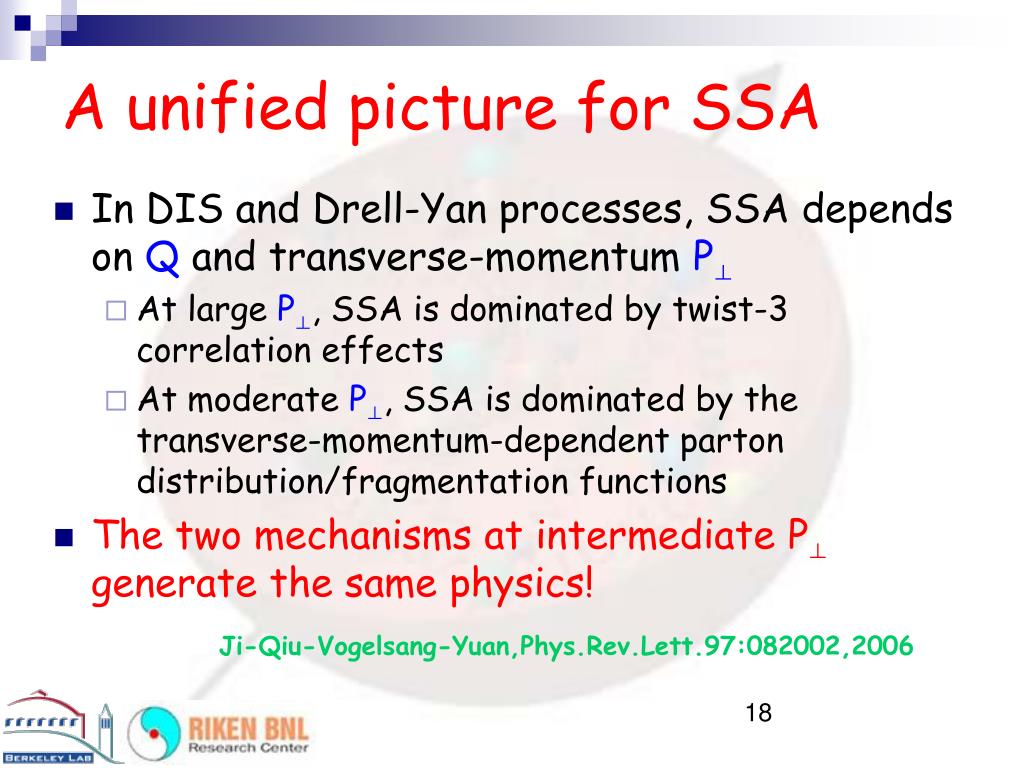

A unified picture for SSA • In DIS and Drell-Yan processes, SSA depends on Q and transverse-momentum P • At large P, SSA is dominated by twist-3 correlation effects • At moderate P, SSA is dominated by the transverse-momentum-dependent parton distribution/fragmentation functions • The two mechanisms at intermediate P generate the same physics! Ji-Qiu-Vogelsang-Yuan,Phys.Rev.Lett.97:082002,2006
A difficulty at next-leading-power (1/Q) • Mismatch at low and high transverse momentum SIDIS at 1/Q • Bacchetta-Boer-Diehl-Mulders, 0803.0227 • The factorization needs to be carefully examined at this order • Earlier works indicates possible problems • Afanasev-Carlson, PRD, 2006 • Gamberg-Hwang-Metz-Schlegel, PLB, 2006
Transition from Perturbative region to Nonperturbative region? Nonperturbative TMD Perturbative region
Summary • Semi-inclusive DIS provides important information on nucleon structure and opportunity to study the associated QCD dynamics • QCD factorization and universality of the parton distributions are important aspects in these studies • The PT dependence will provide us information for the perturbative to nonperturbative transition of QCD
