Introduction to Photosynthesis Chapter 35&10

1. Developed by Adam F. Sprague Chapter 10 Introduction to PhotosynthesisChapter 35&10

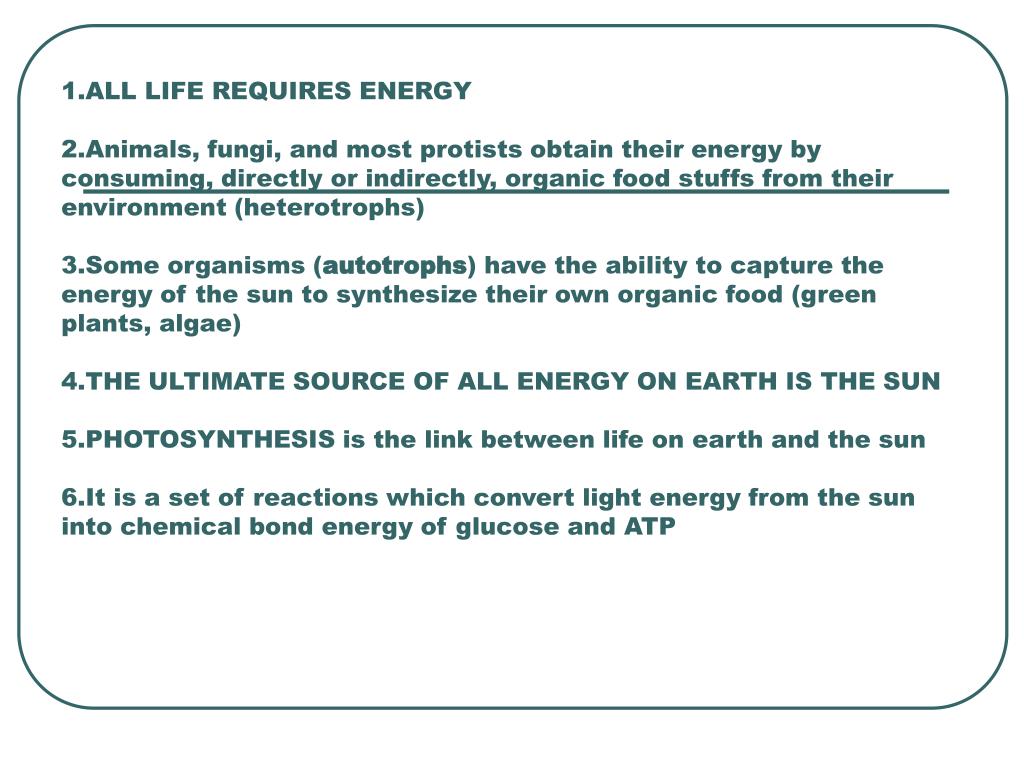

2. 1.ALL LIFE REQUIRES ENERGY 2.Animals, fungi, and most protists obtain their energy by consuming, directly or indirectly, organic food stuffs from their environment (heterotrophs) 3.Some organisms (autotrophs) have the ability to capture the energy of the sun to synthesize their own organic food (green plants, algae) 4.THE ULTIMATE SOURCE OF ALL ENERGY ON EARTH IS THE SUN 5.PHOTOSYNTHESIS is the link between life on earth and the sun 6.It is a set of reactions which convert light energy from the sun into chemical bond energy of glucose and ATP

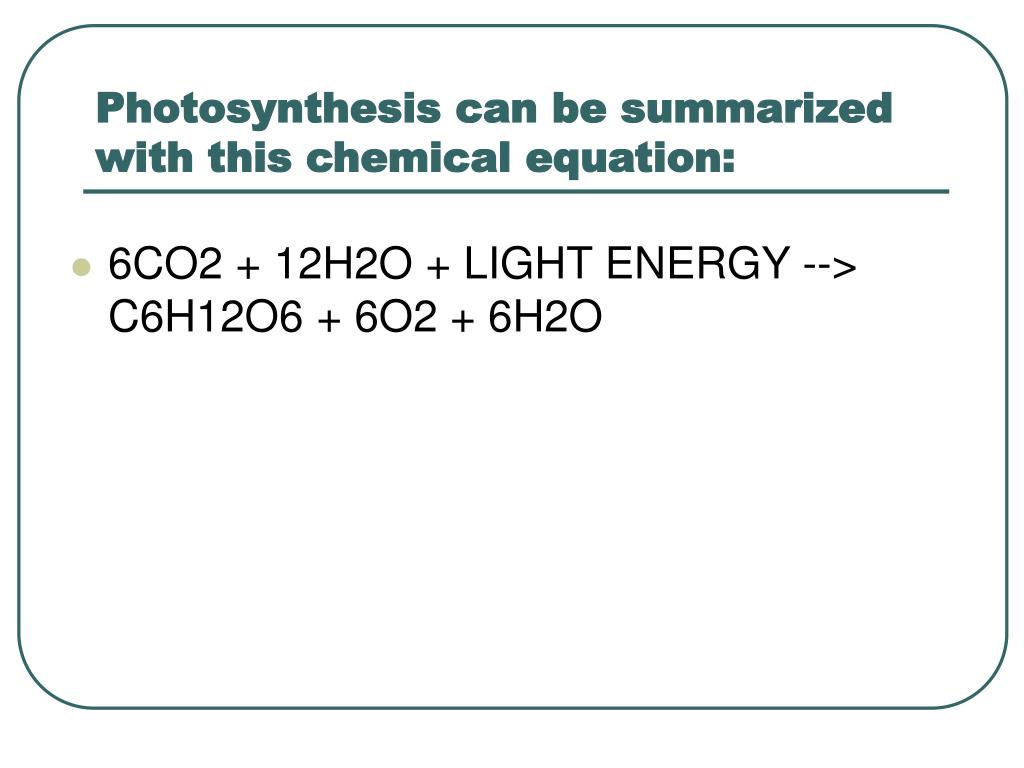

3. Photosynthesis can be summarized with this chemical equation: 6CO2 + 12H2O + LIGHT ENERGY --> C6H12O6 + 6O2 + 6H2O

4. 6CO2 + 12H2O + LIGHT ENERGY --> C6H12O6 + 6O2 + 6H2O The chemical change is the reverse of cellular respiration The low energy inorganic compounds (CO2 and water) are converted into the high potential organic molecule (glucose)

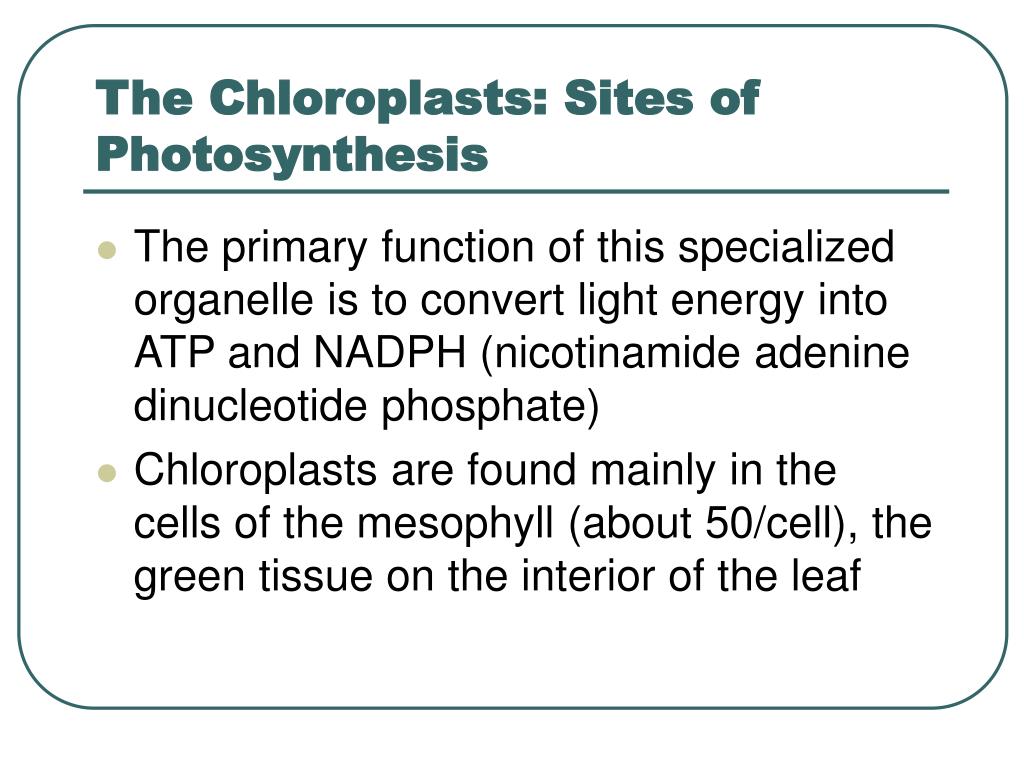

5. The Chloroplasts: Sites of Photosynthesis The primary function of this specialized organelle is to convert light energy into ATP and NADPH (nicotinamide adenine dinucleotide phosphate) Chloroplasts are found mainly in the cells of the mesophyll (about 50/cell), the green tissue on the interior of the leaf

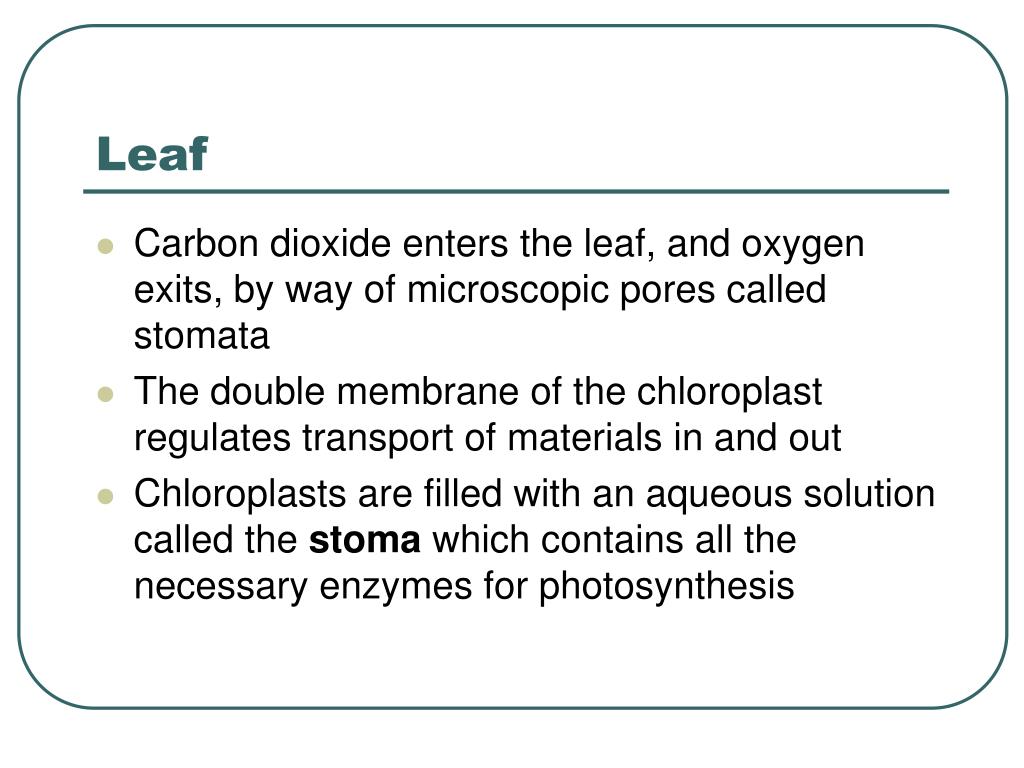

7. Leaf Carbon dioxide enters the leaf, and oxygen exits, by way of microscopic pores called stomata The double membrane of the chloroplast regulates transport of materials in and out Chloroplasts are filled with an aqueous solution called the stoma which contains all the necessary enzymes for photosynthesis

9. Chloroplast The conversion from light energy to ATP and NADPH occurs in the thylakoid membranes within the stroma The thylakoid membranes contain all of the pigments involved in the process including chlorophyll (green pigment) and other carotenoids The thylakoids are organized into closely packed stacks called grana

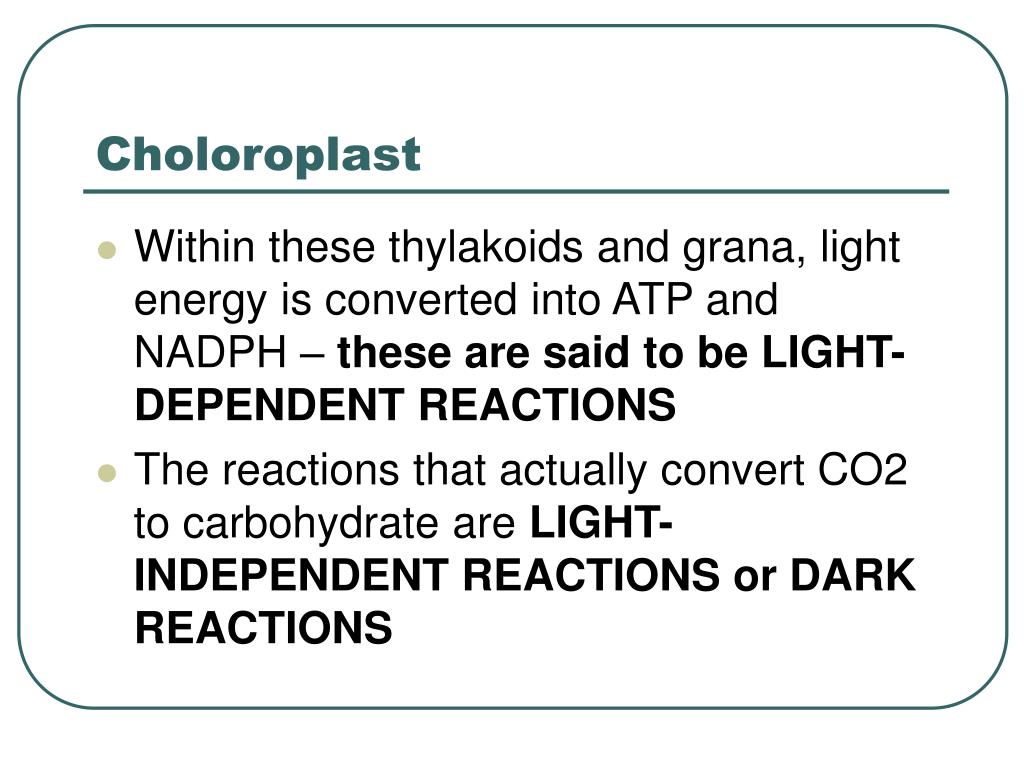

11. Choloroplast Within these thylakoids and grana, light energy is converted into ATP and NADPH – these are said to be LIGHT-DEPENDENT REACTIONS The reactions that actually convert CO2 to carbohydrate are LIGHT-INDEPENDENT REACTIONS or DARK REACTIONS

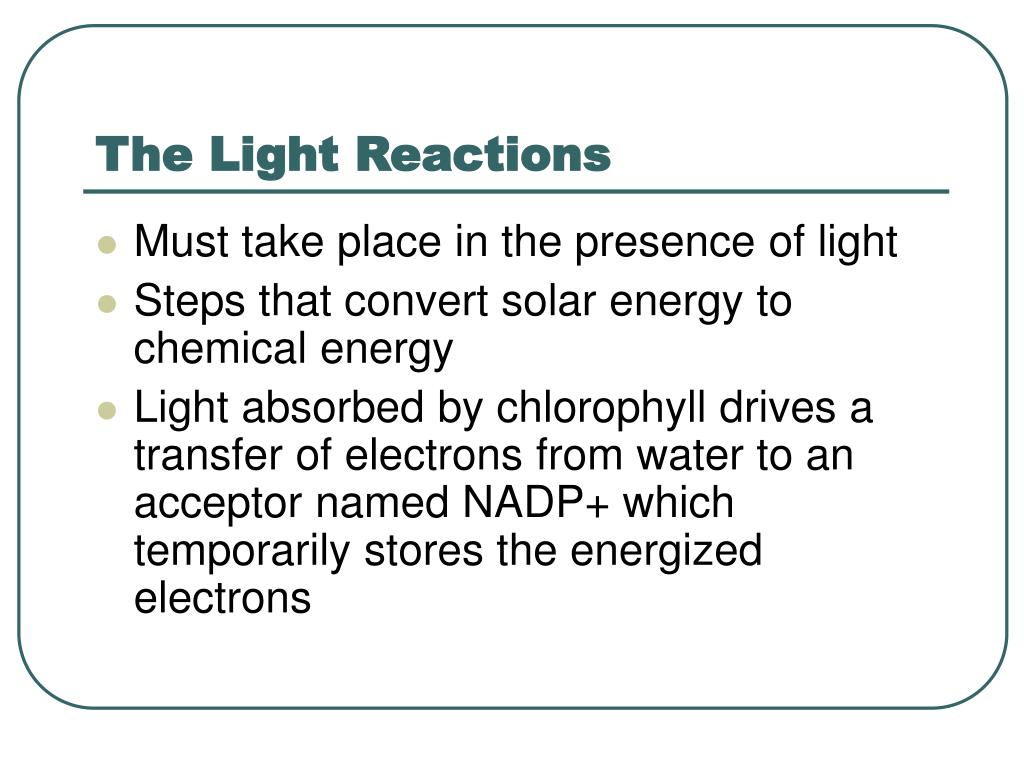

12. The Light Reactions Must take place in the presence of light Steps that convert solar energy to chemical energy Light absorbed by chlorophyll drives a transfer of electrons from water to an acceptor named NADP+ which temporarily stores the energized electrons

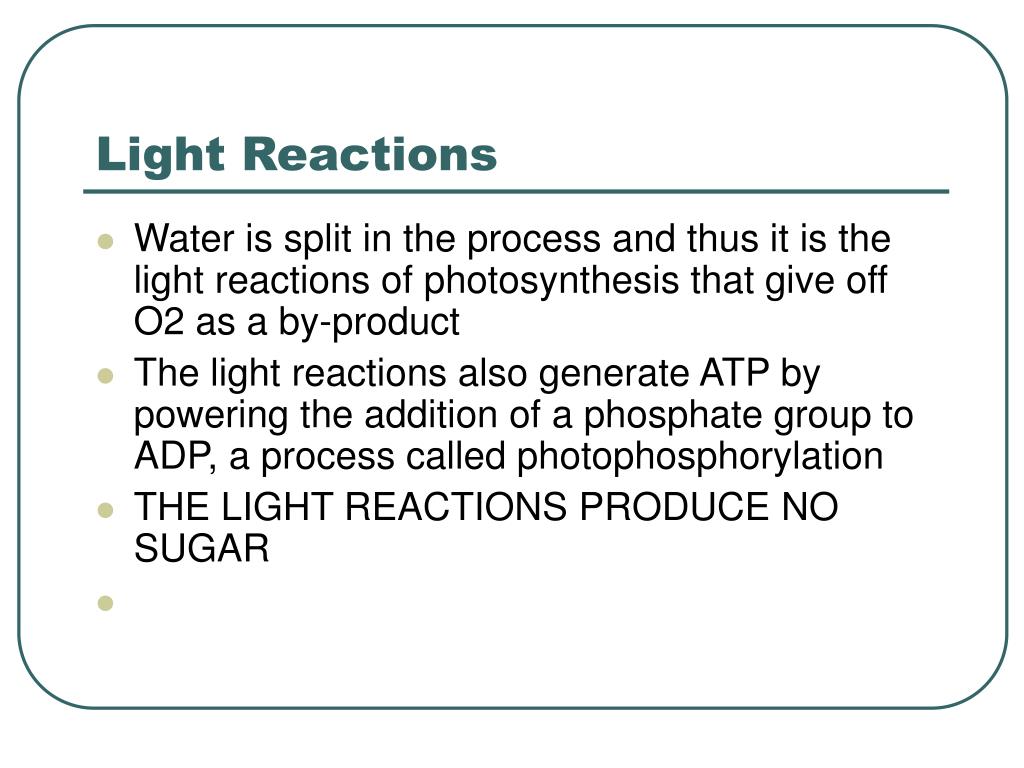

14. Light Reactions Water is split in the process and thus it is the light reactions of photosynthesis that give off O2 as a by-product The light reactions also generate ATP by powering the addition of a phosphate group to ADP, a process called photophosphorylation THE LIGHT REACTIONS PRODUCE NO SUGAR

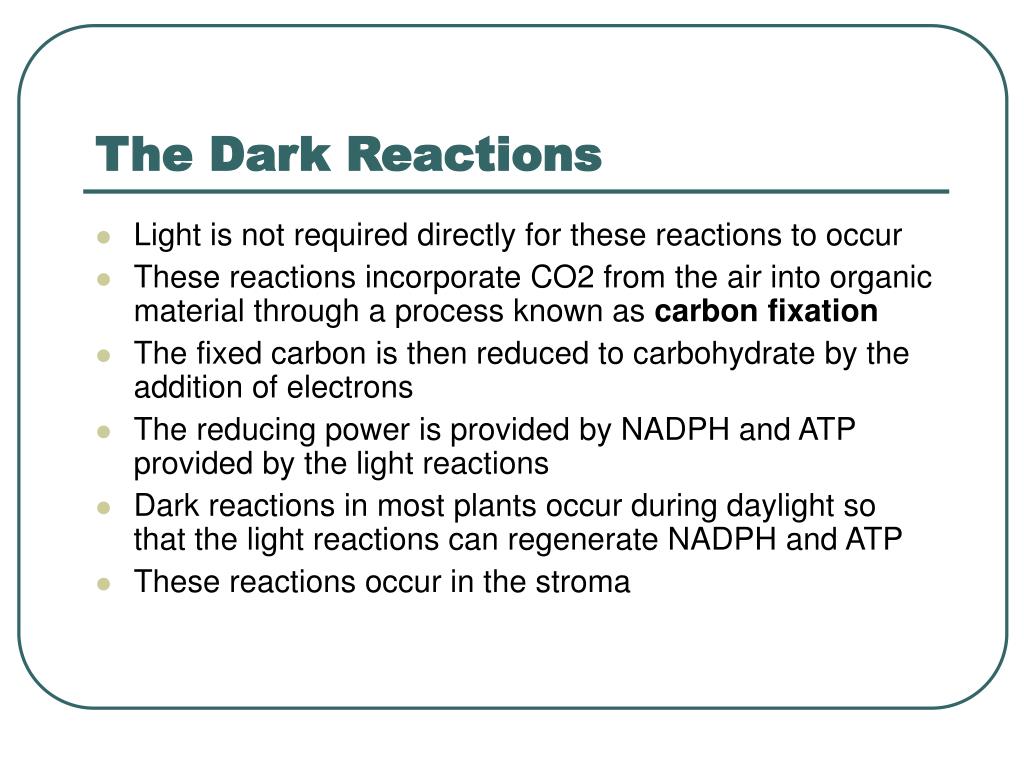

15. The Dark Reactions Light is not required directly for these reactions to occur These reactions incorporate CO2 from the air into organic material through a process known as carbon fixation The fixed carbon is then reduced to carbohydrate by the addition of electrons The reducing power is provided by NADPH and ATP provided by the light reactions Dark reactions in most plants occur during daylight so that the light reactions can regenerate NADPH and ATP These reactions occur in the stroma

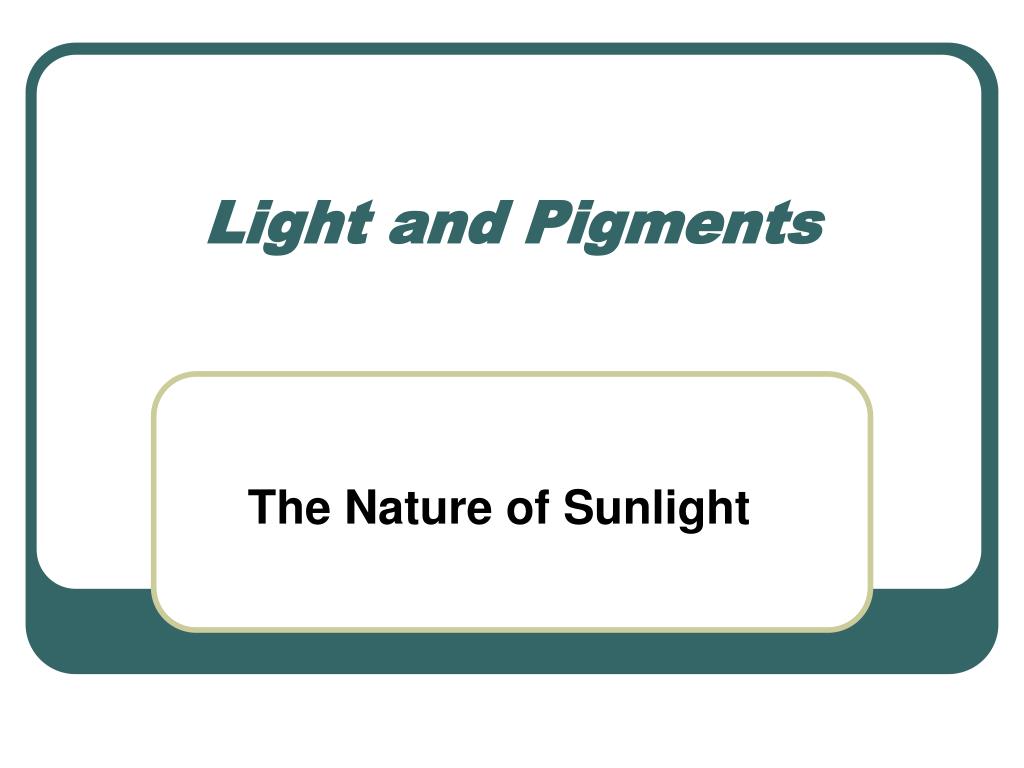

17. The Nature of Sunlight Light and Pigments

18. The Nature of Sunlight light is a form of energy known as electromagnetic radiation light travels in rhythmic waves which are disturbances of electrical and magnetic fields

20. The Nature of Sunlight the distance between crests of electromagnetic waves is called the wavelength the entire range of radiation is known as the electromagnetic spectrum

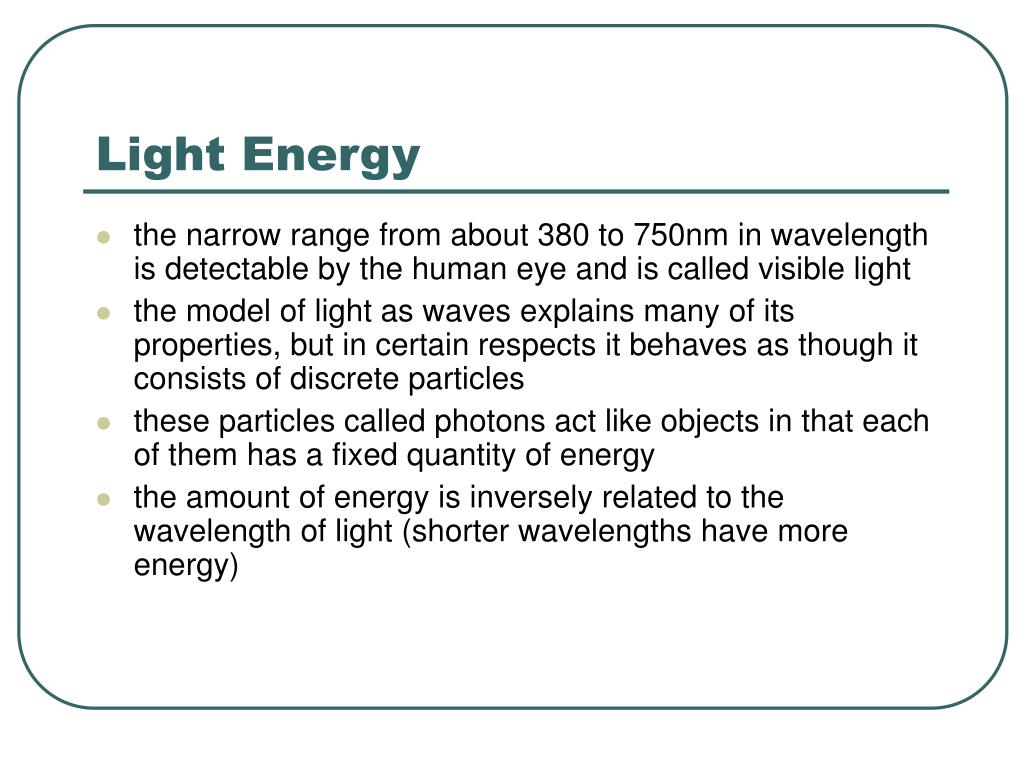

22. Light Energy the narrow range from about 380 to 750nm in wavelength is detectable by the human eye and is called visible light the model of light as waves explains many of its properties, but in certain respects it behaves as though it consists of discrete particles these particles called photons act like objects in that each of them has a fixed quantity of energy the amount of energy is inversely related to the wavelength of light (shorter wavelengths have more energy)

23. Photosynthetic Pigments as light meets matter, it may be reflected, transmitted or absorbed substances that absorb light are called pigments if a pigment is illuminated in white light, the color we see is the color most reflected or transmitted by the pigment

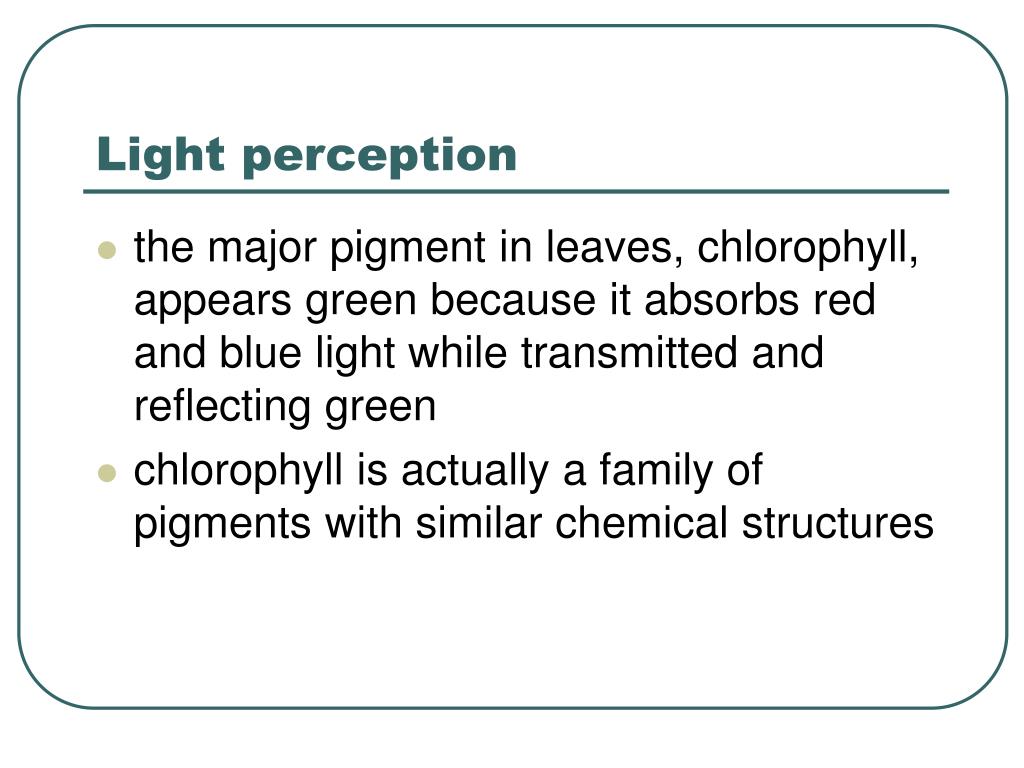

25. Light perception the major pigment in leaves, chlorophyll, appears green because it absorbs red and blue light while transmitted and reflecting green chlorophyll is actually a family of pigments with similar chemical structures

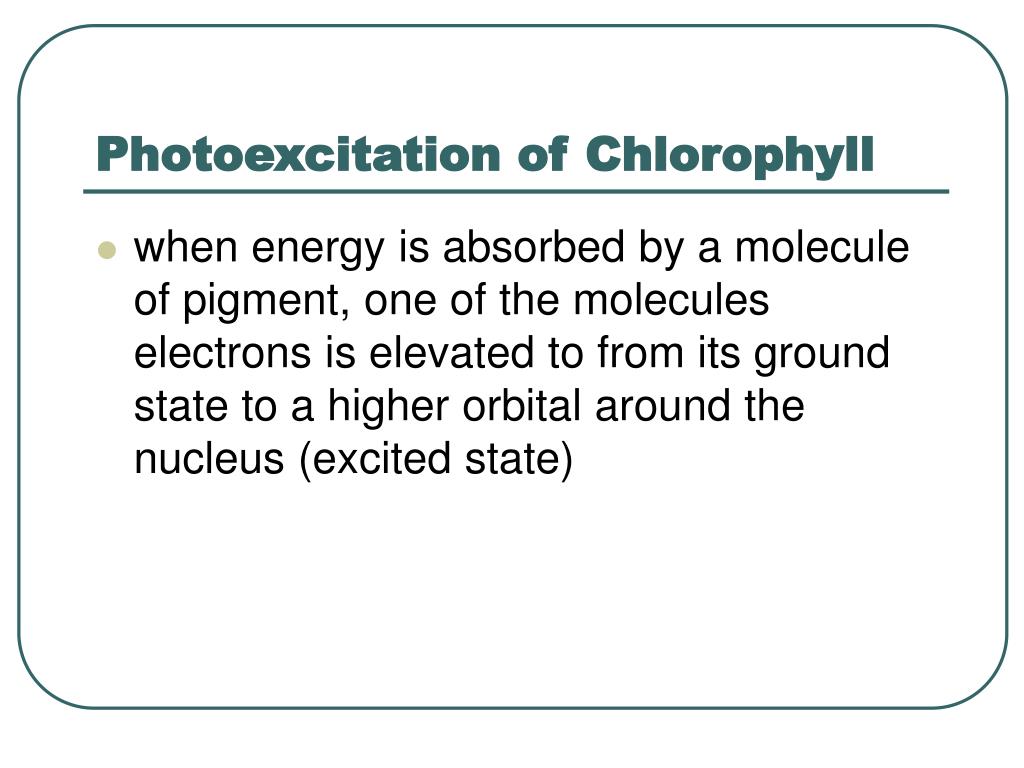

26. Photoexcitation of Chlorophyll when energy is absorbed by a molecule of pigment, one of the molecules electrons is elevated to from its ground state to a higher orbital around the nucleus (excited state)

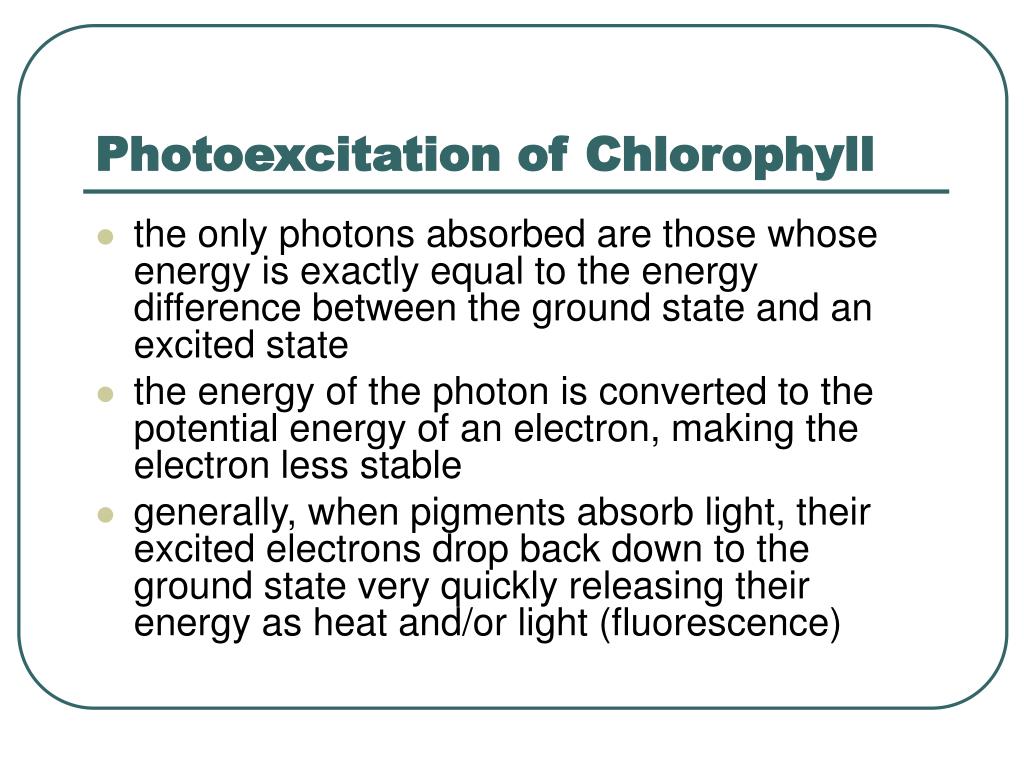

28. Photoexcitation of Chlorophyll the only photons absorbed are those whose energy is exactly equal to the energy difference between the ground state and an excited state the energy of the photon is converted to the potential energy of an electron, making the electron less stable generally, when pigments absorb light, their excited electrons drop back down to the ground state very quickly releasing their energy as heat and/or light (fluorescence)

30. Light Dependent Reactions Photosynthetic Unit

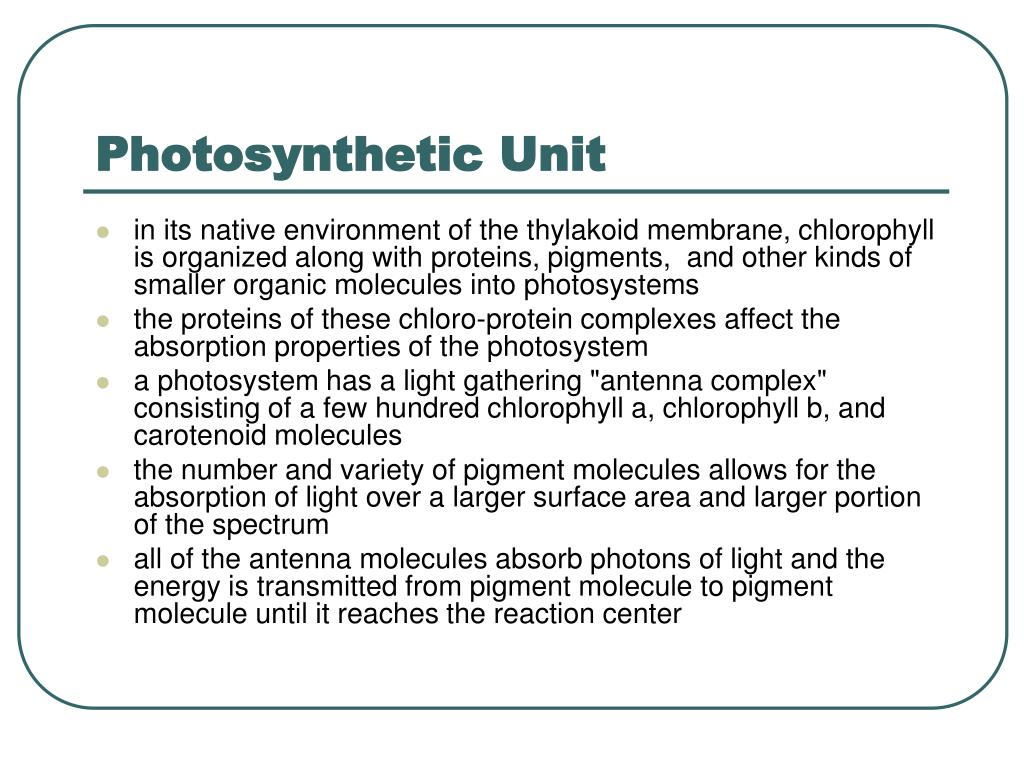

31. Photosynthetic Unit in its native environment of the thylakoid membrane, chlorophyll is organized along with proteins, pigments,  and other kinds of smaller organic molecules into photosystems the proteins of these chloro-protein complexes affect the absorption properties of the photosystem a photosystem has a light gathering "antenna complex" consisting of a few hundred chlorophyll a, chlorophyll b, and carotenoid molecules the number and variety of pigment molecules allows for the absorption of light over a larger surface area and larger portion of the spectrum all of the antenna molecules absorb photons of light and the energy is transmitted from pigment molecule to pigment molecule until it reaches the reaction center

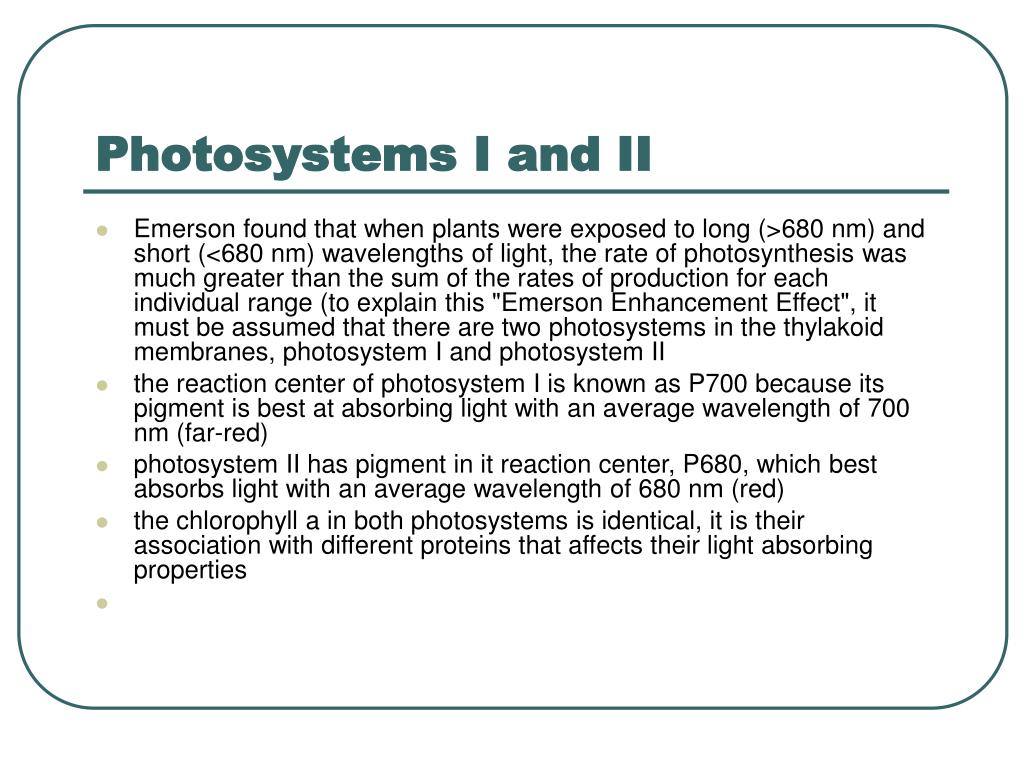

33. Photosystems I and II Emerson found that when plants were exposed to long (>680 nm) and short (<680 nm) wavelengths of light, the rate of photosynthesis was much greater than the sum of the rates of production for each individual range (to explain this "Emerson Enhancement Effect", it must be assumed that there are two photosystems in the thylakoid membranes, photosystem I and photosystem II the reaction center of photosystem I is known as P700 because its pigment is best at absorbing light with an average wavelength of 700 nm (far-red) photosystem II has pigment in it reaction center, P680, which best absorbs light with an average wavelength of 680 nm (red) the chlorophyll a in both photosystems is identical, it is their association with different proteins that affects their light absorbing properties

34. ATP Synthesis in Chloroplasts

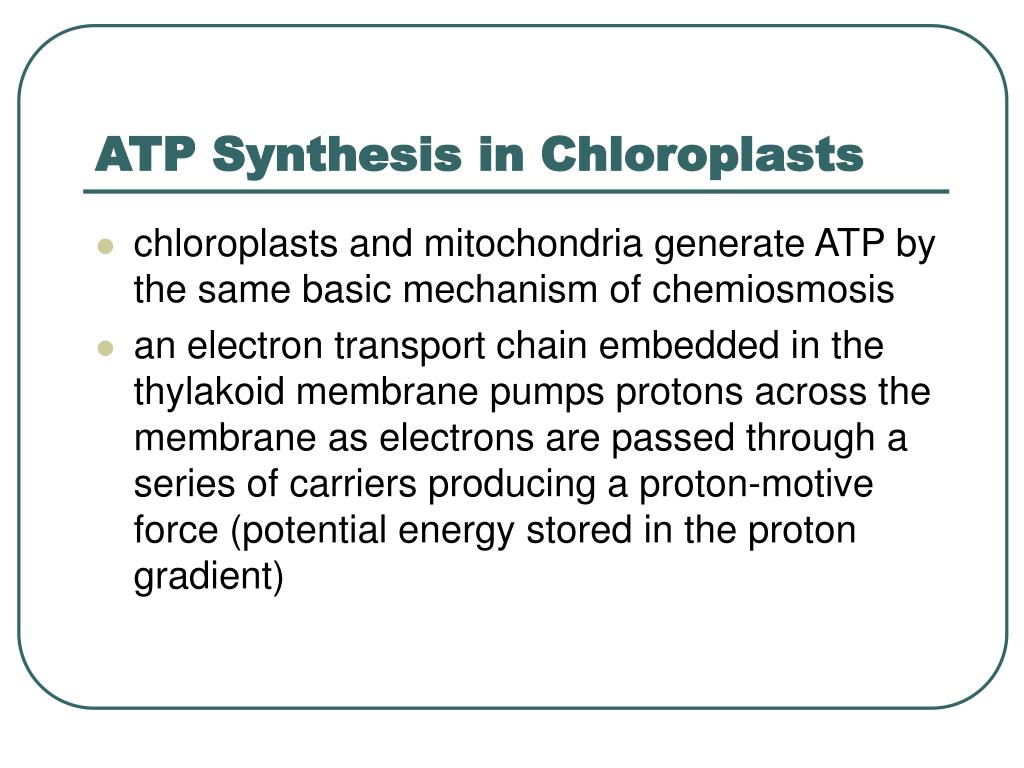

35. ATP Synthesis in Chloroplasts chloroplasts and mitochondria generate ATP by the same basic mechanism of chemiosmosis an electron transport chain embedded in the thylakoid membrane pumps protons across the membrane as electrons are passed through a series of carriers producing a proton-motive force (potential energy stored in the proton gradient)

37. ATP Synthesis in Chloroplasts ATP synthase in the membrane couples the diffusion of hydrogen ions down their gradient to the phosphorylation of ADP in contrast to oxidative phosphorylation in mitochondria, chloroplasts use light energy (not chemical energy in food) to drive electrons to the top of the transport chain the proton pump of the thylakoid membrane moves hydrogen ions from the stroma to the thylakoid space which functions as the H+ reservoir the membrane makes ATP in the stroma as hydrogen ions diffuse back down their gradient through ATP synthase

38. Dark Reactions

39. Dark Reactions The "Dark Reactions" include the biochemical, enzyme-catalyzed reactions involved in the synthesis of carbohydrate from carbon dioxide; these are collectively know as the Calvin-Benson cycle

40. The Reactions

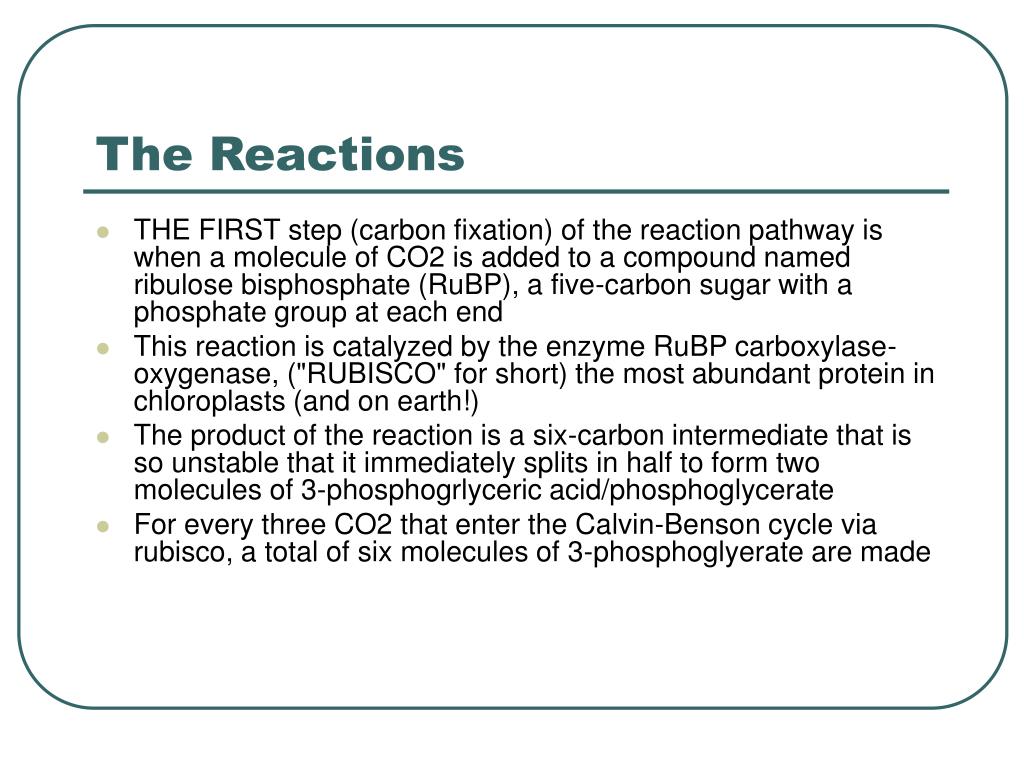

41. The Reactions THE FIRST step (carbon fixation) of the reaction pathway is when a molecule of CO2 is added to a compound named ribulose bisphosphate (RuBP), a five-carbon sugar with a phosphate group at each end This reaction is catalyzed by the enzyme RuBP carboxylase-oxygenase, ("RUBISCO" for short) the most abundant protein in chloroplasts (and on earth!) The product of the reaction is a six-carbon intermediate that is so unstable that it immediately splits in half to form two molecules of 3-phosphogrlyceric acid/phosphoglycerate For every three CO2 that enter the Calvin-Benson cycle via rubisco, a total of six molecules of 3-phosphoglyerate are made

43. Dark reactions IN THE SECOND step (reduction) of the cycle, each molecule of 3-phosophglyceric acid receives and additional phosphate group An enzyme transfers the phosphate group from ATP forming 1,3-diphophoglyceric acid (glycolysis?) For every three (3) molecules of CO2 incorporated into the cycle, six molecules of ATP must be used to produce six (6) molecules of 1,3-diphosphoglycerate IN THE NEXT step, the NADPH (from the light reactions) reduces the diphosphoglycerate to phosphoglyceraldehyde (PGAL) (6 for every 3 CO2) Some of these molecules (1 PAL/3 CO2) are converted into glucose but most are used to regenerate RuBP The stromal reactions to convert the 3-carbon PGAL to the 5-carbon RuBP are dependant on the presence of 3 more molecules of ATP/3 CO2 in the cycle The five (5) remaining PGAL (3-C) are re-arranged into three (3) RuBP (5-C) molecules

44. The Calvin-Benson cycle…. produces three-carbon intermediates used to synthesize glucose produces three-carbon intermediates used to regenerate the initial carbon dioxide-acceptor molecule

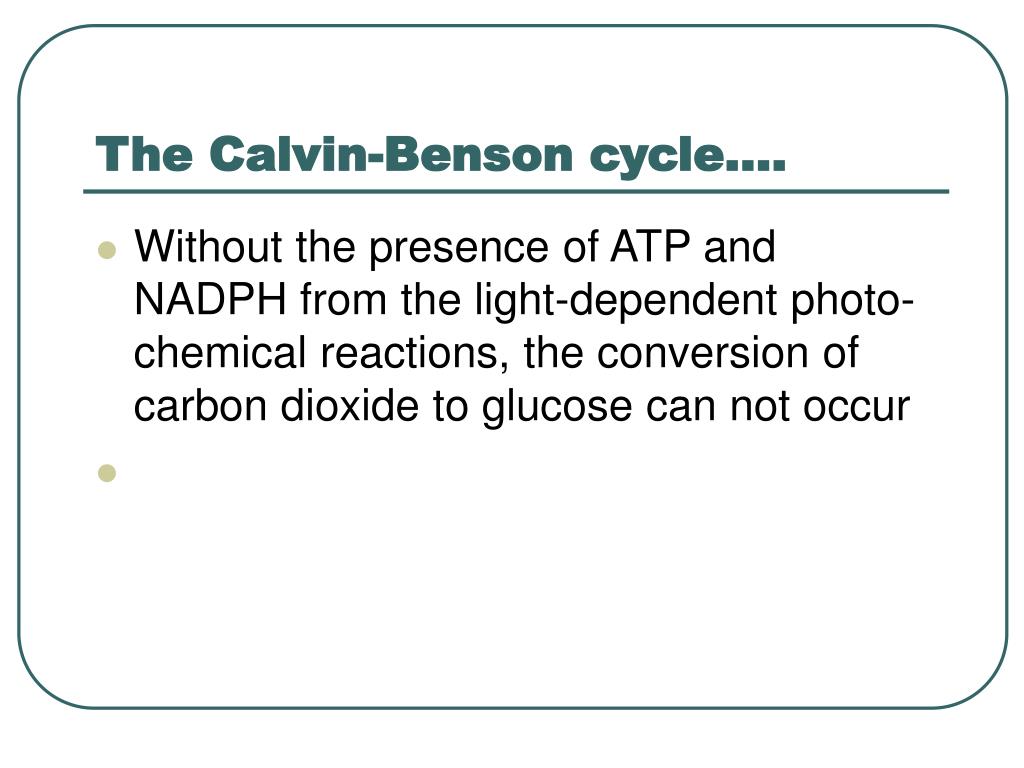

46. The Calvin-Benson cycle…. Without the presence of ATP and NADPH from the light-dependent photo-chemical reactions, the conversion of carbon dioxide to glucose can not occur

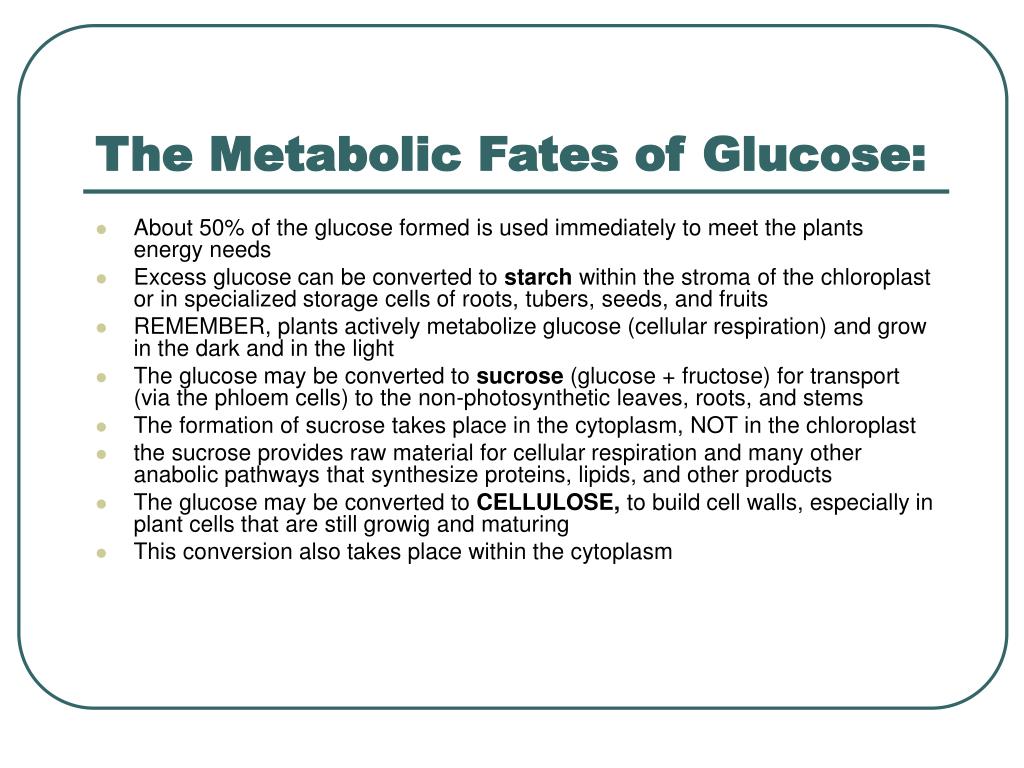

47. The Metabolic Fates of Glucose: About 50% of the glucose formed is used immediately to meet the plants energy needs Excess glucose can be converted to starch within the stroma of the chloroplast or in specialized storage cells of roots, tubers, seeds, and fruits REMEMBER, plants actively metabolize glucose (cellular respiration) and grow in the dark and in the light The glucose may be converted to sucrose (glucose + fructose) for transport (via the phloem cells) to the non-photosynthetic leaves, roots, and stems The formation of sucrose takes place in the cytoplasm, NOT in the chloroplast the sucrose provides raw material for cellular respiration and many other anabolic pathways that synthesize proteins, lipids, and other products The glucose may be converted to CELLULOSE, to build cell walls, especially in plant cells that are still growig and maturing This conversion also takes place within the cytoplasm

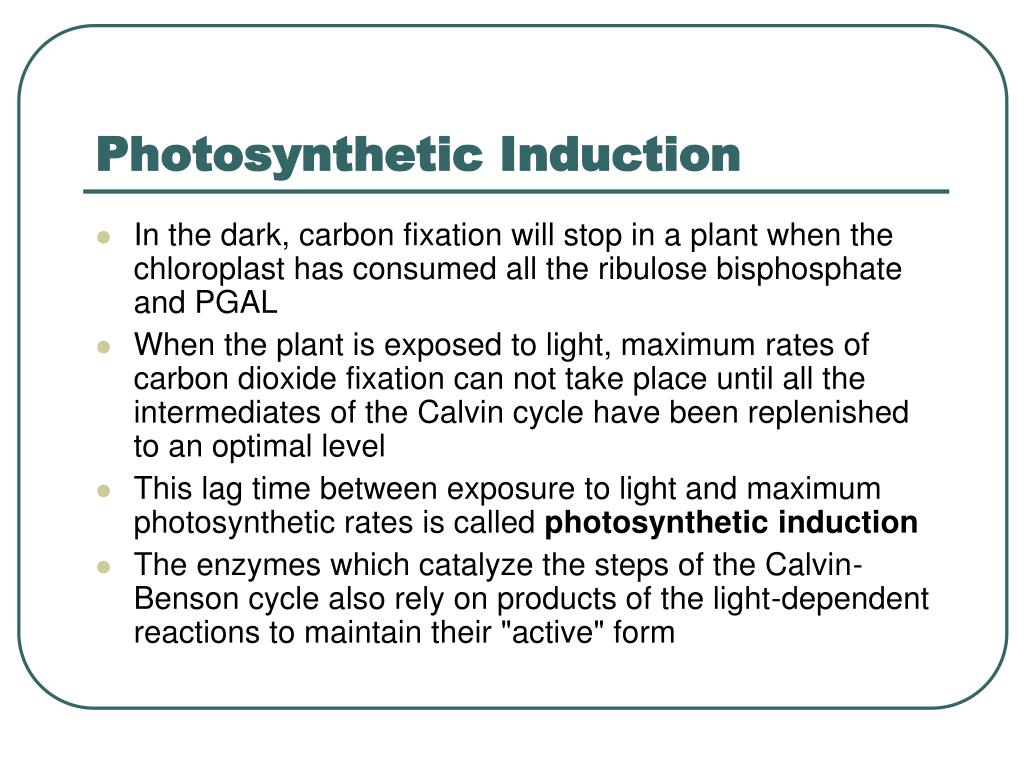

48. Photosynthetic Induction In the dark, carbon fixation will stop in a plant when the chloroplast has consumed all the ribulose bisphosphate and PGAL When the plant is exposed to light, maximum rates of carbon dioxide fixation can not take place until all the intermediates of the Calvin cycle have been replenished to an optimal level This lag time between exposure to light and maximum photosynthetic rates is called photosynthetic induction The enzymes which catalyze the steps of the Calvin-Benson cycle also rely on products of the light-dependent reactions to maintain their "active" form

49. Photorespiration Plants that produce three-carbon phosphoglycerate as the first product of the light-independent reactions are referred to as C3 plants The active site of Rubisco can utilize O2 or CO2 with a preference for CO2 If the air spaces in a leaf have a much higher concentration of O2 than CO2, the active site of rubisco will accept O2 When this occurs, a two-carbon molecule of phosphoglycerate is produced, leaves the chloroplasts and is metabolized in the peroxisomes and mitochondria resulting in the release of carbon dioxide
