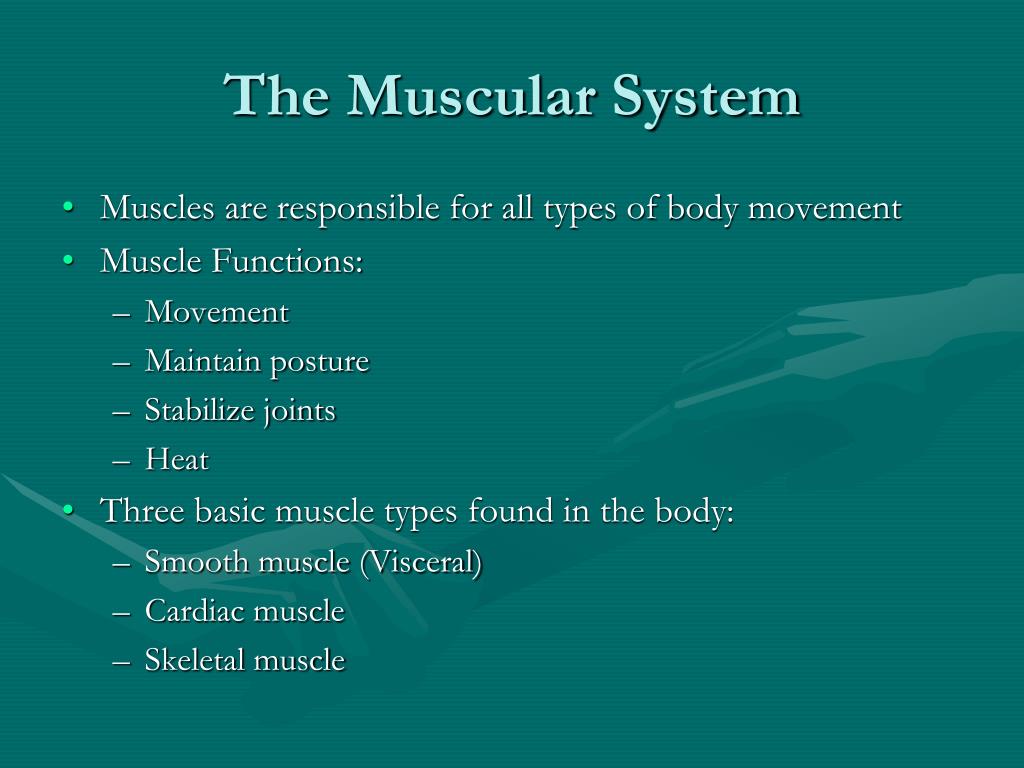

  1. The Muscular System • Muscles are responsible for all types of body movement • Muscle Functions: • Movement • Maintain posture • Stabilize joints • Heat • Three basic muscle types found in the body: • Smooth muscle (Visceral) • Cardiac muscle • Skeletal muscle

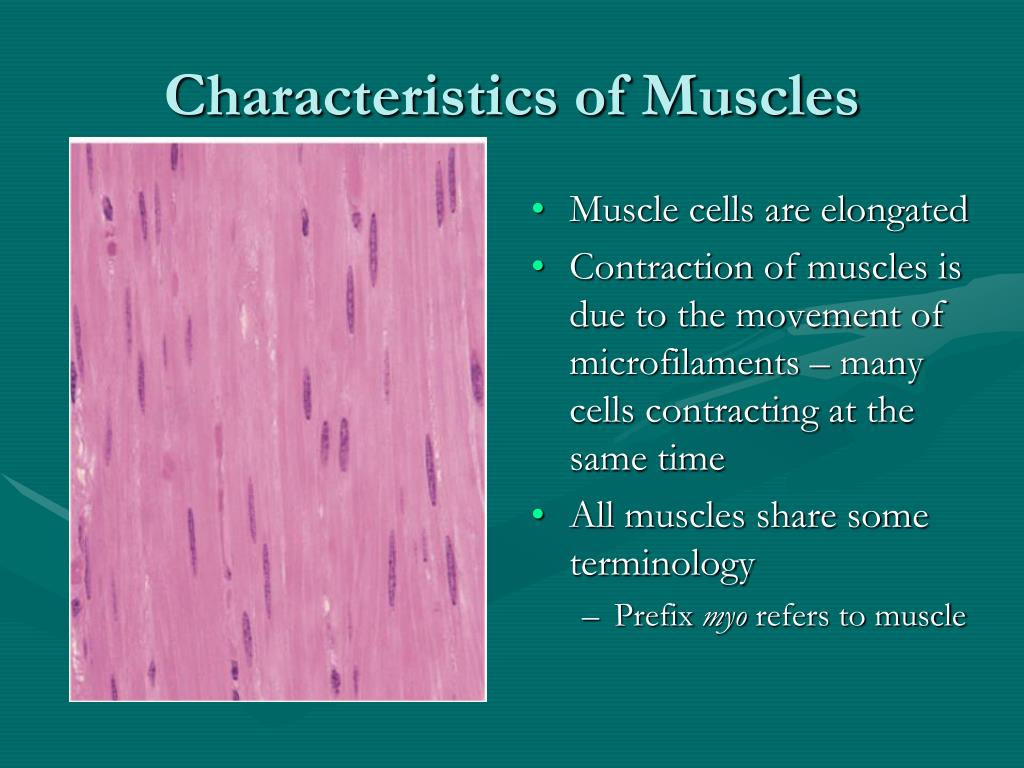

  2. Characteristics of Muscles • Muscle cells are elongated • Contraction of muscles is due to the movement of microfilaments – many cells contracting at the same time • All muscles share some terminology • Prefix myo refers to muscle

  3. Smooth Muscle Characteristics: How blood and food move • No striations • Spindle-shaped cells • Single nucleus • Involuntary – no conscious control • Found mainly in the walls of hollow organs (blood vessels, intestines) Figure 6.2a

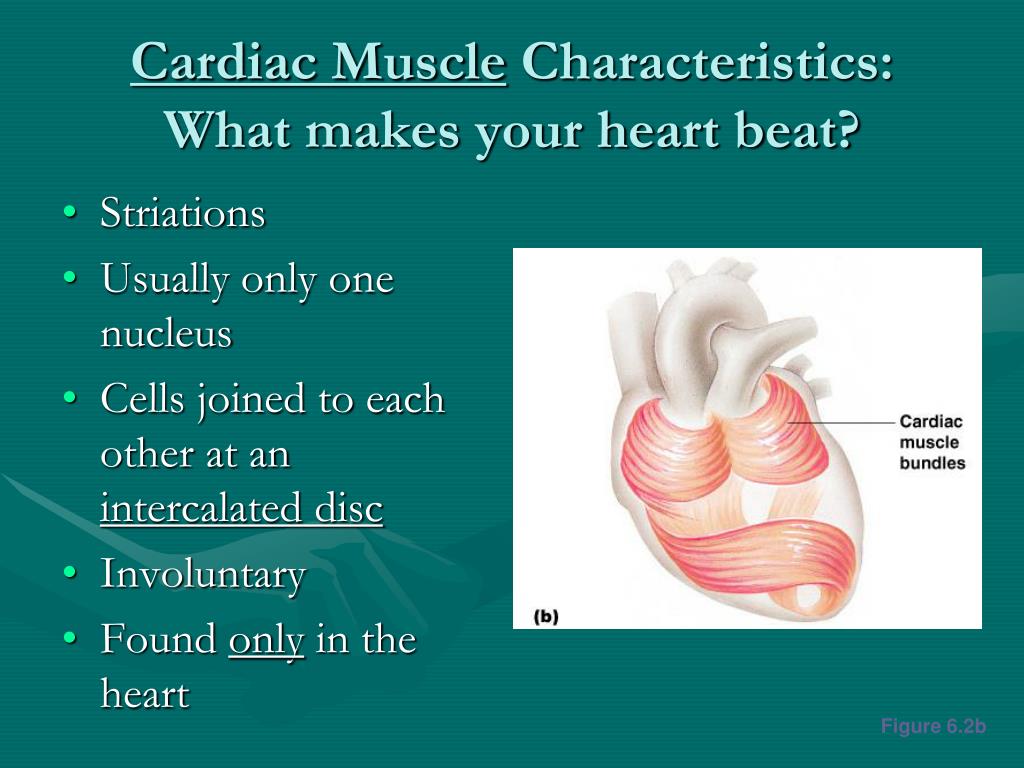

  4. Cardiac Muscle Characteristics:What makes your heart beat? • Striations • Usually only one nucleus • Cells joined to each other at an intercalated disc • Involuntary • Found only in the heart Figure 6.2b

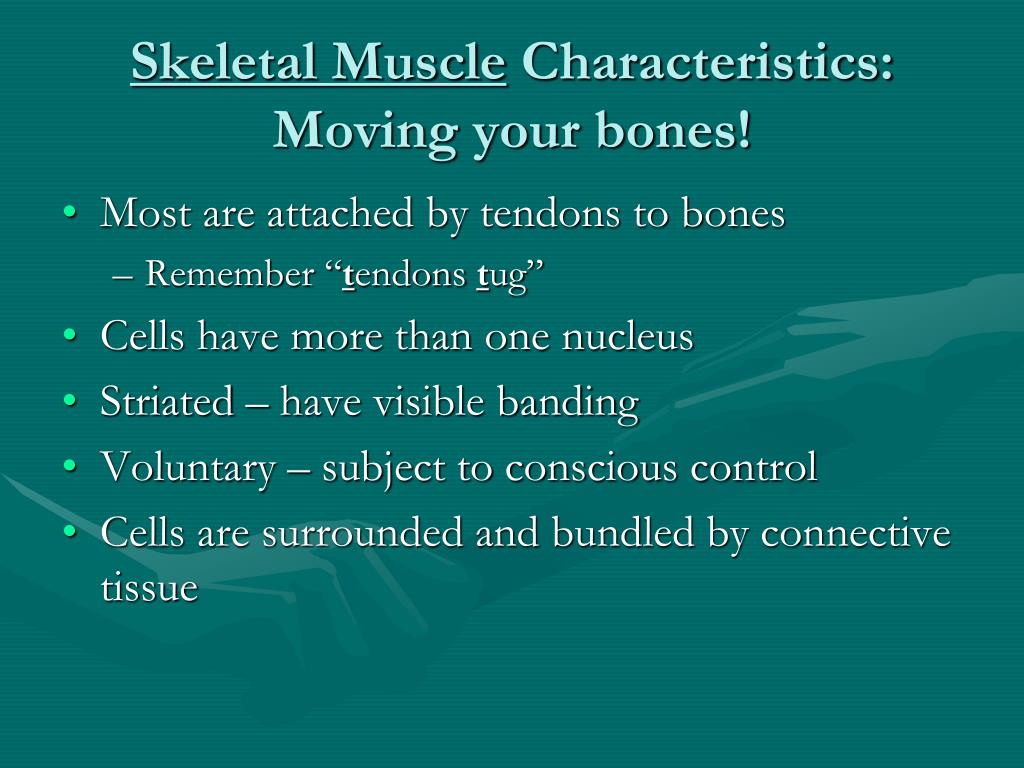

  5. Skeletal Muscle Characteristics:Moving your bones! • Most are attached by tendons to bones • Remember “tendons tug” • Cells have more than one nucleus • Striated – have visible banding • Voluntary – subject to conscious control • Cells are surrounded and bundled by connective tissue

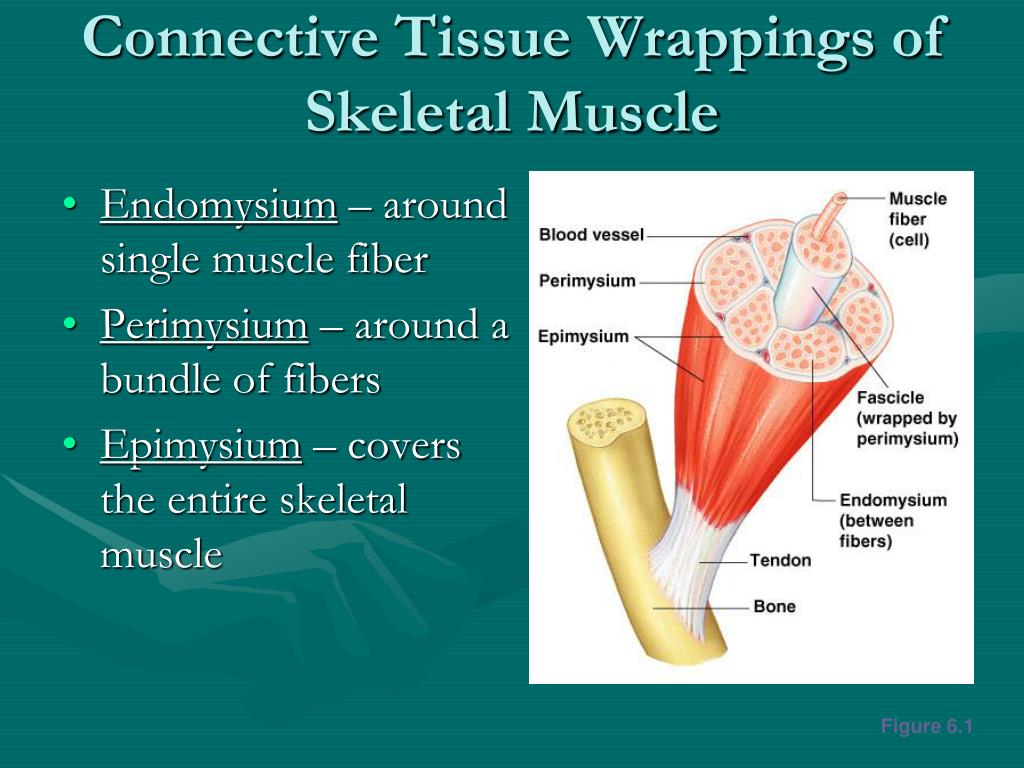

  6. Connective Tissue Wrappings of Skeletal Muscle • Endomysium – around single muscle fiber • Perimysium – around a bundle of fibers • Epimysium – covers the entire skeletal muscle Figure 6.1

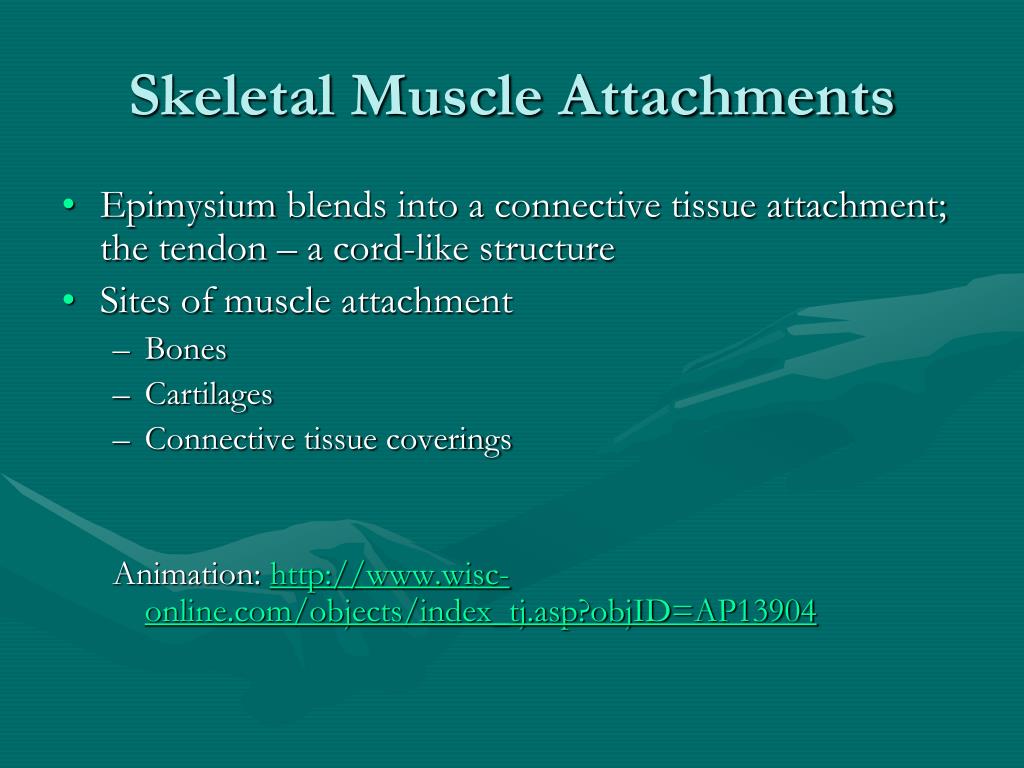

  7. Skeletal Muscle Attachments • Epimysium blends into a connective tissue attachment; the tendon – a cord-like structure • Sites of muscle attachment • Bones • Cartilages • Connective tissue coverings Animation: http://www.wisc-online.com/objects/index_tj.asp?objID=AP13904

  8. Contraction of a Skeletal Muscle • Video • Muscle fiber contraction is “all or none” • Within a skeletal muscle, not all fibers may be stimulated during the same interval • Different combinations of muscle fiber contractions may give differing responses • Graded responses – different degrees of skeletal muscle shortening • Must have ATP in order to contract

  9. Muscle Response to Strong Stimuli • Muscle force depends upon the number of fibers stimulated • More fibers contracting results in greater muscle tension • Muscles can continue to contract unless they run out of energy (ATP)

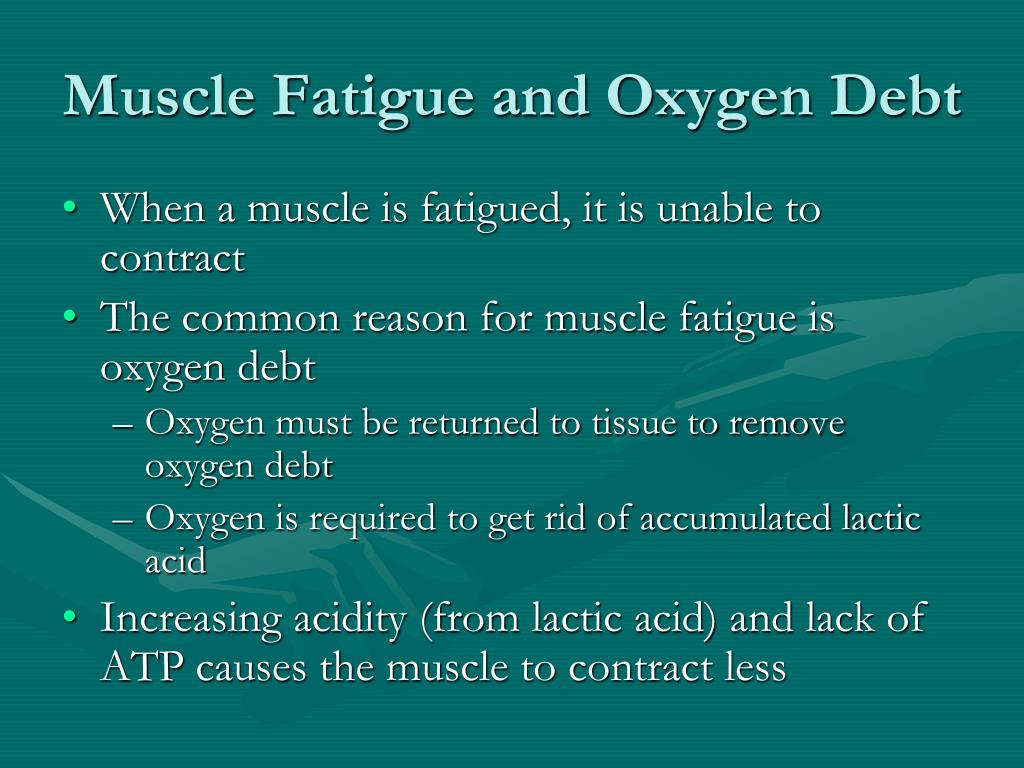

  10. Muscle Fatigue and Oxygen Debt • When a muscle is fatigued, it is unable to contract • The common reason for muscle fatigue is oxygen debt • Oxygen must be returned to tissue to remove oxygen debt • Oxygen is required to get rid of accumulated lactic acid • Increasing acidity (from lactic acid) and lack of ATP causes the muscle to contract less

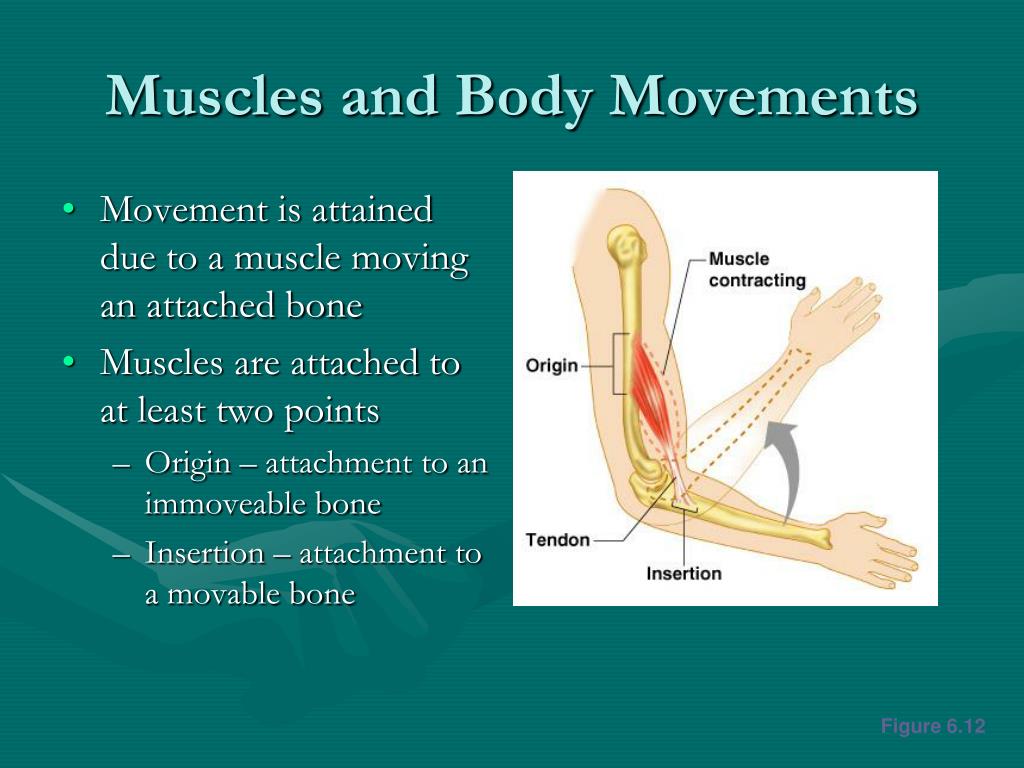

  11. Muscles and Body Movements • Movement is attained due to a muscle moving an attached bone • Muscles are attached to at least two points • Origin – attachment to an immoveable bone • Insertion – attachment to a movable bone Figure 6.12

  12. Ordinary Body Movements • Flexion – decreases the angle between two adjacent body segments • Extension – increases the angle between two adjacent body segments • Rotation – the bone distal to the joint is moved either toward (medial) or away from (lateral) the midline • Abduction – movement of a body part away from the midline • Adduction – movement of a body part back toward the midline • Circumduction – a combination of flexion, abduction, extension, and adduction http://www.med.umich.edu/lrc/hypermuscle/hyper.html

  13. Body Movements Figure 6.13a–c

  14. Body Movements

  15. Body Movements Figure 6.13d

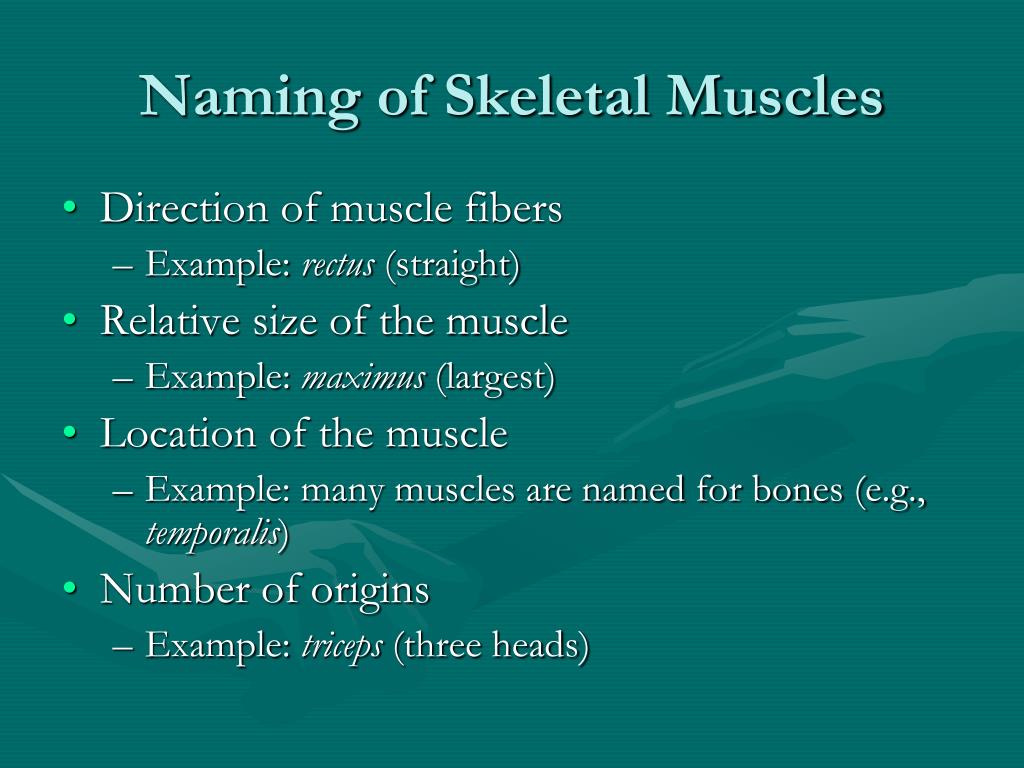

  16. Naming of Skeletal Muscles • Direction of muscle fibers • Example: rectus (straight) • Relative size of the muscle • Example: maximus (largest) • Location of the muscle • Example: many muscles are named for bones (e.g., temporalis) • Number of origins • Example: triceps (three heads)

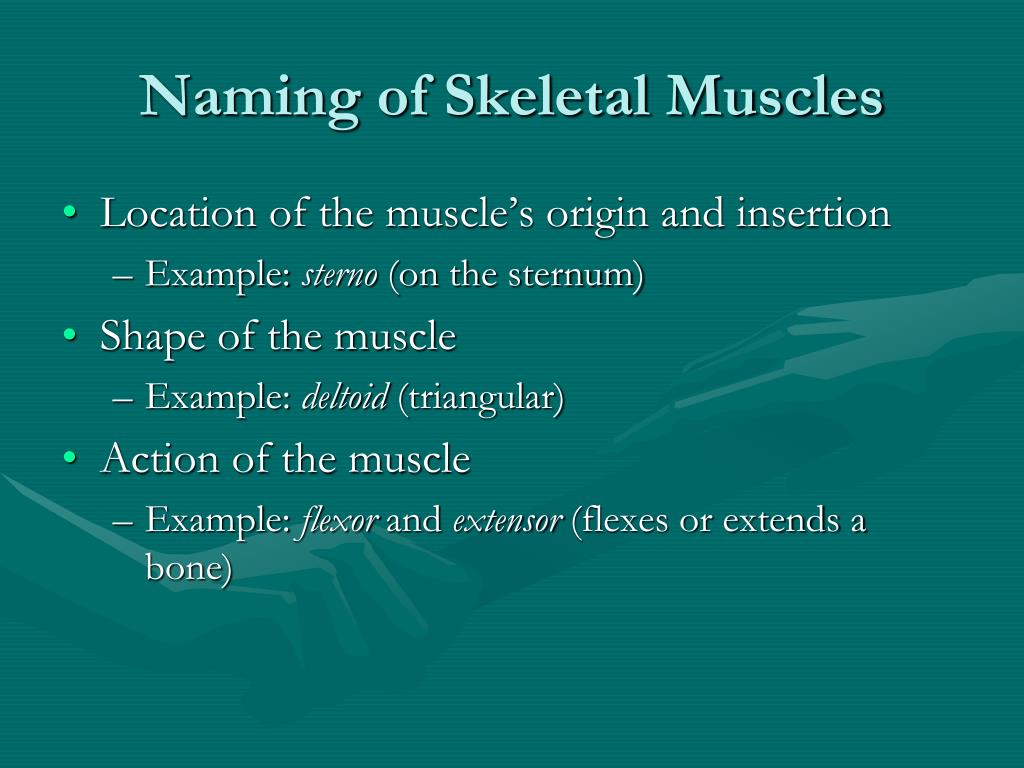

  17. Naming of Skeletal Muscles • Location of the muscle’s origin and insertion • Example: sterno (on the sternum) • Shape of the muscle • Example: deltoid (triangular) • Action of the muscle • Example: flexor and extensor (flexes or extends a bone)

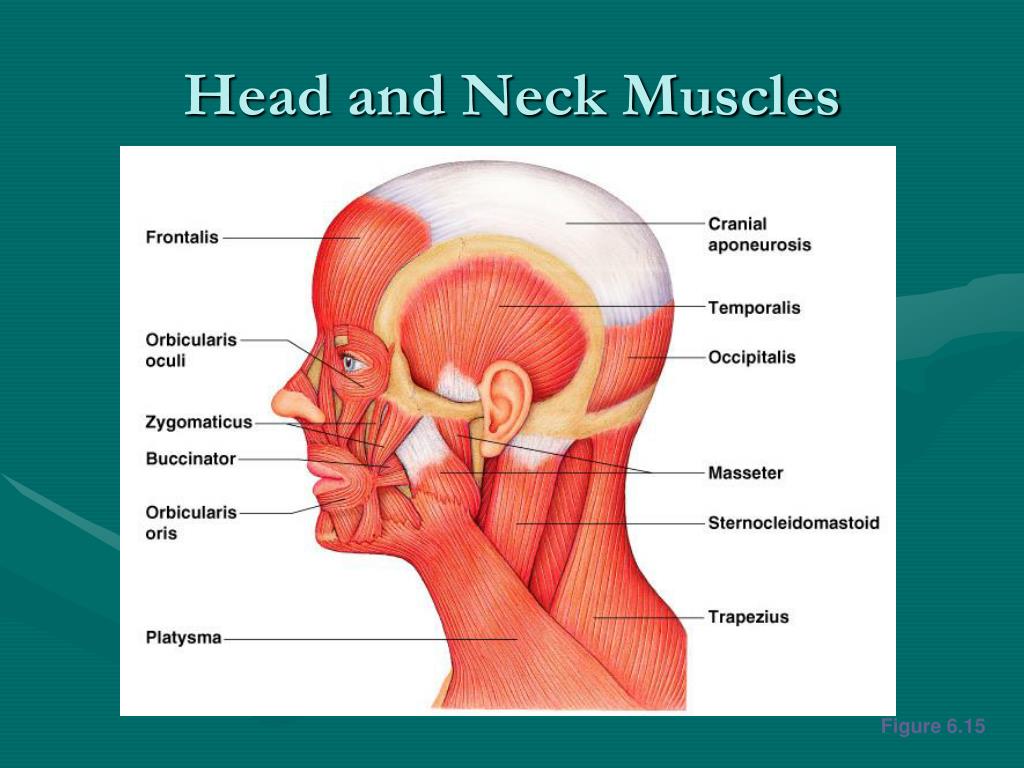

  18. Head and Neck Muscles Figure 6.15

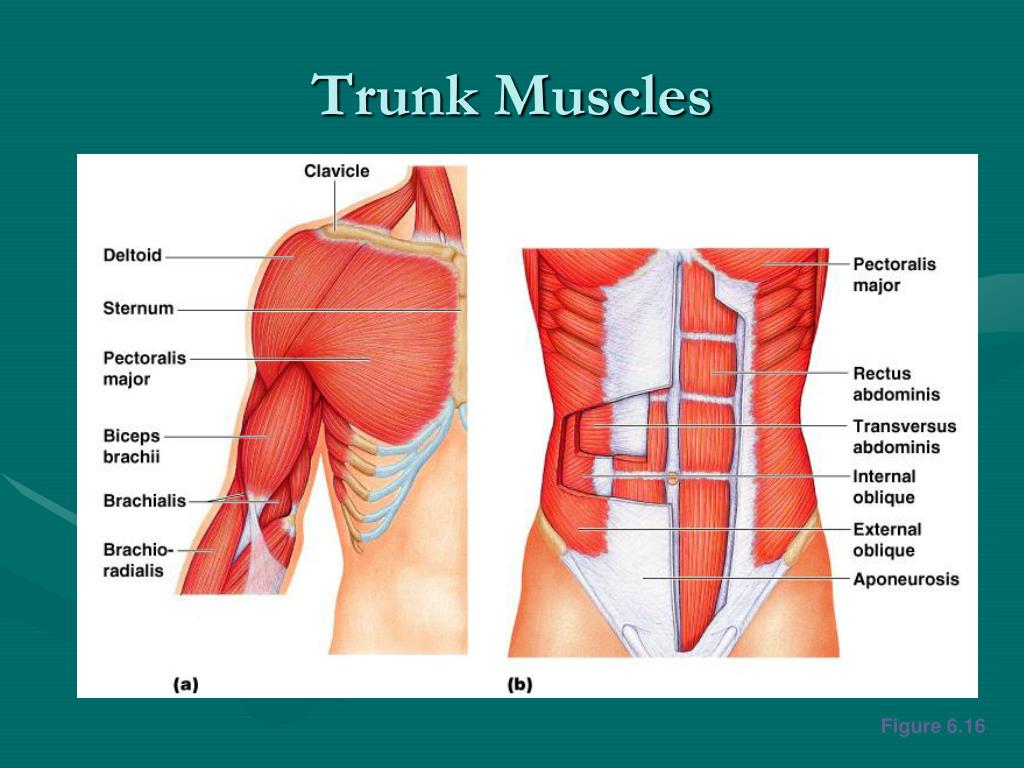

  19. Trunk Muscles Figure 6.16

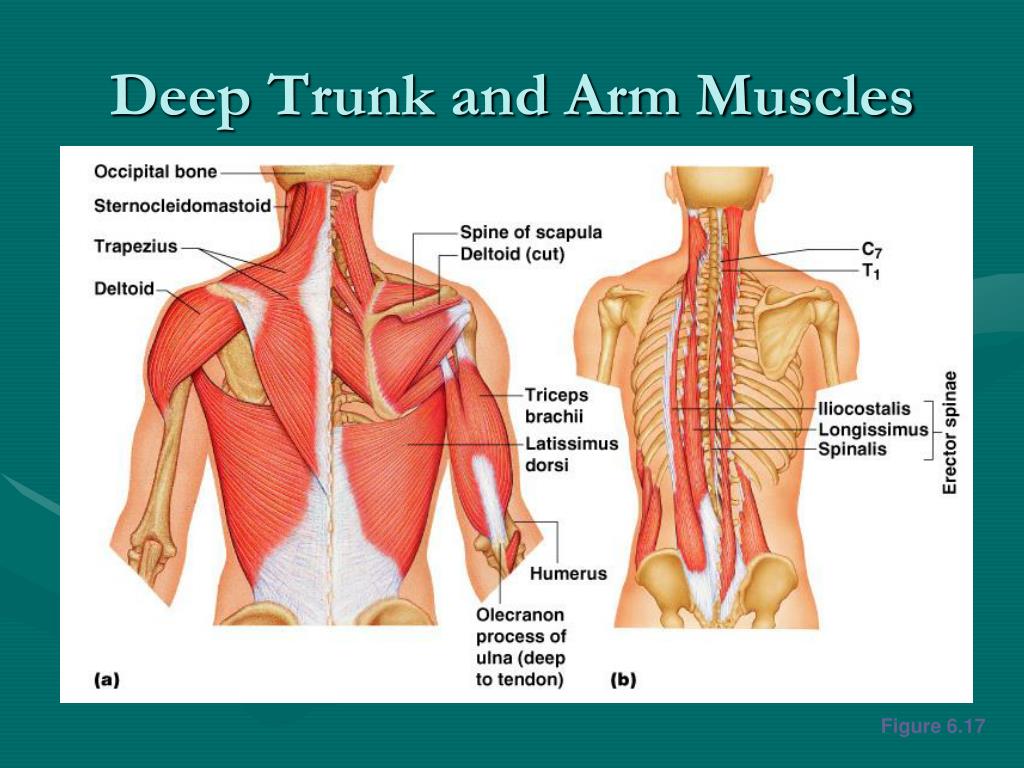

  20. Deep Trunk and Arm Muscles Figure 6.17

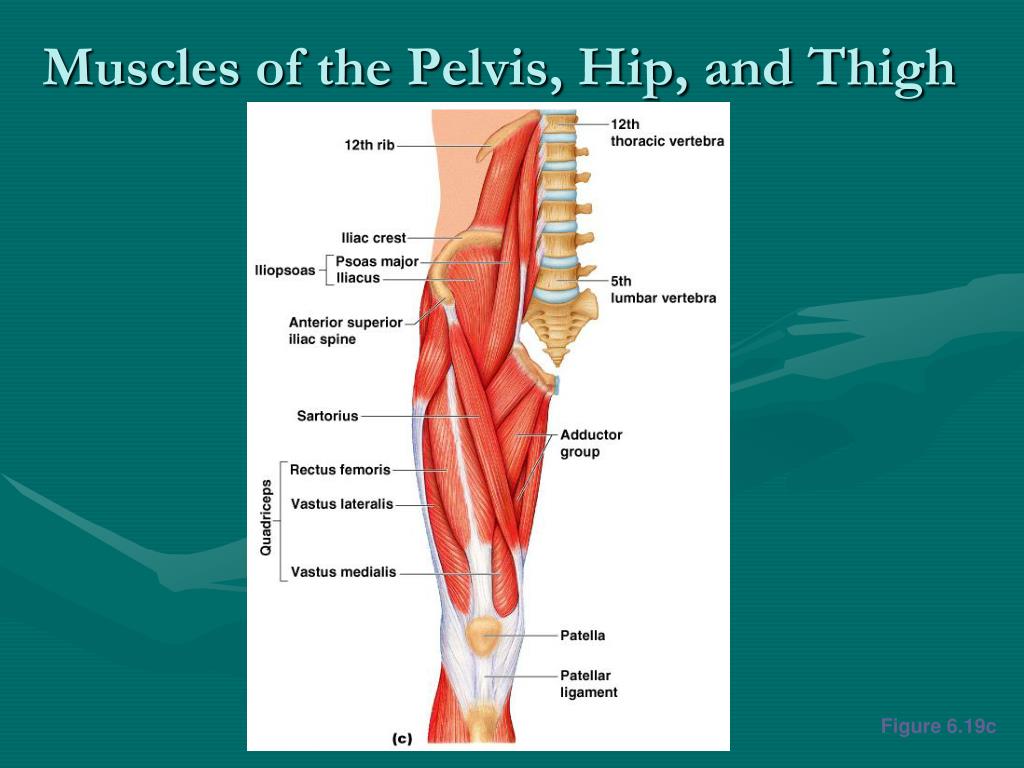

  21. Muscles of the Pelvis, Hip, and Thigh Figure 6.19c

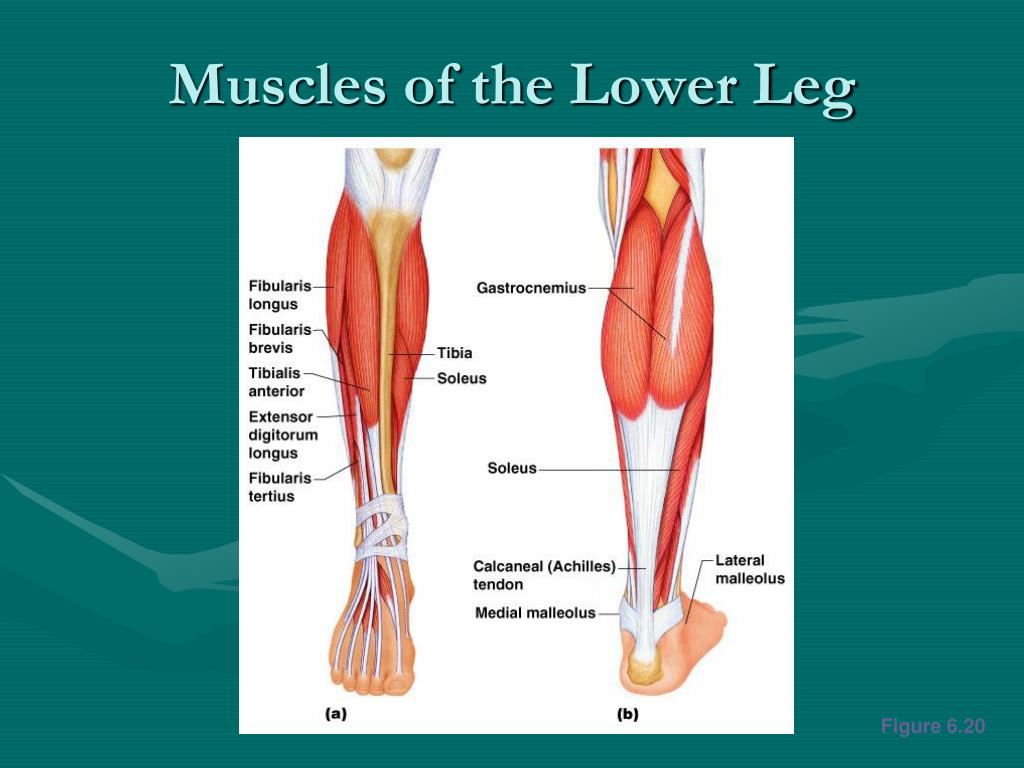

  22. Muscles of the Lower Leg Figure 6.20

  23. Superficial Muscles: Anterior Figure 6.21

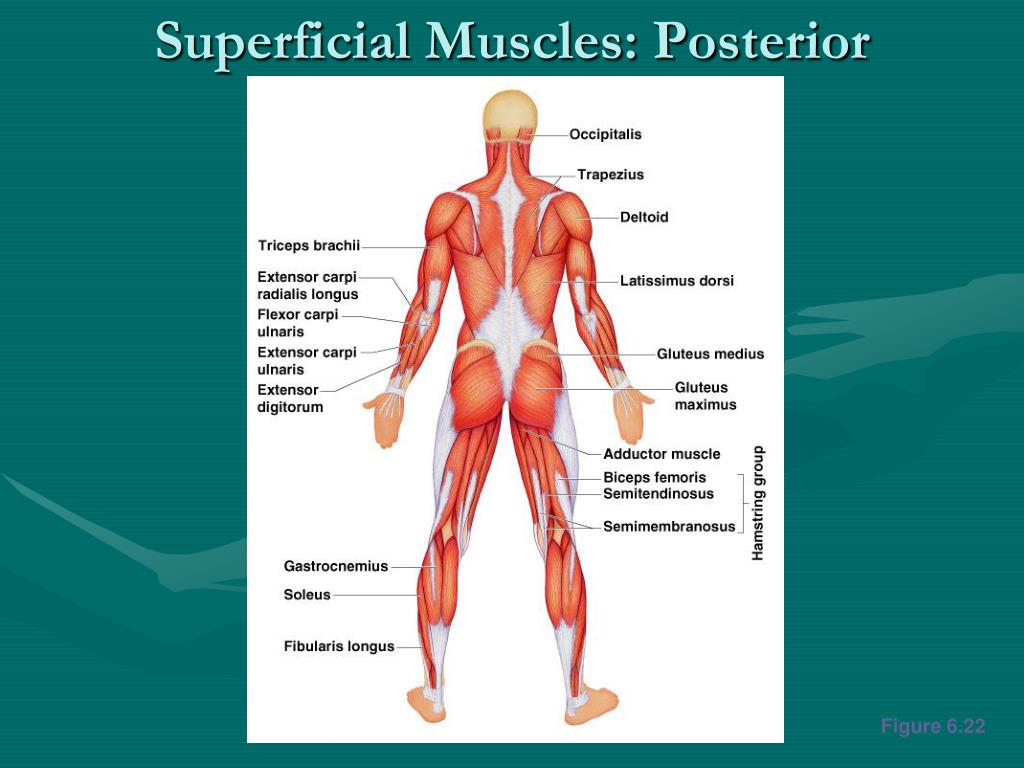

  24. Superficial Muscles: Posterior Figure 6.22

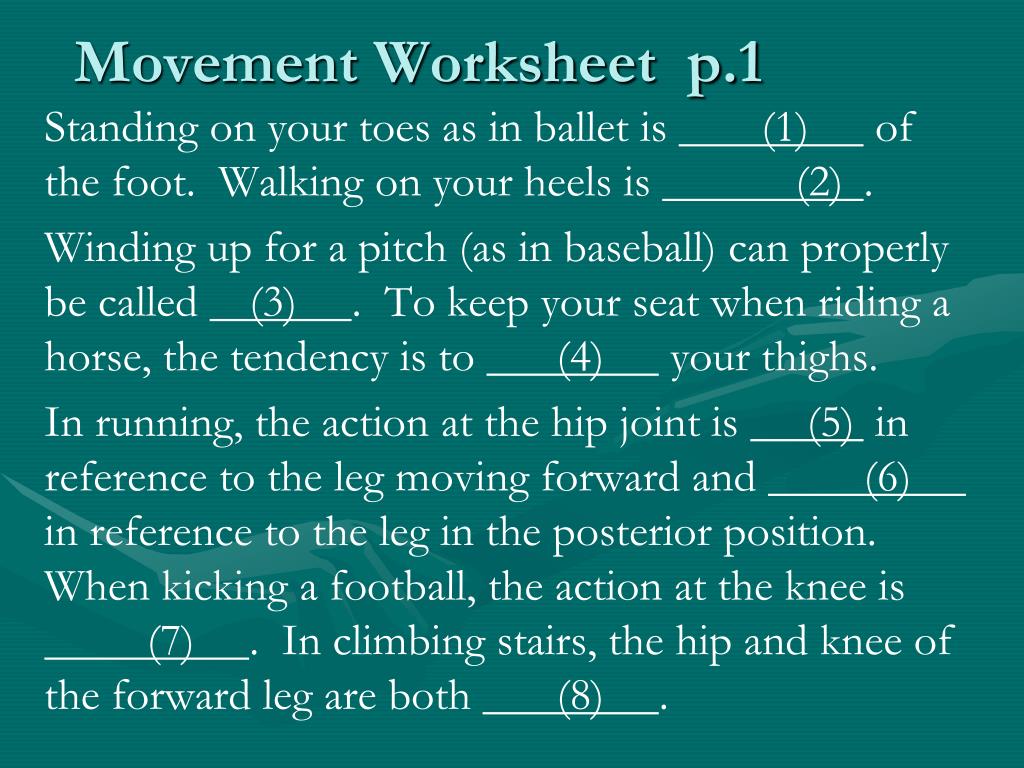

  25. Movement Worksheet p.1 Standing on your toes as in ballet is (1) of the foot. Walking on your heels is (2) . Winding up for a pitch (as in baseball) can properly be called (3) . To keep your seat when riding a horse, the tendency is to (4) your thighs. In running, the action at the hip joint is (5) in reference to the leg moving forward and (6) in reference to the leg in the posterior position. When kicking a football, the action at the knee is (7) . In climbing stairs, the hip and knee of the forward leg are both (8) .

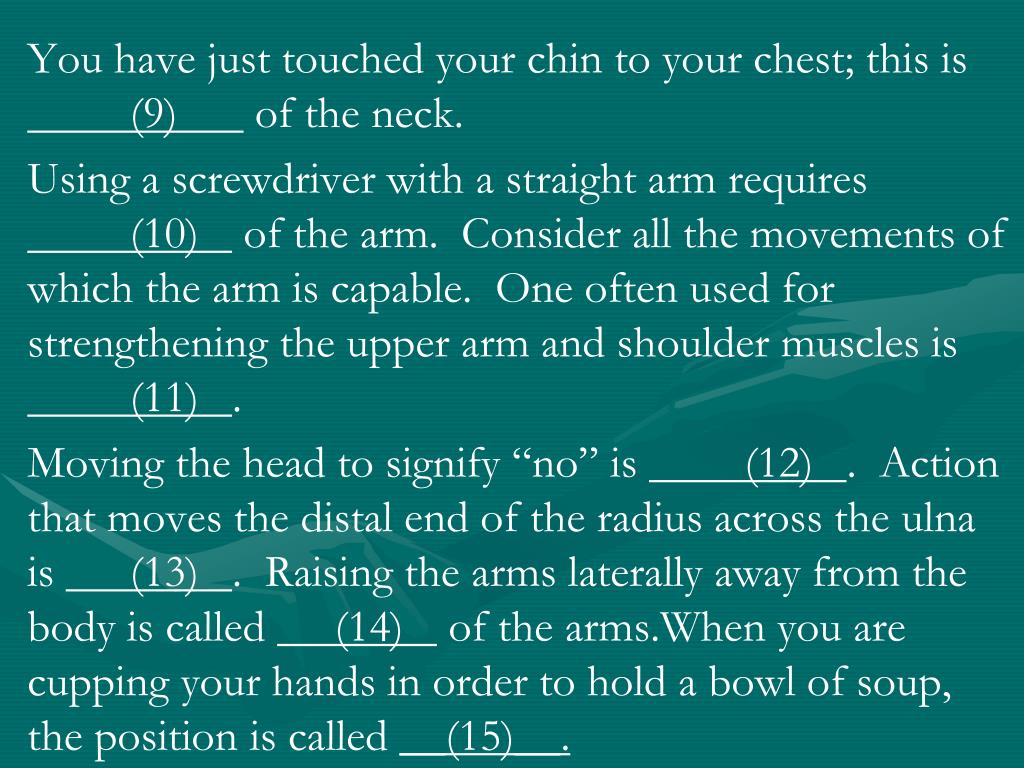

  26. You have just touched your chin to your chest; this is (9) of the neck. Using a screwdriver with a straight arm requires (10) of the arm. Consider all the movements of which the arm is capable. One often used for strengthening the upper arm and shoulder muscles is (11) . Moving the head to signify “no” is (12) . Action that moves the distal end of the radius across the ulna is (13) . Raising the arms laterally away from the body is called (14) of the arms.When you are cupping your hands in order to hold a bowl of soup, the position is called __(15)__.
