Nitrogen Fixation

Nitrogen Fixation. Nitrogen fixation is the reduction of ____________ : Bacteria are responsible for the reduction and typically form symbiotic relationships that result in nodules on the roots of leguminous plants Reduction is catalyzed by the nitrogenase enzyme complex

media
Download Presentation

Nitrogen Fixation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Nitrogen Fixation • Nitrogen fixation is the reduction of ____________: • Bacteria are responsible for the reduction and typically form symbiotic relationships that result in nodules on the roots of leguminous plants • Reduction is catalyzed by the nitrogenase enzyme complex • N2 to NH4+is a six-electron reduction

  2. The Path of Electrons from Ferrodoxin to N2

  3. Summary • Nitrogen enters the biosphere by the process of nitrogen fixation. • Atmospheric nitrogen is converted to ammonia in its conjugate acid form, ammonium ion. • The nitrogenase enzyme found in root nodules of leguminous plants catalyzes crucial reactions in nitrogen fixation

  4. Feedback Inhibition in Nitrogen Metabolism • If there is a high level of end product amino acid or nucleotide, the cell saves energy by not making the compound through a feedback mechanism • In summary, because the biosynthetic pathways for many nitrogen-containing compounds are long and complex, feedback inhibition helps ______ ____________

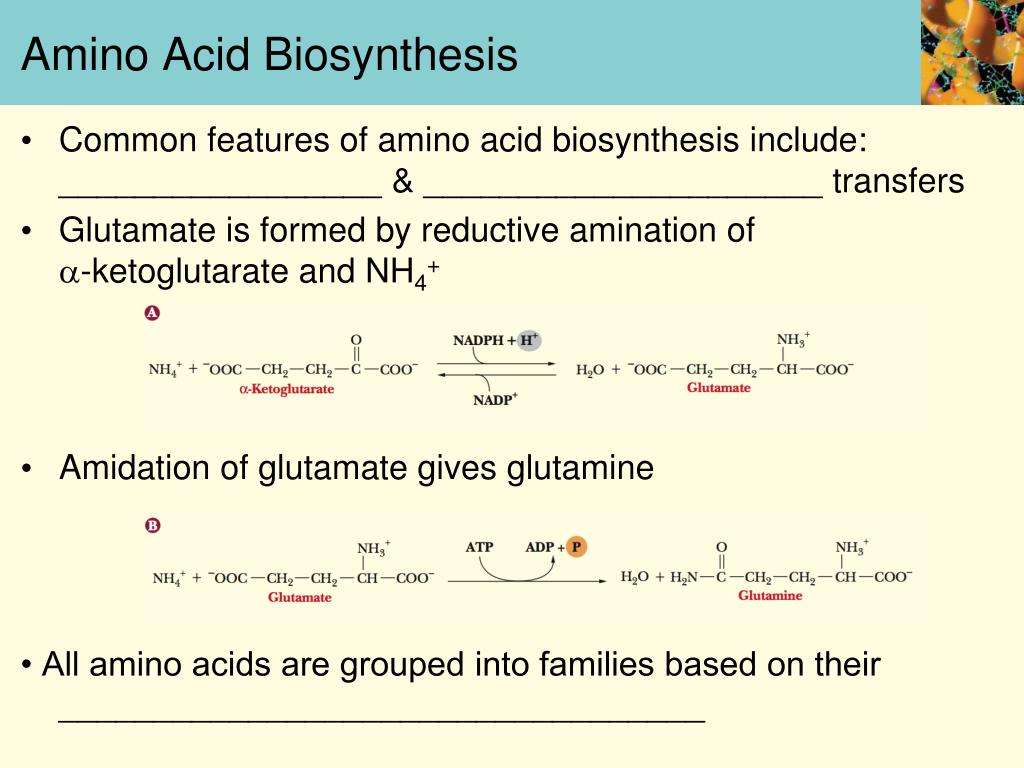

  5. Amino Acid Biosynthesis • Common features of amino acid biosynthesis include: _________________ & _____________________ transfers • Glutamate is formed by reductive amination of -ketoglutarate and NH4+ • Amidation of glutamate gives glutamine • All amino acids are grouped into families based on their __________________________________

  6. Amino Acid Biosynthesis

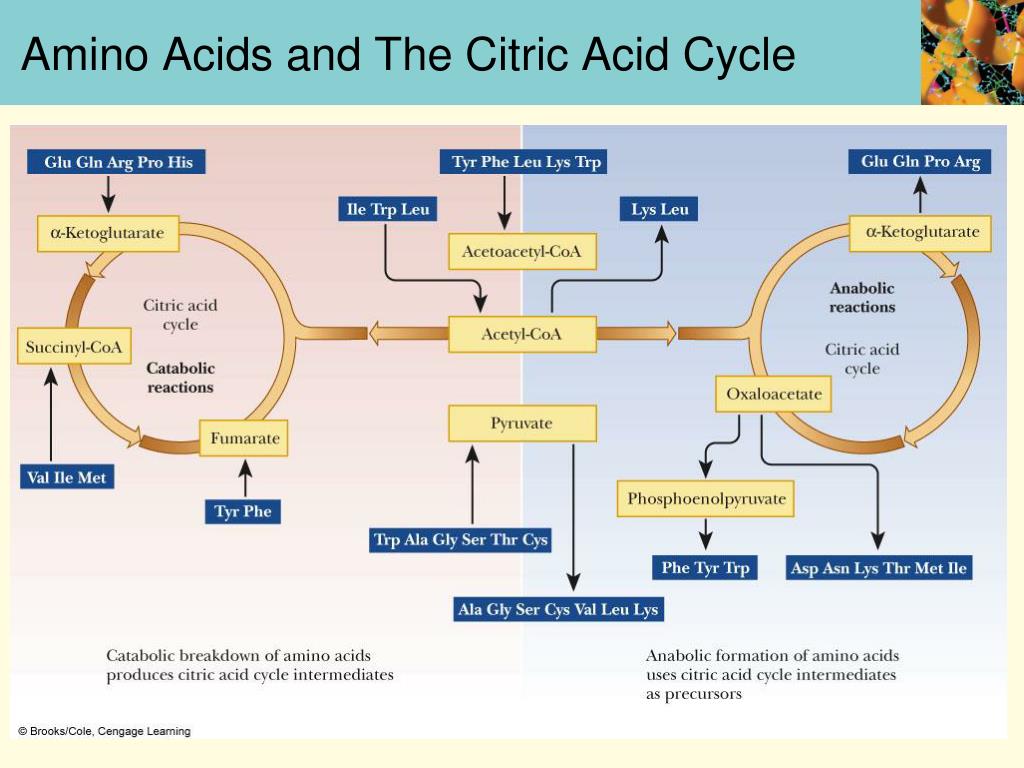

  7. Amino Acids and The Citric Acid Cycle

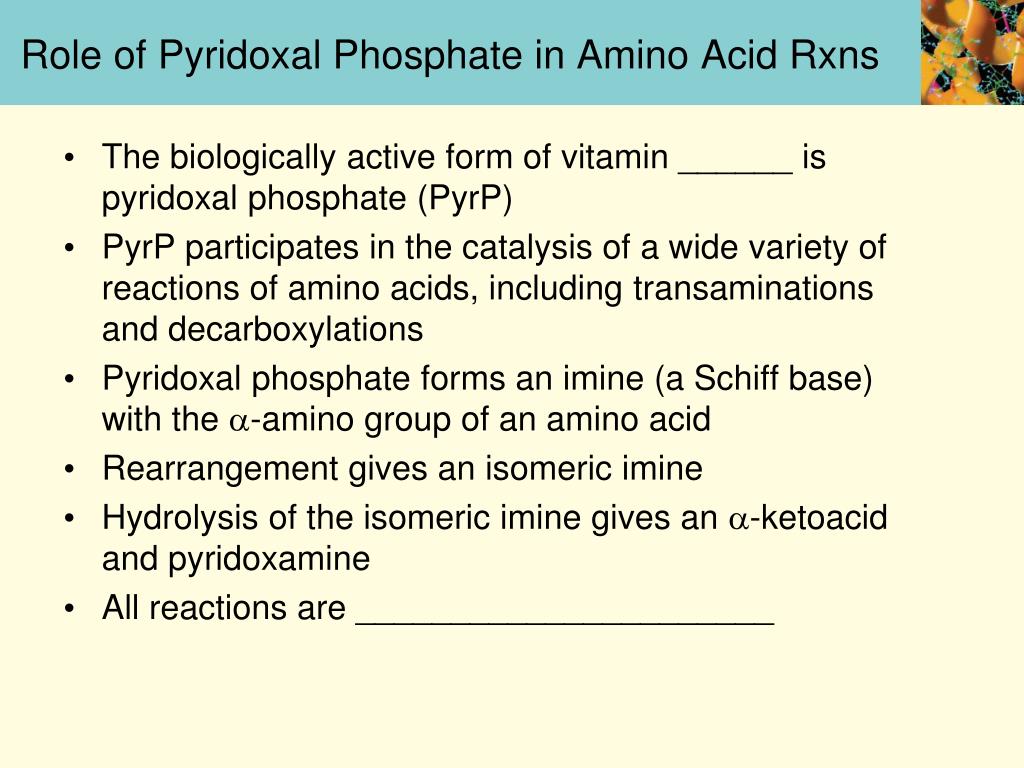

  8. Role of Pyridoxal Phosphate in Amino Acid Rxns • The biologically active form of vitamin ______ is pyridoxal phosphate (PyrP) • PyrP participates in the catalysis of a wide variety of reactions of amino acids, including transaminations and decarboxylations • Pyridoxal phosphate forms an imine (a Schiff base) with the -amino group of an amino acid • Rearrangement gives an isomeric imine • Hydrolysis of the isomeric imine gives an -ketoacid and pyridoxamine • All reactions are ______________________

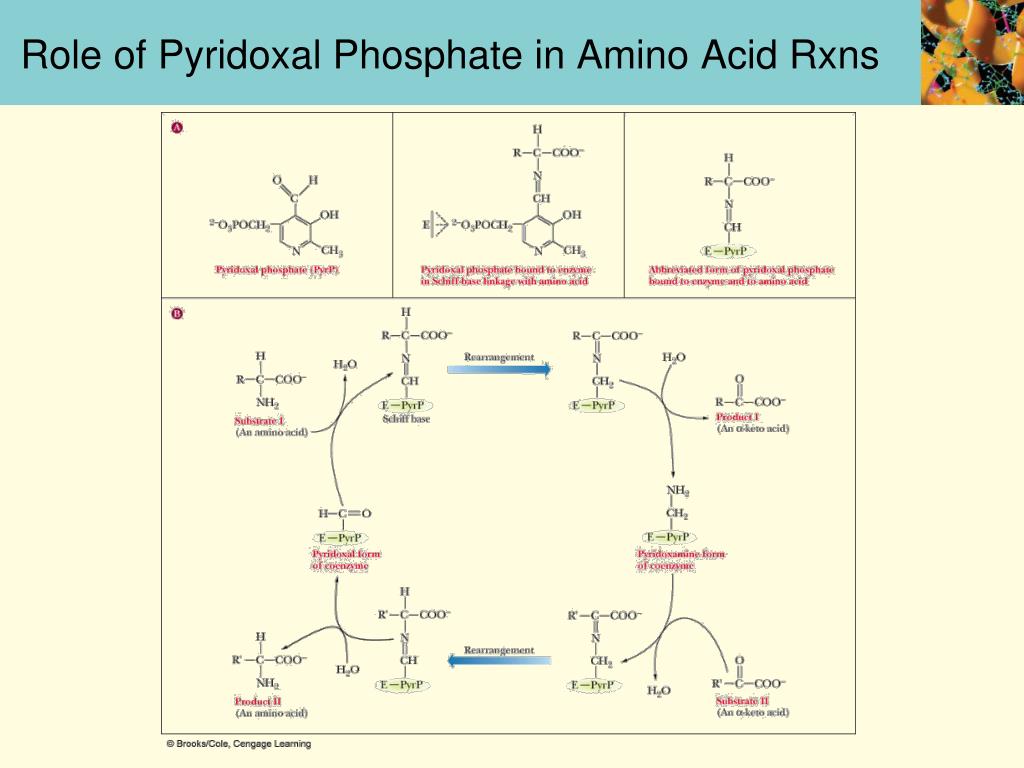

  9. Role of Pyridoxal Phosphate in Amino Acid Rxns

  10. Role of Pyridoxal Phosphate in Amino Acid Rxns • Transamination reactions switch ____________ ___________ from one amino acid to an -keto acid

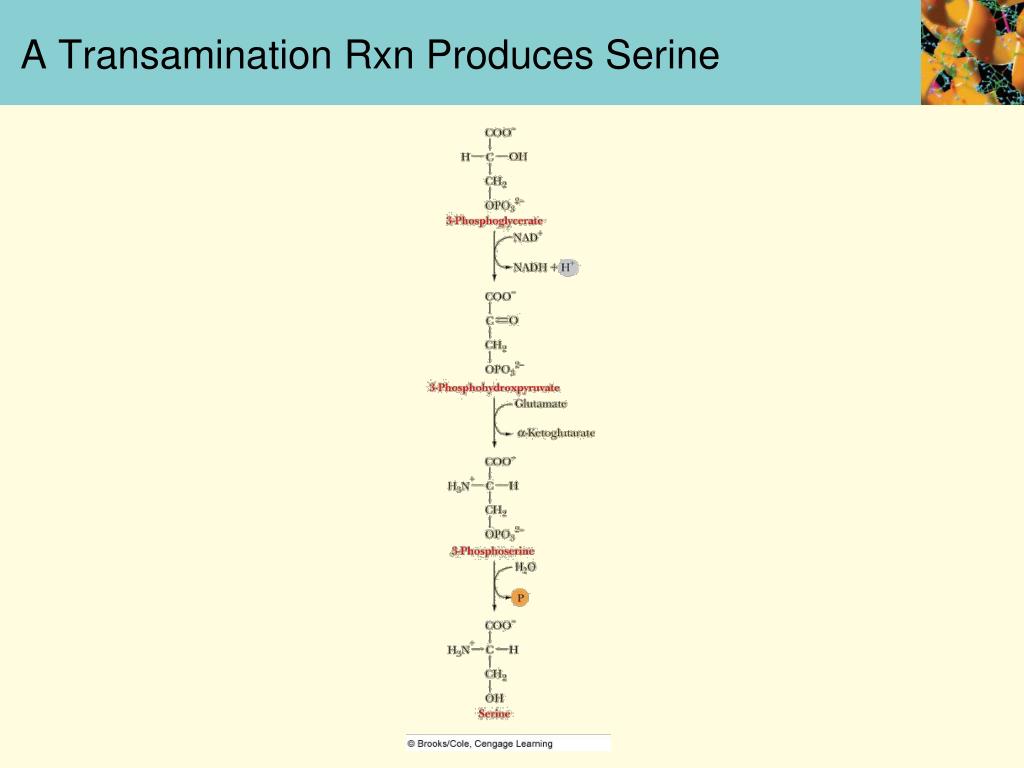

  11. A Transamination Rxn Produces Serine

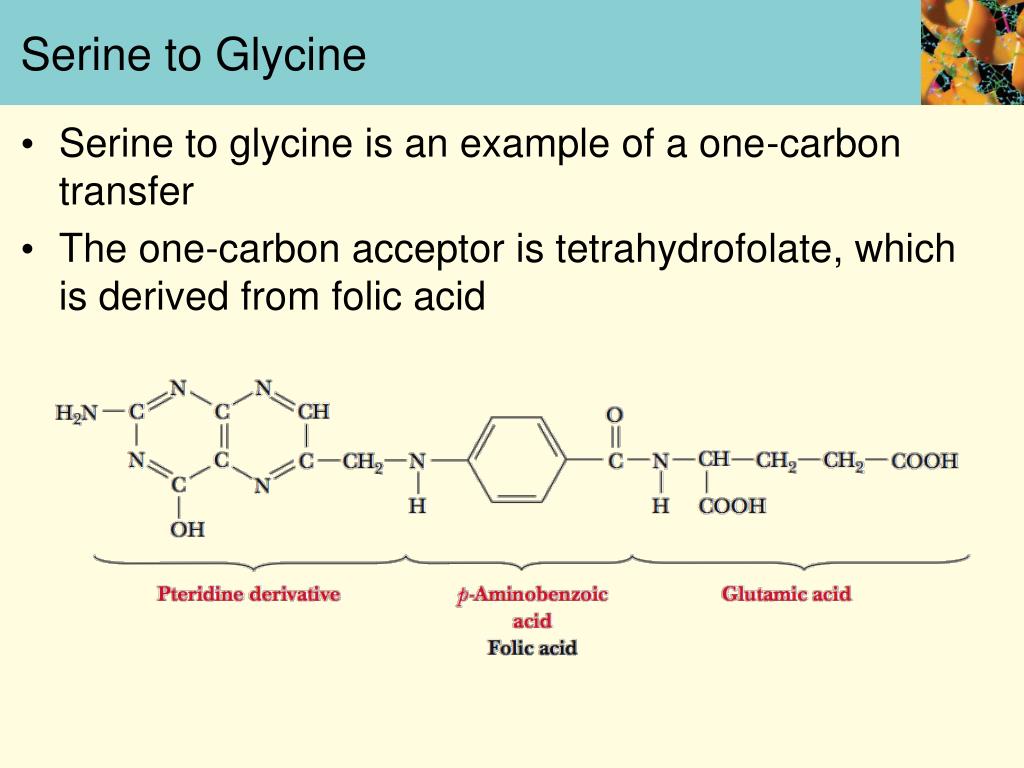

  12. Serine to Glycine • Serine to glycine is an example of a one-carbon transfer • The one-carbon acceptor is tetrahydrofolate, which is derived from folic acid

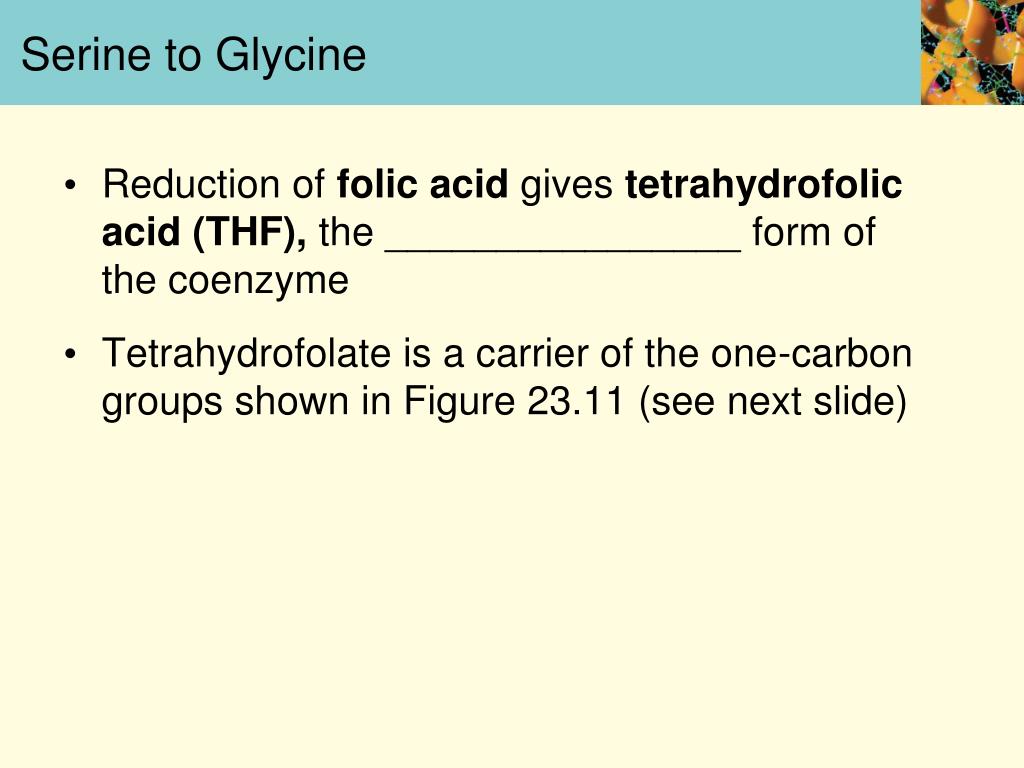

  13. Serine to Glycine • Reduction of folic acid gives tetrahydrofolic acid (THF), the ________________ form of the coenzyme • Tetrahydrofolate is a carrier of the one-carbon groups shown in Figure 23.11 (see next slide)

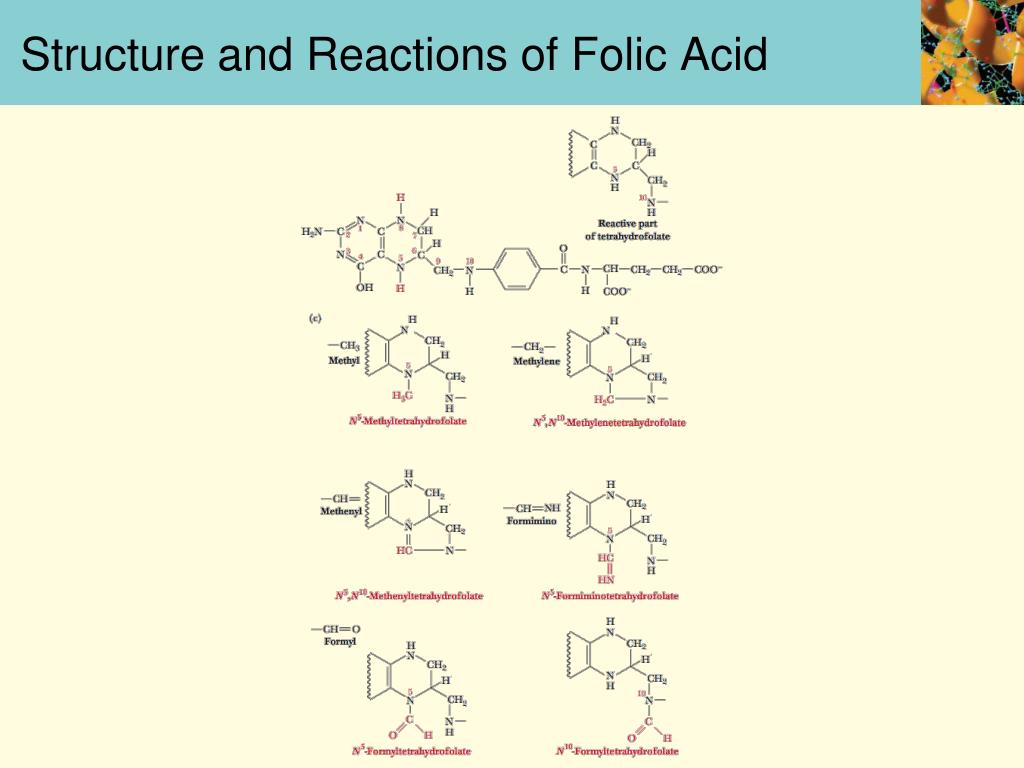

  14. Structure and Reactions of Folic Acid

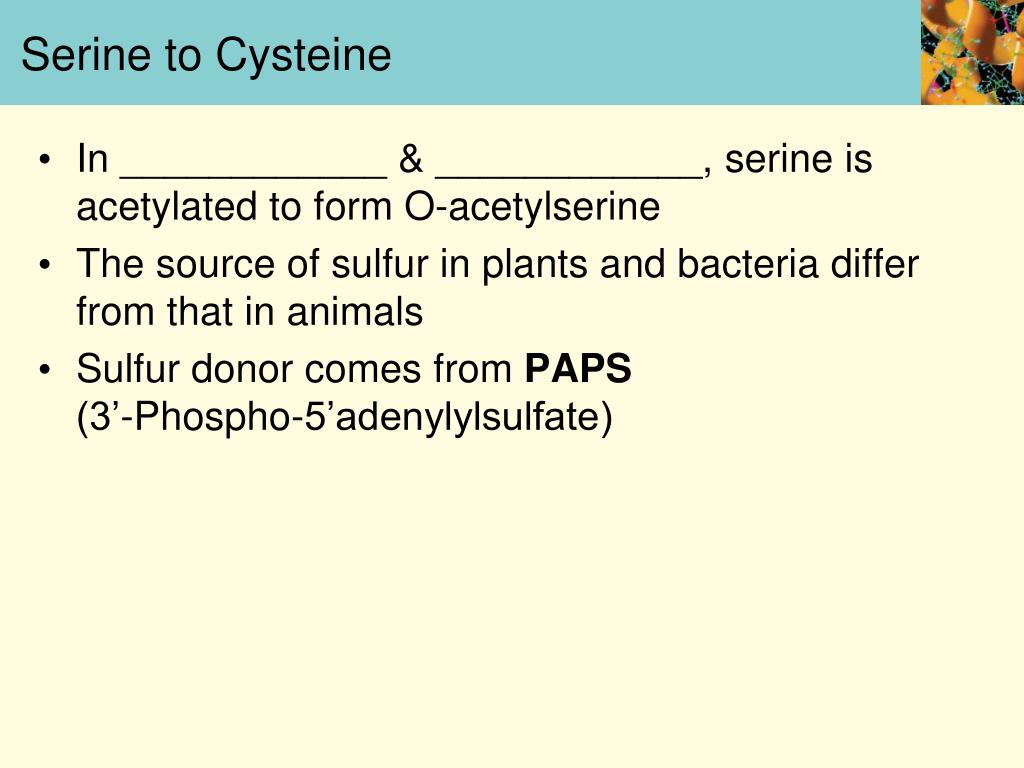

  15. Serine to Cysteine • In ____________ & ____________, serine is acetylated to form O-acetylserine • The source of sulfur in plants and bacteria differ from that in animals • Sulfur donor comes from PAPS (3’-Phospho-5’adenylylsulfate)

  16. Serine to Cysteine

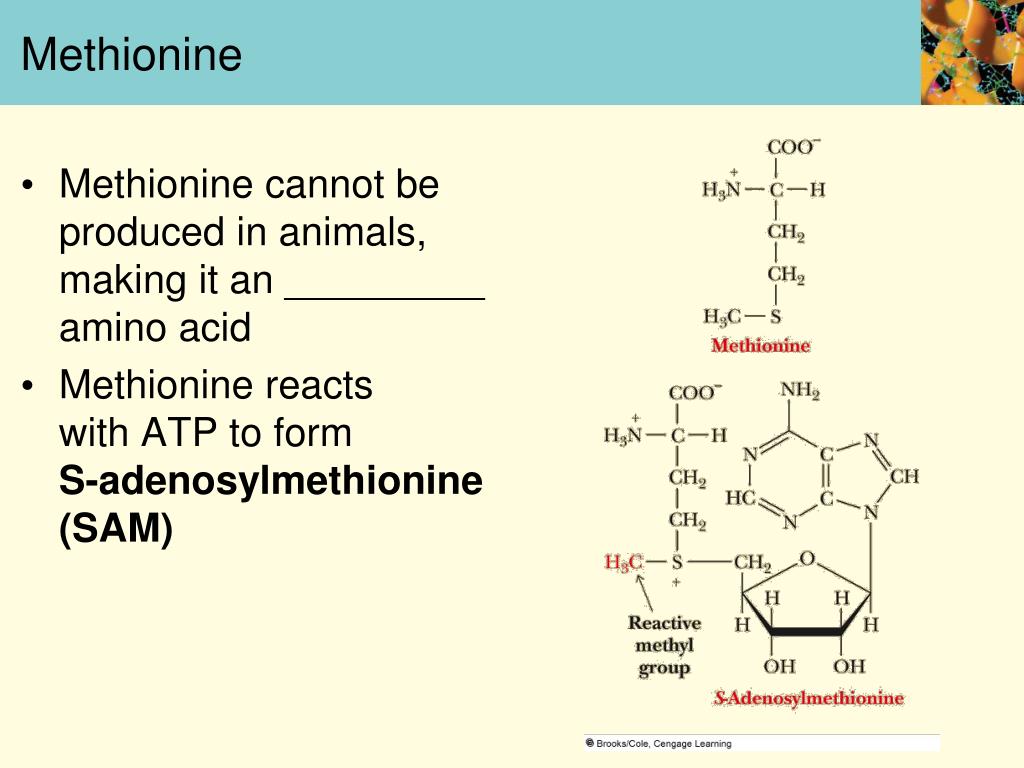

  17. Methionine • Methionine cannot be produced in animals, making it an _________ amino acid • Methionine reacts with ATP to form S-adenosylmethionine (SAM)

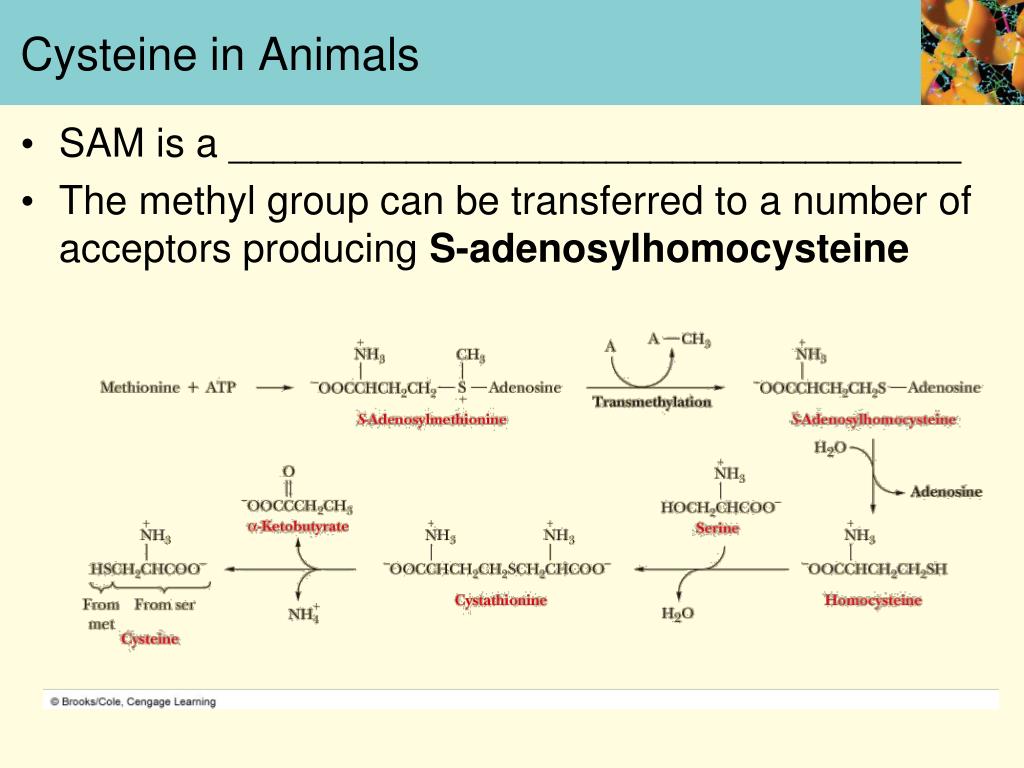

  18. Cysteine in Animals • SAM is a _________________________________ • The methyl group can be transferred to a number of acceptors producing S-adenosylhomocysteine

  19. Summary • Two of the most important classes of reactions in the biosynthesis of amino acids are transamination reactions and one-carbon transfers • The amino acids glutamate and glutamine are the principal donors of amino groups in transamination reactions • Carriers of one-carbon groups include biotin, SAM, and derivatives of folic acid

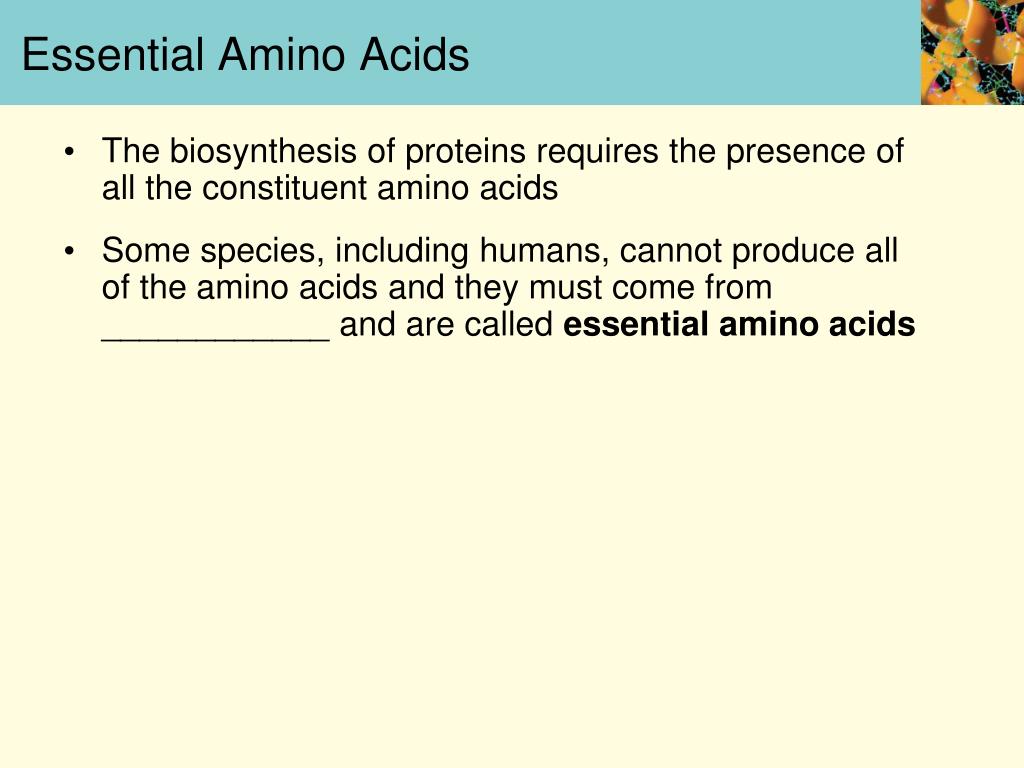

  20. Essential Amino Acids • The biosynthesis of proteins requires the presence of all the constituent amino acids • Some species, including humans, cannot produce all of the amino acids and they must come from ____________ and are called essential amino acids

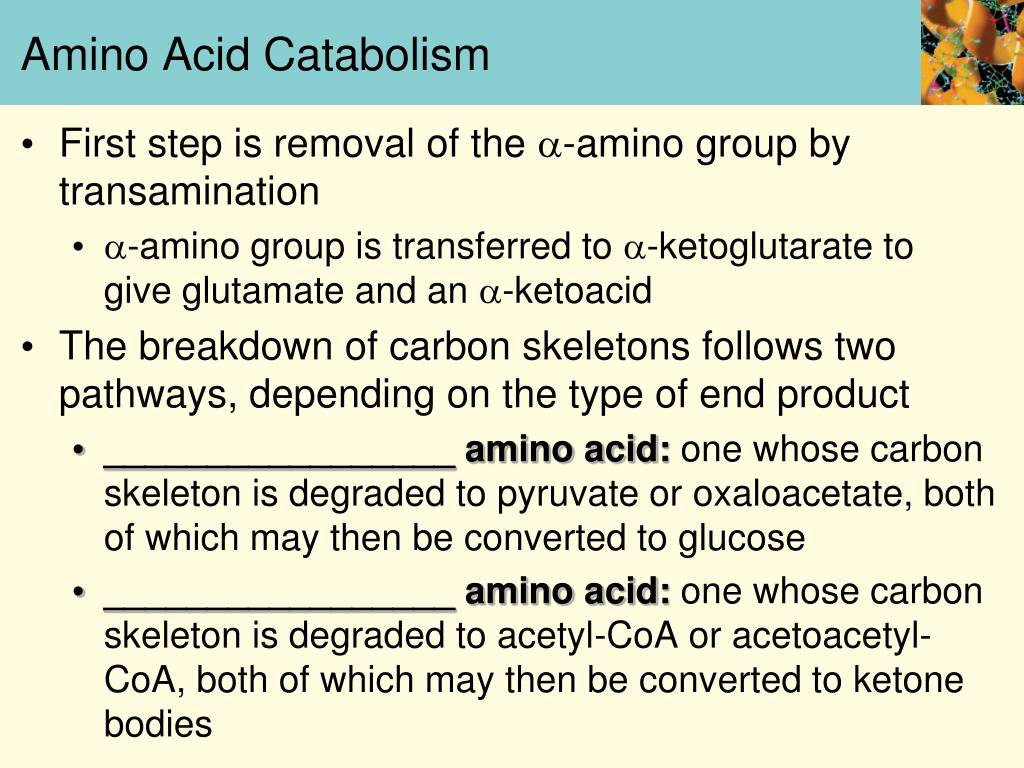

  21. Amino Acid Catabolism • First step is removal of the -amino group by transamination • -amino group is transferred to -ketoglutarate to give glutamate and an -ketoacid • The breakdown of carbon skeletons follows two pathways, depending on the type of end product • _________________ amino acid: one whose carbon skeleton is degraded to pyruvate or oxaloacetate, both of which may then be converted to glucose • _________________ amino acid: one whose carbon skeleton is degraded to acetyl-CoA or acetoacetyl-CoA, both of which may then be converted to ketone bodies

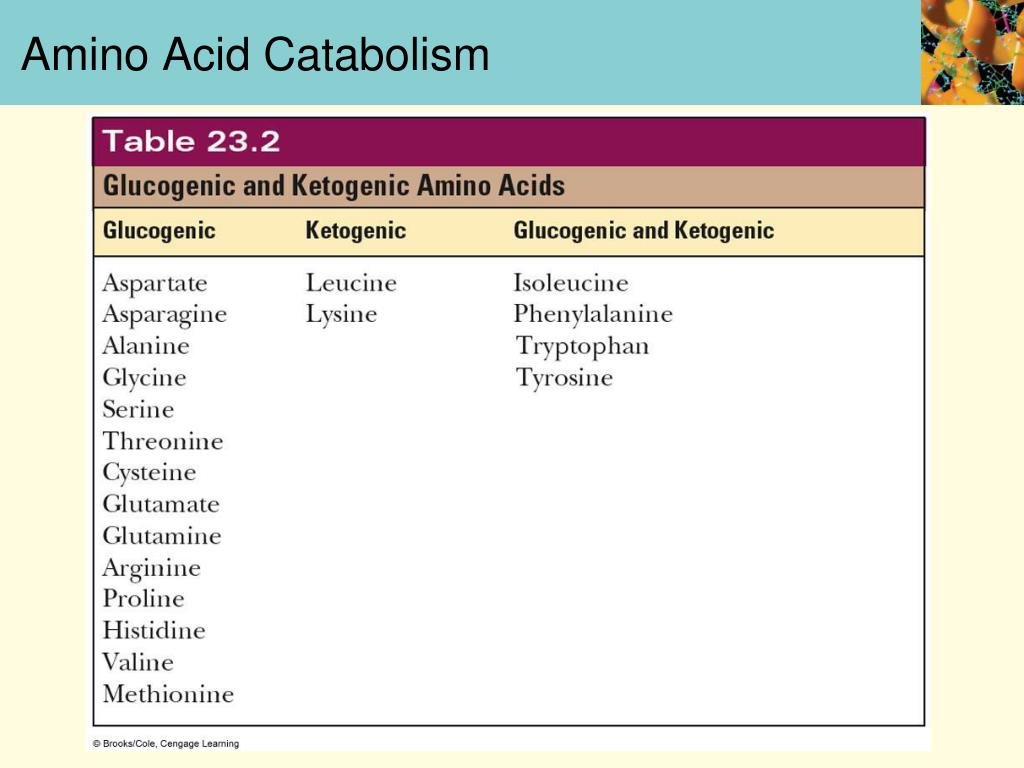

  22. Amino Acid Catabolism

  23. Amino Acid Catabolism The -amino group which has been transferred to -ketoglutarate has one of two fates: • It may be used for biosynthesis • It may be excreted as a part of a nitrogen-containing product

  24. The Urea Cycle • The urea cycle is the central pathway in nitrogen metabolism • The nitrogen atoms come from several sources • Steps of the cycle are outlined in Figure 23.18 (next slide)

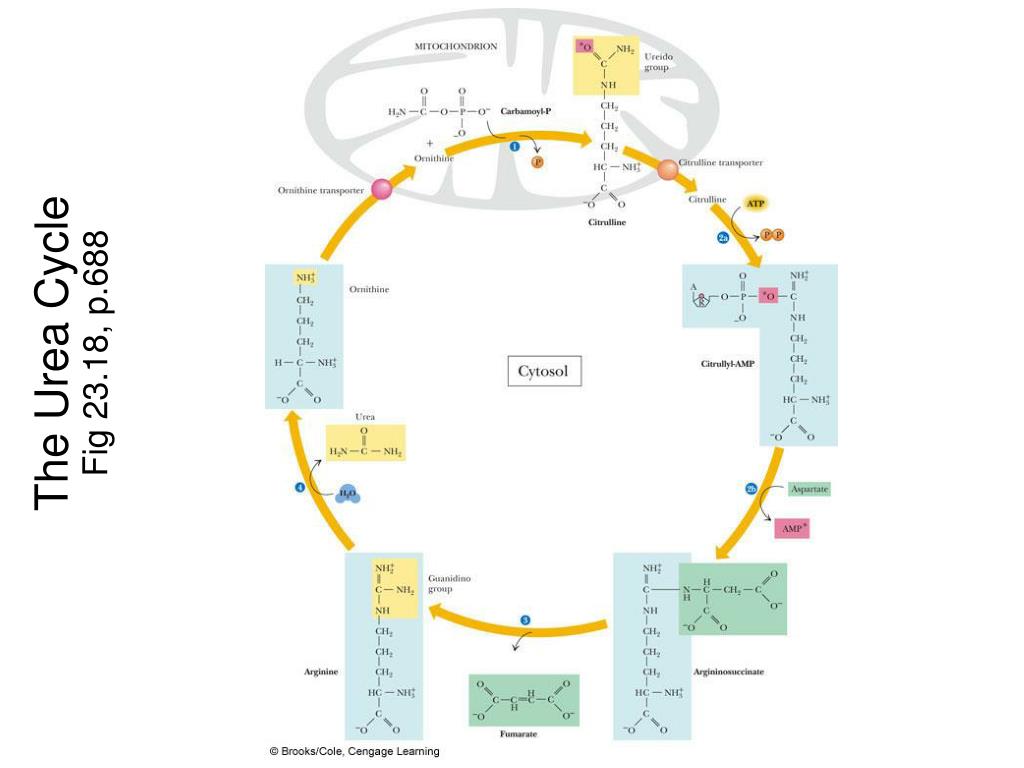

  25. The Urea CycleFig 23.18, p.688

  26. The Urea CycleFig 23.19, p.690

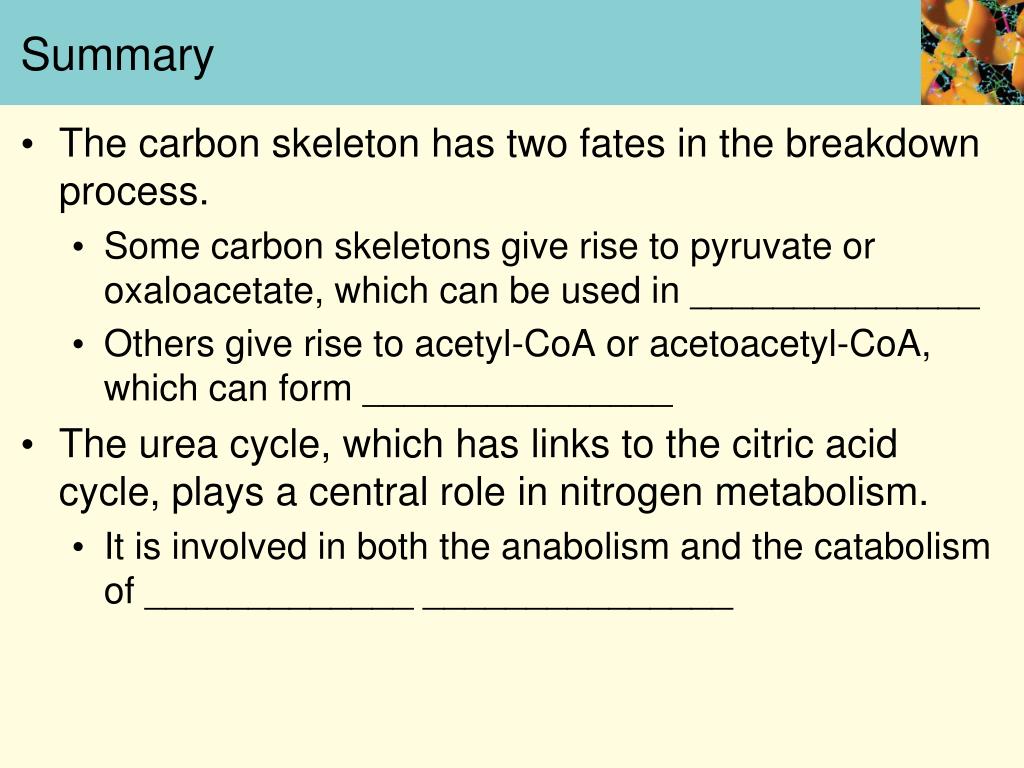

  27. Summary • The carbon skeleton has two fates in the breakdown process. • Some carbon skeletons give rise to pyruvate or oxaloacetate, which can be used in ______________ • Others give rise to acetyl-CoA or acetoacetyl-CoA, which can form _______________ • The urea cycle, which has links to the citric acid cycle, plays a central role in nitrogen metabolism. • It is involved in both the anabolism and the catabolism of _____________ _______________

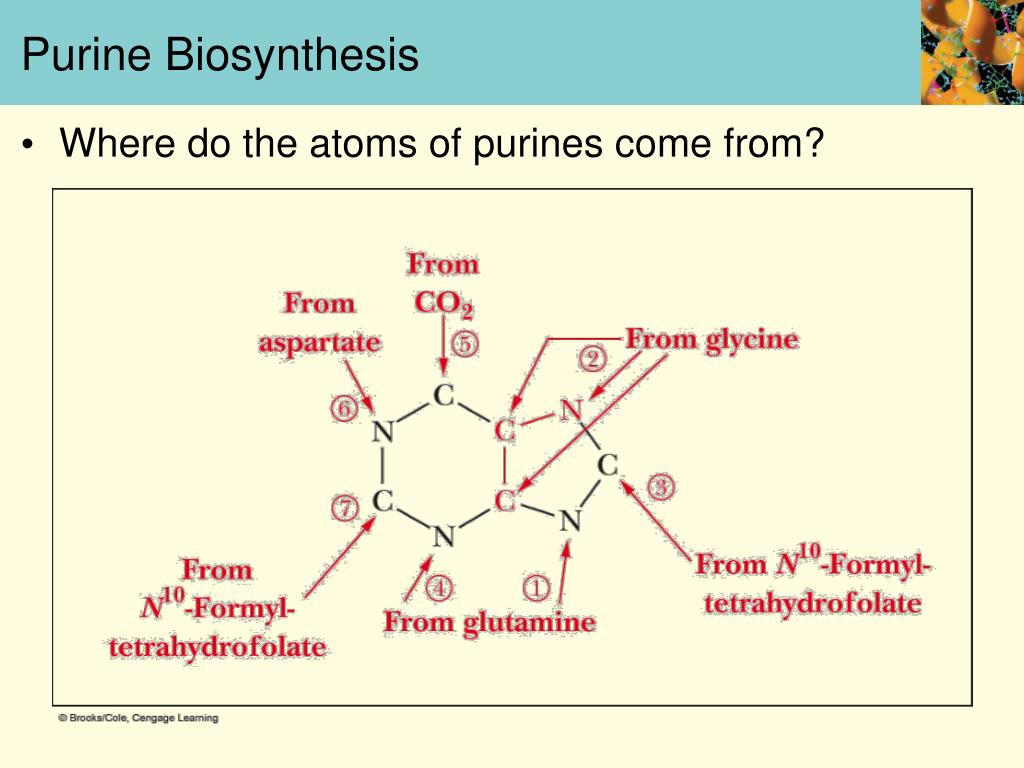

  28. Purine Biosynthesis • Where do the atoms of purines come from?

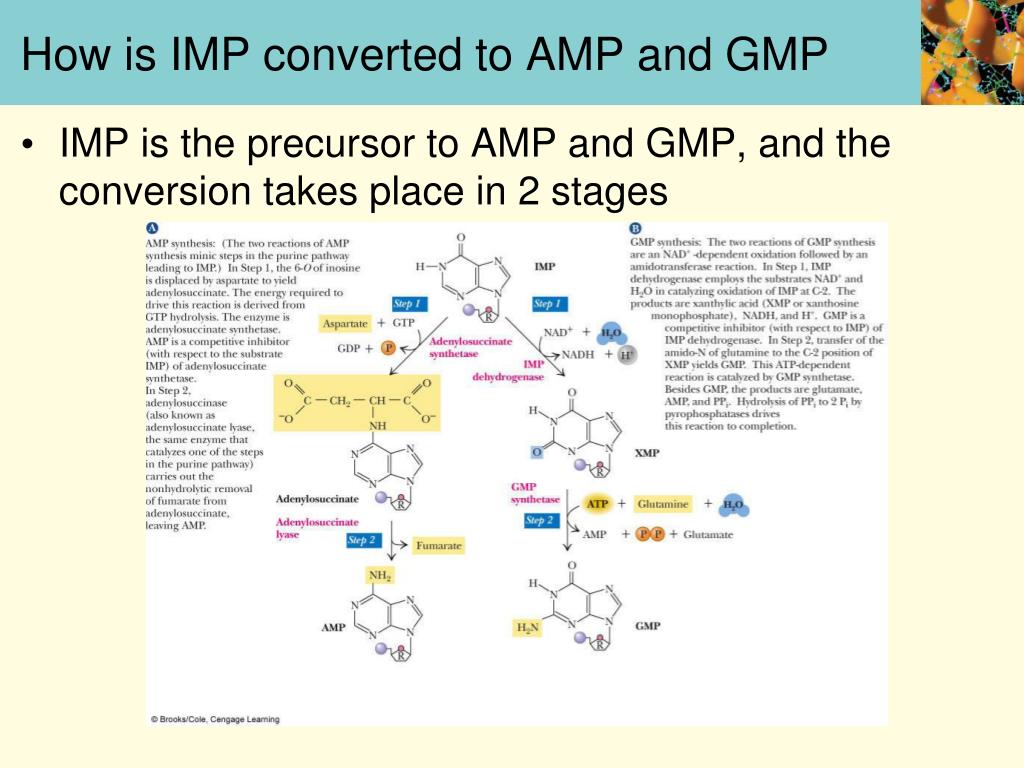

  29. How is IMP converted to AMP and GMP • IMP is the precursor to AMP and GMP, and the conversion takes place in 2 stages

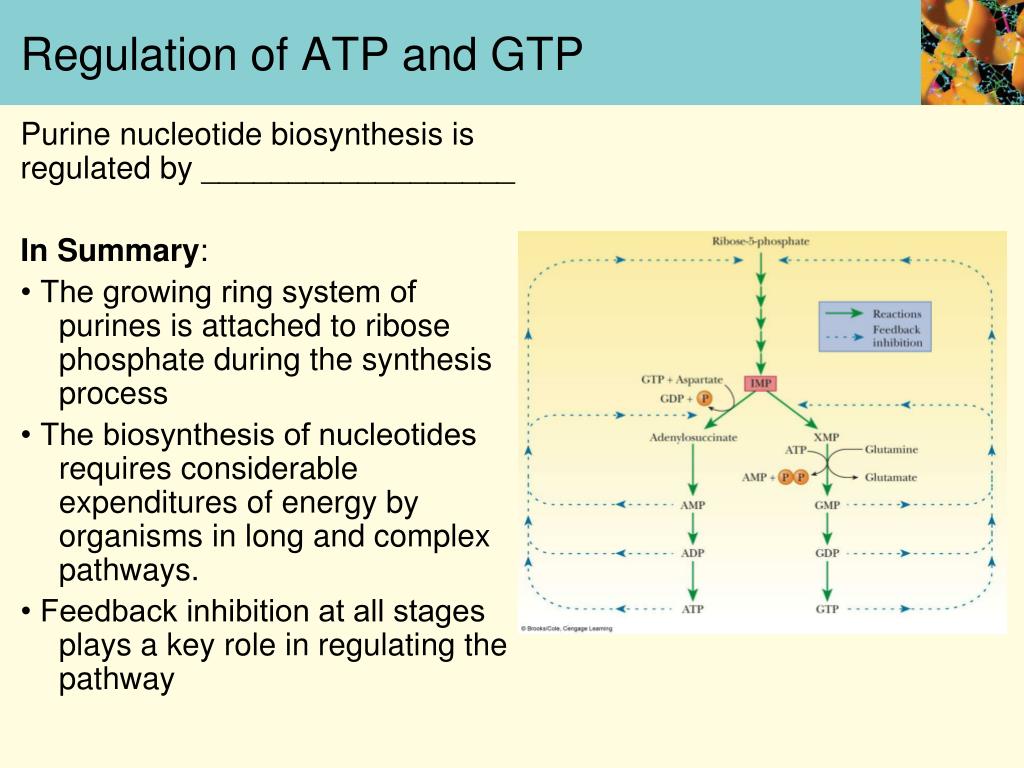

  30. Regulation of ATP and GTP Purine nucleotide biosynthesis is regulated by __________________ In Summary: • The growing ring system of purines is attached to ribose phosphate during the synthesis process • The biosynthesis of nucleotides requires considerable expenditures of energy by organisms in long and complex pathways. • Feedback inhibition at all stages plays a key role in regulating the pathway

  31. Purine Catabolism • The catabolism of purine nucleotides proceeds by hydrolysis to the nucleoside and subsequently to the free base, which is further degraded • Salvage reactions are important in the metabolism of purine nucleotides because of the amount of energy required for the synthesis of the purine bases • In Summary: • Purines are degraded to uric acid in primates and are further degraded in other organisms. Overproduction of uric acid causes gout in humans • Salvage reactions allow some purines to be reused

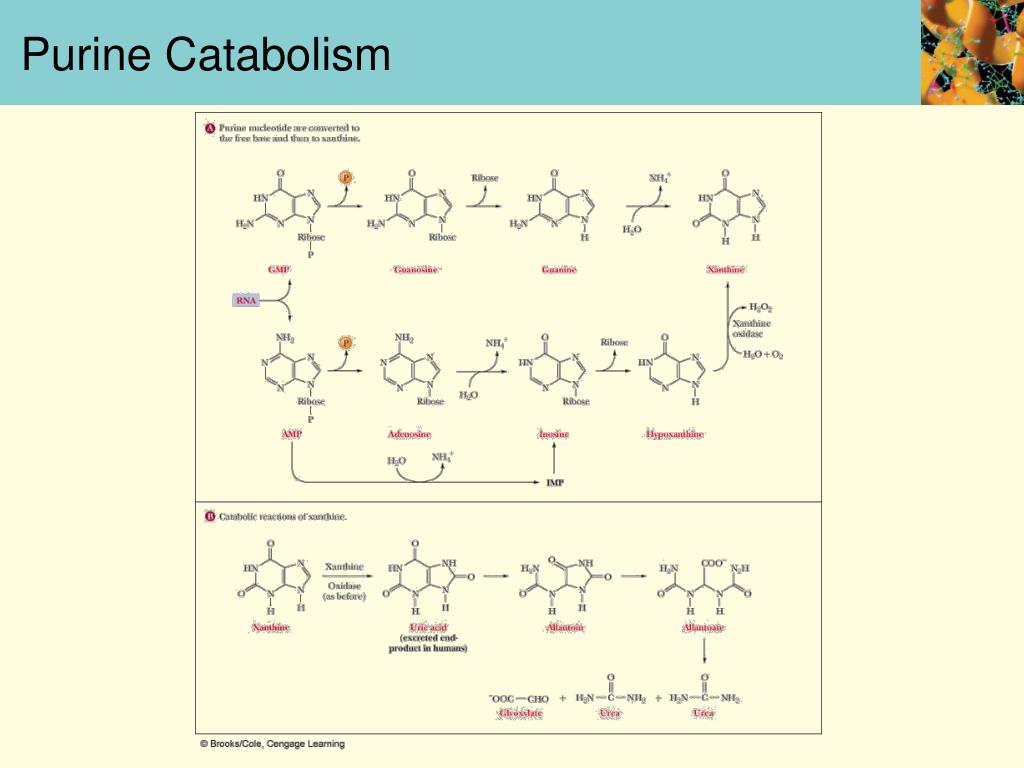

  32. Purine Catabolism

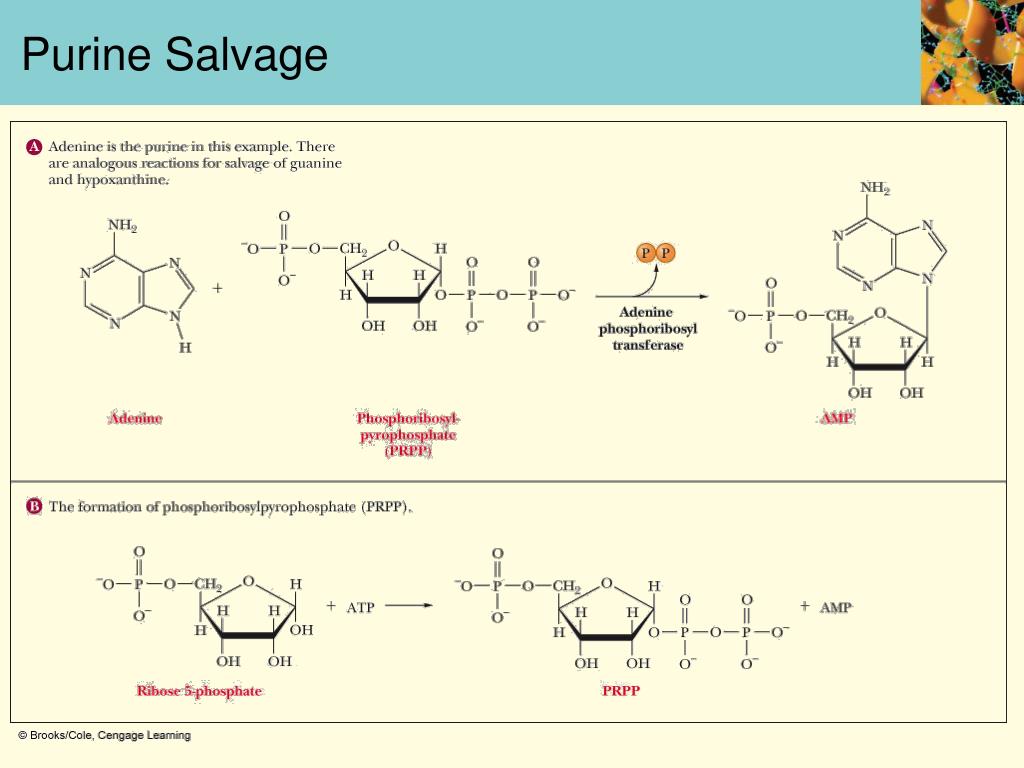

  33. Purine Salvage

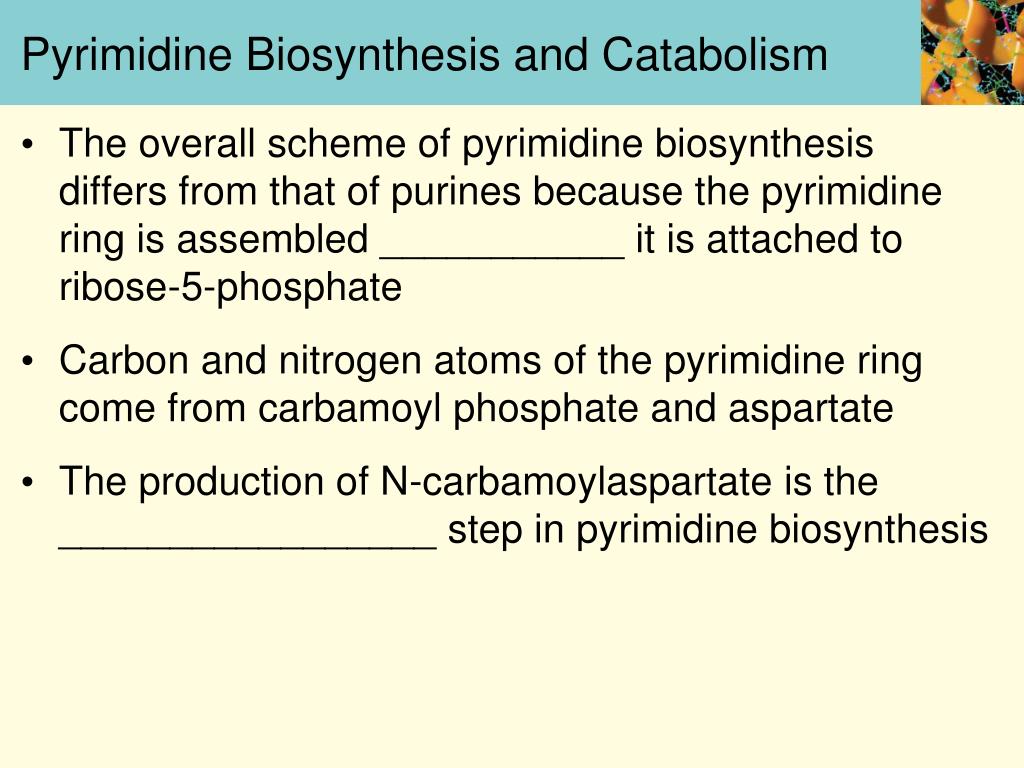

  34. Pyrimidine Biosynthesis and Catabolism • The overall scheme of pyrimidine biosynthesis differs from that of purines because the pyrimidine ring is assembled ___________ it is attached to ribose-5-phosphate • Carbon and nitrogen atoms of the pyrimidine ring come from carbamoyl phosphate and aspartate • The production of N-carbamoylaspartate is the _________________ step in pyrimidine biosynthesis

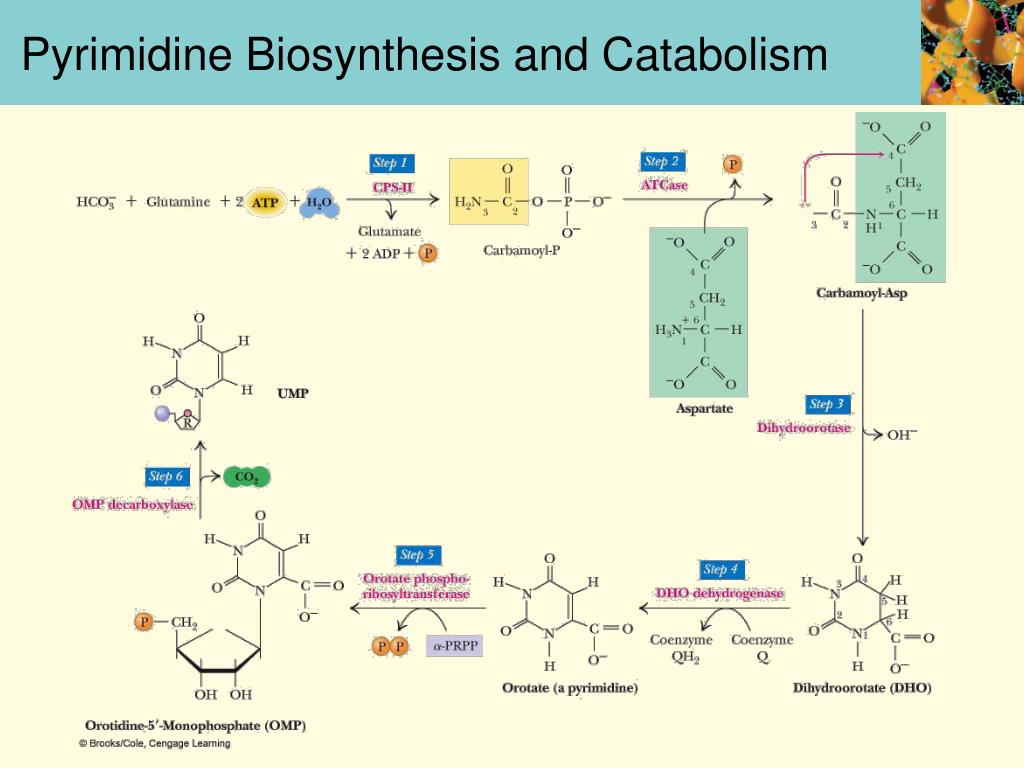

  35. Pyrimidine Biosynthesis and Catabolism

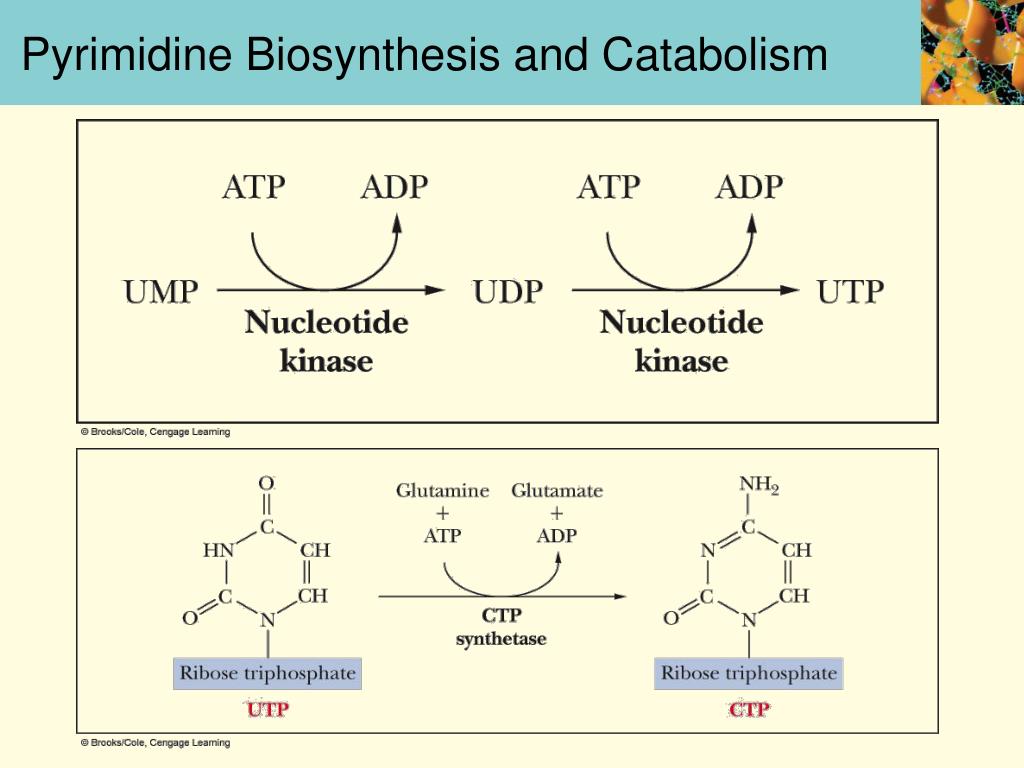

  36. Pyrimidine Biosynthesis and Catabolism

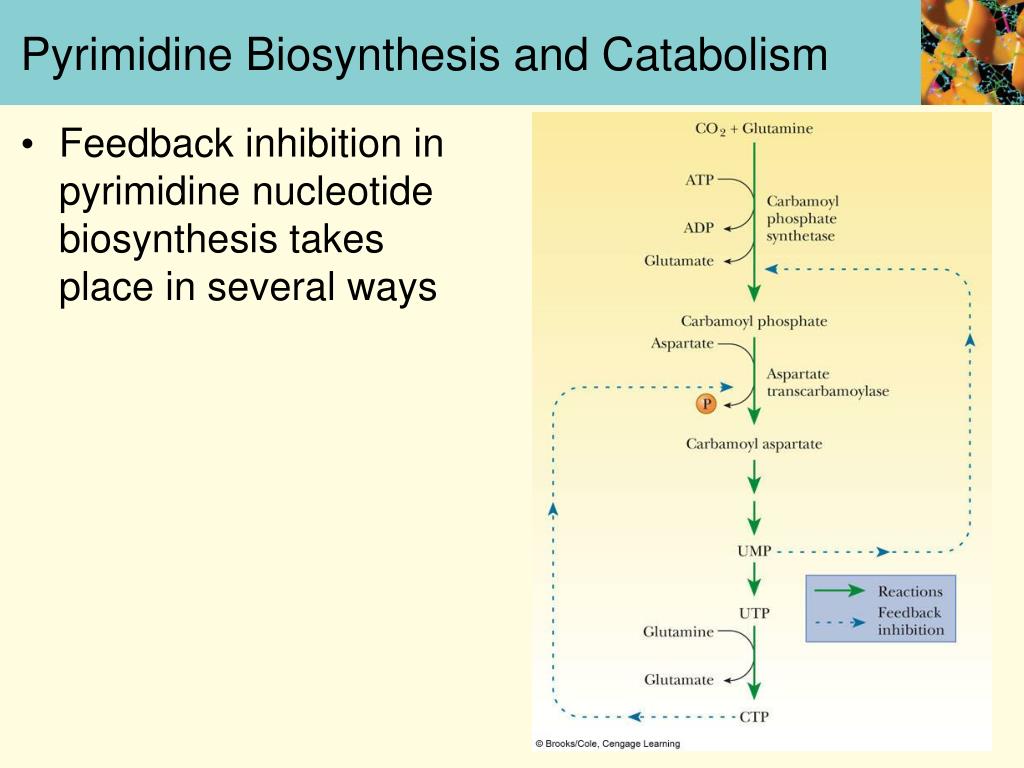

  37. Pyrimidine Biosynthesis and Catabolism • Feedback inhibition in pyrimidine nucleotide biosynthesis takes place in several ways

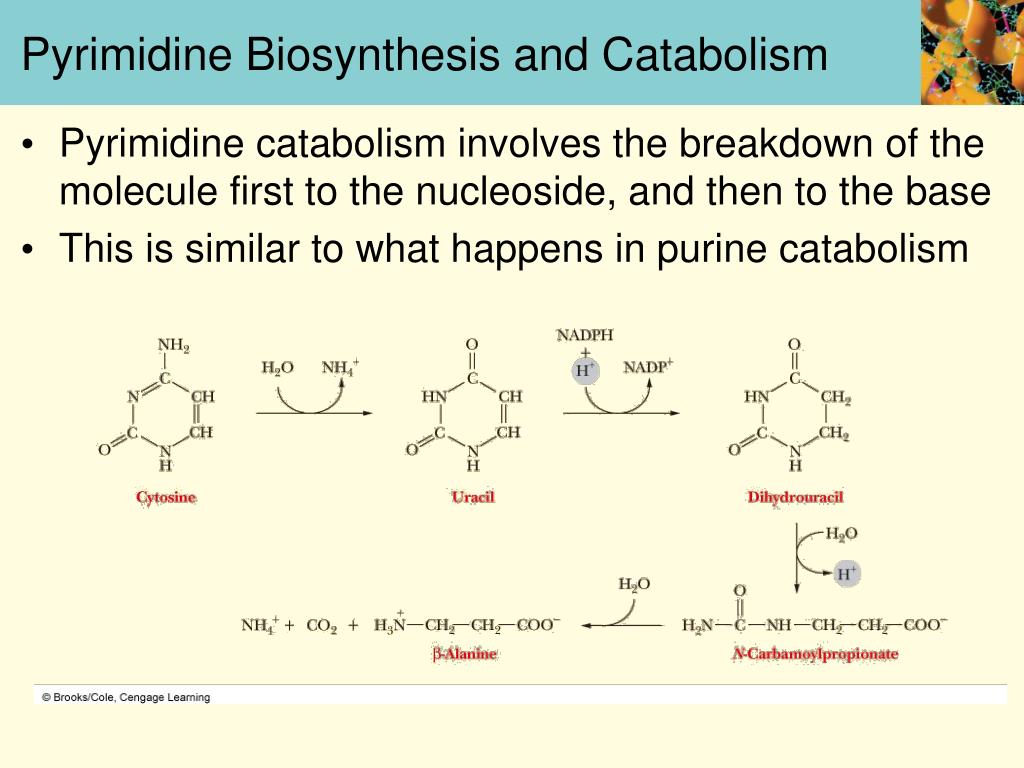

  38. Pyrimidine Biosynthesis and Catabolism • Pyrimidine catabolism involves the breakdown of the molecule first to the nucleoside, and then to the base • This is similar to what happens in purine catabolism

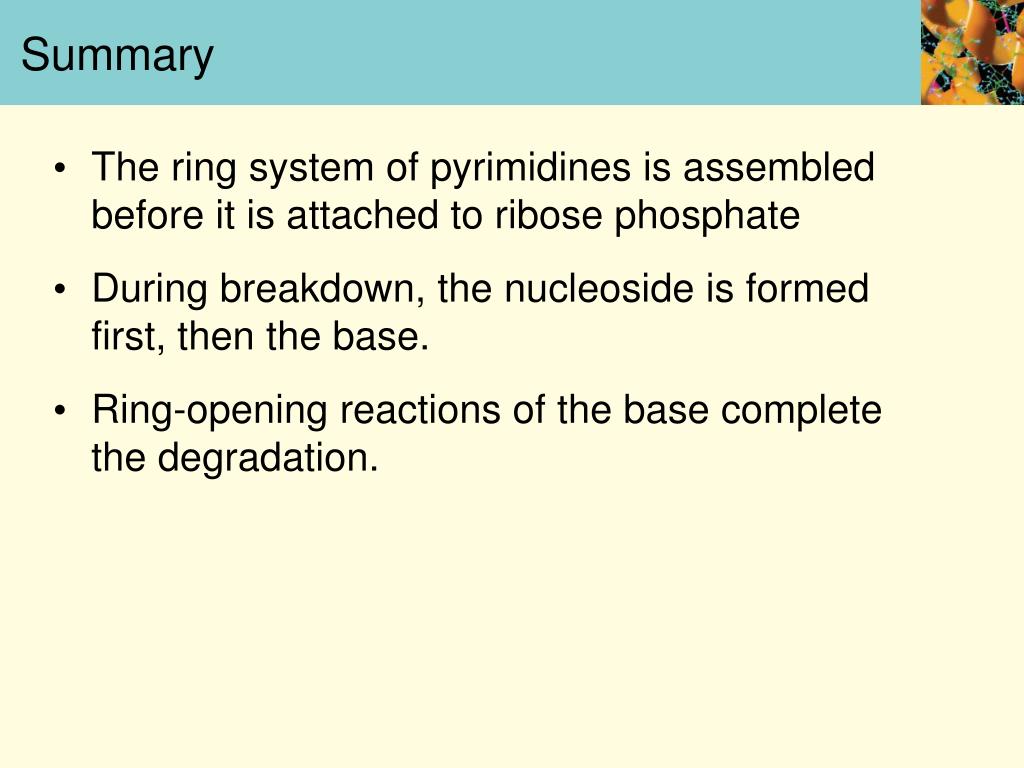

  39. Summary • The ring system of pyrimidines is assembled before it is attached to ribose phosphate • During breakdown, the nucleoside is formed first, then the base. • Ring-opening reactions of the base complete the degradation.

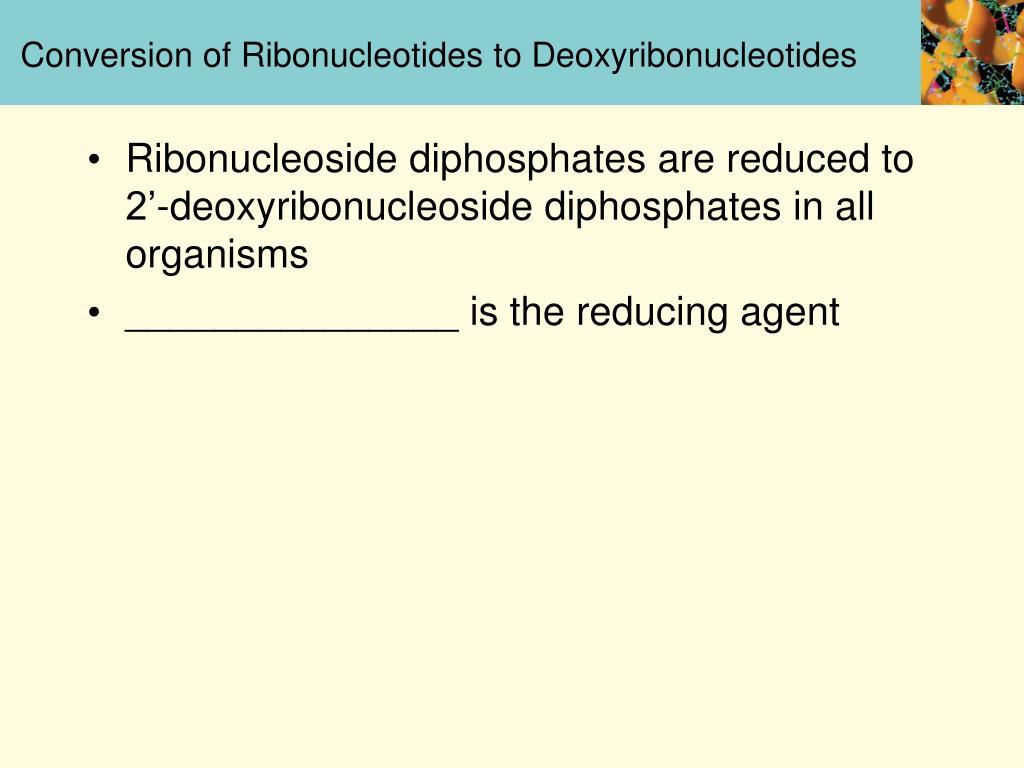

  40. Conversion of Ribonucleotides to Deoxyribonucleotides • Ribonucleoside diphosphates are reduced to 2’-deoxyribonucleoside diphosphates in all organisms • _______________ is the reducing agent

  41. Conversion of Ribonucleotides to Deoxyribonucleotides

  42. Conversion of dUDP to dTTP The addition of a methyl group to uracil to produce thymine requires ___________________ as the one-carbon carrier. This process is a target for cancer chemotherapy

  43. Thymidylate Synthase
