  1. Water Quality Index Torrey Lindbo, Jan Miller, SWRP Clean Water Services

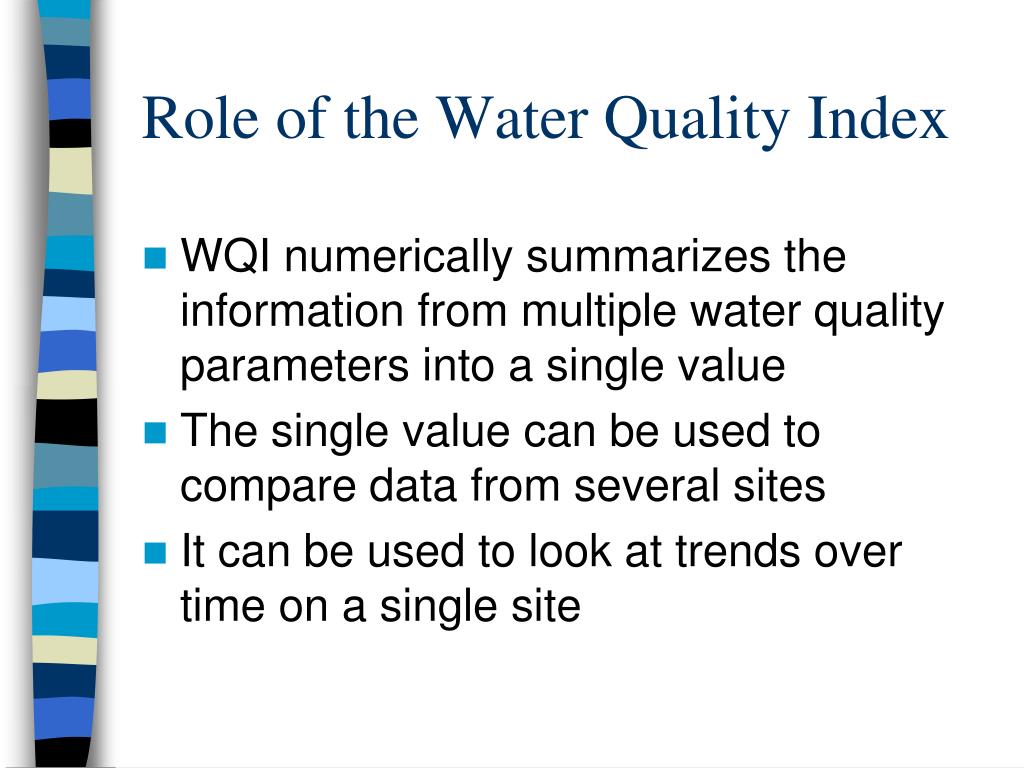

  2. Role of the Water Quality Index • WQI numerically summarizes the information from multiple water quality parameters into a single value • The single value can be used to compare data from several sites • It can be used to look at trends over time on a single site

  3. Parameters used for WQI

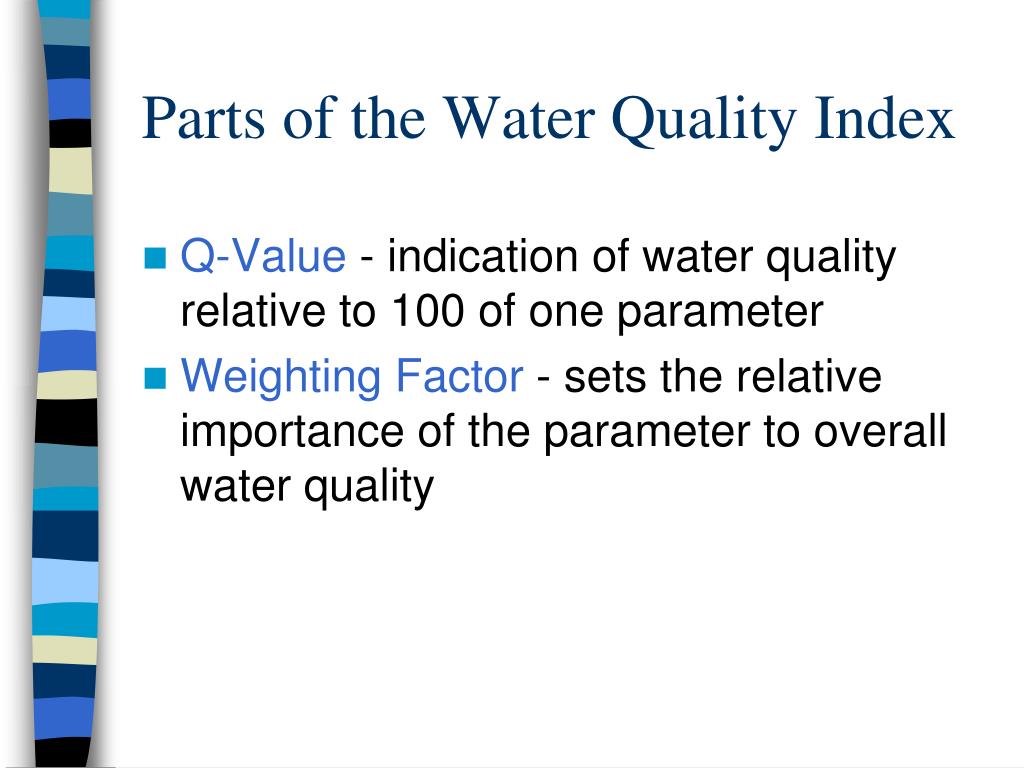

  4. Parts of the Water Quality Index • Q-Value - indication of water quality relative to 100 of one parameter • Weighting Factor - sets the relative importance of the parameter to overall water quality

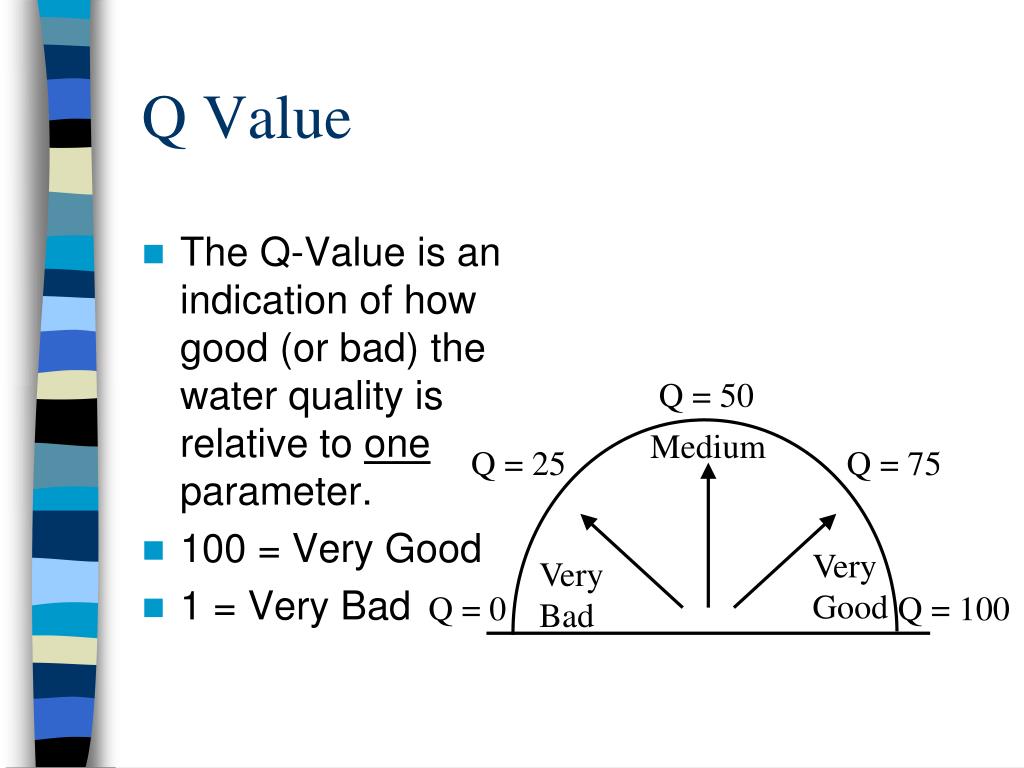

  5. Q = 50 Medium Q = 25 Q = 75 Very Good Very Bad Q = 0 Q = 100 Q Value • The Q-Value is an indication of how good (or bad) the water quality is relative to one parameter. • 100 = Very Good • 1 = Very Bad

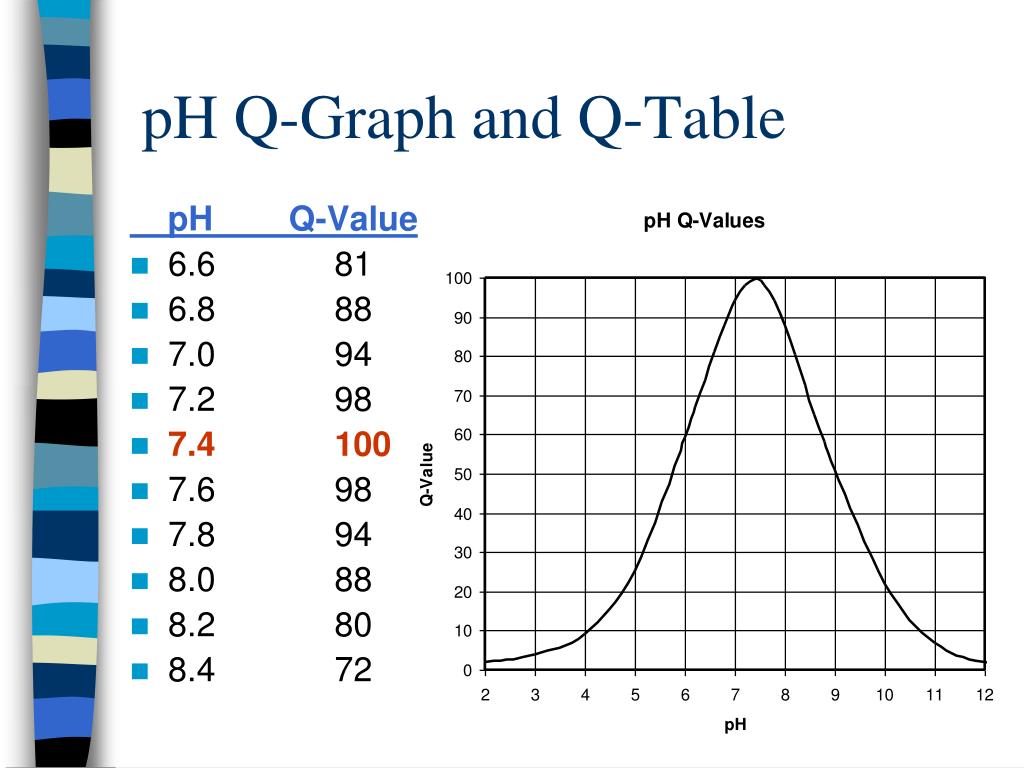

  6. pH Q-Graph and Q-Table pH Q-Value • 6.6 81 • 6.8 88 • 7.0 94 • 7.2 98 • 7.4 100 • 7.6 98 • 7.8 94 • 8.0 88 • 8.2 80 • 8.4 72

  7. E.coli Q-Graph & Q-Table E. coli Q-Value • 0 100 • 1 99 • 2 94 • 5 89 • 10 84 • 20 80 • 50 74 • 100 69 • 200 65 • 500 27 • 1000 30

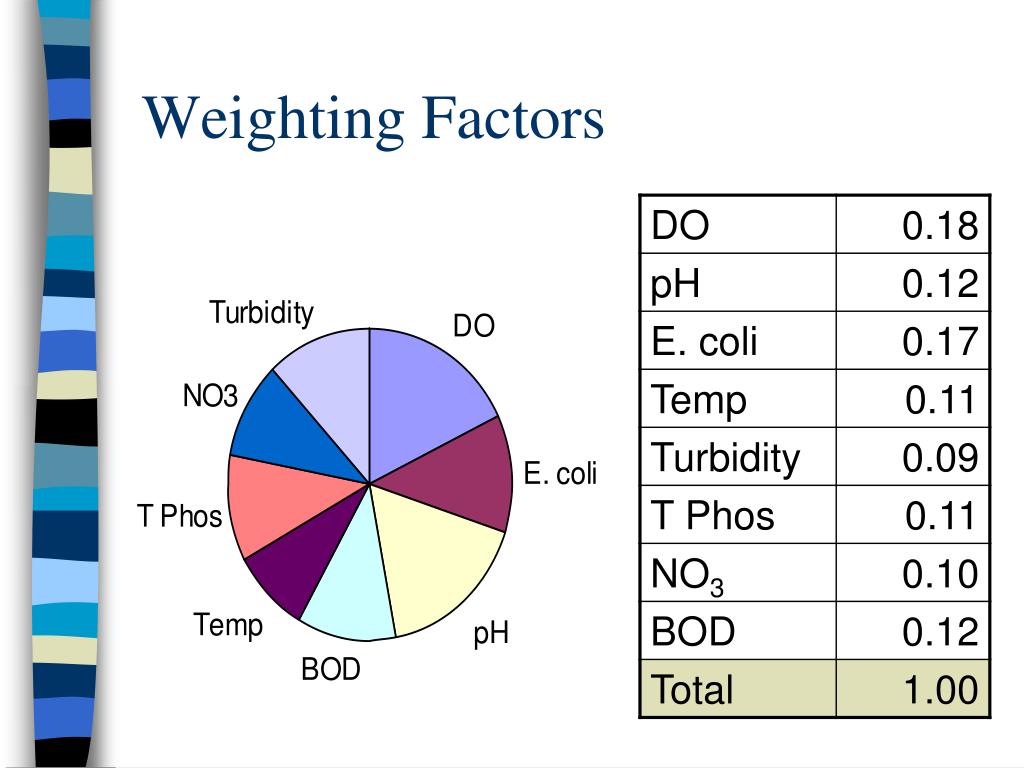

  8. Weighting Factors

  9. WQI Interpretation

  10. Example WQI Calculation

  11. Adjusting for Missing Data • When a parameter is missing, the sum of the weighting factors that have data can be used to adjust the WQI • Sum of the Parametric Index Values is divided by the sum of the weighting factors that have data.

  12. Calculation with Missing Parameter
