COMS W4156: Advanced Software Engineering

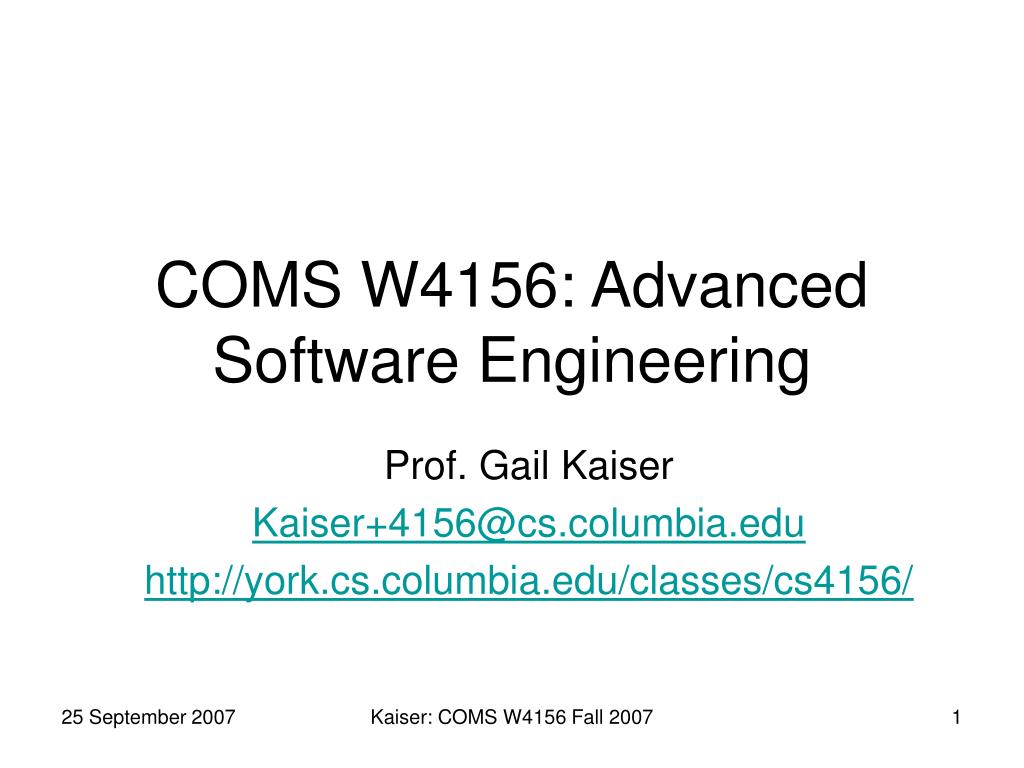

1. COMS W4156: Advanced Software Engineering Prof. Gail Kaiser Kaiser+4156@cs.columbia.edu http://york.cs.columbia.edu/classes/cs4156/ Kaiser: COMS W4156 Fall 2007

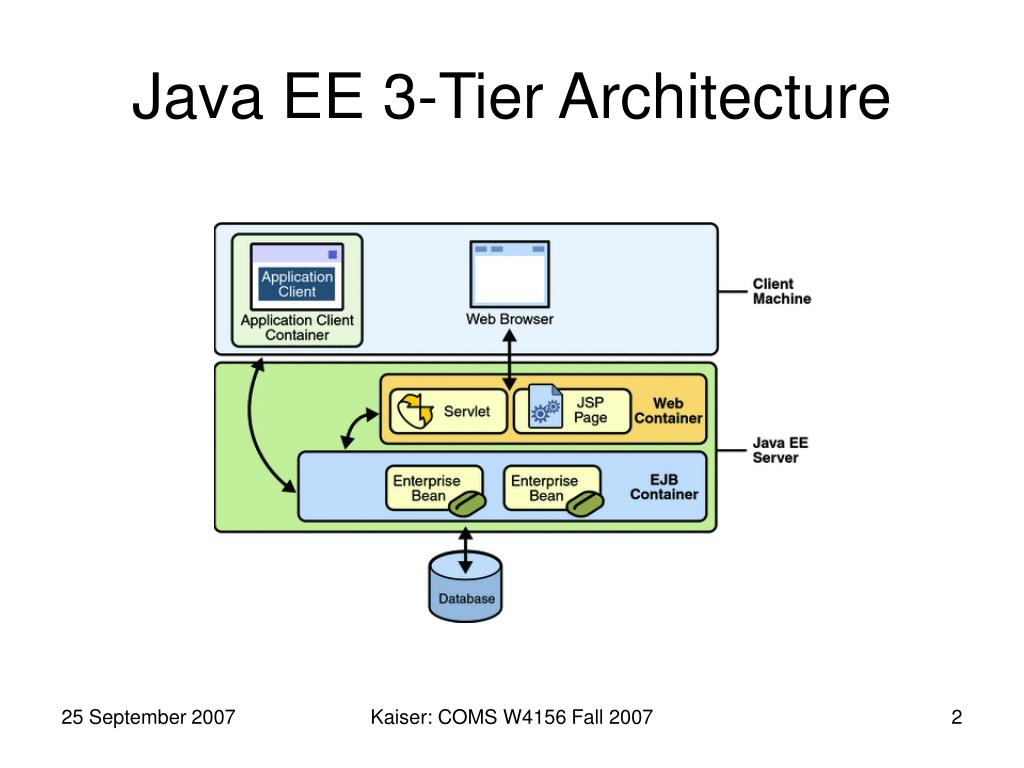

2. Java EE 3-Tier Architecture Kaiser: COMS W4156 Fall 2007

3. EJB Specification • EJB is an open specification - any vendor can develop a runtime environment that complies with the specification • EJB specs have been evolving: • Originated with IBM 1997 • Later adopted by Sun (1.0 1998, 1.1 1999) • Enhanced under Java community process (2.0 2001, 2.1 2003, 3.0 2006) • EJB 3.0 is a major departure from earlier versions, but backwards compatible (old code works with 3.0 but not vice versa) • [Last week < 3.0, today = 3.0] Kaiser: COMS W4156 Fall 2007

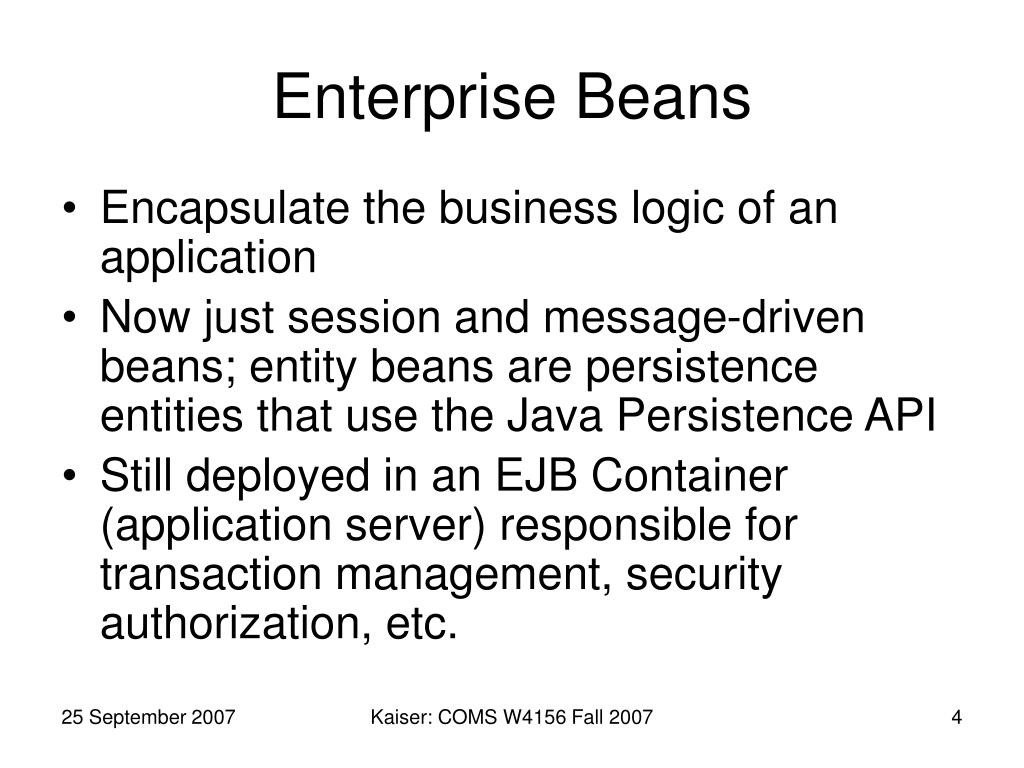

4. Enterprise Beans • Encapsulate the business logic of an application • Now just session and message-driven beans; entity beans are persistence entities that use the Java Persistence API • Still deployed in an EJB Container (application server) responsible for transaction management, security authorization, etc. Kaiser: COMS W4156 Fall 2007

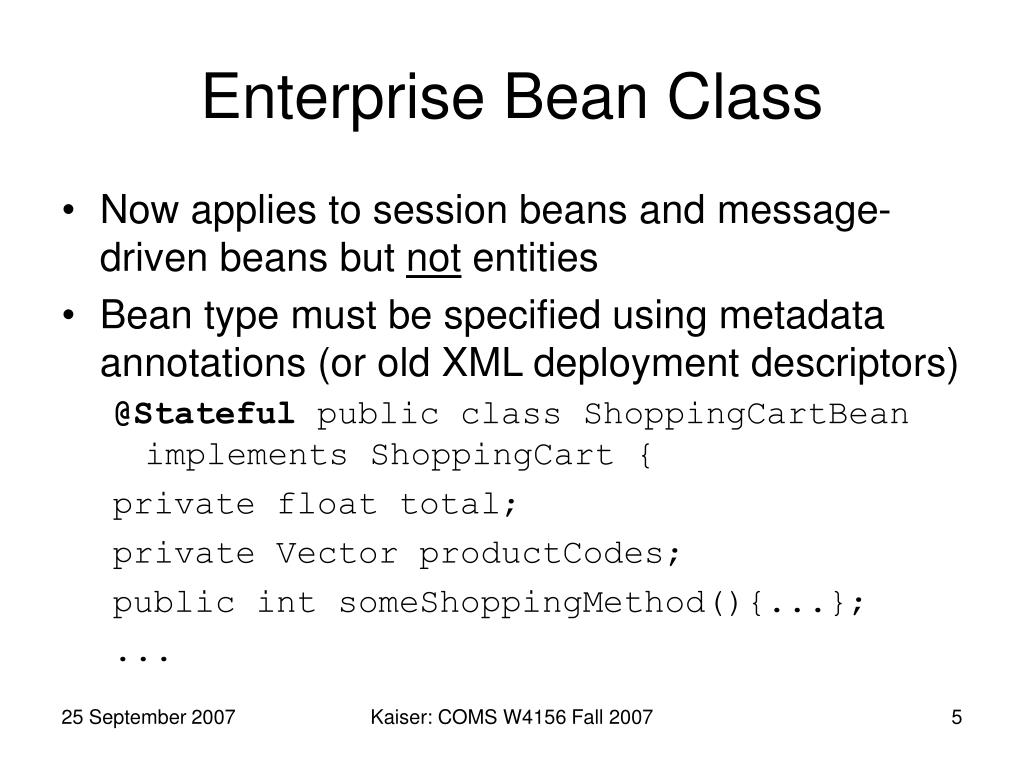

5. Enterprise Bean Class • Now applies to session beans and message-driven beans but not entities • Bean type must be specified using metadata annotations (or old XML deployment descriptors) @Stateful public class ShoppingCartBean implements ShoppingCart { private float total; private Vector productCodes; public int someShoppingMethod(){...}; ... Kaiser: COMS W4156 Fall 2007

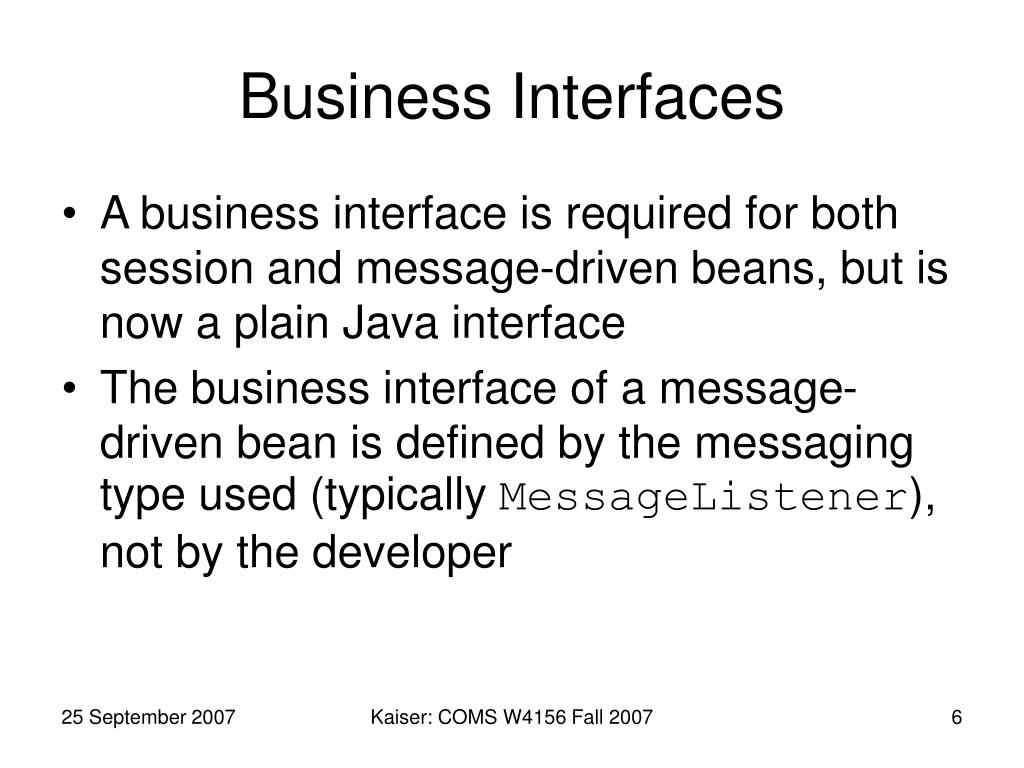

6. Business Interfaces • A business interface is required for both session and message-driven beans, but is now a plain Java interface • The business interface of a message-driven bean is defined by the messaging type used (typically MessageListener), not by the developer Kaiser: COMS W4156 Fall 2007

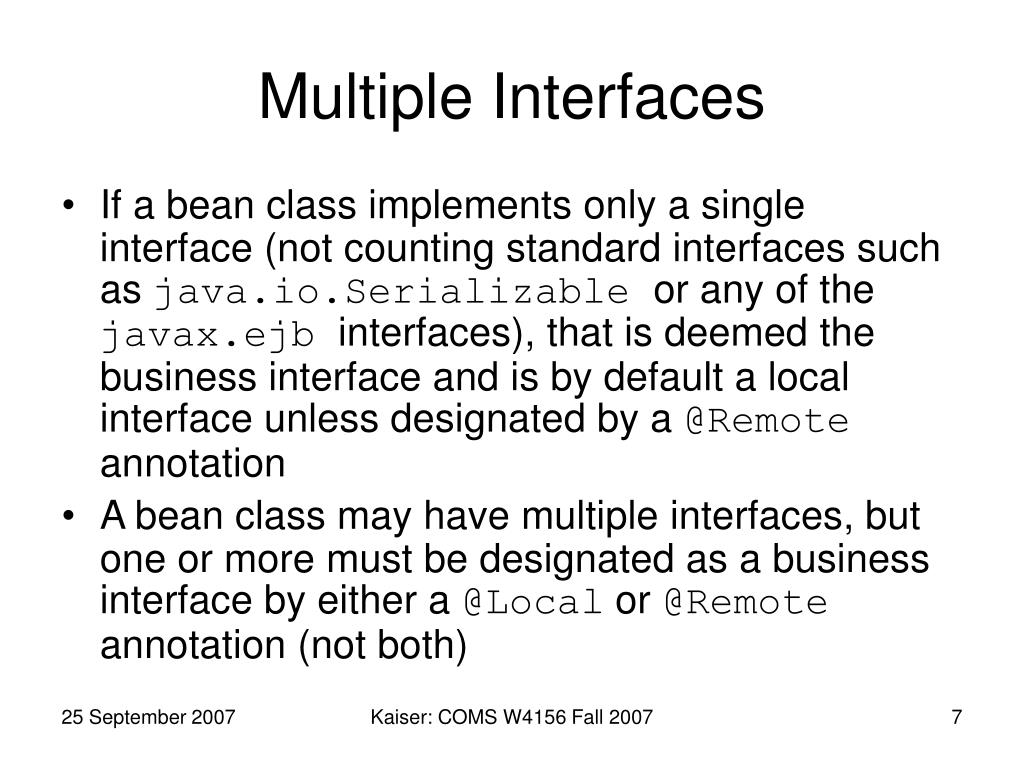

7. Multiple Interfaces • If a bean class implements only a single interface (not counting standard interfaces such as java.io.Serializable or any of the javax.ejb interfaces), that is deemed the business interface and is by default a local interface unless designated by a @Remote annotation • A bean class may have multiple interfaces, but one or more must be designated as a business interface by either a @Local or @Remote annotation (not both) Kaiser: COMS W4156 Fall 2007

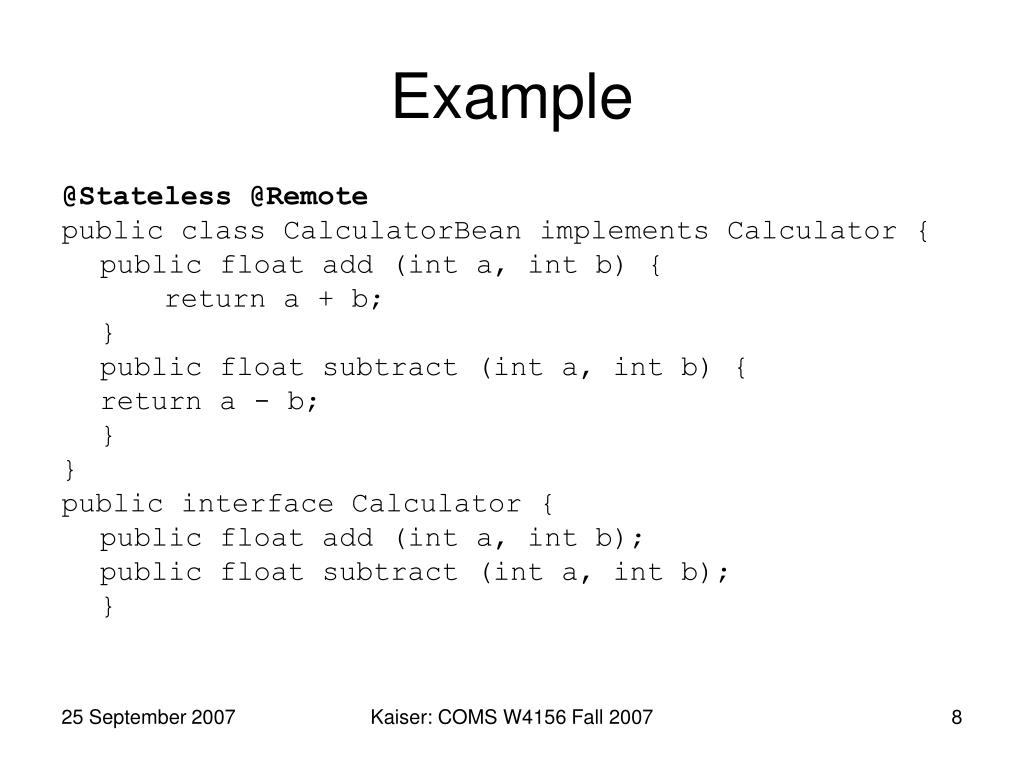

8. Example @Stateless @Remote public class CalculatorBean implements Calculator { public float add (int a, int b) { return a + b; } public float subtract (int a, int b) { return a - b; } } public interface Calculator { public float add (int a, int b); public float subtract (int a, int b); } Kaiser: COMS W4156 Fall 2007

9. Session Bean • Still represents a single client (not shared) inside the Application Server • Client still invokes the session bean’s methods to execute business tasks • Still not persistent (its data is not saved to a database) • When the client terminates, the session bean still appears to have terminated and is no longer associated with the client Kaiser: COMS W4156 Fall 2007

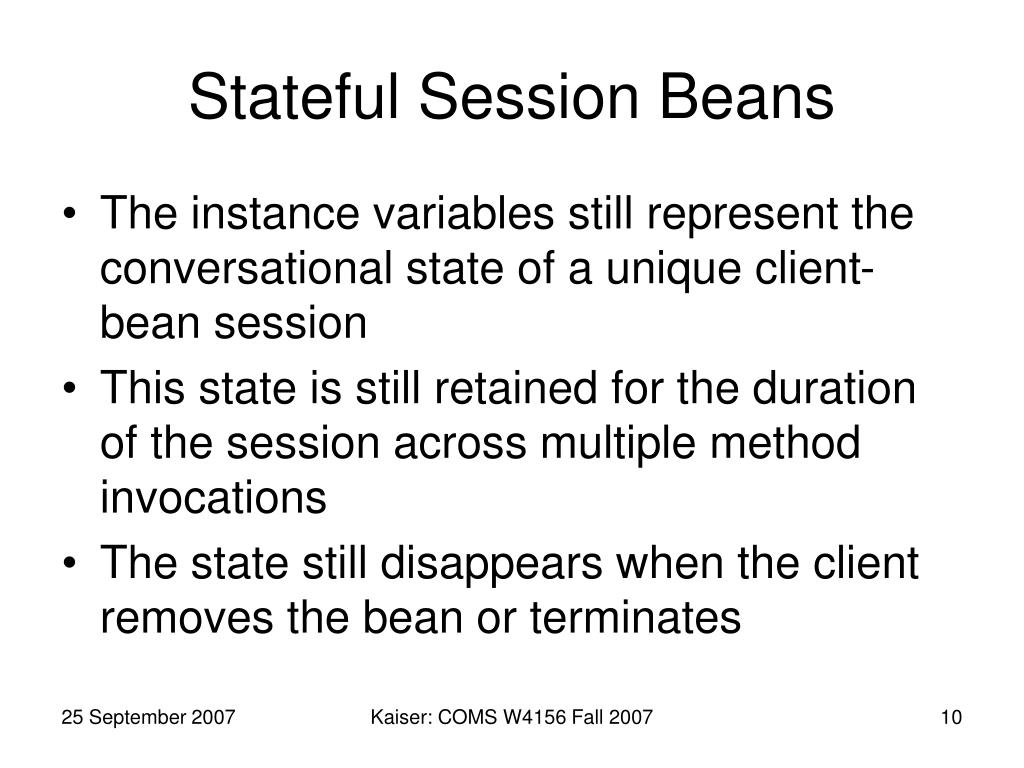

10. Stateful Session Beans • The instance variables still represent the conversational state of a unique client-bean session • This state is still retained for the duration of the session across multiple method invocations • The state still disappears when the client removes the bean or terminates Kaiser: COMS W4156 Fall 2007

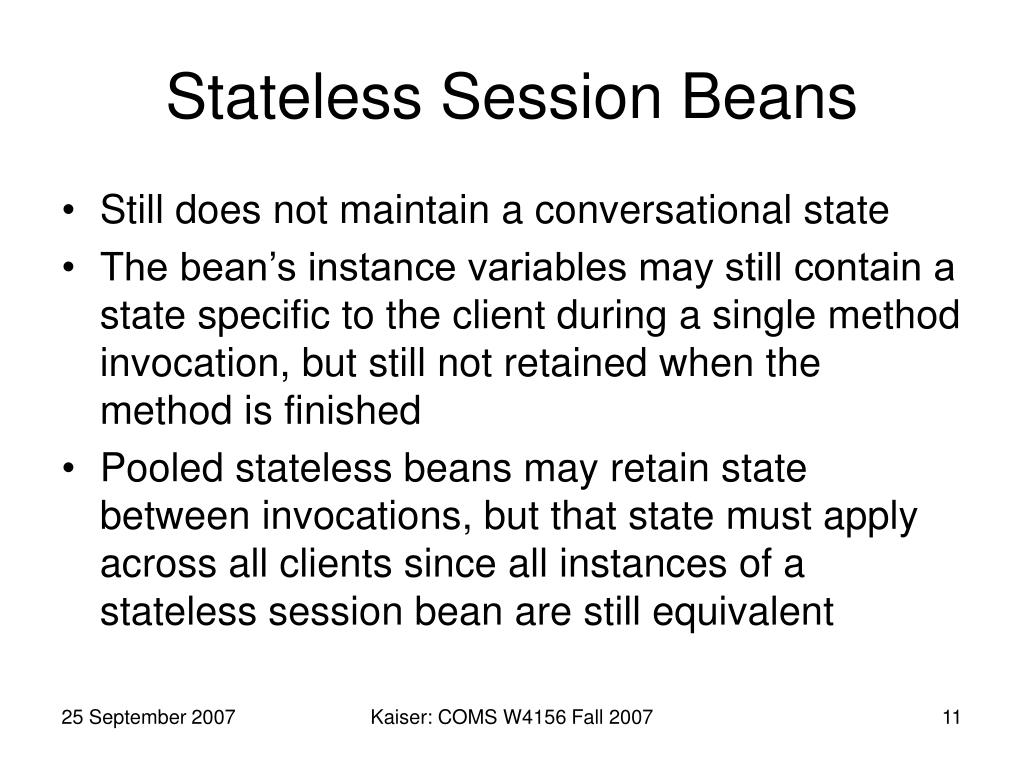

11. Stateless Session Beans • Still does not maintain a conversational state • The bean’s instance variables may still contain a state specific to the client during a single method invocation, but still not retained when the method is finished • Pooled stateless beans may retain state between invocations, but that state must apply across all clients since all instances of a stateless session bean are still equivalent Kaiser: COMS W4156 Fall 2007

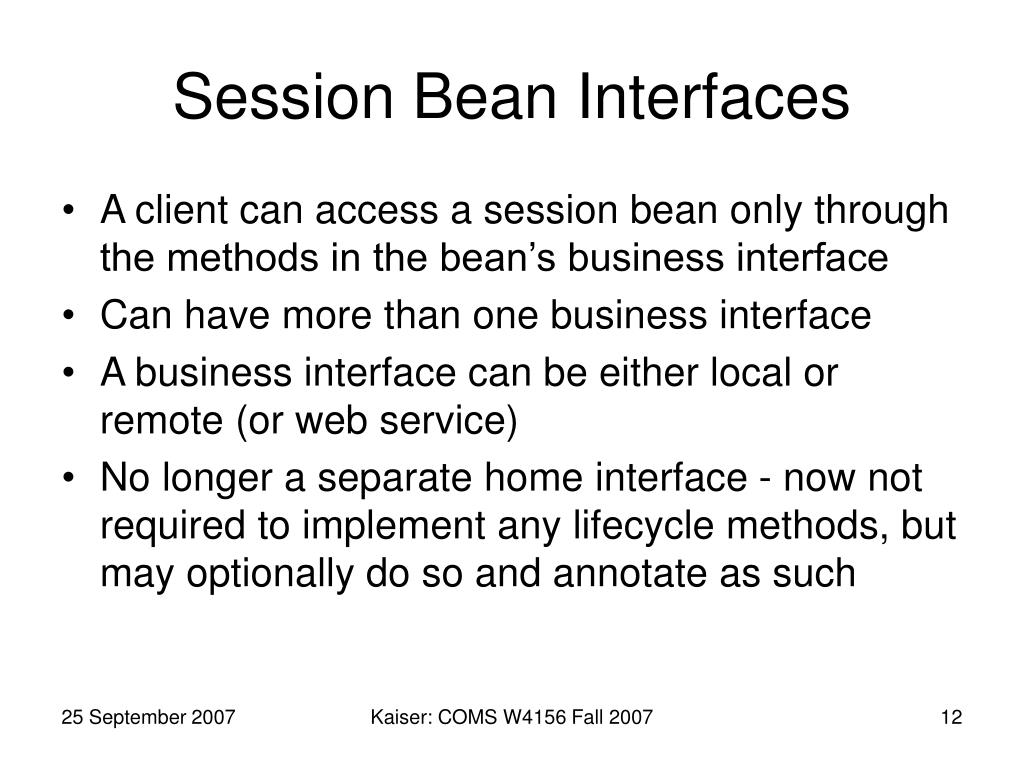

12. Session Bean Interfaces • A client can access a session bean only through the methods in the bean’s business interface • Can have more than one business interface • A business interface can be either local or remote (or web service) • No longer a separate home interface - now not required to implement any lifecycle methods, but may optionally do so and annotate as such Kaiser: COMS W4156 Fall 2007

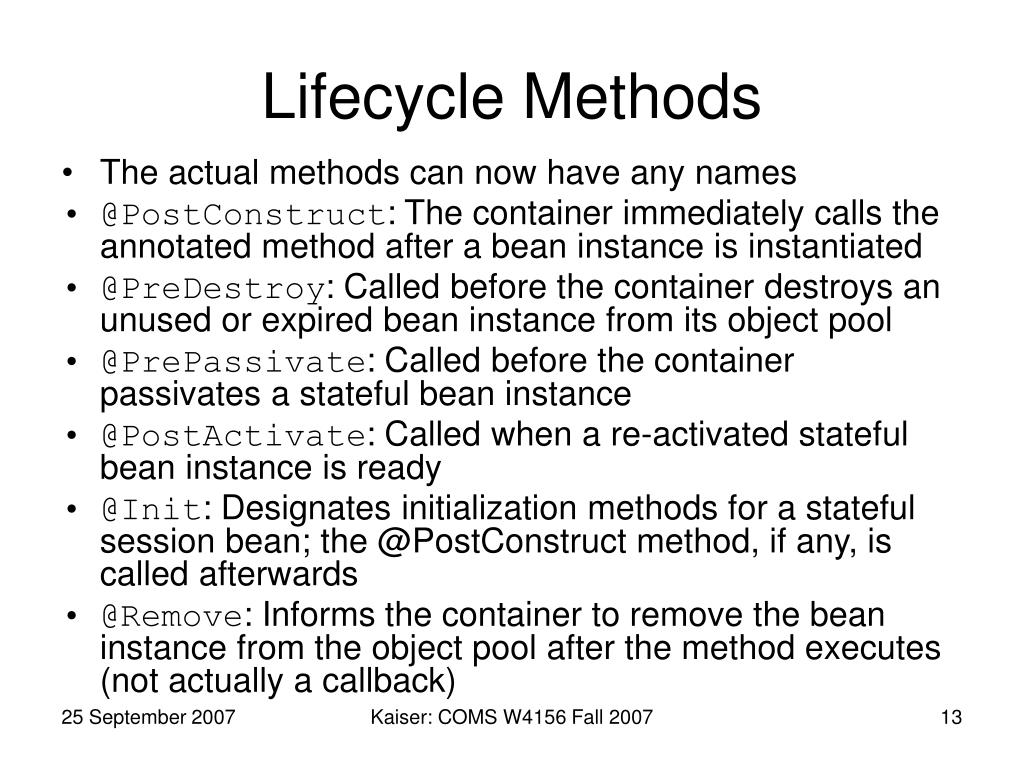

13. Lifecycle Methods • The actual methods can now have any names • @PostConstruct: The container immediately calls the annotated method after a bean instance is instantiated • @PreDestroy: Called before the container destroys an unused or expired bean instance from its object pool • @PrePassivate: Called before the container passivates a stateful bean instance • @PostActivate: Called when a re-activated stateful bean instance is ready • @Init: Designates initialization methods for a stateful session bean; the @PostConstruct method, if any, is called afterwards • @Remove: Informs the container to remove the bean instance from the object pool after the method executes (not actually a callback) Kaiser: COMS W4156 Fall 2007

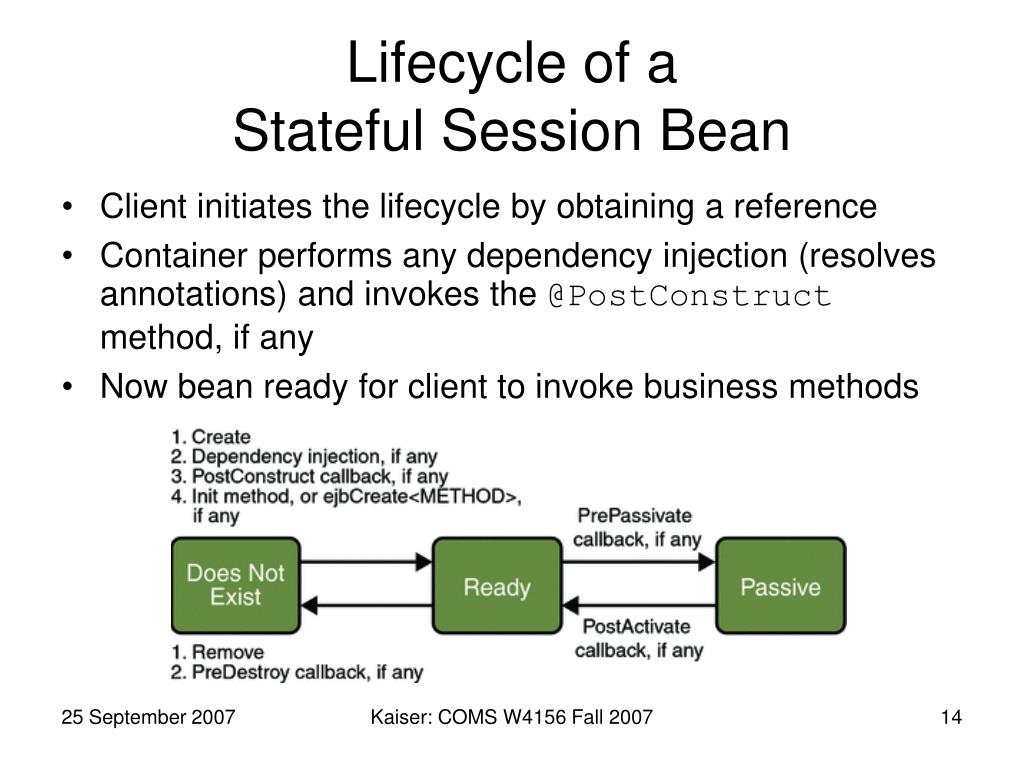

14. Lifecycle of a Stateful Session Bean • Client initiates the lifecycle by obtaining a reference • Container performs any dependency injection (resolves annotations) and invokes the @PostConstruct method, if any • Now bean ready for client to invoke business methods Kaiser: COMS W4156 Fall 2007

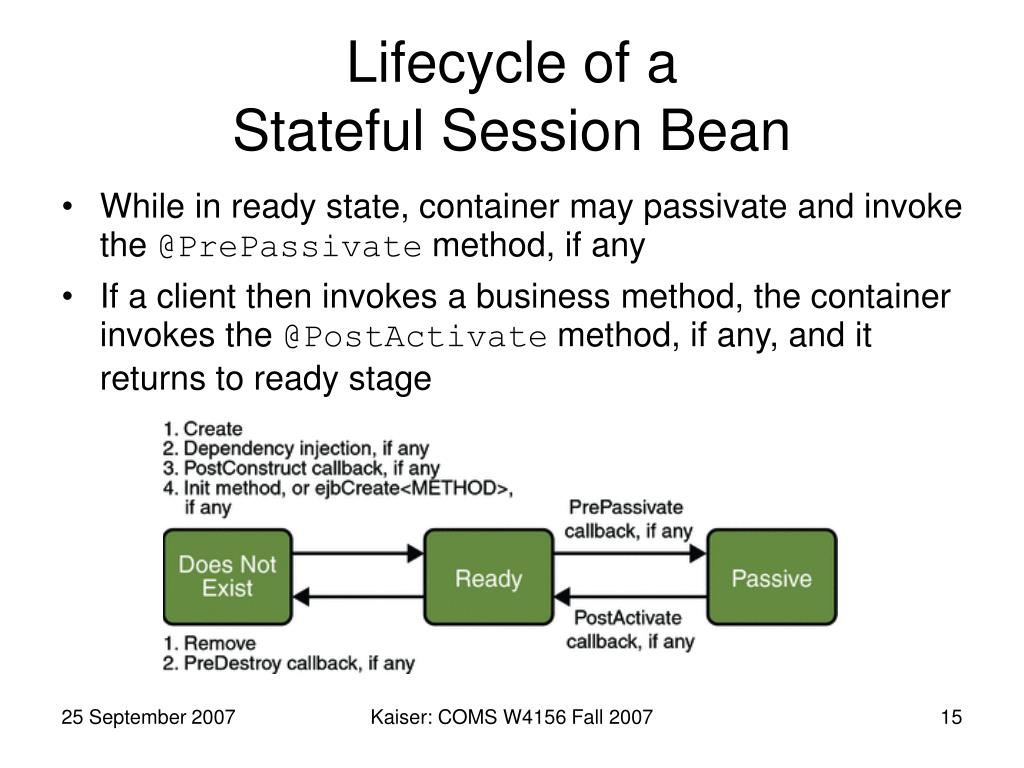

15. Lifecycle of a Stateful Session Bean • While in ready state, container may passivate and invoke the @PrePassivate method, if any • If a client then invokes a business method, the container invokes the @PostActivate method, if any, and it returns to ready stage Kaiser: COMS W4156 Fall 2007

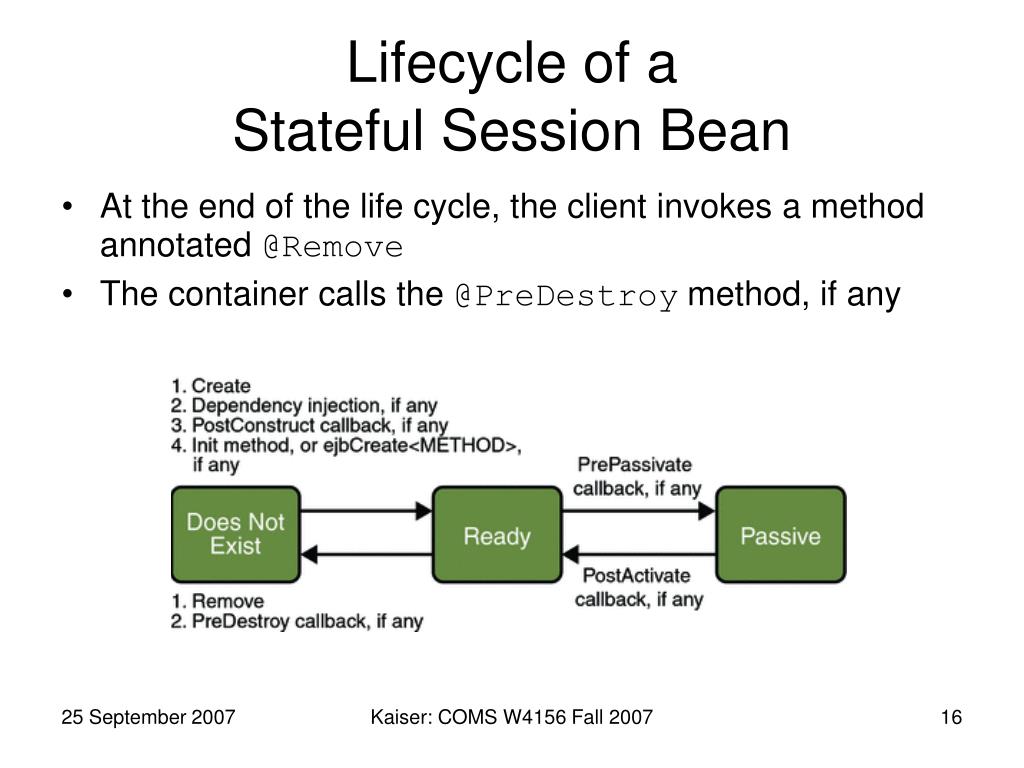

16. Lifecycle of a Stateful Session Bean • At the end of the life cycle, the client invokes a method annotated @Remove • The container calls the @PreDestroy method, if any Kaiser: COMS W4156 Fall 2007

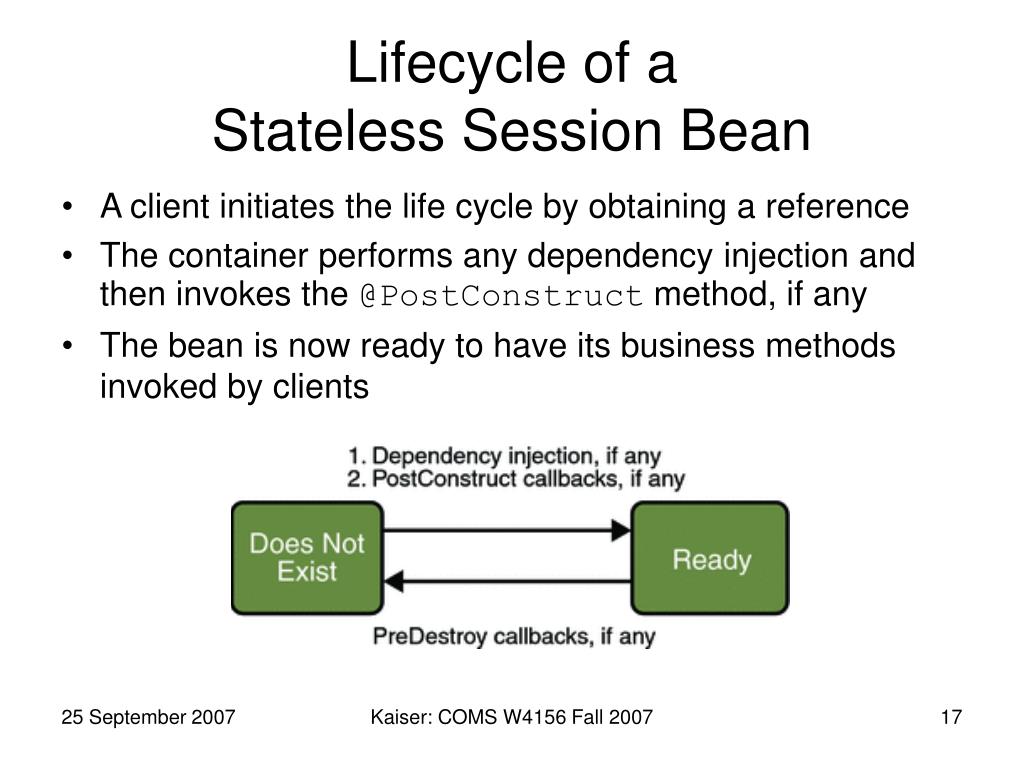

17. Lifecycle of a Stateless Session Bean • A client initiates the life cycle by obtaining a reference • The container performs any dependency injection and then invokes the @PostConstruct method, if any • The bean is now ready to have its business methods invoked by clients Kaiser: COMS W4156 Fall 2007

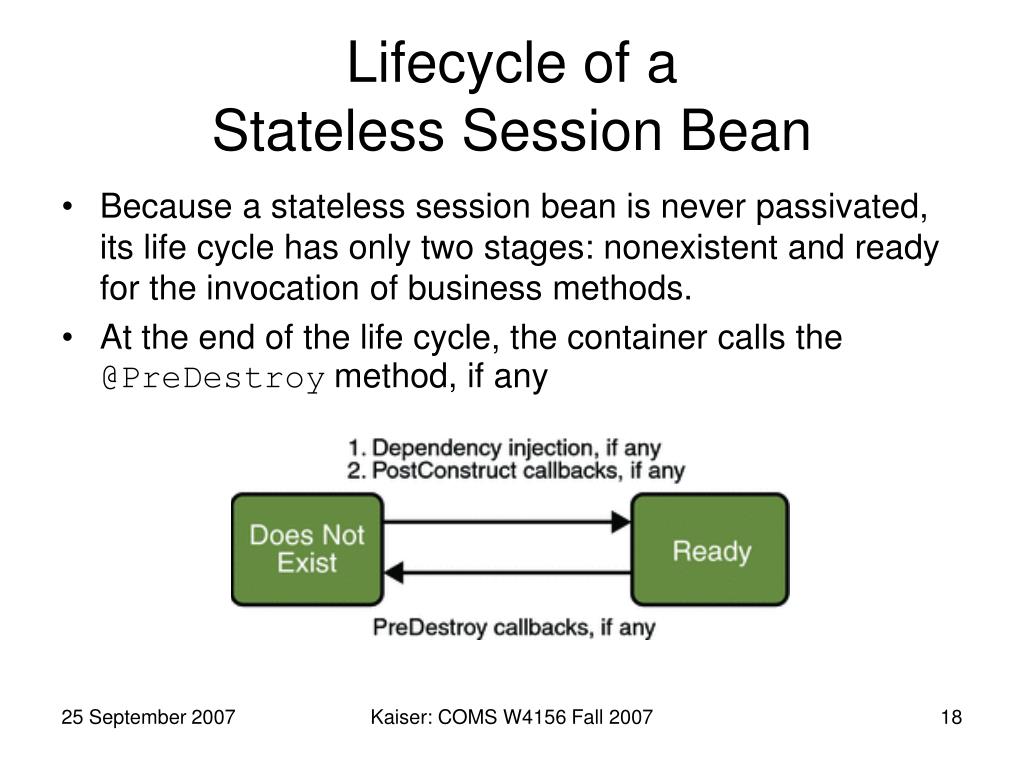

18. Lifecycle of a Stateless Session Bean • Because a stateless session bean is never passivated, its life cycle has only two stages: nonexistent and ready for the invocation of business methods. • At the end of the life cycle, the container calls the @PreDestroy method, if any Kaiser: COMS W4156 Fall 2007

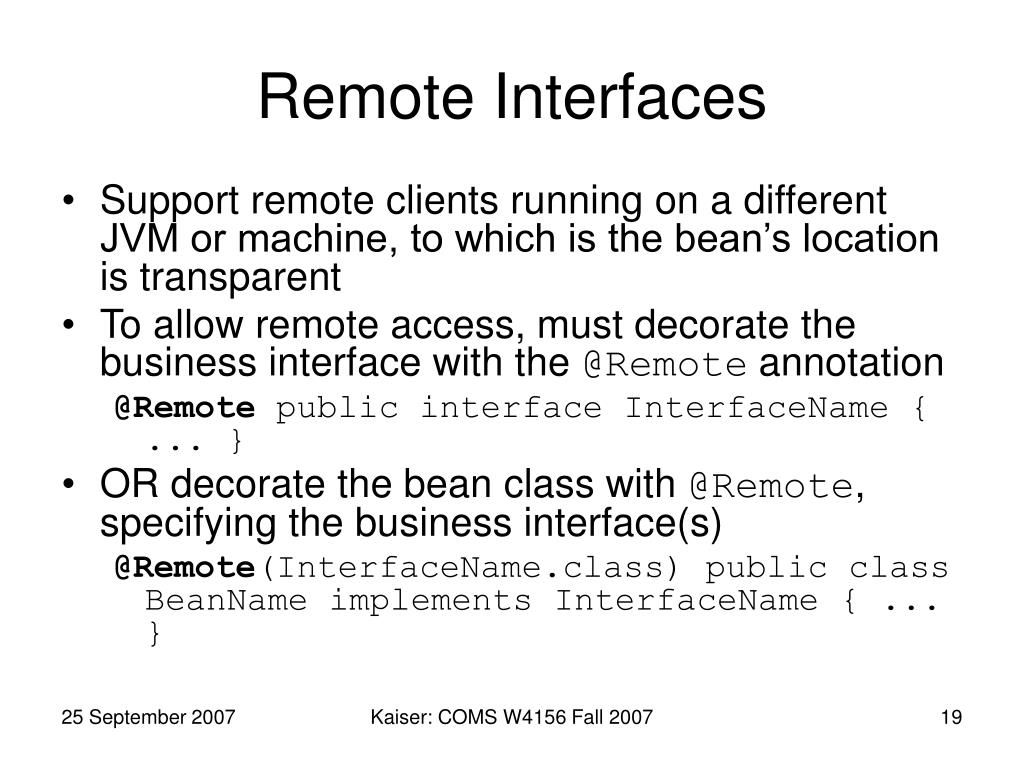

19. Remote Interfaces • Support remote clients running on a different JVM or machine, to which is the bean’s location is transparent • To allow remote access, must decorate the business interface with the @Remote annotation @Remote public interface InterfaceName { ... } • OR decorate the bean class with @Remote, specifying the business interface(s) @Remote(InterfaceName.class) public class BeanName implements InterfaceName { ... } Kaiser: COMS W4156 Fall 2007

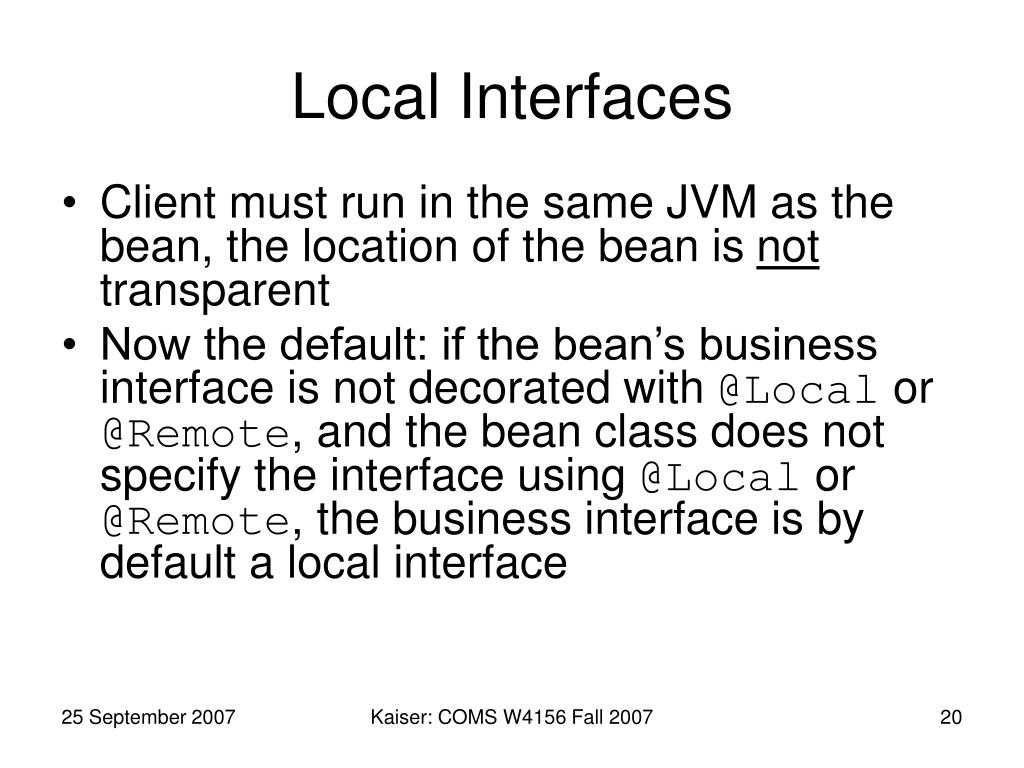

20. Local Interfaces • Client must run in the same JVM as the bean, the location of the bean is not transparent • Now the default: if the bean’s business interface is not decorated with @Local or @Remote, and the bean class does not specify the interface using @Local or @Remote, the business interface is by default a local interface Kaiser: COMS W4156 Fall 2007

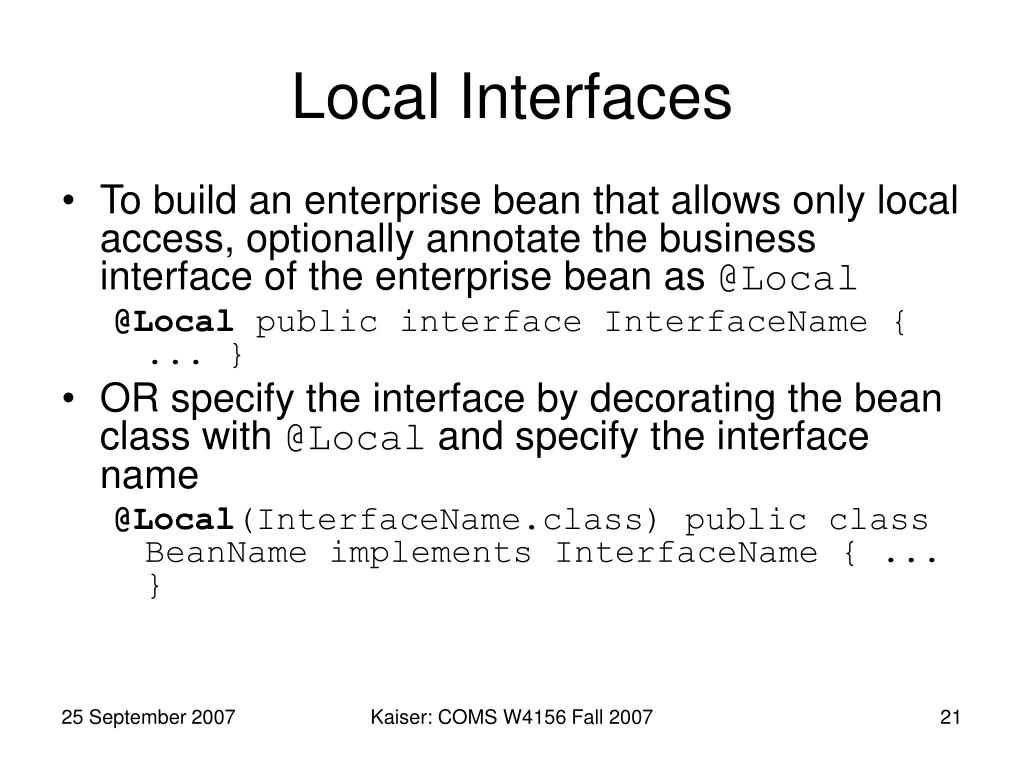

21. Local Interfaces • To build an enterprise bean that allows only local access, optionally annotate the business interface of the enterprise bean as @Local @Local public interface InterfaceName { ... } • OR specify the interface by decorating the bean class with @Local and specify the interface name @Local(InterfaceName.class) public class BeanName implements InterfaceName { ... } Kaiser: COMS W4156 Fall 2007

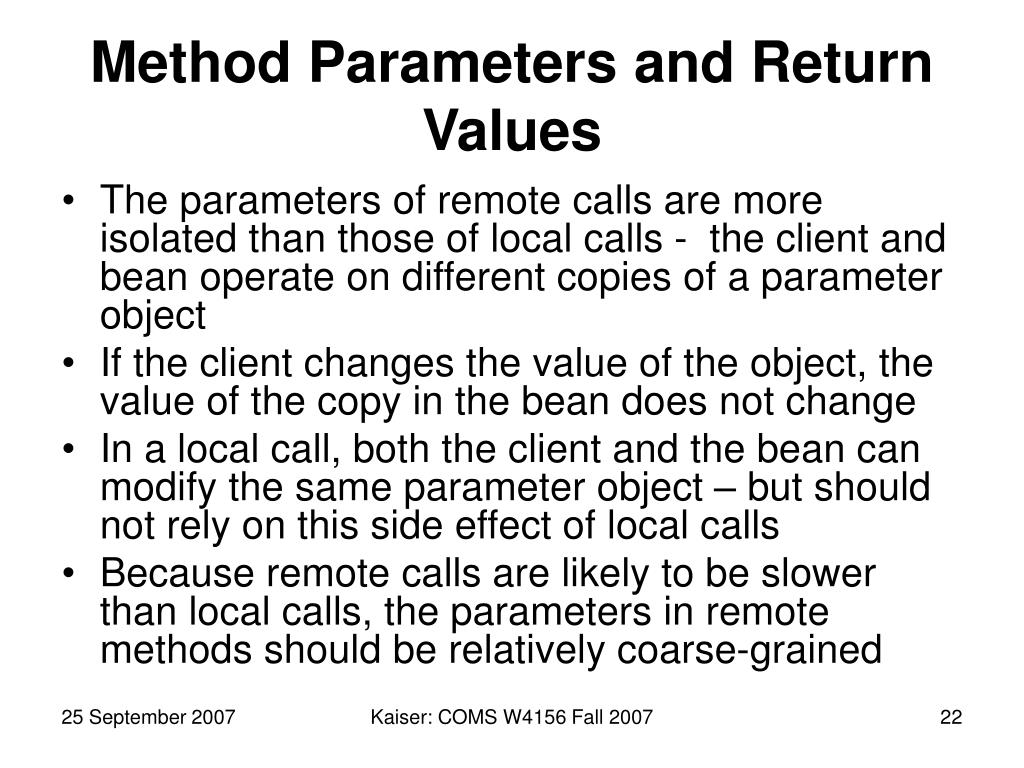

22. Method Parameters and Return Values • The parameters of remote calls are more isolated than those of local calls - the client and bean operate on different copies of a parameter object • If the client changes the value of the object, the value of the copy in the bean does not change • In a local call, both the client and the bean can modify the same parameter object – but should not rely on this side effect of local calls • Because remote calls are likely to be slower than local calls, the parameters in remote methods should be relatively coarse-grained Kaiser: COMS W4156 Fall 2007

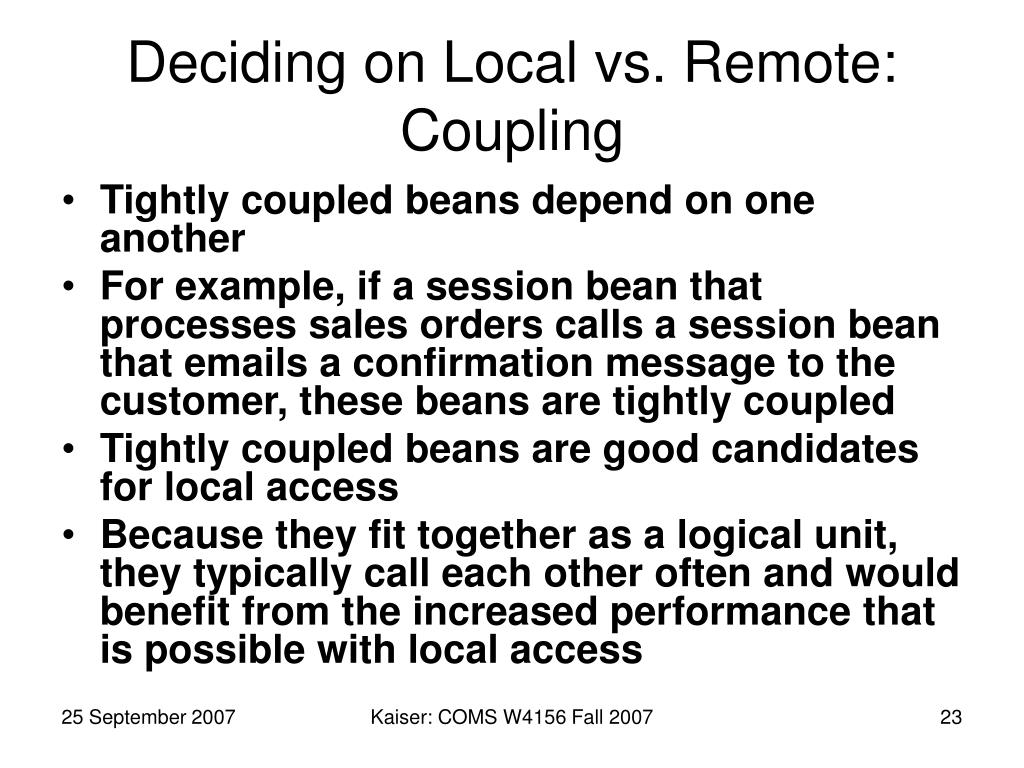

23. Deciding on Local vs. Remote: Coupling • Tightly coupled beans depend on one another • For example, if a session bean that processes sales orders calls a session bean that emails a confirmation message to the customer, these beans are tightly coupled • Tightly coupled beans are good candidates for local access • Because they fit together as a logical unit, they typically call each other often and would benefit from the increased performance that is possible with local access Kaiser: COMS W4156 Fall 2007

24. Deciding on Local vs. Remote: Type of Client • If an enterprise bean is accessed by application clients, then it should allow remote access • In a production environment, these clients almost always run on different machines than the Application Server • If an enterprise bean’s clients are web components or other enterprise beans, then the type of access depends on how you want to distribute your components Kaiser: COMS W4156 Fall 2007

25. Deciding on Local vs. Remote: Component Distribution • Java EE applications are scalable because their server-side components can be distributed across multiple machines • In a distributed application, the web components may run on a different server than do the enterprise beans they access • Then the enterprise beans should allow remote access Kaiser: COMS W4156 Fall 2007

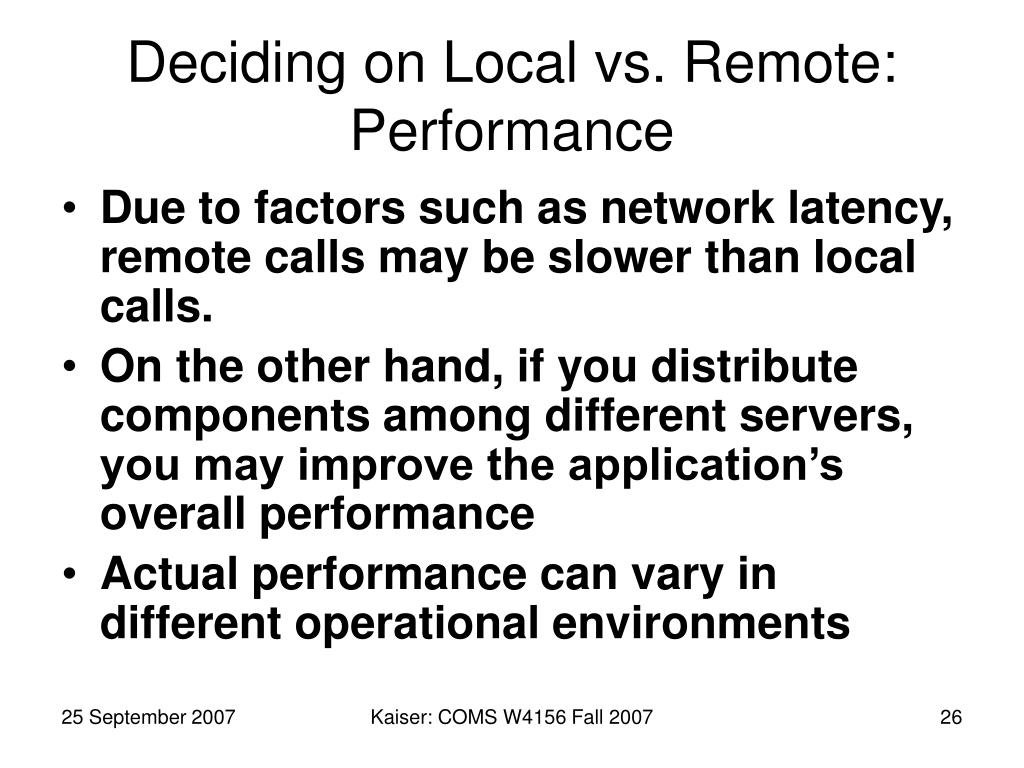

26. Deciding on Local vs. Remote: Performance • Due to factors such as network latency, remote calls may be slower than local calls. • On the other hand, if you distribute components among different servers, you may improve the application’s overall performance • Actual performance can vary in different operational environments Kaiser: COMS W4156 Fall 2007

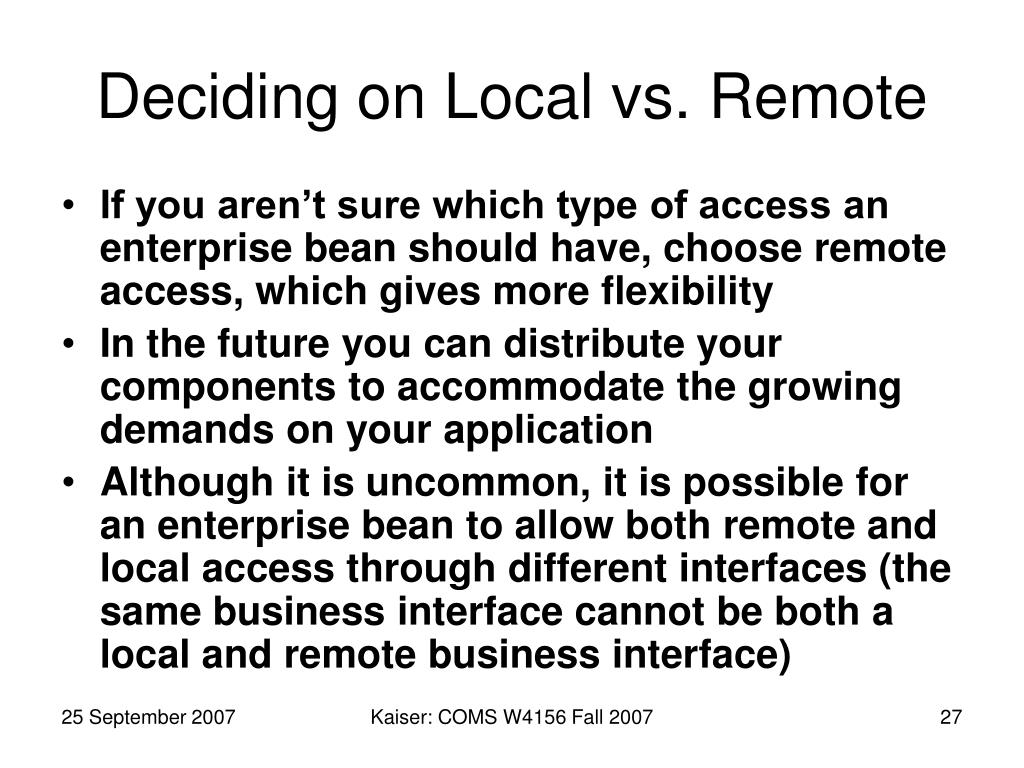

27. Deciding on Local vs. Remote • If you aren’t sure which type of access an enterprise bean should have, choose remote access, which gives more flexibility • In the future you can distribute your components to accommodate the growing demands on your application • Although it is uncommon, it is possible for an enterprise bean to allow both remote and local access through different interfaces (the same business interface cannot be both a local and remote business interface) Kaiser: COMS W4156 Fall 2007

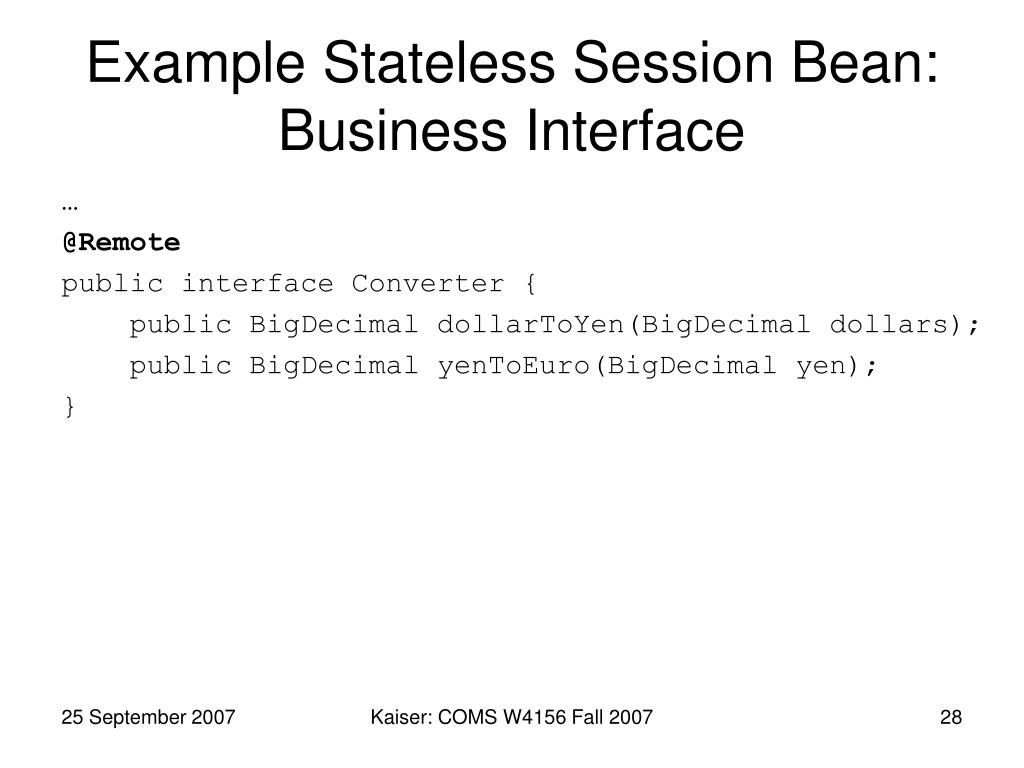

28. Example Stateless Session Bean: Business Interface … @Remote public interface Converter { public BigDecimal dollarToYen(BigDecimal dollars); public BigDecimal yenToEuro(BigDecimal yen); } Kaiser: COMS W4156 Fall 2007

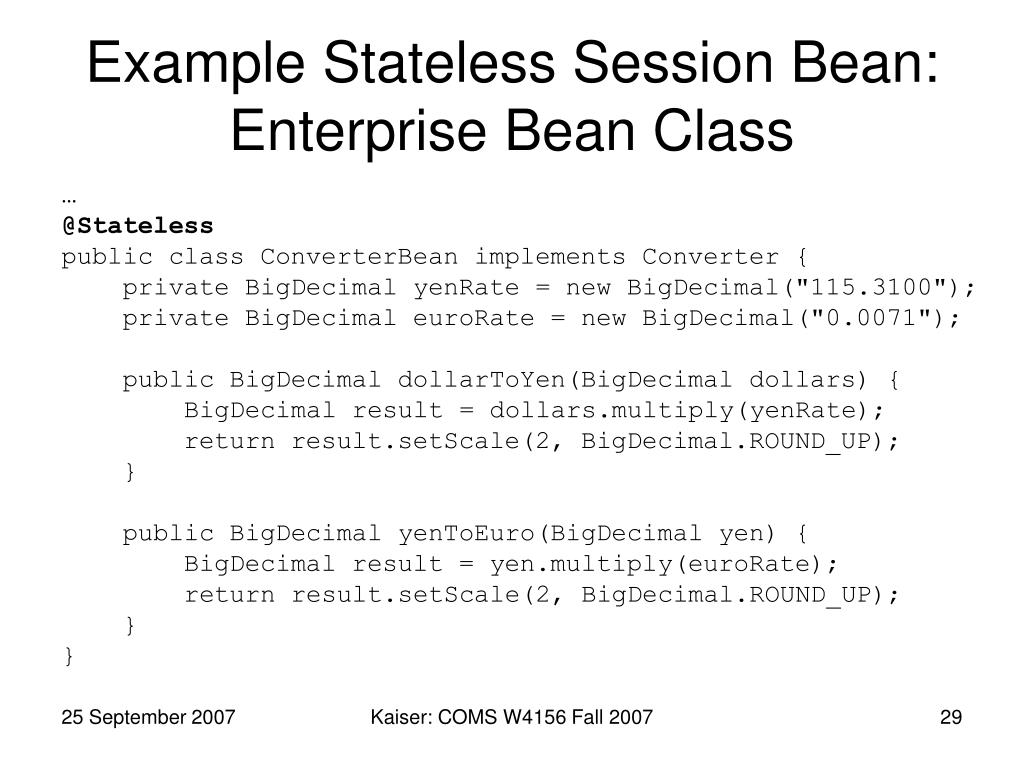

29. Example Stateless Session Bean: Enterprise Bean Class … @Stateless public class ConverterBean implements Converter { private BigDecimal yenRate = new BigDecimal("115.3100"); private BigDecimal euroRate = new BigDecimal("0.0071"); public BigDecimal dollarToYen(BigDecimal dollars) { BigDecimal result = dollars.multiply(yenRate); return result.setScale(2, BigDecimal.ROUND_UP); } public BigDecimal yenToEuro(BigDecimal yen) { BigDecimal result = yen.multiply(euroRate); return result.setScale(2, BigDecimal.ROUND_UP); } } Kaiser: COMS W4156 Fall 2007

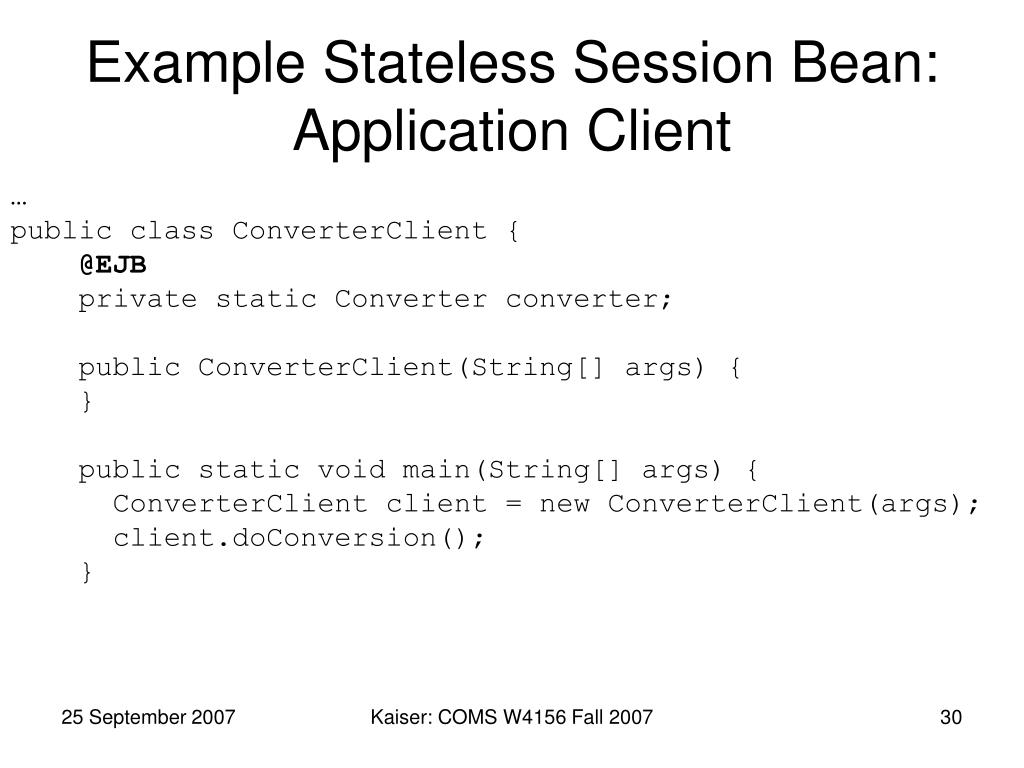

30. Example Stateless Session Bean: Application Client … public class ConverterClient { @EJB private static Converter converter; public ConverterClient(String[] args) { } public static void main(String[] args) { ConverterClient client = new ConverterClient(args); client.doConversion(); } Kaiser: COMS W4156 Fall 2007

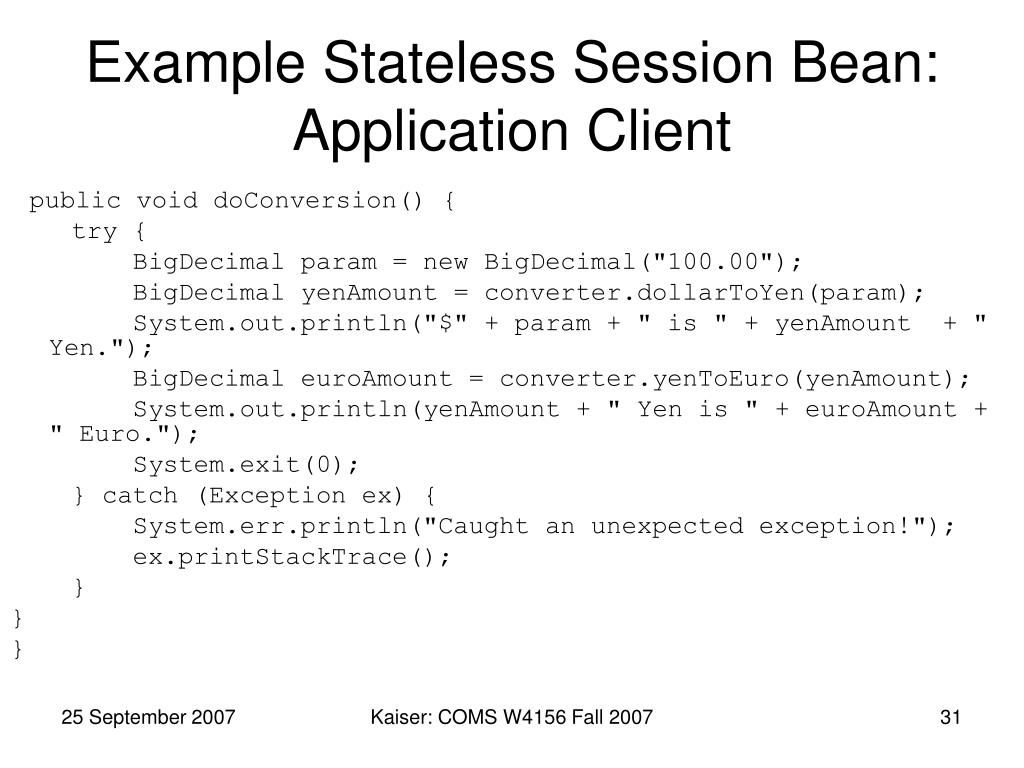

31. Example Stateless Session Bean: Application Client public void doConversion() { try { BigDecimal param = new BigDecimal("100.00"); BigDecimal yenAmount = converter.dollarToYen(param); System.out.println("$" + param + " is " + yenAmount + " Yen."); BigDecimal euroAmount = converter.yenToEuro(yenAmount); System.out.println(yenAmount + " Yen is " + euroAmount + " Euro."); System.exit(0); } catch (Exception ex) { System.err.println("Caught an unexpected exception!"); ex.printStackTrace(); } } } Kaiser: COMS W4156 Fall 2007

32. Example Stateful Session Bean: Business Interface … @Remote public interface Cart { public void initialize(String person) throws BookException; public void initialize(String person, String id) throws BookException; public void addBook(String title); public void removeBook(String title) throws BookException; public List<String> getContents(); public void remove(); } Kaiser: COMS W4156 Fall 2007

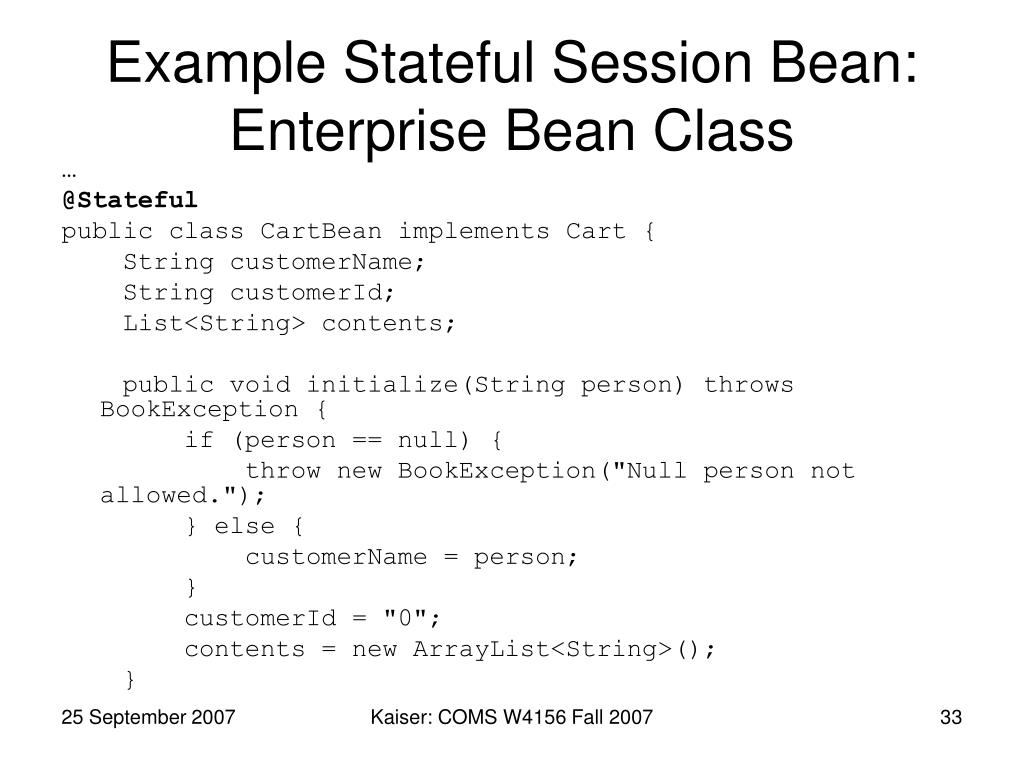

33. Example Stateful Session Bean: Enterprise Bean Class … @Stateful public class CartBean implements Cart { String customerName; String customerId; List<String> contents; public void initialize(String person) throws BookException { if (person == null) { throw new BookException("Null person not allowed."); } else { customerName = person; } customerId = "0"; contents = new ArrayList<String>(); } Kaiser: COMS W4156 Fall 2007

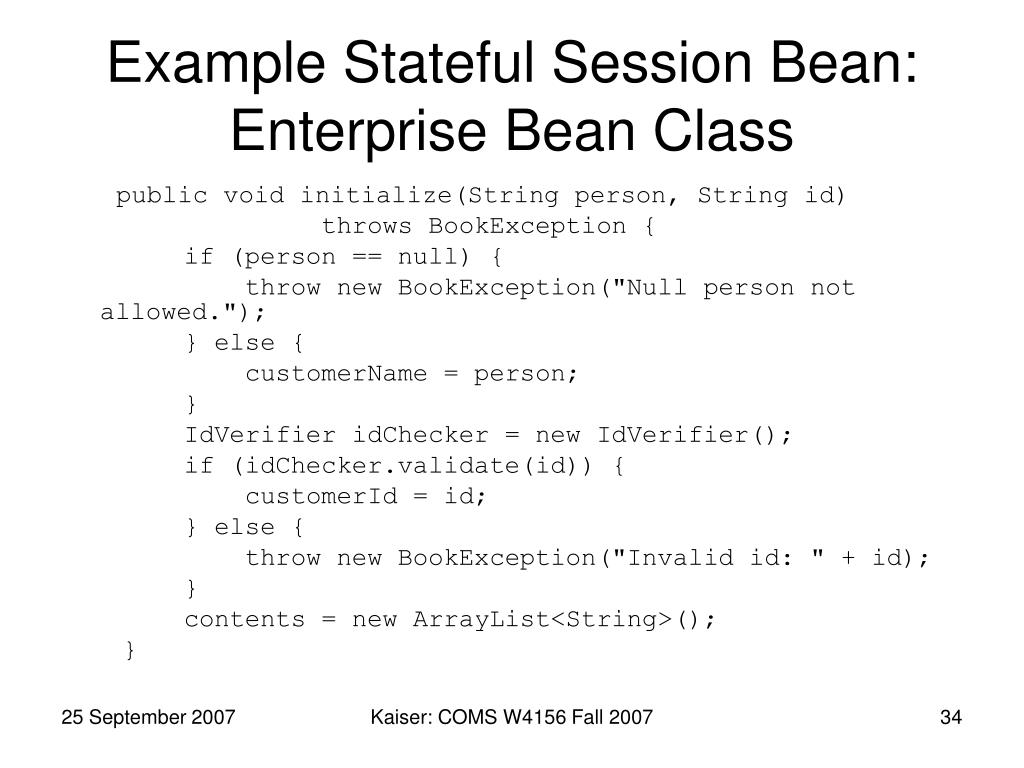

34. Example Stateful Session Bean: Enterprise Bean Class public void initialize(String person, String id) throws BookException { if (person == null) { throw new BookException("Null person not allowed."); } else { customerName = person; } IdVerifier idChecker = new IdVerifier(); if (idChecker.validate(id)) { customerId = id; } else { throw new BookException("Invalid id: " + id); } contents = new ArrayList<String>(); } Kaiser: COMS W4156 Fall 2007

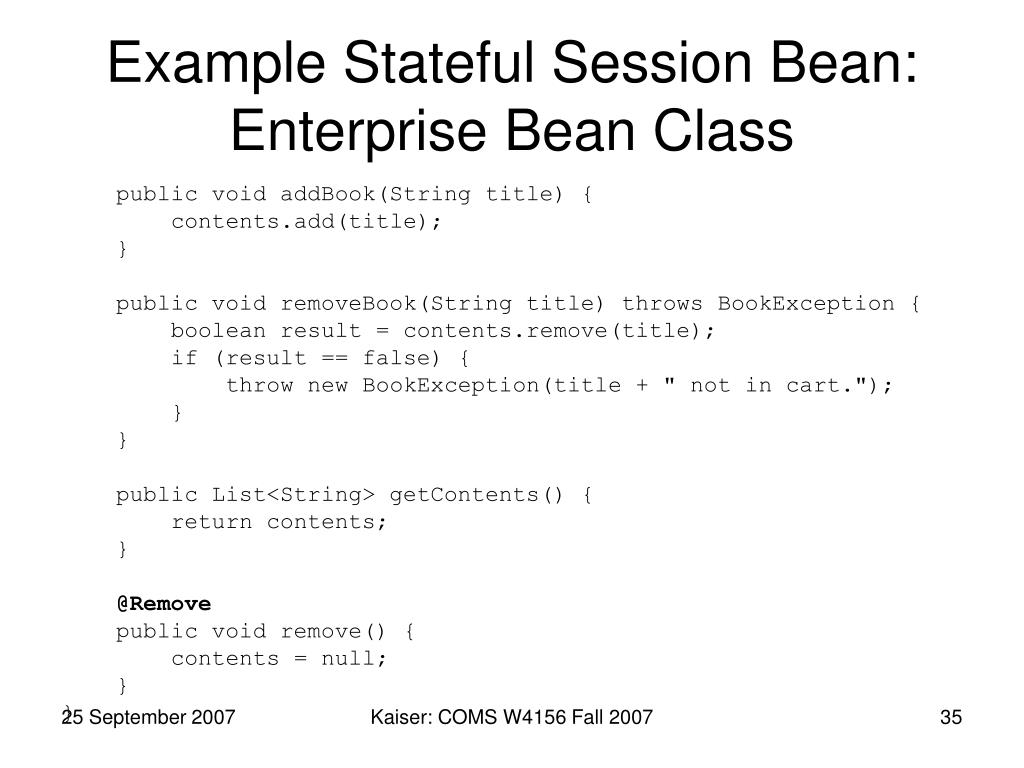

35. Example Stateful Session Bean: Enterprise Bean Class public void addBook(String title) { contents.add(title); } public void removeBook(String title) throws BookException { boolean result = contents.remove(title); if (result == false) { throw new BookException(title + " not in cart."); } } public List<String> getContents() { return contents; } @Remove public void remove() { contents = null; } } Kaiser: COMS W4156 Fall 2007

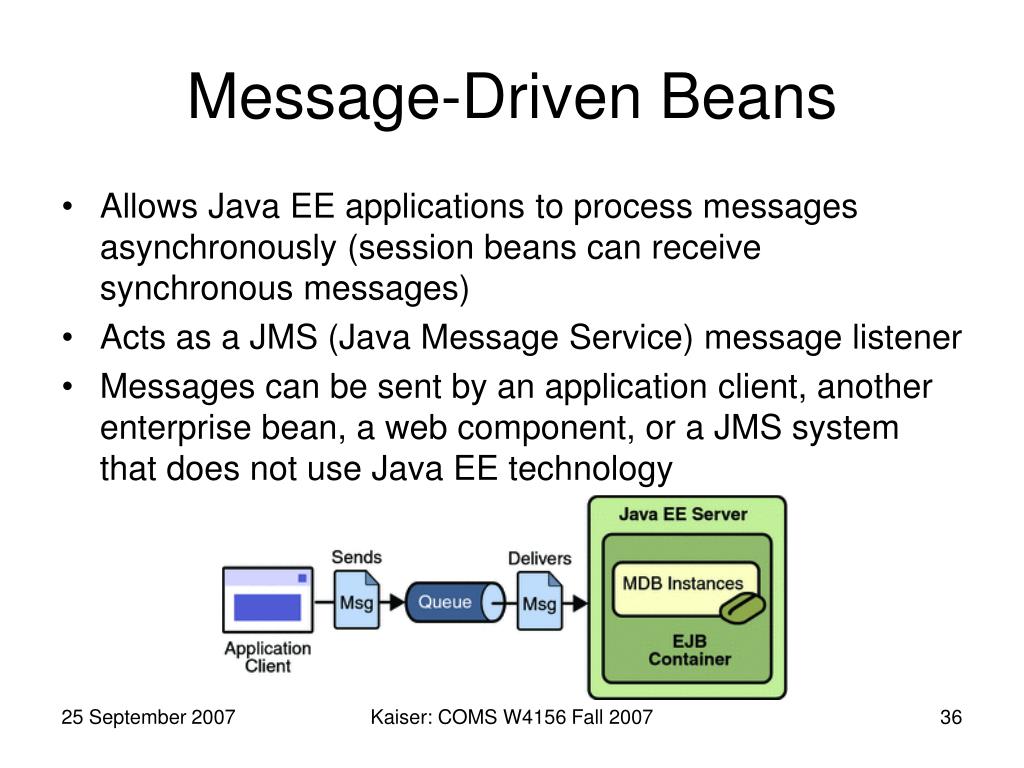

36. Message-Driven Beans • Allows Java EE applications to process messages asynchronously (session beans can receive synchronous messages) • Acts as a JMS (Java Message Service) message listener • Messages can be sent by an application client, another enterprise bean, a web component, or a JMS system that does not use Java EE technology Kaiser: COMS W4156 Fall 2007

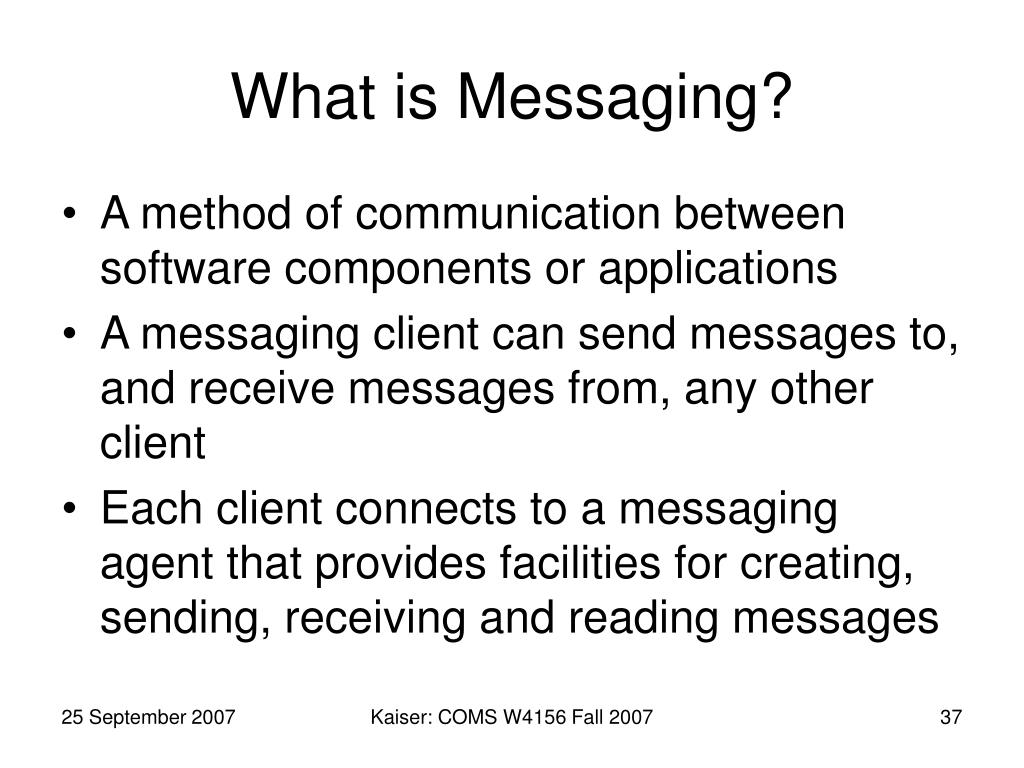

37. What is Messaging? • A method of communication between software components or applications • A messaging client can send messages to, and receive messages from, any other client • Each client connects to a messaging agent that provides facilities for creating, sending, receiving and reading messages Kaiser: COMS W4156 Fall 2007

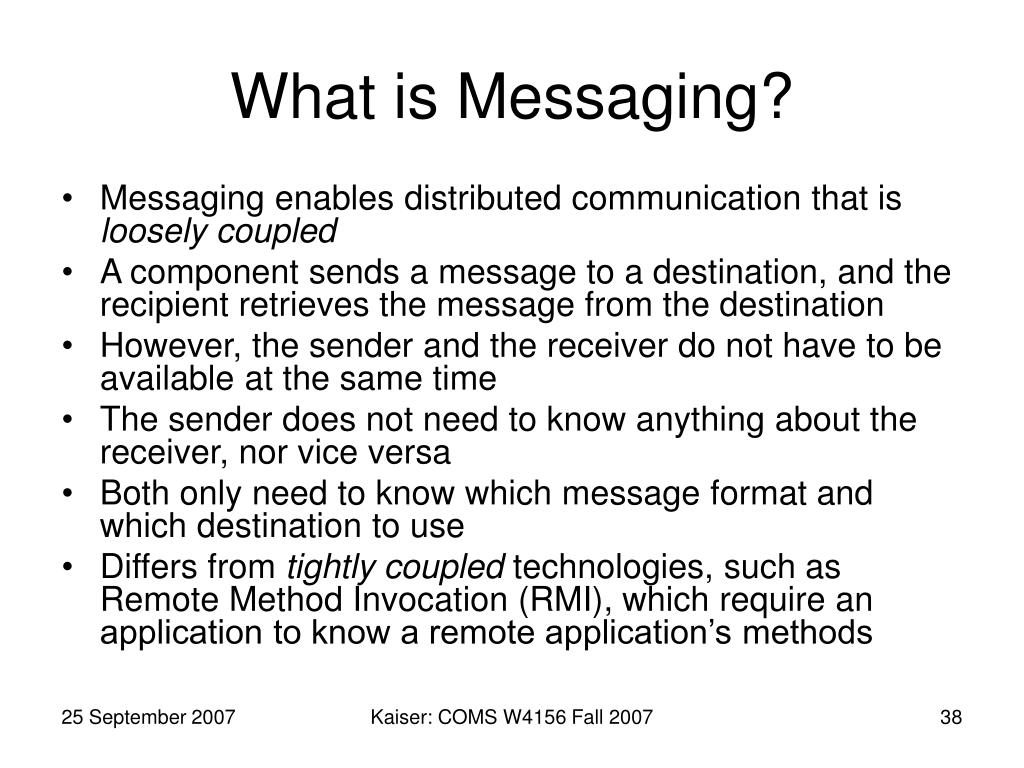

38. What is Messaging? • Messaging enables distributed communication that is loosely coupled • A component sends a message to a destination, and the recipient retrieves the message from the destination • However, the sender and the receiver do not have to be available at the same time • The sender does not need to know anything about the receiver, nor vice versa • Both only need to know which message format and which destination to use • Differs from tightly coupled technologies, such as Remote Method Invocation (RMI), which require an application to know a remote application’s methods Kaiser: COMS W4156 Fall 2007

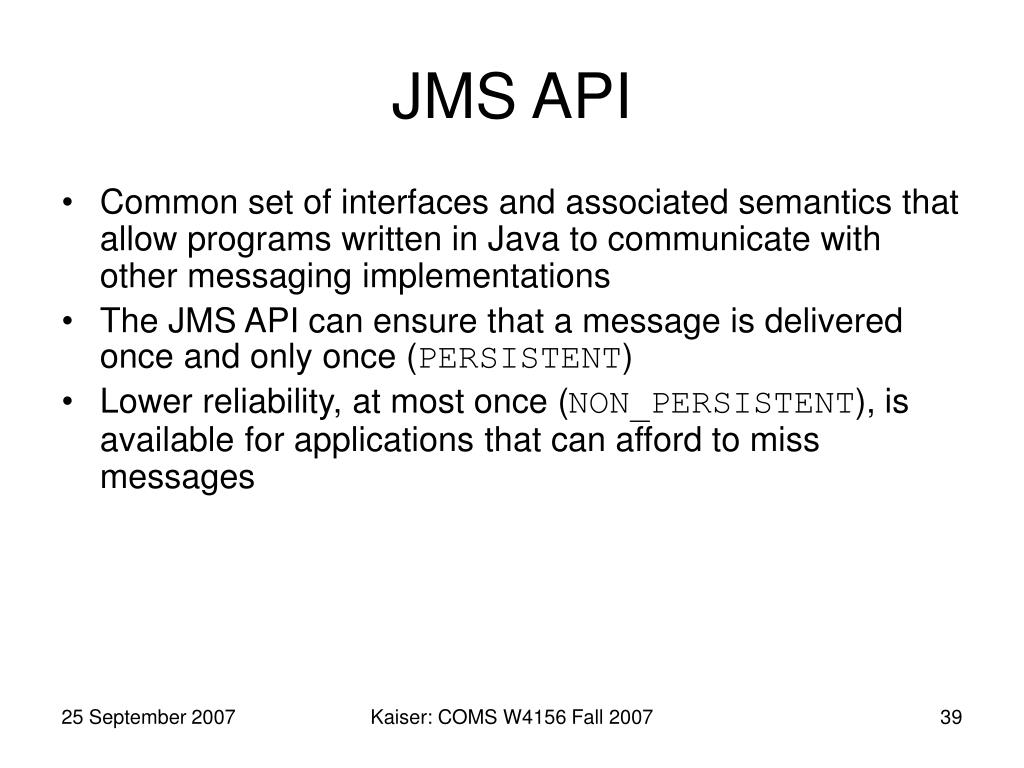

39. JMS API • Common set of interfaces and associated semantics that allow programs written in Java to communicate with other messaging implementations • The JMS API can ensure that a message is delivered once and only once (PERSISTENT) • Lower reliability, at most once (NON_PERSISTENT), is available for applications that can afford to miss messages Kaiser: COMS W4156 Fall 2007

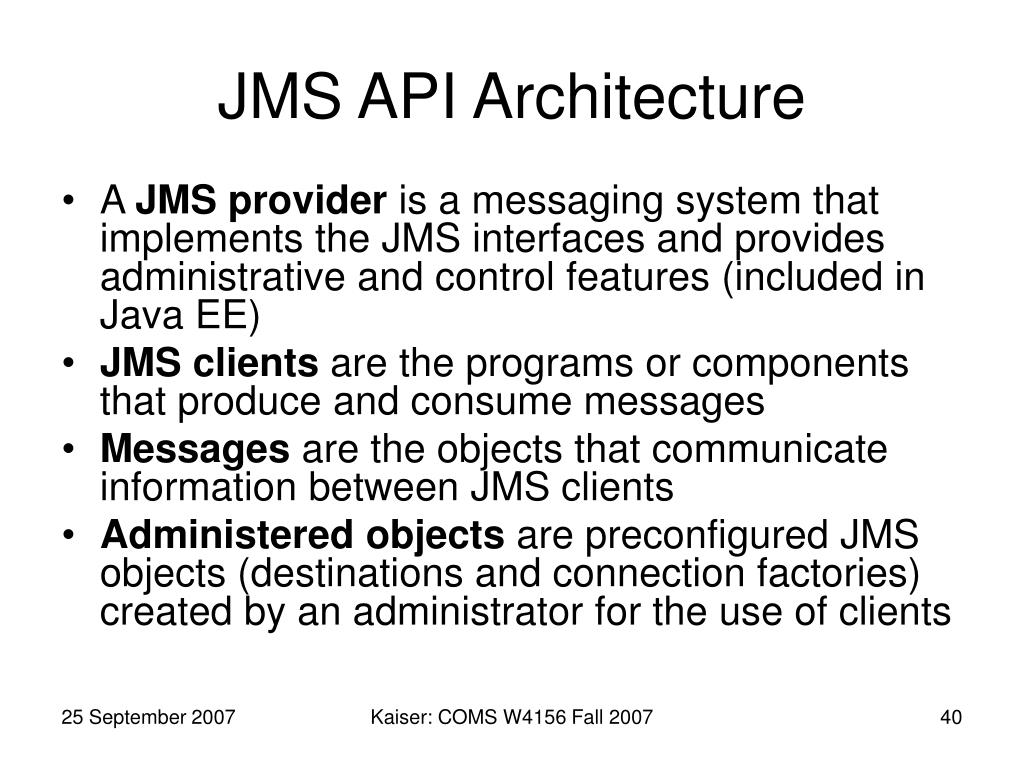

40. JMS API Architecture • A JMS provider is a messaging system that implements the JMS interfaces and provides administrative and control features (included in Java EE) • JMS clients are the programs or components that produce and consume messages • Messages are the objects that communicate information between JMS clients • Administered objects are preconfigured JMS objects (destinations and connection factories) created by an administrator for the use of clients Kaiser: COMS W4156 Fall 2007

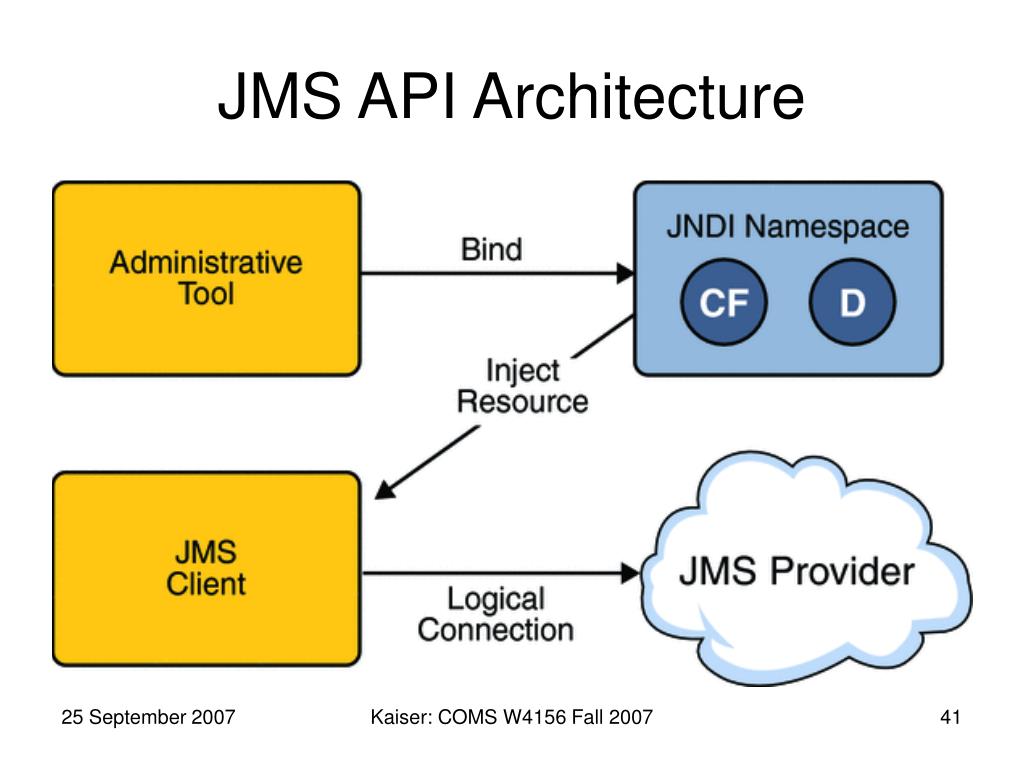

41. JMS API Architecture Kaiser: COMS W4156 Fall 2007

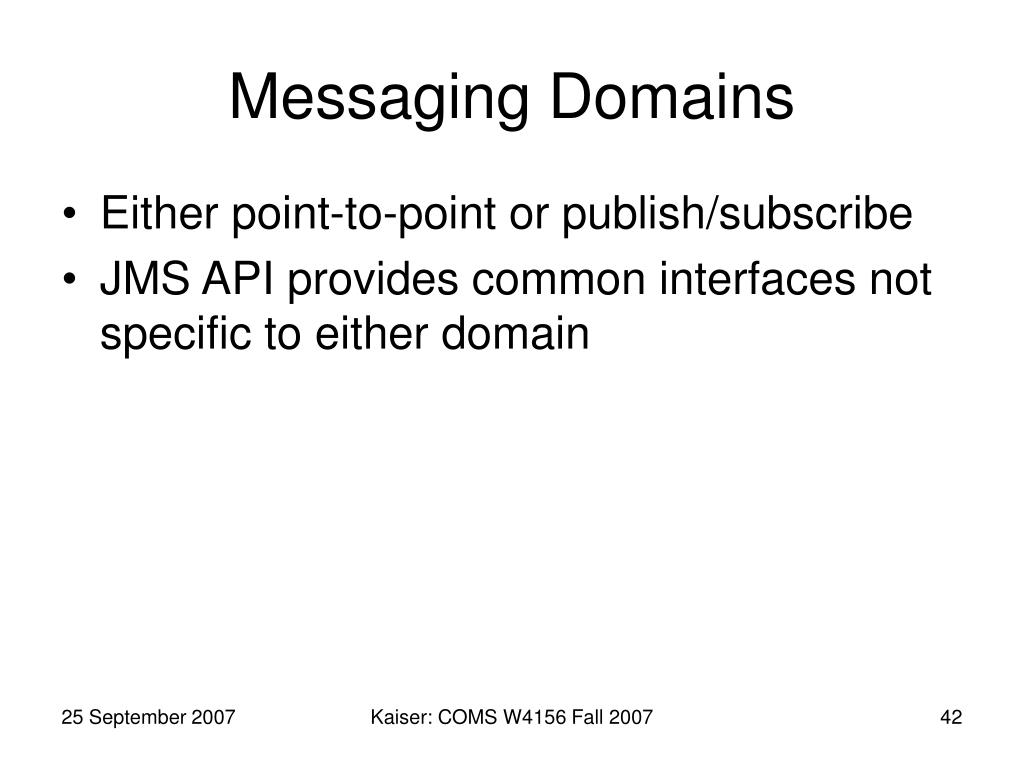

42. Messaging Domains • Either point-to-point or publish/subscribe • JMS API provides common interfaces not specific to either domain Kaiser: COMS W4156 Fall 2007

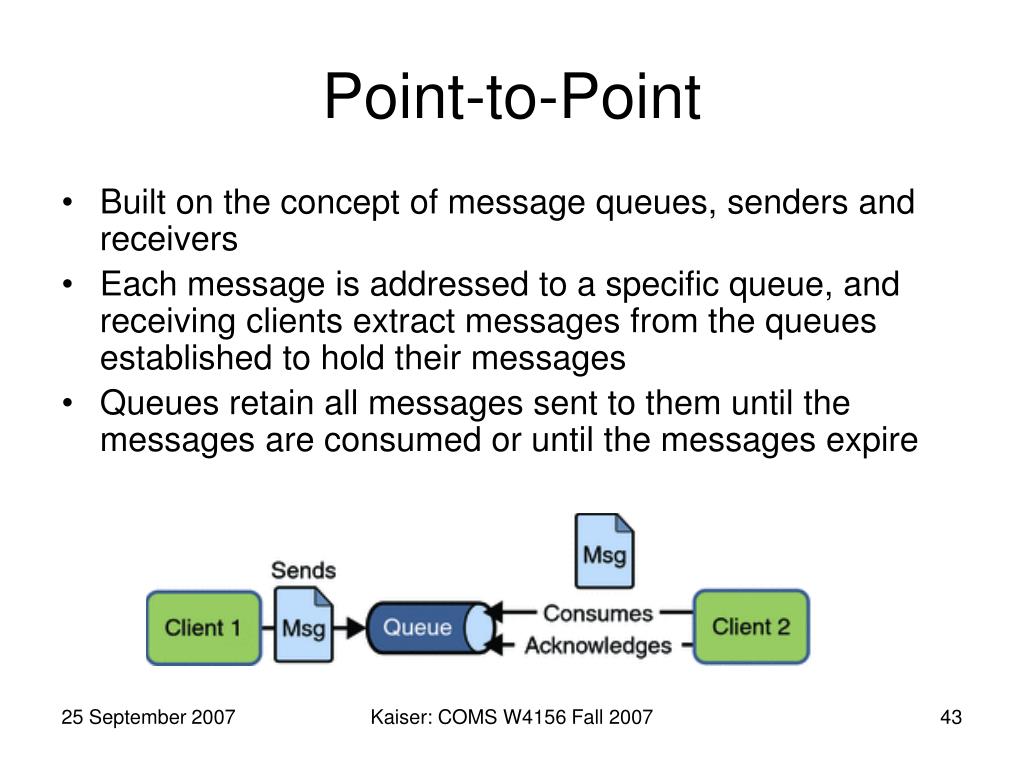

43. Point-to-Point • Built on the concept of message queues, senders and receivers • Each message is addressed to a specific queue, and receiving clients extract messages from the queues established to hold their messages • Queues retain all messages sent to them until the messages are consumed or until the messages expire Kaiser: COMS W4156 Fall 2007

44. Point-to-Point • Each message has only one consumer • A sender and a receiver of a message have no timing dependencies - the receiver can fetch the message whether or not it was running when the client sent the message • The receiver acknowledges the successful processing of a message Kaiser: COMS W4156 Fall 2007

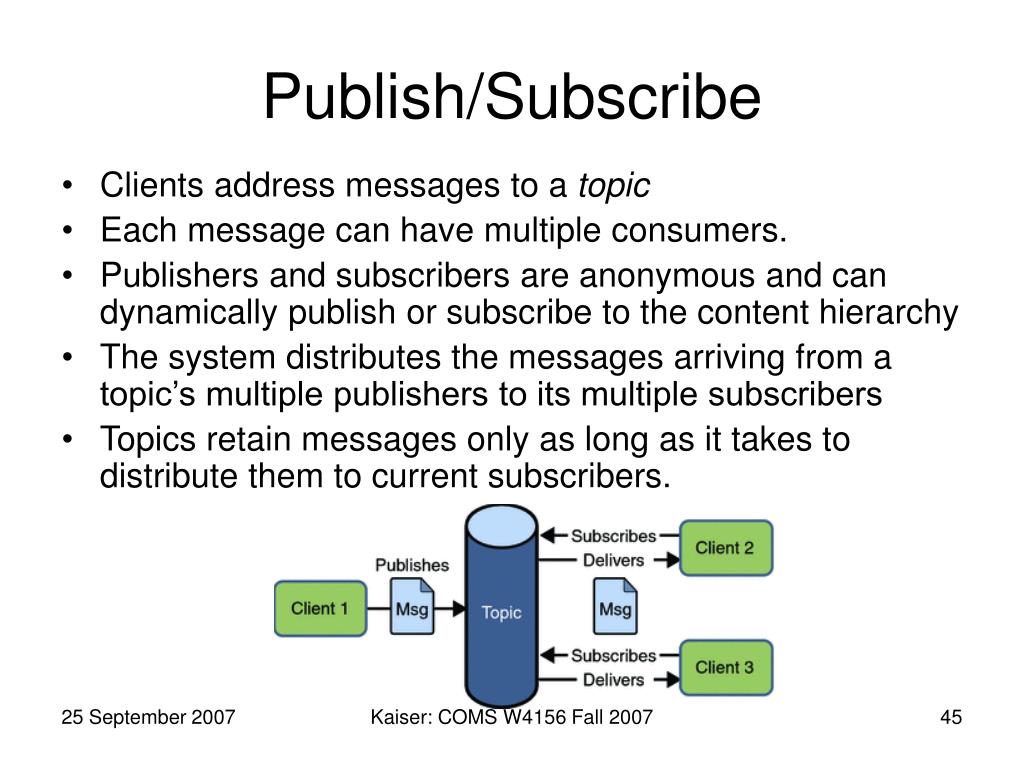

45. Publish/Subscribe • Clients address messages to a topic • Each message can have multiple consumers. • Publishers and subscribers are anonymous and can dynamically publish or subscribe to the content hierarchy • The system distributes the messages arriving from a topic’s multiple publishers to its multiple subscribers • Topics retain messages only as long as it takes to distribute them to current subscribers. Kaiser: COMS W4156 Fall 2007

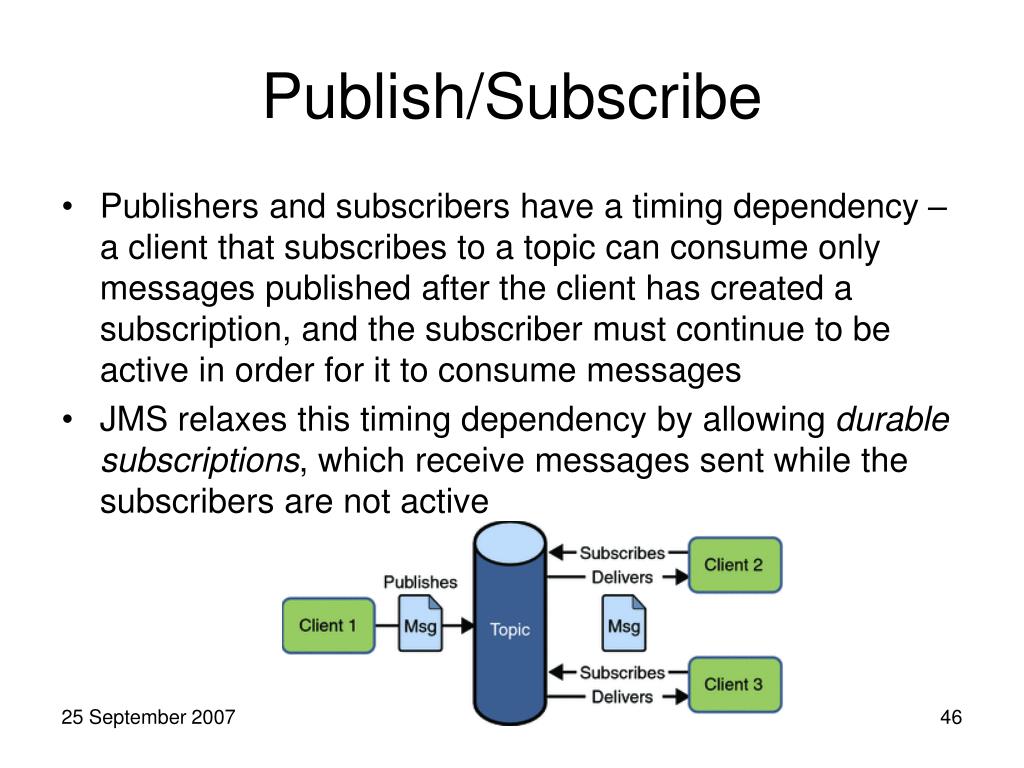

46. Publish/Subscribe • Publishers and subscribers have a timing dependency – a client that subscribes to a topic can consume only messages published after the client has created a subscription, and the subscriber must continue to be active in order for it to consume messages • JMS relaxes this timing dependency by allowing durable subscriptions, which receive messages sent while the subscribers are not active Kaiser: COMS W4156 Fall 2007

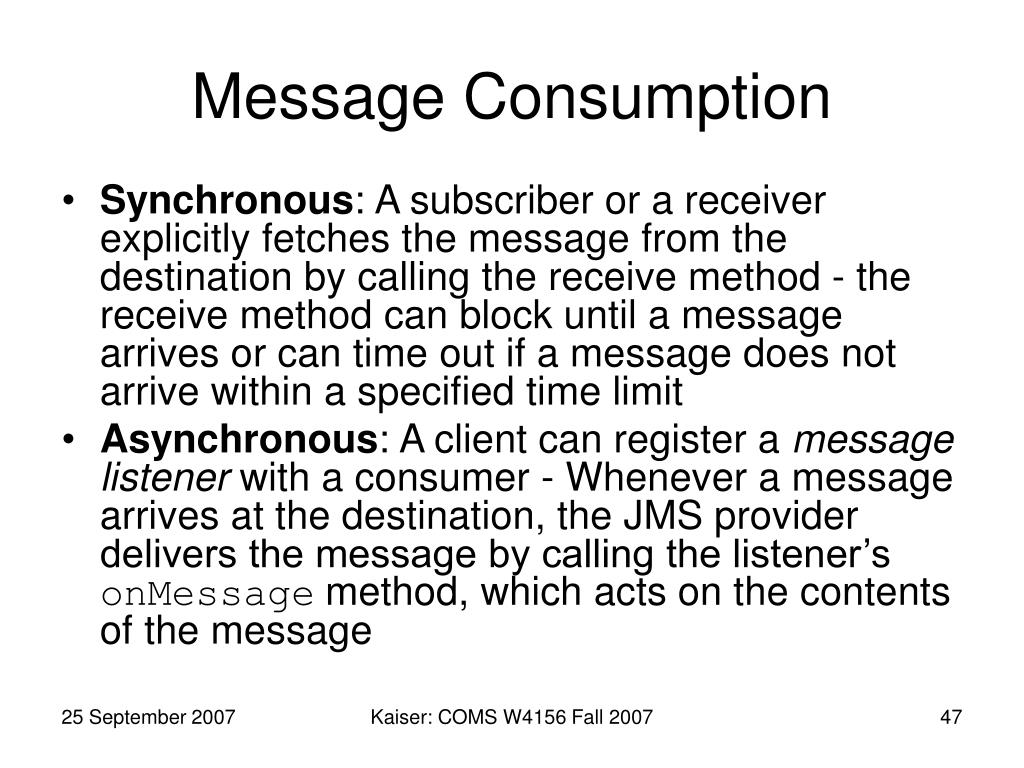

47. Message Consumption • Synchronous: A subscriber or a receiver explicitly fetches the message from the destination by calling the receive method - the receive method can block until a message arrives or can time out if a message does not arrive within a specified time limit • Asynchronous: A client can register a message listener with a consumer - Whenever a message arrives at the destination, the JMS provider delivers the message by calling the listener’s onMessage method, which acts on the contents of the message Kaiser: COMS W4156 Fall 2007

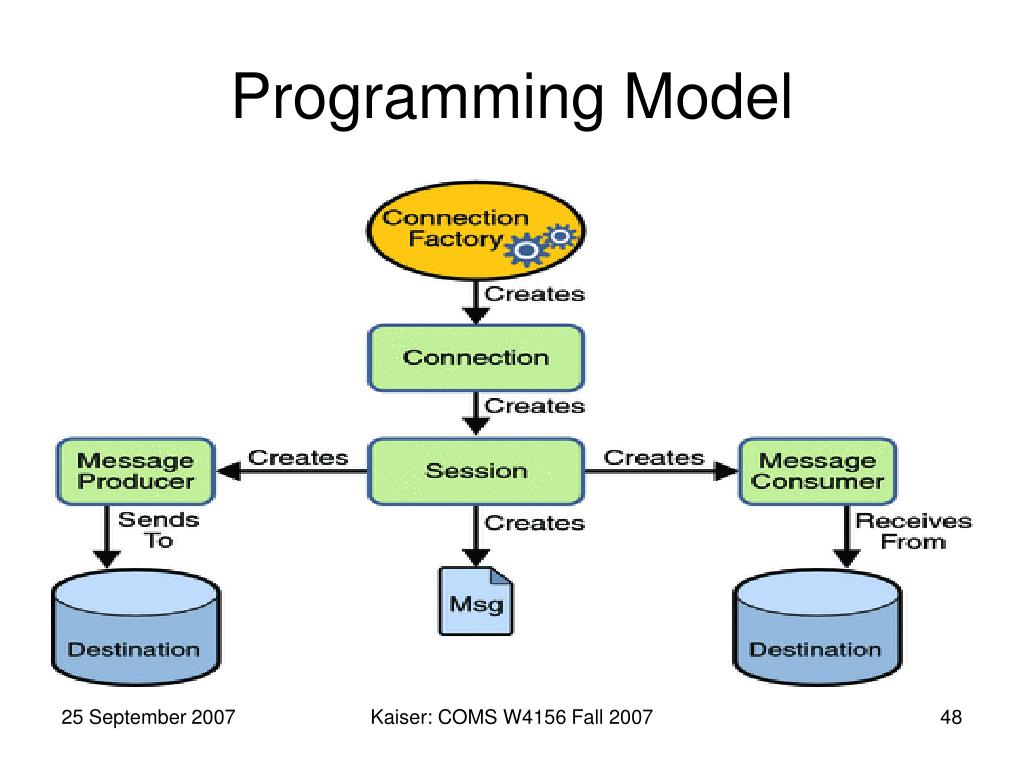

48. Programming Model Kaiser: COMS W4156 Fall 2007

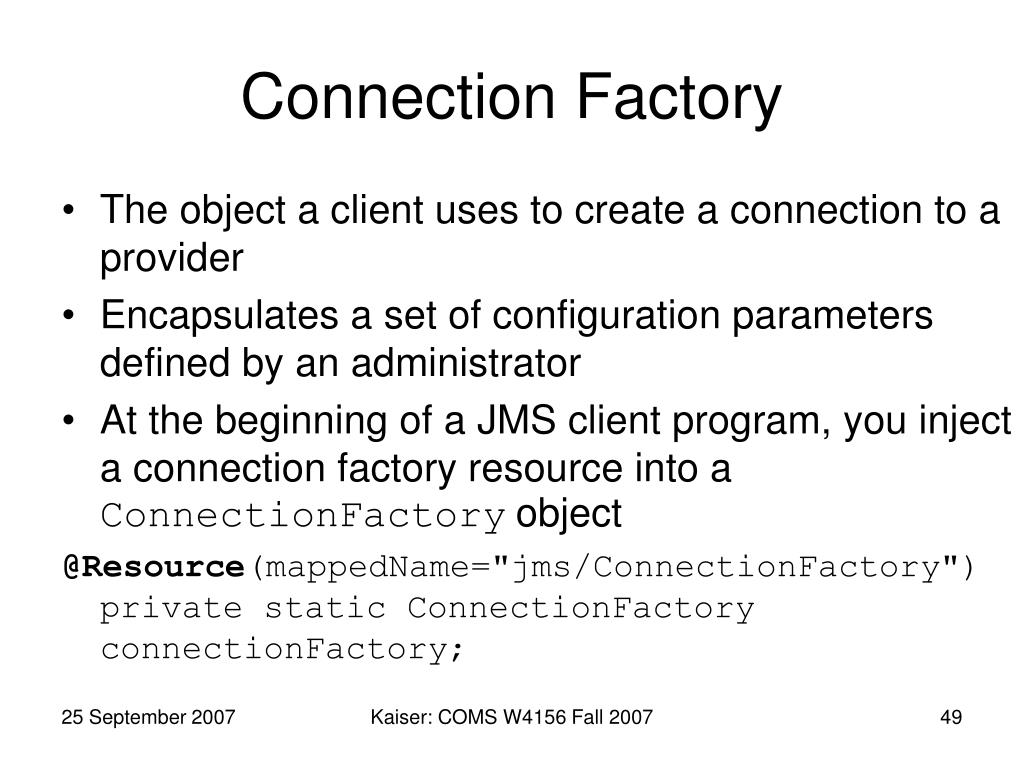

49. Connection Factory • The object a client uses to create a connection to a provider • Encapsulates a set of configuration parameters defined by an administrator • At the beginning of a JMS client program, you inject a connection factory resource into a ConnectionFactory object @Resource(mappedName="jms/ConnectionFactory") private static ConnectionFactory connectionFactory; Kaiser: COMS W4156 Fall 2007

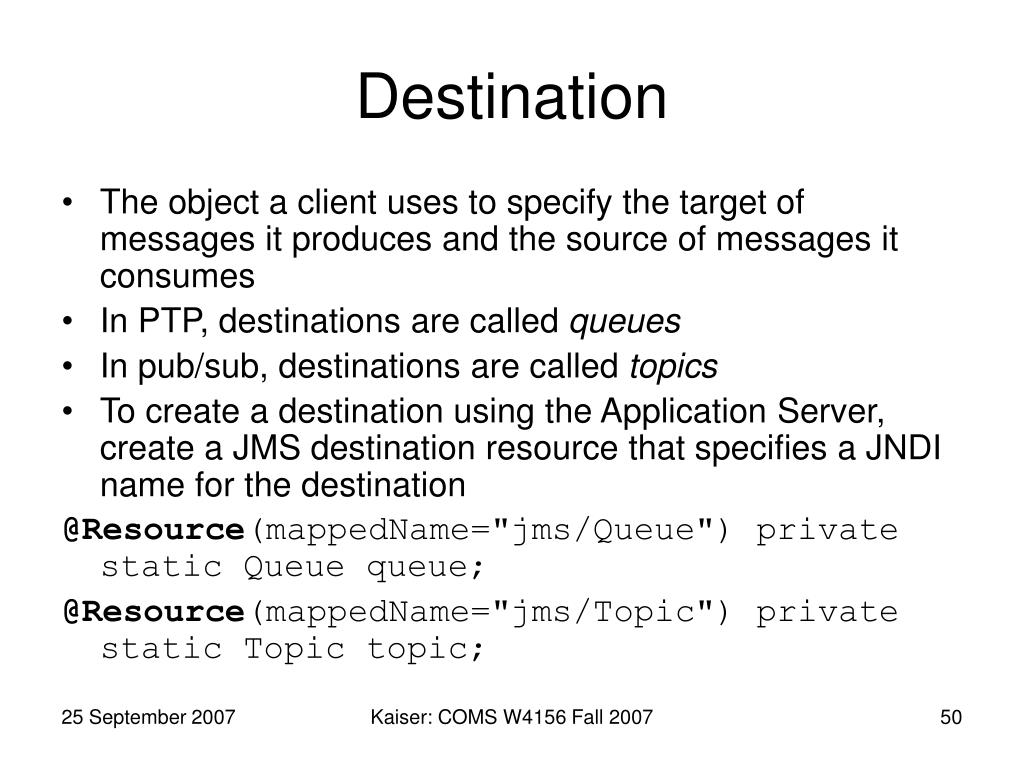

50. Destination • The object a client uses to specify the target of messages it produces and the source of messages it consumes • In PTP, destinations are called queues • In pub/sub, destinations are called topics • To create a destination using the Application Server, create a JMS destination resource that specifies a JNDI name for the destination @Resource(mappedName="jms/Queue") private static Queue queue; @Resource(mappedName="jms/Topic") private static Topic topic; Kaiser: COMS W4156 Fall 2007
