  1. 1 FUNCTIONS AND MODELS

  2. FUNCTIONS AND MODELS 1.5 Exponential Functions • In this section, we will learn about: • Exponential functions and their applications.

  3. EXPONENTIAL FUNCTIONS • The function f(x) = 2xis called • an exponential functionbecause • the variable, x, is the exponent. • It should not be confused with the power function g(x)= x2, in which the variable is the base.

  4. EXPONENTIAL FUNCTIONS • In general, an exponential function • is a function of the form f(x) = ax • where a is a positive constant. • Let’s recall what this means.

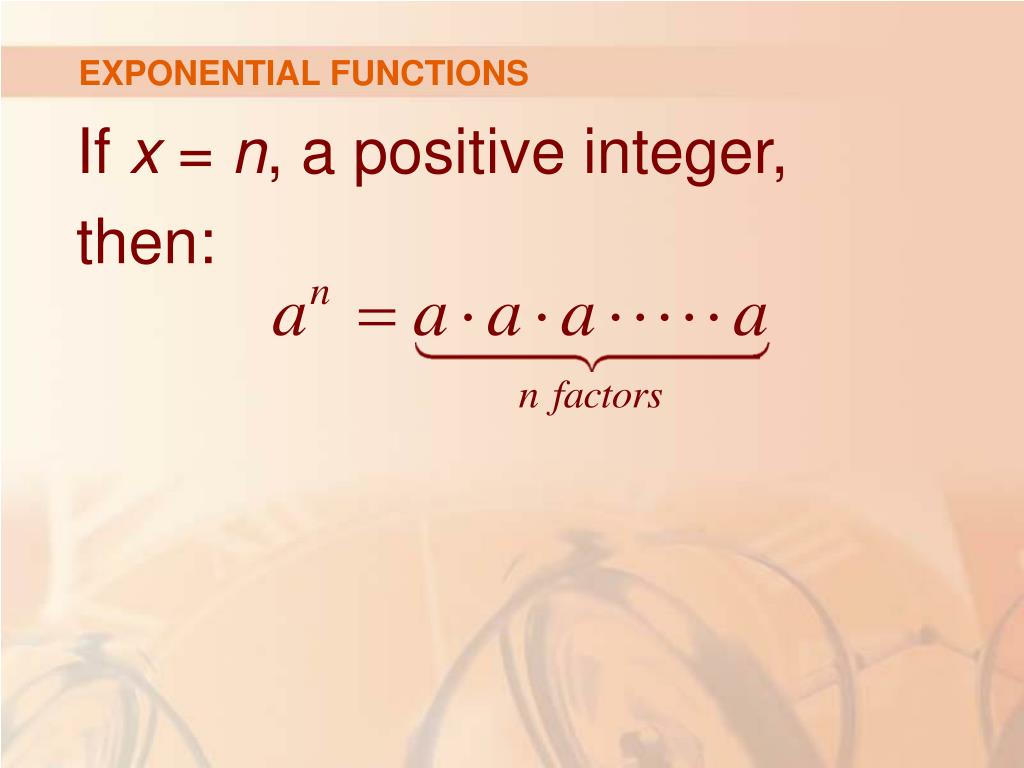

  5. EXPONENTIAL FUNCTIONS • If x = n, a positive integer, • then:

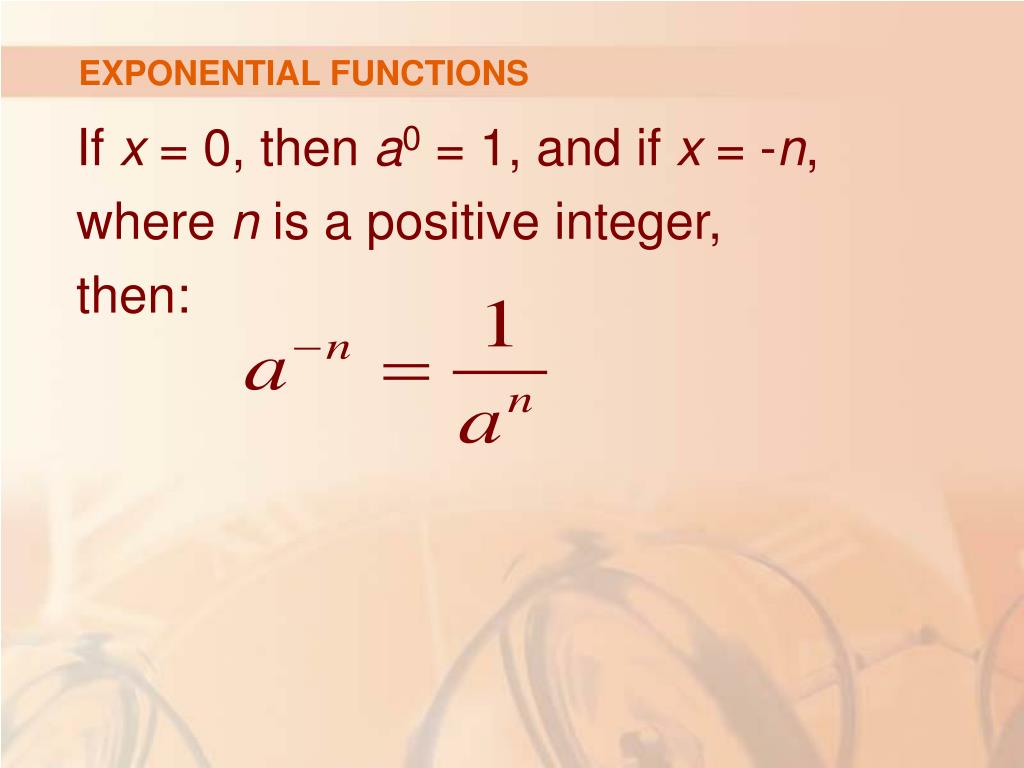

  6. EXPONENTIAL FUNCTIONS • If x = 0, then a0=1, and if x =-n, • where n is a positive integer, • then:

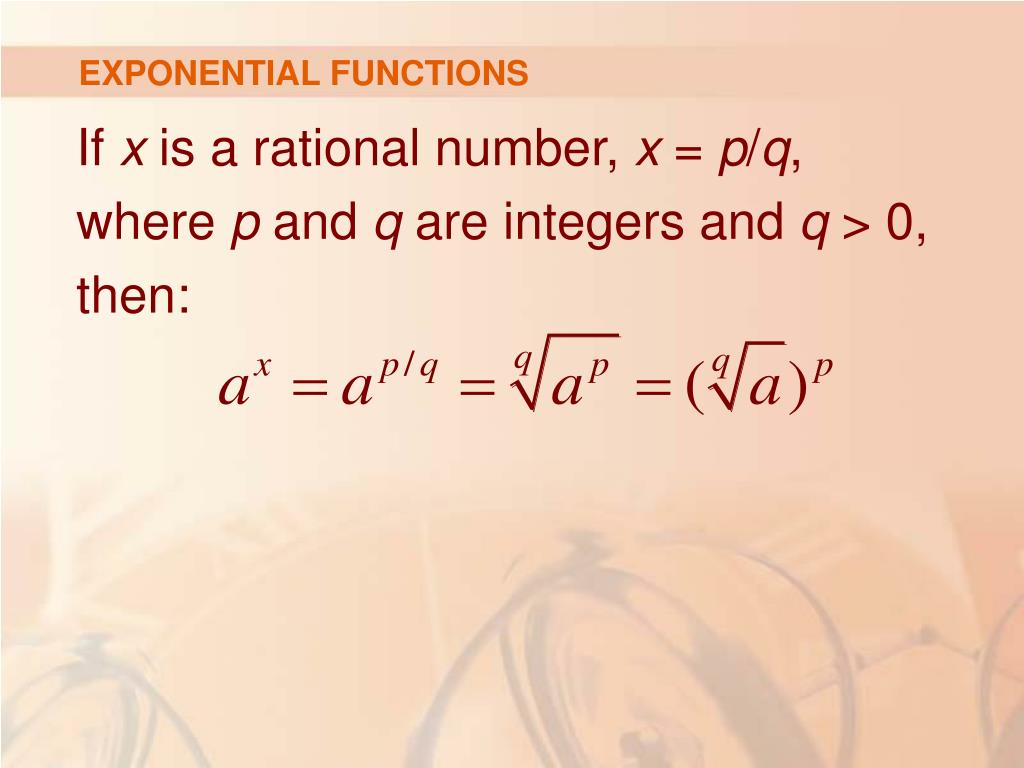

  7. EXPONENTIAL FUNCTIONS • If x is a rational number, x = p/q, • where p and q are integers and q >0, • then:

  8. EXPONENTIAL FUNCTIONS • However, what is the meaning of ax • if x is an irrational number? • For instance, what is meant by or ?

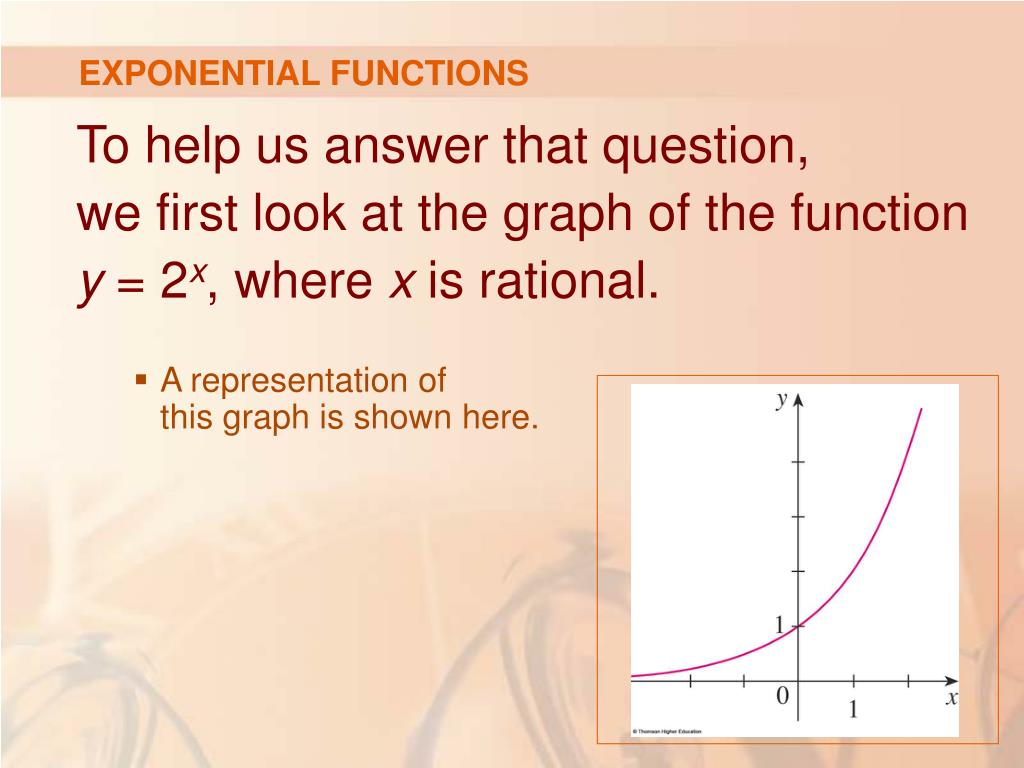

  9. EXPONENTIAL FUNCTIONS • To help us answer that question, • we first look at the graph of the function • y = 2x, where x is rational. • A representation of this graph is shown here.

  10. EXPONENTIAL FUNCTIONS • We want to enlarge the domain of y = 2x • to include both rational and irrational • numbers.

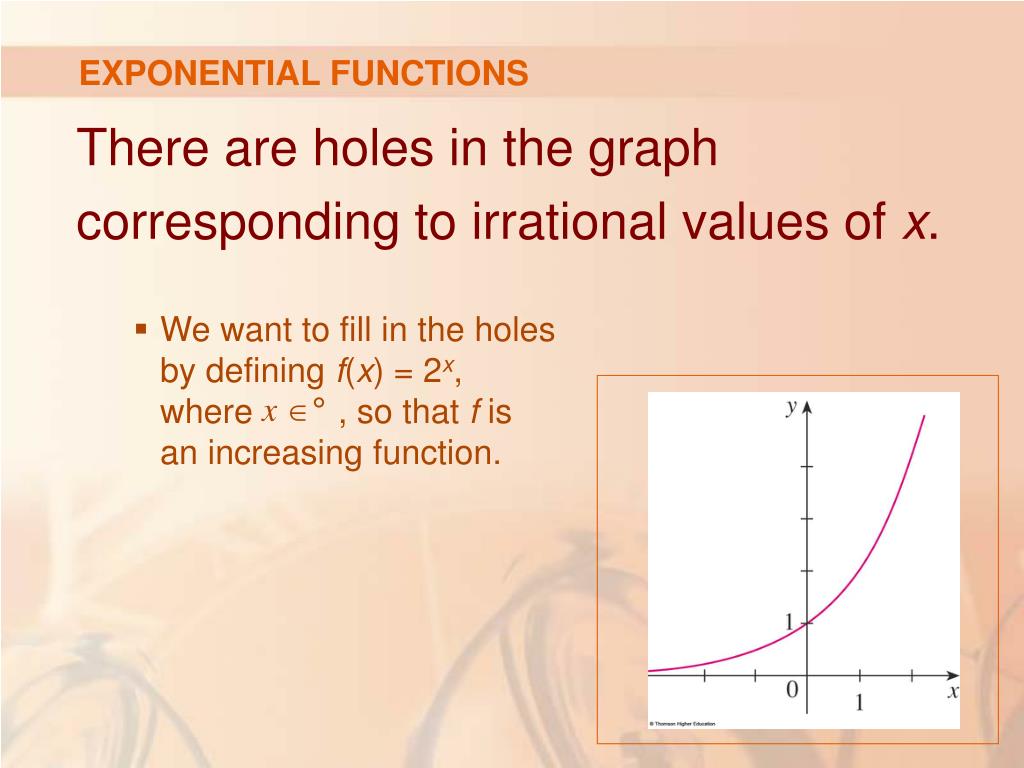

  11. EXPONENTIAL FUNCTIONS • There are holes in the graph • corresponding to irrational values of x. • We want to fill in the holes by defining f(x)=2x, where , so that f is an increasing function.

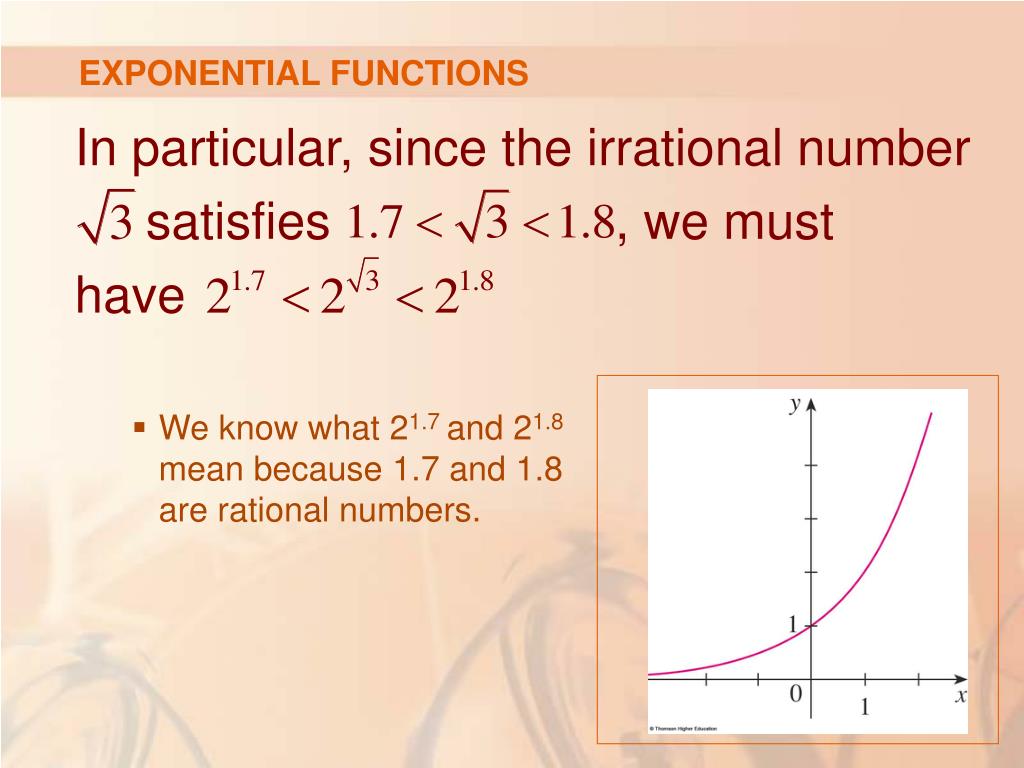

  12. EXPONENTIAL FUNCTIONS • In particular, since the irrational number • satisfies , we must • have • We know what 21.7 and 21.8 mean because 1.7 and 1.8 are rational numbers.

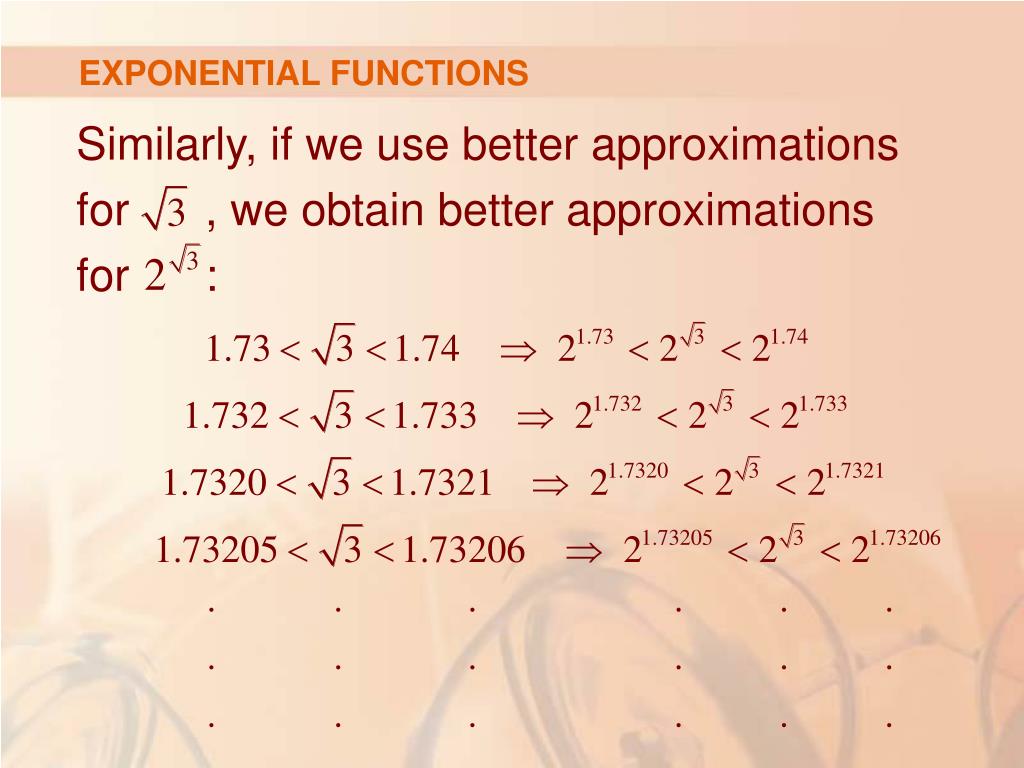

  13. EXPONENTIAL FUNCTIONS • Similarly, if we use better approximations • for , we obtain better approximations • for :

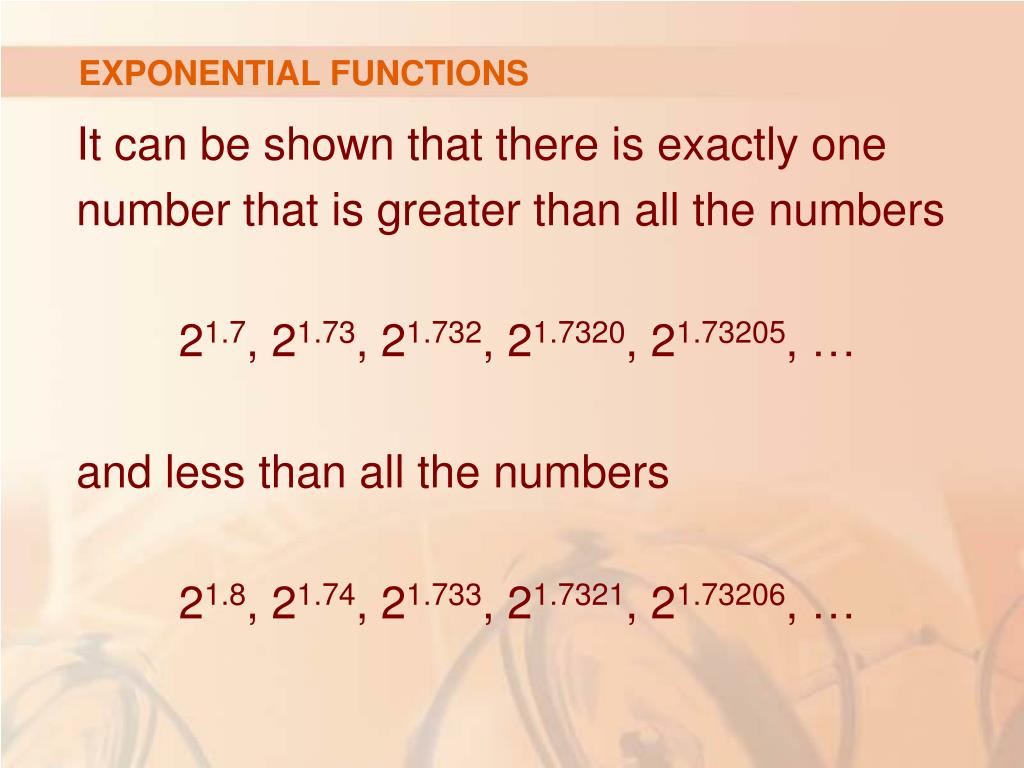

  14. EXPONENTIAL FUNCTIONS • It can be shown that there is exactly one • number that is greater than all the numbers • 21.7, 21.73, 21.732, 21.7320, 21.73205, … • and less than all the numbers • 21.8, 21.74, 21.733, 21.7321, 21.73206, …

  15. EXPONENTIAL FUNCTIONS • We define to be this number. • Using the preceding approximation process, we can compute it correct to six decimal places: • Similarly, we can define 2x (or ax, if a > 0) where x is any irrational number.

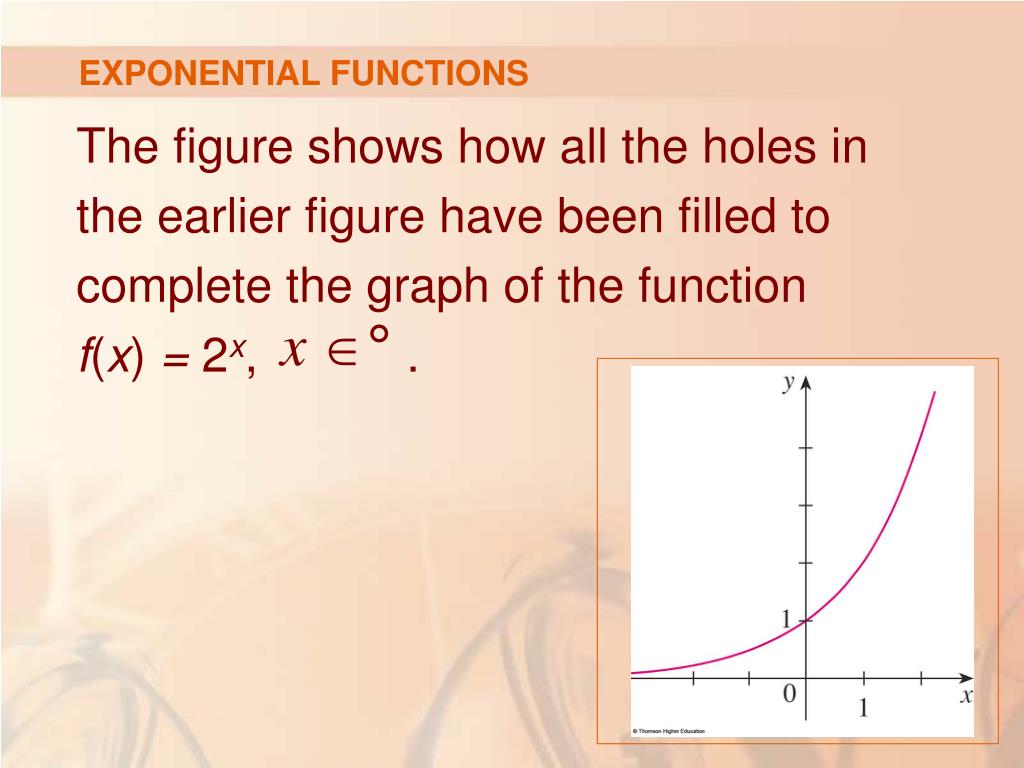

  16. EXPONENTIAL FUNCTIONS • The figure shows how all the holes in • the earlier figure have been filled to • complete the graph of the function • f(x) = 2x, .

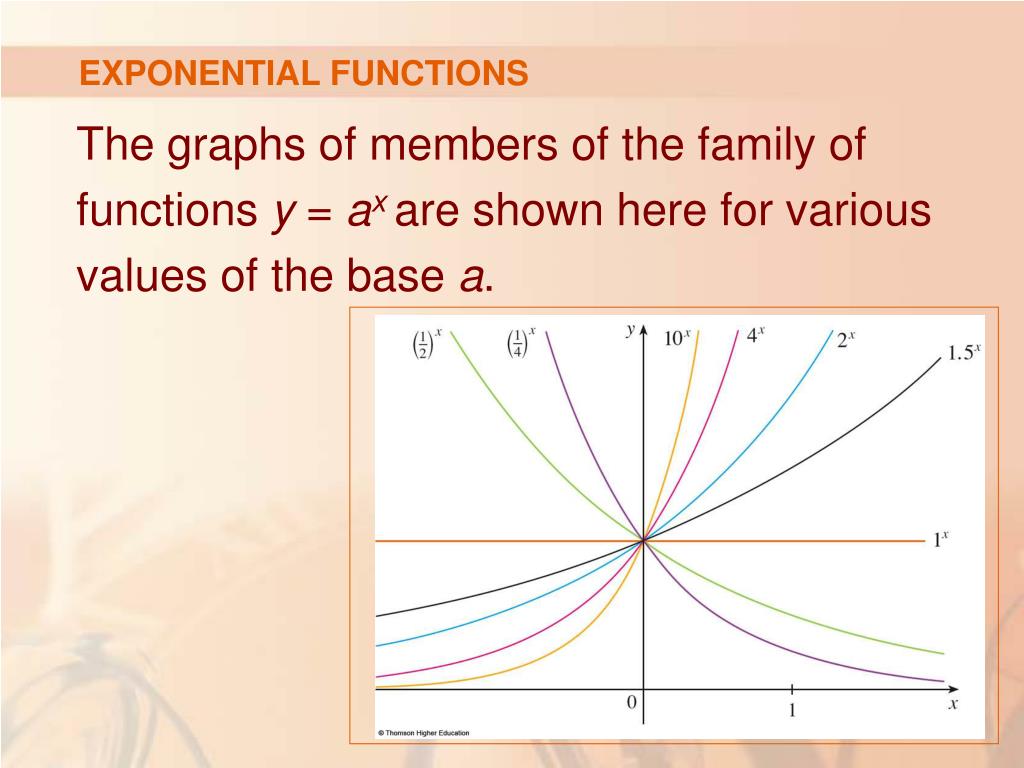

  17. EXPONENTIAL FUNCTIONS • The graphs of members of the family of • functions y = axare shown here for various • values of the base a.

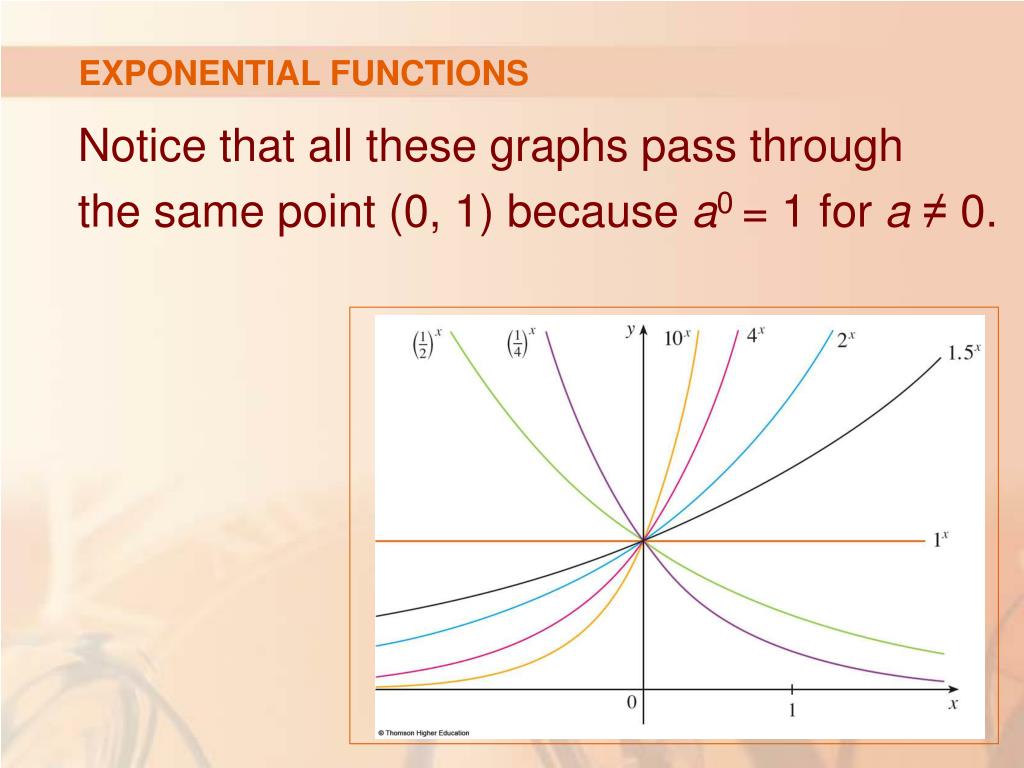

  18. EXPONENTIAL FUNCTIONS • Notice that all these graphs pass through • the same point (0, 1) because a0=1 for a≠ 0.

  19. EXPONENTIAL FUNCTIONS • Notice also that as the base a gets larger, • the exponential function grows more rapidly • (for x >0).

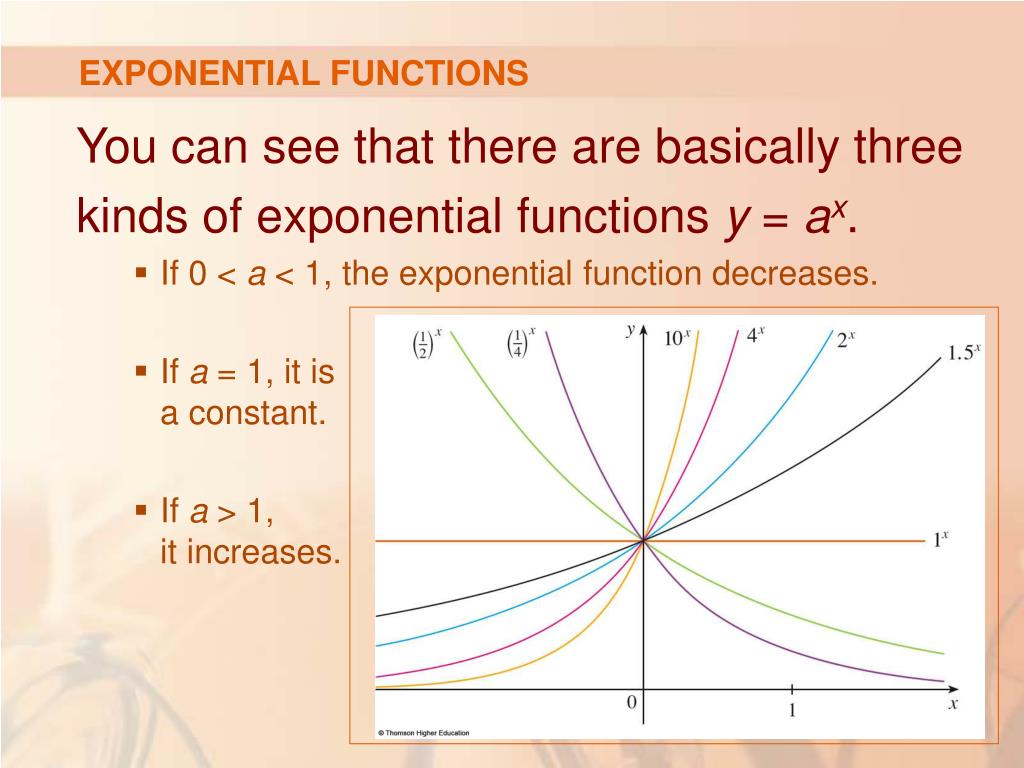

  20. EXPONENTIAL FUNCTIONS • You can see that there are basically three • kinds of exponential functions y = ax. • If 0 < a < 1, the exponential function decreases. • If a = 1, it is a constant. • If a > 1, it increases.

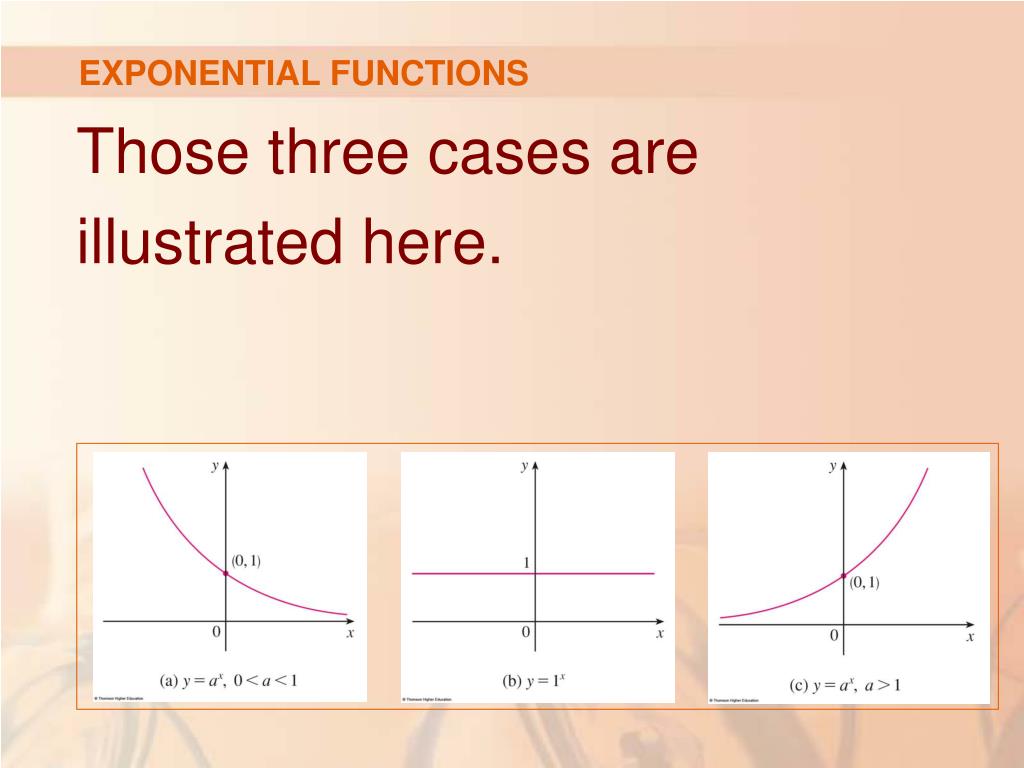

  21. EXPONENTIAL FUNCTIONS • Those three cases are • illustrated here.

  22. EXPONENTIAL FUNCTIONS • Observe that, if a≠ 1, then the exponential • function y = ax has domain and range • .

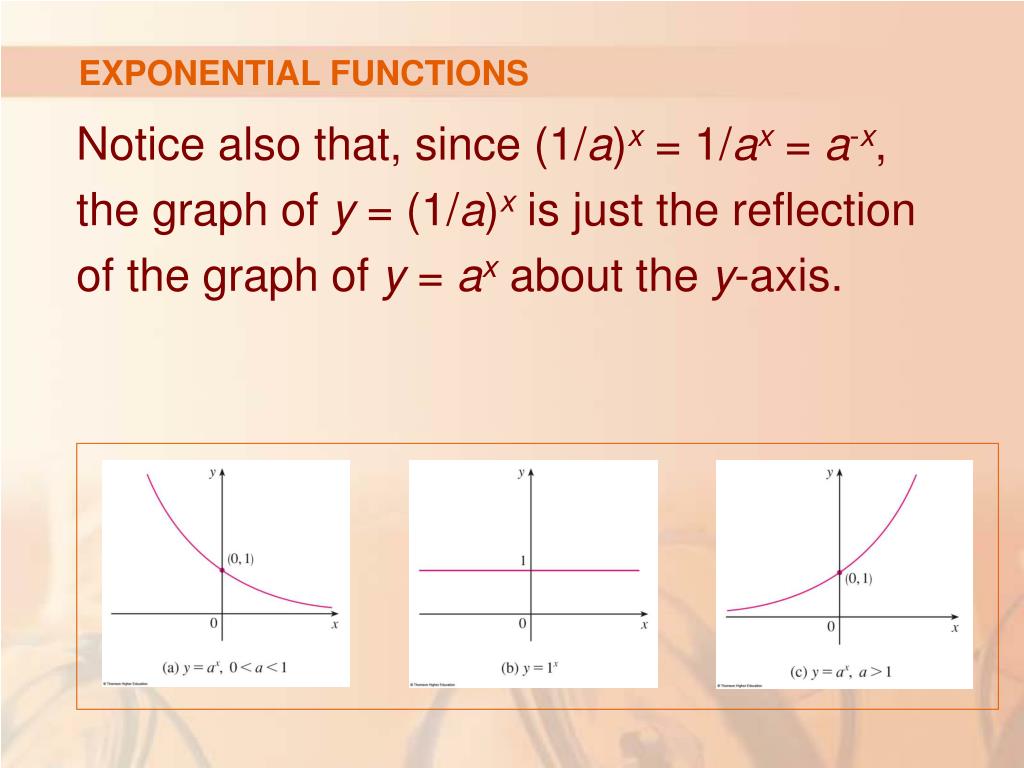

  23. EXPONENTIAL FUNCTIONS • Notice also that, since (1/a)x=1/ax= a-x, • the graph of y =(1/a)x is just the reflection • of the graph of y = axabout the y-axis.

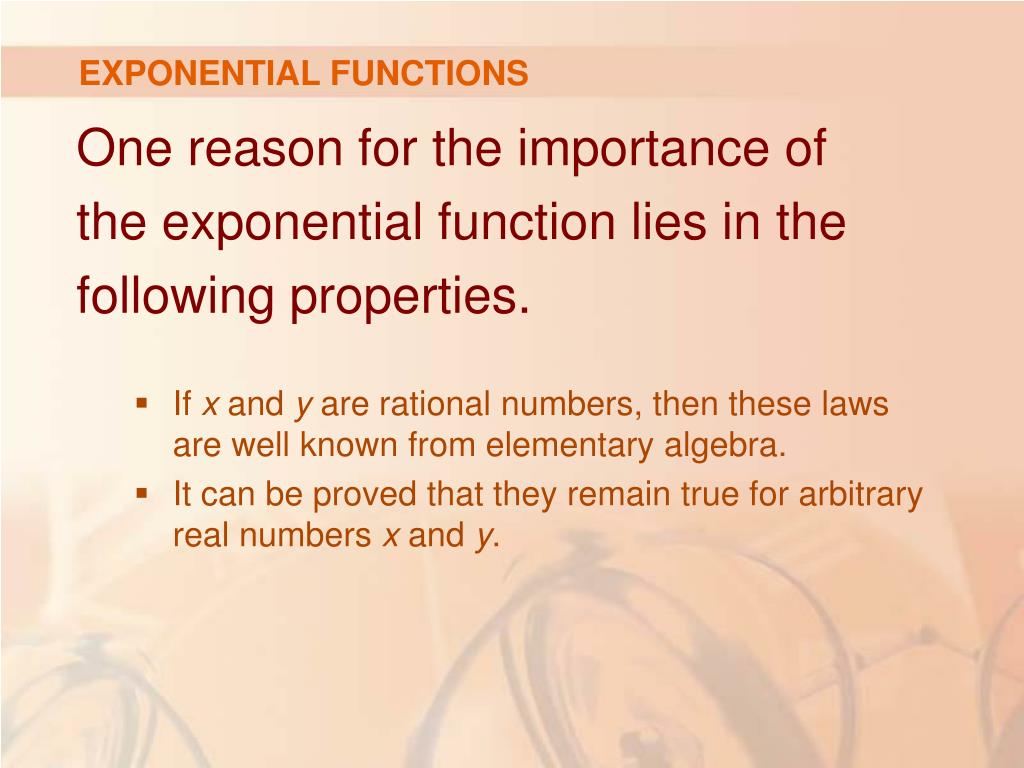

  24. EXPONENTIAL FUNCTIONS • One reason for the importance of • the exponential function lies in the • following properties. • If x and y are rational numbers, then these laws are well known from elementary algebra. • It can be proved that they remain true for arbitrary real numbers x and y.

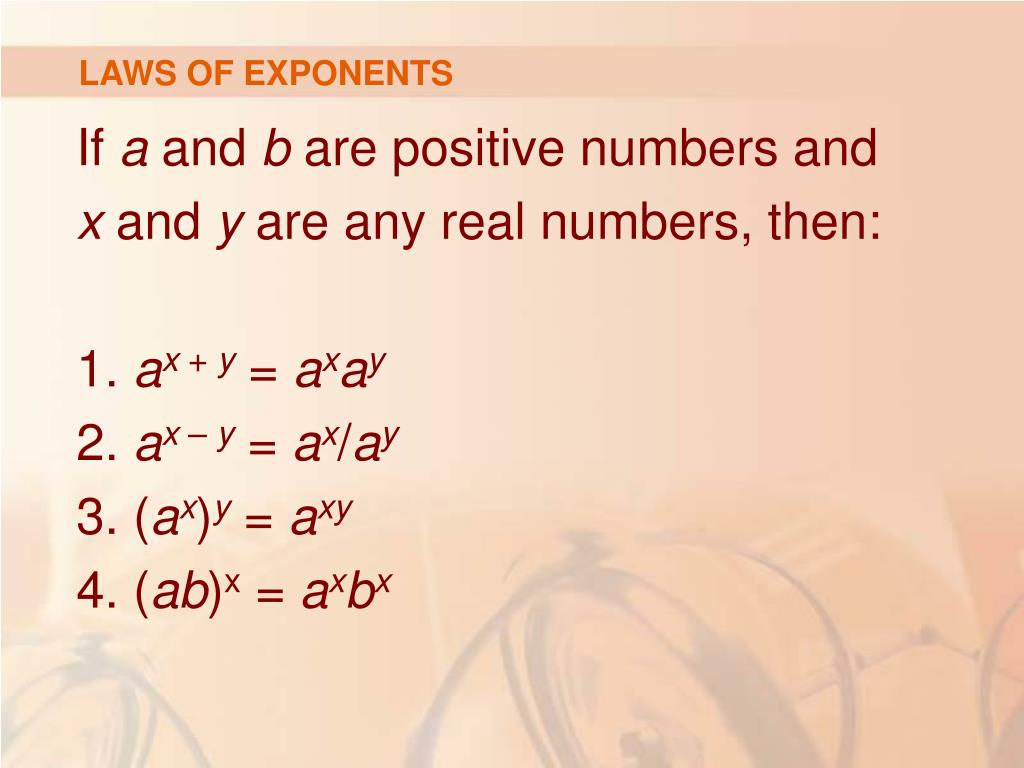

  25. LAWS OF EXPONENTS • If a and b are positive numbers and • x and y are any real numbers, then: • 1. ax + y = axay • 2. ax – y = ax/ay • 3. (ax)y = axy • 4. (ab)x = axbx

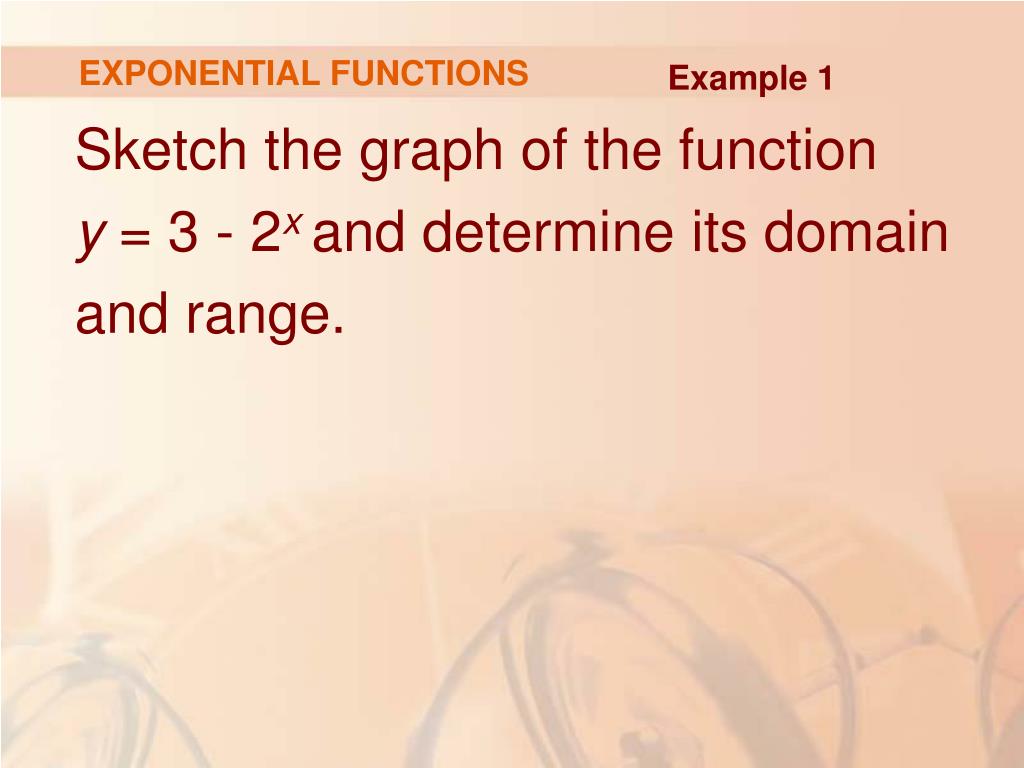

  26. EXPONENTIAL FUNCTIONS Example 1 • Sketch the graph of the function • y = 3 - 2xand determine its domain • and range.

  27. EXPONENTIAL FUNCTIONS Example 1 • First, we reflect the graph of y = 2x • about the x-axis to get the graph of • y = -2x.

  28. EXPONENTIAL FUNCTIONS Example 1 • Then, we shift the graph of y = -2x • upward 3 units to obtain the graph • of y = 3 - 2x (second figure). • The domain is and the range is .

  29. EXPONENTIAL FUNCTIONS Example 2 • Use a graphing device to compare • The exponential function f(x) =2xand • the power function g(x)= x2. • Which function grows more quickly when x • is large?

  30. EXPONENTIAL FUNCTIONS Example 2 • The figure shows both functions graphed • in the viewing rectangle [-2, 6] by [0, 40]. • We see that the graphs intersect three times. • However, for x >4, the graph of f(x) = 2xstays above the graph of g(x) = x2.

  31. EXPONENTIAL FUNCTIONS Example 2 • This figure gives a more global view • and shows that, for large values of x, • the exponential function y = 2xgrows far • more rapidly than the power function y = x2.

  32. APPLICATIONS OF EXPONENTIAL FUNCTIONS • The exponential function occurs • very frequently in mathematical models • of nature and society. • Here, we indicate briefly how it arises in the description of population growth. • In Chapter 3, we will pursue these and other applications in greater detail.

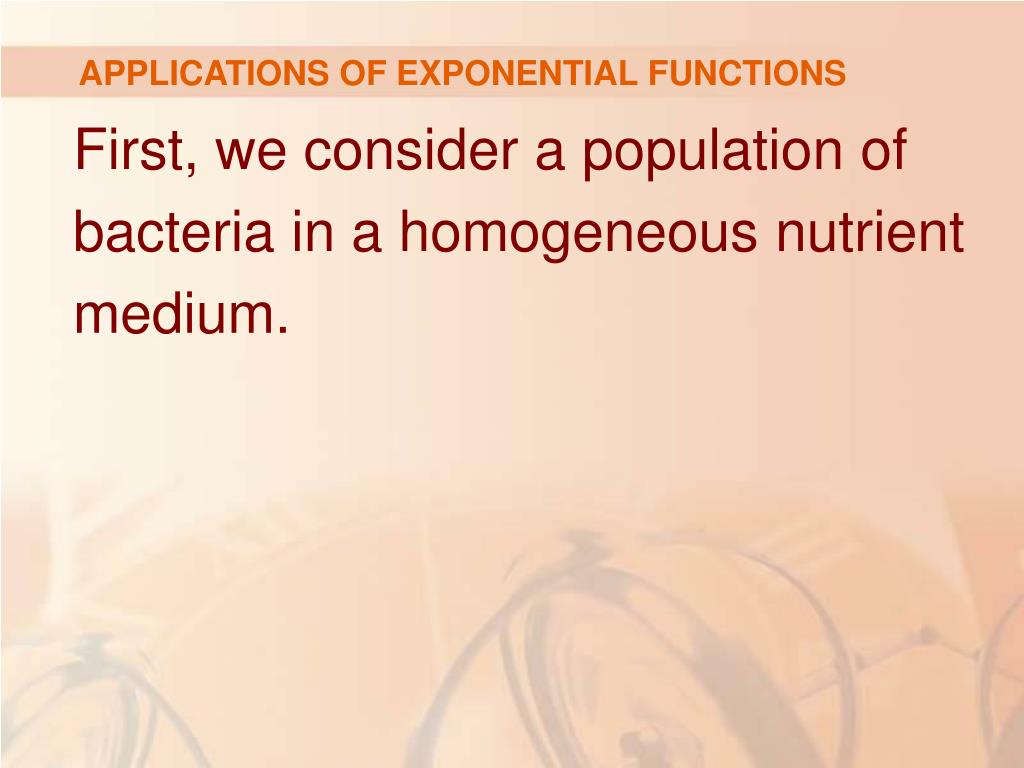

  33. APPLICATIONS OF EXPONENTIAL FUNCTIONS • First, we consider a population of • bacteria in a homogeneous nutrient • medium.

  34. APPLICATIONS: BACTERIA POPULATION • Suppose that, by sampling the population • at certain intervals, it is determined that • the population doubles every hour. • If the number of bacteria at time t is p(t), where t is measured in hours, and the initial population is p(0) = 1000, then we have:

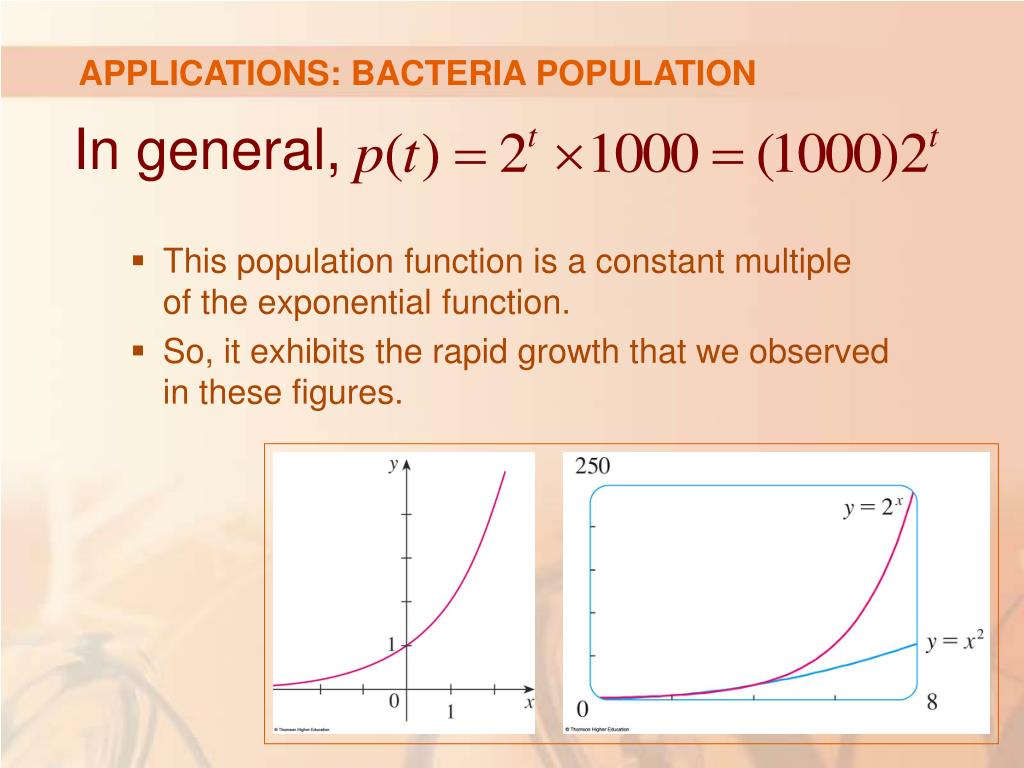

  35. APPLICATIONS: BACTERIA POPULATION • In general, • This population function is a constant multiple of the exponential function. • So, it exhibits the rapid growth that we observed in these figures.

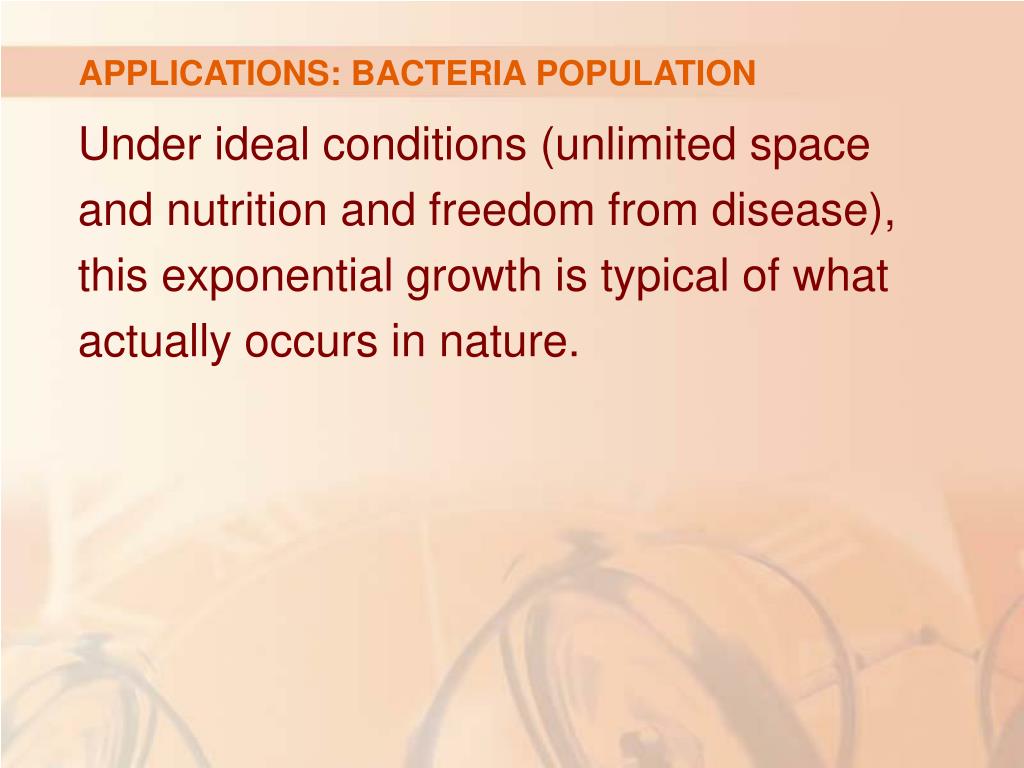

  36. APPLICATIONS: BACTERIA POPULATION • Under ideal conditions (unlimited space • and nutrition and freedom from disease), • this exponential growth is typical of what • actually occurs in nature.

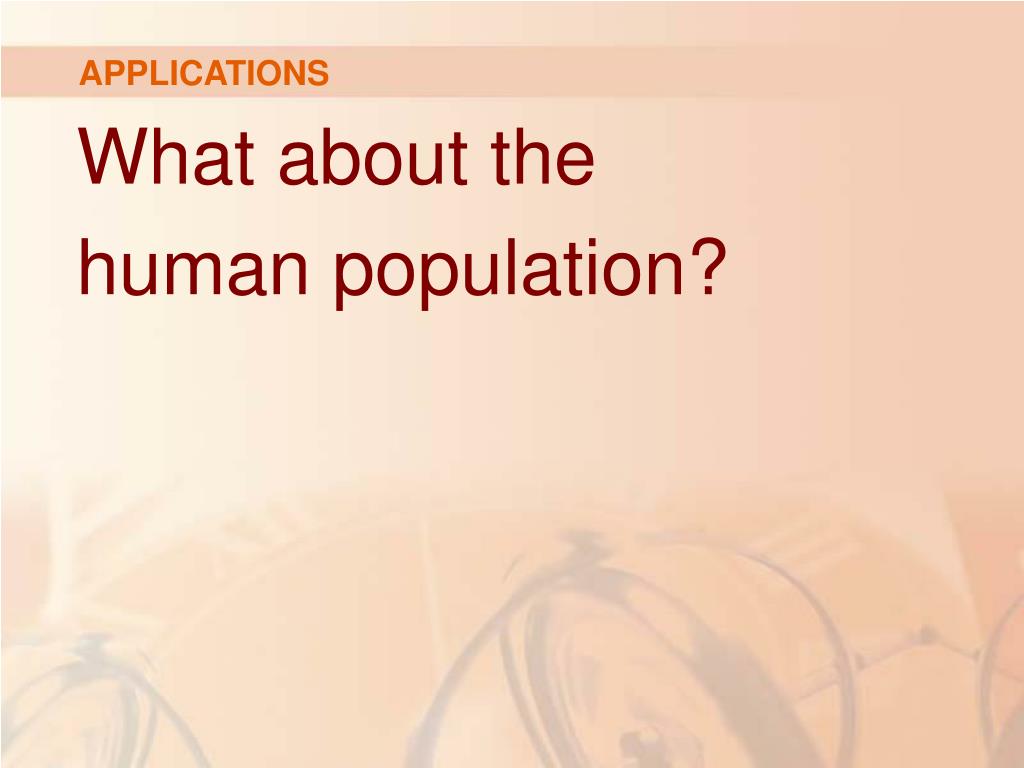

  37. APPLICATIONS • What about the • human population?

  38. APPLICATIONS: HUMAN POPULATION • The table shows data for the population of • the world in the 20th century. • The figure shows the corresponding scatter • plot.

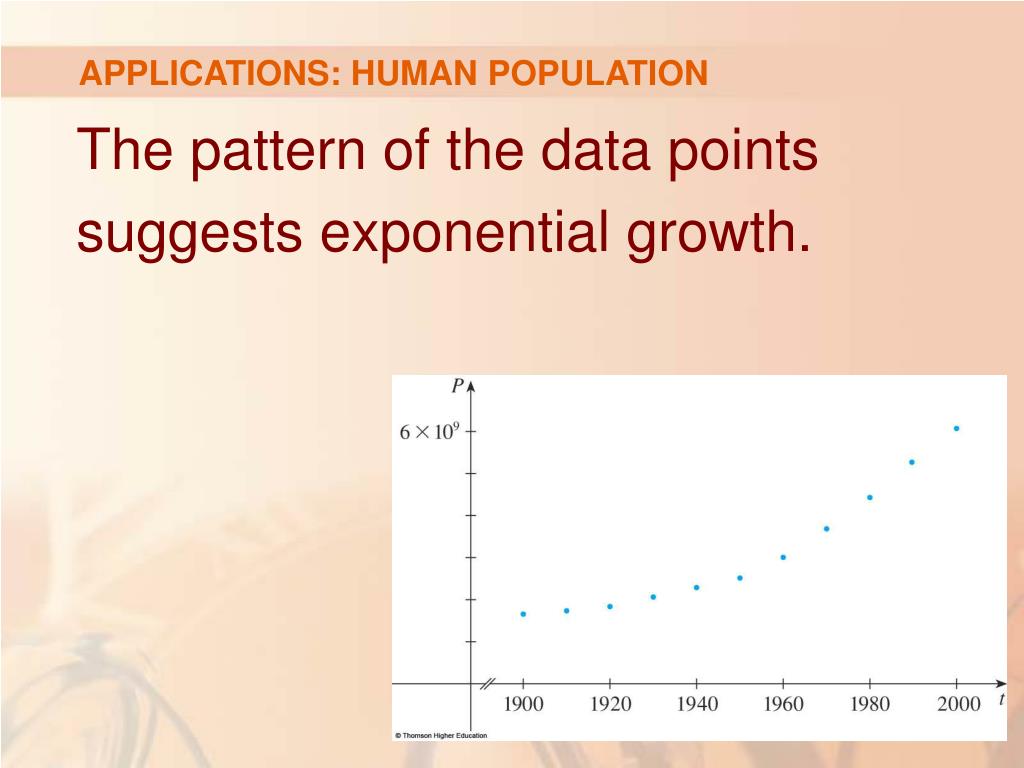

  39. APPLICATIONS: HUMAN POPULATION • The pattern of the data points • suggests exponential growth.

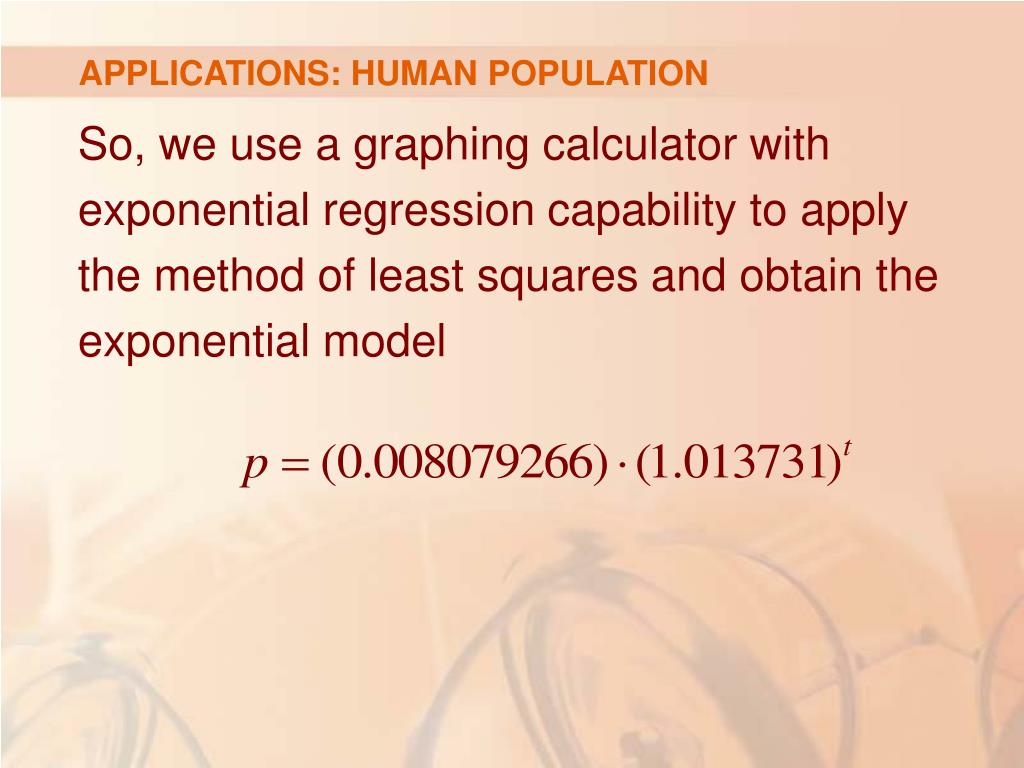

  40. APPLICATIONS: HUMAN POPULATION • So, we use a graphing calculator with • exponential regression capability to apply • the method of least squares and obtain the • exponential model

  41. APPLICATIONS: HUMAN POPULATION • The figure shows the graph of this • exponential function together with • the original data points.

  42. APPLICATIONS: HUMAN POPULATION • We see that the exponential curve fits • the data reasonably well. • The period of relatively slow population growth is explained by the two world wars and the Great Depression of the 1930s.

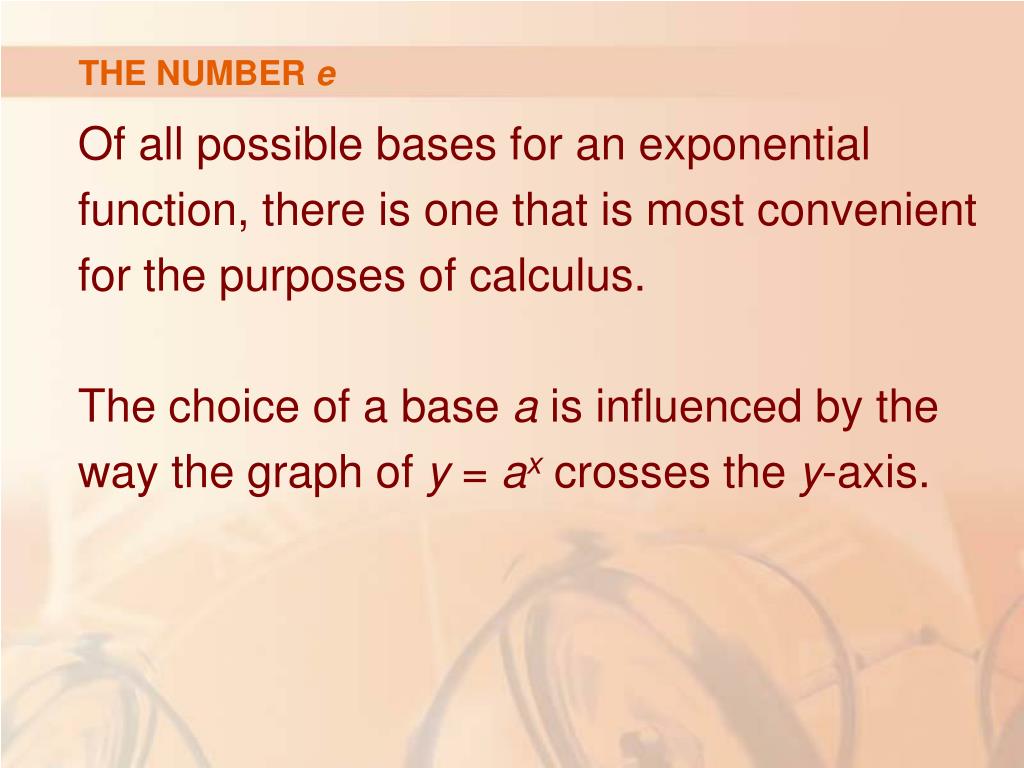

  43. THE NUMBER e • Of all possible bases for an exponential • function, there is one that is most convenient • for the purposes of calculus. • The choice of a base a is influenced by the • way the graph of y = ax crosses the y-axis.

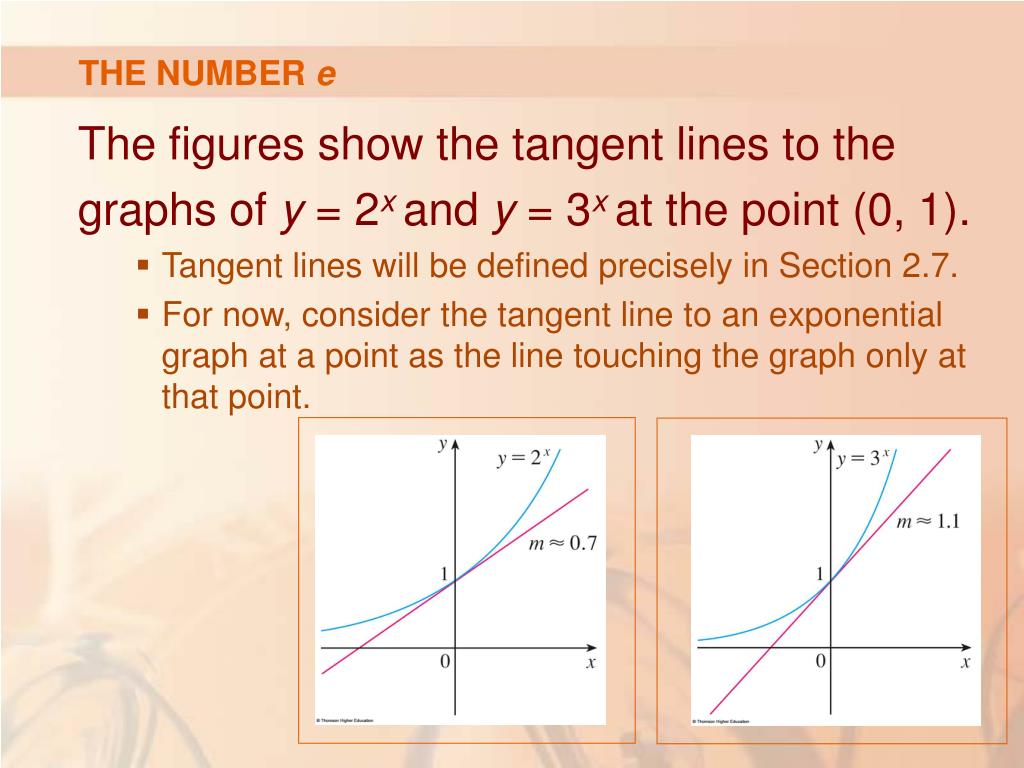

  44. THE NUMBER e • The figures show the tangent lines to the • graphs of y =2xand y = 3xat the point (0, 1). • Tangent lines will be defined precisely in Section 2.7. • For now, consider the tangent line to an exponential graph at a point as the line touching the graph only at that point.

  45. THE NUMBER e • If we measure the slopes of these • tangent lines at (0, 1), we find that • m≈ 0.7 for y =2x and m≈ 1.1 for y = 3x.

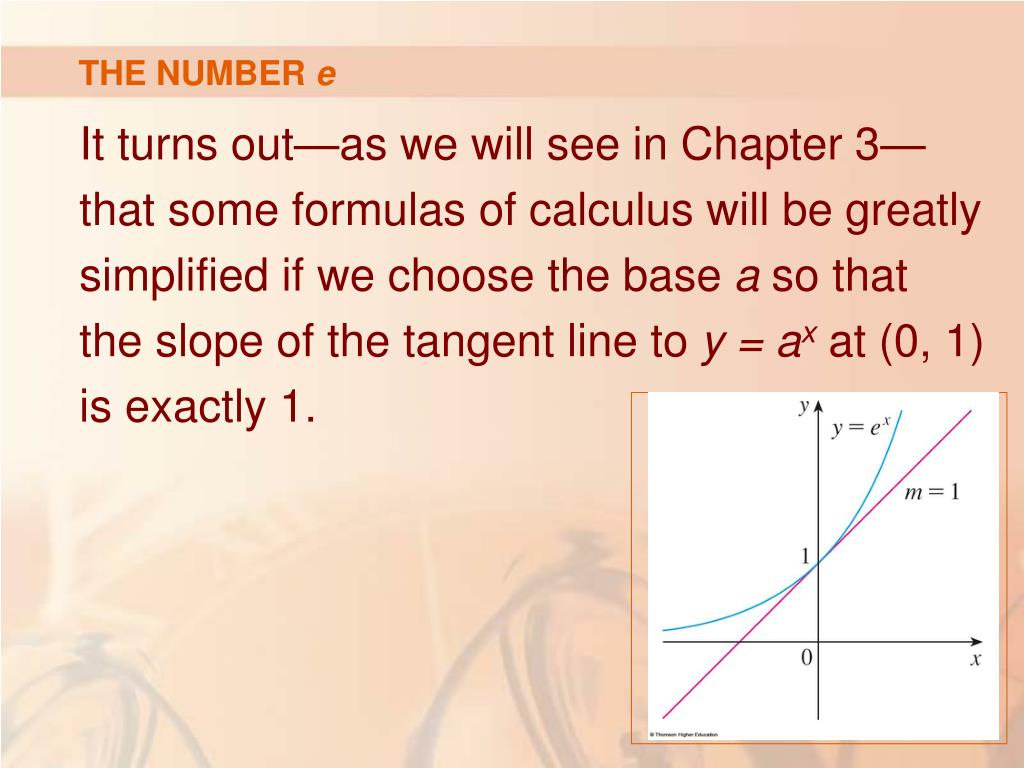

  46. THE NUMBER e • It turns out—as we will see in Chapter 3— • that some formulas of calculus will be greatly • simplified if we choose the base a so that • the slope of the tangent line to y = ax at (0, 1) • is exactly 1.

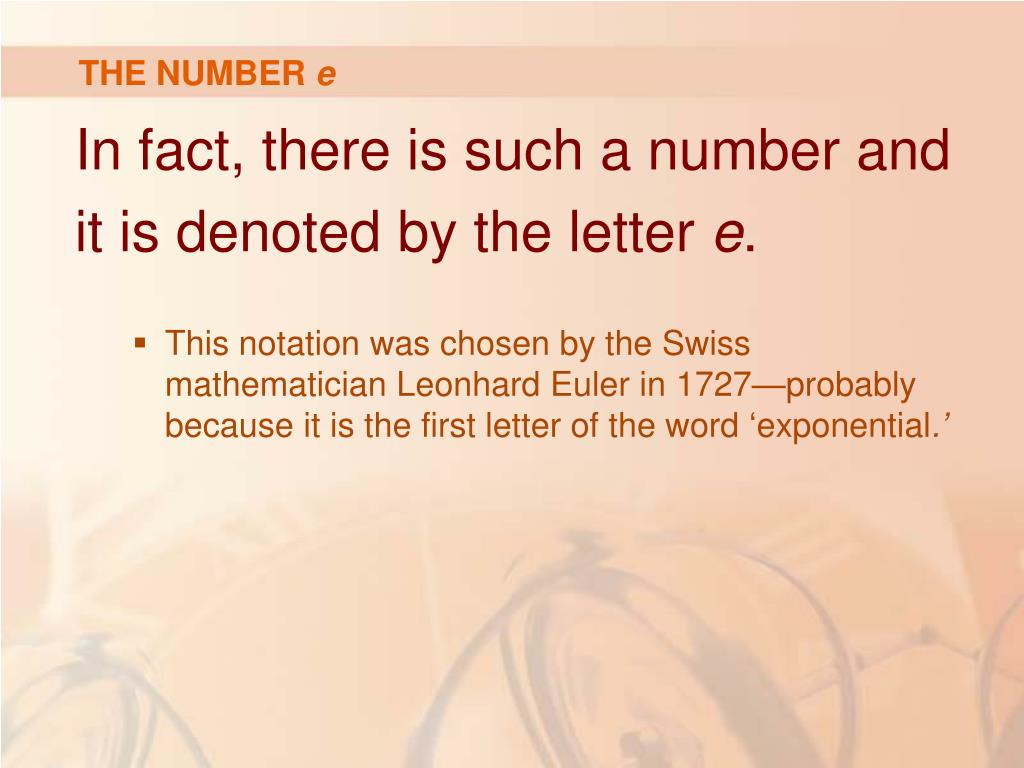

  47. THE NUMBER e • In fact, there issuch a number and • it is denoted by the letter e. • This notation was chosen by the Swiss mathematician Leonhard Euler in 1727—probably because it is the first letter of the word ‘exponential.’

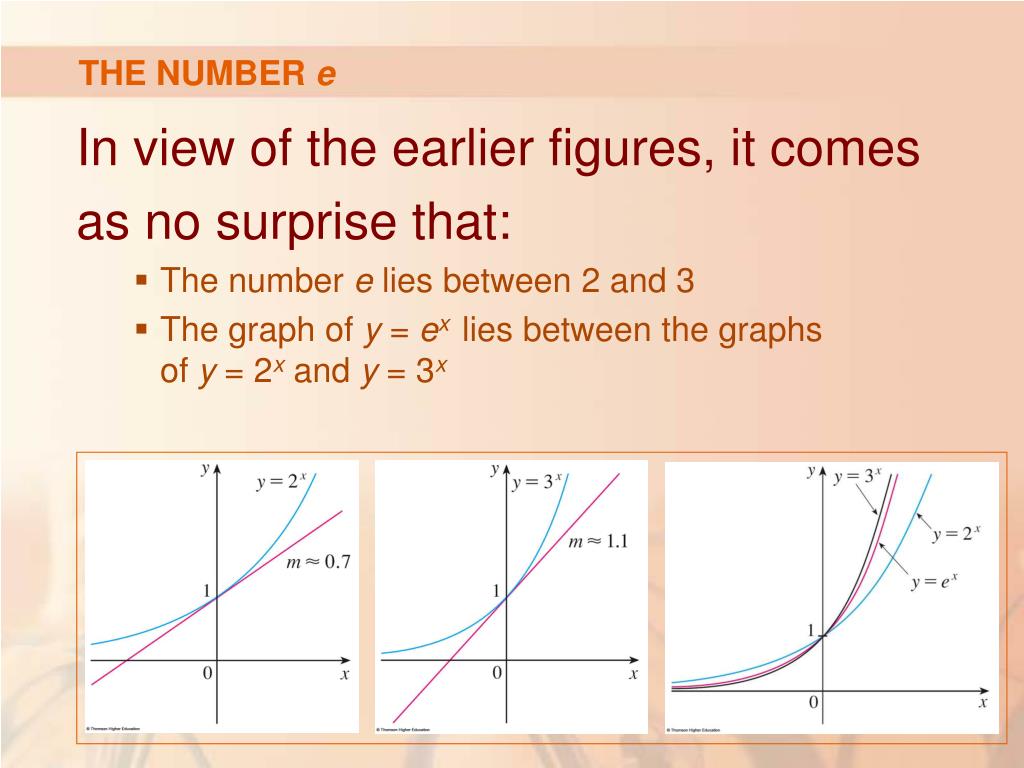

  48. THE NUMBER e • In view of the earlier figures, it comes • as no surprise that: • The number e lies between 2 and 3 • The graph of y = exlies between the graphs of y =2xand y =3x

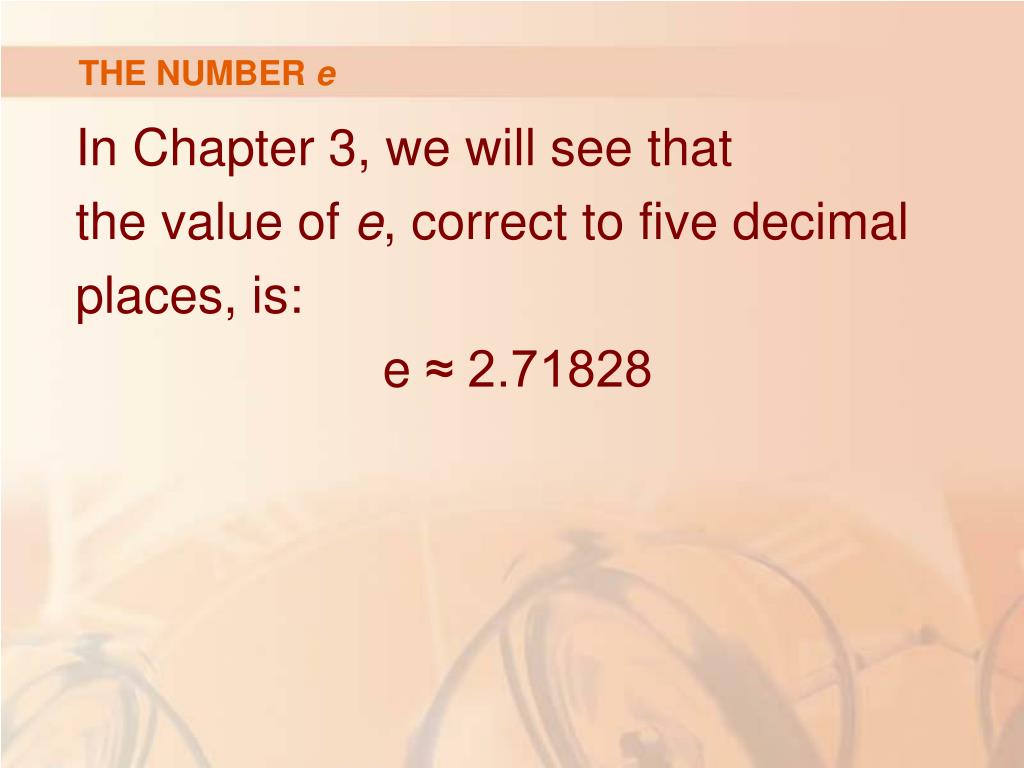

  49. THE NUMBER e • In Chapter 3, we will see that • the value of e, correct to five decimal • places, is: • e ≈ 2.71828

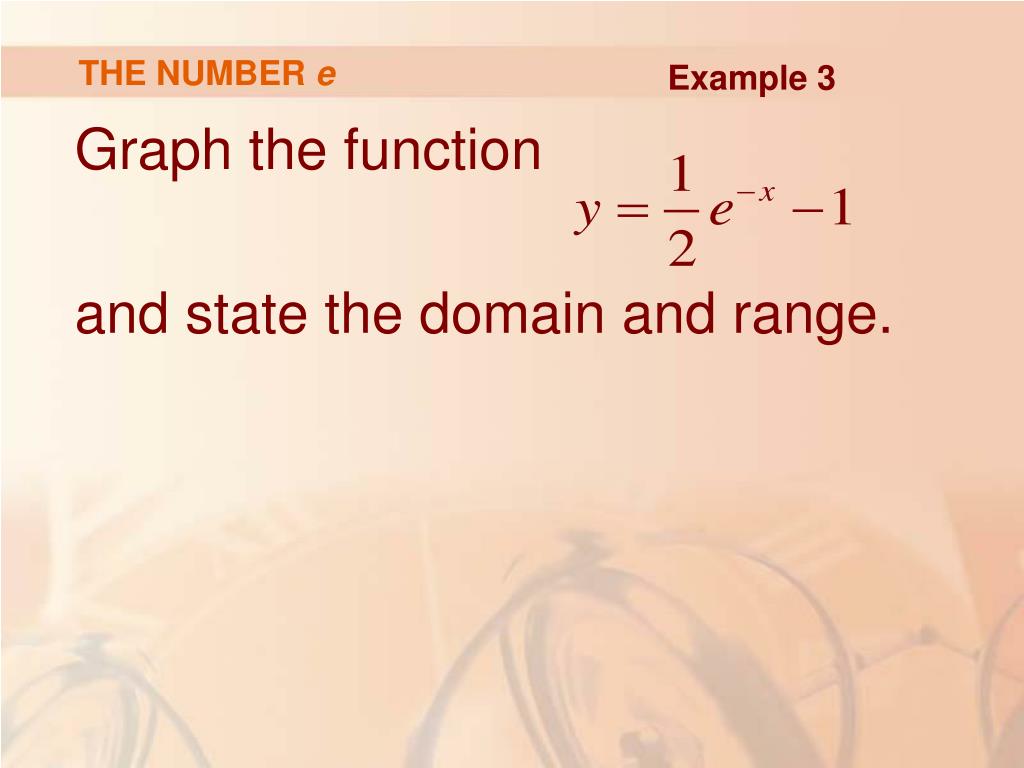

  50. THE NUMBER e Example 3 • Graph the function • and state the domain and range.
