  1. In Byzantium Presented by: Hossein Ahmadi CS 525, Spring 2008

  2. The Byzantine Generals Problem Leslie Lamport, Robert Shostak, and Marshall Pease

  3. Byzantine Generals • Byzantine army is camped outside an enemy city

  4. Byzantine Generals • Generals communicate with messengers Messenger Attack

  5. Byzantine Generals • They want to reach a common decision Attack Attack Attack Attack Attack

  6. Byzantine Generals • Some generals can be traitors The war is over, What are you doing here? Attack Retreat Surrender!

  7. Byzantine Generals Problem • The problem is how loyal generals can reach an agreement • Small number of traitors can’t make them adopt a bad plan • Each general receives v(i) from general i and decides based on values v(1), …, v(n) • It is solved if we guarantee: • Any two loyal general use the same v(i) • For every loyal general i, the same v(i) should be used for all generals.

  8. Byzantine Generals Problem • Rephrase the problem: A commanding general and n – 1 lieutenants. • A commanding general must send order to all lieutenants: • All loyal lieutenants obey the same order • If the commanding general is loyal, then every lieutenant obeys his order. • Assumptions? • Oral messages • Signed messages

  9. Oral Messages • Assumptions: • Every message that is sent is delivered correctly. • The receiver of a message knows who sent it. • The absence of a message can be detected. • With m traitors we need at least 3m+1 or more generals.

  10. Impossible Agreement Attack Attack ? General says “Retreat”

  11. Impossible Agreement Attack Retreat ? General says “Retreat”

  12. Oral Messages Algorithm • Assume every two generals can communicate directly. • With m traitors we can solve the problem if we have 3m + 1 generals: • Define OM(m) recursively: Oral Messages algorithm for 3m+1 or more generals when m traitors are present • AlgorithmOM(0): • The commander sends his value to every lieutenant. • Each lieutenant uses the value he receives from the commander, or uses the value RETREAT if he receives no value.

  13. Oral Messages Algorithm • OM(m): (1) The commander sends his value to every lieutenant. v1 vn-1 … v2 … {v1} {v2} {vn-1}

  14. Oral Messages • OM(m): (2) Each lieutenant sends vito other lieutenants using OM(m-1) Commanding General for OM(m-1) vn-1 … v1 {v1} {v1, v2} {v1, vn-1}

  15. Oral Messages • OM(m): (2) Each lieutenant sends vito other lieutenants using OM(m-1) Commanding General for OM(m-1) v2 … v2 {v1,v2} {v1, v2} {v1, v2, vn-1}

  16. Oral Messages • OM(m): (2) Each lieutenant sends vito other lieutenants using OM(m-1) vn-1 OM(m-1) General vn-1 … {v1,v2,…,vn-1} {v1, v2,…, vn-1} {v1, v2,…, vn-1}

  17. Oral Messages • OM(m): (3) Each lieutenant uses value majority(v1,…,vn-1) … majority(v1,…,vn-1) majority(v1,…, vn-1) majority(v1,…, vn-1)

  18. Oral Messages - Correctness • Two cases: • General is loyal: All lieutenants obey general’s order • General is traitor: we have m-1traitors and 3mlieutenants left • OM(m-1) successfully delivers correct values • Any two loyal lieutenants get the same vj • All loyal lieutenants have the same {v1, … , vn} • Exponential message complexity in terms of m

  19. Oral Messages - Example • Example: General is traitor x z y y y x z x {x,y,z} {x,y,z} {x,y,z} z

  20. Oral Messages • Example: A lieutenant is traitor v v v v v v y v {v,v,z} {v,v,y} z

  21. Signed messages • New assumption: • A loyal general's signature cannot be forged, and any alteration of the contents of his signed messages can be detected. • Anyone can verify the authenticity of a general's signature. • No assumptions about a traitorous general's signature. • His signature to be forged by another traitor permitting collusion among the traitors.

  22. Signed messages • The problem can be solved with any number of generals and traitors • Define SM(m) : Signed Message algorithm for at most m traitors • x:i, value x signed by i • Vi the set of orders received by i • At any step, lieutenants ignore messages with inconsistent signatures.

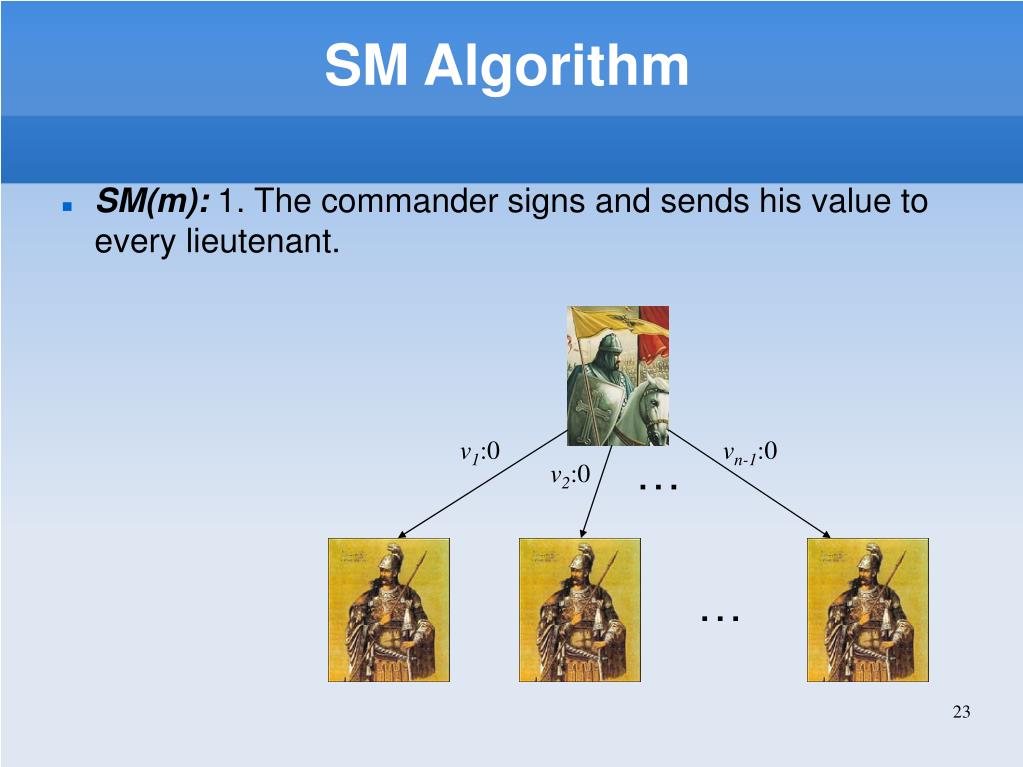

  23. SM Algorithm • SM(m): 1. The commander signs and sends his value to every lieutenant. v1:0 vn-1:0 … v2:0 …

  24. SM Algorithm • SM(m): 2. Lieutenant i receives a message of the form v:0:j1:...:jkand v is not in the set Vi, then • add v to Vi • if k < m, • Send the v:0:j1:. . :jk:i to every lieutenant other than j1. . .jk. v1:0:1 v1:0:1 … V1={v1}

  25. SM Algorithm • SM(m): 2. Lieutenant i receives a message of the form v:0:j1:...:jkand v is not in the set Vi, then • add v to Vi • if k < m, • Send the v:0:j1:. . :jk:i to every lieutenant other than j1. . .jk. v2:0:2 v2:0:2 … V2={v2}

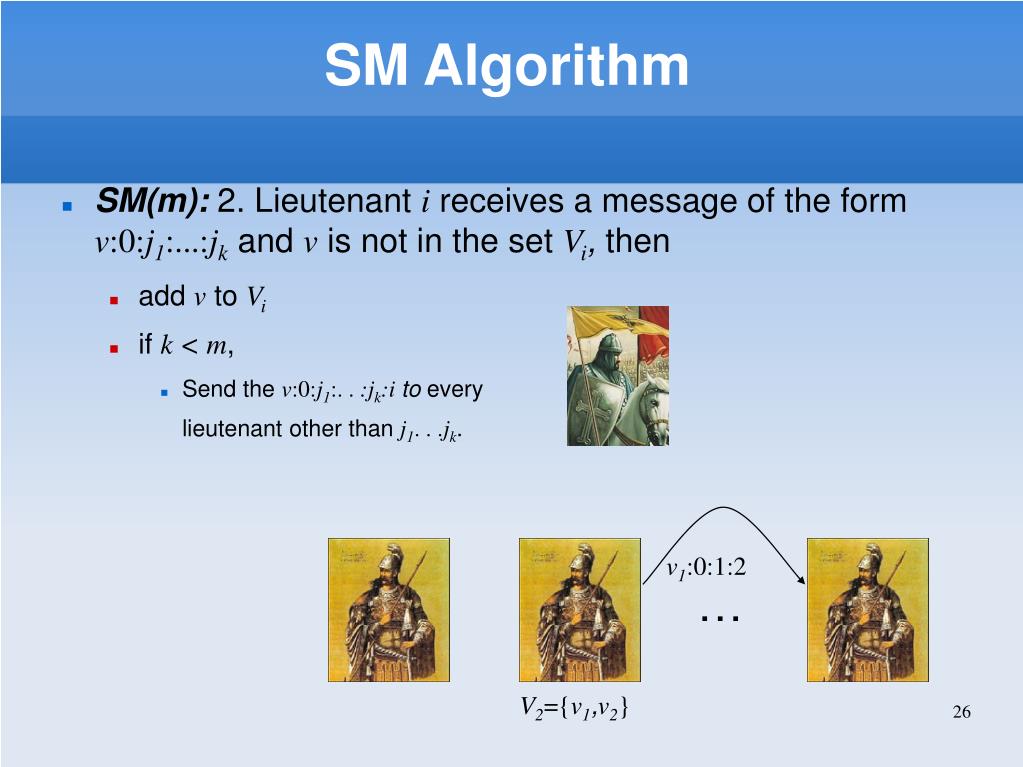

  26. SM Algorithm • SM(m): 2. Lieutenant i receives a message of the form v:0:j1:...:jkand v is not in the set Vi, then • add v to Vi • if k < m, • Send the v:0:j1:. . :jk:i to every lieutenant other than j1. . .jk. v1:0:1:2 … V2={v1,v2}

  27. SM Algorithm • (3) For each i: When Lieutenant i will receive no more messages, he obeys the order choice(Vi). • If the set V consists of the single element v, then choice(V) = v. … choice(V1) choice(V2) choice(Vn-1)

  28. Signed Messages - Example • Example: General is traitor x:0 y:0 y:0:2 x:0:1 {x,y} {x,y}

  29. Signed Messages - Correctness • General is loyal: • All nodes have the same “v:0” • General is traitor: • If a loyal lieutenant have a value v, then after m retransmission of the message, all loyal lieutenants have v • All loyal lieutenants have the same set Vi • Still exponential message complexity

  30. Indirect Communication • What happens if some generals can not directly communicate? • A set of nodes {i1, . . . , ip} is said to be a regular set of neighbors of a node if • each ij is a neighbor of i, and • for any general k different from i, there exist paths yj,kfrom ijto k not passing through i such that any two different paths yi,k have no node in common other than k. • The graph G is said to be p-regular if every node has a regular set of neighbors consisting of p distinct nodes.

  31. 3-regular graph

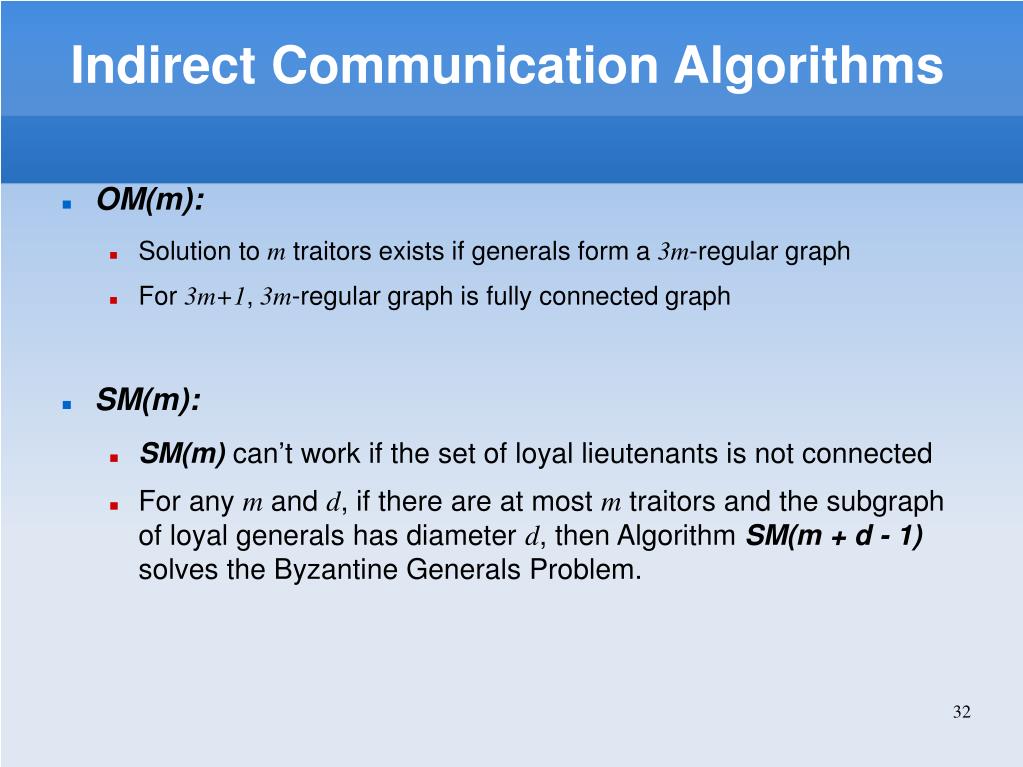

  32. Indirect Communication Algorithms • OM(m): • Solution to m traitors exists if generals form a 3m-regular graph • For 3m+1, 3m-regular graph is fully connected graph • SM(m): • SM(m) can’t work if the set of loyal lieutenants is not connected • For any m and d, if there are at most m traitors and the subgraph of loyal generals has diameter d, then Algorithm SM(m + d - 1) solves the Byzantine Generals Problem.

  33. Discussion • Can we implement OM and SM in real systems? • If we find m then the message complexity can be reduced, but how we can know what is m? • Can we find the traitor? • What we can do with link failures?

  34. Practical Byzantine Fault Tolerance Miguel Castro and Barbara Liskov

  35. System Model • n Replica of a state machine serving clients. • Tolerate f simultaneous Byzantine failures, if n is greater than 3f+1 • One replica is primary replica and the others are called backups. • The primary replica changes when its failure is detected • For each view there is a Assumptions: • State machines are deterministic: given the same input, the same output is produced by non faulty nodes • All start at the same state.

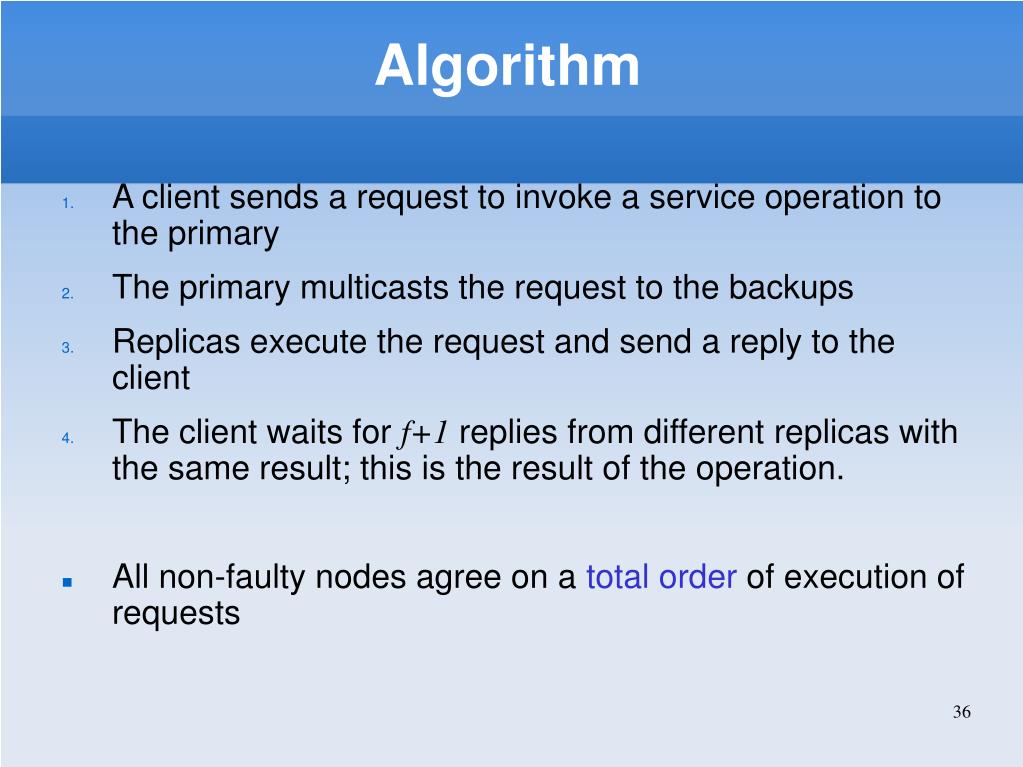

  36. Algorithm • A client sends a request to invoke a service operation to the primary • The primary multicasts the request to the backups • Replicas execute the request and send a reply to the client • The client waits for f+1 replies from different replicas with the same result; this is the result of the operation. • All non-faulty nodes agree on a total order of execution of requests

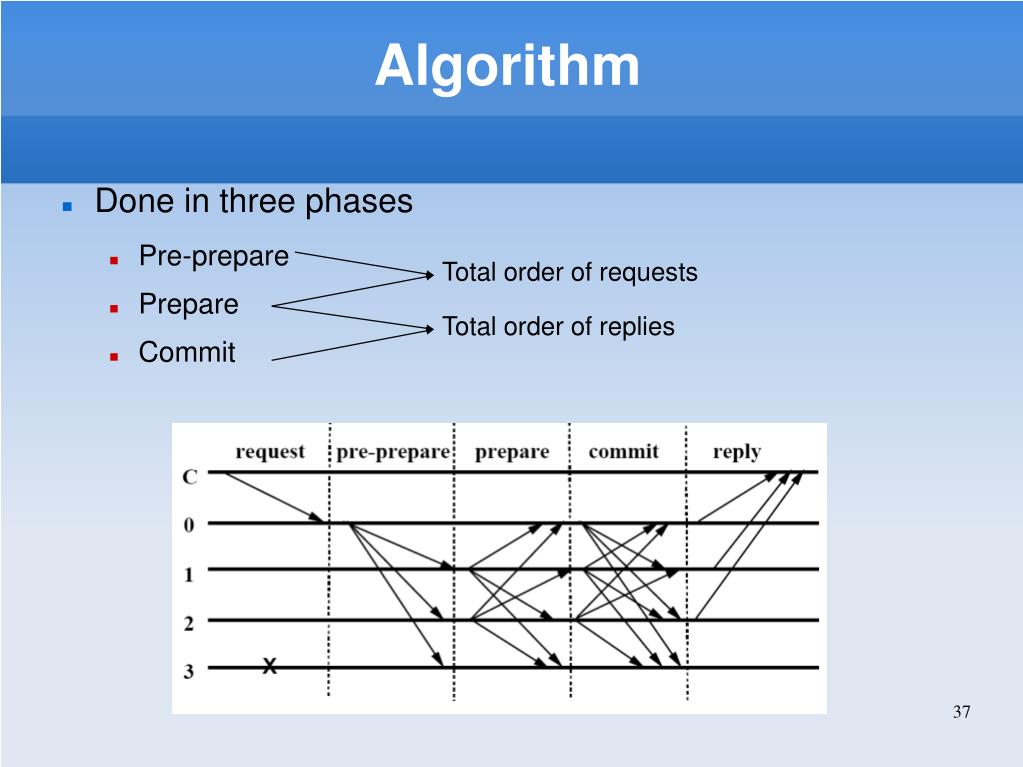

  37. Algorithm • Done in three phases • Pre-prepare • Prepare • Commit Total order of requests Total order of replies

  38. PeerReview: Practical Accountability forDistributed Systems Andreas Haeberlen, Petr Kuznetsov, and Peter Druschel

  39. PeerReview • Each node consists of an application, detection module, and state machine. • exposed(j) : i has obtained proof of j’s misbehavior • suspected(j) : i suspects that j does not send a message that it is supposed to send • trusted(j) is issued otherwise.

  40. Assumptions • The state machines Si are deterministic. • A message sent from one correct node to another is eventually received, if retransmitted sufficiently often. • Each node has a public/private keypair bound to a unique node identifier. Nodes can sign messages, and faulty nodes cannot forge the signature of a correct node. • Each node has access to a reference implementation of all Sj . • There is a function w that maps each node to its set of witnesses

  41. PeerReview System A's witnesses • Nodes log their input & output messages. Logs can not be tampered with. • A set of witnesses audit logs periodically using trusted copy of reference machine. • The witness informs others of the evidence. • Other nodes check evi-dence, report fault C D E M M A M B A's log B's log *Images and animations from authors SOSP’07 presentation
