  1. PROPOSITIONAL LOGIC • Most of the definitions of formal logic have been developed so that they agree with the natural or intuitive logic. But the need to put it scientifically is to avoid ambiguity. • Sentences considered in propositional logic are not arbitrary sentences but are the ones that are either true or false, but not both. This kind of sentences are called propositions. By reading a sentence and basing your conclusion directly from the facts mentioned in the sentence only, you can conclude the truth or falsity of the statement. • Examples: • If x is a real number such that x < -2 or x > -2, then > 4. Therefore, if • , then • Grass is green • 2 + 5 = 5 • x + 3 = 3 • x +3 > 5 kavita hatwal fall 2002 Math 231

  2. A statement is a sentence that is either true or false, but not both. • Statements: • It is raining. • I am carrying an umbrella. • Non-statements: • a. (Question): Why are you late? • b. (Command): Open the door. • c. (Wish): If only I had studied a little harder… • d. (Something Vague): x + y = 4. kavita hatwal fall 2002 Math 231

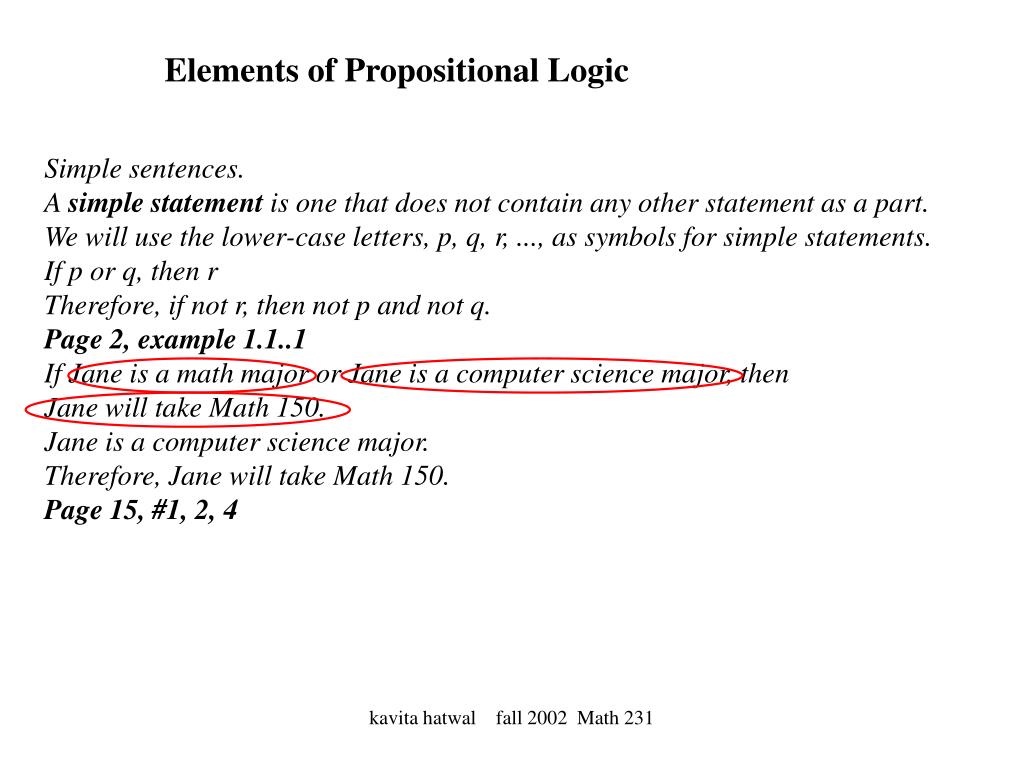

  3. Elements of Propositional Logic Simple sentences. A simple statement is one that does not contain any other statement as a part. We will use the lower-case letters, p, q, r, ..., as symbols for simple statements. If p or q, then r Therefore, if not r, then not p and not q. Page 2, example 1.1..1 If Jane is a math major or Jane is a computer science major, then Jane will take Math 150. Jane is a computer science major. Therefore, Jane will take Math 150. Page 15, #1, 2, 4 kavita hatwal fall 2002 Math 231

  4. NOT or ~ AND OR IF_THEN IF and ONLY IF COMPOUND STATEMENTS: A compound statement is one with two or more simple statements as parts or what we will call components. A component of a compound is any whole statement that is part of a larger statement; components may themselves be compounds. Simple sentences which are true or false are basic propositions. Larger and more complex sentences are constructed from basic propositions by combining them with connectives. Thus propositions and connectives are the basic elements of propositional logic. Though there are many connectives, we are going to use the following five basic connectives here: kavita hatwal fall 2002 Math 231

  5. Logical Operators • Binary operators • Conjunction – “and”. • Disjunction – “or”. • Unary operator • Negation – “not”. • Other operators • XOR – “exclusive or” • NAND – “not both” • NOR – “neither” kavita hatwal fall 2002 Math 231

  6. ( ) ~ or is read as p and q and is called the conjunction of p and q is read as p or q and is called the disjunction of p and q. In compound statements each simple statement can be seen as individual terms just like in algebra. Just like in algebra, where when there are more than one operators involved, there is an order of operation, there is an order of operation in compound statements which include ~ and and that Order of operation or ~ has the higher precedence than and But can be overridden with the use of parenthesis. So the order of operation in propositional logic can be summed as The last one can lead to ambiguity. kavita hatwal fall 2002 Math 231

  7. Examples Translating from english to Symbols • Basic statements • p = “It is raining.” • q = “I am carrying an umbrella.” • Compound statements • p  q = “It is raining and I am carrying an umbrella.” • p  q = “ It is raining or I am carrying an umbrella.” • p = “It is not raining.” kavita hatwal fall 2002 Math 231

  8. Queen’s english Logic translation but it is not hot but It is sunny not p and q-> neither nor It is neither hotnor sunny It is not hot and it is not sunny Translating from english to Symbols: Let p = “It is hot” q = “It is sunny” So it is not hot but sunny is written as kavita hatwal fall 2002 Math 231

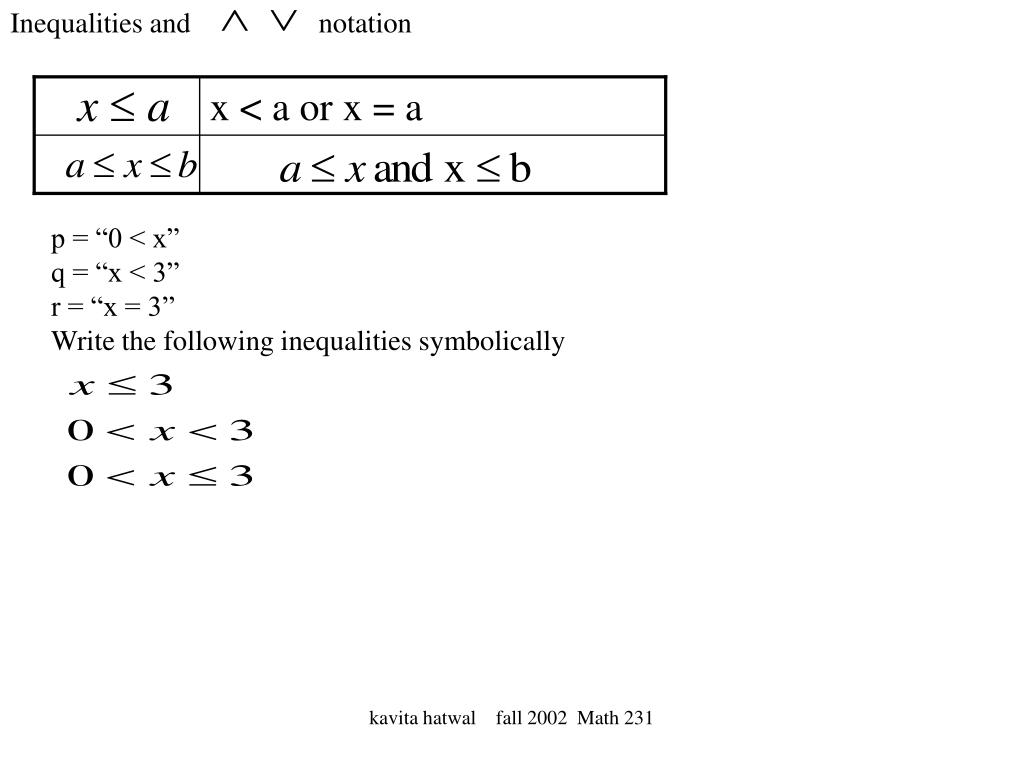

  9. Inequalities and notation x < a or x = a p = “0 < x” q = “x < 3” r = “x = 3” Write the following inequalities symbolically kavita hatwal fall 2002 Math 231

  10. RECAP simple statements compound statements TRUTH VALUES Each simple statement comprising a compound statement is a statement in its own right, that is it has a truth value, that is it can be true or false but not both. The truth values of each individual statements affect the truth value of the compound statement of which they are part of. NEGATION If p is a statement variable, the negation of p is “not p” or “It is not the case that p” and is denoted as ~p. It has opposite truth values as p. Wherever p is true, ~p is false and vice versa. The truth values for negation summarized in a truth table are kavita hatwal fall 2002 Math 231

  11. p q p q T T T T F F F T F F F F If p and q are statement variables, the conjunction of p and q is “p and q” denoted p q. It is true when, and only when, both p and q are true. If either p or q is false, or if both are false, p q is false. The truth values for and summarized in a truth table are kavita hatwal fall 2002 Math 231

  12. p q p q T T T T F T F T T F F F If p and q are statement variables, the disjunction of p and q is “p or q” denoted p q. It is true when at least one of p or q is true and is false only when both p and q are false. The truth values for p or q summarized in a truth table are kavita hatwal fall 2002 Math 231

  13. A statement form or (propositional form) is an expression made up of statement variables (such as p, q and r) and logical connectives (such as ~ and and ) that becomes a statement when actual statements are substituted for the component statement variable. The truth table for a given statement form displays the truth values that correspond to the different combinations of truth values for the variables. • The general rule for constructing truth tables is: • List all the variables mentioned in the statement in separate columns and then list all the combinations of truth values for them. • Add columns for operations mentioned in the statement with all the combinations of truth values for them starting from inside out the parenthesis if there exist any. • Evaluate the final result • XOR • Construct truth table for • ~(p q) work from inside out. • p (p q) kavita hatwal fall 2002 Math 231

  14. LOGICAL EQUIVALENCE: • Two statements are said to be logically equivalent if and only if, they’ve identical truth values for each possible substitution of statements for their statement variables. • Two statements are said to be logically equivalent if and only if, when the same statement variables are used to represent identical component statements, their forms are logically equivalent. • It is denoted as • Construct the truth table for P • Construct the truth table for Q using the same statement variables for identical component statements. • Check each combination of truth values of the statement variables to see whether the truth value of P is the same as the truth value of Q. • a. If in each row the truth value of P is the same as the truth value of Q, then P and Q are logically equivalent. • b. If in some row the truth value of P is different from the truth value of Q, then P and Q are not logically equivalent. • page 9, example 1.1.6, 1.17 kavita hatwal fall 2002 Math 231

  15. (pq)  (pq)  (pq)  (pq) kavita hatwal fall 2002 Math 231

  16. De Morgan’s law • ~(p q) ~p ~q the negation of and is logically equivalent to the or of the negated components • ~(p q) ~p ~q the negation of oris logically equivalent to the and of the negated components • Page 11 examples and cautionary example kavita hatwal fall 2002 Math 231

  17. Tautology and Contradiction • A tautology is a logical expression that is true regardless of the values of its variables. Thus, for a tautology, the value of the expression is TRUE in every row of the truth table. The column of a tautology in a truth table contains only T's. • P ~P • pq (pq) • A proposition which is always false is called a contradiction. The column of a contradiction in a truth table contains only F's. for example P ~P • pq (pq) • If t is a tautology and c is a contradiction, then and • Page 14 blue box kavita hatwal fall 2002 Math 231

  18. p q p q T T T T F F ( ) F F T ~ or F F T Conditional statements If p and q are statement variables, the conditional of q by p is “if p then q” or “p implies q” and is denoted by . It is false when p is true and q is false. A conditional statement is vacuously true or true by default if its hypothesis is false. ORDER of PRECEDENCE kavita hatwal fall 2002 Math 231

  19. “If it is raining, then I am carrying an umbrella.” • This statement is true • when I am carrying an umbrella (whether or not it is raining), and • when it is not raining (whether or not I am carrying an umbrella). • “IF you earn >=$25K, THEN you must file a tax return.” • What if I earn <$25K? Do I violate the tax law when I file/do-not-file a tax return? kavita hatwal fall 2002 Math 231

  20. “If p then q” is logically equivalent to “not p or q”. The negation of a conditional statement. The negation of “if p then q” is logically equivalent to “p and not q”. The negation of a conditional statement does not start with an if …then… The contrapositive of a conditional statement of the form “if p then q” is Symbolically the contrapositive of A conditional statement is logically equivalent to its contrapositive. kavita hatwal fall 2002 Math 231

  21. contrapositive converse inverse If ~q then ~p If q then p If ~p then ~q Converse and inverse of a conditional statement. Converse and inverse of a conditional statement are not logically equivalent to the statement but theconverse and inverse of a statement are logically equivalent to each other. kavita hatwal fall 2002 Math 231

  22. DEFINITION ONLY IF If p and q are statements, p only if q means “if not q then not p” Or, equivalently, “if p then q” Converting Only if to If-Then: BICONDITIONAL The biconditional of p and q is “p if and only if q” and is denoted by . It is true if both p and q have the same truth values and is false when if p and q have opposite truth values. Another way of looking at p iff q is “p if q” and “p only if q” kavita hatwal fall 2002 Math 231

  23. Necesssary and sufficient conditions: If r and s are statements: r is a sufficient condition for s means “if r then s” r is a necessary condition for s means “if not r then not s” r is a necessary condition for s also means “if s then r” r is a necessary and sufficient condition for s also means “r if and only if s” kavita hatwal fall 2002 Math 231

  24. Argument Forms • Incorporated Doug Jones's notes on this section with some of mine and some fetched from www kavita hatwal fall 2002 Math 231

  25. An argument form is called valid if whenever all the hypothesis are true, the conclusion is also true Any argument form in which it IS possible to have true premises and a false conclusion at the same time is invalid. kavita hatwal fall 2002 Math 231

  26. Syllogistic Logic • A syllogism is an argument consisting of two premises and one conclusion. • The first premise is the major premise • The second premise is the minor premise • A modus ponens argument is a syllogism of the form • "If p then q.  We have p, therefore q." • So if is a tautology, then this is a valid argument form • If the sum of digits is divisible by 3, then a number is divisible by 3.  The sum of 123 = 6, so 123 is divisible by 3. kavita hatwal fall 2002 Math 231

  27. A modus tollens argument is a syllogism of the form • "If p then q.  We have not q, therefore not p." • This is the contra-positive of the modus ponens • If the sum of digits is divisible by 3, then a number is divisible by 3.  • The sum 124 = 7 is not divisible by 3, so 124 is not divisible by 3 kavita hatwal fall 2002 Math 231

  28. Invalid syllogisms • Reason by Inverse • If Doug teaches at Sylvania, then he works for PCC.  Doug does not teach at Sylvania, therefore he does not work for PCC. • The inverse of a conditional need not be true. • Reason by Converse • If Doug teaches at Sylvania, then he works for PCC.  Doug works for PCC, therefore he teaches at Sylvania. • The converse of a conditional need not be true kavita hatwal fall 2002 Math 231

  29. Probabilistic Syllogism • If a person is an American, then he is probably not a member of Congress.  This person is a member of Congress.  Therefore he probably is not an American. • This seems like a contra-positive: not (not member of Congress) therefore not an American.  • But the notion of probability is not part of Boolean logic: a statement is a declaration that something either is true or is false, but is never probably true or probably false.  Analysis of probabilistic statements requires Bayesian logic, rather than Boolean logic. kavita hatwal fall 2002 Math 231

  30. Inferential Logic • Disjunctions are valid argument forms • "p, therefore p or q". • Alice is a woman, therefore Alice is a woman or a brain-eating serial killer • This is generalization kavita hatwal fall 2002 Math 231

  31. Conjunctions imply the component statements • "p and q, therefore p" • Alice is a woman and a PCC student, therefore Alice is a woman. • This is specialization • Elimination is a valid form • "p or q.  Not q, therefore p" • Alice is a woman or a brain-eating serial killer.  Alice is not a serial killer, therefore Alice is a woman • Transitivity is a valid form • "if p then q.  If q then r.  p, therefore r." • If Doug teaches at Sylvania, then he works for PCC.  If you work for PCC then you participate in PERS.  Therefore Doug participates in PERS. kavita hatwal fall 2002 Math 231

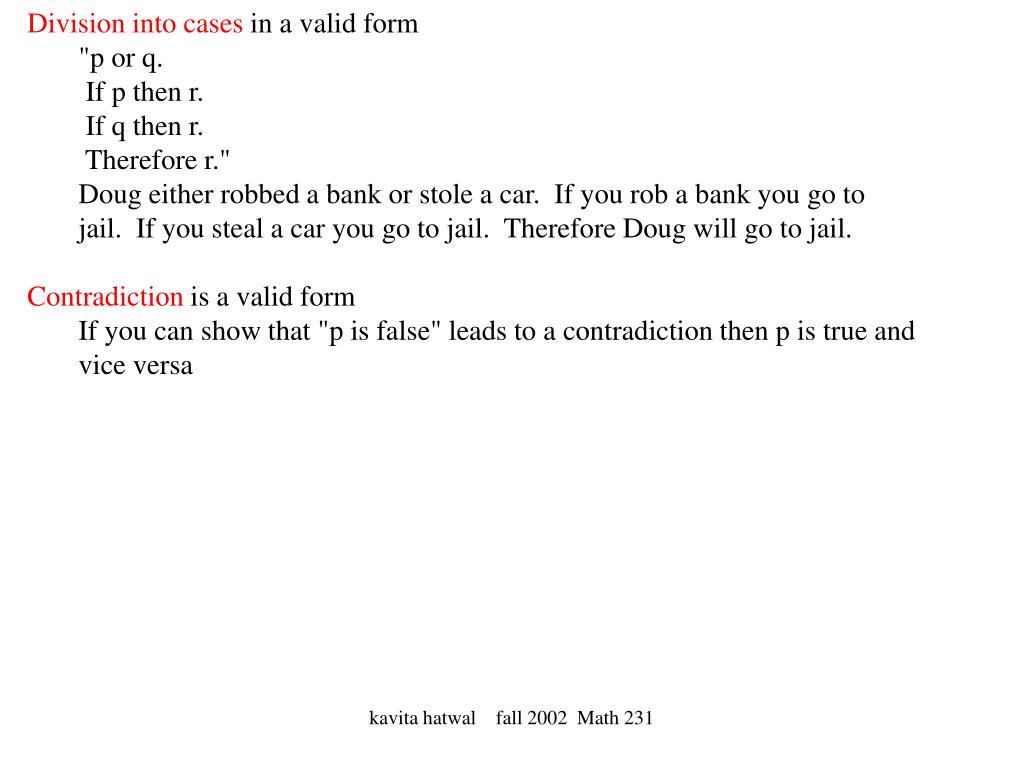

  32. Division into cases in a valid form • "p or q.  • If p then r.  • If q then r.  • Therefore r." • Doug either robbed a bank or stole a car.  If you rob a bank you go to jail.  If you steal a car you go to jail.  Therefore Doug will go to jail. • Contradiction is a valid form • If you can show that "p is false" leads to a contradiction then p is true and vice versa kavita hatwal fall 2002 Math 231

  33. Arguments and Truth • Valid arguments need not true. • If Doug is a teacher then Doug smokes.  • Doug is a teacher, • therefore Doug smokes. • This is valid modus ponens, but the major premise is false, so the conclusion is valid but untrue • Invalid arguments need not be false • If Doug is a teacher, then Doug teaches Math.  • Doug teaches Math, • therefore Doug is a teacher. • This is a converse error, but the conclusion is true kavita hatwal fall 2002 Math 231

  34. A more Complex Deduction ``And now we come to the great question as to the reason why. Robbery has not been the object of this murder, for nothing was taken. Was it politics, or was it a woman? That is the question confronting me. I was inclined from the first to the latter supposition. Political assassins are only too glad to do their work and fly. This murder had, on the contrary, been done most deliberately and the perpetrator had left his tracks all over the room, showing he had been there all the time.'' - A. Conan Doyle, A Study in Scarlet Reference: http://www.cs.sunysb.edu/~skiena/113/lectures/lecture4/lecture4.html What did Sherlock Holmes conclude? kavita hatwal fall 2002 Math 231

  35. Propositions and Premises We can break the story into the following propositions: Holmes identifies the following premises defined on these propositions: p: It was robbery. q: Nothing was taken. r: It was politics. s: It was a woman. t: The assassin left immediately. u: The assassin left tracks all over the room. kavita hatwal fall 2002 Math 231

  36. Complete the above to logically prove Sherlock Holmes right kavita hatwal fall 2002 Math 231

  37. Knights and Knaves Reference:http://www.hku.hk/cgi-bin/philodep/knight/puzzle A very special island is inhabited only by knights and knaves. Knights always tell the truth, and knaves always lie. You meet five inhabitants: Carl, Zeke, Joe, Peggy and Bart. Carl claims, `Peggy and I are both knights or both knaves.' Zeke claims that at least one of the following is true: that Carl is a knave or that Joe is a knight. Joe says, `Both I am a knight and Bart is a knave.' Peggy says that it's not the case that Bart is a knave. Bart tells you, `Neither I nor Carl are knaves.' So who is a knight and who is a knave? kavita hatwal fall 2002 Math 231

  38. 1.4 • Logic circuits • In series • Parallel • Truth tables for circuits • Similarity to conjunction and disjunction • Digital logic circuits. • 0 and 1 versus T and F • Black box kavita hatwal fall 2002 Math 231

  39. P Q S R Logic circuits • Logic circuits perform operations on digital signals • Implemented as electronic circuits where signal values are restricted to a few discrete values • In binary logic circuits there are only two values, 0 and 1 • The general form of a logic circuit is a switching network • Reference:http://jjackson.eng.ua.edu/courses/ece380/lectures/ kavita hatwal fall 2002 Math 231

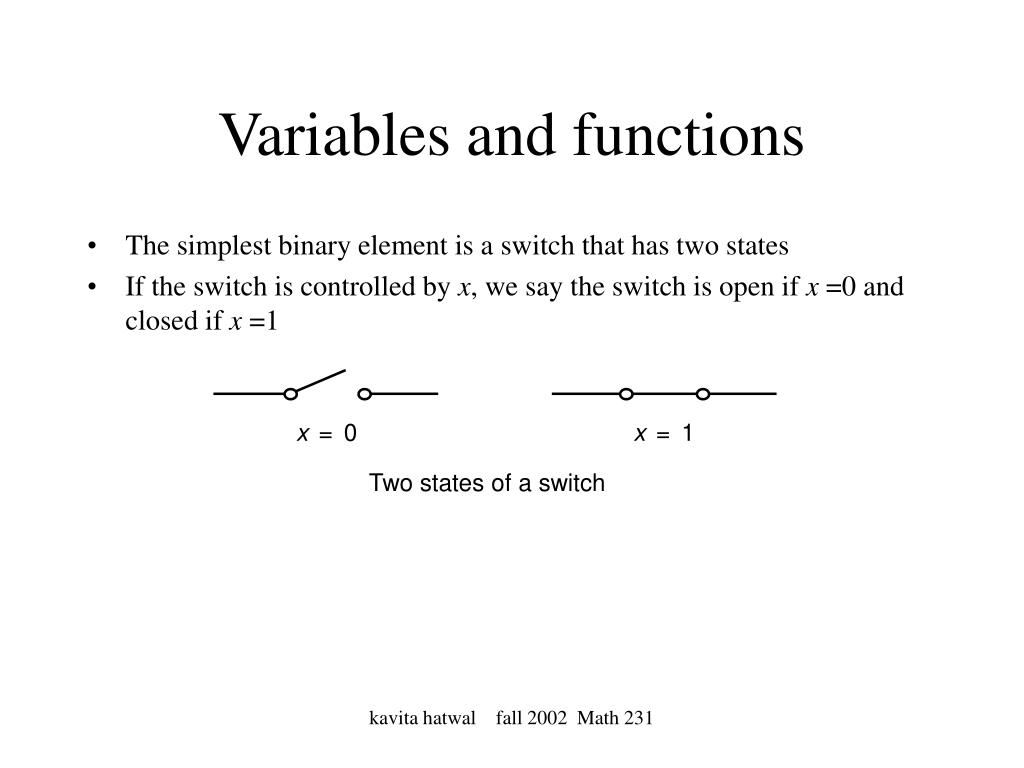

  40. x = 0 x = 1 Two states of a switch Variables and functions • The simplest binary element is a switch that has two states • If the switch is controlled by x, we say the switch is open if x =0 and closed if x =1 kavita hatwal fall 2002 Math 231

  41. S S Power Light x x L supply 1 2 The logical AND function (series connection) “·” AND operator x1· x2 =x1x2 The circuit implements a logical AND function Variables and functions (AND) • Consider the possibility of two switches controlling the state of the light • Using a series connection, the light will be on only if both switches are closed • L(x1, x2)= x1· x2 • L=1 iff (if and only if) x1 AND x2 are 1 kavita hatwal fall 2002 Math 231

  42. S “+” OR operator x Power Light supply The circuit implements a logical OR function L S x 2 The logical OR function (parallel connection) Variables and functions (OR) • Using a parallel connection, the light will be on only if either or both switches are closed • L(x1, x2)= x1+ x2 • L=1 if x1 OR x2 is 1 (or both) 1 kavita hatwal fall 2002 Math 231

  43. An efficient way to design more complicated circuits is to build them by connecting less complicated black box circuits. • Logic gates • Not • And • Or • Gates can be combined in variety of ways leading to combinational circuits, one whose output at any time is determined entirely by its input at that time without regard to previous inputs. • Never combine two input wires • A single input wire can be split halfway and used as input for two separate gates • An output wire can be used as input • No output of a gate can eventually feed back into that gate • Page 47, 1.4.1, 1.4.2 • Boolean expression corresponding to a circuit • 1.4.3 kavita hatwal fall 2002 Math 231

  44. kavita hatwal fall 2002 Math 231

  45. Recognizer: is a circuit that outputs a 1 for exactly one particular combination of input signals and outputs 0’s for all other combinations • Constructing circuits for boolean expressions example 1.4.4, page 49 • Simplifying combinational circuits, page 52 • Equivalent circuits, example 1.4.6, page 53 • Designing a circuit for a given input output table example 1.4.5, page 51 kavita hatwal fall 2002 Math 231

  46. Predicates and Quantified statements • Subject and predicate: • Subject is the person being talked about and predicate is what is being talked about the subject. The predicate is part of the sentence from which subject has been removed. • Are these statements? • “He is a college student” • “x + y > 0” • No they aren’t but they can be made to be true in two ways • In logic, predicates can be obtained from a statement by removing the nouns. • “James is a student at PCC.” • The nouns are James and PCC. • Let P= is a student at PCC • Q = is a student at • Then both P and Q are predicate symbols. • x is a student at y is symbolized as P(x) and as Q(x,y) respectively, where x and y are predicate variables that take values in appropriate sets. kavita hatwal fall 2002 Math 231

  47. A predicate is a sentence that contains a finite number of variables and becomes a statement when specific values are substituted for the variables. The domain of a predicate variable is the set of all values that may be substituted in place of the variable. If P(x) is a predicate and x has domain D, the truth set of P(x) is the set of all elements of D that make P(x) true when substituted for x. The truth set of P(x) is denoted as Let P(x) and Q(x) be predicates and suppose the common domain of x is D. The notation means that every element in the truth set of P(x) is in the truth set of Q(x). The notation means that P(x) and Q(x) have identical truth sets. • Example 2.1.1 page 77 • Predicates are not propositions. • They can be made propositions by • Substituting concrete value to the variable • quantify the variable using a quantifier. kavita hatwal fall 2002 Math 231

  48. Quantifiers Universal Quantifier, for all Al human beings are mortal. human beings x, x is mortal. x in S, x is mortal. Let Q(x) be a predicate and D be the domain of x. A Universal Quantifier is a statement of the form x D, Q(x). It is defined to be true iff Q(x) is true for every x in D. It is defined to be false iff Q(x) is false for atleast one x in D. Such an x if it exists is called a counterexample. Example 2.1.2 page 78. kavita hatwal fall 2002 Math 231

  49. Existential Quantifier, there exists, Let Q(x) be a predicate and D be the domain of x. A Existential Quantifier is a statement of the form x D such that Q(x). It is defined to be true iff Q(x) is true for at least one x in D. It is defined to be false iff Q(x) is false for all x in D. Example 2.1.3, 2.1.4, 2.1.5, 2.1.6, 2.1.7 page 78-81. Negation of Quantified statements The negation of a statement of the form Is logically equivalent to a statement of the form Symbolically Example 2.1.8, 2.1.9 page 82. kavita hatwal fall 2002 Math 231

  50. The negation of a statement of the form Is logically equivalent to a statement of the form Symbolically Example 2.1.10 - 2.1.12 page 84, 85. Negations of UNIVERSAL CONDITIONAL statements • Read the quantifier from left to right. • If there are more than one quantifiers, read from inside out. • Example 2.1.13 page 86. kavita hatwal fall 2002 Math 231
