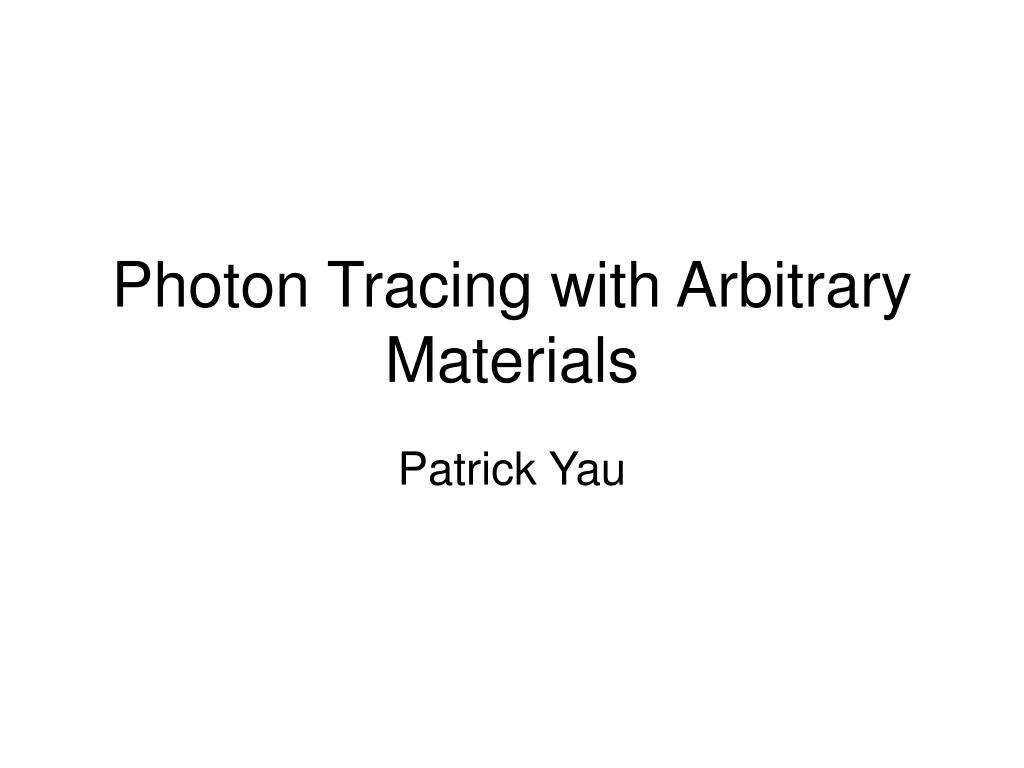

  1. Photon Tracing with Arbitrary Materials Patrick Yau

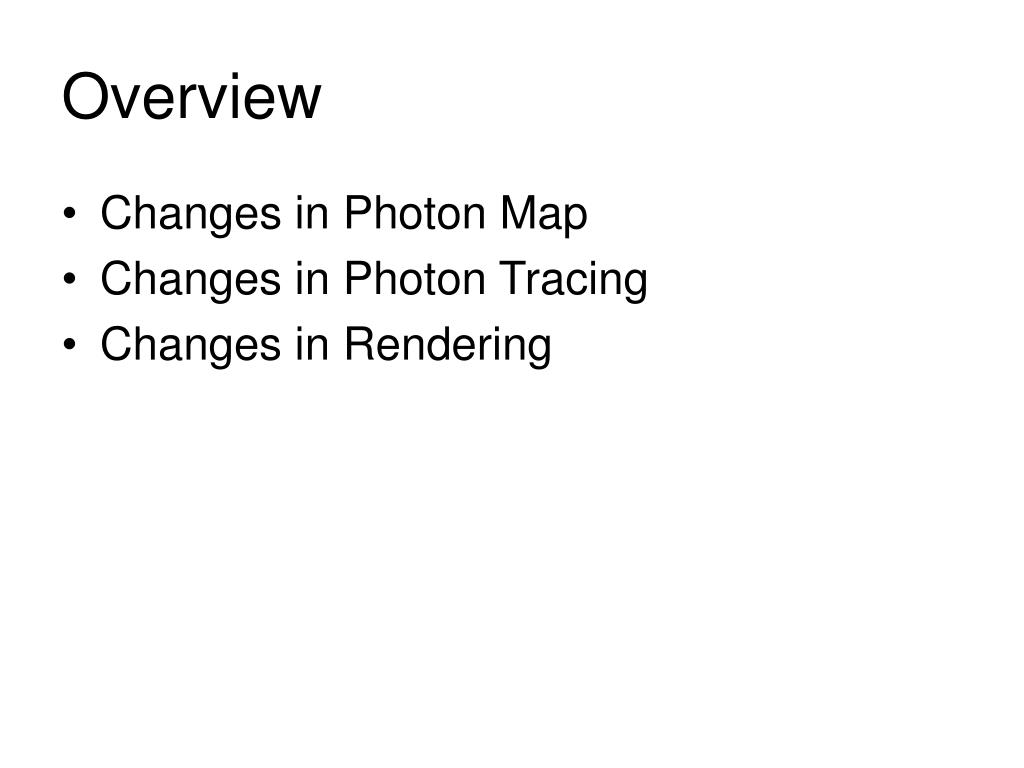

  2. Overview • Changes in Photon Map • Changes in Photon Tracing • Changes in Rendering

  3. Caustic Photon Maps • Used only to store photons corresponding to caustics. • Created by emitting photons towards the specular objects in the scene and storing these as they hit diffuse surfaces. • Photons are highly focused into a small area.

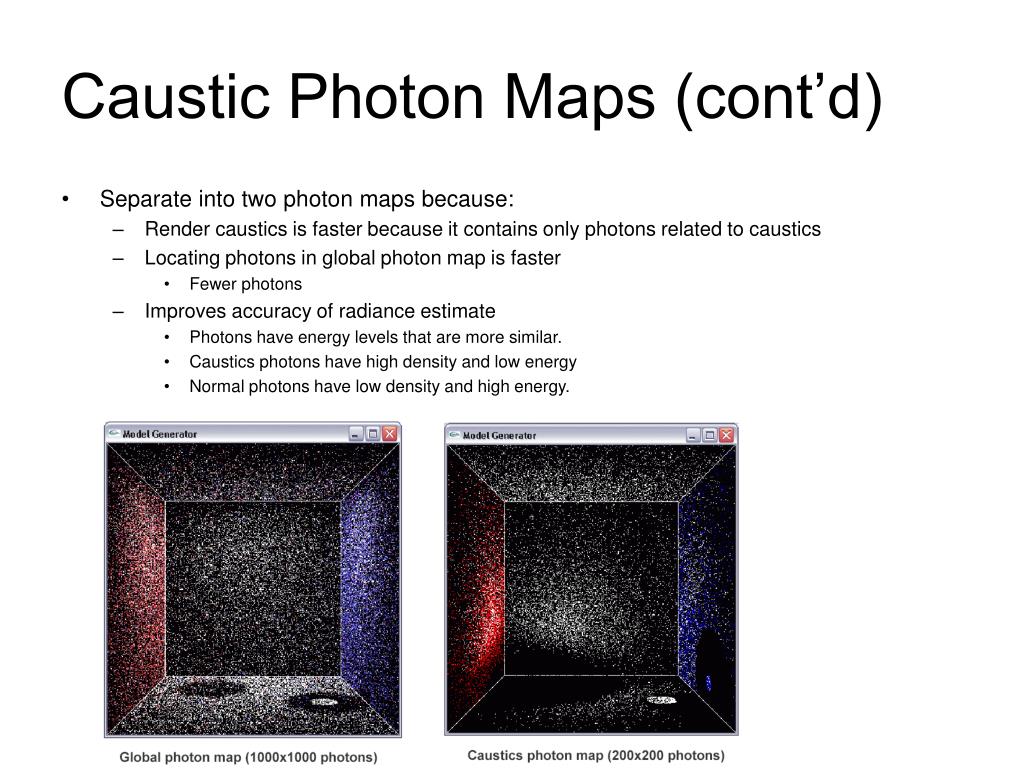

  4. Caustic Photon Maps (cont’d) • Separate into two photon maps because: • Render caustics is faster because it contains only photons related to caustics • Locating photons in global photon map is faster • Fewer photons • Improves accuracy of radiance estimate • Photons have energy levels that are more similar. • Caustics photons have high density and low energy • Normal photons have low density and high energy.

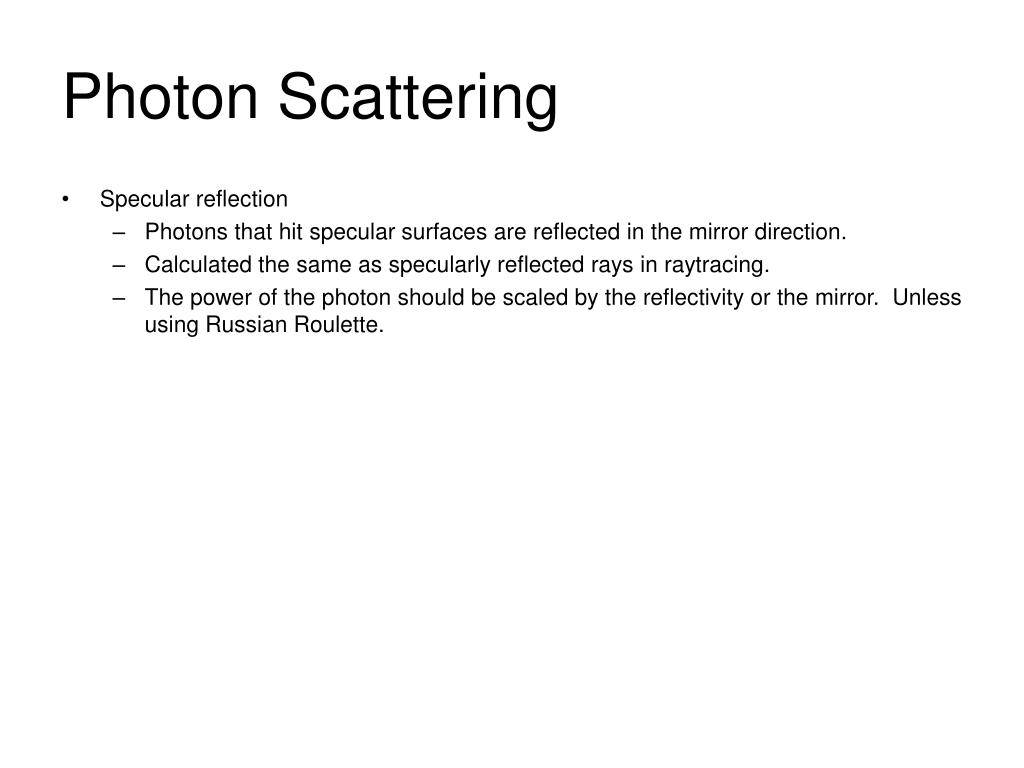

  5. Photon Scattering • Specular reflection • Photons that hit specular surfaces are reflected in the mirror direction. • Calculated the same as specularly reflected rays in raytracing. • The power of the photon should be scaled by the reflectivity or the mirror. Unless using Russian Roulette.

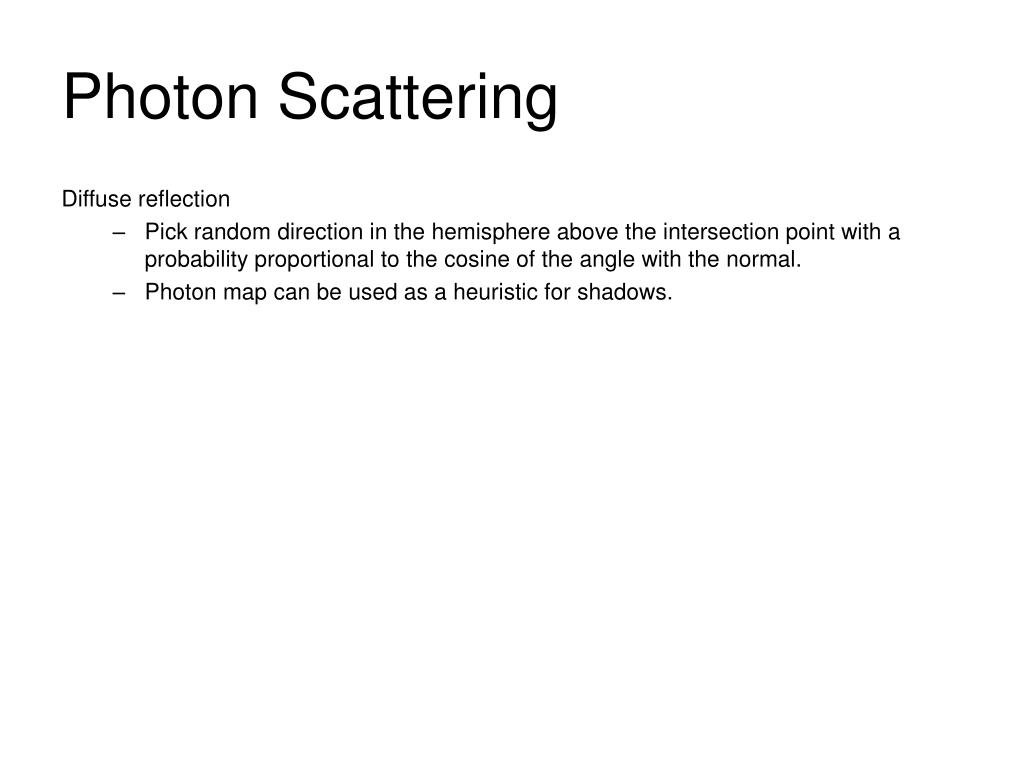

  6. Photon Scattering Diffuse reflection • Pick random direction in the hemisphere above the intersection point with a probability proportional to the cosine of the angle with the normal. • Photon map can be used as a heuristic for shadows.

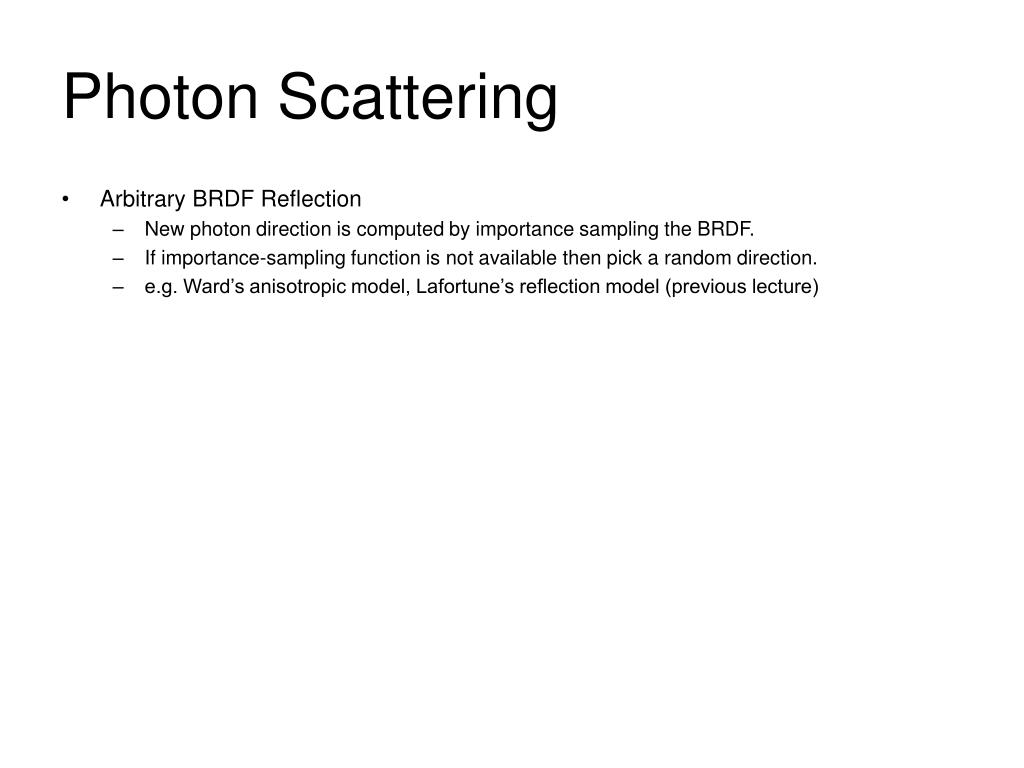

  7. Photon Scattering • Arbitrary BRDF Reflection • New photon direction is computed by importance sampling the BRDF. • If importance-sampling function is not available then pick a random direction. • e.g. Ward’s anisotropic model, Lafortune’s reflection model (previous lecture)

  8. Photon Scattering • Russian Roulette: • Reflection or Absorption:

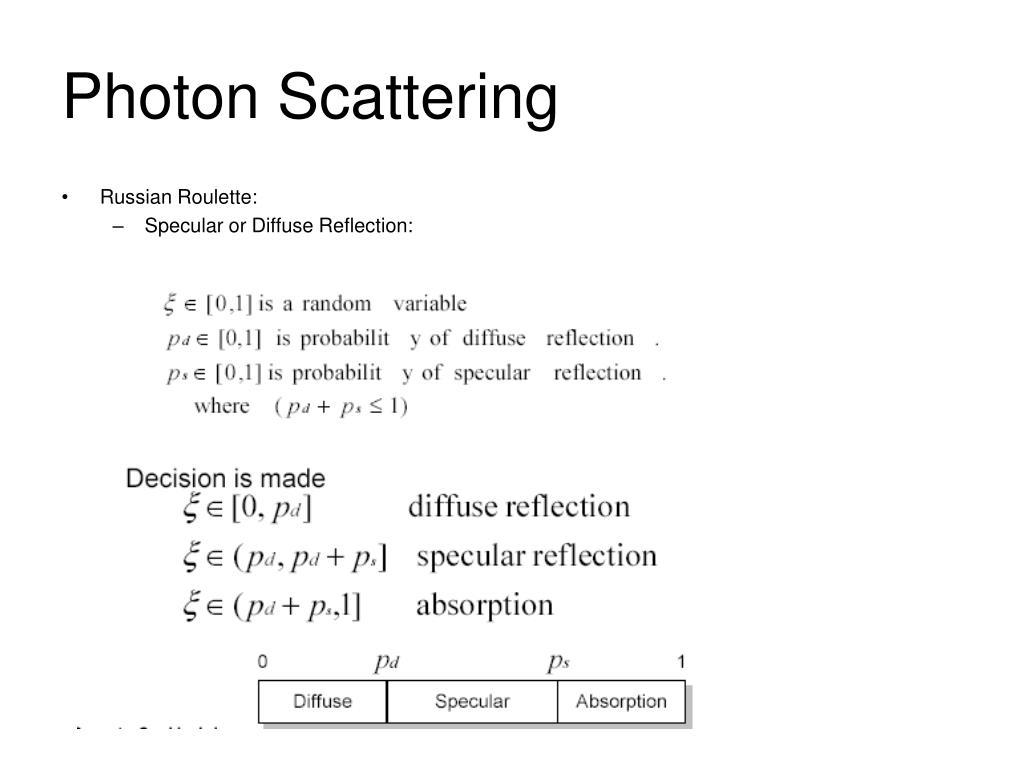

  9. Photon Scattering • Russian Roulette: • Specular or Diffuse Reflection:

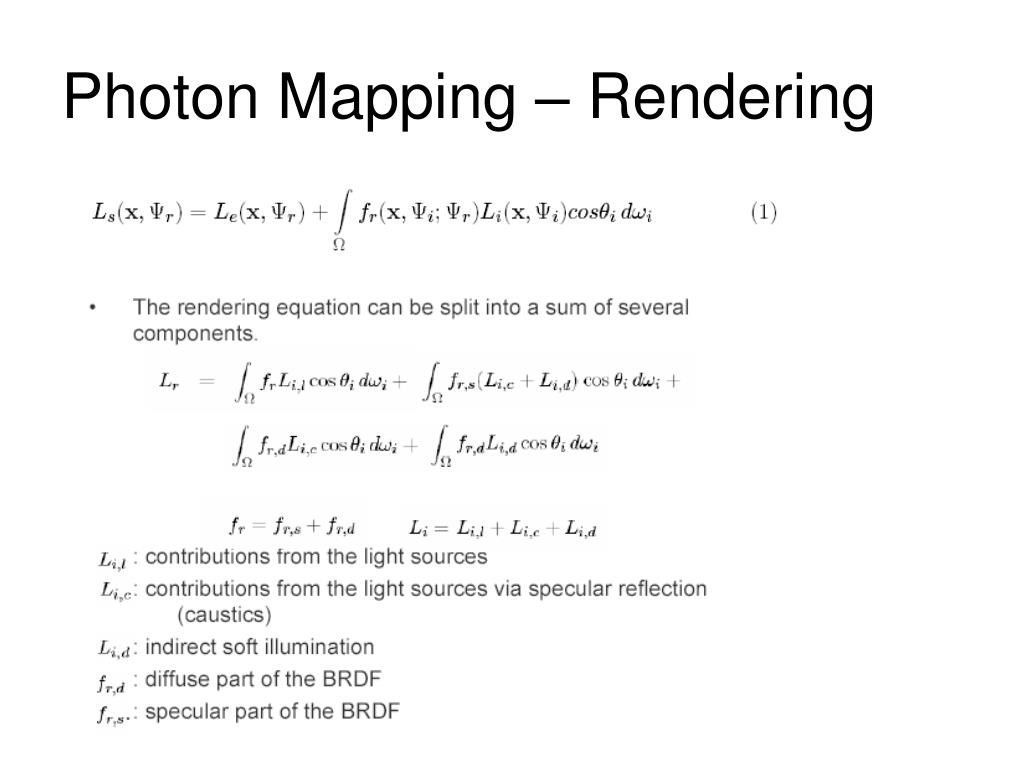

  10. Photon Mapping – Rendering

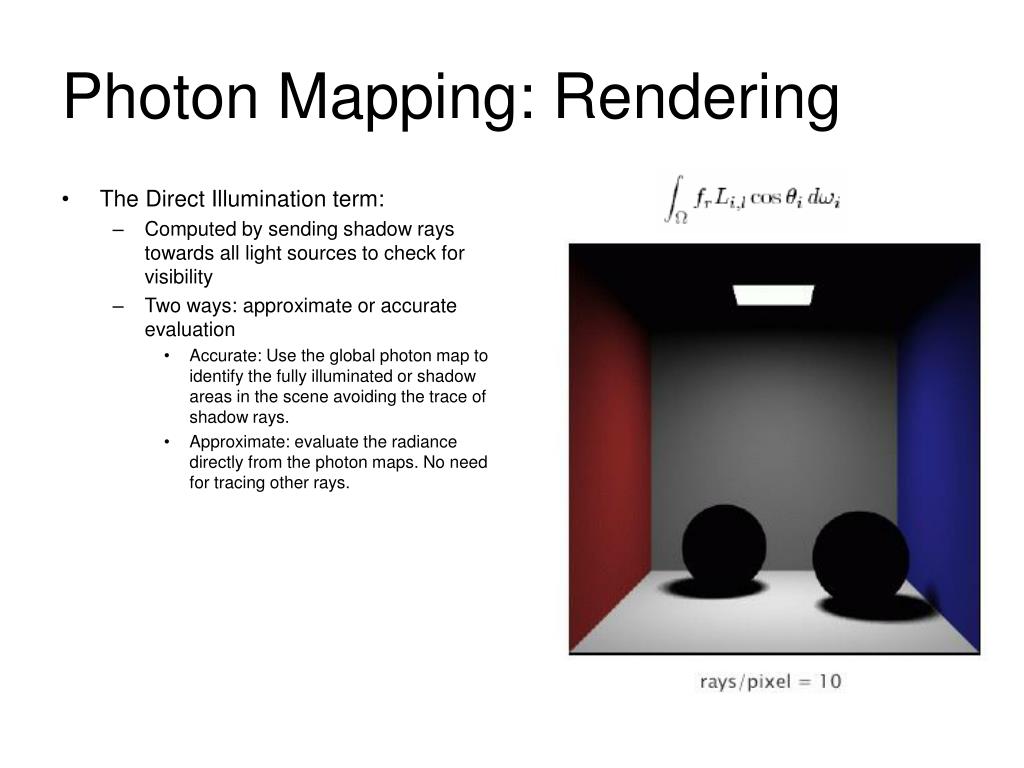

  11. Photon Mapping: Rendering • The Direct Illumination term: • Computed by sending shadow rays towards all light sources to check for visibility • Two ways: approximate or accurate evaluation • Accurate: Use the global photon map to identify the fully illuminated or shadow areas in the scene avoiding the trace of shadow rays. • Approximate: evaluate the radiance directly from the photon maps. No need for tracing other rays.

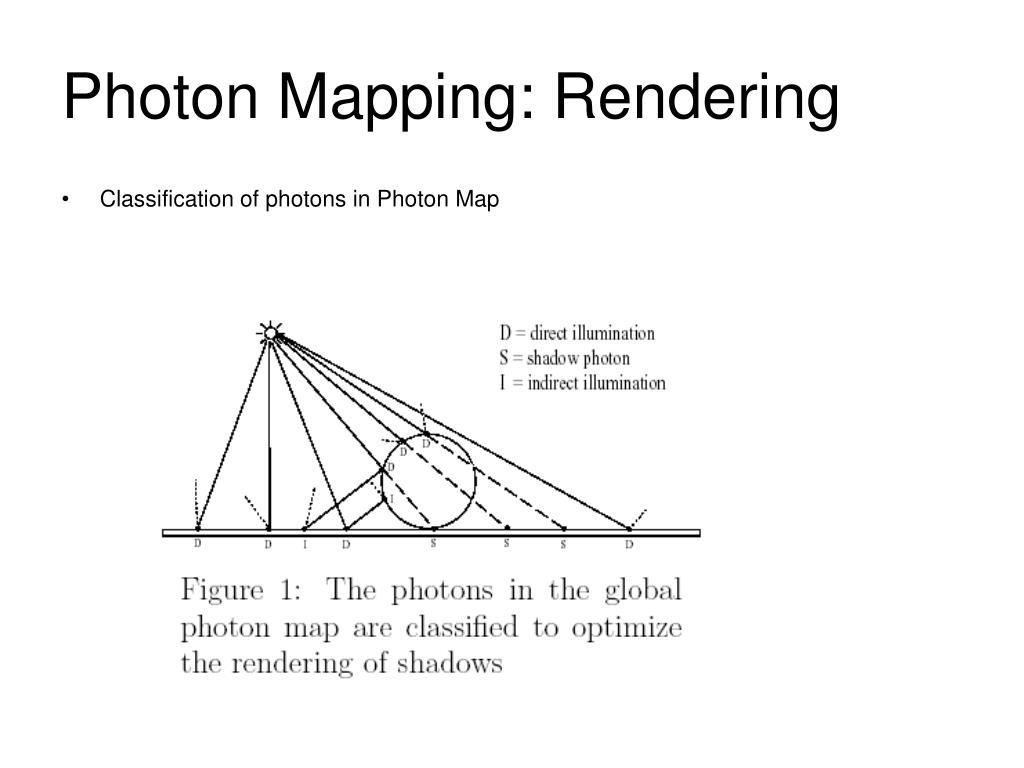

  12. Photon Mapping: Rendering • Classification of photons in Photon Map

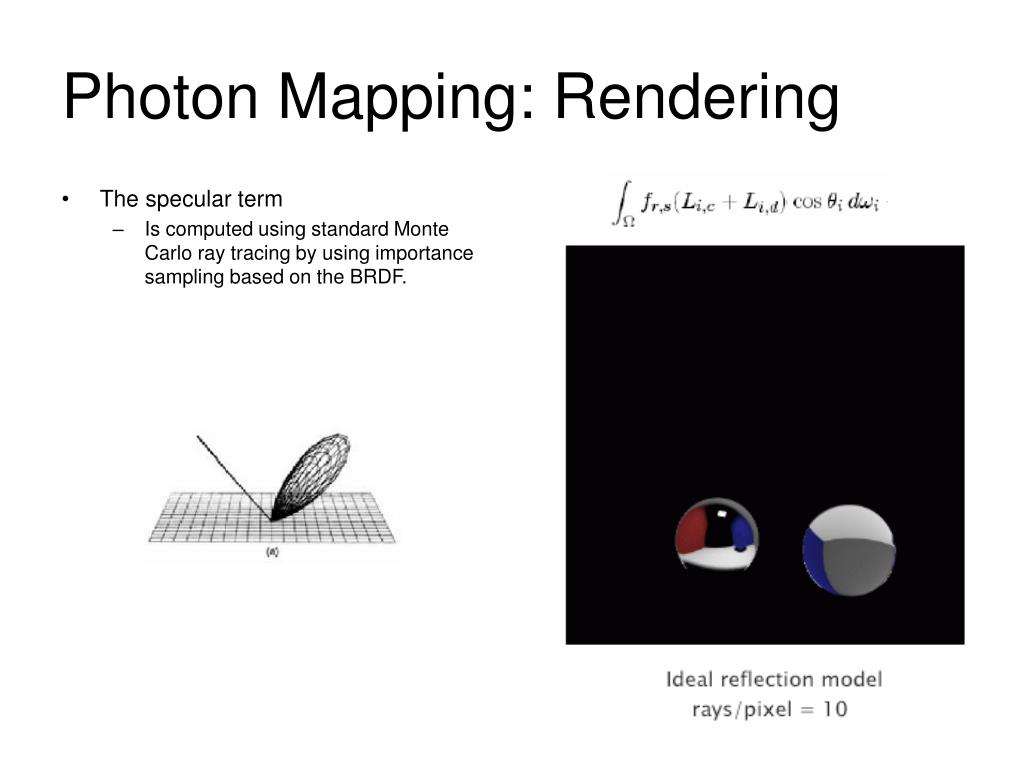

  13. Photon Mapping: Rendering • The specular term • Is computed using standard Monte Carlo ray tracing by using importance sampling based on the BRDF.

  14. Photon Mapping: Rendering • The caustics term: • The radiance is estimated based on the caustics photon map. • It is visualized directly and this is the reason why the number of photons in the caustics photon map must be high.

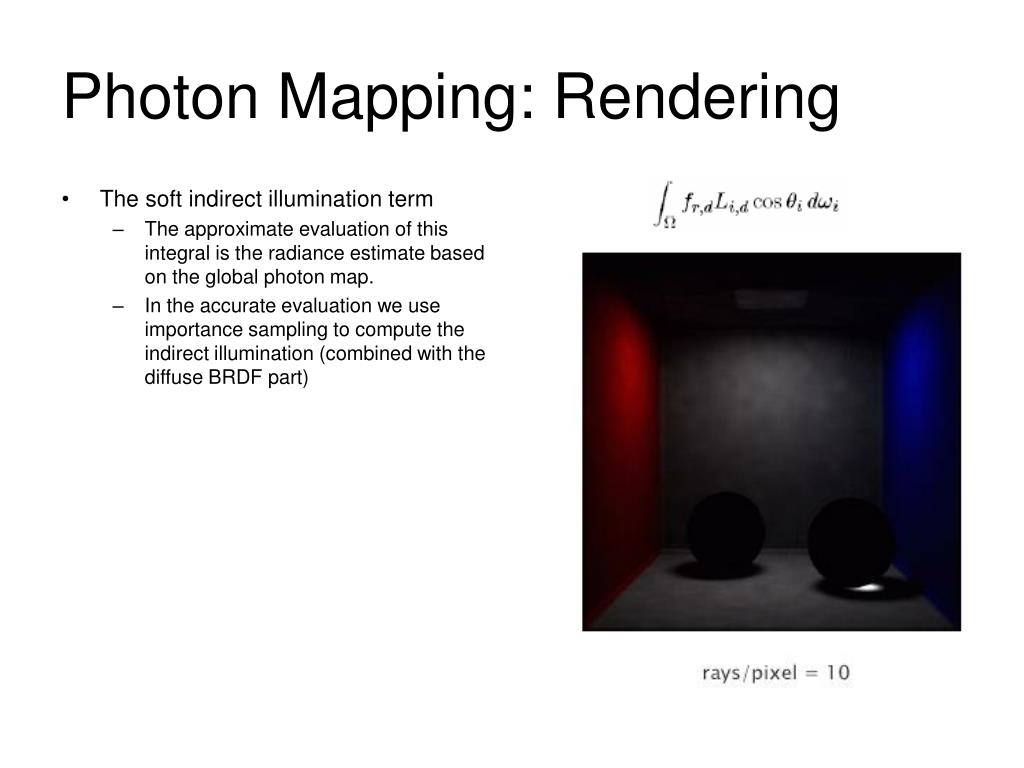

  15. Photon Mapping: Rendering • The soft indirect illumination term • The approximate evaluation of this integral is the radiance estimate based on the global photon map. • In the accurate evaluation we use importance sampling to compute the indirect illumination (combined with the diffuse BRDF part)

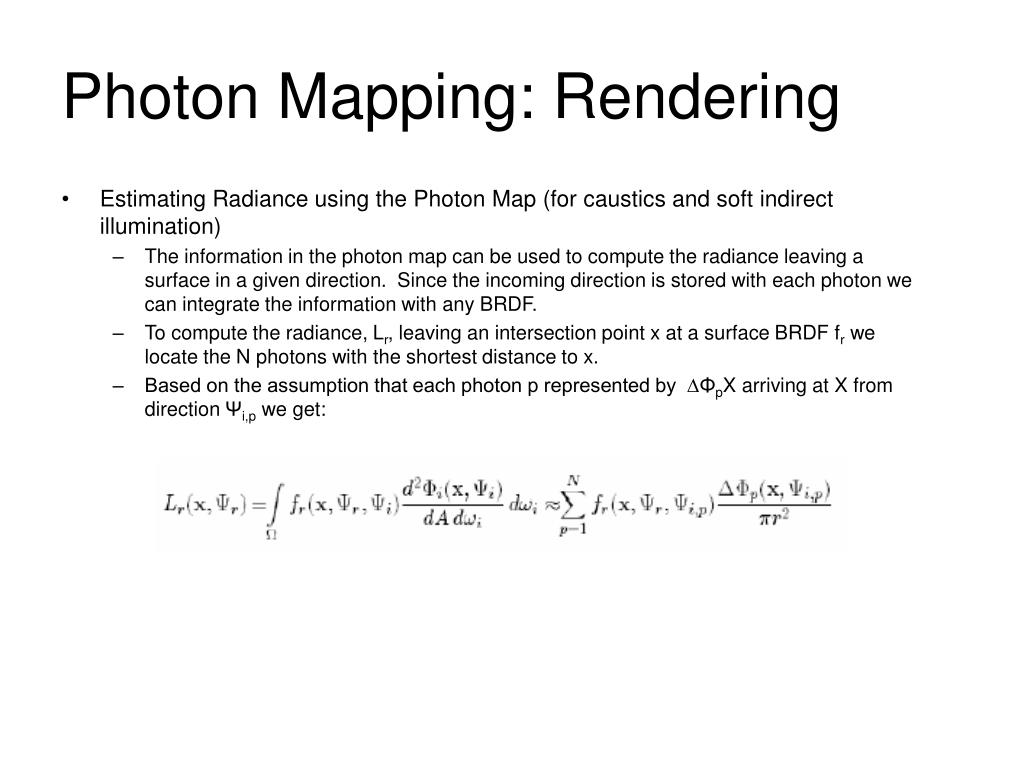

  16. Photon Mapping: Rendering • Estimating Radiance using the Photon Map (for caustics and soft indirect illumination) • The information in the photon map can be used to compute the radiance leaving a surface in a given direction. Since the incoming direction is stored with each photon we can integrate the information with any BRDF. • To compute the radiance, Lr, leaving an intersection point x at a surface BRDF fr we locate the N photons with the shortest distance to x. • Based on the assumption that each photon p represented by ∆ΦpX arriving at X from direction Ψi,p we get:

  17. Photon Mapping: Rendering • *Code taken from Taylor’s lecture. • Estimating Radiance • 1. radiance_estimate(x,v,n) { • 2. locate k nearest photons • 3. r = distance to kth nearest photon • 4. flux = 0 • 5. for each photon p { • 6. pd = direction of p • 7. phi = power of p • 8. flux += brdf(x, v, pd)*phi; • 9. } • 10. return flux/(2*pi*r^2) • 11. }

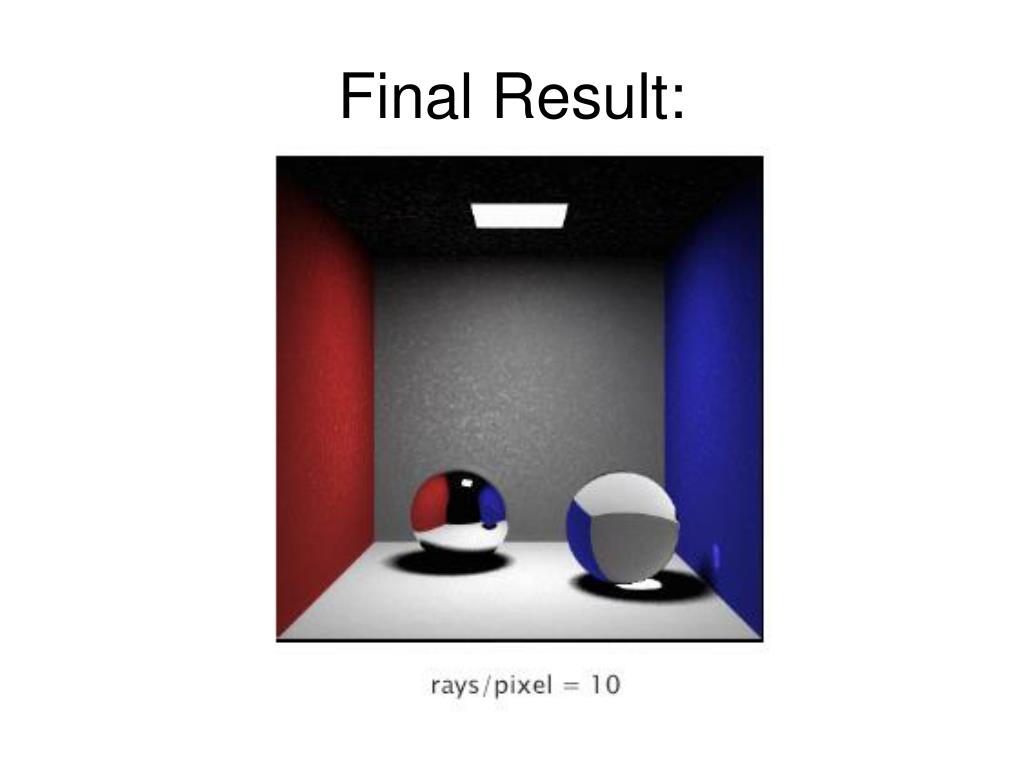

  18. Final Result:

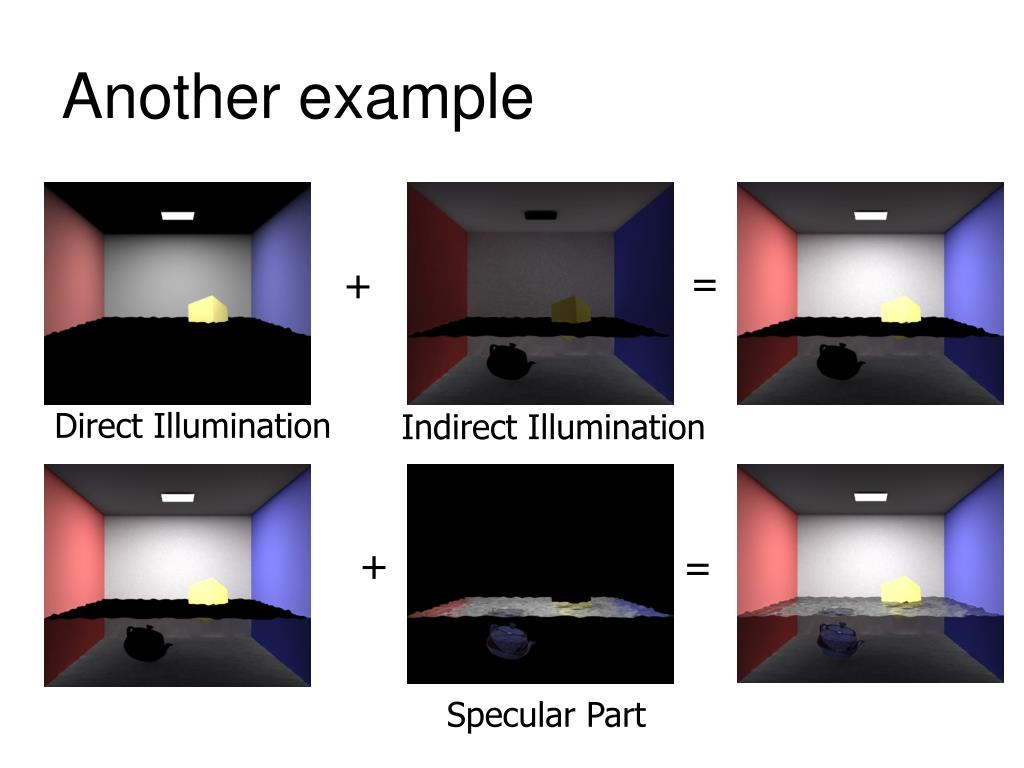

  19. Another example = + Direct Illumination Indirect Illumination + = Specular Part

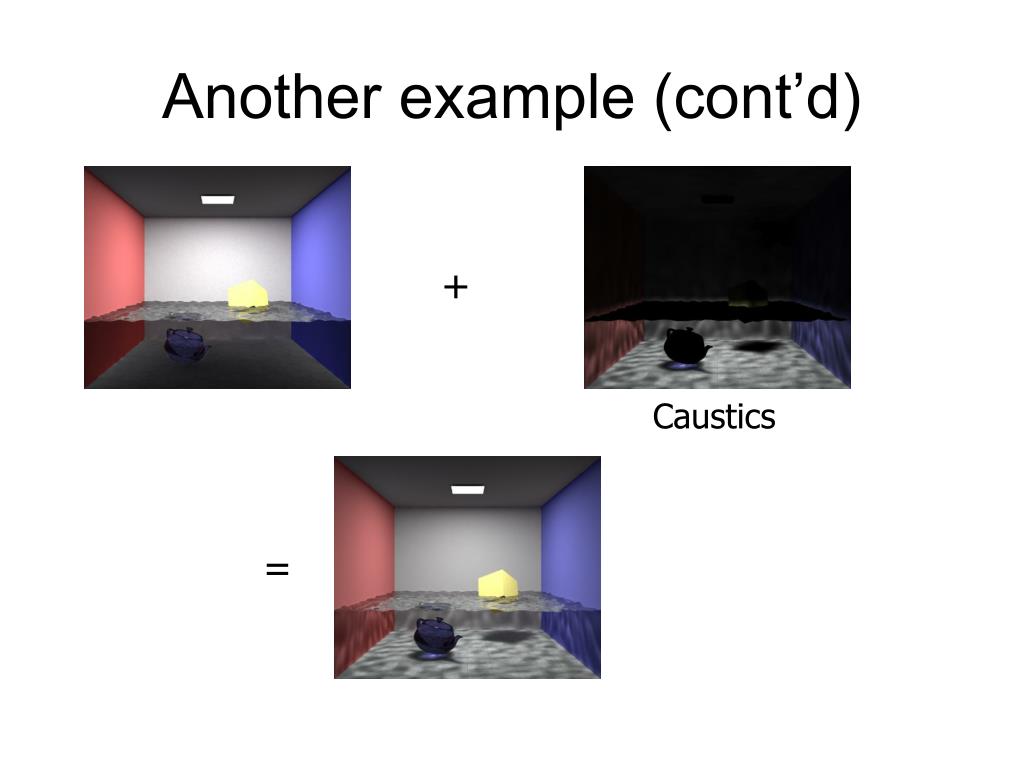

  20. Another example (cont’d) + Caustics =

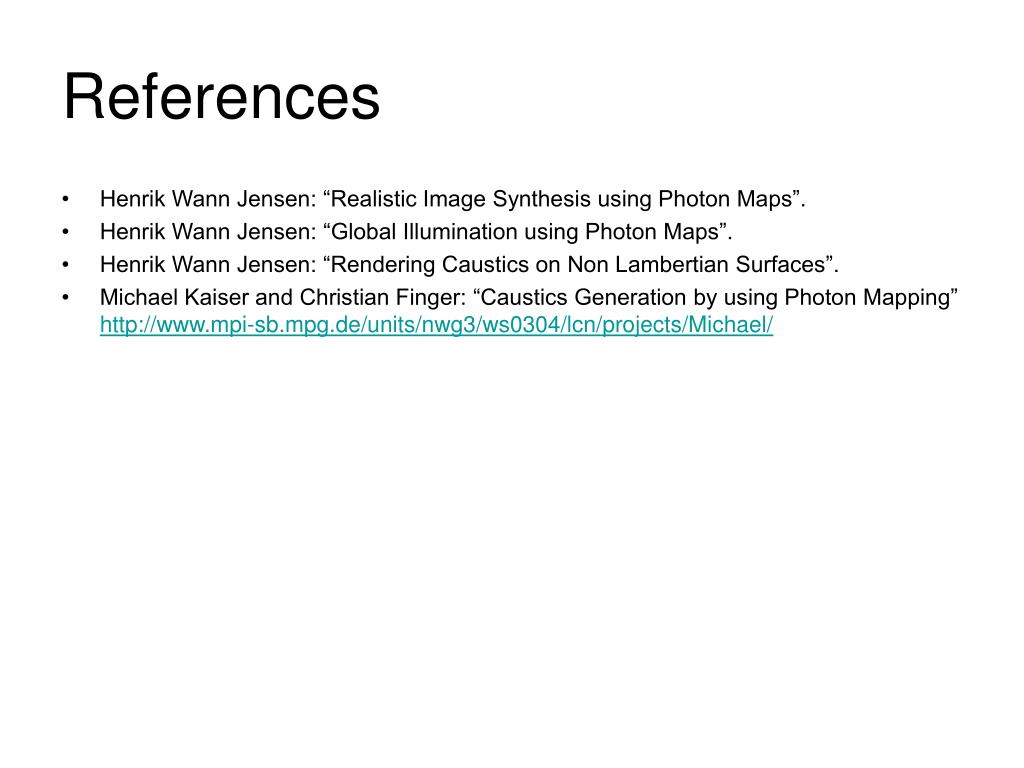

  21. References • Henrik Wann Jensen: “Realistic Image Synthesis using Photon Maps”. • Henrik Wann Jensen: “Global Illumination using Photon Maps”. • Henrik Wann Jensen: “Rendering Caustics on Non Lambertian Surfaces”. • Michael Kaiser and Christian Finger: “Caustics Generation by using Photon Mapping” http://www.mpi-sb.mpg.de/units/nwg3/ws0304/lcn/projects/Michael/
