  1. Demonstration and Information For further information, please contact:- Dr Amir Rahim The CRISP Consortium Ltd, 164 Cotton Av, London W3 6YG, UK Telephone +(44) (0)771 888 0943 Fax +(44) (0)845 280 2743 E-mail: info@mycrisp.com

  2. Overview Of SAGE CRISP • SAGE CRISP is a purpose-written Geo-technical, Finite Element Analysis package • CRISP (the FE Analysis engine) has been used successfully by universities and companies for over 20 years • Nearly 100 academic papers have been published using CRISP

  3. Pre-Processor FE Analysis Program Post-Processor Report Generator Help on the GUI Help on FE errors Overview Of SAGE CRISP • SAGE Engineering have added a new user-friendly Graphical User Interface operating under Microsoft Windows 95 and Windows NT. • The SAGE CRISP software suite comprises:

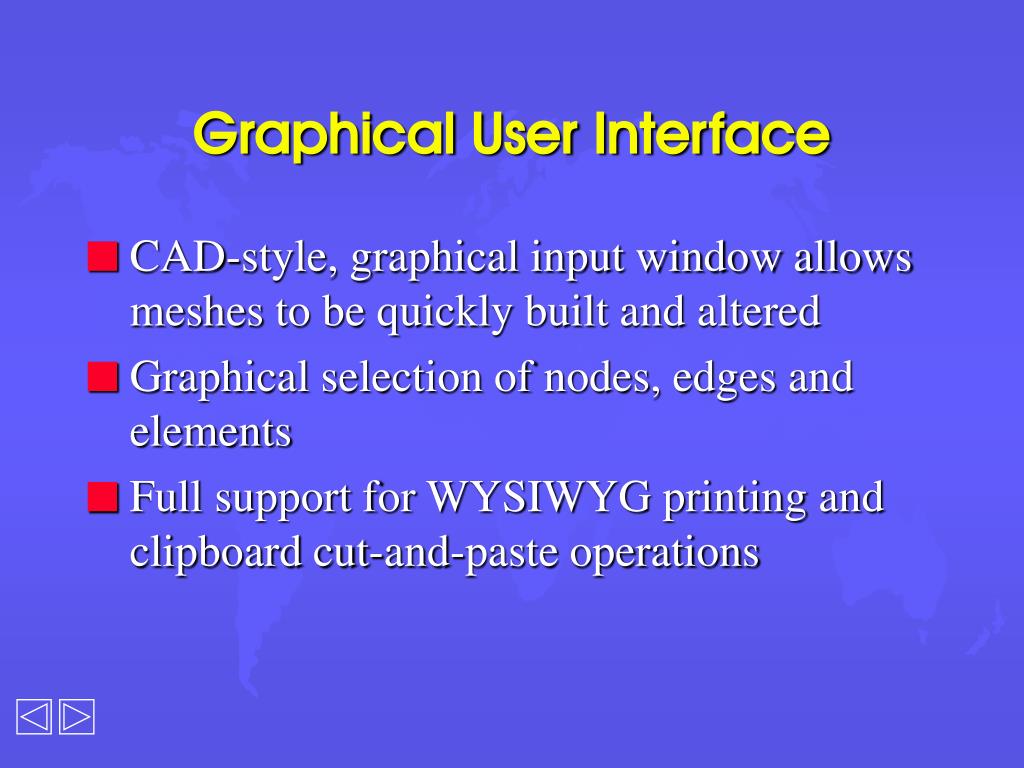

  4. Graphical User Interface • CAD-style, graphical input window allows meshes to be quickly built and altered • Graphical selection of nodes, edges and elements • Full support for WYSIWYG printing and clipboard cut-and-paste operations

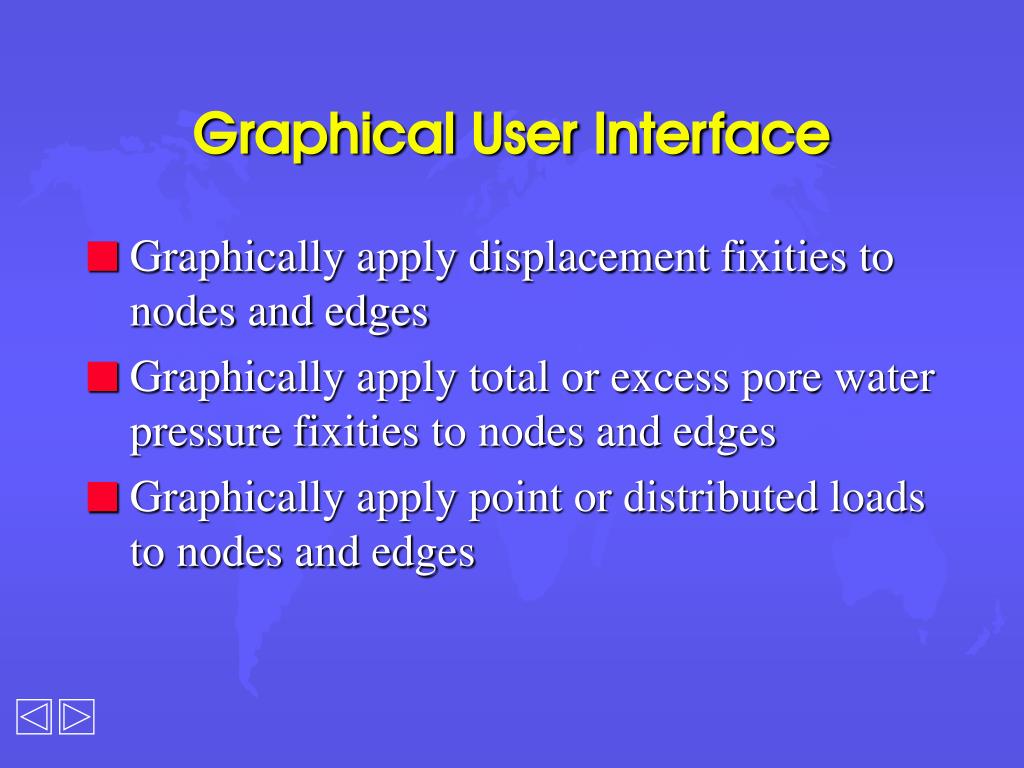

  5. Graphical User Interface • Graphically apply displacement fixities to nodes and edges • Graphically apply total or excess pore water pressure fixities to nodes and edges • Graphically apply point or distributed loads to nodes and edges

  6. Graphical User Interface • Graphically add and remove elements to and from the mesh to simulate construction or excavation activity • Graphical representation of each discrete stage of analysis; including the display of loads, fixities and construction sequences • Automatically generate unstructured or structured finite element meshes

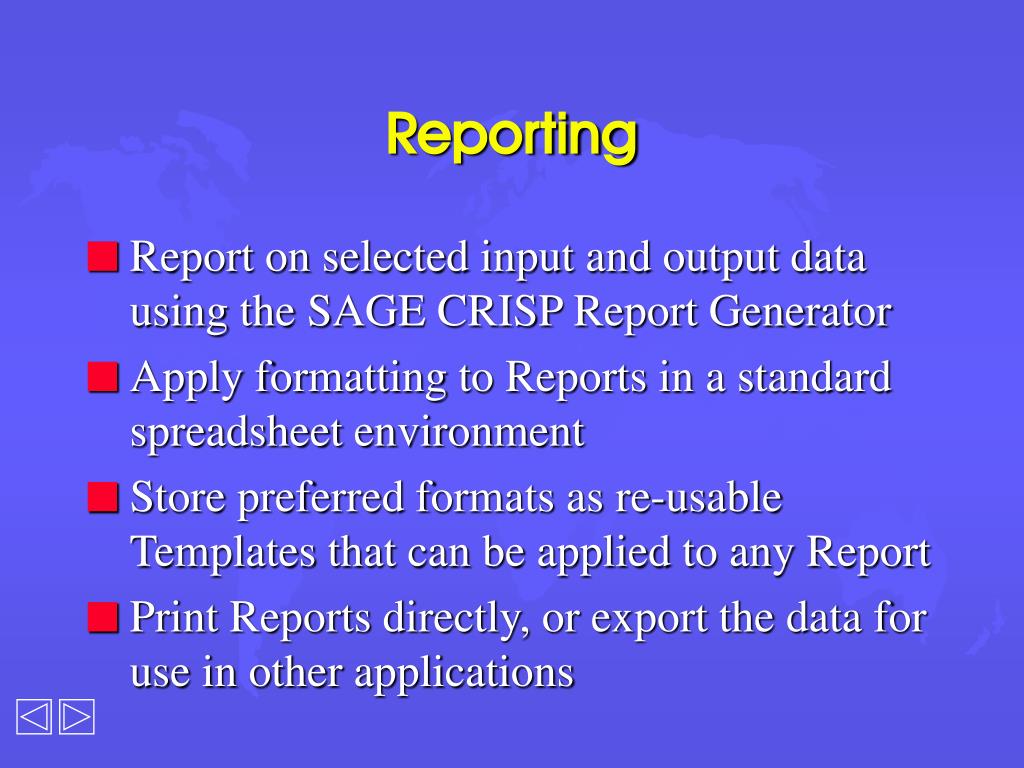

  7. Reporting • Report on selected input and output data using the SAGE CRISP Report Generator • Apply formatting to Reports in a standard spreadsheet environment • Store preferred formats as re-usable Templates that can be applied to any Report • Print Reports directly, or export the data for use in other applications

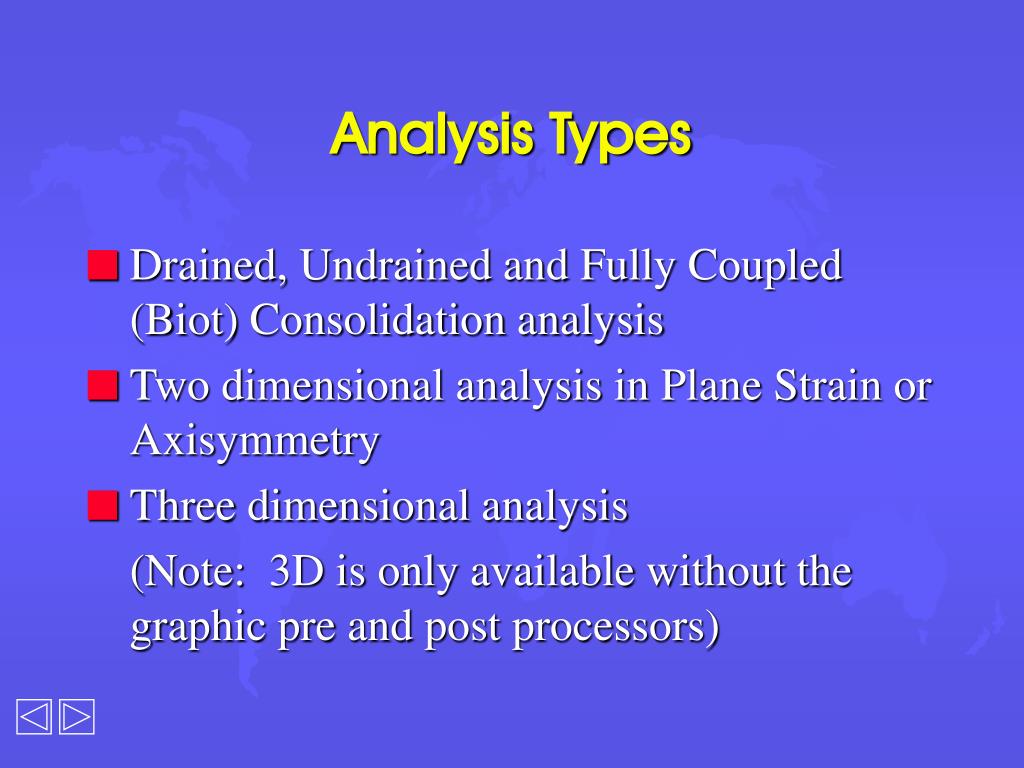

  8. Analysis Types • Drained, Undrained and Fully Coupled (Biot) Consolidation analysis • Two dimensional analysis in Plane Strain or Axisymmetry • Three dimensional analysis (Note: 3D is only available without the graphic pre and post processors)

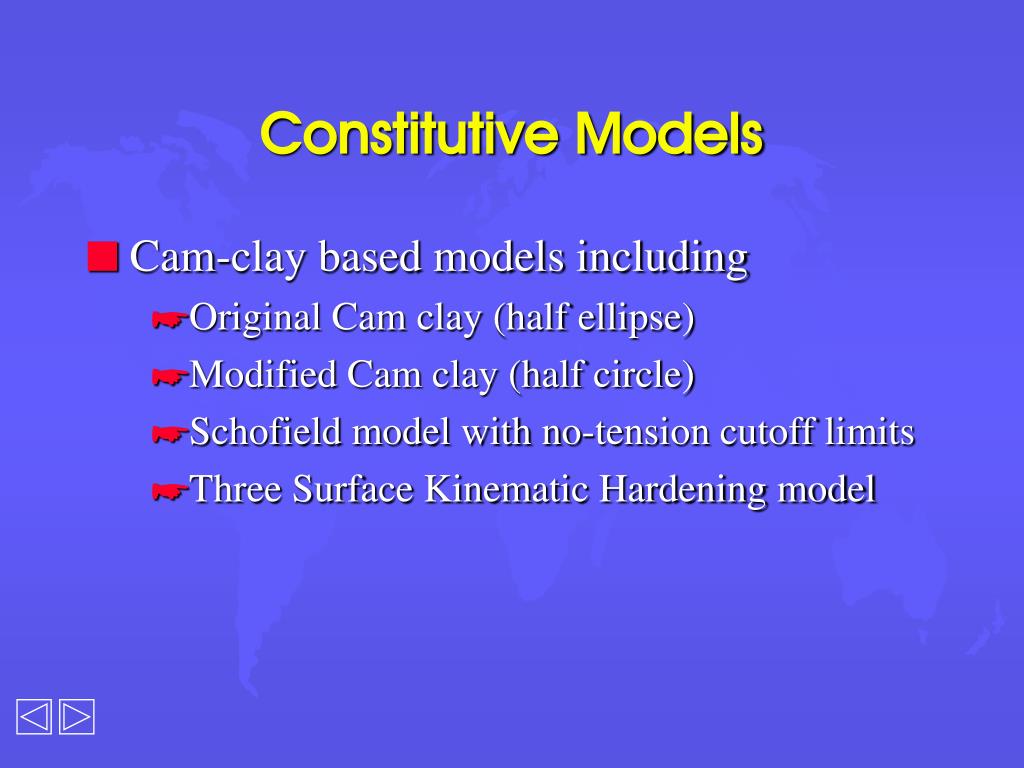

  9. Constitutive Models • Cam-clay based models including • Original Cam clay (half ellipse) • Modified Cam clay (half circle) • Schofield model with no-tension cutoff limits • Three Surface Kinematic Hardening model

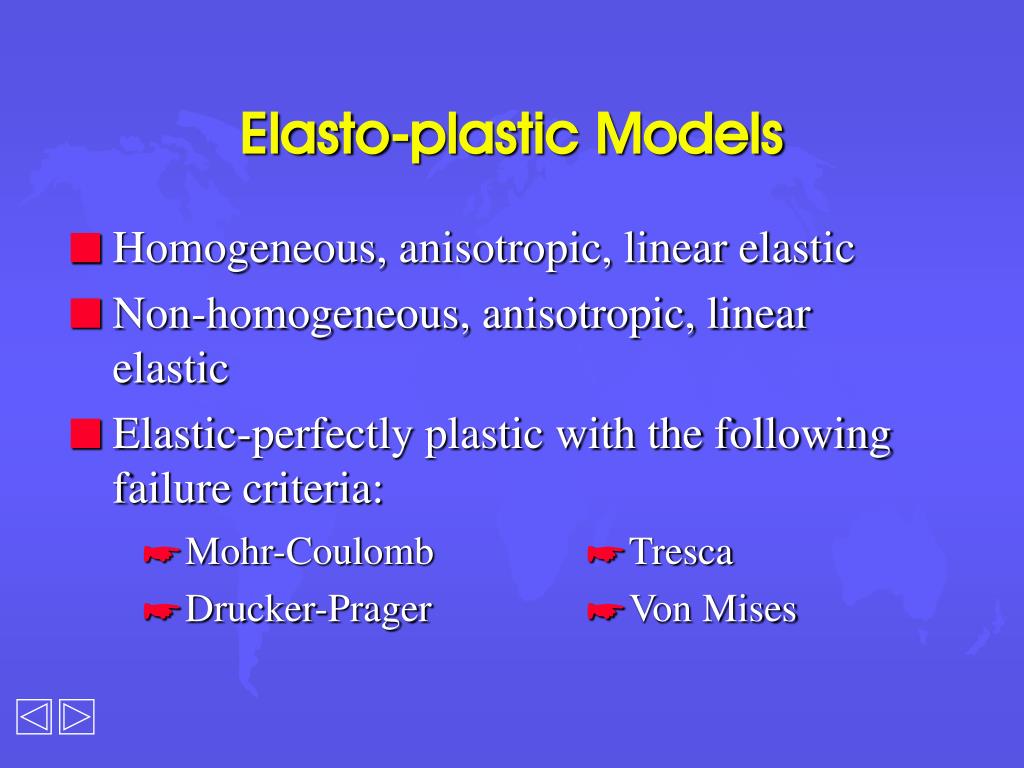

  10. Elasto-plastic Models • Mohr-Coulomb • Drucker-Prager • Tresca • Von Mises • Homogeneous, anisotropic, linear elastic • Non-homogeneous, anisotropic, linear elastic • Elastic-perfectly plastic with the following failure criteria:

  11. Structural elements • Beam, bar and slip (interface) elements

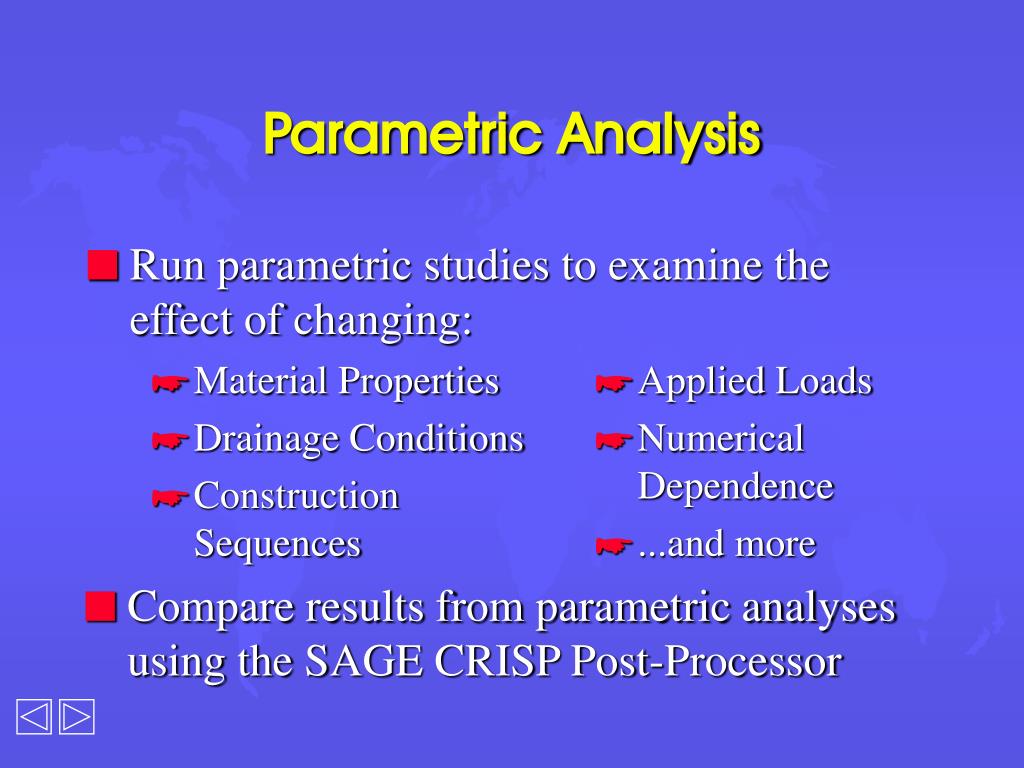

  12. Parametric Analysis • Material Properties • Drainage Conditions • Construction Sequences • Run parametric studies to examine the effect of changing: • Applied Loads • Numerical Dependence • ...and more • Compare results from parametric analyses using the SAGE CRISP Post-Processor

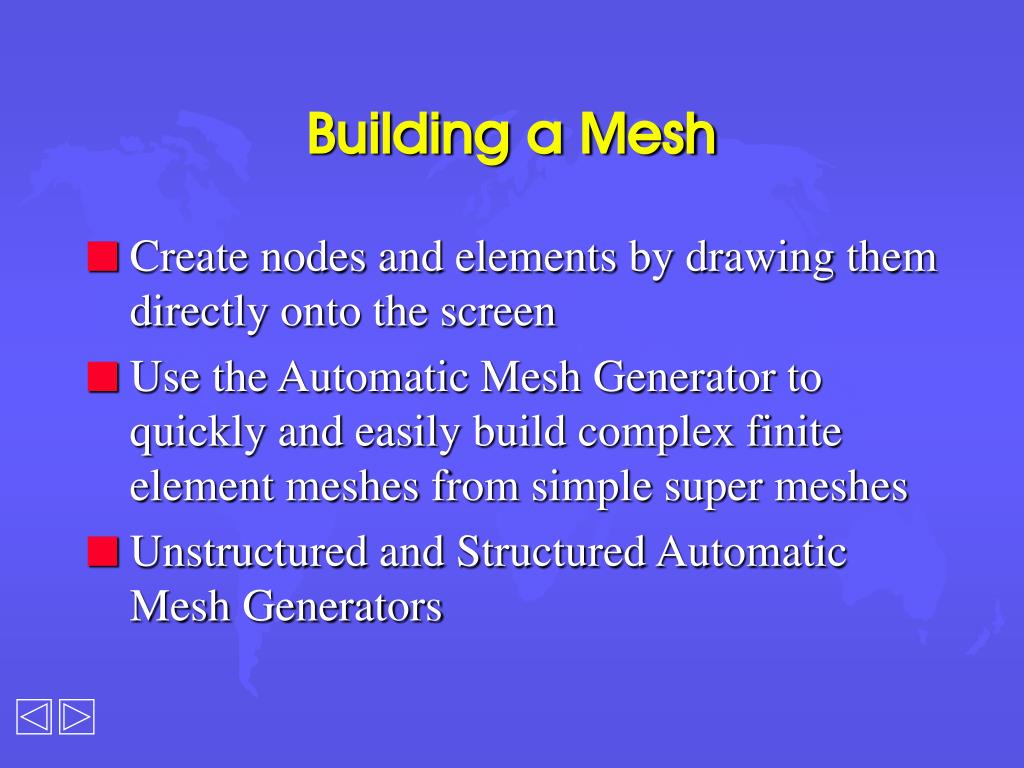

  13. Building a Mesh • Create nodes and elements by drawing them directly onto the screen • Use the Automatic Mesh Generator to quickly and easily build complex finite element meshes from simple super meshes • Unstructured and Structured Automatic Mesh Generators

  14. Unstructured Mesh Generation • Create a freeform Super Mesh containing Super Elements of any shape and with any number of sides • Finite Elements are generated according to grading parameters specified at nodes in the Super Mesh

  15. Structured Mesh Generation • Create a Super Mesh of quadrilateral Super Elements • Finite elements are generated according to the pattern of divisions specified for each edge in the Super Mesh

  16. Boundary Conditions • Fix nodes and edges against horizontal, vertical or rotational movement • Apply prescribed displacements • Drain nodes and edges to either atmosph-eric pressure, or to a static pressure head • Set total or excess pore water pressures • Graphical display of boundary conditions

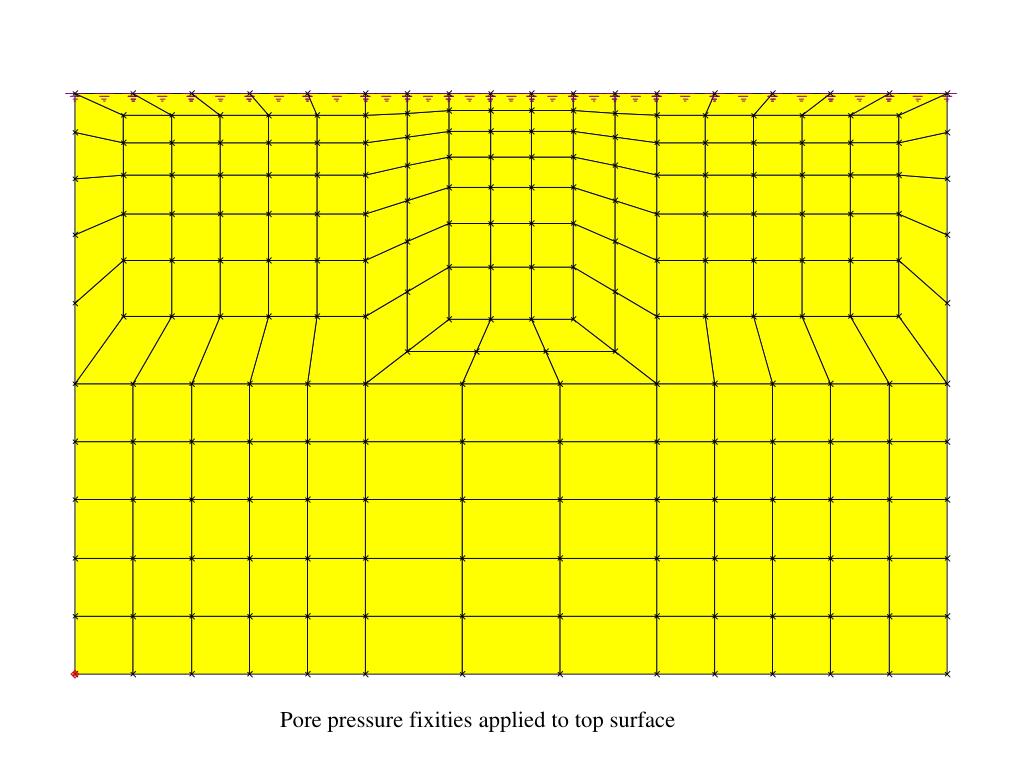

  17. Pore pressure fixities applied to top surface

  18. Define Material Zones • Create ‘Zones’ representing homogeneous regions of soil • Choose constitutive models and define soil parameters for material zones via the Material Properties dialogue box • Coloured display of material zones

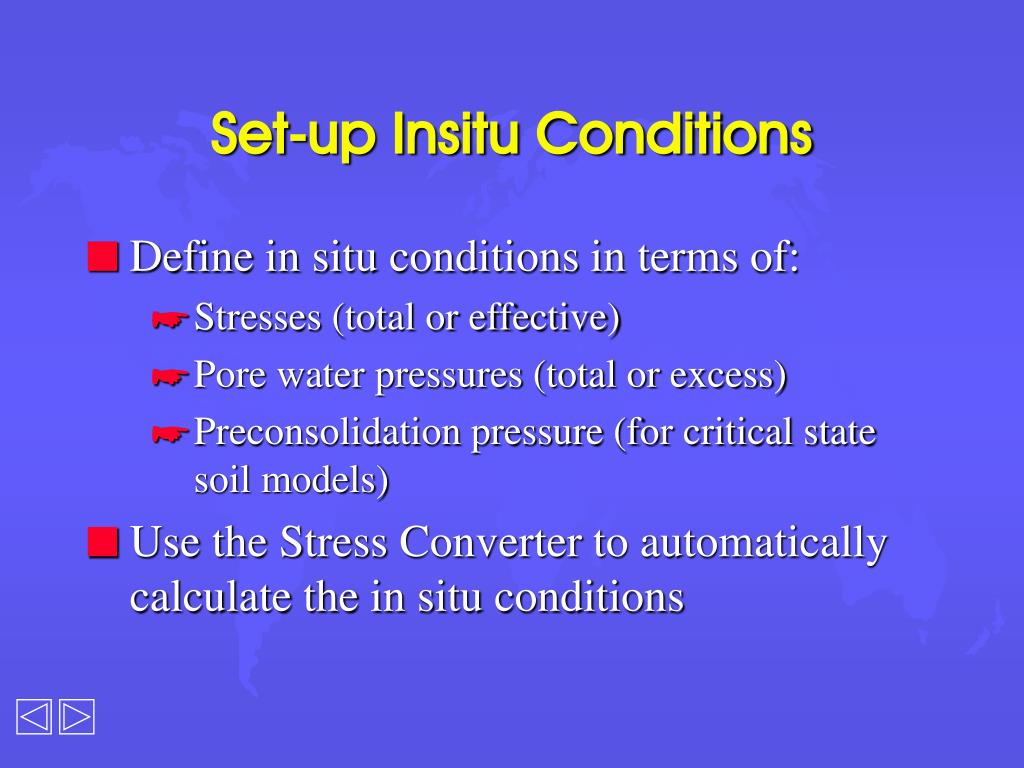

  19. Set-up Insitu Conditions • Define in situ conditions in terms of: • Stresses (total or effective) • Pore water pressures (total or excess) • Preconsolidation pressure (for critical state soil models) • Use the Stress Converter to automatically calculate the in situ conditions

  20. Set-up Increment Blocks • An analysis is divided into a number of discrete stages called Increment Blocks • Use Increment Blocks to: • Model each stage of a construction sequence • Apply new or modified boundary conditions • Apply new or modified loads • Allow consolidation to occur • Control numerical accuracy

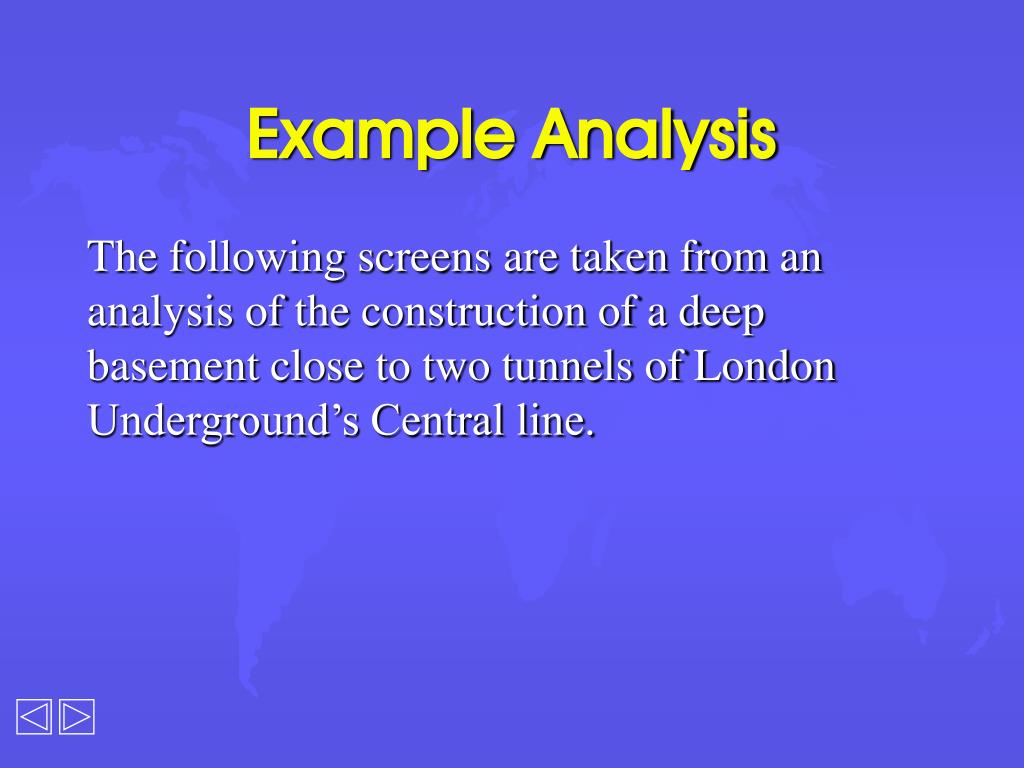

  21. Example Analysis The following screens are taken from an analysis of the construction of a deep basement close to two tunnels of London Underground’s Central line.

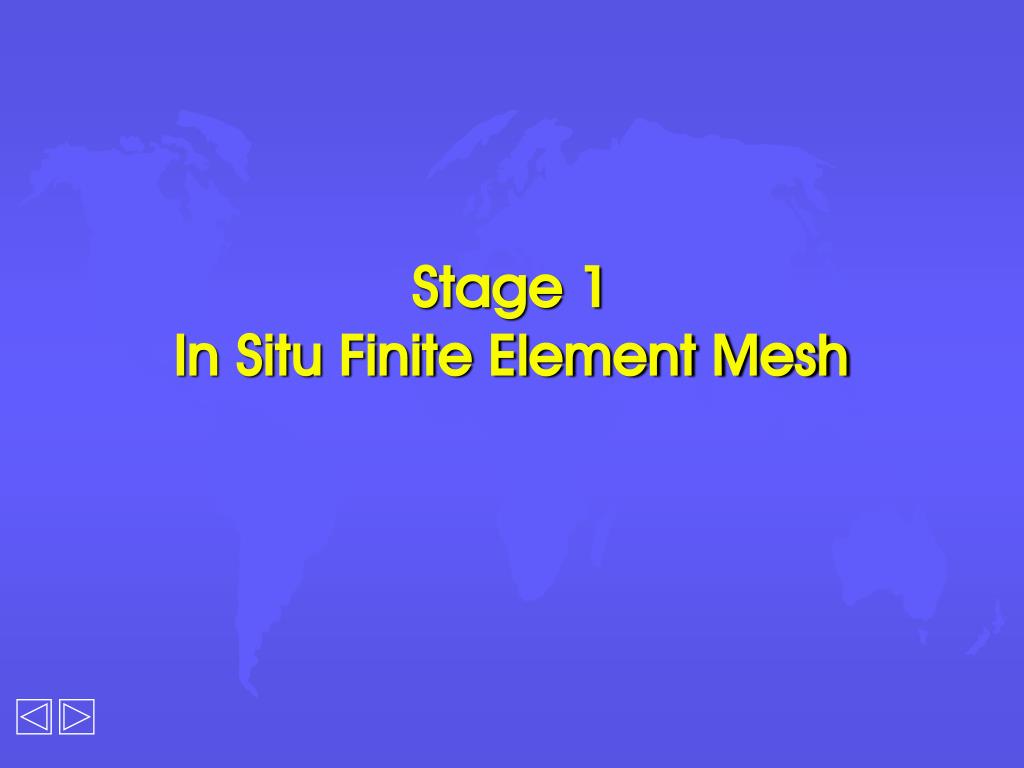

  22. Stage 1In Situ Finite Element Mesh

  23. Stage 2Install tube tunnels

  24. Stage 3 Install top slab and simulate overhead road

  25. Stage 4Excavate beneath top slab to base of second slab

  26. Stage 5Install second slab

  27. Stage 6Excavate beneath second slab to base of third slab

  28. Stage 7Install third slab

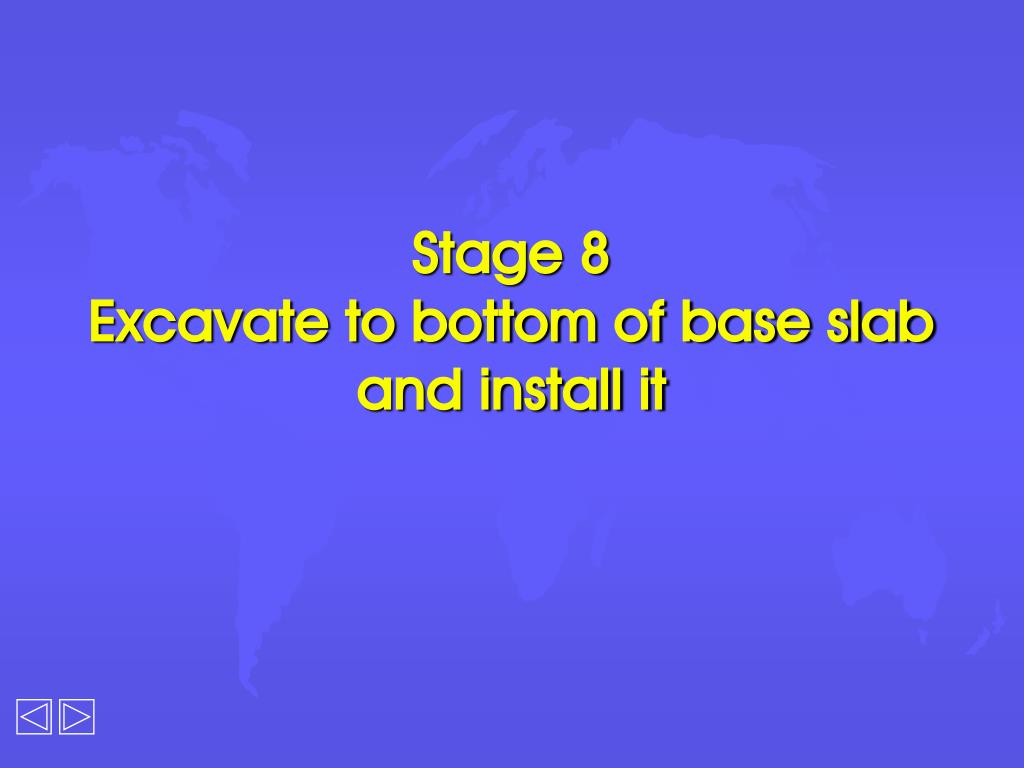

  29. Stage 8Excavate to bottom of base slab and install it

  30. Running An Analysis • The analysis can be run through the Pre-Processor, or directly by command line • Progress messages are issued whilst the analysis is running • Once complete, all analysis output is stored in Microsoft Access database file

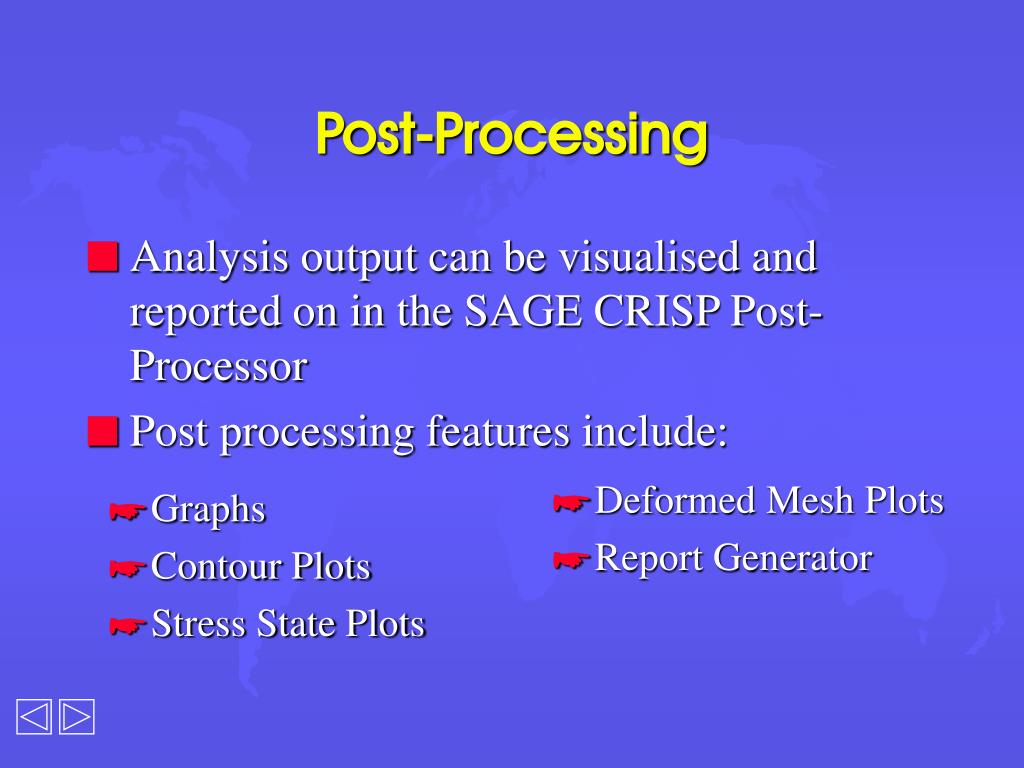

  31. Post-Processing • Analysis output can be visualised and reported on in the SAGE CRISP Post-Processor • Post processing features include: • Deformed Mesh Plots • Report Generator • Graphs • Contour Plots • Stress State Plots
