  1. SW-ARRAY: a dynamic programming solution for the identification of copy-number changes in genomic DNA using array comparative gnome hybridization data

  2. Motivation • Chromosomal changes cause genetic diseases • aneusomies • Easy to detect • Copy number changes of genes • Not so easy

  3. Array CGH • Comparative Genome Hybridization CGH to DNA microarrays • Method for detecting copy number changes • Data analyzed using thresholds • Not reliable to detect single-copy gains or losses when using large insert clones as probes • High false positives and false negatives • Inconsistent for probes of different chromosomal regions • Cannot be used for clinical diagnostic applications!

  4. Data Adjustment • Normalization and Correction • Reason: variations between probes • Control vs. control data ratio • Find mean and SD • Divide control vs. test ratios by that mean

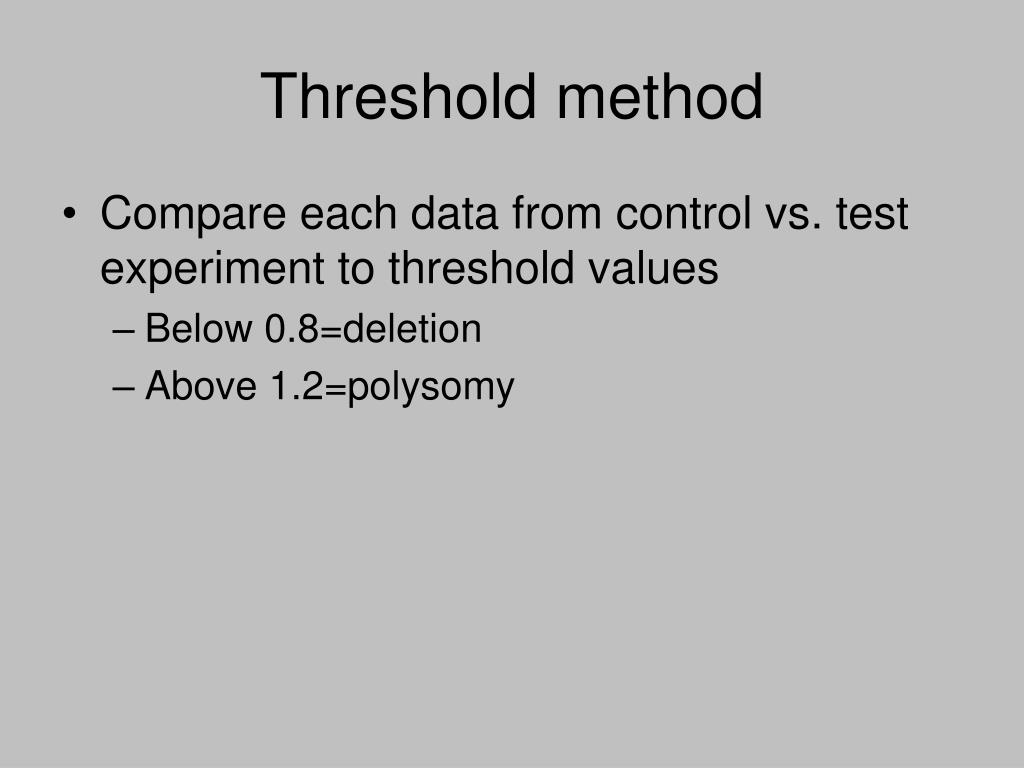

  5. Threshold method • Compare each data from control vs. test experiment to threshold values • Below 0.8=deletion • Above 1.2=polysomy

  6. SW-ARRAY • Smith-Waterman algorithm adapted for Array CGH • New way to analyze Array CGH data • Reason: • Log ratio data is contiguous one-dimensional series, where locations of high values may indicate polysomic regions, low deletions

  7. SW-ARRAY • Step 1: • Remove outlying probes • Log intensity ratio more than 2.5 MAD away from median of other probes in array • MAD=Mean Absolute Deviation • Robust measure of Standard Deviation

  8. SW-ARRAY • Step 2: • Log ratio data - t0 • Ensures that the mean of adjusted data is negative • t0=median + 0.2 x MAD

  9. SW-ARRAY • Step 3: • Search for high-scoring islands • Definition • locally high-scoring segment-a positive scoring segment whose score cannot be increased by shrinking or expanding segment boundaries

  10. SW-ARRAY T(p,q)=score of segment X(i)=score for the pth probe ordered along genome

  11. SW-ARRAY S(p)=score of island ending at p B(p)=beginning point of the island S(0)=0 P>0

  12. SW-ARRAY • Iterate through locations along gene probes • Search where scores>0 • Find max-scoring island • Record data • Set island=0 • Find next max-scoring island

  13. SW-ARRAY • Statistical Significance • In 1000 runs with permuted log ratios for each probe • find frequency of highest scoring island in each run

  14. Experiment • Test Group • DNA from subjects with well-characterized monosomies • Control groups • Data analyzed using 2 methods • Threshold • SW-ARRAY

  15. Experiment Results • Threshold Method • 78.1% correct identification of copy-number changes • SW-ARRAY • Identified 13/14 of the monosomic regions with high significance levels in the 14 blind tests

  16. Ideal Conditions for SW-ARRAY • numerious probes border region of copy number change • long sequences for which edge effects are minimized

  17. Output
