RES 131

1. RES 131 Pulmonary Function Testing

2. Spirometric Technique • Patient preparation • Begins when the patient is scheduled • Medication discontinuation • Smoking abstinence • Purpose of test • Determine contraindications • Height and weight

3. Spirometric Technique • Explaining and Demonstrating the maneuver • Demonstrate the noseclip and mouthpiece • help the patient get accustomed to the mouthpiece and noseclip • Lip seal

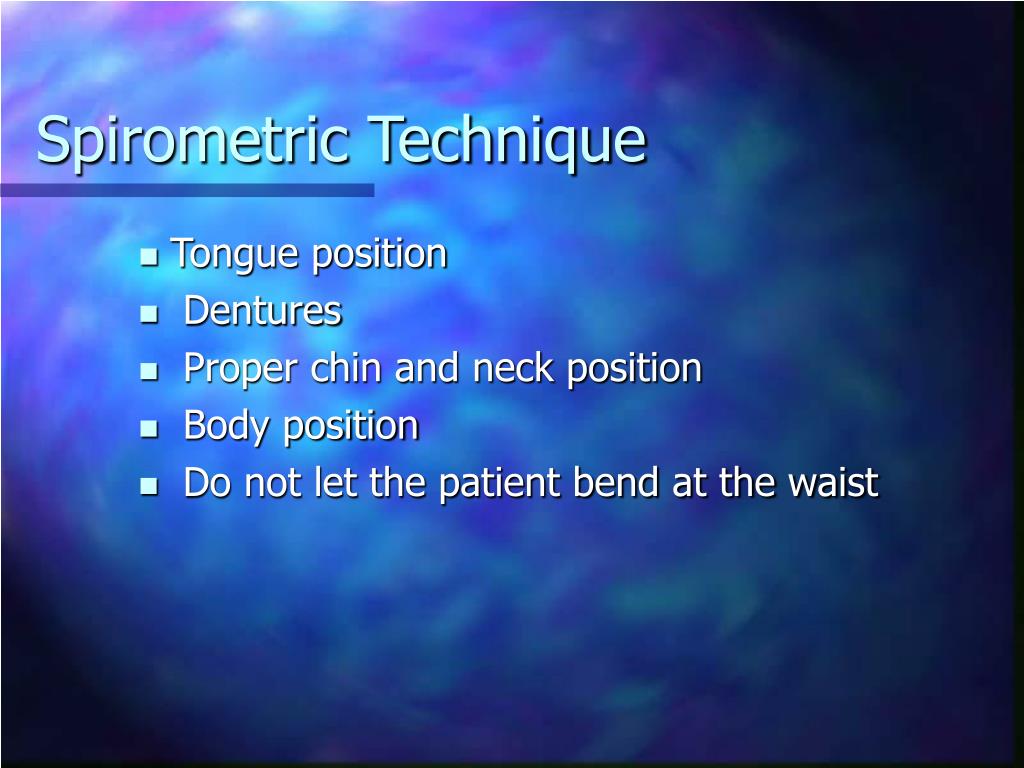

4. Spirometric Technique • Tongue position • Dentures • Proper chin and neck position • Body position • Do not let the patient bend at the waist

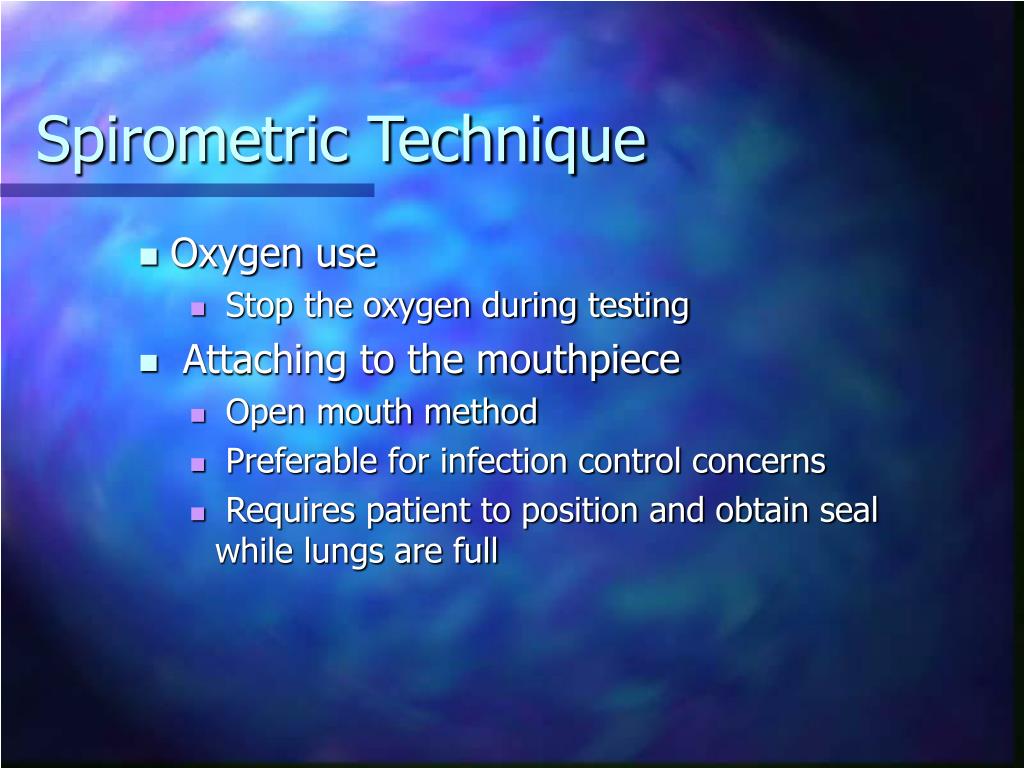

5. Spirometric Technique • Oxygen use • Stop the oxygen during testing • Attaching to the mouthpiece • Open mouth method • Preferable for infection control concerns • Requires patient to position and obtain seal while lungs are full

6. Spirometric Techniques • Closed mouth method • Patient rebreathes on circuit • Allows for assessment of inspiratory flows • Often easier for the patient • Instructions • Give clear concise instructions • Demonstrate the maneuver

7. Spirometric Techniques • Summary of Important points for Procedure Explanation • Keep the explanation simple and brief • Demonstrate the maneuver • Remind the patient of key points

8. Patient Testing • Measurable results • Volumes • Capacities • Flowrates

9. Volumes vs Capacities

10. Flowrates

11. Patient Testing • Vital Capacity

12. Vital capacity

13. Vital Capacity • Figure 2-1 (pg 40)

14. Criteria for acceptability – VC • End-expiratory volume varies by less than 100 ml for three attempts • Volume plateau observed at maximal inspiration and expiration • Two acceptable VC maneuvers should be obtained; volumes within 200 ml • VS should be within 200 ml of FVC value

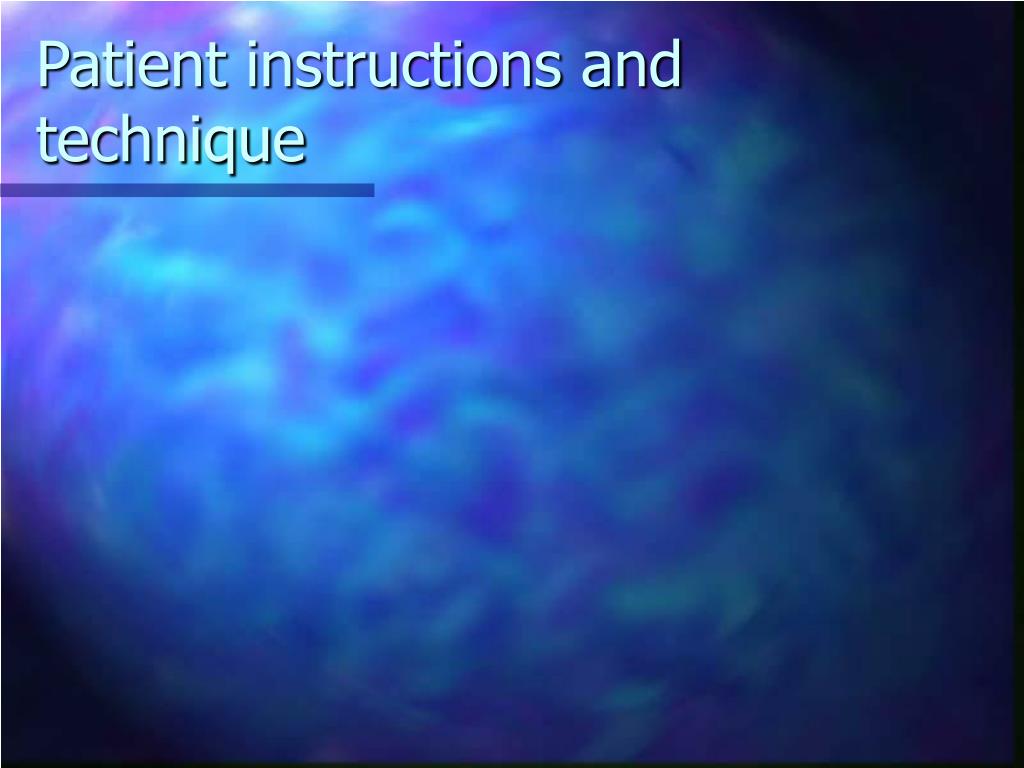

15. Patient instructions and technique

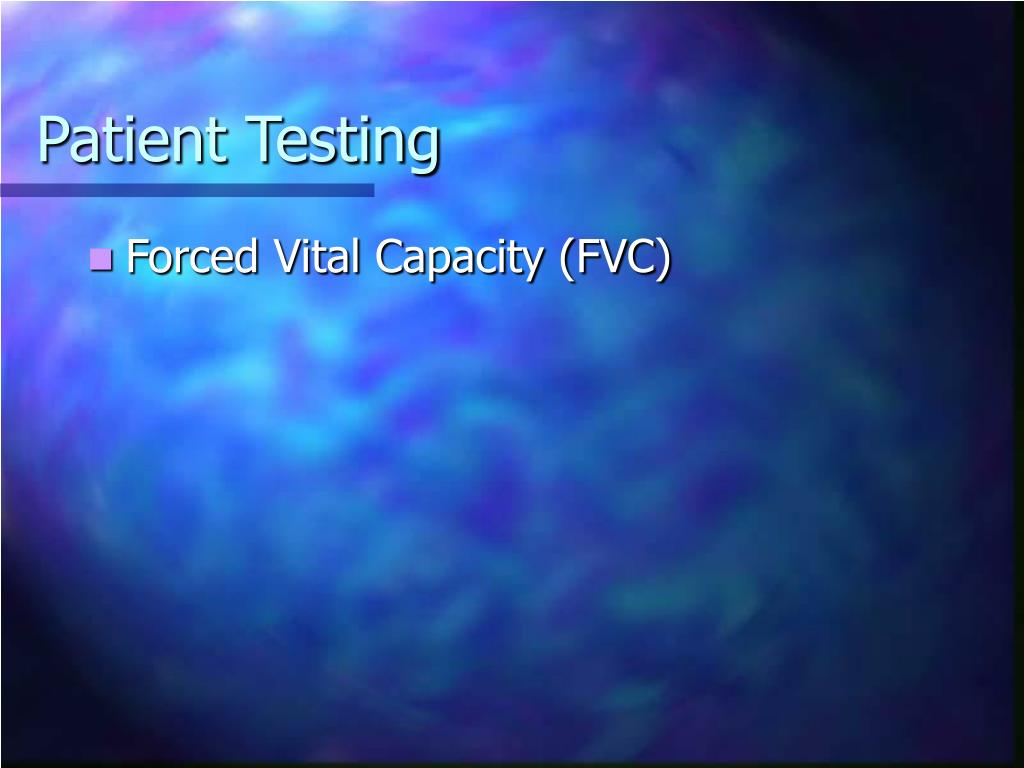

16. Patient Testing • Forced Vital Capacity (FVC)

17. Forced Vital Capacity Measurable values

18. Forced Vital Capacity • Patient inhales as deeply as possible and then blows out as hard and fast as possible.

19. Patient Testing • Criteria for Acceptability • Must have a minimum of three (3) acceptable maneuvers • Allow the patient sufficient time to rest between trials • Coach the patient • Administer oxygen between trials if needed • No more than eight trials

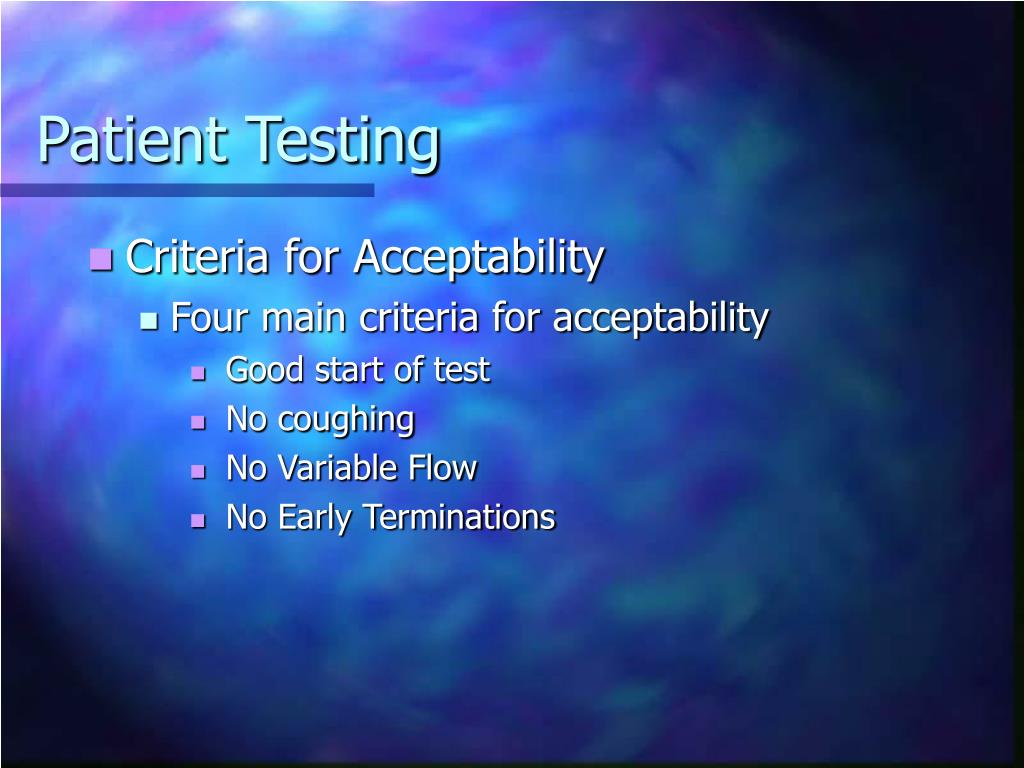

20. Patient Testing • Criteria for Acceptability • Four main criteria for acceptability • Good start of test • No coughing • No Variable Flow • No Early Terminations

21. Patient Testing • Criteria for Acceptability • Good Start of Test • Start of test must be quick and forceful • No excessive hesitation • Best evaluated using the Flow-Volume tracing • No excessive back extrapolated volume

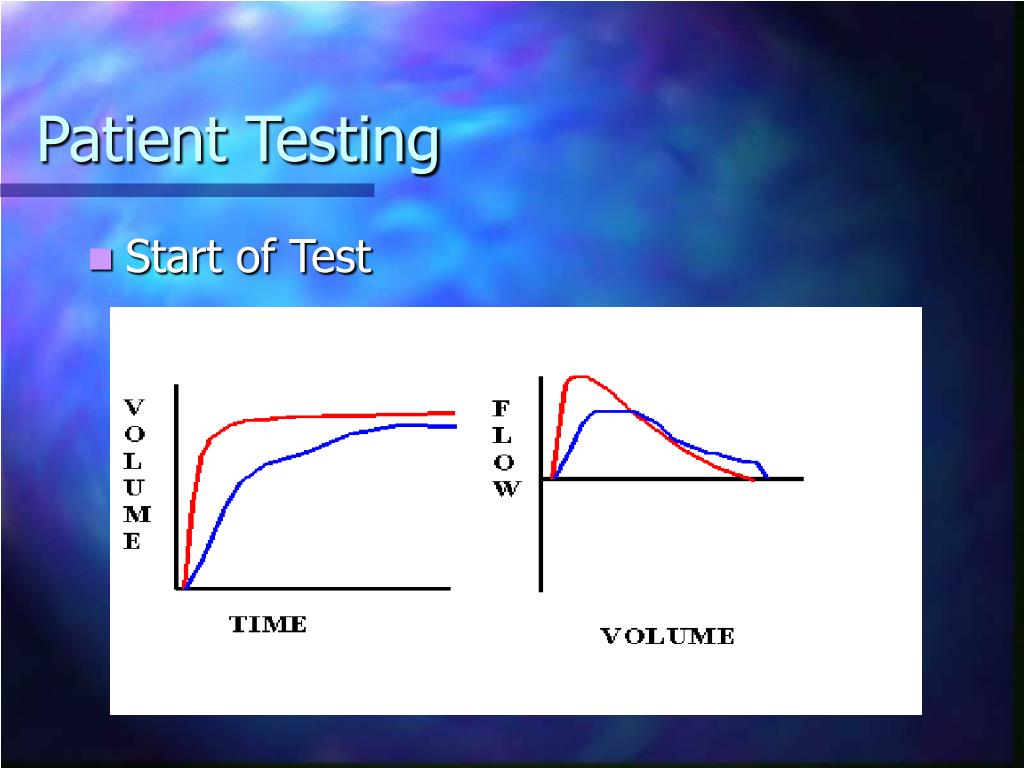

22. Patient Testing • Start of Test

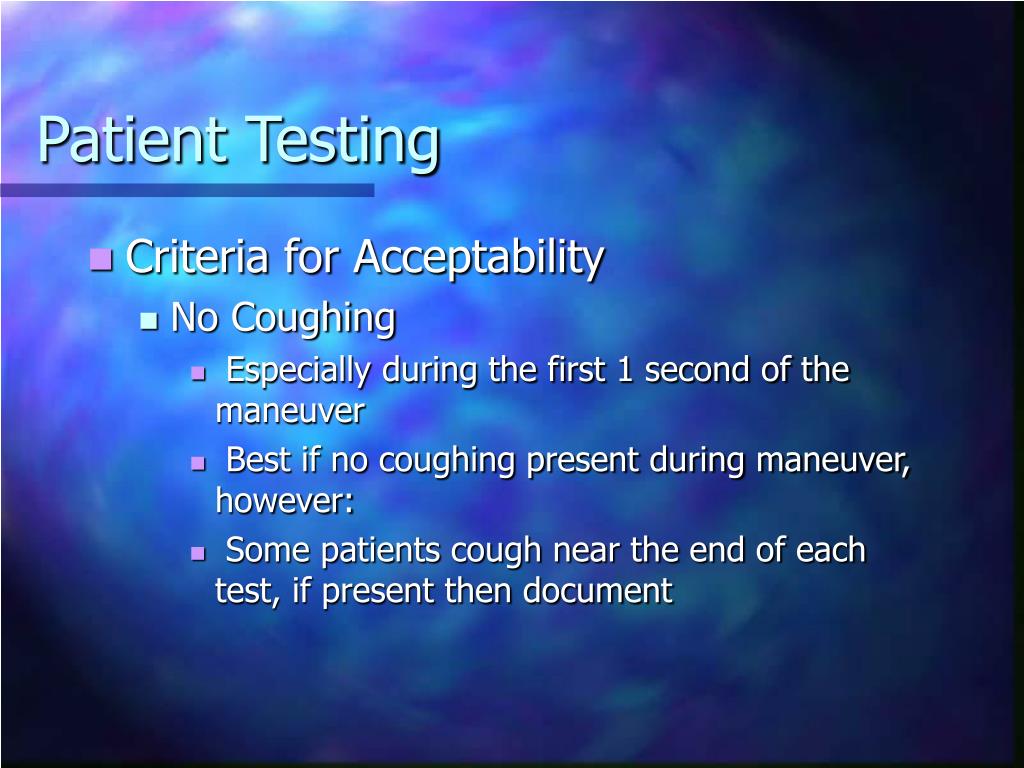

23. Patient Testing • Criteria for Acceptability • No Coughing • Especially during the first 1 second of the maneuver • Best if no coughing present during maneuver, however: • Some patients cough near the end of each test, if present then document

24. Patient Testing • Criteria for Acceptability • No Variable Flow • Flow rate should be maximal and consistent throughout testing • Volume-Time and Flow-Volume tracings should be smooth

25. Patient Testing • Criteria for Acceptability • No Early Termination of Effort • Best if maneuver lasts at least six (6) seconds • Less than six seconds acceptable if a plateau of al least one (1) second is present • If patient is unable to meet the above criteria, document in comment section

26. Patient Testing • Reproducibility • In addition to the criteria for acceptability discussed previously, the maneuvers must demonstrate reproducibility (consistency) of efforts.

27. Reproducibility • After three acceptable maneuvers are obtained • End Expiratory Volume varies by less than 100 ml for three attempts • Volume plateau observed at maximal inspiration and expiration • Two largest FVC Maneuvers should agree within 200 ml • VC should be within 100 ml of FVC
