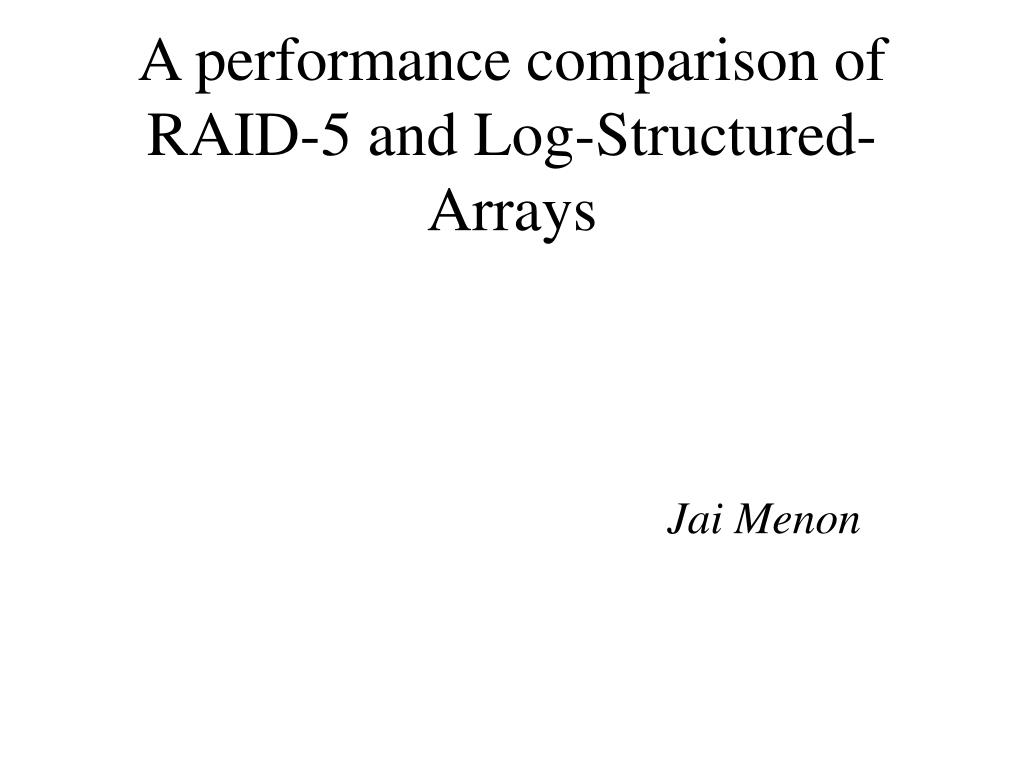

  1. A performance comparison of RAID-5 and Log-Structured-Arrays Jai Menon

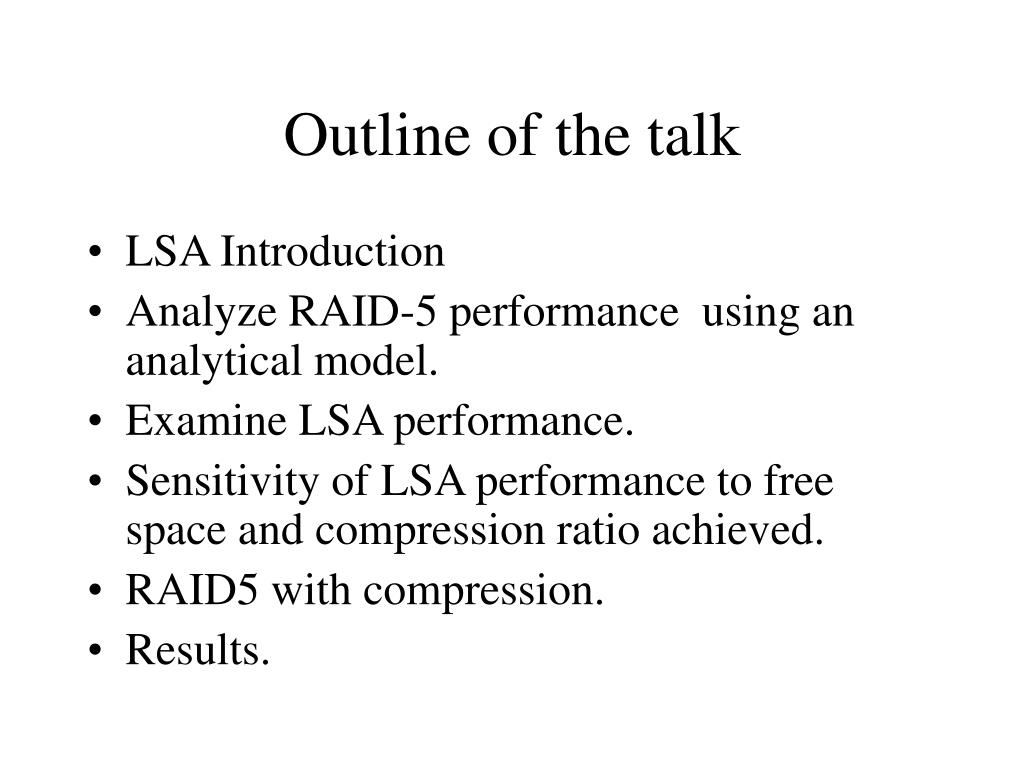

  2. Outline of the talk • LSA Introduction • Analyze RAID-5 performance using an analytical model. • Examine LSA performance. • Sensitivity of LSA performance to free space and compression ratio achieved. • RAID5 with compression. • Results.

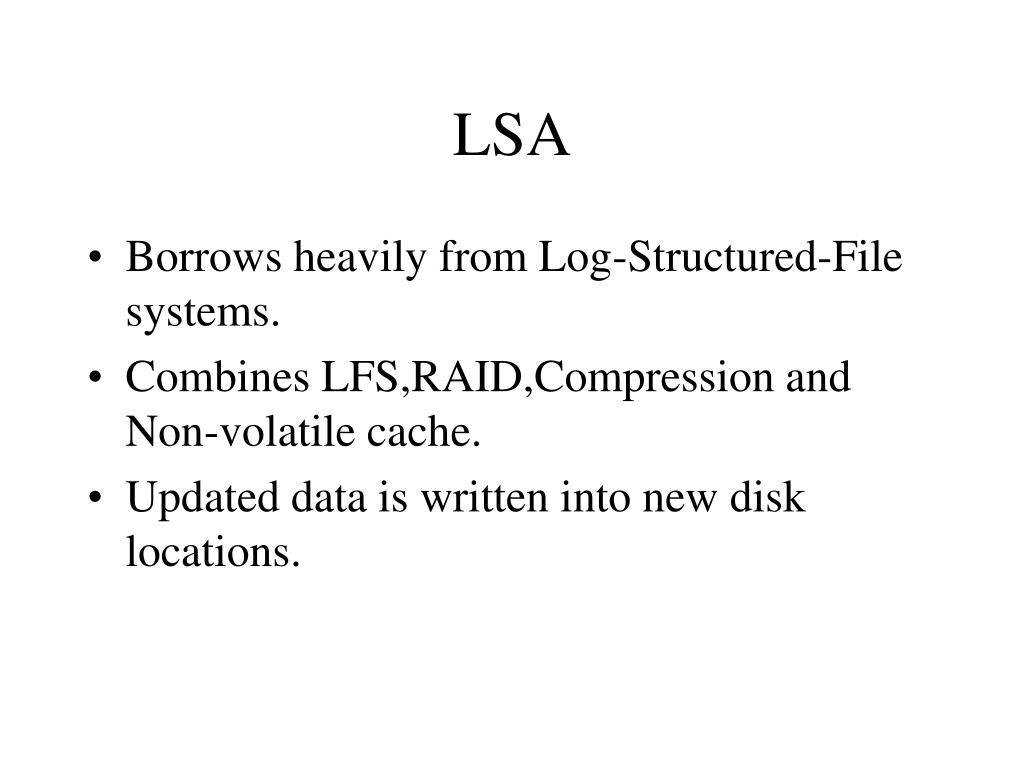

  3. LSA • Borrows heavily from Log-Structured-File systems. • Combines LFS,RAID,Compression and Non-volatile cache. • Updated data is written into new disk locations.

  4. Raid-5 performance analysis • RAID-5 controller built in from Non-Volatile-Storage(NVS). • N+1 disks (N data+1 parity). • Fast write. • Dirty disk blocks. • Clean disk blocks. • Dirty blocks are written to disk using destaging. • NVS contains only data blocks.(not parity)

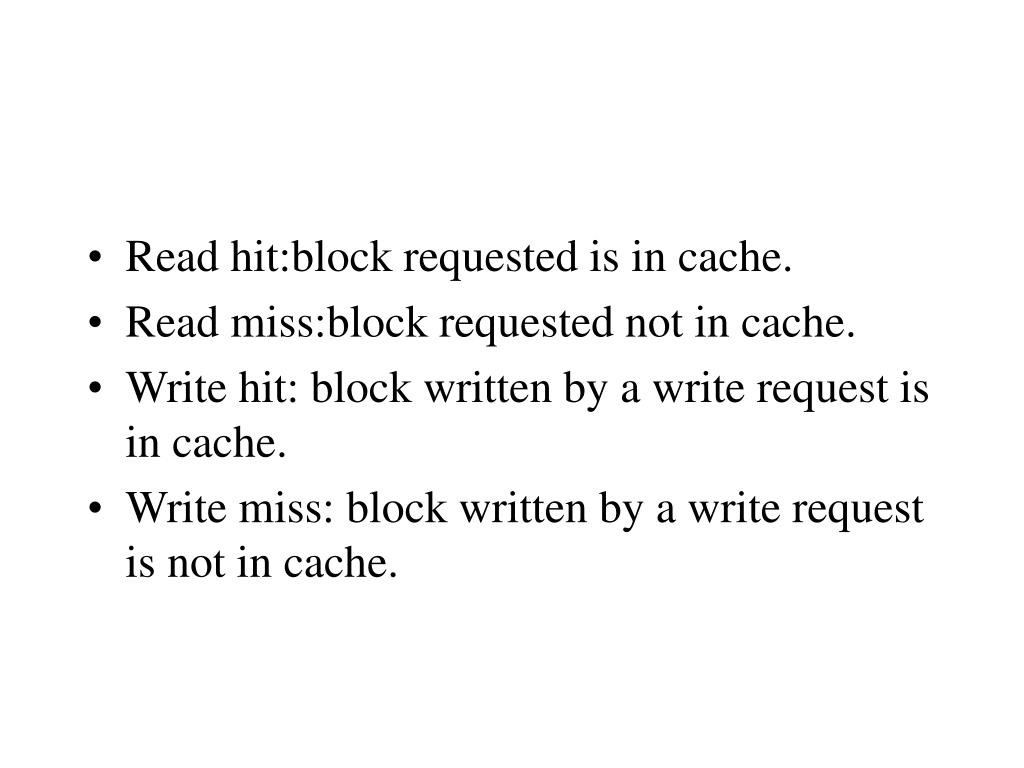

  5. Read hit:block requested is in cache. • Read miss:block requested not in cache. • Write hit: block written by a write request is in cache. • Write miss: block written by a write request is not in cache.

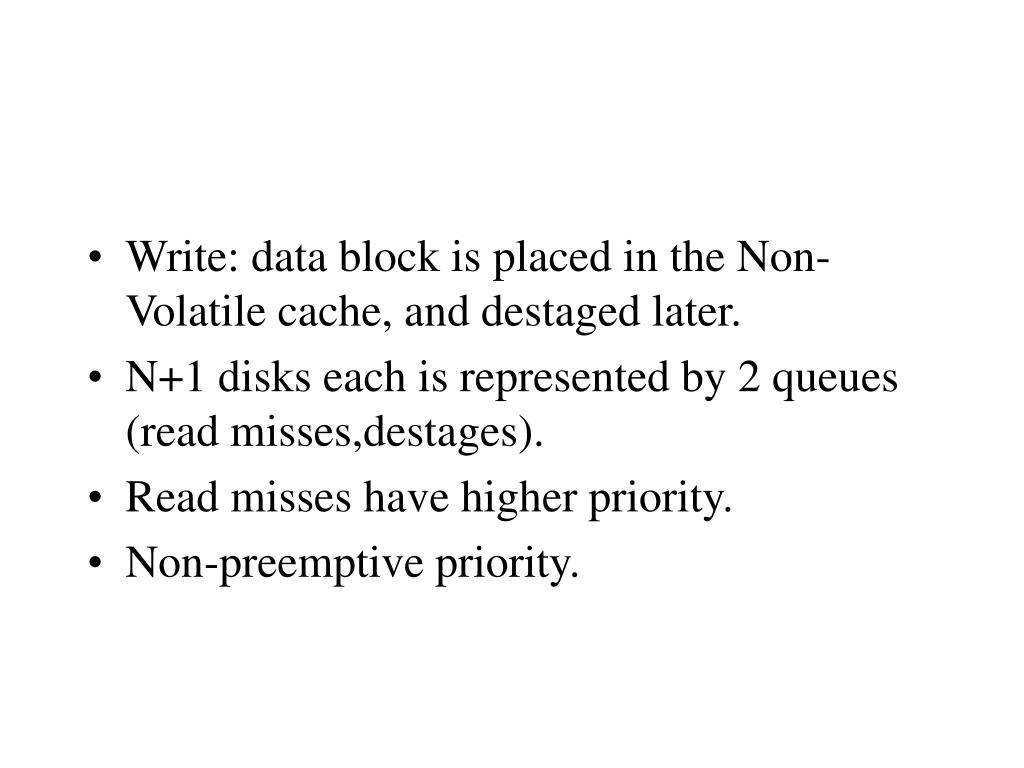

  6. Write: data block is placed in the Non-Volatile cache, and destaged later. • N+1 disks each is represented by 2 queues (read misses,destages). • Read misses have higher priority. • Non-preemptive priority.

  7. r. h., w. h., w. m. satisfied directly by cache. • R. m. pass through the system then enter the read miss queue. • A destage is 3 or 4 disk operations.

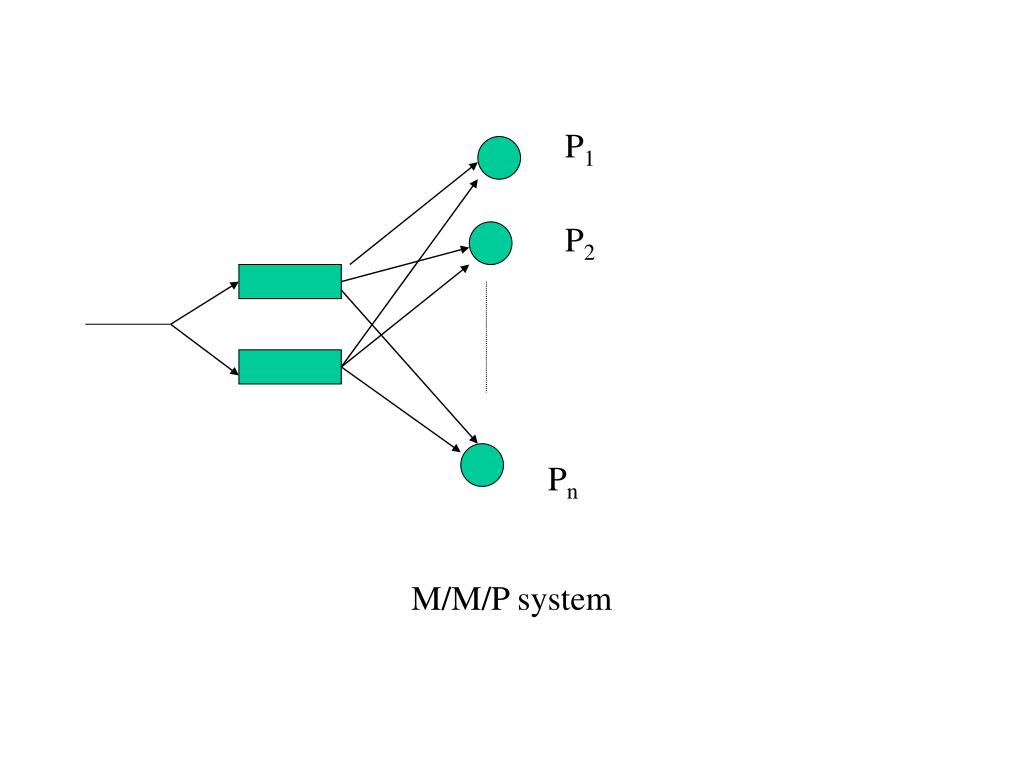

  8. P1 P2 Pn M/M/P system

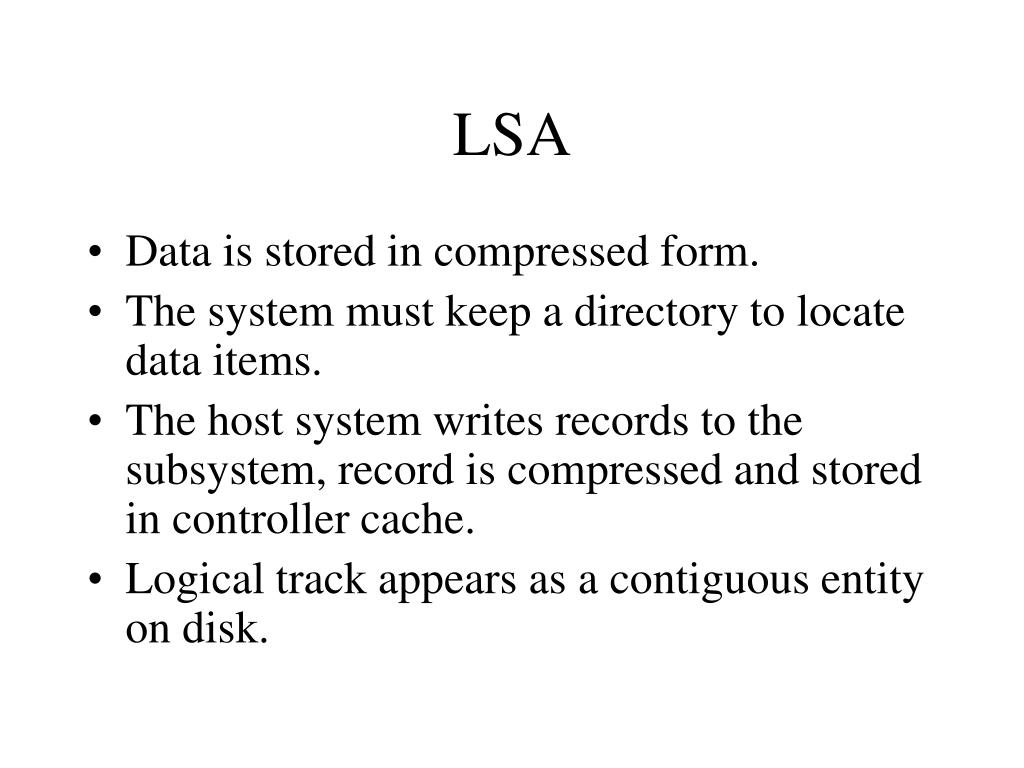

  9. LSA • Data is stored in compressed form. • The system must keep a directory to locate data items. • The host system writes records to the subsystem, record is compressed and stored in controller cache. • Logical track appears as a contiguous entity on disk.

  10. LSA • N+1 disks. Each is divided into segment columns. • A segment is the corresponding segment- columns from n+1 disks. • One segment-column contains the parity of the remaining segment-columns. • Parity segment columns are rotated among disks. • Logical devices are mapped and stored in the LSA.

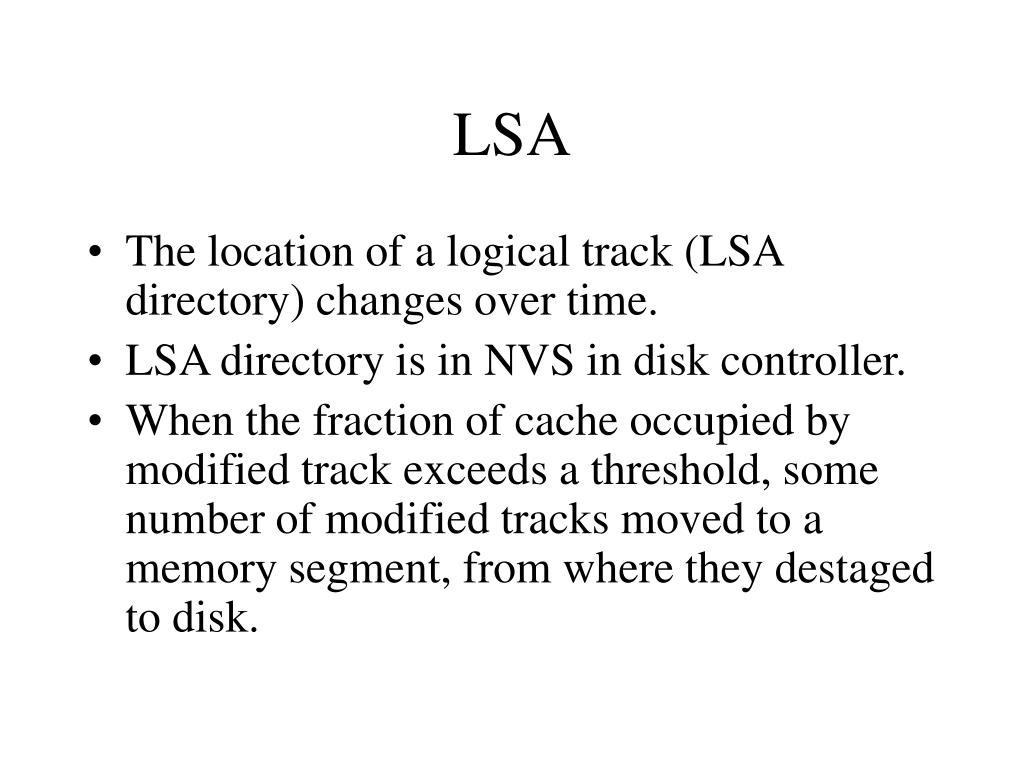

  11. LSA • The location of a logical track (LSA directory) changes over time. • LSA directory is in NVS in disk controller. • When the fraction of cache occupied by modified track exceeds a threshold, some number of modified tracks moved to a memory segment, from where they destaged to disk.

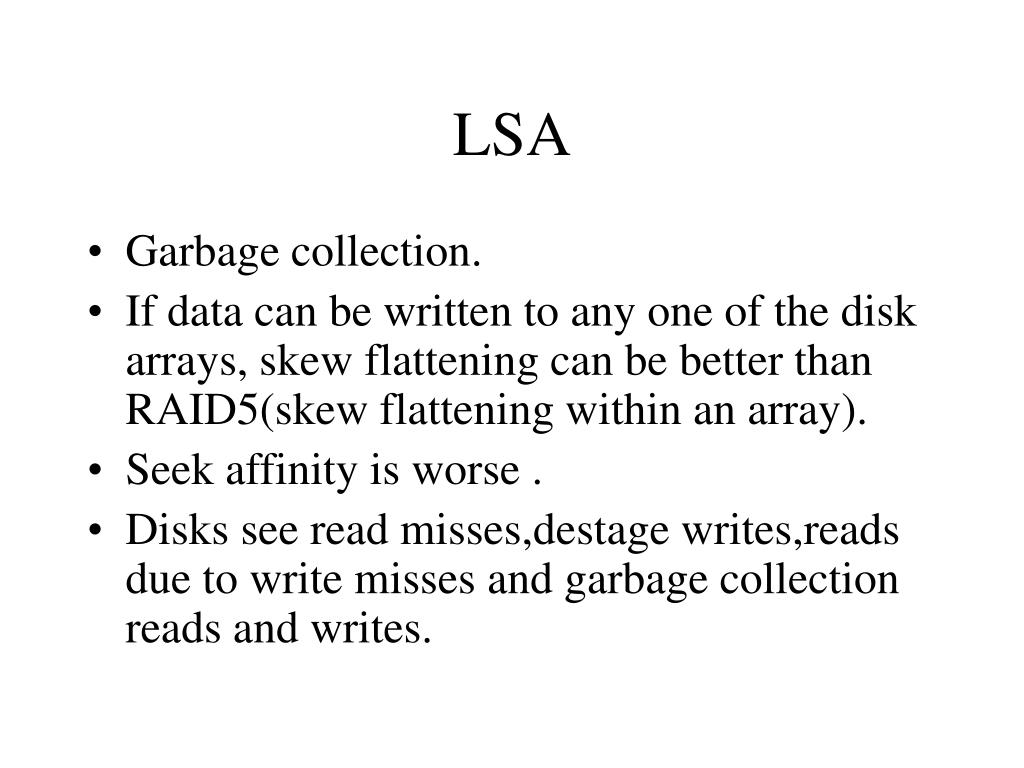

  12. LSA • Garbage collection. • If data can be written to any one of the disk arrays, skew flattening can be better than RAID5(skew flattening within an array). • Seek affinity is worse . • Disks see read misses,destage writes,reads due to write misses and garbage collection reads and writes.

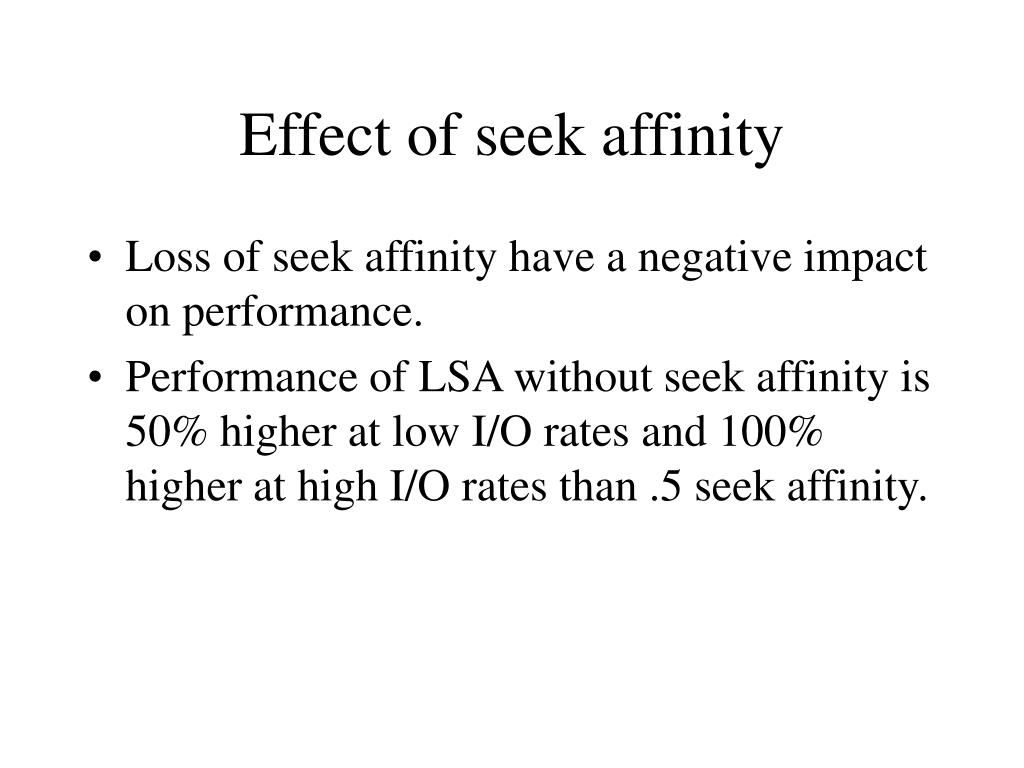

  13. Effect of seek affinity • Loss of seek affinity have a negative impact on performance. • Performance of LSA without seek affinity is 50% higher at low I/O rates and 100% higher at high I/O rates than .5 seek affinity.

  14. Effect of Free Space • More free space implies lower average segment occupancy and hence lower garbage collection rate. • If space allocated is 0.9 then garbage collection is responsible for 30% of the device utilization. • If it is 0.7 then garbage collection takes 10%. The device can handle 25% more I/Os. • Preferable 0.8 occupancy or less.

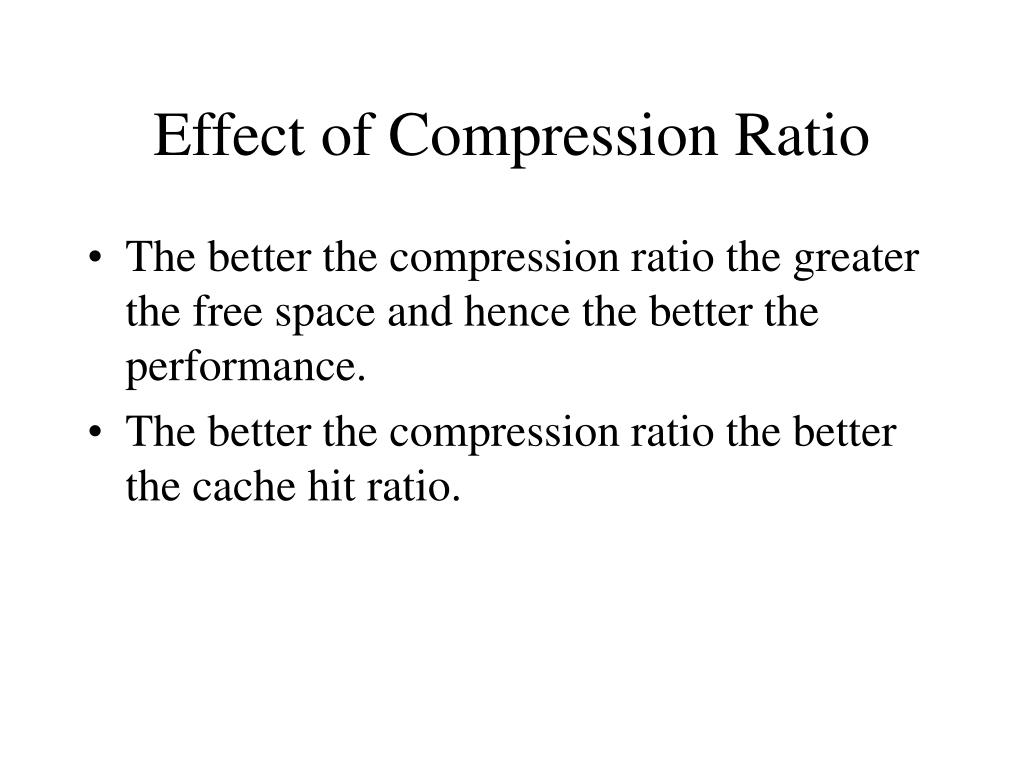

  15. Effect of Compression Ratio • The better the compression ratio the greater the free space and hence the better the performance. • The better the compression ratio the better the cache hit ratio.

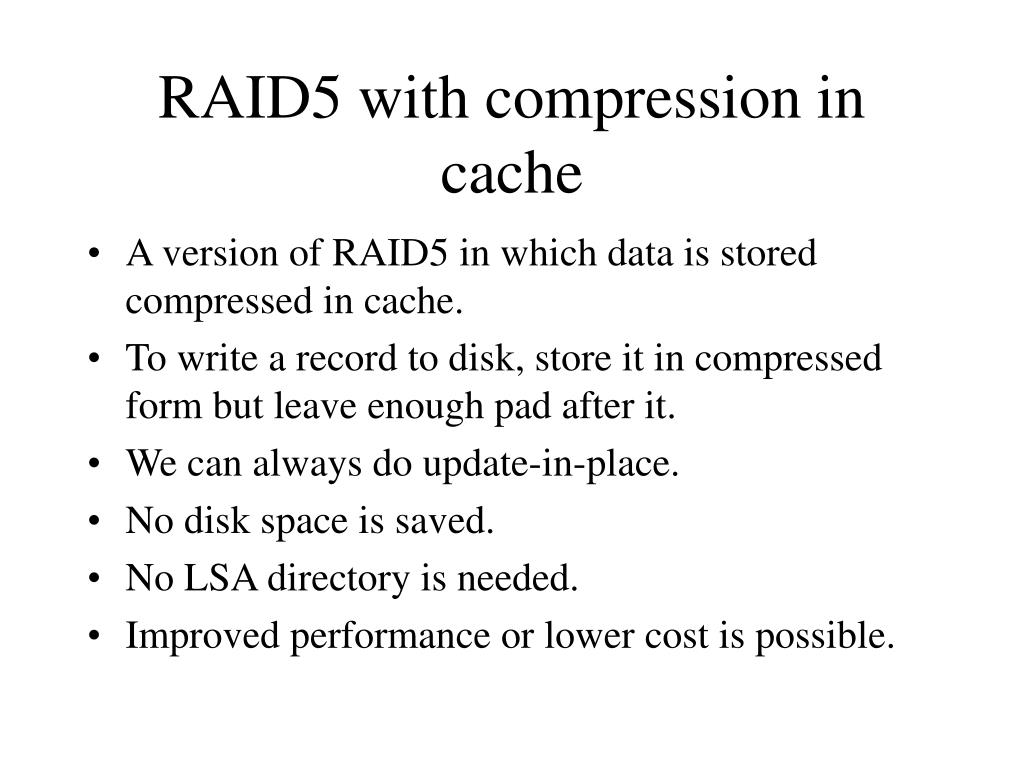

  16. RAID5 with compression in cache • A version of RAID5 in which data is stored compressed in cache. • To write a record to disk, store it in compressed form but leave enough pad after it. • We can always do update-in-place. • No disk space is saved. • No LSA directory is needed. • Improved performance or lower cost is possible.

  17. Assumptions • Storing of old data in RAID5 and LSA directory takes 17% of the cache. • Systems with compressed cache have larger cache. • RAID5 has flat skew within an array and some skew between arrays.LSA has no skew. • Only LSA gets better transfer times. • RAID5 has better seek affinity.

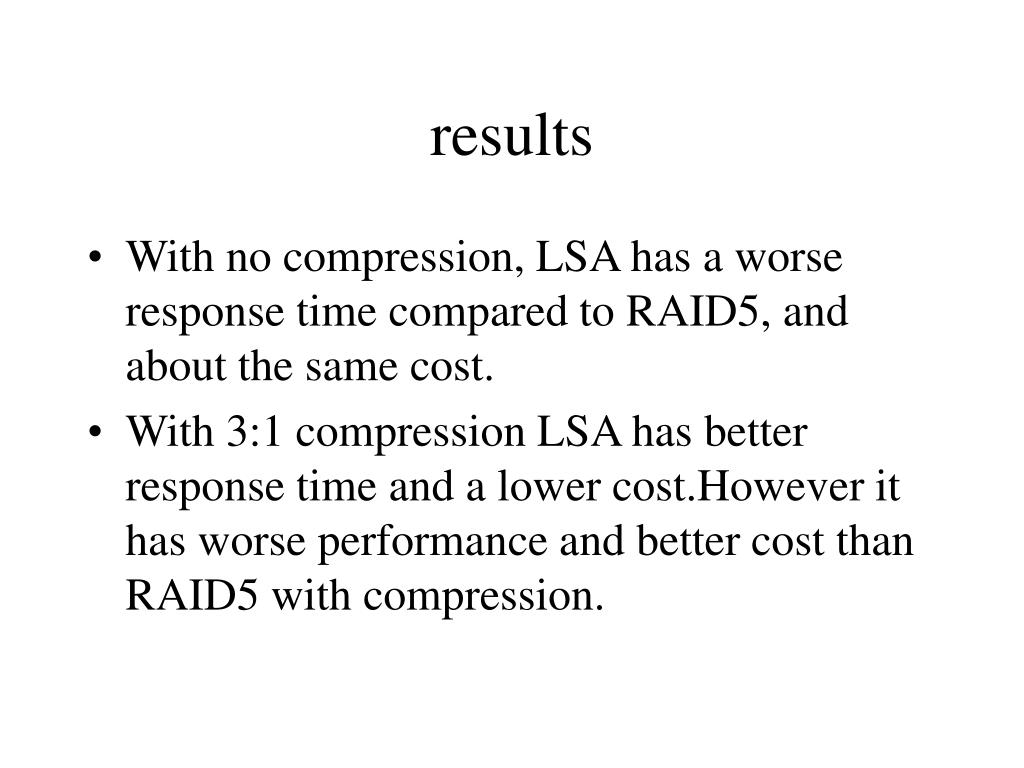

  18. results • With no compression, LSA has a worse response time compared to RAID5, and about the same cost. • With 3:1 compression LSA has better response time and a lower cost.However it has worse performance and better cost than RAID5 with compression.

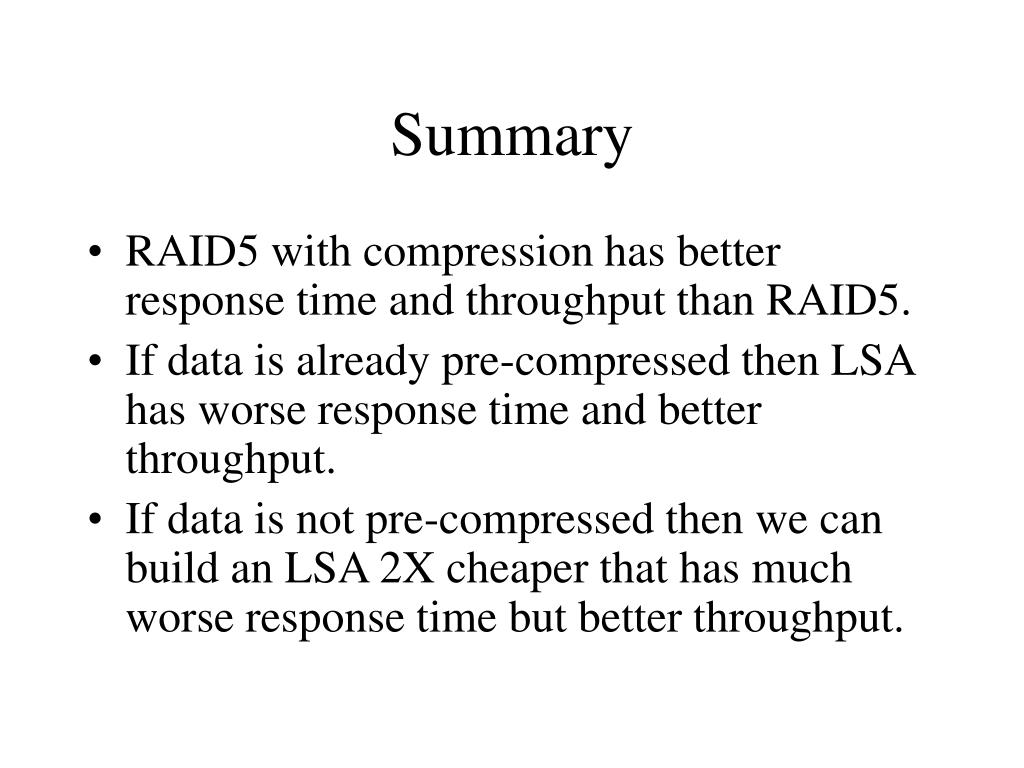

  19. Summary • RAID5 with compression has better response time and throughput than RAID5. • If data is already pre-compressed then LSA has worse response time and better throughput. • If data is not pre-compressed then we can build an LSA 2X cheaper that has much worse response time but better throughput.

  20. Comparison on a workload with flat skew • With no data compression LSA and RAID5 have the same response time and almost the same throughput. • With 3:1 compression, LSA has slightly worse response time and better throughput than RAID5 with compression. • RAID5 with compression has better performance.

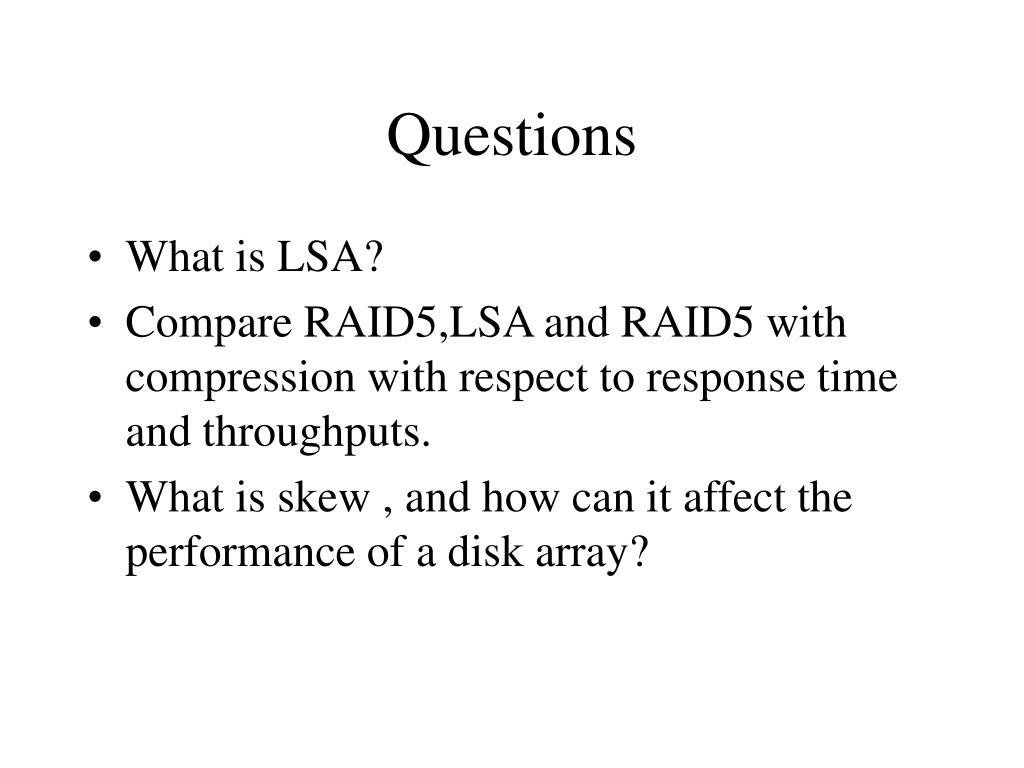

  21. Questions • What is LSA? • Compare RAID5,LSA and RAID5 with compression with respect to response time and throughputs. • What is skew , and how can it affect the performance of a disk array?
