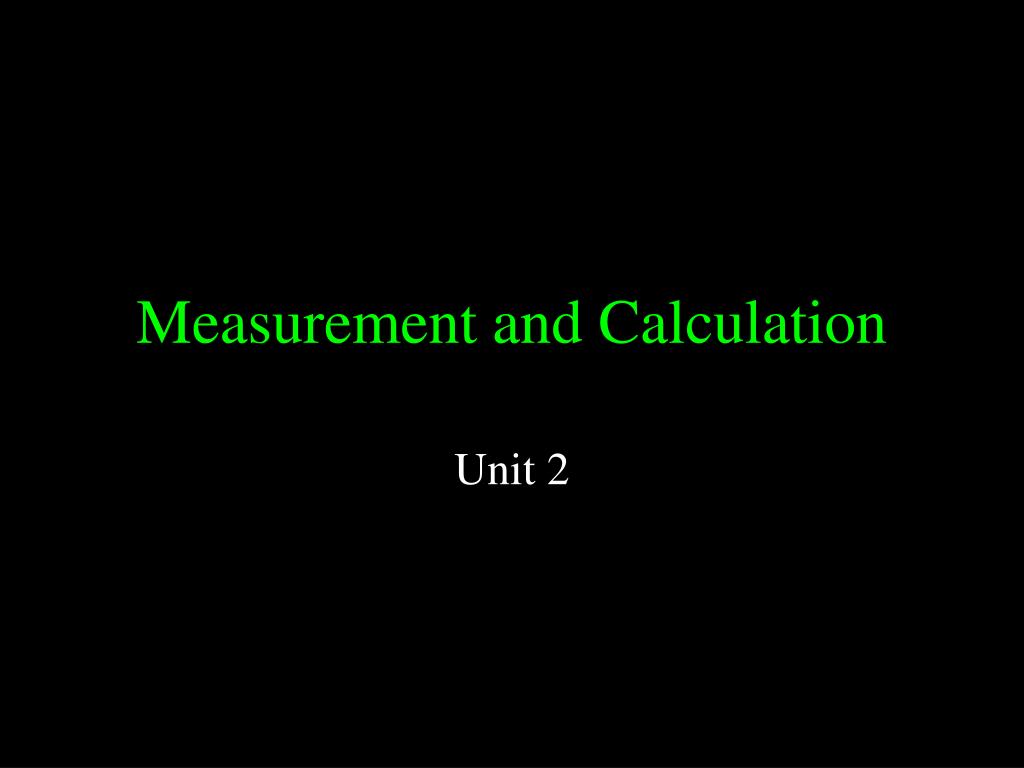

  1. Measurement and Calculation Unit 2

  2. The Fundamental SI Units(le Système International, SI) Physical QuantityNameAbbreviation Mass kilogram kg Length meter m s Time second Temperature Kelvin K Electric Current Ampere A Amount of Substance mole mol Luminous Intensity candela cd

  3. SI Units

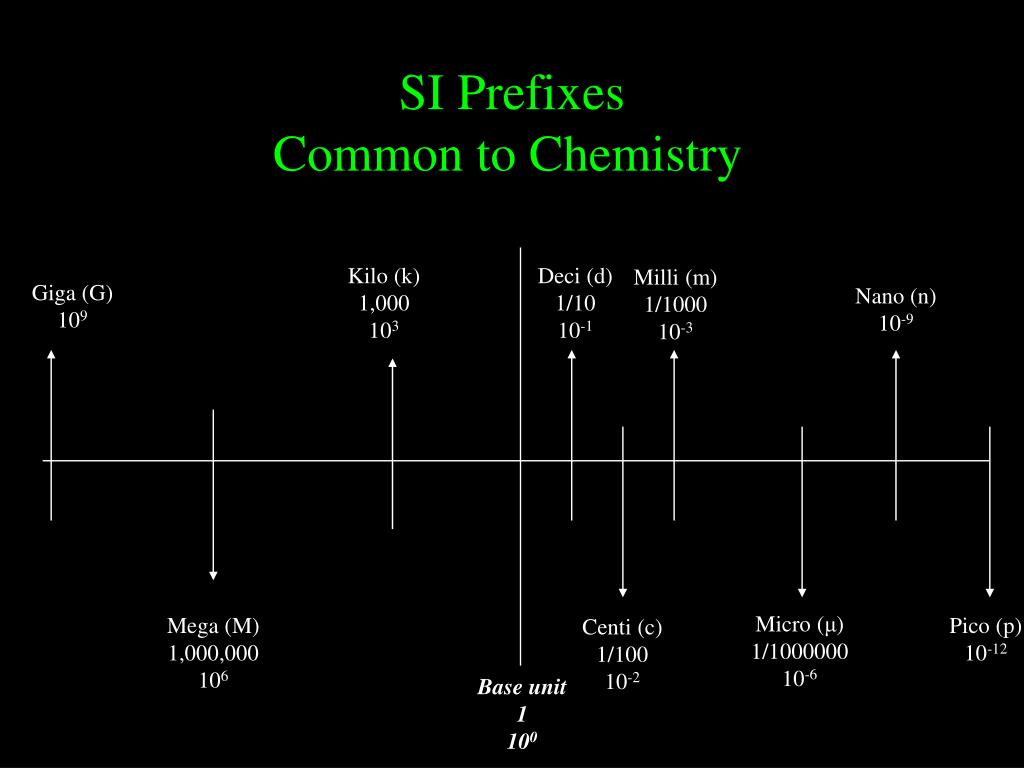

  4. SI PrefixesCommon to Chemistry Kilo (k) 1,000 103 Deci (d) 1/10 10-1 Milli (m) 1/1000 10-3 Giga (G) 109 Nano (n) 10-9 Micro (μ) 1/1000000 10-6 Mega (M) 1,000,000 106 Pico (p) 10-12 Centi (c) 1/100 10-2 Base unit 1 100

  5. Dimensional Analysis • A simple mathematical approach to converting between units. • Involves conversion factors (fractions). • Follows simple math functions (x/÷) • We can use conversion factors for metric conversions as well as other conversions. • Dim. analysis can be used to convert from 1 unit to another. • One step or several steps. • Each conversion factor represents a math function – treat it as such.

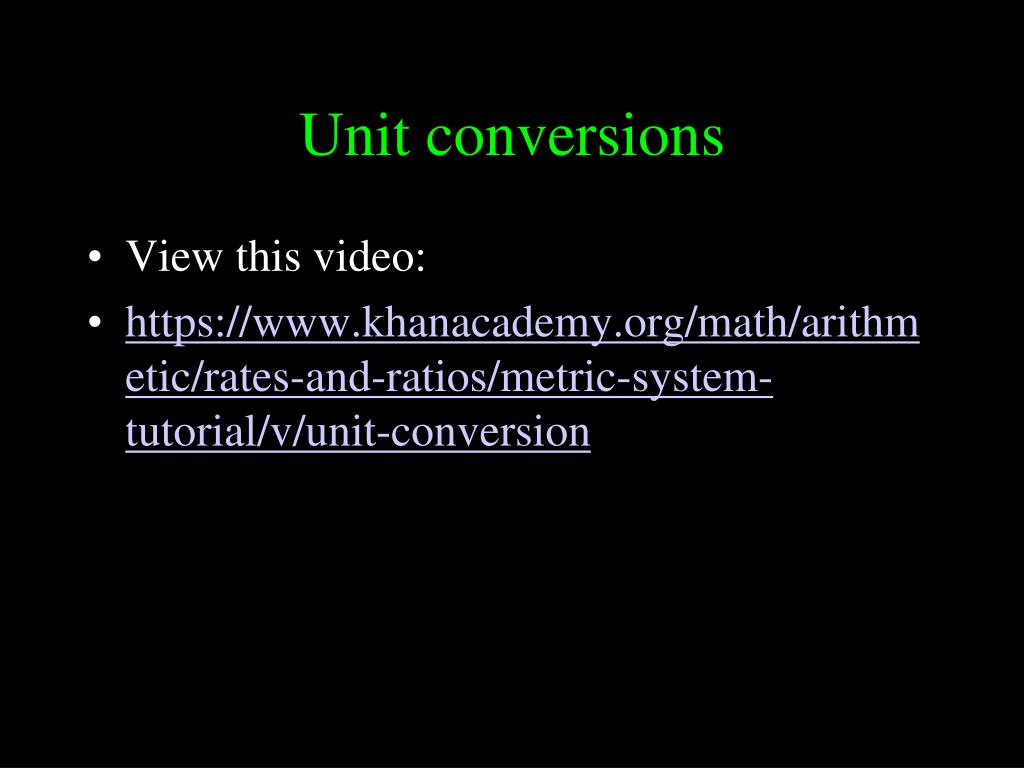

  6. Unit conversions • View this video: • https://www.khanacademy.org/math/arithmetic/rates-and-ratios/metric-system-tutorial/v/unit-conversion

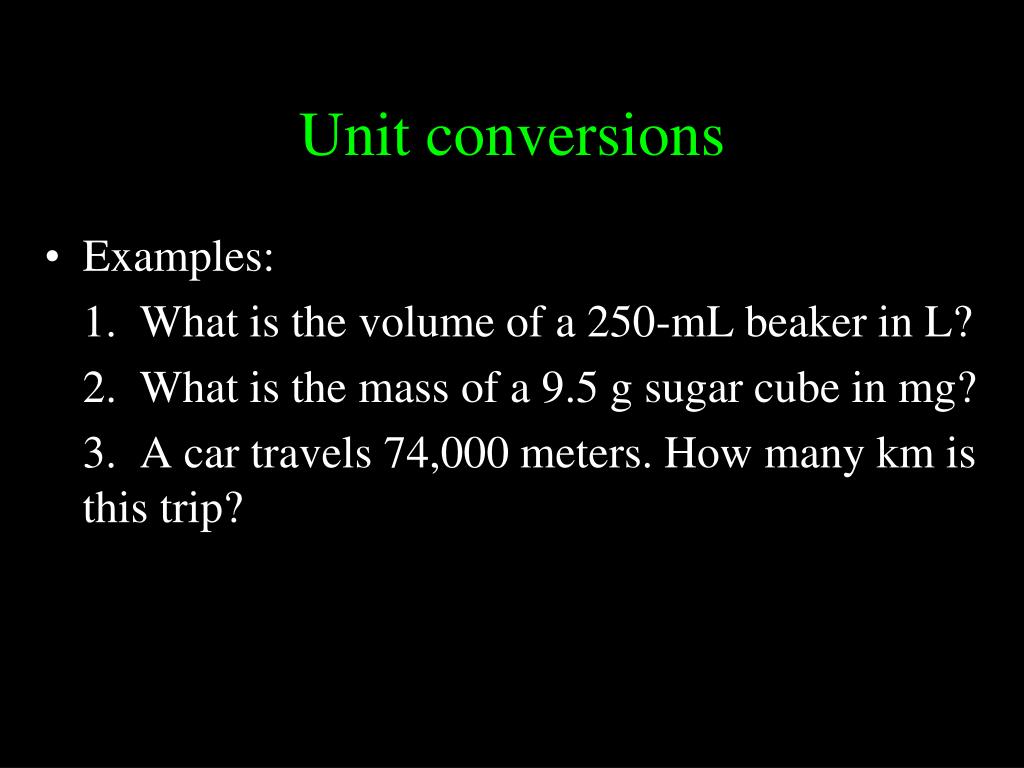

  7. Unit conversions • Examples: 1. What is the volume of a 250-mL beaker in L? 2. What is the mass of a 9.5 g sugar cube in mg? 3. A car travels 74,000 meters. How many km is this trip?

  8. Accuracy vs. Precision • Accuracy refers to how close a measurement is to the true or actual value. • Precision refers to how close a series of measurements are to one another.

  9. Accuracy vs. Precision Are the following pictures illustrating accuracy, precision, neither, or both?

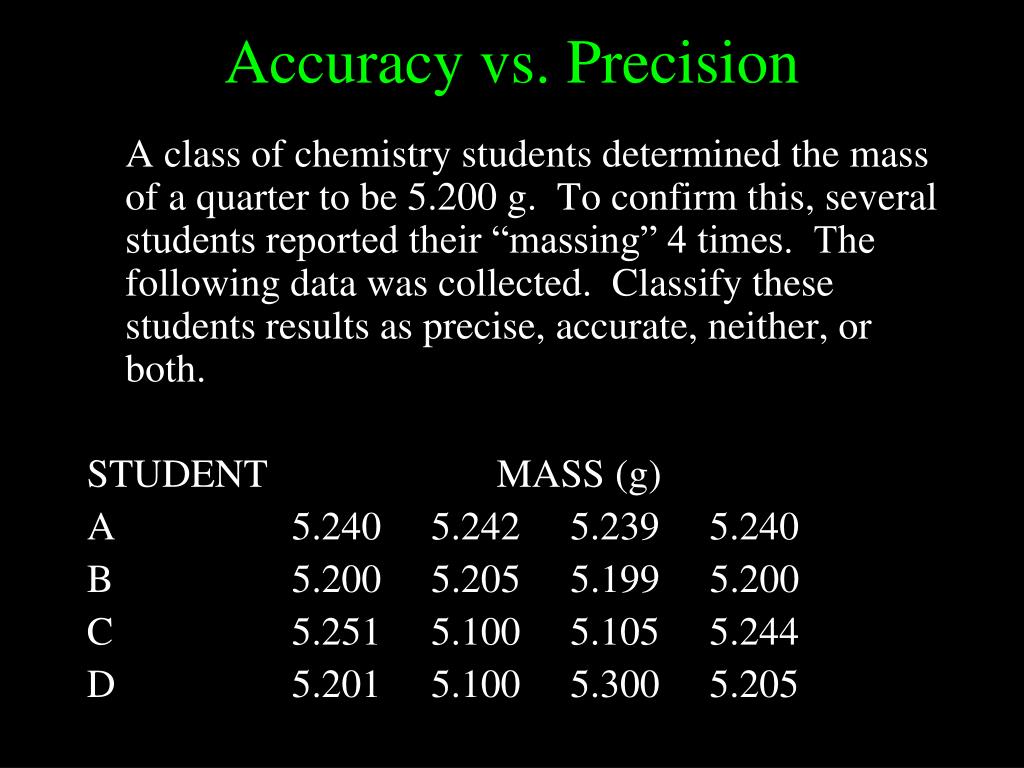

  10. Accuracy vs. Precision A class of chemistry students determined the mass of a quarter to be 5.200 g. To confirm this, several students reported their “massing” 4 times. The following data was collected. Classify these students results as precise, accurate, neither, or both. STUDENT MASS (g) A 5.240 5.242 5.239 5.240 B 5.200 5.205 5.199 5.200 C 5.251 5.100 5.105 5.244 D 5.201 5.100 5.300 5.205

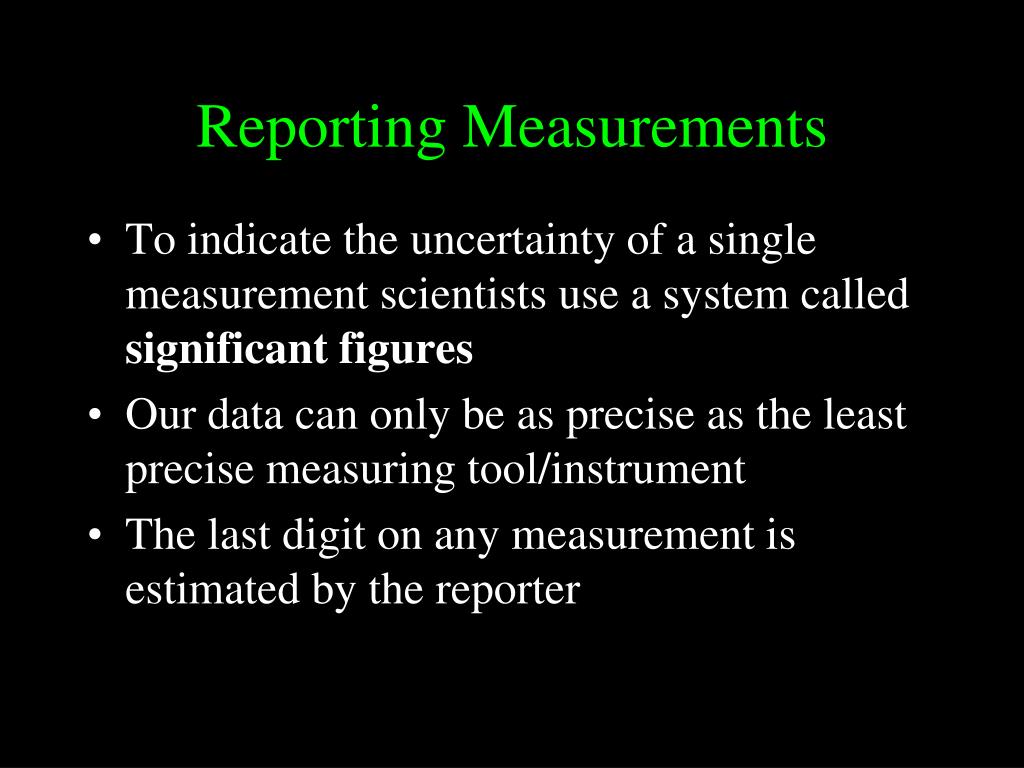

  11. Reporting Measurements • To indicate the uncertainty of a single measurement scientists use a system called significant figures • Our data can only be as precise as the least precise measuring tool/instrument • The last digit on any measurement is estimated by the reporter

  12. How HOT are you?? • Heat (energy) cannot be measured directly. • We can measure heat transfer by change in temperature. • We define temperature as the average kinetic energy of a system. • movement within a substance • Measure temperature with a thermometer.

  13. Temperature Scales • Fahrenheit Scale, °F • Relative scale • Celsius Scale, °C • Relative scale • Water’s freezing point = 0°C, boiling point = 100°C • Kelvin Scale, K • Absolute scale • Water’s freezing point = 273 K, boiling point = 373 K • oC = K - 273 K = oC + 273

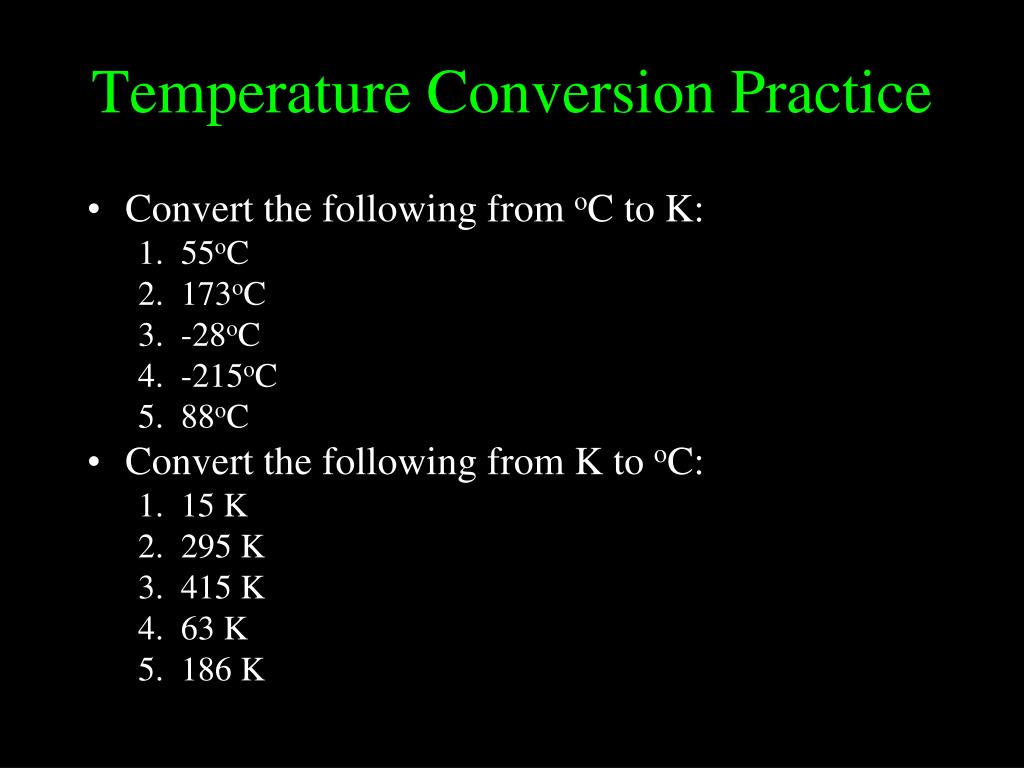

  14. Temperature Conversion Practice • Convert the following from oC to K: 1. 55oC 2. 173oC 3. -28oC 4. -215oC 5. 88oC • Convert the following from K to oC: 1. 15 K 2. 295 K 3. 415 K 4. 63 K 5. 186 K

  15. Graphing • Determine the variables. • Independent  x-axes • Dependent  y-axes • Determine the range of values. • Utilize all of 1 side of the graph paper. • usually start at ‘0’ but NOT ALWAYS 4. Makes scales easy & keep consistent

  16. Graphing 5. Label both axes (include unit). - draw axes with a straight edge • Give your graph an appropriate title. - dependent vs. independent 7. Titles, axes, & labels must be in INK! 8. Plot data with ‘x’ not ‘•’ (may be in pencil) 9. Draw “best-fit” line through your data

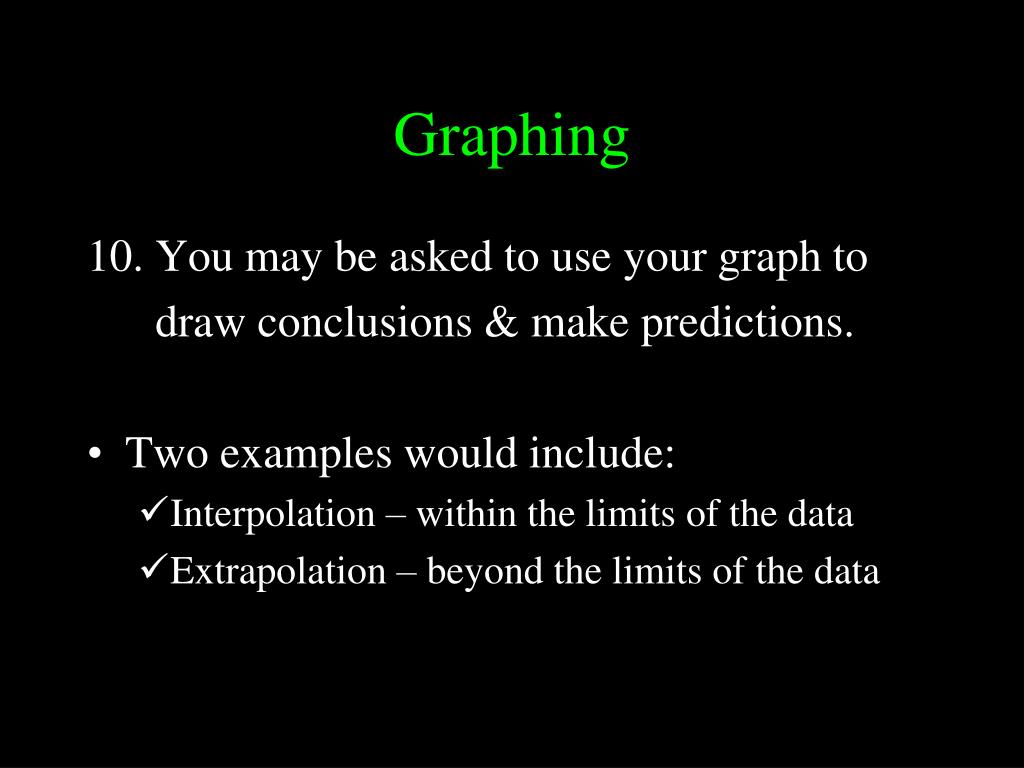

  17. Graphing 10. You may be asked to use your graph to draw conclusions & make predictions. • Two examples would include: • Interpolation – within the limits of the data • Extrapolation – beyond the limits of the data

  18. “Best-Fit” Line Distance vs. Time for Freefall

  19. Scientific Notation • A shorthand method of expressing large and small numbers using exponents. • Expresses values to the precision of the instrument. M x 10n M = any number between 1 & 10 n = any integer (including 0) • Example: 2.34 x 104 6.001 x 10-4

  20. Scientific Notation • Identify the correct scientific notations: • 3 x 102 • 4.5 • 6.7 x 10-3 • 0.573 x 105 • 12 x 10-2

  21. Scientific Notation • Express the following in scientific notation: 1. 2,300,000 2. 0.00401 3. 5.0500 • Express the following in long-hand form: 1. 6.1 x 102 2. 6.01 x 103 3. 6.6 x 101 4. 6.01 x 10-4

  22. Scientific notation • View these videos: • https://www.khanacademy.org/math/arithmetic/exponents-radicals/computing-scientific-notation/v/multiplying-in-scientific-notation • https://www.khanacademy.org/math/arithmetic/exponents-radicals/computing-scientific-notation/v/scientific-notation-3

  23. Scientific Notation • Perform the following calculations, expressing your answer in scientific notation. 1. (6.0 x 104) (2.0 x 105) 2. (4.0 x 104) (2.0 x 10-6) 3. (8.0 x 103) / (2.0 x 106) 4. (2.0 x 10-3) / (4.0 x 10-8)

  24. Rules for Counting Significant Figures 1. Nonzero integers are always significant Ex. 46.3 m  3 sig. figs. 6.295 g  4 sig. figs 2. ‘0’ between nonzero digits are significant. Ex. 40.7 L  3 sig. figs. 87009 km  5 sig. figs.

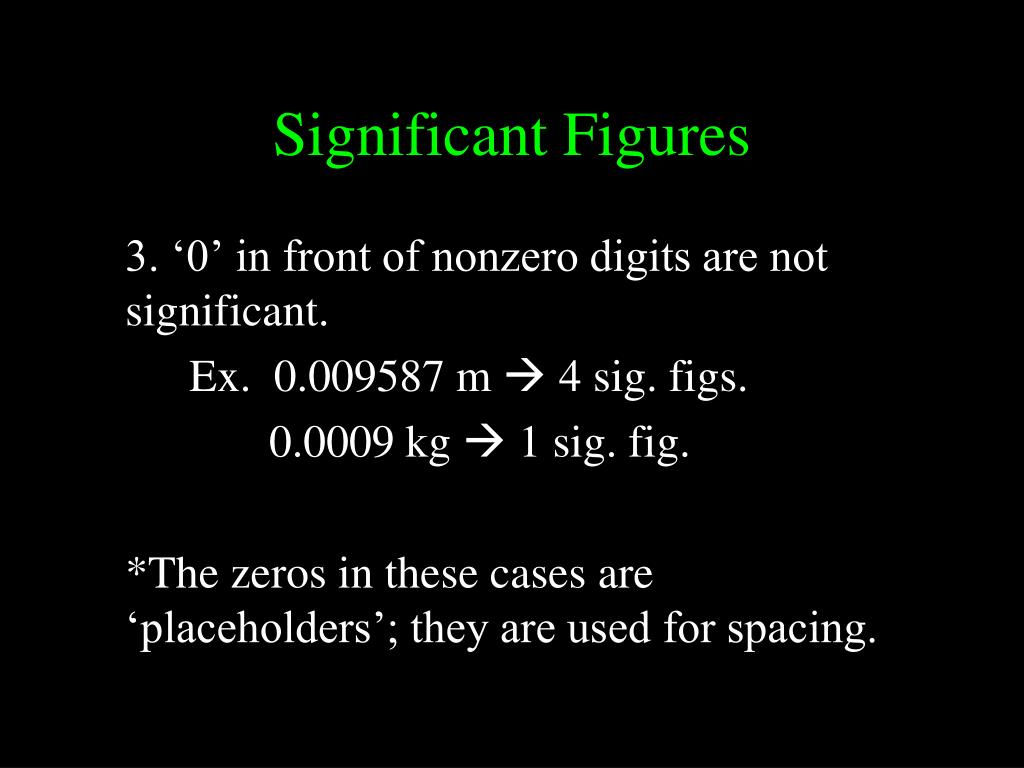

  25. Significant Figures 3. ‘0’ in front of nonzero digits are not significant. Ex. 0.009587 m  4 sig. figs. 0.0009 kg  1 sig. fig. *The zeros in these cases are ‘placeholders’; they are used for spacing.

  26. Significant Figures 4. Zeros are the end of a number and to the right of a decimal are significant. Ex. 85.00  4 sig. figs. 9.070000000  10 sig. figs. 5. A decimal point placed after zeros indicates that the zeros are significant. Ex. 2000.  4 sig. figs 2000  1 sig. fig.

  27. Significant Figures • Do NOT count sig. figs. in the following numbers: 1. Counting numbers 2. Constants 3. Conversion factors

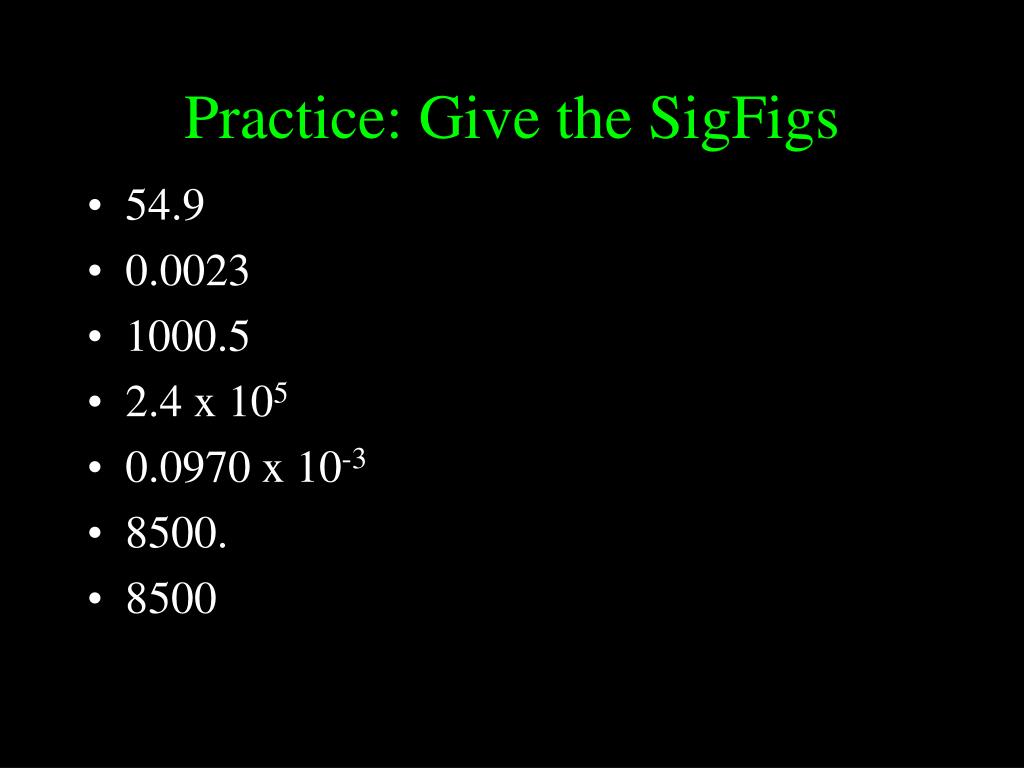

  28. Practice: Give the SigFigs • 54.9 • 0.0023 • 1000.5 • 2.4 x 105 • 0.0970 x 10-3 • 8500. • 8500

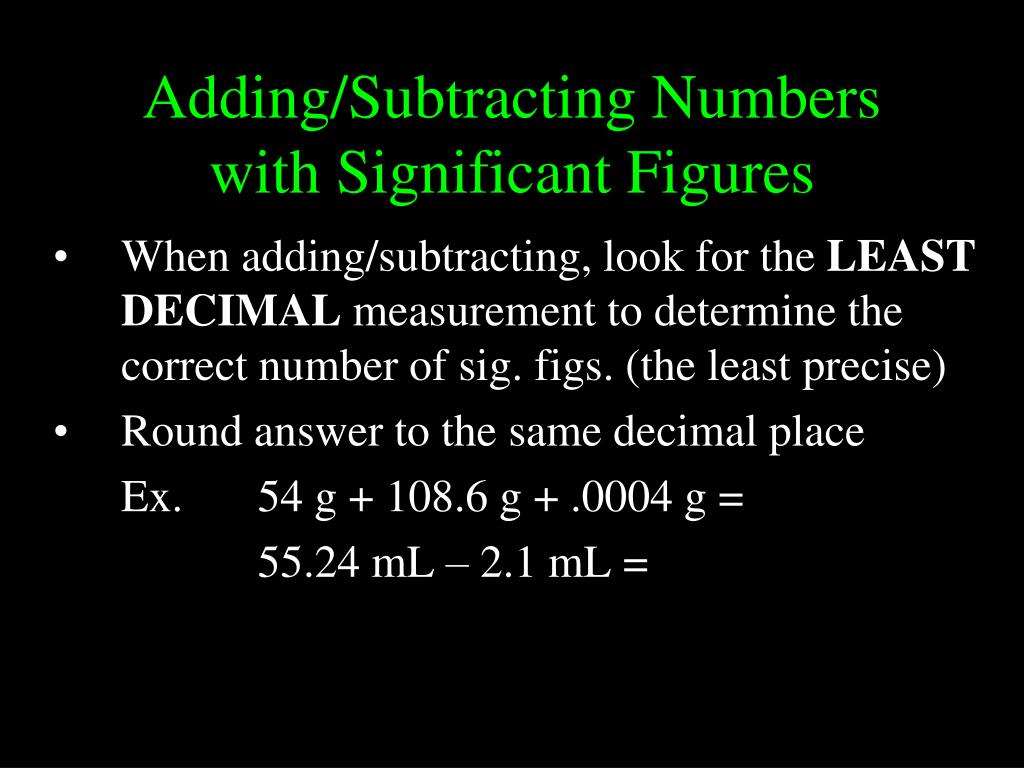

  29. Adding/Subtracting Numbers with Significant Figures • When adding/subtracting, look for the LEAST DECIMAL measurement to determine the correct number of sig. figs. (the least precise) • Round answer to the same decimal place Ex. 54 g + 108.6 g + .0004 g = 55.24 mL – 2.1 mL =

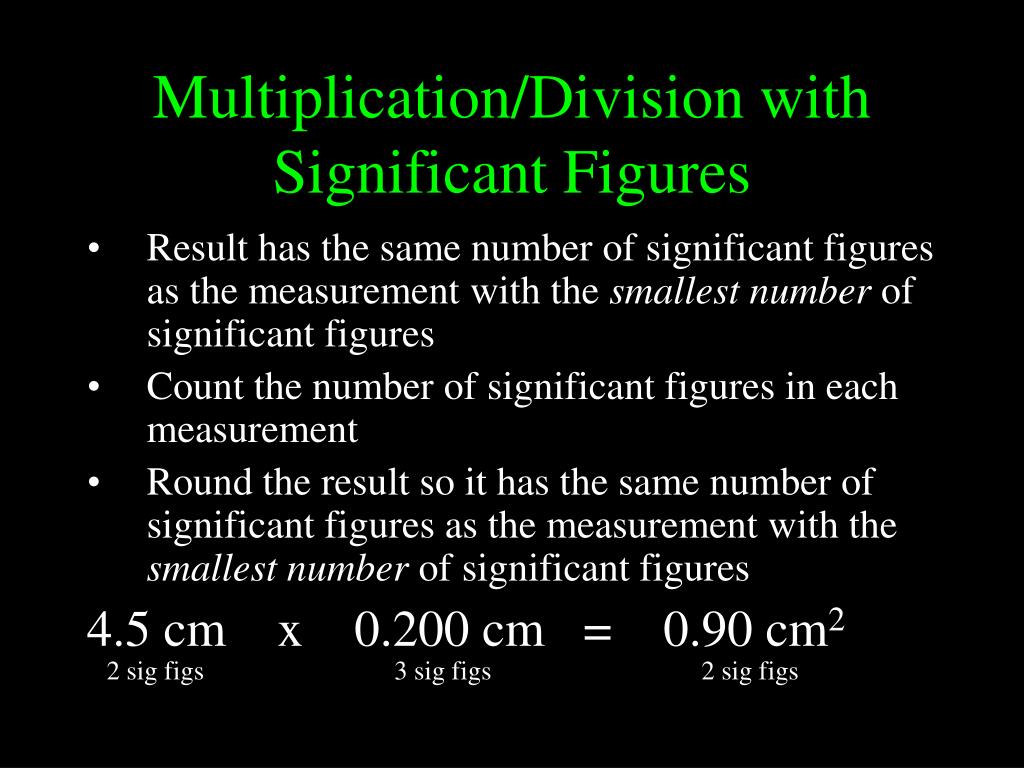

  30. Multiplication/Division with Significant Figures • Result has the same number of significant figures as the measurement with the smallest number of significant figures • Count the number of significant figures in each measurement • Round the result so it has the same number of significant figures as the measurement with the smallest number of significant figures 4.5 cm x 0.200 cm = 0.90 cm2 2 sig figs 3 sig figs 2 sig figs

  31. Practice: give the SigFigs • 87.9 + 156.098 + 40 • 63.7 – 56.987 • 62.4 x 3.1 • 587 / 6.247 • 3.567 x π

  32. Density • Density is a property of matter representing the mass per unit volume • For equal volumes, denser object has larger mass • For equal masses, denser object has small volume • Solids = g/cm3 • 1 cm3 = 1 mL • Liquids = g/mL • 1 mL of H2O = 1 g at 4oC • Gases = g/L • Volume of a solid can be determined by water displacement

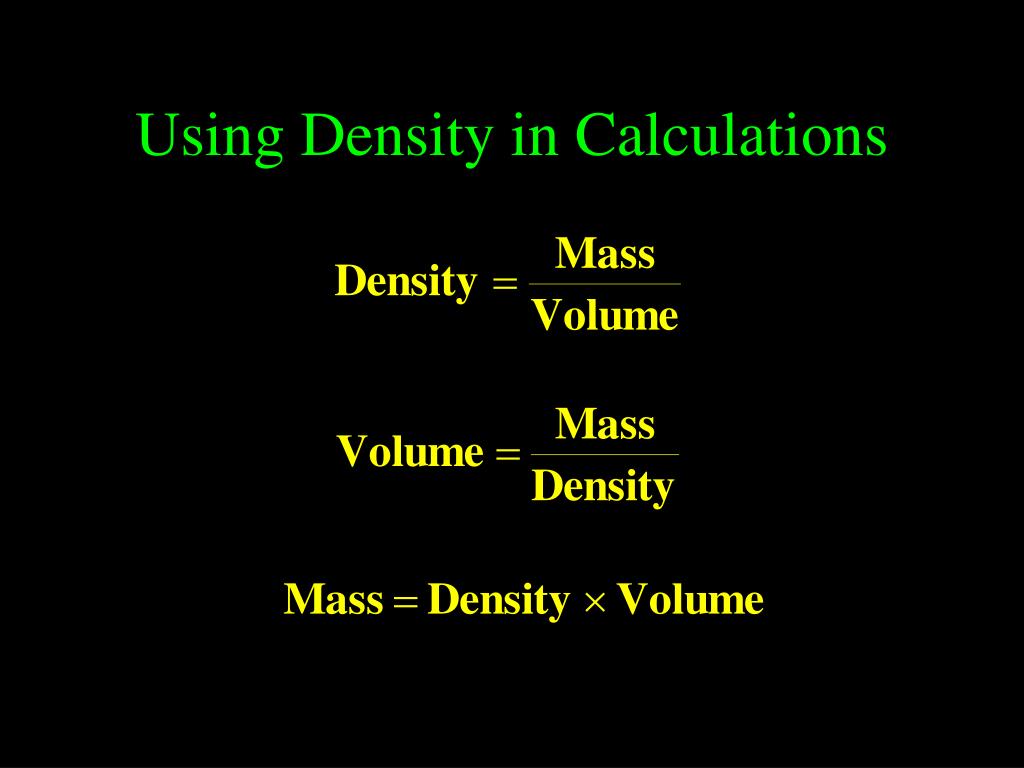

  33. Using Density in Calculations
