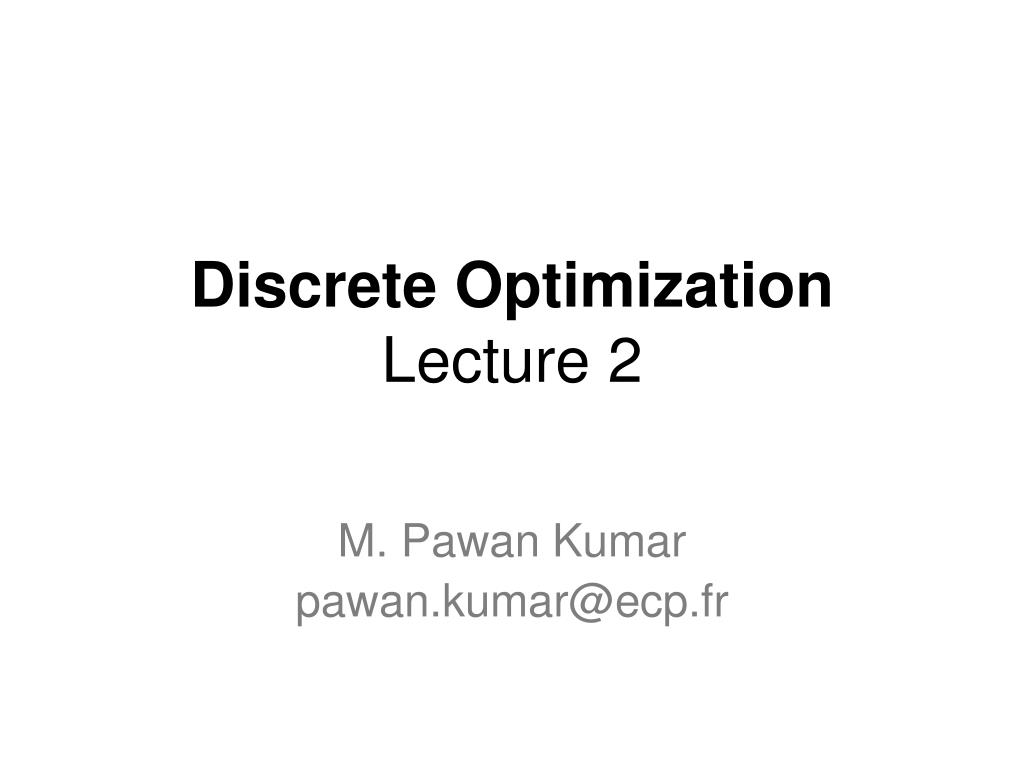

  1. Discrete OptimizationLecture 2 M. Pawan Kumar pawan.kumar@ecp.fr

  2. Image Segmentation How ? Cost/Energy function Models our knowledge about natural images Optimize energy function to obtain the segmentation

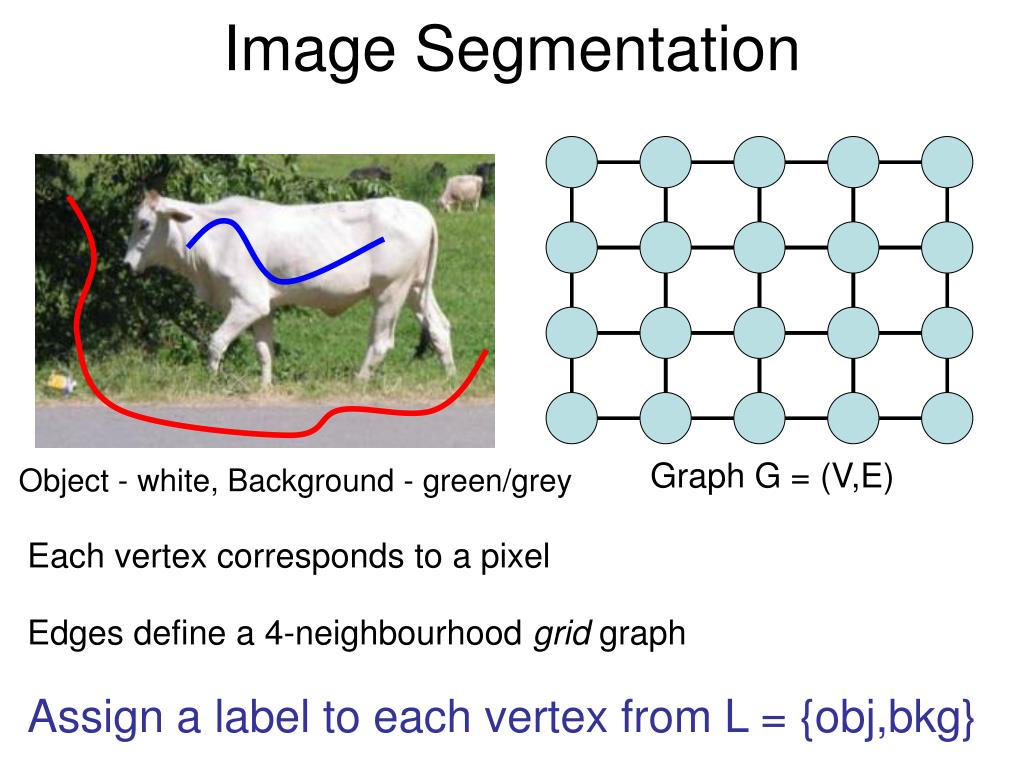

  3. Image Segmentation Graph G = (V,E) Object - white, Background - green/grey Each vertex corresponds to a pixel Edges define a 4-neighbourhood grid graph Assign a label to each vertex from L = {obj,bkg}

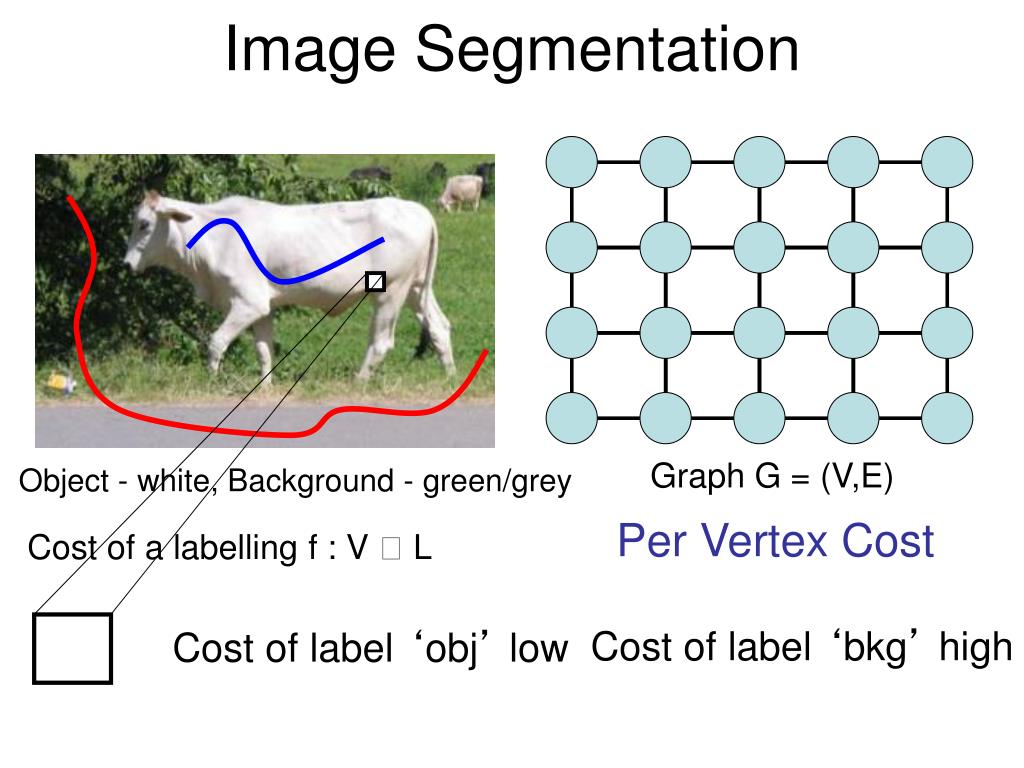

  4. Image Segmentation Graph G = (V,E) Object - white, Background - green/grey Per Vertex Cost Cost of a labelling f : V  L Cost of label ‘bkg’ high Cost of label ‘obj’ low

  5. Image Segmentation Graph G = (V,E) Object - white, Background - green/grey Per Vertex Cost Cost of a labelling f : V  L Cost of label ‘bkg’ low Cost of label ‘obj’ high UNARY COST

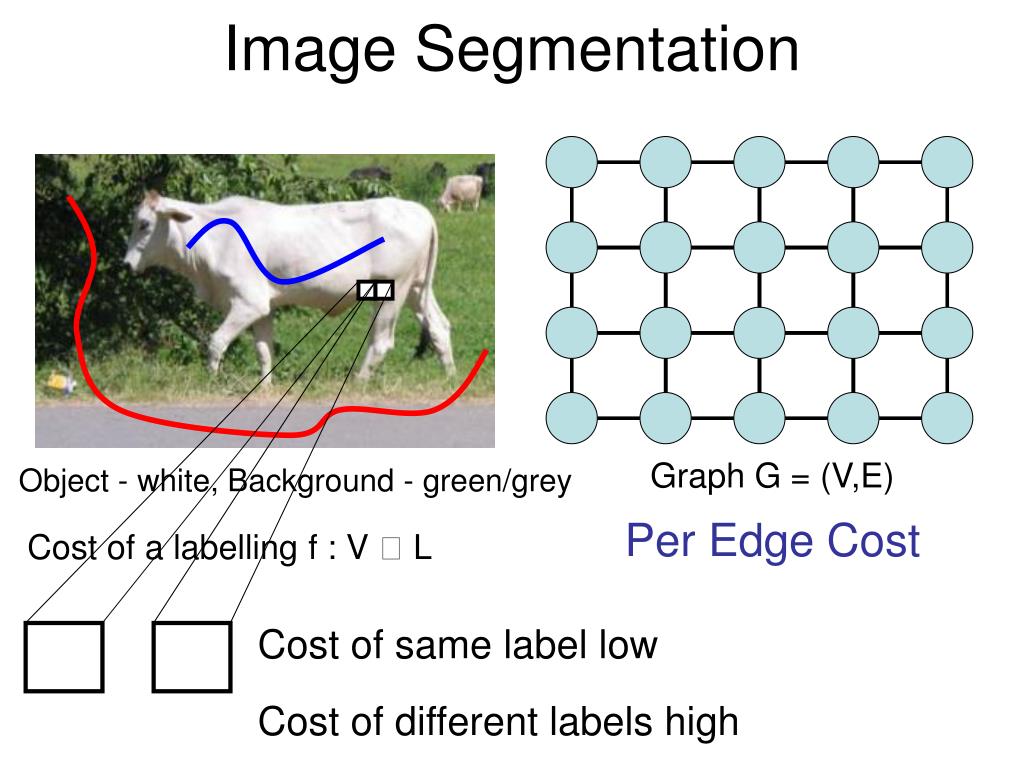

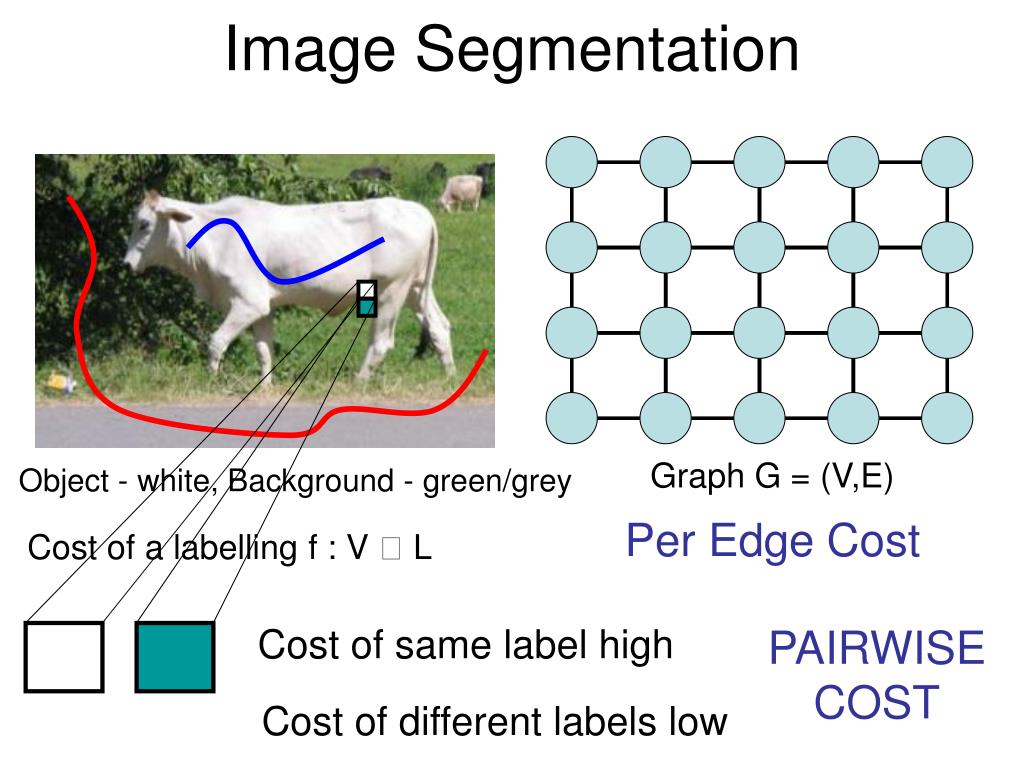

  6. Image Segmentation Graph G = (V,E) Object - white, Background - green/grey Per Edge Cost Cost of a labelling f : V  L Cost of same label low Cost of different labels high

  7. Image Segmentation Graph G = (V,E) Object - white, Background - green/grey Per Edge Cost Cost of a labelling f : V  L Cost of same label high PAIRWISE COST Cost of different labels low

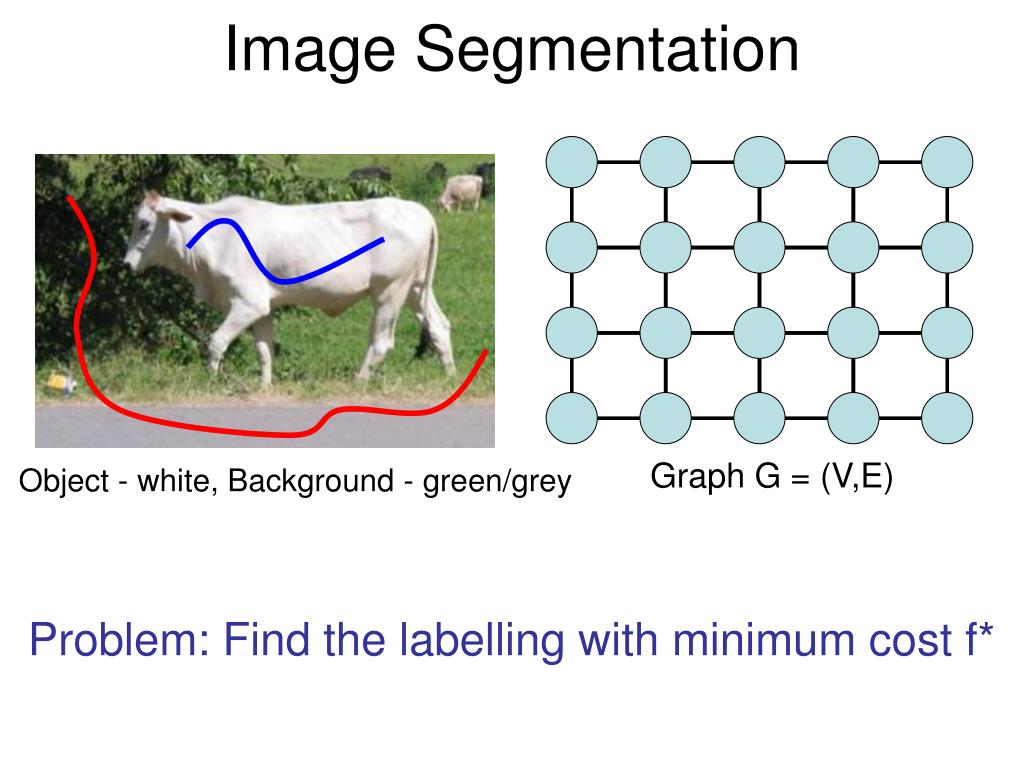

  8. Image Segmentation Graph G = (V,E) Object - white, Background - green/grey Problem: Find the labelling with minimum cost f*

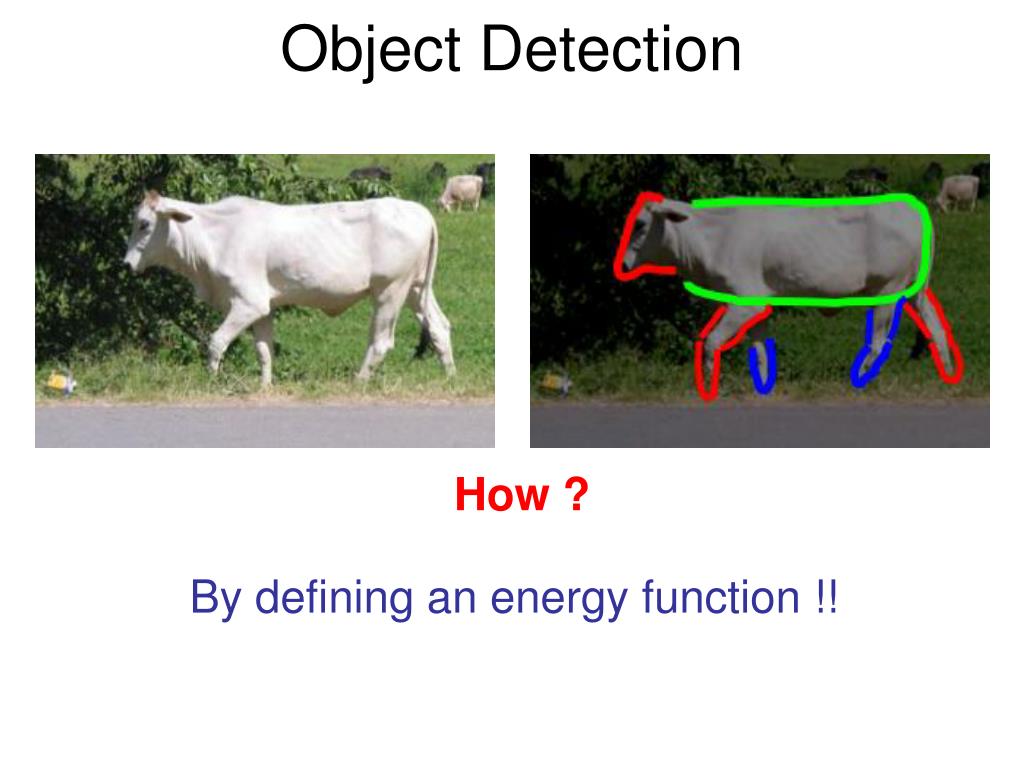

  9. Object Detection How ? By defining an energy function !!

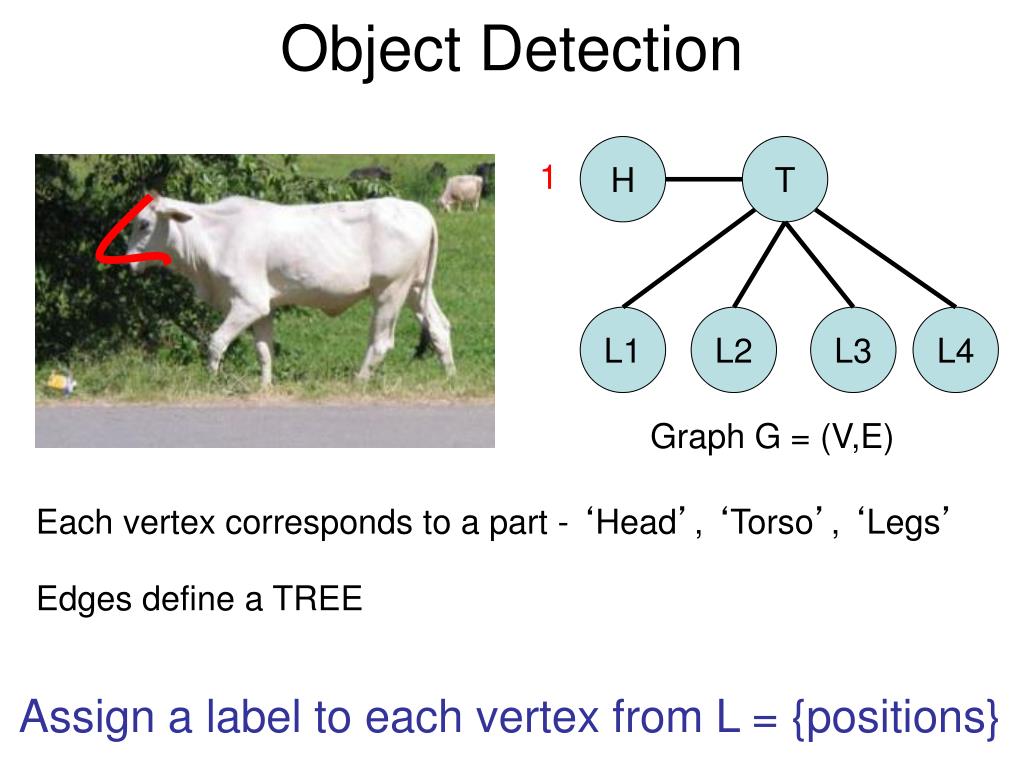

  10. Object Detection H T 1 L1 L2 L3 L4 Graph G = (V,E) Each vertex corresponds to a part - ‘Head’, ‘Torso’, ‘Legs’ Edges define a TREE Assign a label to each vertex from L = {positions}

  11. Object Detection H T 2 L1 L2 L3 L4 Graph G = (V,E) Each vertex corresponds to a part - ‘Head’, ‘Torso’, ‘Legs’ Edges define a TREE Assign a label to each vertex from L = {positions}

  12. Object Detection H T 3 L1 L2 L3 L4 Graph G = (V,E) Each vertex corresponds to a part - ‘Head’, ‘Torso’, ‘Legs’ Edges define a TREE Assign a label to each vertex from L = {positions}

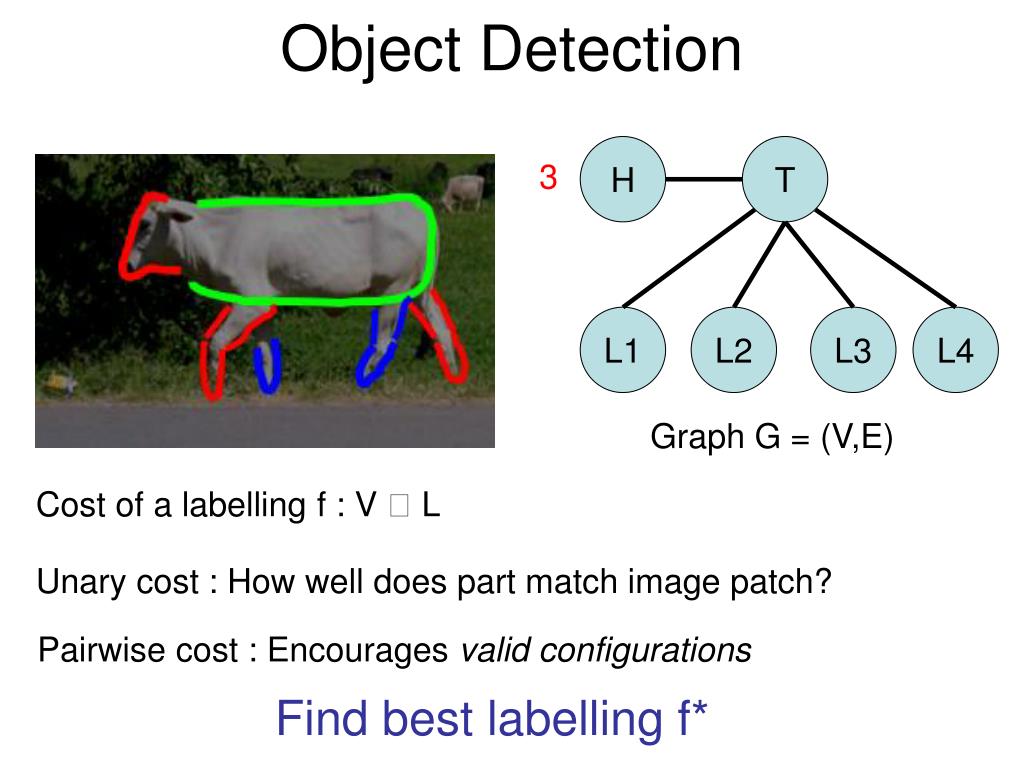

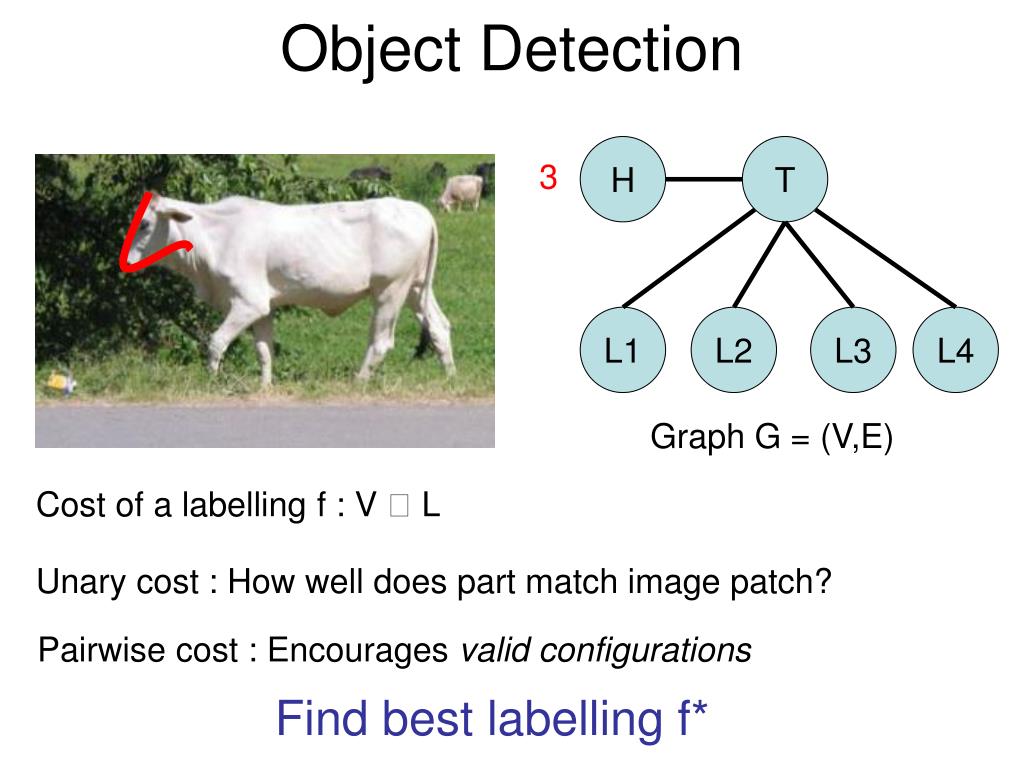

  13. Object Detection H T 3 L1 L2 L3 L4 Graph G = (V,E) Cost of a labelling f : V  L Unary cost : How well does part match image patch? Pairwise cost : Encourages valid configurations Find best labelling f*

  14. Object Detection H T 3 L1 L2 L3 L4 Graph G = (V,E) Cost of a labelling f : V  L Unary cost : How well does part match image patch? Pairwise cost : Encourages valid configurations Find best labelling f*

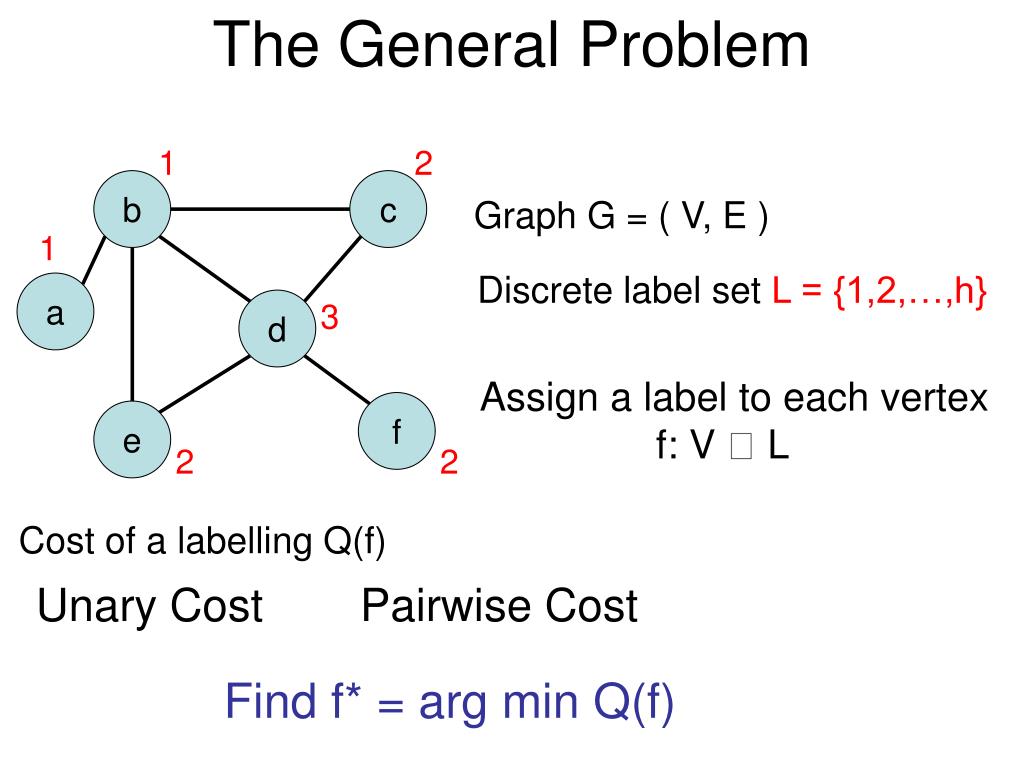

  15. The General Problem 1 2 b c Graph G = ( V, E ) 1 Discrete label set L = {1,2,…,h} a d 3 Assign a label to each vertex f: V  L f e 2 2 Cost of a labelling Q(f) Unary Cost Pairwise Cost Find f* = arg min Q(f)

  16. Outline • Problem Formulation • Energy Function • MAP Estimation • Computing min-marginals • Reparameterization • MAP Estimation on Trees

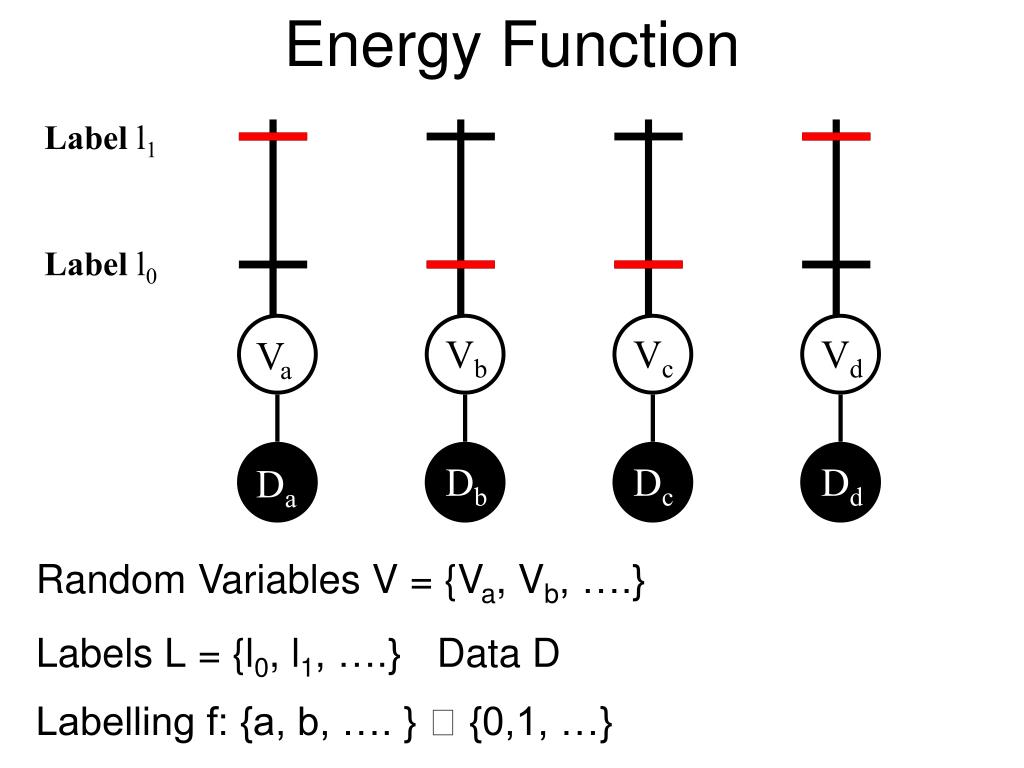

  17. Energy Function Label l1 Label l0 Vb Vc Vd Va Db Dc Dd Da Random Variables V= {Va, Vb, ….} Labels L= {l0, l1, ….} Data D Labelling f: {a, b, …. }  {0,1, …}

  18. Energy Function 6 3 2 4 Label l1 Label l0 5 3 7 2 Vb Vc Vd Va Db Dc Dd Da Easy to minimize Q(f) = ∑a a;f(a) Neighbourhood Unary Potential

  19. Energy Function 6 3 2 4 Label l1 Label l0 5 3 7 2 Vb Vc Vd Va Db Dc Dd Da E : (a,b)  E iff Va and Vb are neighbours E = { (a,b) , (b,c) , (c,d) }

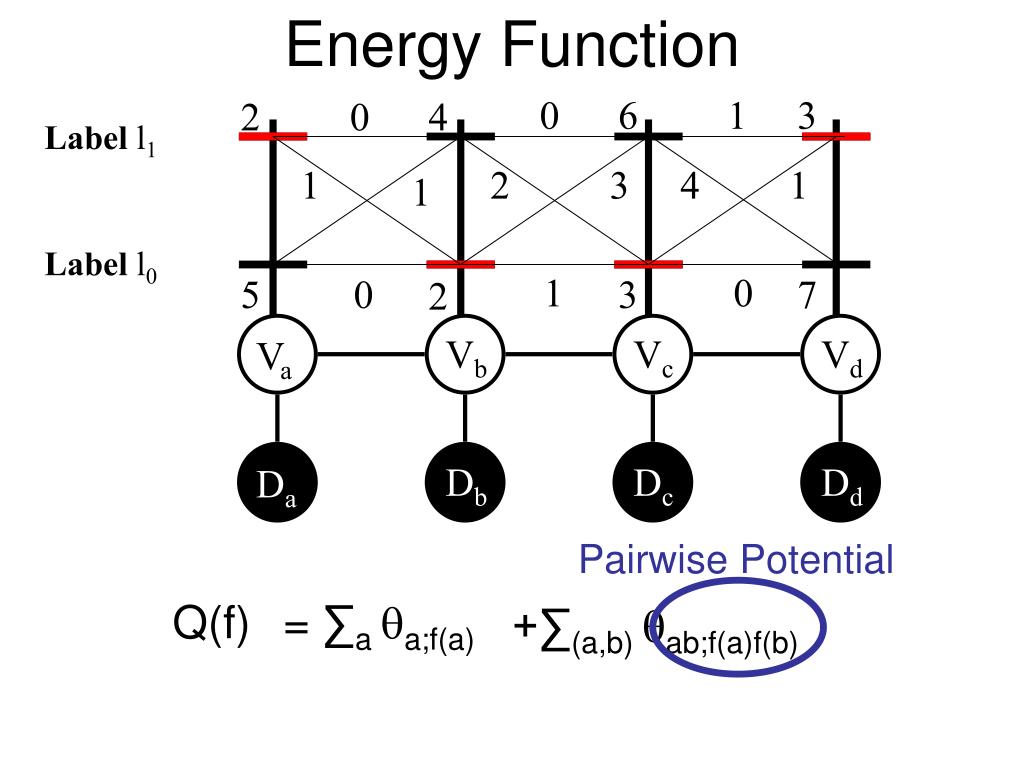

  20. Energy Function 0 6 1 3 2 0 4 Label l1 1 2 3 4 1 1 Label l0 1 0 5 0 3 7 2 Vb Vc Vd Va Db Dc Dd Da Pairwise Potential Q(f) = ∑a a;f(a) +∑(a,b) ab;f(a)f(b)

  21. Energy Function 0 6 1 3 2 0 4 Label l1 1 2 3 4 1 1 Label l0 1 0 5 0 3 7 2 Vb Vc Vd Va Db Dc Dd Da Q(f; ) = ∑a a;f(a) +∑(a,b) ab;f(a)f(b) Parameter

  22. Outline • Problem Formulation • Energy Function • MAP Estimation • Computing min-marginals • Reparameterization • Belief Propagation • Tree-reweighted Message Passing

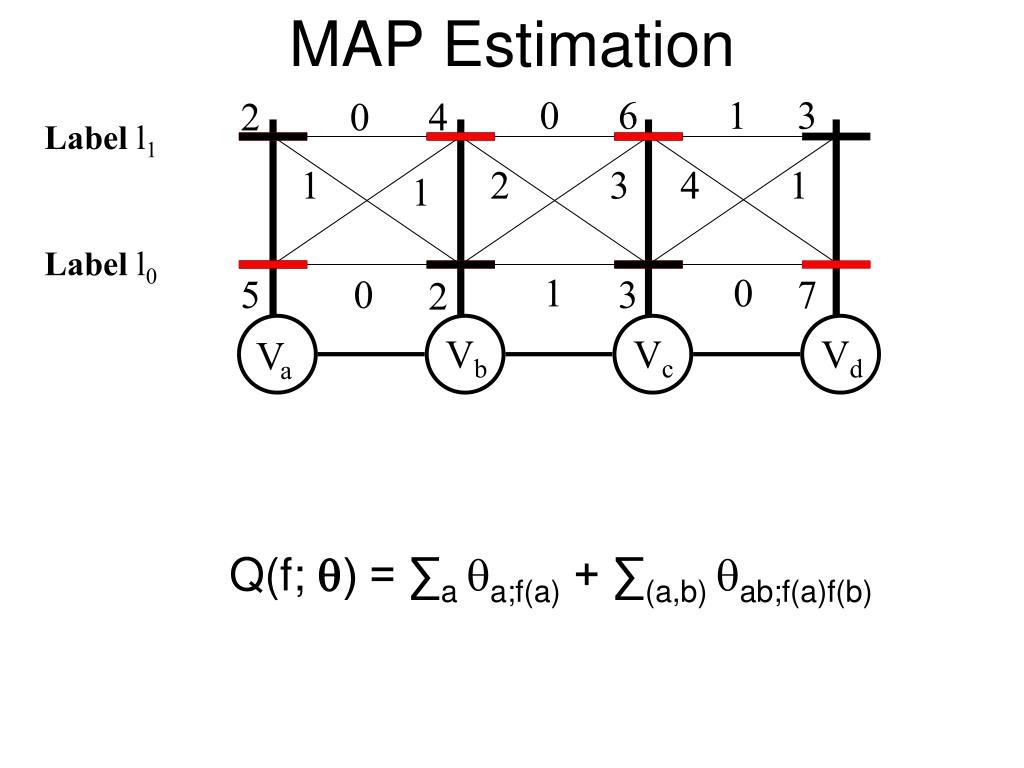

  23. MAP Estimation 0 6 1 3 2 0 4 Label l1 1 2 3 4 1 1 Label l0 1 0 5 0 3 7 2 Vb Vc Vd Va Q(f; ) = ∑a a;f(a) + ∑(a,b) ab;f(a)f(b)

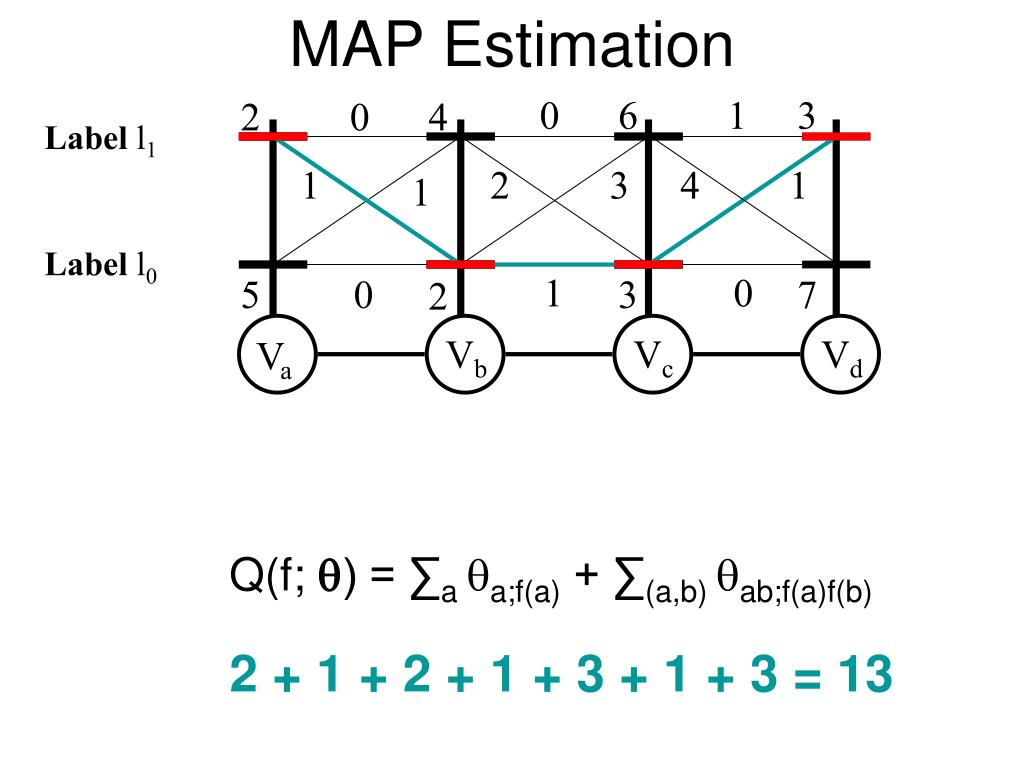

  24. MAP Estimation 0 6 1 3 2 0 4 Label l1 1 2 3 4 1 1 Label l0 1 0 5 0 3 7 2 Vb Vc Vd Va Q(f; ) = ∑a a;f(a) + ∑(a,b) ab;f(a)f(b) 2 + 1 + 2 + 1 + 3 + 1 + 3 = 13

  25. MAP Estimation 0 6 1 3 2 0 4 Label l1 1 2 3 4 1 1 Label l0 1 0 5 0 3 7 2 Vb Vc Vd Va Q(f; ) = ∑a a;f(a) + ∑(a,b) ab;f(a)f(b)

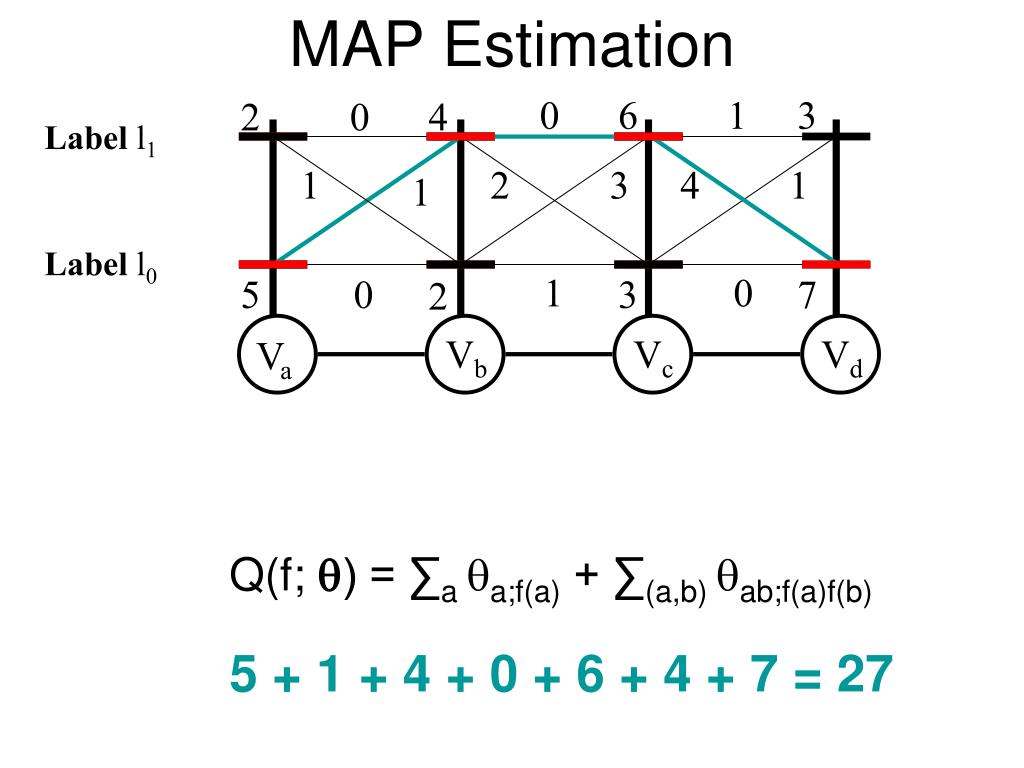

  26. MAP Estimation 0 6 1 3 2 0 4 Label l1 1 2 3 4 1 1 Label l0 1 0 5 0 3 7 2 Vb Vc Vd Va Q(f; ) = ∑a a;f(a) + ∑(a,b) ab;f(a)f(b) 5 + 1 + 4 + 0 + 6 + 4 + 7 = 27

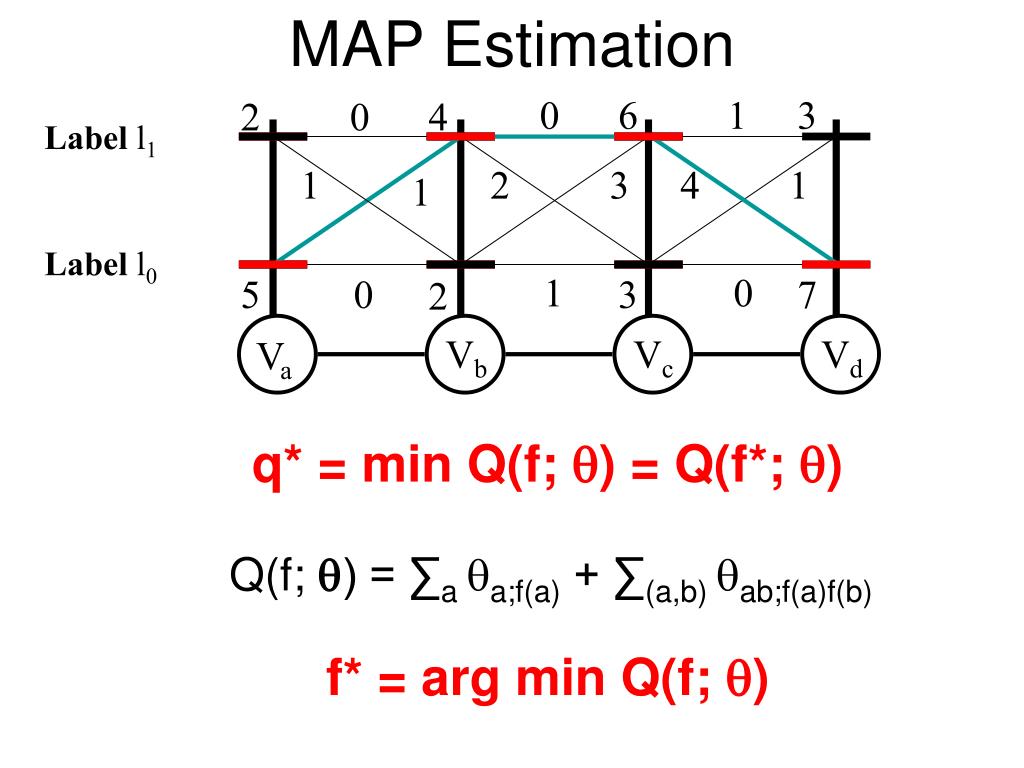

  27. MAP Estimation 0 6 1 3 2 0 4 Label l1 1 2 3 4 1 1 Label l0 1 0 5 0 3 7 2 Vb Vc Vd Va q* = min Q(f; ) = Q(f*; ) Q(f; ) = ∑a a;f(a) + ∑(a,b) ab;f(a)f(b) f* = arg min Q(f; )

  28. MAP Estimation f* = {1, 0, 0, 1} 16 possible labellings q* = 13

  29. Computational Complexity |L||V| |L| = number of pixels ≈ 153600 Can we do better than brute-force?

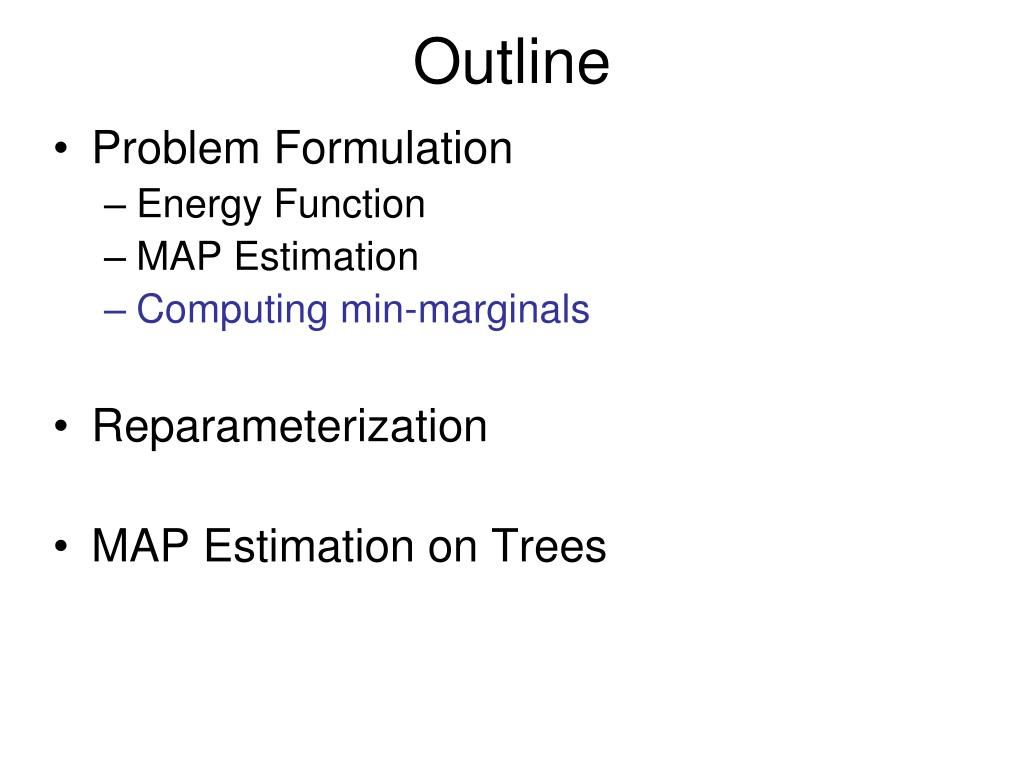

  30. Outline • Problem Formulation • Energy Function • MAP Estimation • Computing min-marginals • Reparameterization • MAP Estimation on Trees

  31. Min-Marginals 0 6 1 3 2 0 4 Label l1 1 2 3 4 1 1 Label l0 1 0 5 0 3 7 2 Vb Vc Vd Va such that f(a) = i f* = arg min Q(f; ) Min-marginal qa;i

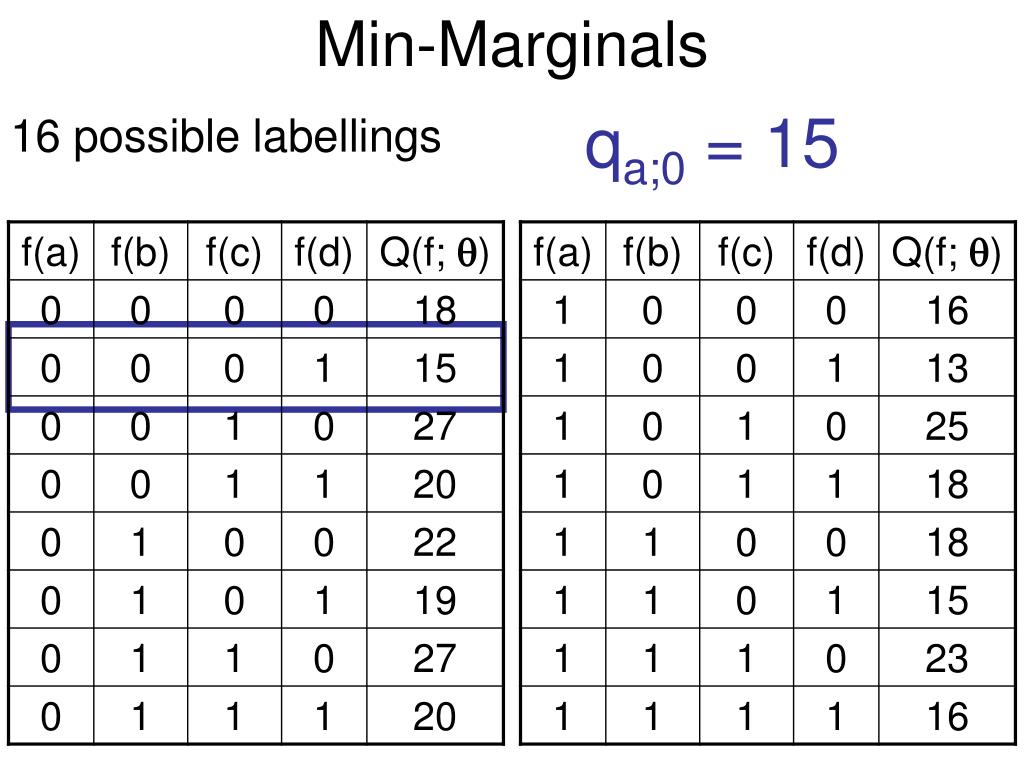

  32. Min-Marginals qa;0 = 15 16 possible labellings

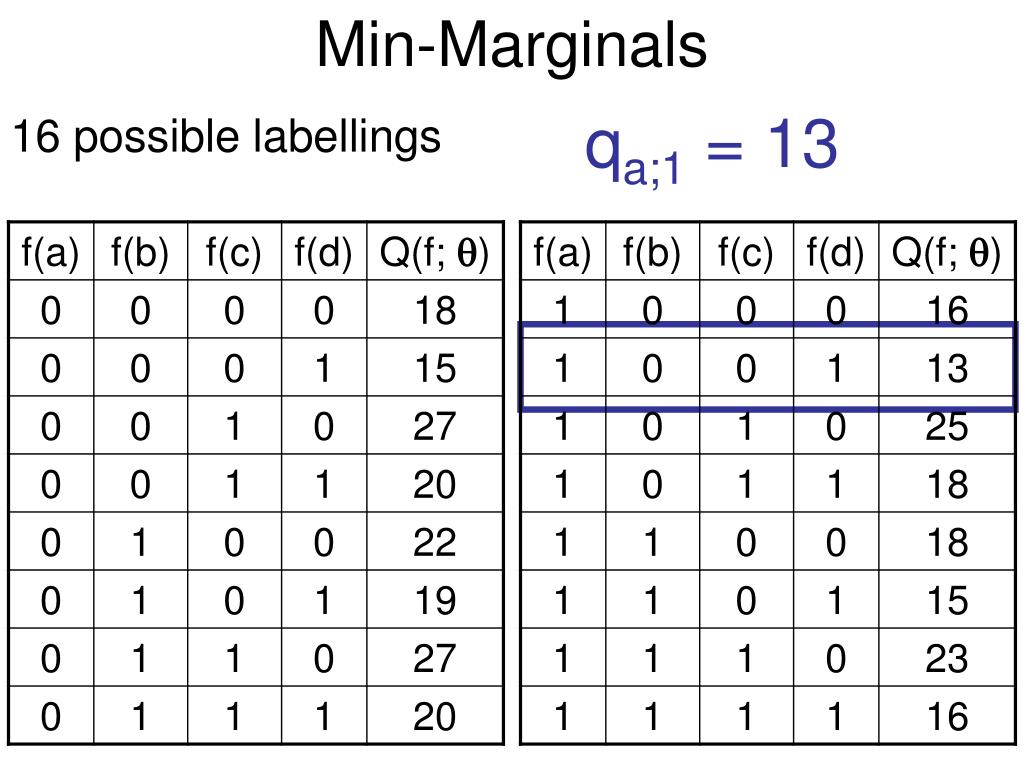

  33. Min-Marginals qa;1 = 13 16 possible labellings

  34. Min-Marginals and MAP • Minimum min-marginal of any variable = • energy of MAP labelling qa;i mini ) mini ( such that f(a) = i minf Q(f; ) Va has to take one label minf Q(f; )

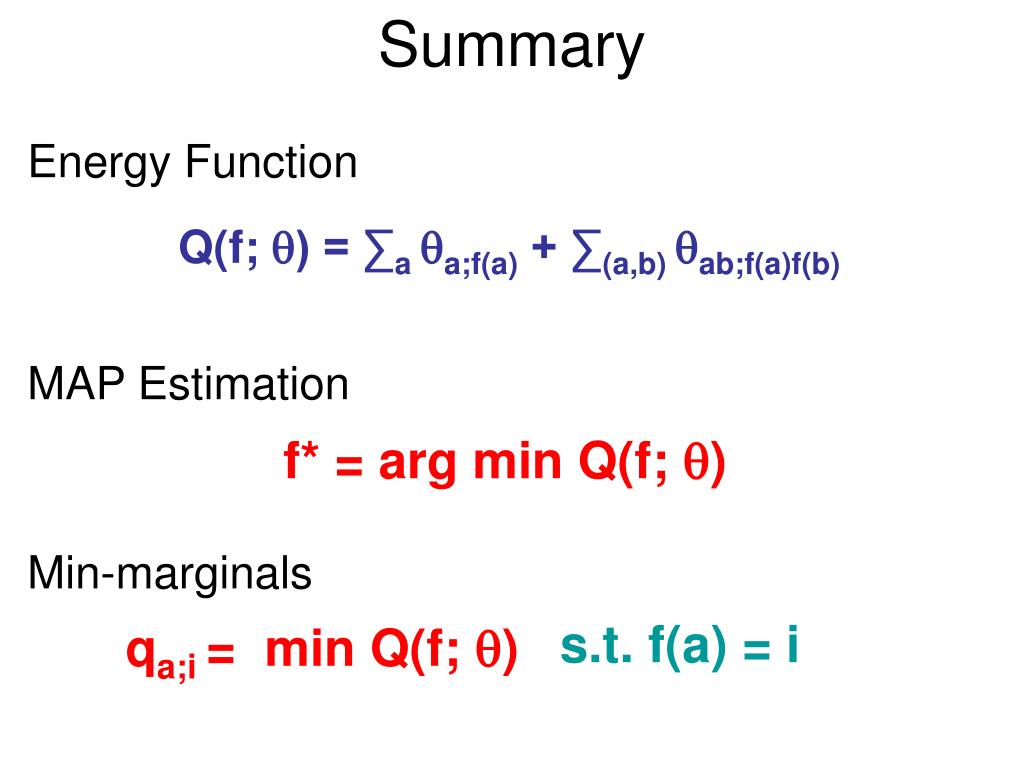

  35. Summary Energy Function Q(f; ) = ∑a a;f(a) + ∑(a,b) ab;f(a)f(b) MAP Estimation f* = arg min Q(f; ) Min-marginals s.t. f(a) = i qa;i = min Q(f; )

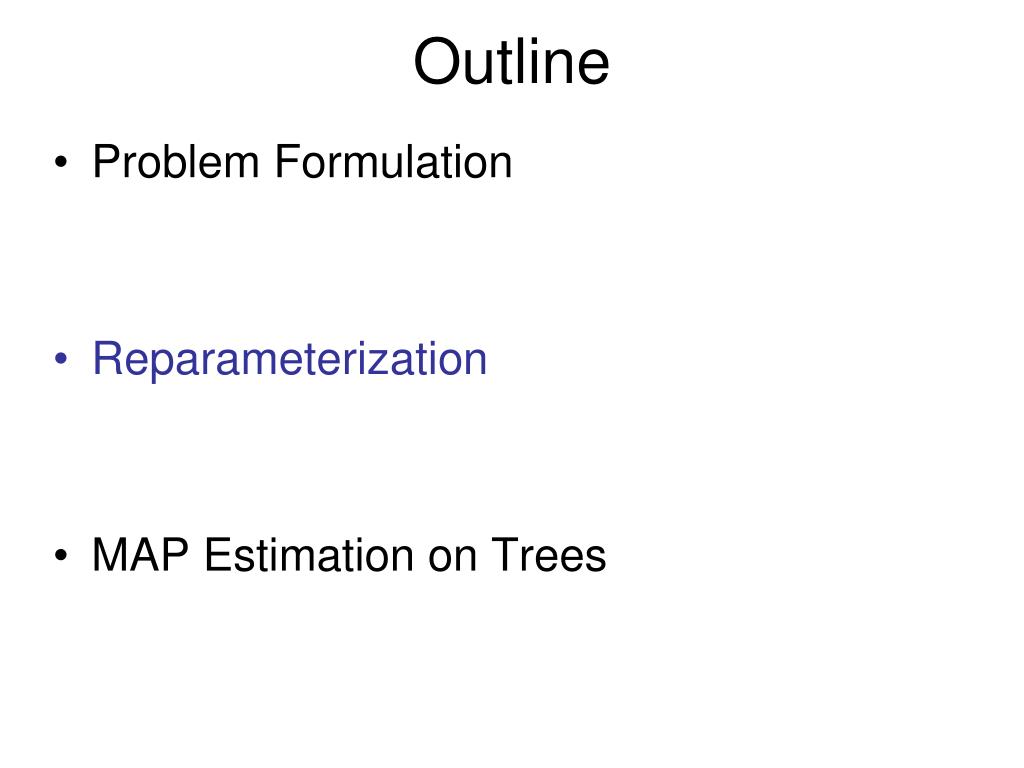

  36. Outline • Problem Formulation • Reparameterization • MAP Estimation on Trees

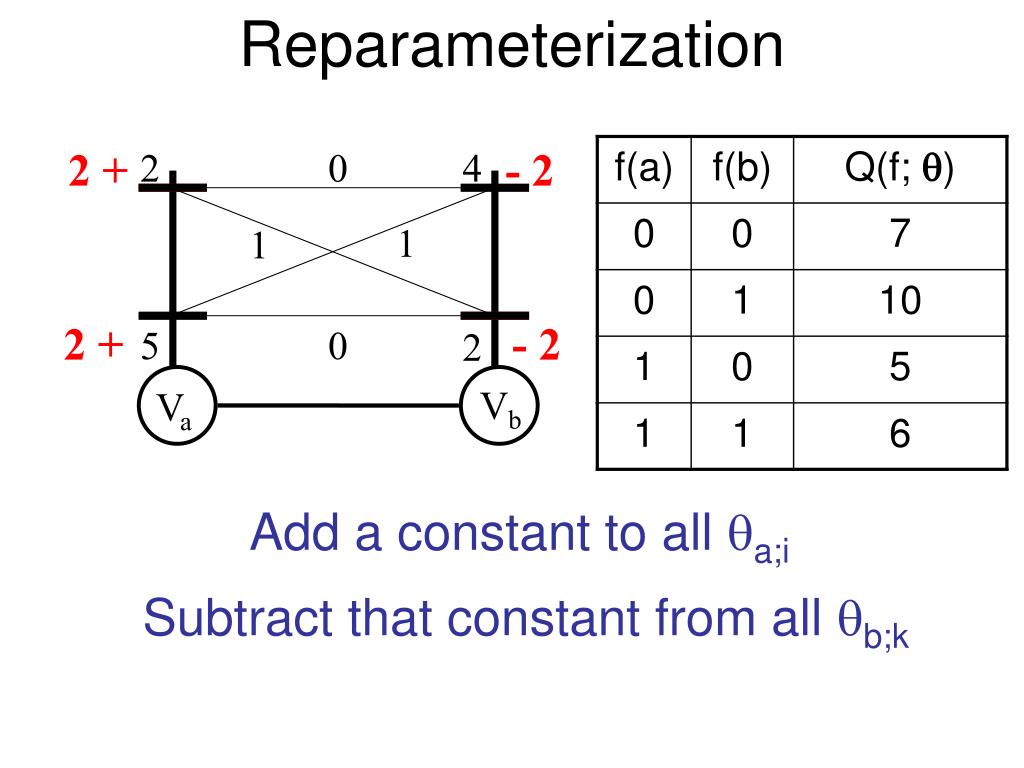

  37. Reparameterization 2 + - 2 2 0 4 1 1 2 + - 2 5 0 2 Vb Va Add a constant to all a;i Subtract that constant from all b;k

  38. Reparameterization 2 + - 2 2 0 4 1 1 2 + - 2 5 0 2 Vb Va Add a constant to all a;i Subtract that constant from all b;k Q(f; ’) = Q(f; )

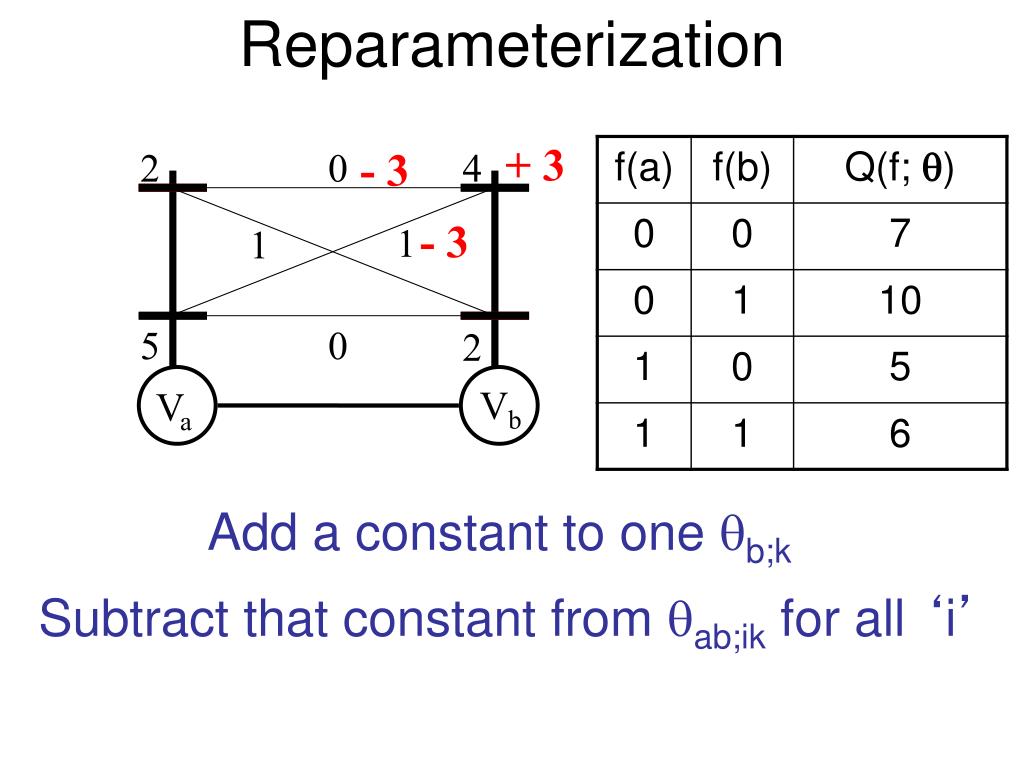

  39. Reparameterization + 3 - 3 2 0 4 - 3 1 1 5 0 2 Vb Va Add a constant to one b;k Subtract that constant from ab;ik for all ‘i’

  40. Reparameterization + 3 - 3 2 0 4 - 3 1 1 5 0 2 Vb Va Add a constant to one b;k Subtract that constant from ab;ik for all ‘i’ Q(f; ’) = Q(f; )

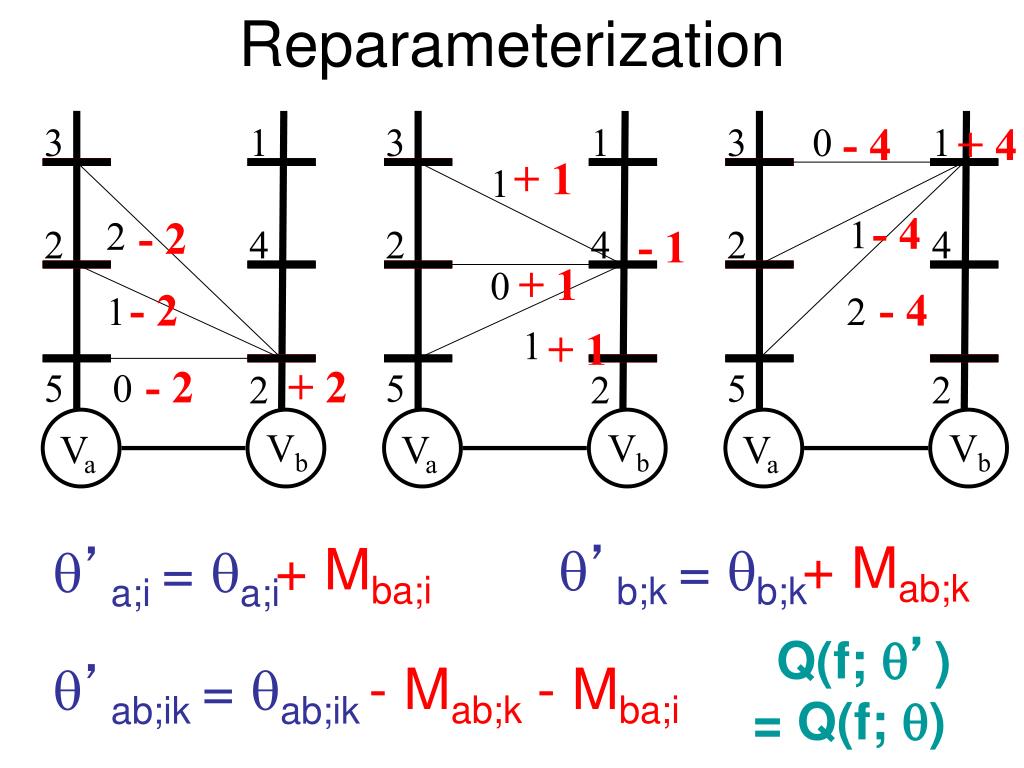

  41. 3 1 3 1 3 0 1 1 1 2 2 4 2 4 2 4 0 1 2 1 5 0 5 5 2 2 2 Vb Vb Vb Va Va Va Reparameterization - 4 + 4 + 1 - 4 - 2 - 1 + 1 - 2 - 4 + 1 - 2 + 2 + Mab;k + Mba;i ’b;k = b;k ’a;i = a;i Q(f; ’) = Q(f; ) ’ab;ik = ab;ik - Mab;k - Mba;i

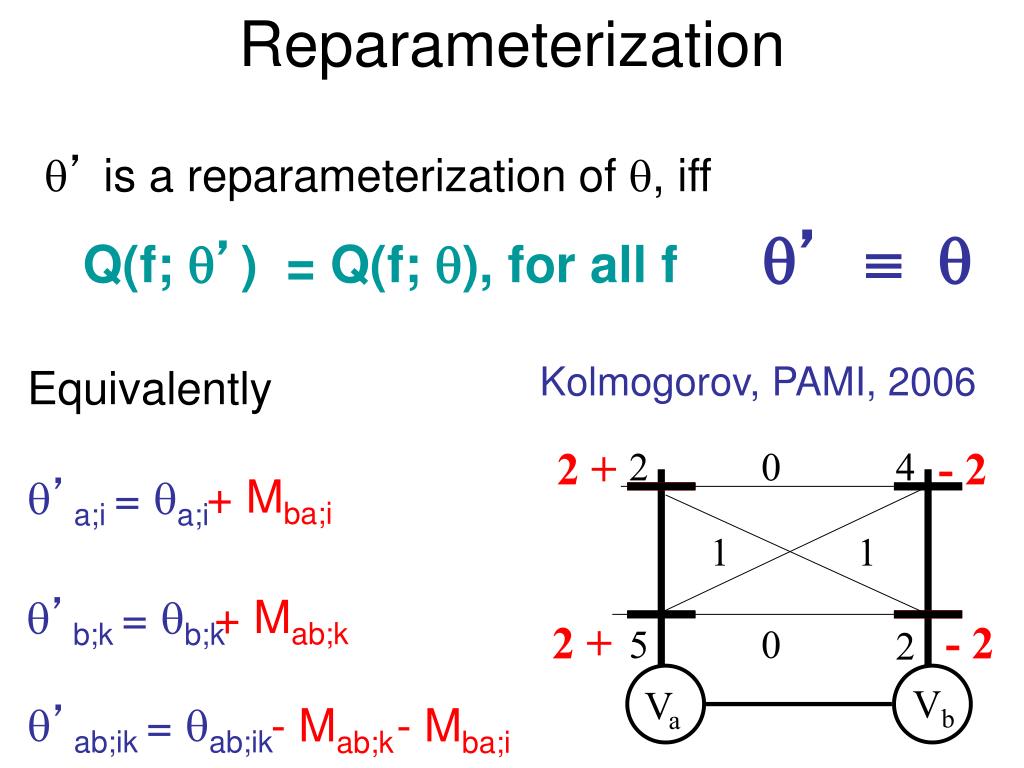

  42. Equivalently 2 + - 2 2 0 4 + Mba;i ’a;i = a;i 1 1 + Mab;k 2 + - 2 5 0 2 Vb Va ’ab;ik = ab;ik - Mab;k - Mba;i Reparameterization ’ is a reparameterization of , iff ’   Q(f; ’) = Q(f; ), for all f Kolmogorov, PAMI, 2006 ’b;k = b;k

  43. Recap MAP Estimation f* = arg min Q(f; ) Q(f; ) = ∑a a;f(a) + ∑(a,b) ab;f(a)f(b) Min-marginals s.t. f(a) = i qa;i = min Q(f; ) Reparameterization ’   Q(f; ’) = Q(f; ), for all f

  44. Outline • Problem Formulation • Reparameterization • MAP Estimation on Trees

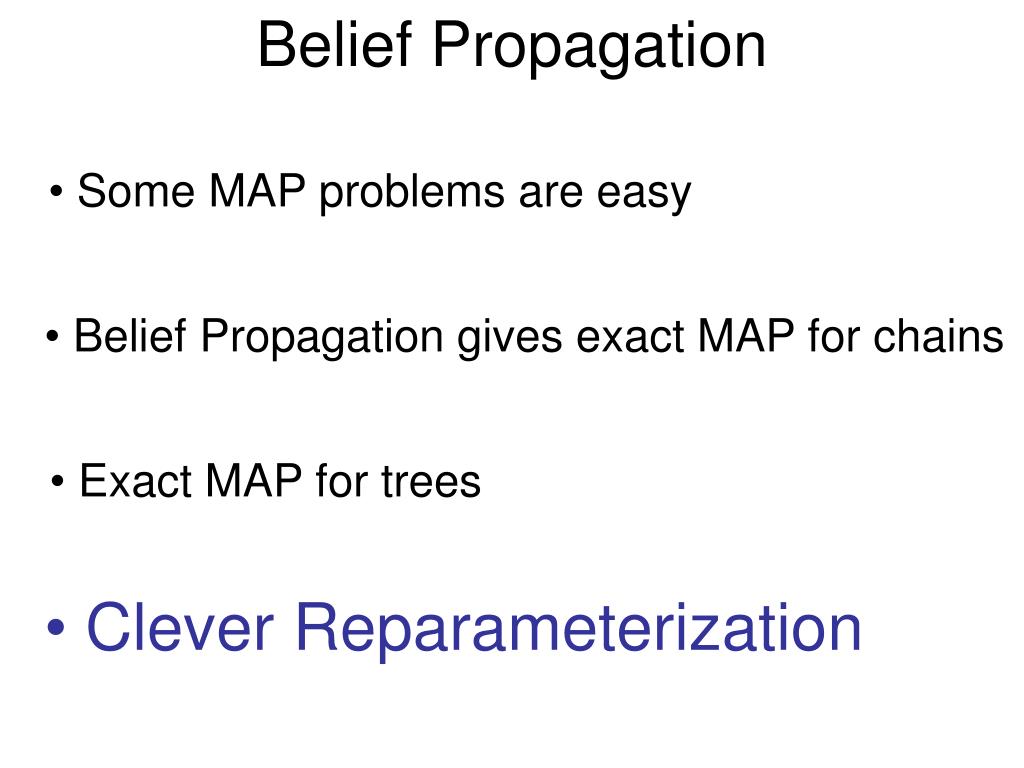

  45. Belief Propagation • Some MAP problems are easy • Belief Propagation gives exact MAP for chains • Exact MAP for trees • Clever Reparameterization

  46. Two Variables 2 2 0 4 1 1 5 0 5 2 Vb Vb Va Va Add a constant to one b;k Subtract that constant from ab;ik for all ‘i’ ’b;k = qb;k Choose the right constant

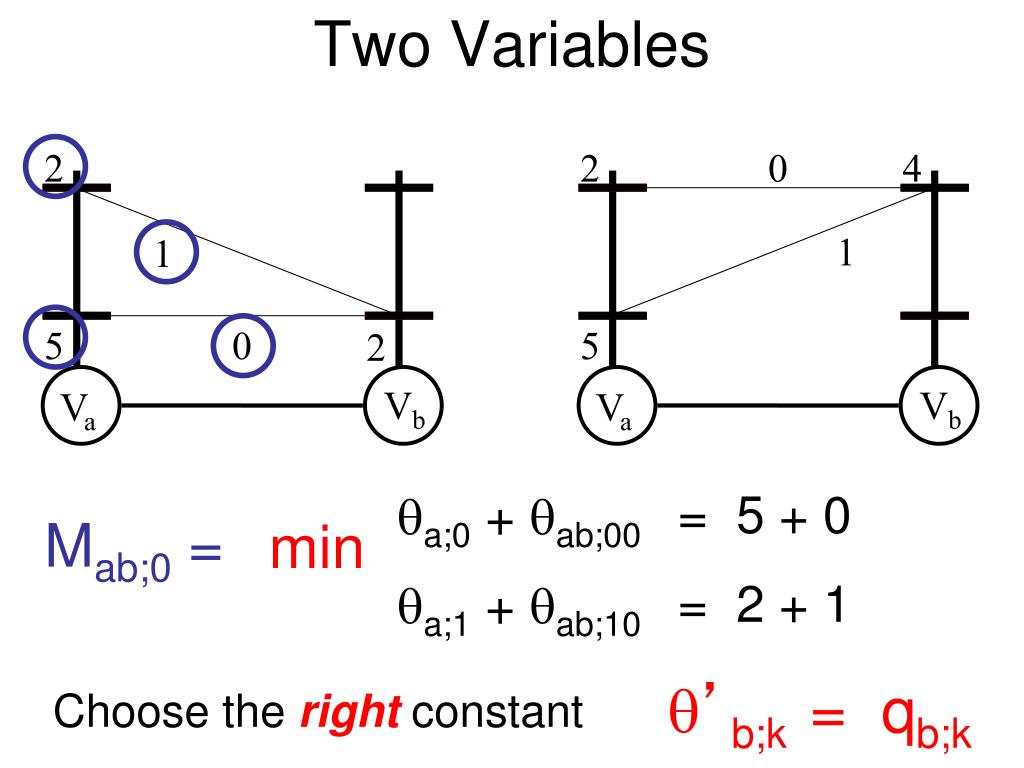

  47. Two Variables 2 2 0 4 1 1 5 0 5 2 Vb Vb Va Va = 5 + 0 a;0 + ab;00 Mab;0 = min = 2 + 1 a;1 + ab;10 ’b;k = qb;k Choose the right constant

  48. Two Variables 2 2 0 4 1 -2 5 -3 5 5 Vb Vb Va Va ’b;k = qb;k Choose the right constant

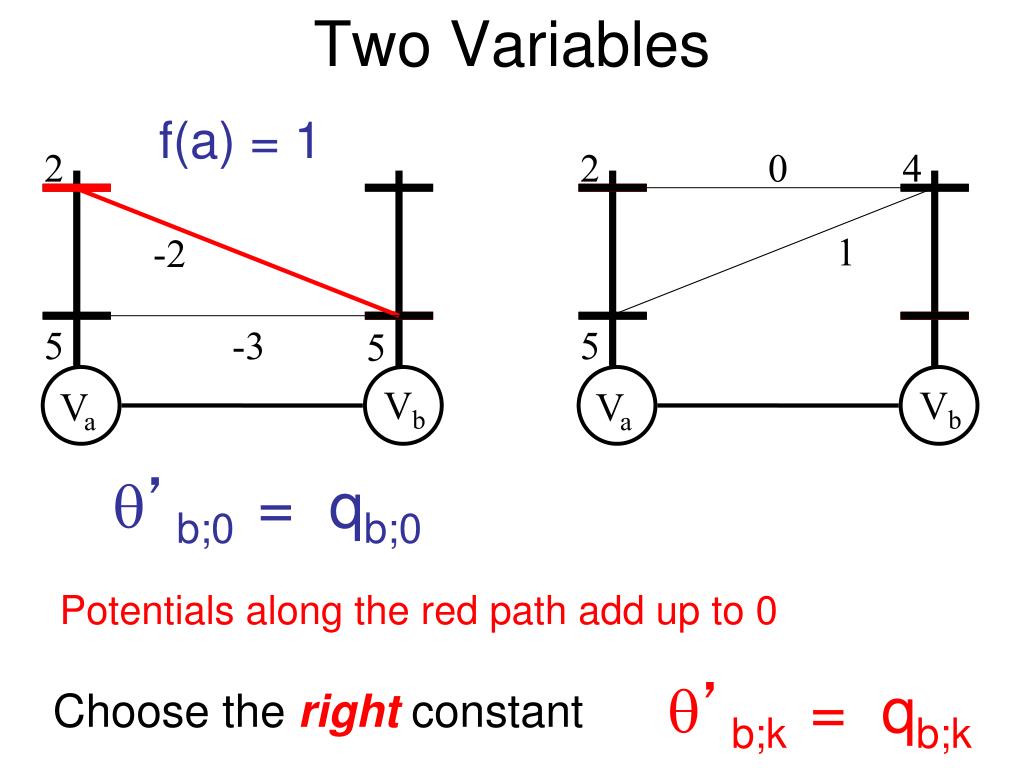

  49. Two Variables f(a) = 1 2 2 0 4 1 -2 5 -3 5 5 Vb Vb Va Va ’b;0 = qb;0 Potentials along the red path add up to 0 ’b;k = qb;k Choose the right constant

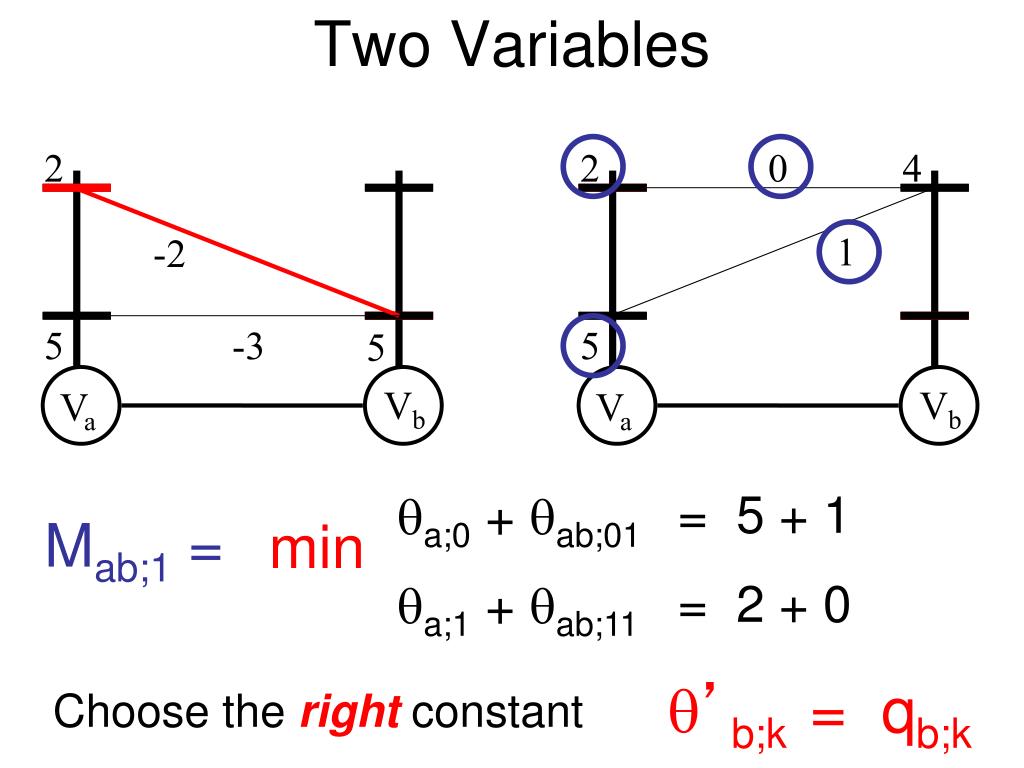

  50. Two Variables 2 2 0 4 1 -2 5 -3 5 5 Vb Vb Va Va = 5 + 1 a;0 + ab;01 Mab;1 = min = 2 + 0 a;1 + ab;11 ’b;k = qb;k Choose the right constant
