  1. ARM Processor www.clabsys.com

  2. Agenda • ARM Core Data Flow Model • Registers • Program Status Register • Pipeline • Exceptions • Core Extensions • ARM Architecture Revision

  3. ARM Core Data Flow Model

  4. Registers • ARM has 37 registers which are 32-bits long • Program counter : 1 • CPSR : 1 • SPSR : 5 • General purpose registers : 30 • The current processor mode governs which of several banks is accessible

  5. ARM Register Set

  6. Program Status Register (PSR) • CPSR holds the current status information • SPSR preserves the CPSR during exceptions

  7. PSR : Condition Flags • N : Negative result from ALU • Z : Zero result from ALU • C : ALU operation Carried out • V : ALU operation overflowed • Q : Overflow & Saturation • ARMv5TEJ only

  8. PSR : Processor States

  9. PSR : Interrupt Masks • used to stop specific interrupt requests from interrupting the processor • I = 1: • Disables the IRQ • F = 1: • Disables the FIQ

  10. PSR : Processor Mode

  11. Pipeline • The mechanism a RISC processor uses to execute instructions

  12. Exceptions • Reset • When power is applied • Undefined instruction • When the processor cannot decode an instruction • Software interrupt • When the processor meet an SWI instruction

  13. Exceptions (Cont.) • Prefetch abort • When the processor attempts to fetch an instruction from an address without the correct access permission • Data abort • When an instruction attempts to access data memory without the correct access permissions

  14. Exceptions (Cont.) • Interrupt request (IRQ) • When an external hardware interrupts the normal execution flow of the processor • Fast interrupt request (FIQ) • When an hardware requiring faster response times interrupts the normal execution flow of the processor

  15. Exception vector table

  16. Exception handling • When an exception occurs, • Copies CPSR into SPSR_<mode> • Sets appropriate CPSR bits • Change to ARM state • Change to exception mode • Disable interrupts (if appropriate) • Stores the return address in LR_<mode> • Set PC to vector address

  17. Exception handling (Cont.) • To return, • Restore CPSR from SPSR_<mode> • Restore PC from LR_<mode>

  18. Core Extensions • Cache • TCM (Tight Coupled Memory) • Memory Management Hardware • Non-protected Memory • MPU (Memory Protection Unit) • MMU (Memory Management Unit) • Coprocessors

  19. Cache • Improves the overall system performance < A simplified Von-Neumann architecture with cache >

  20. TCM • Improves deterministic real-time response < A simplified Harvard architecture with TCMs >

  21. Memory Management Hardware • Non-protected memory • Small embedded systems that require no protection from rouge application • MPU • Simple systems that uses a limited number of memory regions • MMU • More sophisticated platform operating systems that support multitasking

  22. Coprocessors • Extends the processing features of a core by extending the instruction set or by providing configuration registers • Vector Floating-Point (VFP) operations • CP10/CP11 • System Control Coprocessor • CP15 • Controls the cache, TCMs, MPU, MMU

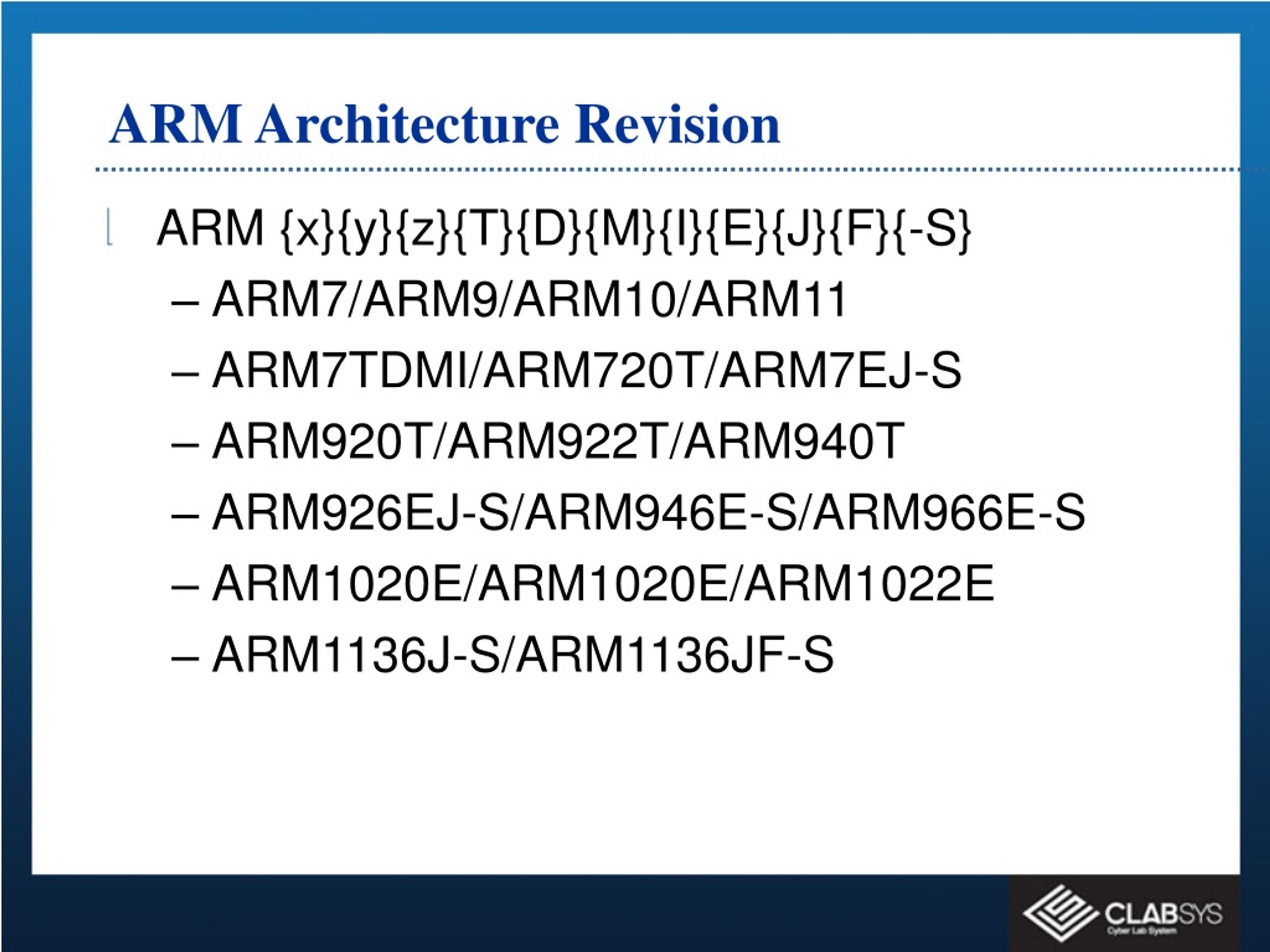

  23. ARM Architecture Revision • ARM {x}{y}{z}{T}{D}{M}{I}{E}{J}{F}{-S} • ARM7/ARM9/ARM10/ARM11 • ARM7TDMI/ARM720T/ARM7EJ-S • ARM920T/ARM922T/ARM940T • ARM926EJ-S/ARM946E-S/ARM966E-S • ARM1020E/ARM1020E/ARM1022E • ARM1136J-S/ARM1136JF-S

  24. ARM7 • Von Neumann architecture • Unified cache • Both data and instructions use the same bus • 3-stage pipeline • ARMv4T • Example • ARM7TDMI • ARM720T • ARM7EJ-S

  25. ARM7 (Cont.)

  26. ARM9 • Harvard architecture • Saperated Instruction memory interface • Data memory interface • 5 stage pipeline • Example • ARM920T/ARM922T • ARM940T • ARM946E-S/ARM966E-S • ARM920EJ-S

  27. ARM9 (Cont.)

  28. ARM10 • 6 stage pipeline • Vector Floating-Point • Example • ARM1020E • Separate 32K D+I caches • VFP/MMU • Dual 64-bit bus interface • ARM1026EJ-S • Both MPU and MMU

  29. ARM11 • 8-stage pipeline • ARMv6 • SIMD (Single Instruction Multiple Data) • Example • ARM1136J-S • ARM1136JF-S

  30. StrongARM/Xscale • Harvard architecture • separate D+I caches • 5-stage pipeline • Not support the Thumb instruction set
