  1. Wireless Charging System Seung-ok Lim TTA

  2. Wireless Charging System • Transfer electric power to mobile nearby devices (less than several meters) and charge batteries

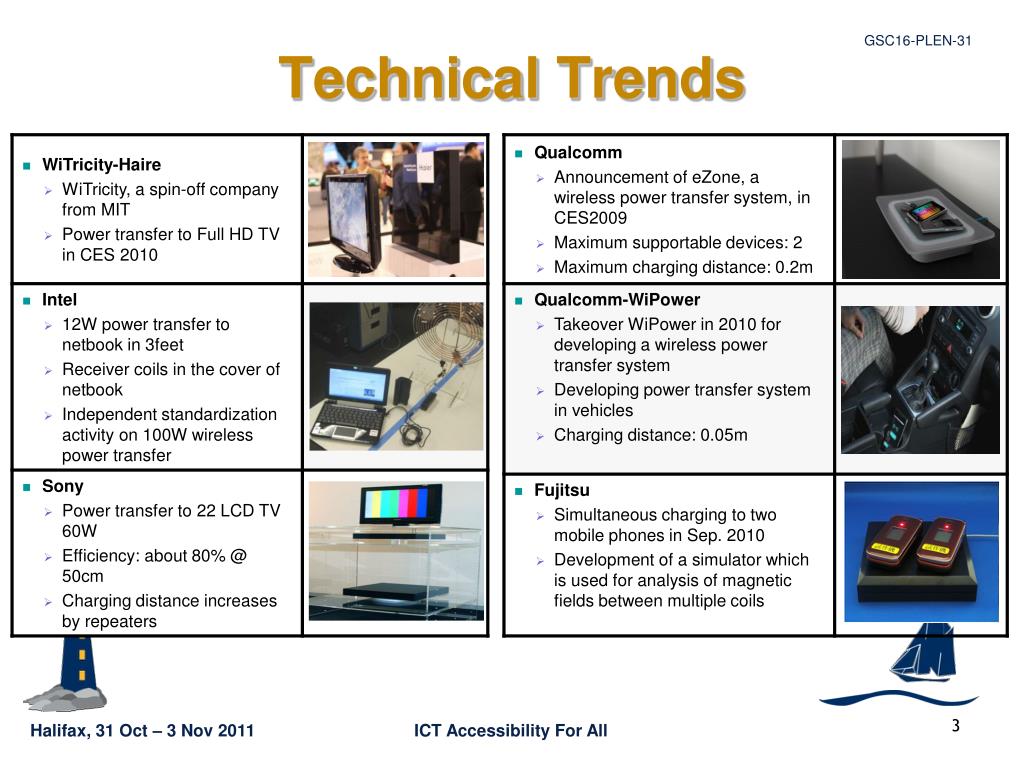

  3. Technical Trends

  4. Highlight of Current Activities • TTA PG 709 (Wireless Charging and Application) • Established in Mar. 2011 • Scope: • Standard roadmap • Power transfer interface • Control mechanism • 12 members WG 1 WG 2 WG 3 TTA PG709 Steering Committee • Service & Structure • Evaluation • Interface

  5. Strategic Direction • Market Analysis – Strong needs • 16 billion dollars expected in 2014 (Isuppli 2010) • TTA’s plans • Use case & service scenario (4Q in 2011) • Standard • Wireless Charging protocol (1Q in 2012) • Wireless Charging interface (1Q in 2012) • Transfer efficiency and measurement (4Q in 2012) • Collaboration • Cooperation and the sharing of information with SDOs

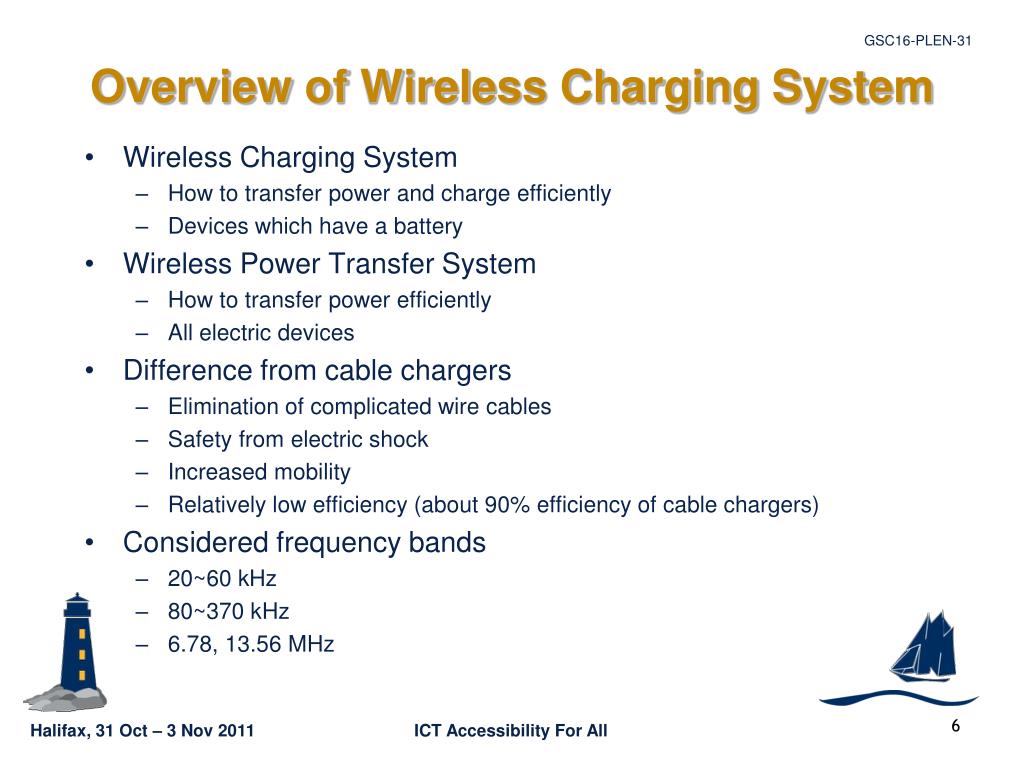

  6. Overview of Wireless Charging System • Wireless Charging System • How to transfer power and charge efficiently • Devices which have a battery • Wireless Power Transfer System • How to transfer power efficiently • All electric devices • Difference from cable chargers • Elimination of complicated wire cables • Safety from electric shock • Increased mobility • Relatively low efficiency (about 90% efficiency of cable chargers) • Considered frequency bands • 20~60 kHz • 80~370 kHz • 6.78, 13.56 MHz

  7. Challenges • Product Diversification • As market is increasing, each vendor makes the Wireless Charging system which has different structure & protocol • Wireless Charging is possible only between systems having the same structure & protocol • Frequency Issues • Each vendor considers different frequency bands for Wireless Charging which disables interoperability between Wireless Charging systems • Regulation Issues • Each nation has different regulation for EMI/EMC, SAR, etc.

  8. Next Steps / Actions • Standardization Activities for product diversification • System & interface • Control & management protocol • Conformance test & certification • Regulation Coordination & Compromise • Frequency band • EMI/EMC • SAR • Activities toward the global harmonization • Cooperation with other SDOs • Investigation of the similar activities and directions in other organizations
