Kian Hui Wong Chia Siong Goh Wan Qi Choo Jun Jun Peh. Tone Matrix Music Box. Presenter: Kian Hui Wong. Project Overview. An 8x8 grid-based music synthesizer made with a button pad at the top and some LEDs at the bottom

morse
Download Presentation

Tone Matrix Music Box

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Kian Hui Wong Chia SiongGoh Wan Qi Choo Jun Jun Peh Tone Matrix Music Box Presenter: Kian Hui Wong

  2. Project Overview • An 8x8 grid-based music synthesizer made with a button pad at the top and some LEDs at the bottom • Produces sound and emits light (LED) when user touches the buttons • 3 music playing modes: • Sweep mode • Gravity mode • Memory mode • Several different types of sound: • Guitar, Piano, and Drum beats

  3. Components Chosen for Analysis • Microcontroller (PIC18F64K22) • Switching Regulators(LM2675-5,LM2675-3.3) • LED driver(AS1116)

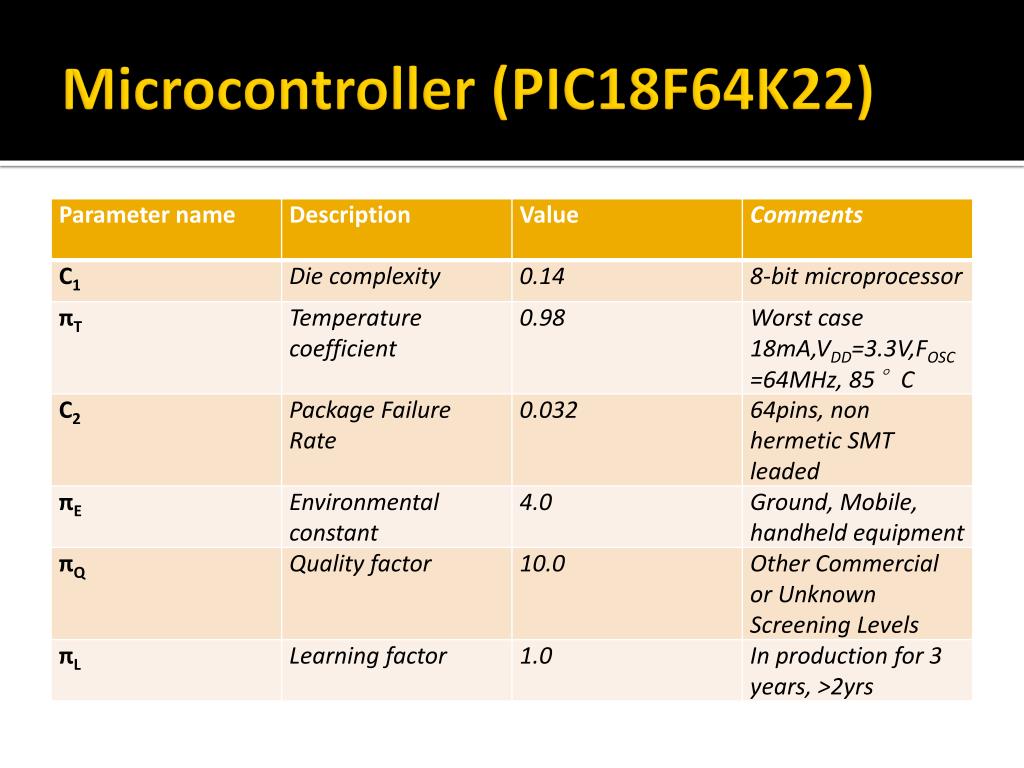

  4. Microcontroller (PIC18F64K22) • High complexity (64 pin, 8 bit) • Controls LCD, buttons input, audio, LED drivers, accelerometer. • λp=(C1πT+C2πE)πQπL =(0.14*0.98+.032*4)10*1 =2.652 Failures/106Hours • MTTF =106/λp =377074 hours≈43 years

  5. Microcontroller (PIC18F64K22)

  6. Switching Regulator(LM2675) • Possible high temperature • 15V unregulated input • 3.3V, 1Amax regulated output • λp=(C1πT+C2πE)πQπL =(0.02*2.8+0.0034*4)10*1 =0.696 Failures/106Hours • MTTF =106/λp =1436782 hours≈164 years

  7. Switching Regulator(LM2675)

  8. LED driver (AS1116) • Possible high temperature • 3.3V, 335mAtypical when all LEDs are lighted • λp=(C1πT+C2πE)πQπL =(0.4*0.6+.011*4)10*1 =2.84 Failures/106Hours • MTTF =106/λp =352113 hours≈40 years

  9. LED Driver (AS1116)

  10. Definition of Criticality Level • High- Possibility of injury to user • Medium-Device not working, not repairable • Low- Majority of device still working and can be repaired easily

  11. FMCEA chart

  12. FMCEA chart
