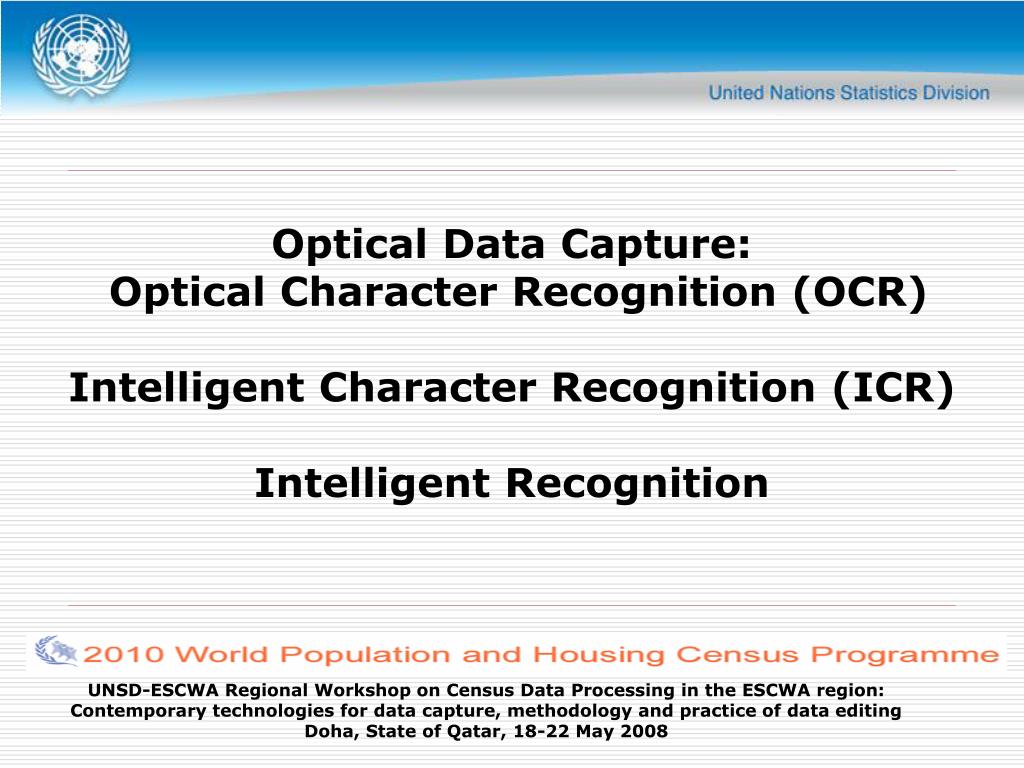

  1. Optical Data Capture: Optical Character Recognition (OCR) Intelligent Character Recognition (ICR) Intelligent Recognition UNSD-ESCWA Regional Workshop on Census Data Processing in the ESCWA region: Contemporary technologies for data capture, methodology and practice of data editing Doha, State of Qatar, 18-22 May 2008

  2. Summary Concept/Definition Forms Design Scanners & Software Storage Accuracy OCR/ICR Advantages and Disadvantages Intelligent Recognition (IR) Commercial Suppliers UNSD-ESCWA Regional Workshop on Census Data Processing in the ESCWA region: Contemporary technologies for data capture, methodology and practice of data editing Doha, State of Qatar, 18-22 May 2008

  3. Definition/Concept of OCR • Gives scanning and imaging systems the ability to turn images of machine printed characters into machine readable characters. • Images of the machine printed characters are extracted from a bitmap of the scanned image UNSD-ESCWA Regional Workshop on Census Data Processing in the ESCWA region: Contemporary technologies for data capture, methodology and practice of data editing Doha, State of Qatar, 18-22 May 2008

  4. Definition/Concept of ICR Gives scanning and imaging systems the ability to turn images of hand written characters into machine readable characters Images of the hand written characters are extracted from a bitmap of the scanned image UNSD-ESCWA Regional Workshop on Census Data Processing in the ESCWA region: Contemporary technologies for data capture, methodology and practice of data editing Doha, State of Qatar, 18-22 May 2008

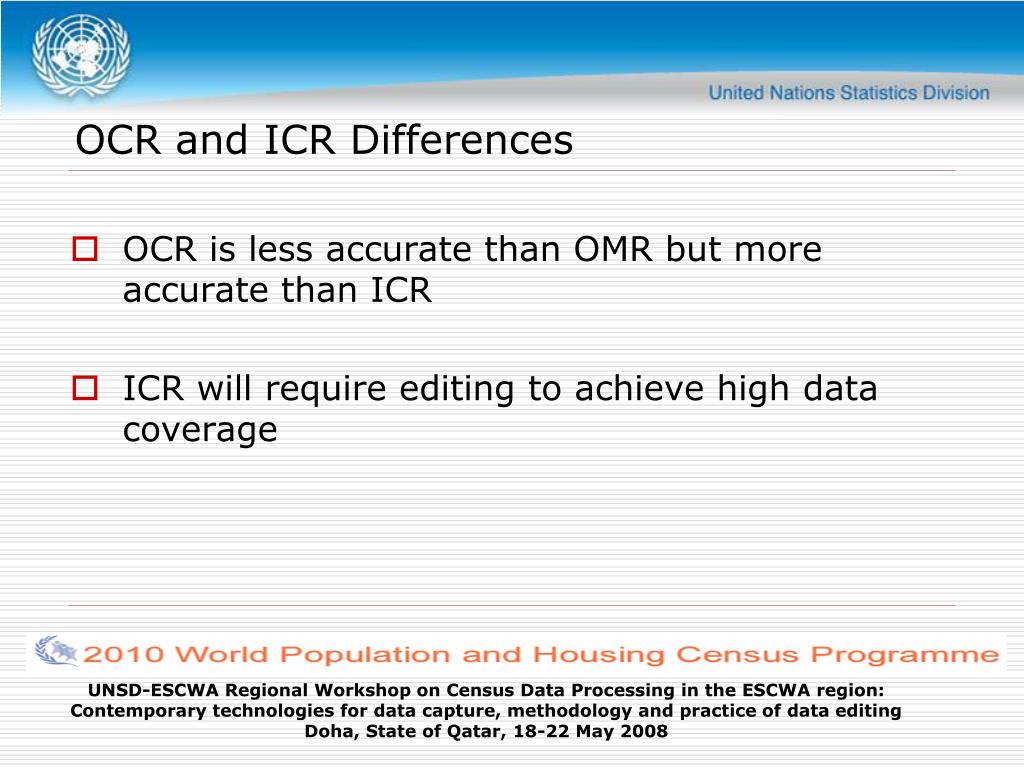

  5. OCR and ICR Differences • OCR is less accurate than OMR but more accurate than ICR • ICR will require editing to achieve high data coverage UNSD-ESCWA Regional Workshop on Census Data Processing in the ESCWA region: Contemporary technologies for data capture, methodology and practice of data editing Doha, State of Qatar, 18-22 May 2008

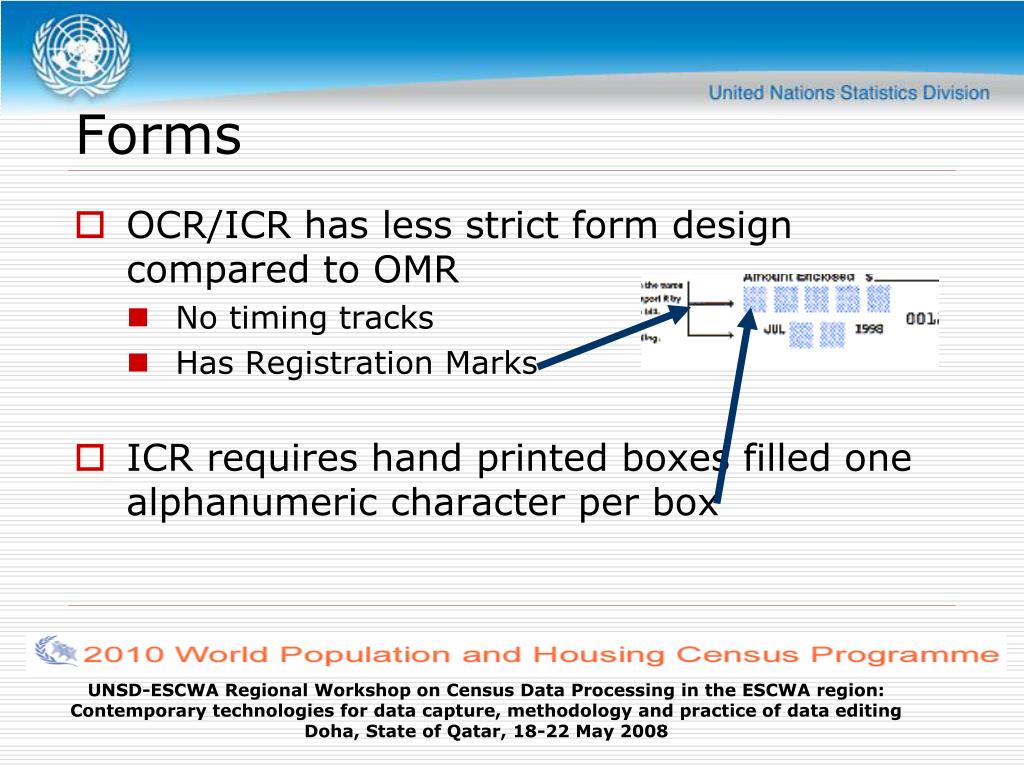

  6. Forms • OCR/ICR has less strict form design compared to OMR • No timing tracks • Has Registration Marks • ICR requires hand printed boxes filled one alphanumeric character per box UNSD-ESCWA Regional Workshop on Census Data Processing in the ESCWA region: Contemporary technologies for data capture, methodology and practice of data editing Doha, State of Qatar, 18-22 May 2008

  7. OCR • Forms • OCR/ ICR is more flexible since: • no timing tracks are required • The image can float on a page • The use of drop color reduces the size of the scanner’s output and enhances the accuracy • ICR/OCR technology often uses registration mark on the four-corners of a document, in the recognition of an image UNSD-ESCWA Regional Workshop on Census Data Processing in the ESCWA region: Contemporary technologies for data capture, methodology and practice of data editing Doha, State of Qatar, 18-22 May 2008

  8. UNSD-ESCWA Regional Workshop on Census Data Processing in the ESCWA region: Contemporary technologies for data capture, methodology and practice of data editing Doha, State of Qatar, 18-22 May 2008

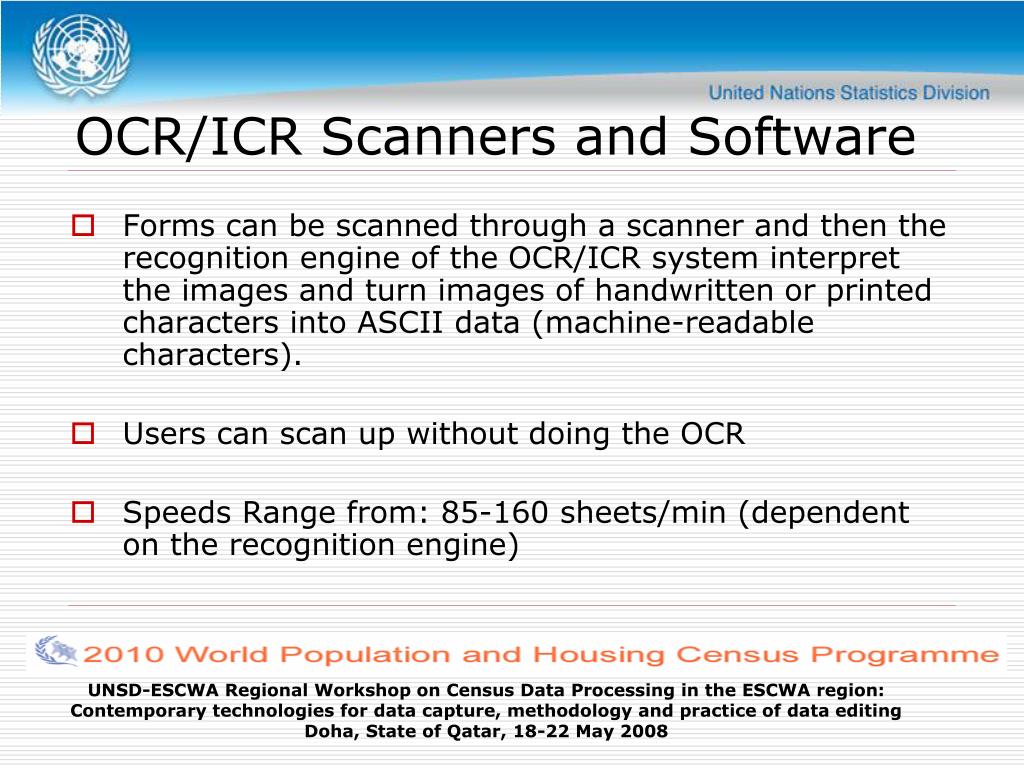

  9. OCR/ICR Scanners and Software Forms can be scanned through a scanner and then the recognition engine of the OCR/ICR system interpret the images and turn images of handwritten or printed characters into ASCII data (machine-readable characters). Users can scan up without doing the OCR Speeds Range from: 85-160 sheets/min (dependent on the recognition engine) UNSD-ESCWA Regional Workshop on Census Data Processing in the ESCWA region: Contemporary technologies for data capture, methodology and practice of data editing Doha, State of Qatar, 18-22 May 2008

  10. OCR/ICR Storage Characteristics Storage/Retrieval Images are scanned and stored and maintained electronically There is no need to store the paper forms as long as you safeguard the electronic files With OCR/ICR technologies, images can be scanned, indexed, and written to optical media UNSD-ESCWA Regional Workshop on Census Data Processing in the ESCWA region: Contemporary technologies for data capture, methodology and practice of data editing Doha, State of Qatar, 18-22 May 2008

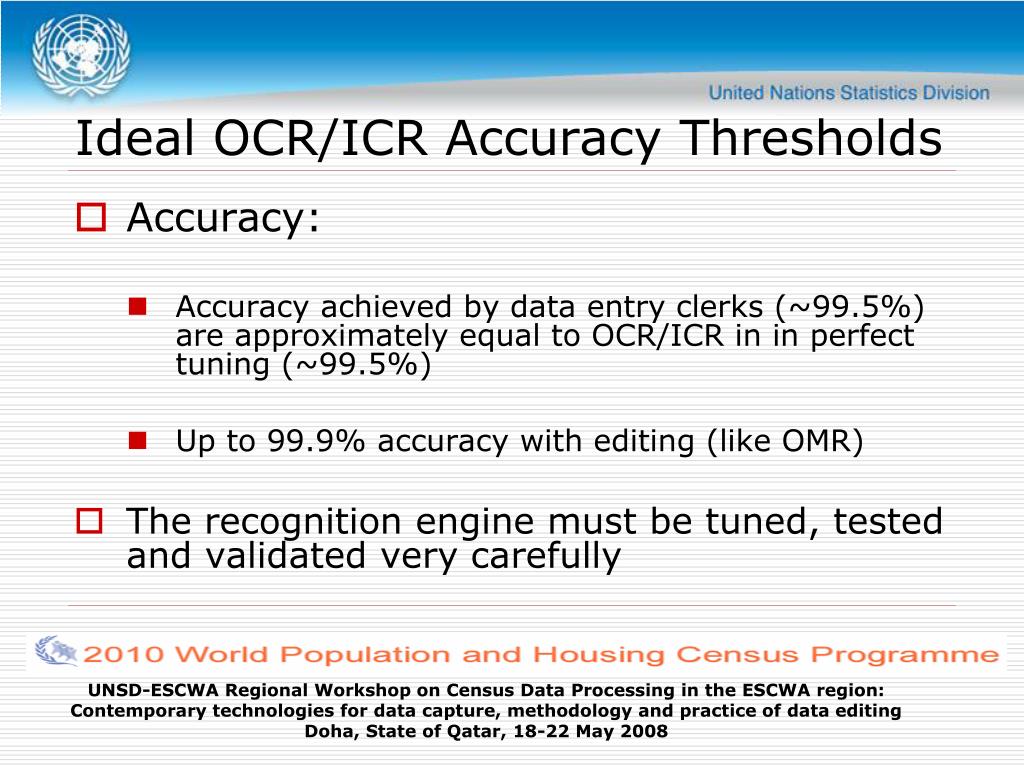

  11. Ideal OCR/ICR Accuracy Thresholds • Accuracy: • Accuracy achieved by data entry clerks (~99.5%) are approximately equal to OCR/ICR in in perfect tuning (~99.5%) • Up to 99.9% accuracy with editing (like OMR) • The recognition engine must be tuned, tested and validated very carefully UNSD-ESCWA Regional Workshop on Census Data Processing in the ESCWA region: Contemporary technologies for data capture, methodology and practice of data editing Doha, State of Qatar, 18-22 May 2008

  12. OCR/ICR Advantages • Advantages • Recognition engines used with imaging can capture highly specialized data sets • OCR/ICR recognize machine-printed or hand-printed characters. • Scanning and recognition allowed efficient management and planning for the rest of the processing workload • Quick retrieval for editing and reprocessing UNSD-ESCWA Regional Workshop on Census Data Processing in the ESCWA region: Contemporary technologies for data capture, methodology and practice of data editing Doha, State of Qatar, 18-22 May 2008

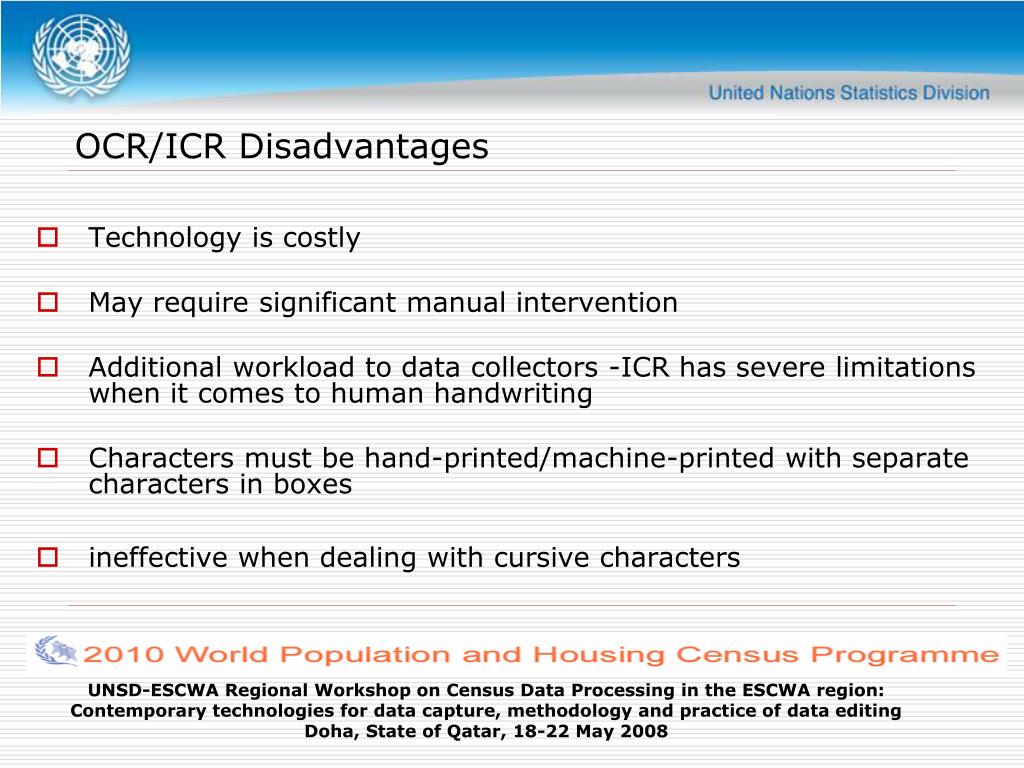

  13. OCR/ICR Disadvantages Technology is costly May require significant manual intervention Additional workload to data collectors -ICR has severe limitations when it comes to human handwriting Characters must be hand-printed/machine-printed with separate characters in boxes ineffective when dealing with cursive characters UNSD-ESCWA Regional Workshop on Census Data Processing in the ESCWA region: Contemporary technologies for data capture, methodology and practice of data editing Doha, State of Qatar, 18-22 May 2008

  14. OMR-OCR/ICR Compared UNSD-ESCWA Regional Workshop on Census Data Processing in the ESCWA region: Contemporary technologies for data capture, methodology and practice of data editing Doha, State of Qatar, 18-22 May 2008

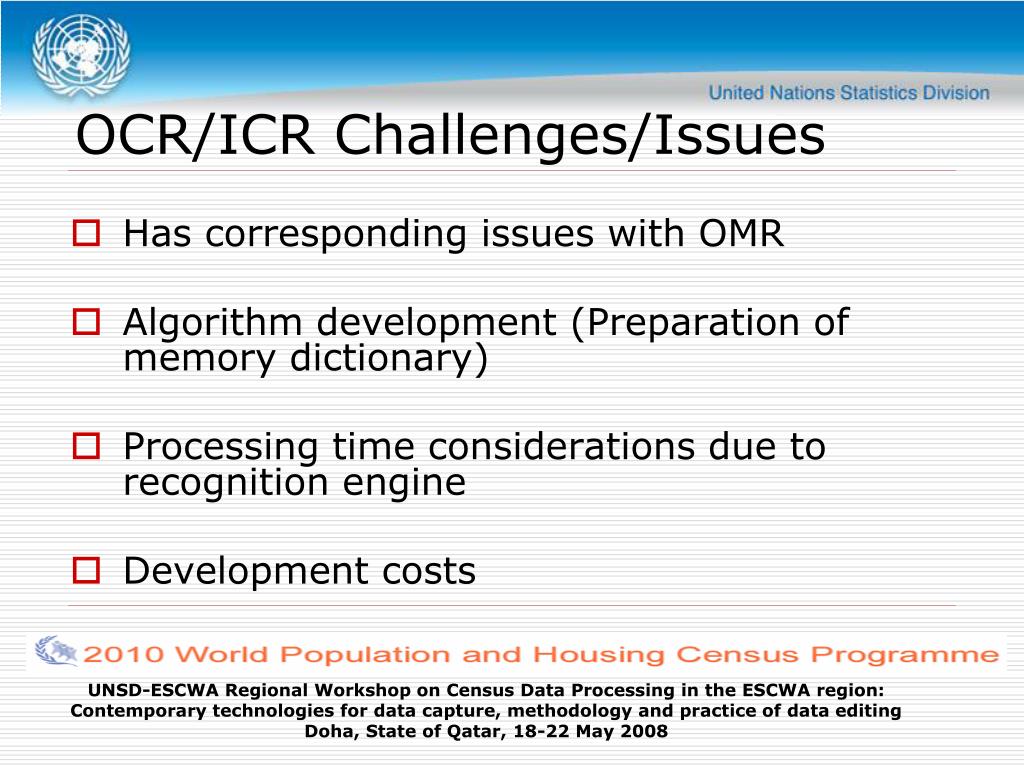

  15. OCR/ICR Challenges/Issues • Has corresponding issues with OMR • Algorithm development (Preparation of memory dictionary) • Processing time considerations due to recognition engine • Development costs UNSD-ESCWA Regional Workshop on Census Data Processing in the ESCWA region: Contemporary technologies for data capture, methodology and practice of data editing Doha, State of Qatar, 18-22 May 2008

  16. Definition/Concept of IR State of the art recognition technology Gives scanning and imaging systems the ability to turn images of hand written and cursive characters into machine readable characters Images of the hand writtenand cursive characters are extracted from a bitmap of the scanned image The ability to capture cursive make this method unique UNSD-ESCWA Regional Workshop on Census Data Processing in the ESCWA region: Contemporary technologies for data capture, methodology and practice of data editing Doha, State of Qatar, 18-22 May 2008

  17. Definition/Concept of IR eight elements that make up the trajectories of all cursive letters (figure 1) Photo: Parascript LLC UNSD-ESCWA Regional Workshop on Census Data Processing in the ESCWA region: Contemporary technologies for data capture, methodology and practice of data editing Doha, State of Qatar, 18-22 May 2008

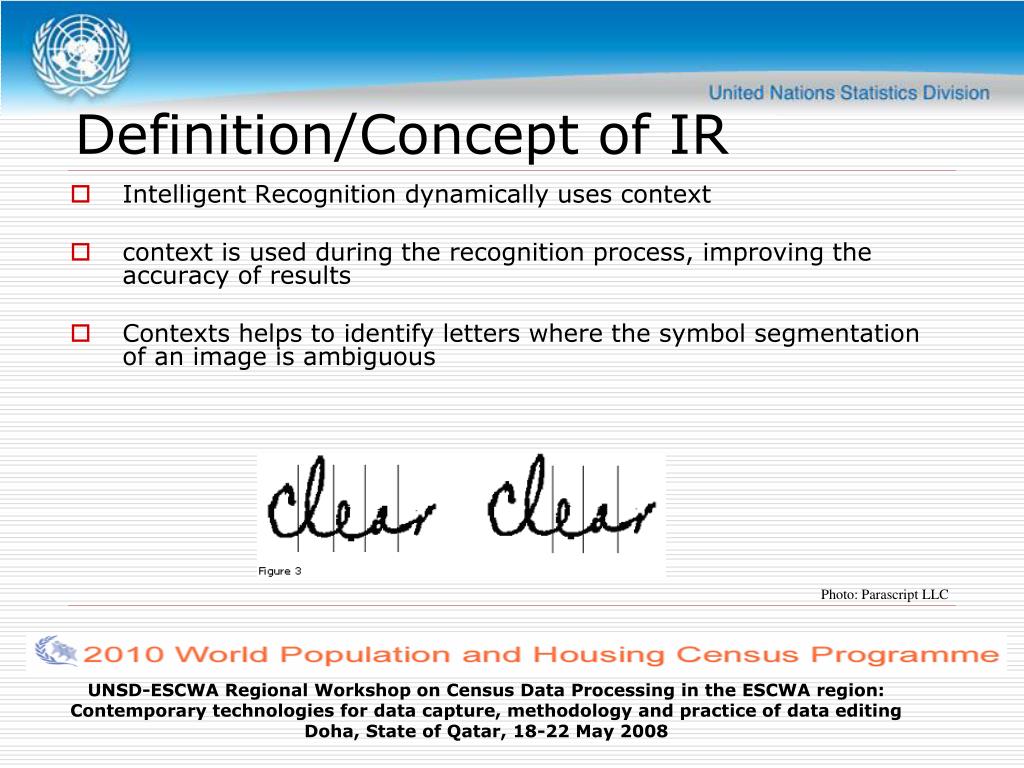

  18. Definition/Concept of IR Intelligent Recognition dynamically uses context context is used during the recognition process, improving the accuracy of results Contexts helps to identify letters where the symbol segmentation of an image is ambiguous Photo: Parascript LLC UNSD-ESCWA Regional Workshop on Census Data Processing in the ESCWA region: Contemporary technologies for data capture, methodology and practice of data editing Doha, State of Qatar, 18-22 May 2008

  19. Technology Evolution FORM TYPES TEXT STYLES No special form design No constraining boxes or combs Condensed strings Cursive Dirty & Noisy forms Bad quality paper Legacy Forms Bad quality machine print Unconstrained Handprint Specially designed for automatic recognition Constrained Handprint Constraining boxes or combs Drop out ink for preprinted text & boxes Machine Print Intelligent Recognition OCR ICR TECHNOLOGY EVOLUTION Illustration: Conference on Technology Options for 2011 Census UNSD-ESCWA Regional Workshop on Census Data Processing in the ESCWA region: Contemporary technologies for data capture, methodology and practice of data editing Doha, State of Qatar, 18-22 May 2008

  20. Major Commercial Suppliers • Top Image Systems (TIS)(http://www.topimagesystems.com) • ReadSoft (http://www.readsoft.com) • Teleform(http://www.intelliscan.com/TeleForm1.htm) • Scanner Suppliers • Fujitsu, Canon, Bell & Howell, Kodak UNSD-ESCWA Regional Workshop on Census Data Processing in the ESCWA region: Contemporary technologies for data capture, methodology and practice of data editing Doha, State of Qatar, 18-22 May 2008

  21. THANK YOU! UNSD-ESCWA Regional Workshop on Census Data Processing in the ESCWA region: Contemporary technologies for data capture, methodology and practice of data editing Doha, State of Qatar, 18-22 May 2008
