  1. DAMS in PAKISTAN USMAN ABDUL HAMEED May 25, 2010

  2. DAMS IN PAKISTAN PRESENTED BY : USMAN ABDUL HAMEED 08-RCET-EE-23 RACHNA COLLEGE OF ENGINEERING AND TECHNOLOGY GUJRANWALA

  3. POWER GENRATION • TOTAL REQUIRED: 15630 MW • TOTAL PRODUCED: 12150 MW • TOTAL SHORT FALL: 3480 MW

  4. TOTAL POWER PRODUCTION

  5. PRESENT DAMS MANGLA DAM MIRANI DAM TARBELA DAM WINDAR DAM RAWAL DAM SHAKIDOR DAM KHANPUR DAM GHAZI BROTHA DAM SIMLY DAM HUB DAM

  6. MANGLA DAM • PROJECT: 1961-1967 • IMPOUND: JEHLUM RIVER • LOCALE: MIR PUR AZAD KASHMIR • POWER GENRATION CAPACITY: 1000 MW

  7. TARBELA DAM • PROJECT: 1968-1971 • IMPOUND: INDUS RIVER • LOCALE: DIST. HARIPUR • POWER GENRATION CAPACITY: 4200 MW

  8. RAWAL DAM IMPOUND: RAWAL LAKE • LOCALE: • RAWALPINDI • POWER GENRATION CAPACITY: 600 MW

  9. IMPOUND: INDUS RIVER LOCALE: NEAR KHANPUR TOWN POWER GENRATION CAPACITY: 0 MW COST OF CONSTRACTION: Rs 1352 billions THIS DAM IS USED TO SUPPLY WATER TO ISLAMABAD AND RAWALPINDI(25 Km AWAY FROM ISLAMABAD) BY USING THIS DAM WE CAN GET 50-60 MW DAILLY KHANPUR DAM

  10. IMPOUND: INDUS RIVER LOCALE: NEAR GHAZI AND BROTHA TOWN COST OF CONSTRUCTION: US $2.3 Billions POWER GENRATION CAPACITY: 1450 MW OPENING DATE: 2002 GHAZI BAROTHA DAM

  11. SHAKIDOR DAM • LOCALE: NEAR PASNI • COST OF CONSTRUCTION: Rs 45 MILLIONS • OPENING DATE: 2003 ON FEB, 10,2005 DAM BRUST AND WIPED OFF ALMOST 70 VILLAGES

  12. SIMLY DAM • IMPOUND: SOAN RIVER • LOCALE: 25 Km AWAY FROM ISLAMABAD • USED: A LARGEST DRINKING WATER RESERVIOR FOR PEOPLE OF ISLAMABAD BY USING THIS WATER WE CAN GENRATE ALMOST 50-60MW

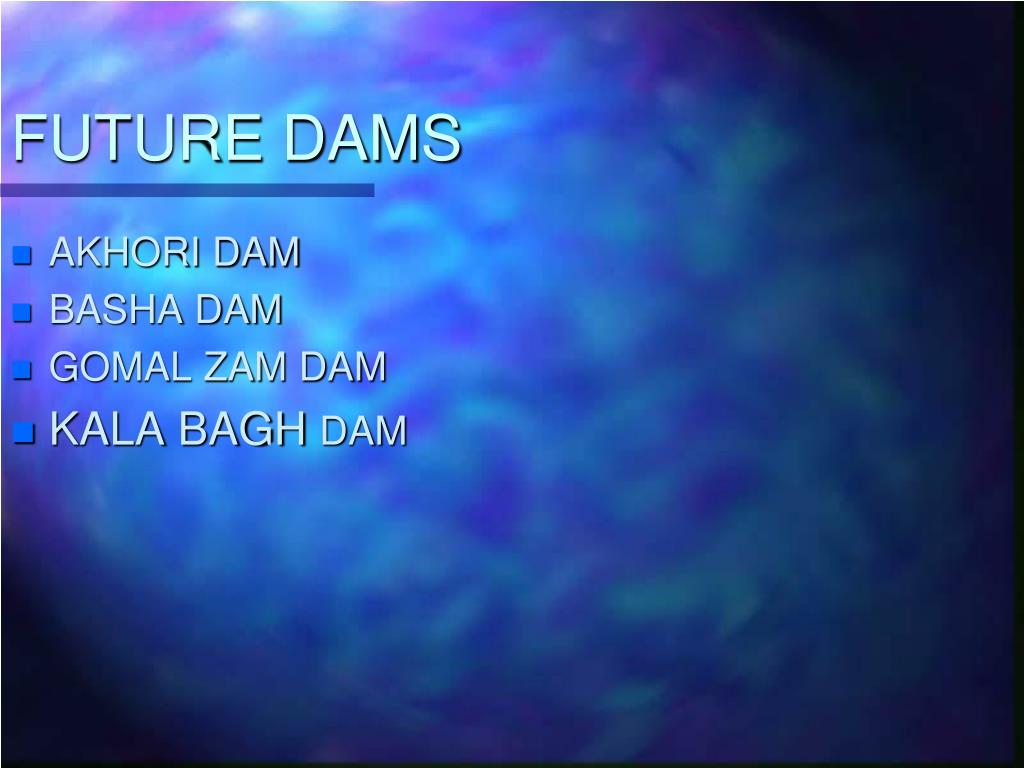

  13. FUTURE DAMS AKHORI DAM BASHA DAM GOMAL ZAM DAM KALA BAGH DAM

  14. PROJECT: 2025 IMPOUNDS: HARO RIVER LOCALE: NEAR AKHORI VILLAGE 28 KM NEAR ATTOCK POWER GENRATION CAPACITY: 600 MW CONSTRUCTION COST: $ 1.6 BILLION EST. AKHORI DAM

  15. PROJECT: WORKSTART FROM AUG 2002 IMPOUNDS: GOMAL RIVER LOCALE: NORTH WEST KHABER PAKHTON KHAN POWER GERATION CAPASITY: 17.4 MW COST OF CONSTRUCTION: Rs.12 BILLIONS GOMAL ZAM DAM

  16. PROJECT: ( 2009-2016) IMPOUNDS: RIVER INDUS. LOCALE: NORTHEN AREAS POWER GENRATION CAPASITY: 4500 MW COST OF CONSTUCTION: $12.6 BILLIONS BHASHA DAM

  17. IMPOUNDS: INDUS RIVER LOCALE: KALA BAGH AT MIAN WALI POWER GENRATION CAPACITY: 1000 MW THIS PROJECT IS CANCELLED DUE TO THE OPPOSITION FROM SINDH KALA BAGH DAM

  18. THANXS TO ALL

  19. QUESTIONS??
