1 / 17

Definition of a Logarithmic Function

Exponent. Exponent. Base. Base. Logarithmic: y = log b x Exponential: b y = x . Form Form. Date: 3.3: Logarithmic Functions and Their Graphs (3.3). Definition of a Logarithmic Function. For x > 0 and b > 0, b≠ 1, y = log b x is equivalent to b y = x

naasir
Download Presentation

Definition of a Logarithmic Function

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Exponent Exponent Base Base Logarithmic: y = logbx Exponential: by = x. Form Form Date:3.3: Logarithmic Functions and Their Graphs (3.3) Definition of a Logarithmic Function For x > 0 and b > 0, b≠ 1, y = logb x is equivalent to by = x The function f (x) = logb x is the logarithmic function with base b.

  2. Write each equation in its equivalent exponential form. a. 3 = log7x b. 2 = logb 25 c. log4 26 = y Text Example or y = log4 26 73 = x b2 = 25 4y = 26 y = logb x means by = x Write each equation in its equivalent logarithmic form. a. 122 = x b. b3 = 8 c. ey = 9 2 = log12x 3 = logb 8 y = loge 9

  3. Logarithmic Expression Question Needed for Evaluation Logarithmic Expression Evaluated a. log2 16 b. log3 9 c. log25 5 Text Example Evaluate a. log2 16 b. log3 9 c. log25 5 = 1/2 = 4 = 2 Solution 2 to what power is 16? log2 16 = 4 because 24 = 16. log3 9 = 2 because 32 = 9. 3 to what power is 9? log25 5 = 1/2 because 251/2 = 5. 25 to what power is 5?

  4. Basic Logarithmic Properties Involving One logbb = 1 because 1 is the exponent to which b must be raised to obtain b (b1 = b) logb 1 = 0 because 0 is the exponent to which b must be raised to obtain 1 (b0 = 1)

  5. For x > 0 and b  1, logb by= y The logarithm with base b of b raised to a power equals that power. b logb x = x b raised to the logarithm with base b of a number equals that number. Inverse Properties of Logarithms

  6. y = x 6 5 f (x) = 2x 4 3 2 g (x) = log2x -2 -1 2 3 4 5 6 -1 -2 Characteristics of the Graphs of Logarithmic Functions of the Form f(x) = logbx • The x-intercept is 1. There is no y-intercept. • The y-axis is a vertical asymptote. • If b > 1, the function is increasing. If 0 < b < 1, the function is decreasing. • The graph is smooth and continuous. It has no sharp corners or edges.

  7. Reverse coordinates. x -2 -1 0 1 2 3 x 1/4 1/2 1 2 4 8 6 5 4 f (x) = 2x 1/4 1/2 1 2 4 8 g(x) = log2 x -2 -1 0 1 2 3 y = x 3 f (x) = 2x 2 -2 -1 2 3 4 5 6 -1 g (x) = log2x -2 Text Example Graph f (x) = 2x and g(x) = log2x in the same rectangular coordinate system. Solution We first set up a table of coordinates for f (x) = 2x. Reversing these coordinates gives the coordinates for the inverse function, g(x) = log2x. Graph f (x) = 2x and g(x) = log2x in the same rectangular coordinate system. The graph of the inverse can also be drawn by reflecting the graph of f(x) = 2x over the line y = x.

  8. Complete Student Checkpoint Write each equation in its equivalent logarithmic form. a. 25 = x b. b3 = 27 c. ey = 33 5 = log2x 3 = logb 27 y = loge 33 Evaluate a. log10 100 b. log3 3 c. log36 6 = 1/2 = 2 = 1 36? = 6 10? = 100 3? = 3

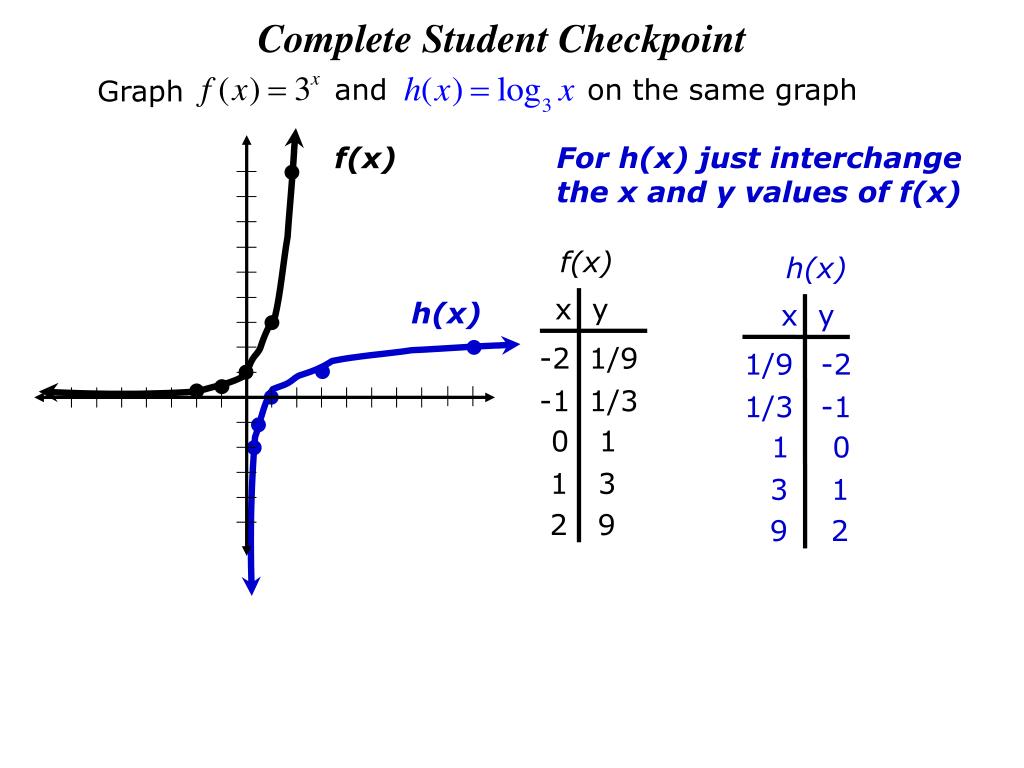

  9. h(x) h(x) x y 1/9 -2 1/3 -1 1 0 3 1 9 2 Complete Student Checkpoint and on the same graph Graph For h(x) just interchange the x and y values of f(x) f(x) f(x) x y -2 1/9 -1 1/3 0 1 1 3 2 9

  10. Finding Domains What is the Domain for the following functions? (remember you can’t take the log of a negative number) f(x) = log2x x > 0 x > -3 g(x) = log4(x+3) x > 1 g(x) = log2(x-1) x > 2 g(x) = log7(x-2) x < 0 h(x) = log2(-x) x < 3 g(x) = ln(3-x) x > 0 j(x) = - log2x g(x) = ln(x-2)2 x > 0 p(x) = log2x + 1 all real numbers x > 0 r(x) = 2log2x Complete Student Checkpoint Find the domain of x - 5 >0 x > 5

  11. Transformation Equation Description Horizontal translation • Shifts the graph of f (x) = logbx to the • left c units if c > 0, asymptote x = -c • Shifts the graph of f (x) = logbx to the • right c units if c < 0,asymptote x = c g(x) = logb(x+c) Vertical stretching or shrinking g(x) = clogbx • Multiply y-coordintates of f (x) = logbx by c, • Stretches the graph of f (x) = logbx if c > 1. • Shrinks the graph of f (x) = logbx if 0 < c < 1. Reflecting • Reflects the graph of f (x) = logbx about the x-axis. • Reflects the graph of f (x) = logbx about the y-axis. g(x) = - logbx g(x) = logb(-x) Vertical translation • Shifts the graph of f (x) = logbx upward c units if c > 0. • Shifts the graph of f (x) = logbx downward c units if c < 0. g(x) = logbx+c Transformations Involving Logarithmic Functions

  12. x y 1/2 1 2 4 Text Example Graph f (x) = log2x and g(x) = 1 + -2log2(x - 1) in the same rectangular coordinate system. Right 1 What are the transformations for g(x)? Stretch x2 Reflect over x-axis f(x) Up 1 f(x) -1 0 1 2 g(x)

  13. General PropertiesCommon Logarithms 1. logb 1 = 0 1. log 1 = 0 2. logbb = 1 2. log 10 = 1 3. logbbx = x 3. log 10x = x 4. b logb x = x 4. 10 log x = x Properties of Common Logarithms(base is 10, log10 ) The Log on your calculator is base 10

  14. log b b = Examples of Logarithmic Properties 1 3 log 3 6 = 6 log b 1 = 0 log 5 5 3 = 3 log 4 4 = 1 2 log 2 7 = 7 log 8 1 = 0

  15. General PropertiesNatural Logarithms 1. logb 1 = 0 1. ln 1 = 0 2. logbb = 1 2. ln e = 1 3. logbbx = x 3. ln ex = x 4. b logb x = x 4. eln x = x Properties of Natural Logarithmsln = loge

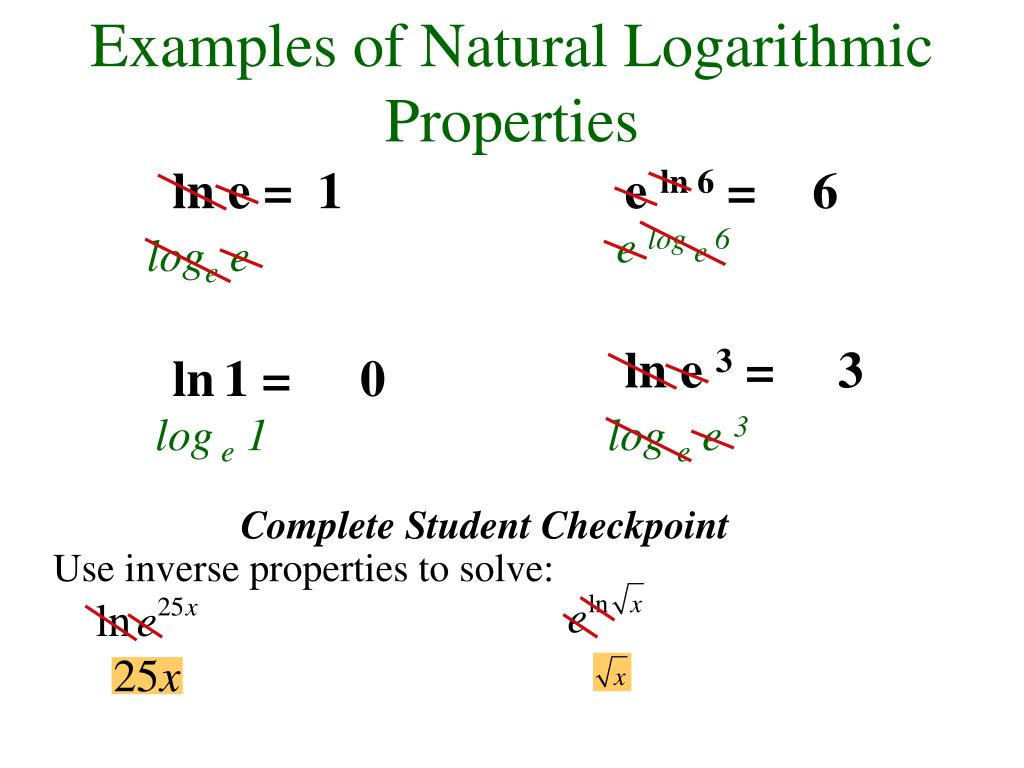

  16. ln e = Examples of Natural Logarithmic Properties 1 e ln 6 = 6 e log e 6 loge e ln e 3 = 3 ln1 = 0 log e 1 log e e 3 Complete Student Checkpoint Use inverse properties to solve:

  17. Logarithmic Functions and Their Graphs
