Presentation Transcript

  1. bc F-Series Ceiling Speaker

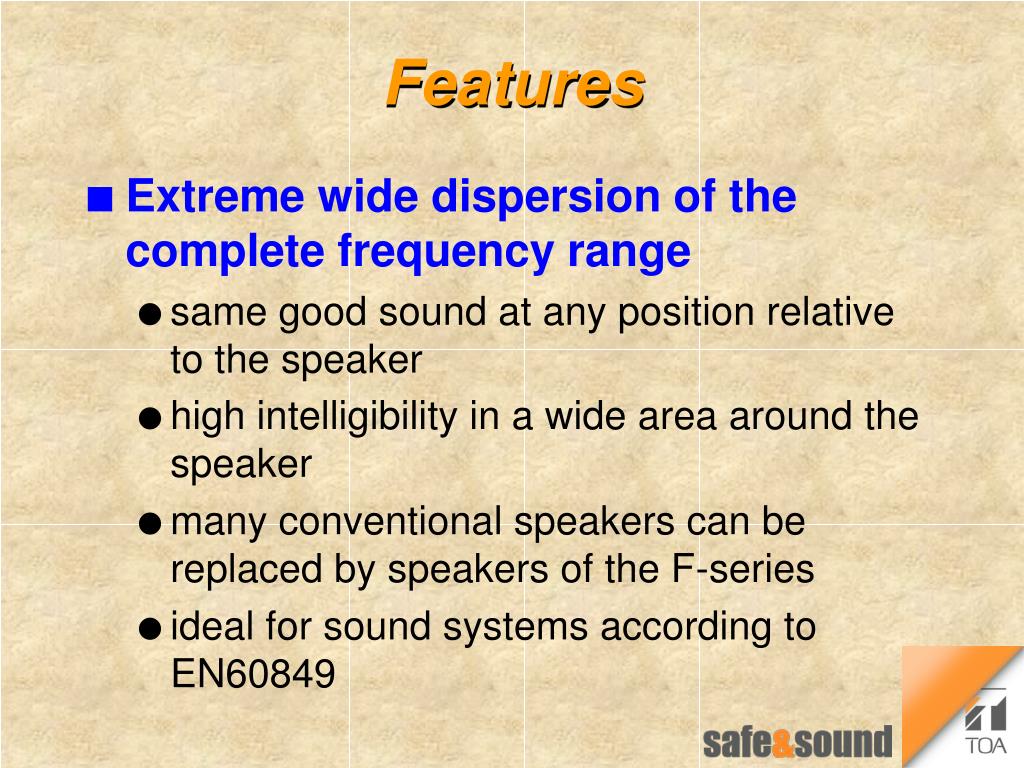

  2. Features • Extreme wide dispersion of the complete frequency range • same good sound at any position relative to the speaker • high intelligibility in a wide area around the speaker • many conventional speakers can be replaced by speakers of the F-series • ideal for sound systems according to EN60849

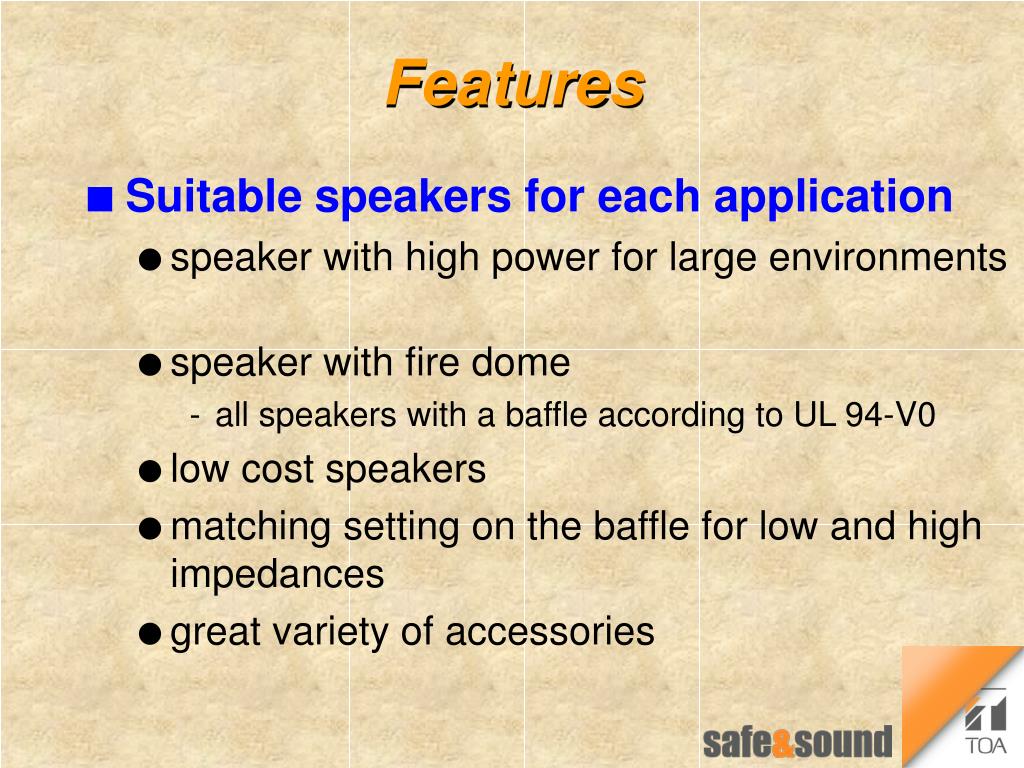

  3. Features • Suitable speakers for each application • speaker with high power for large environments • speaker with fire dome • all speakers with a baffle according to UL 94-V0 • low cost speakers • matching setting on the baffle for low and high impedances • great variety of accessories

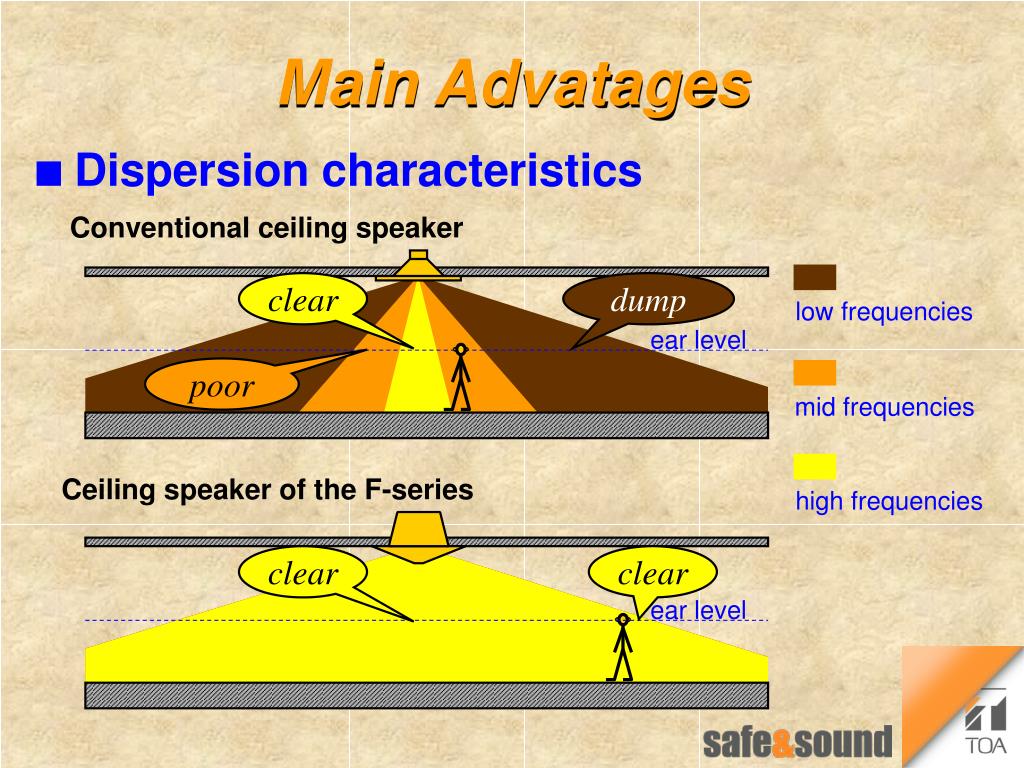

  4. Conventional ceiling speaker low frequencies ear level mid frequencies Ceiling speaker of the F-series high frequencies ear level Main Advatages • Dispersion characteristics clear dump poor clear clear

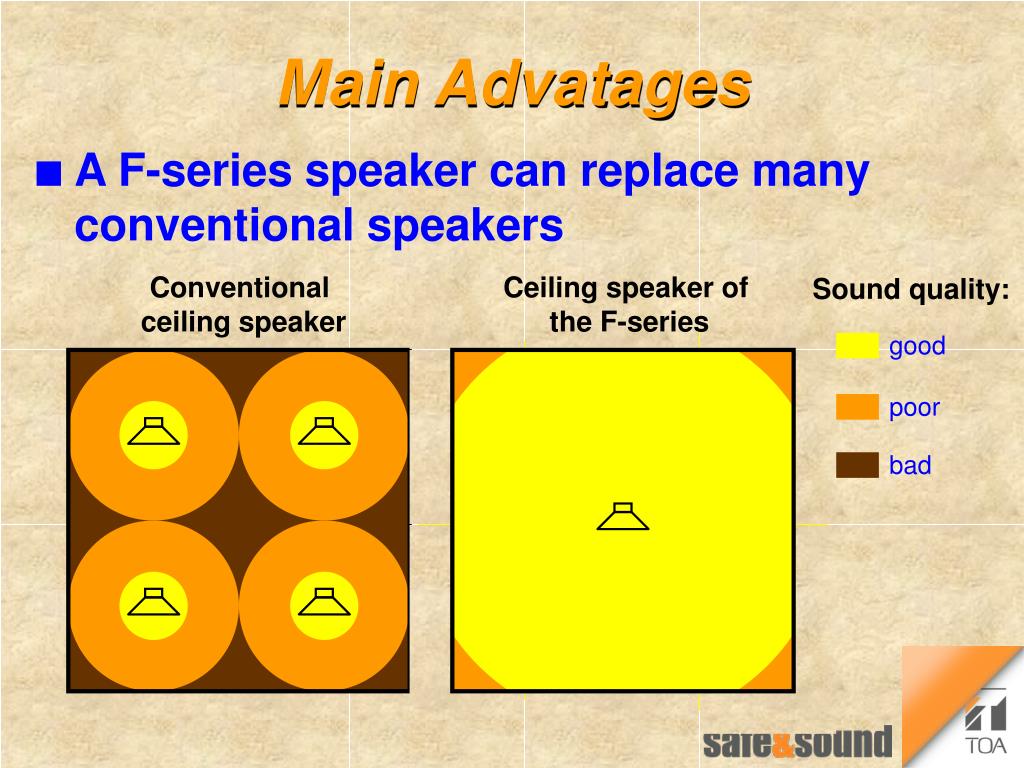

  5. Conventional ceiling speaker Ceiling speaker of the F-series bad poor good Main Advatages • A F-series speaker can replace many conventional speakers Sound quality:

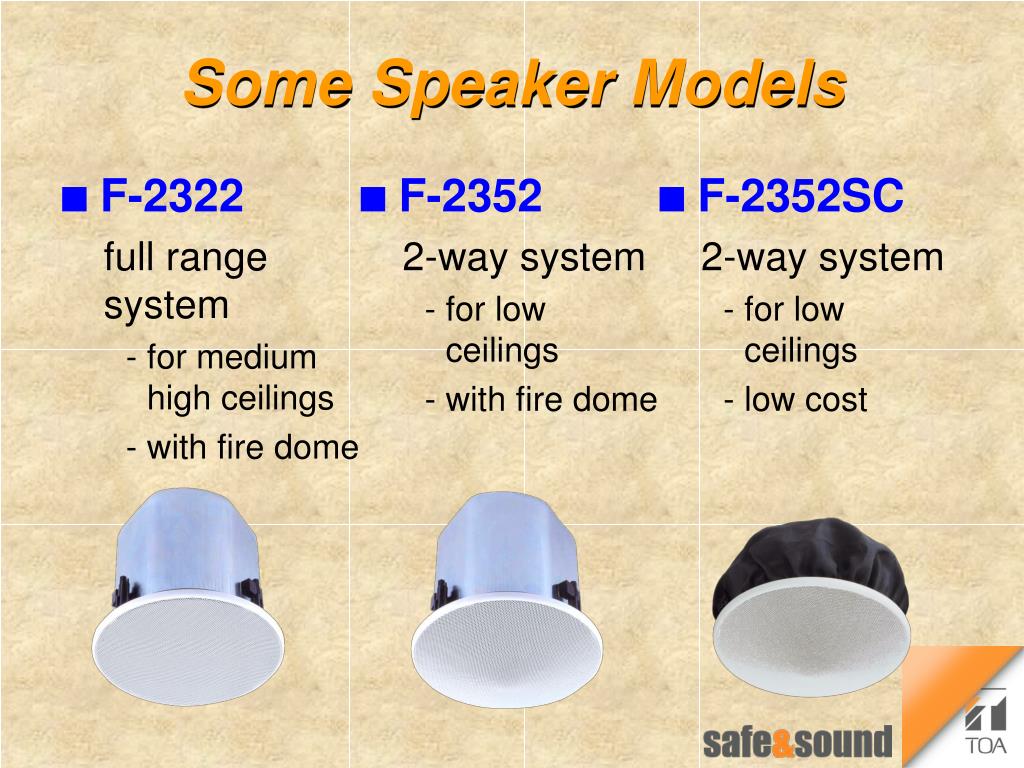

  6. F-2322 full range system • for medium high ceilings • with fire dome • F-2352 2-way system • for low ceilings • with fire dome • F-2352SC 2-way system • for low ceilings • low cost Some Speaker Models

  7. Accessories • HY-AH1 • anchor hanging bracket • HY-BC1 • back can • HY-TB1 • tile bar bridge • HY-TR1 • trim ring • AC-120 • processor for F-122C

  8. Ceiling Speakers of the F-Series Any questions to any of the speakers? ... please don’t hesitate to ask us !
