  1. 3D Desktop Printing (printer) By G.Seshu Kumar (10A25A0503)

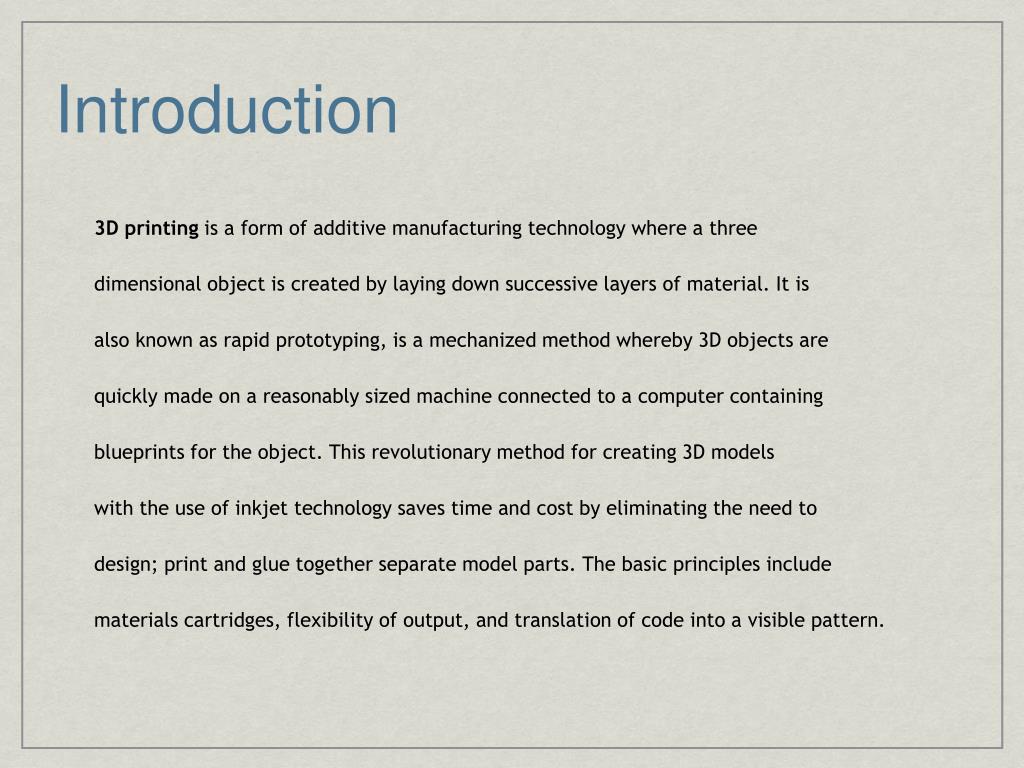

  2. Introduction 3D printing is a form of additive manufacturing technology where a three dimensional object is created by laying down successive layers of material. It is also known as rapid prototyping, is a mechanized method whereby 3D objects are quickly made on a reasonably sized machine connected to a computer containing blueprints for the object. This revolutionary method for creating 3D models with the use of inkjet technology saves time and cost by eliminating the need to design; print and glue together separate model parts. The basic principles include materials cartridges, flexibility of output, and translation of code into a visible pattern.

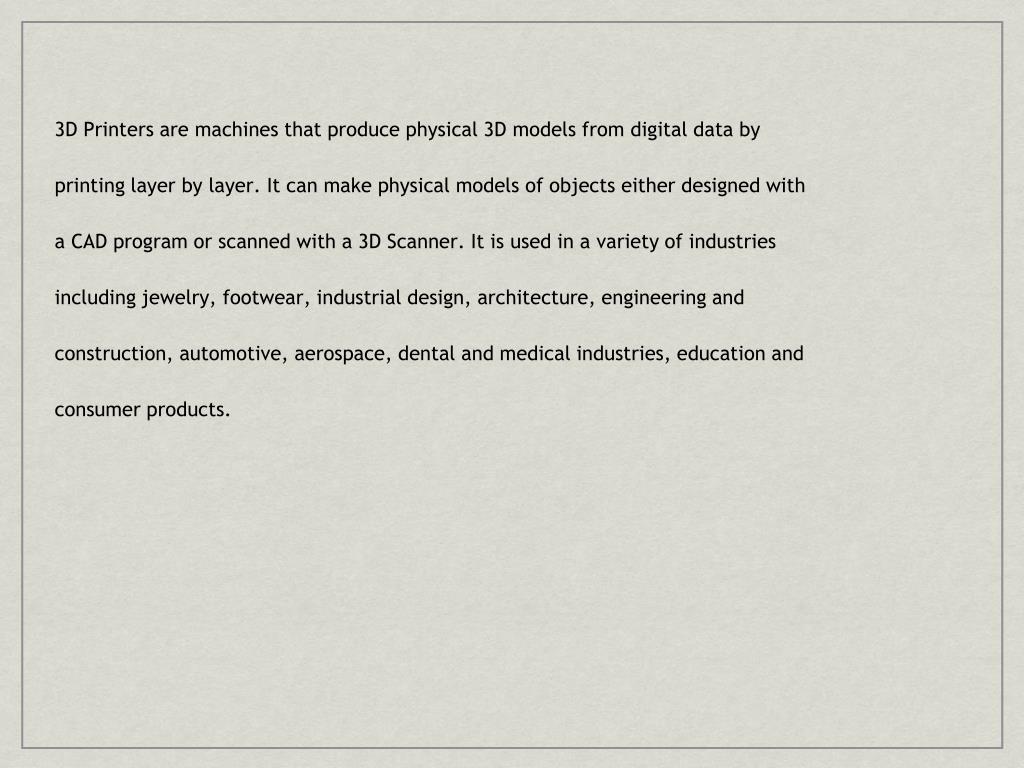

  3. 3D Printers are machines that produce physical 3D models from digital data by printing layer by layer. It can make physical models of objects either designed with a CAD program or scanned with a 3D Scanner. It is used in a variety of industries including jewelry, footwear, industrial design, architecture, engineering and construction, automotive, aerospace, dental and medical industries, education and consumer products.

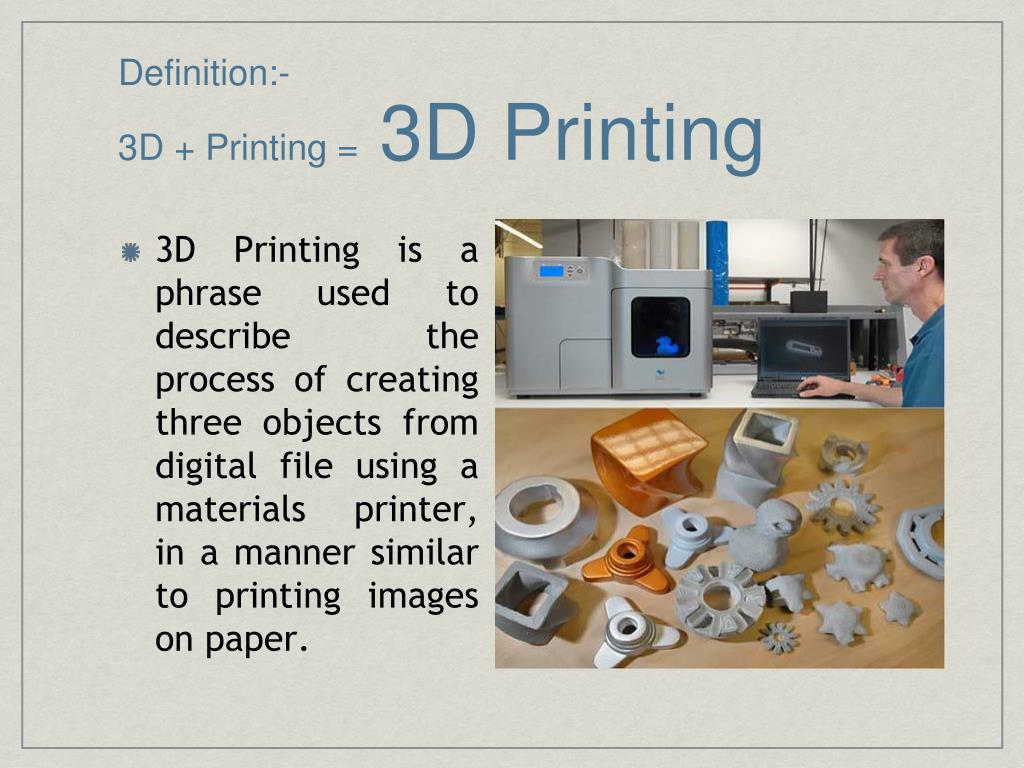

  4. Definition:-3D + Printing = 3D Printing • 3D Printing is a phrase used to describe the process of creating three objects from digital file using a materials printer, in a manner similar to printing images on paper.

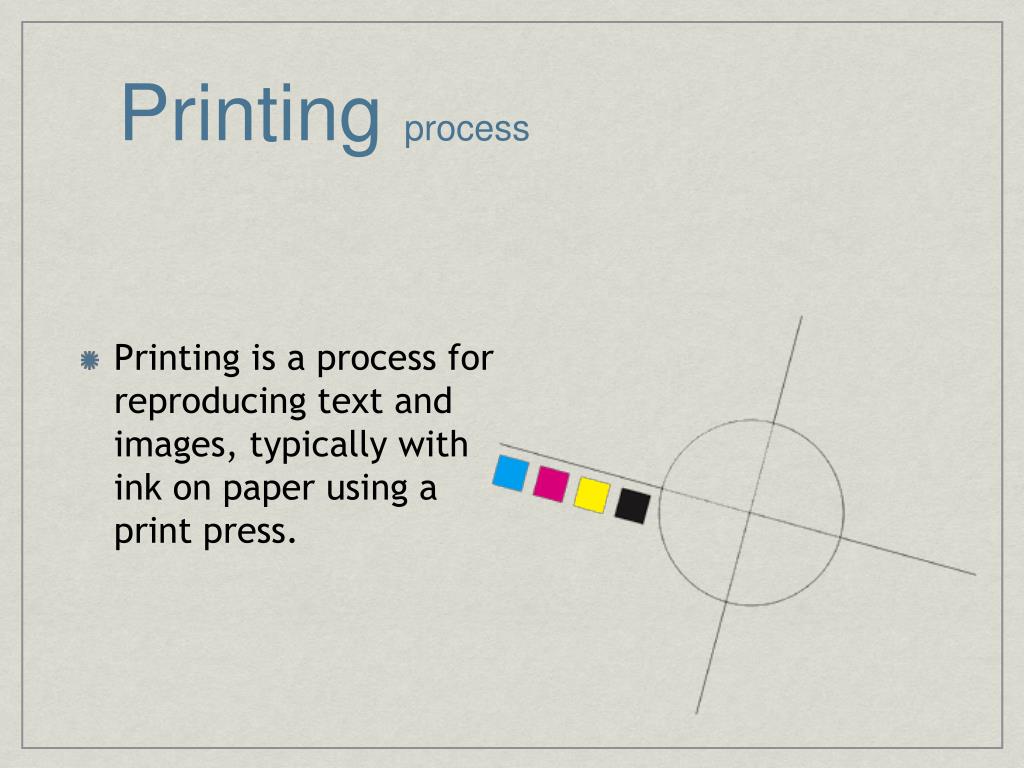

  5. Printing process • Printing is a process for reproducing text and images, typically with ink on paper using a print press.

  6. Applications

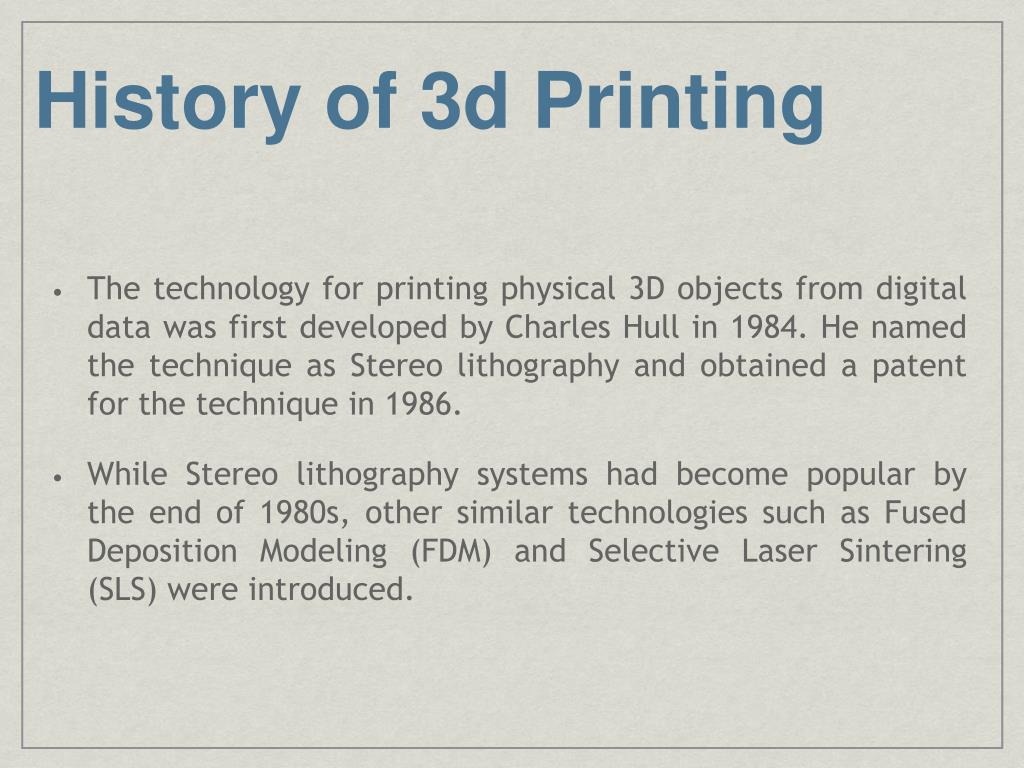

  7. History of 3d Printing The technology for printing physical 3D objects from digital data was first developed by Charles Hull in 1984. He named the technique as Stereo lithography and obtained a patent for the technique in 1986. While Stereo lithography systems had become popular by the end of 1980s, other similar technologies such as Fused Deposition Modeling (FDM) and Selective Laser Sintering (SLS) were introduced.

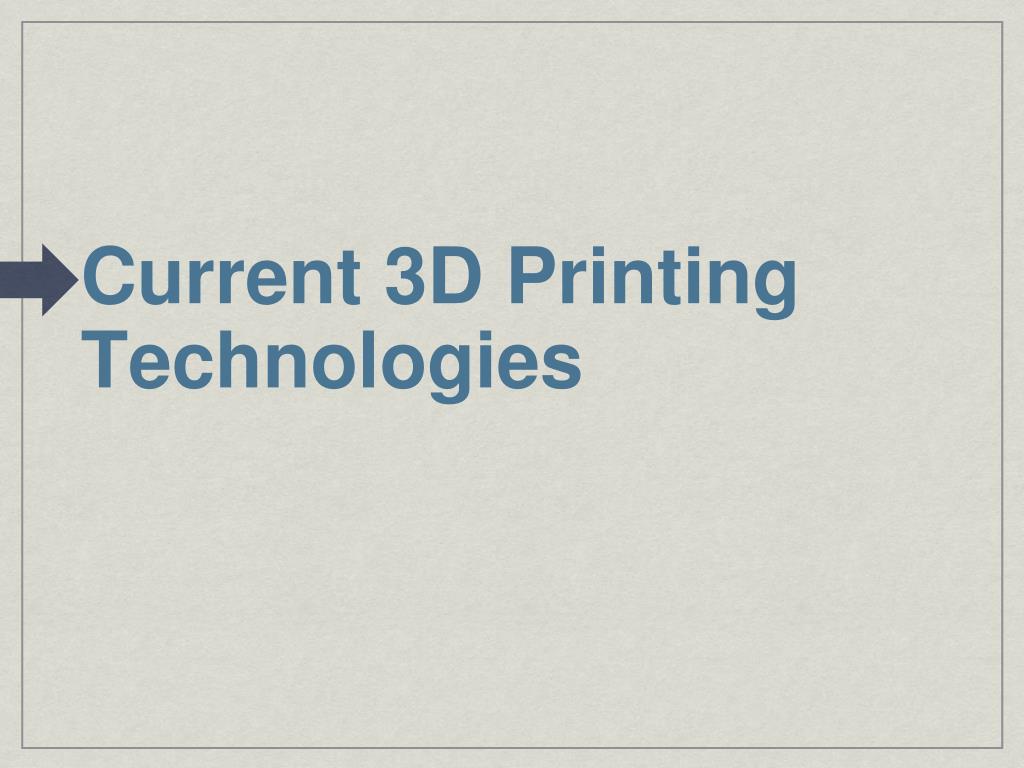

  8. Current 3D Printing Technologies

  9. Different methods • Selective laser sintering (SLS) • Stereo lithography • Fused deposition modeling (FDM) • Laminated object manufacturing

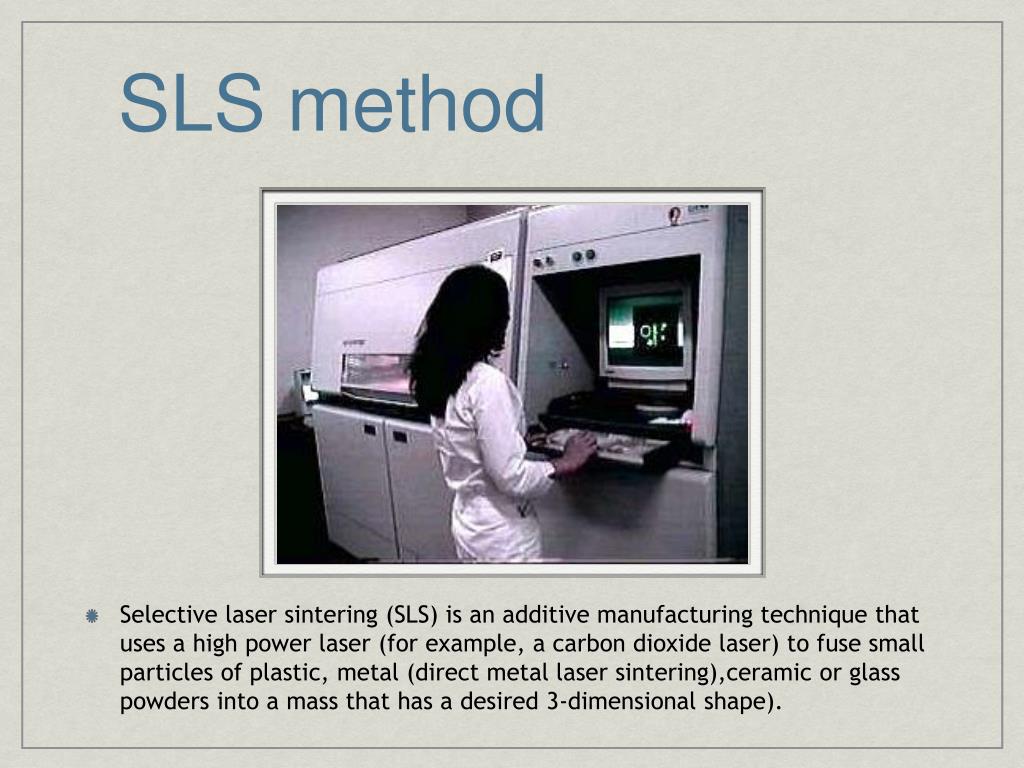

  10. SLS method • Selective laser sintering (SLS) is an additive manufacturing technique that uses a high power laser (for example, a carbon dioxide laser) to fuse small particles of plastic, metal (direct metal laser sintering),ceramic or glass powders into a mass that has a desired 3-dimensional shape).

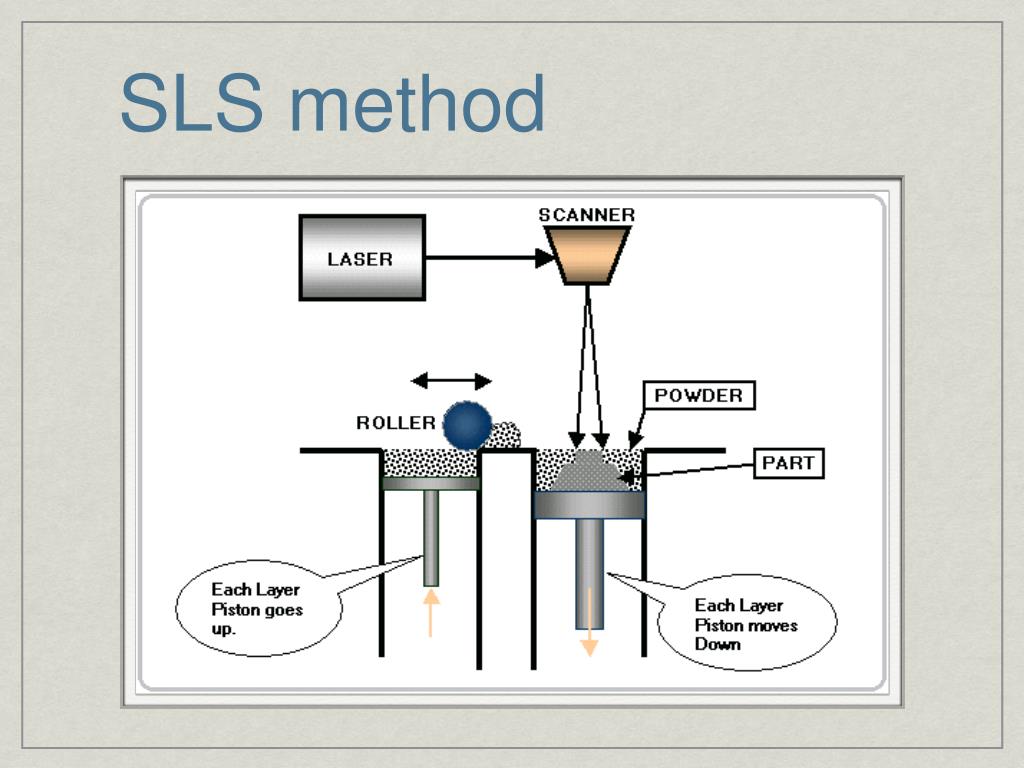

  11. SLS method

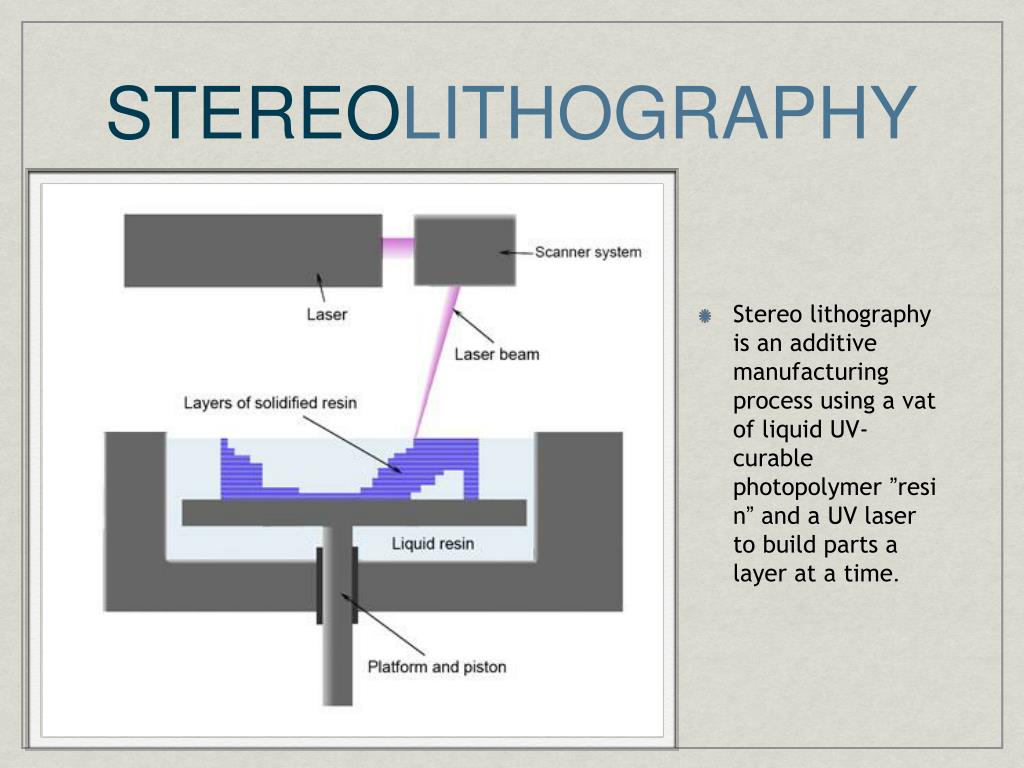

  12. STEREOLITHOGRAPHY • Stereo lithography is an additive manufacturing process using a vat of liquid UV-curable photopolymer ”resin” and a UV laser to build parts a layer at a time.

  13. FDM • Fused deposition modeling (FDM) is an additive manufacturing technology commonly used for modeling, prototyping, and production applications.

  14. Laminated object manufacturing • Laminated object manufacturing (LOM) is a rapid prototyping system developed by Helices Inc. In it, layers of adhesive-coated paper, plastic or metal laminates are successively glued together and cut to shape with a knife or laser cutter.

  15. Equipment types • Dimension 3D printer

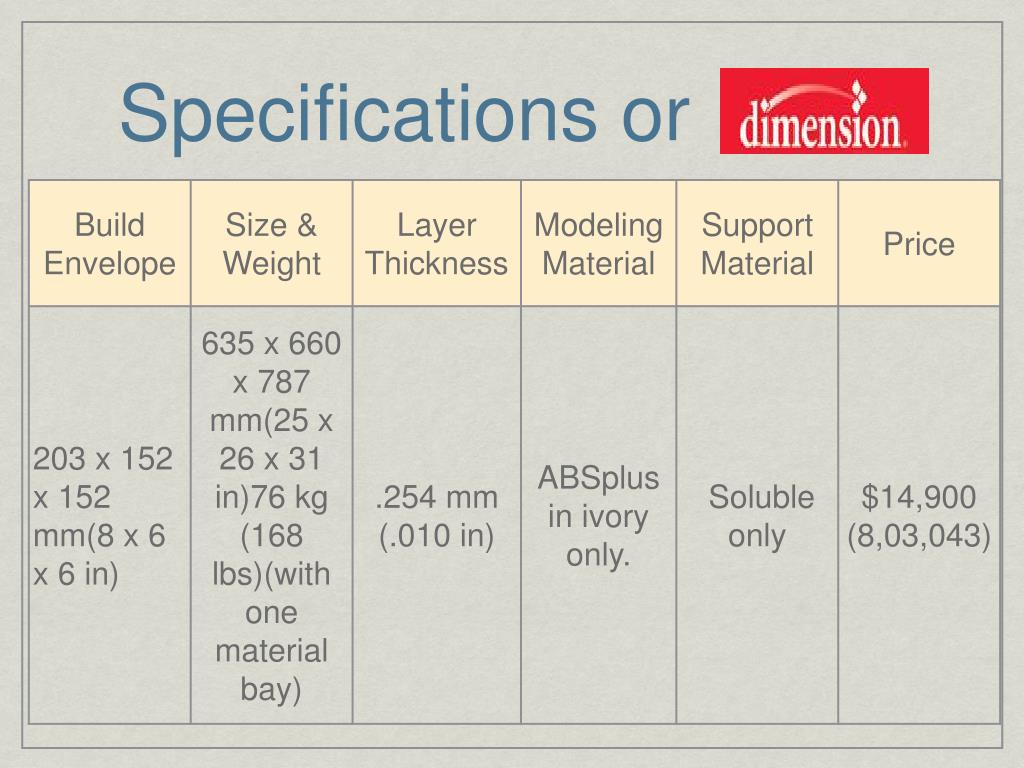

  16. Specifications or

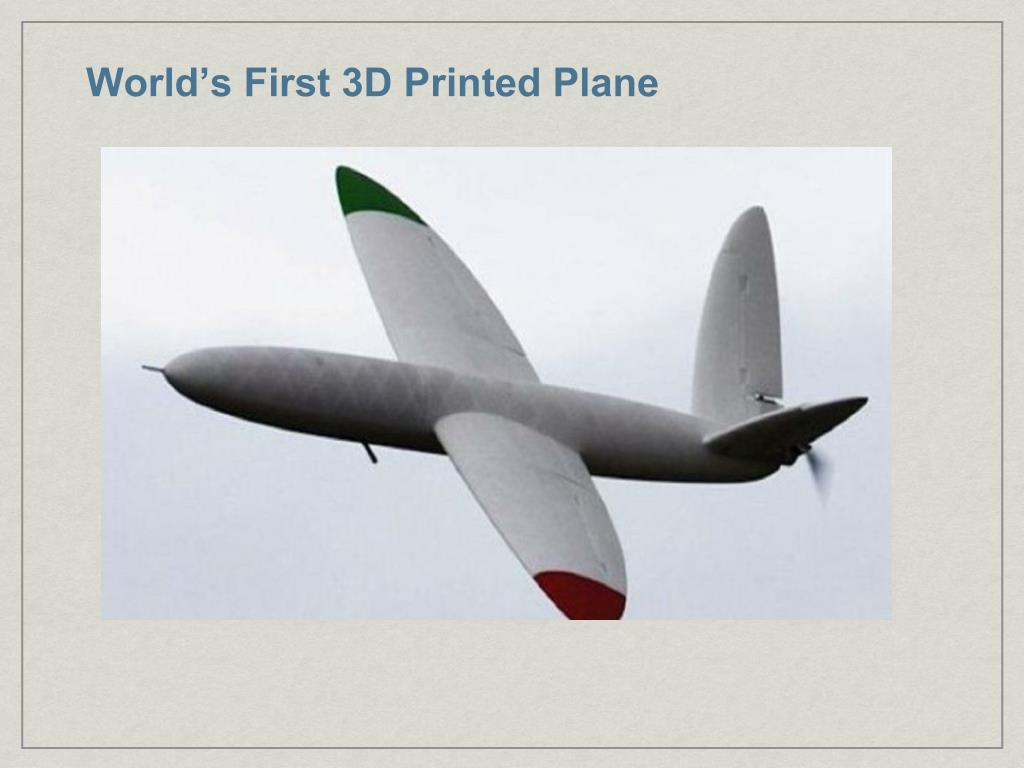

  17. World’s First 3D Printed Plane

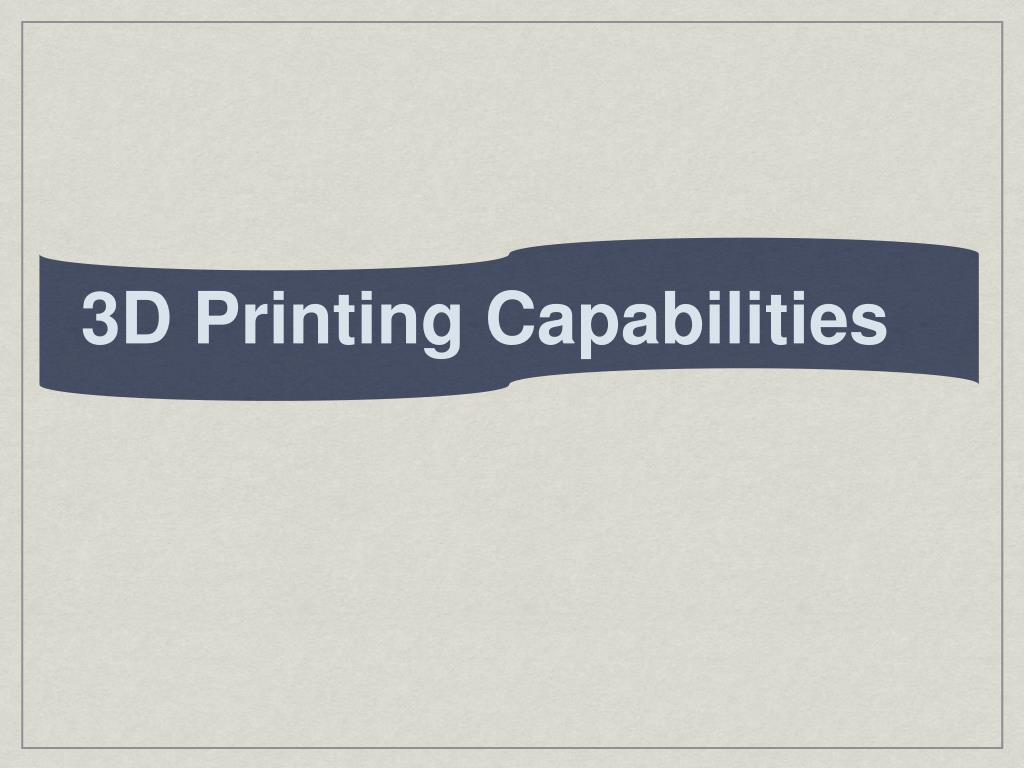

  18. 3D Printing Capabilities

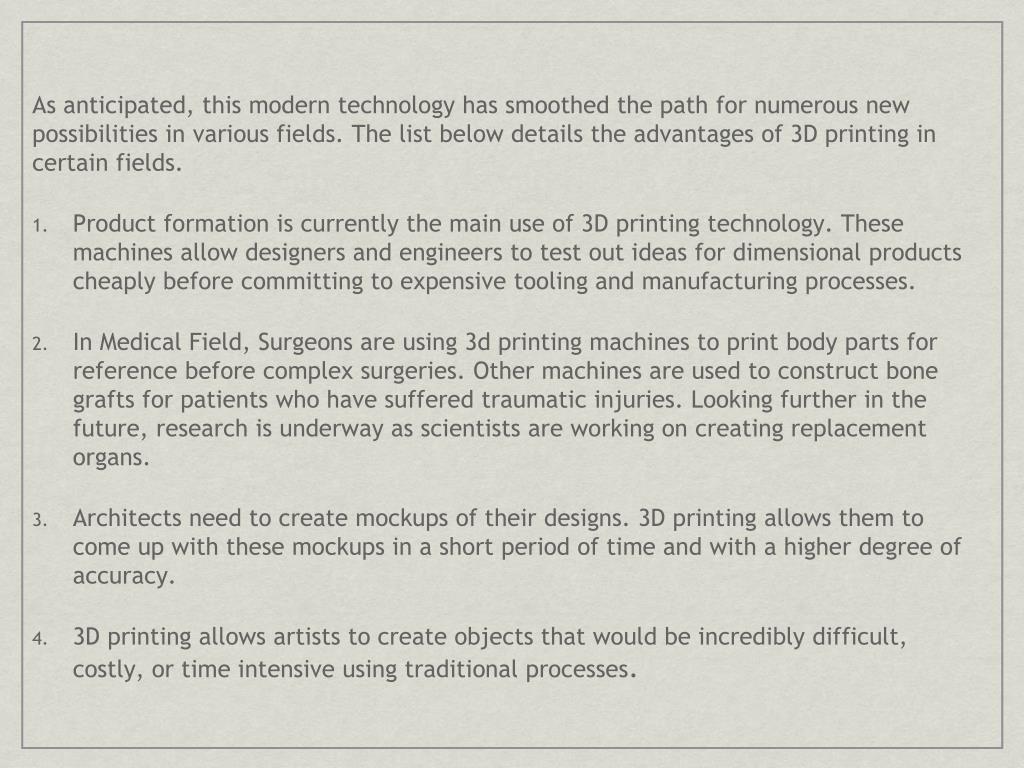

  19. As anticipated, this modern technology has smoothed the path for numerous new possibilities in various fields. The list below details the advantages of 3D printing in certain fields. Product formation is currently the main use of 3D printing technology. These machines allow designers and engineers to test out ideas for dimensional products cheaply before committing to expensive tooling and manufacturing processes. In Medical Field, Surgeons are using 3d printing machines to print body parts for reference before complex surgeries. Other machines are used to construct bone grafts for patients who have suffered traumatic injuries. Looking further in the future, research is underway as scientists are working on creating replacement organs. Architects need to create mockups of their designs. 3D printing allows them to come up with these mockups in a short period of time and with a higher degree of accuracy. 3D printing allows artists to create objects that would be incredibly difficult, costly, or time intensive using traditional processes.

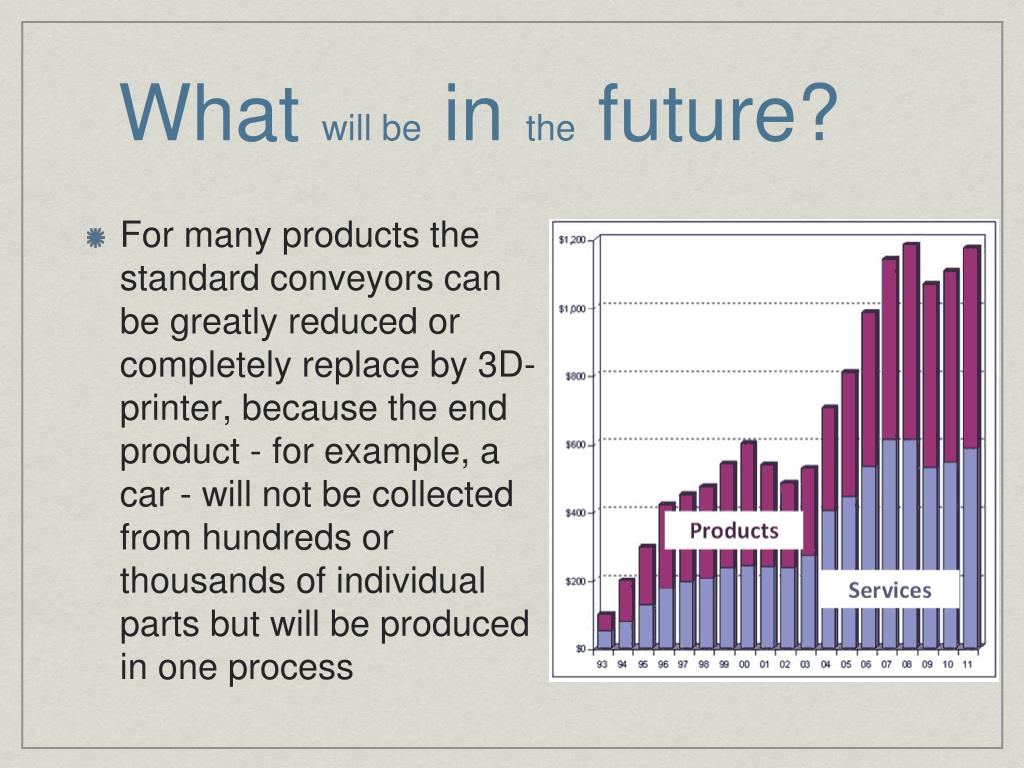

  20. What will be in the future? • For many products the standard conveyors can be greatly reduced or completely replace by 3D-printer, because the end product - for example, a car - will not be collected from hundreds or thousands of individual parts but will be produced in one process

  21. SUCCESS STORIES

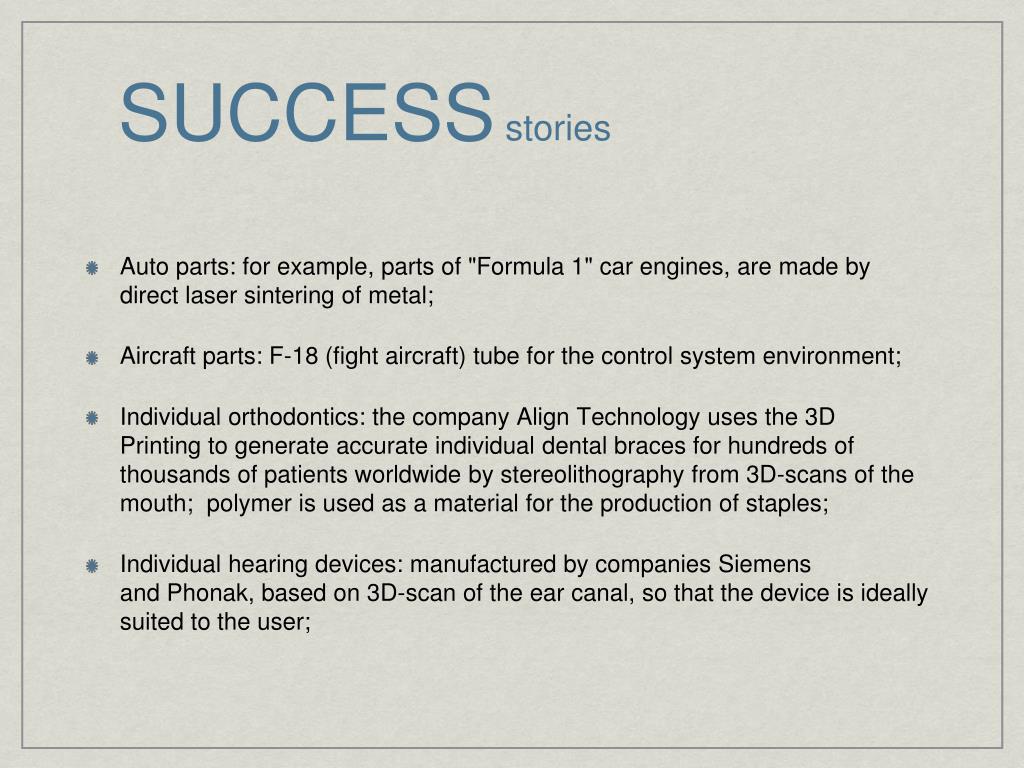

  22. SUCCESS stories • Auto parts: for example, parts of "Formula 1" car engines, are made by direct laser sintering of metal; • Aircraft parts: F-18 (fight aircraft) tube for the control system environment; • Individual orthodontics: the company Align Technology uses the 3D Printing to generate accurate individual dental braces for hundreds of thousands of patients worldwide by stereolithography from 3D-scans of the mouth;  polymer is used as a material for the production of staples; • Individual hearing devices: manufactured by companies Siemens and Phonak, based on 3D-scan of the ear canal, so that the device is ideally suited to the user;

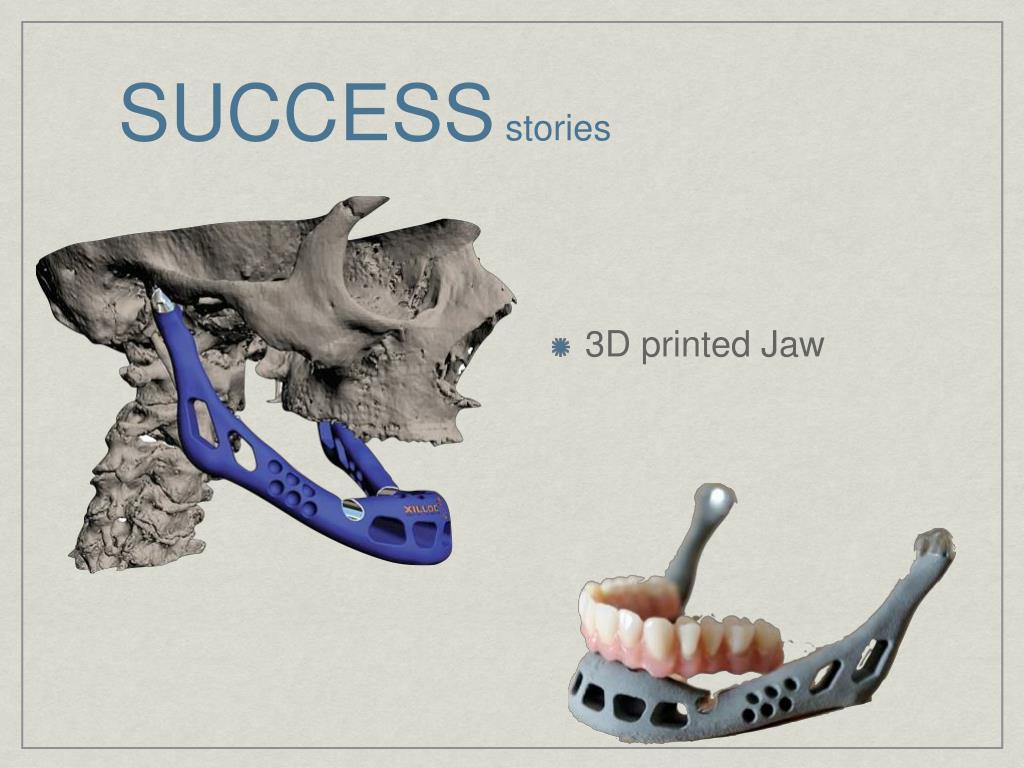

  23. SUCCESS stories • 3D printed Jaw

  24. References • http://en.wikipedia.org/wiki/3D_computer_graphics • .com • .com

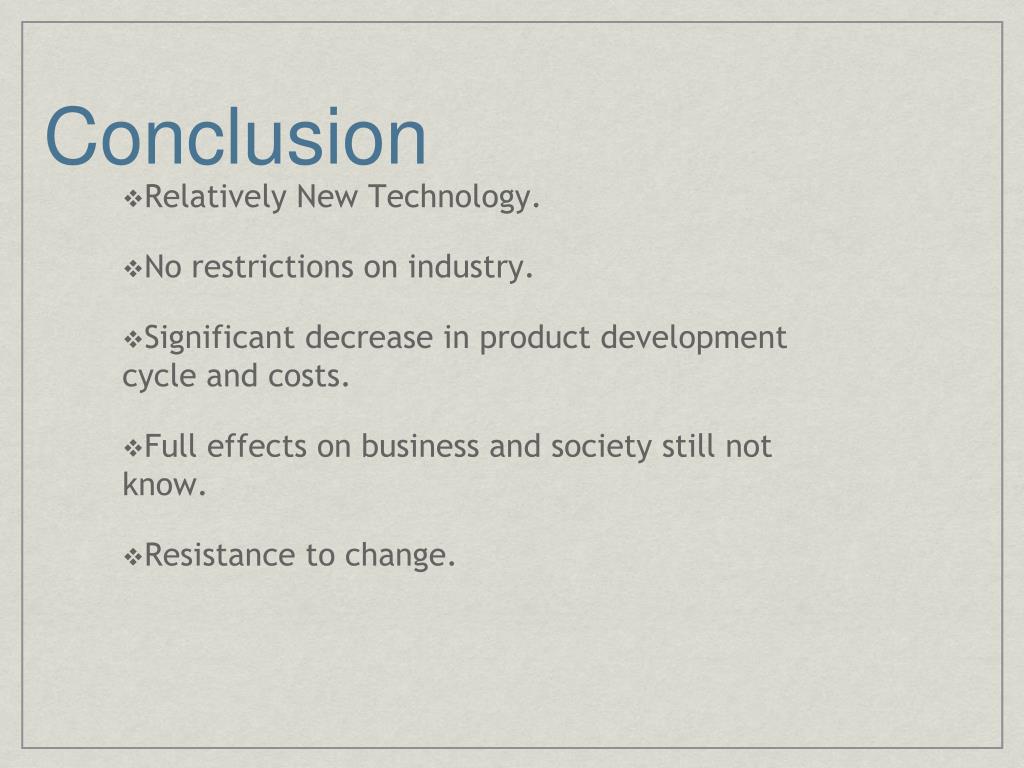

  25. Conclusion Relatively New Technology. No restrictions on industry. Significant decrease in product development cycle and costs. Full effects on business and society still not know. Resistance to change.

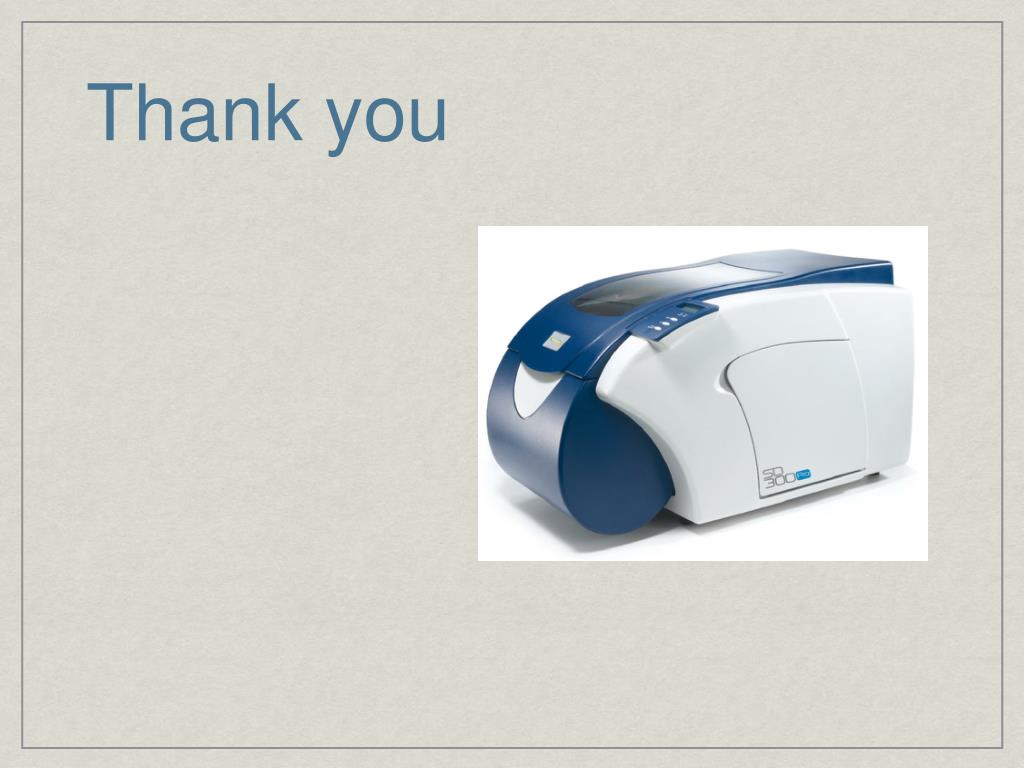

  26. Thank you
