  1. UltraView IP Fixed Cameras 14/10/2010

  2. UltraView Series IP Domes & Cameras EVR sensor offers a solid Low-Light performance and True/Day Night operation  XP3 sensor offers 95db of range in extreme wide dynamic lighting conditions including lobbies, loading docks, and parking lots.  • H.264 SVC Compression • Both available in EVR and XP3 Options • 540 TVL High Resolution (640 X 480) Low Light Performance Wide Dynamic Range Performance UltraView Dome WDR (XP3)- 540 TVL UltraView Dome (EVR) – 540 TVL

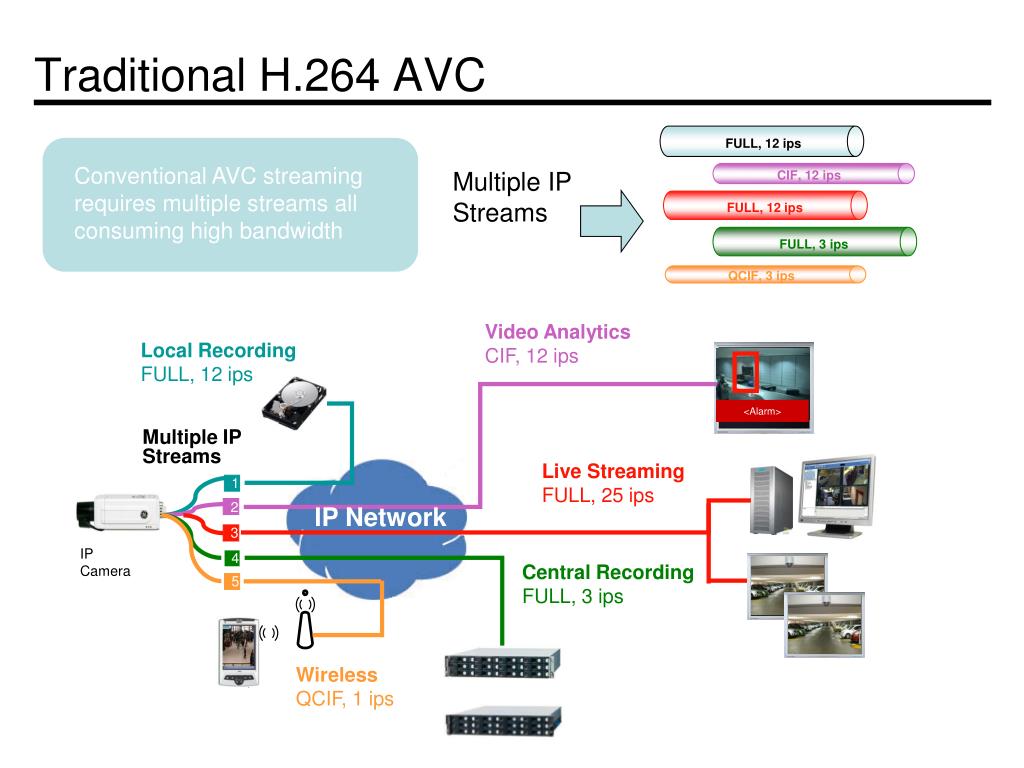

  3. FULL, 12 ips CIF, 12 ips FULL, 12 ips FULL, 3 ips QCIF, 3 ips <Alarm> Traditional H.264 AVC Conventional AVC streaming requires multiple streams all consuming high bandwidth Multiple IP Streams Video Analytics CIF, 12 ips Local Recording FULL, 12 ips Multiple IP Streams IP Network Live Streaming FULL, 25 ips 1 2 IP Network 3 IP Camera 4 Central Recording FULL, 3 ips 5 Wireless QCIF, 1 ips

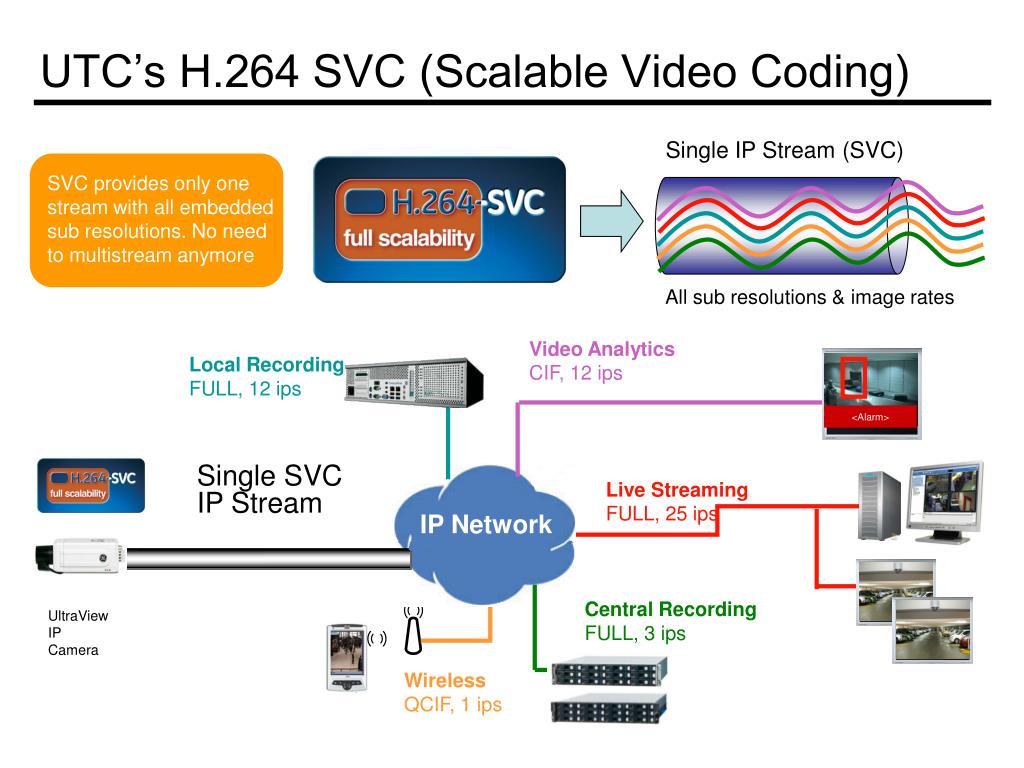

  4. <Alarm> UTC’s H.264 SVC (Scalable Video Coding) Single IP Stream (SVC) SVC provides only one stream with all embedded sub resolutions. No need to multistream anymore All sub resolutions & image rates Video Analytics CIF, 12 ips Local Recording FULL, 12 ips IP Network Single SVC IP Stream Live Streaming FULL, 25 ips 1 IP Network 3 Central Recording FULL, 3 ips UltraViewIP Camera Wireless QCIF, 1 ips

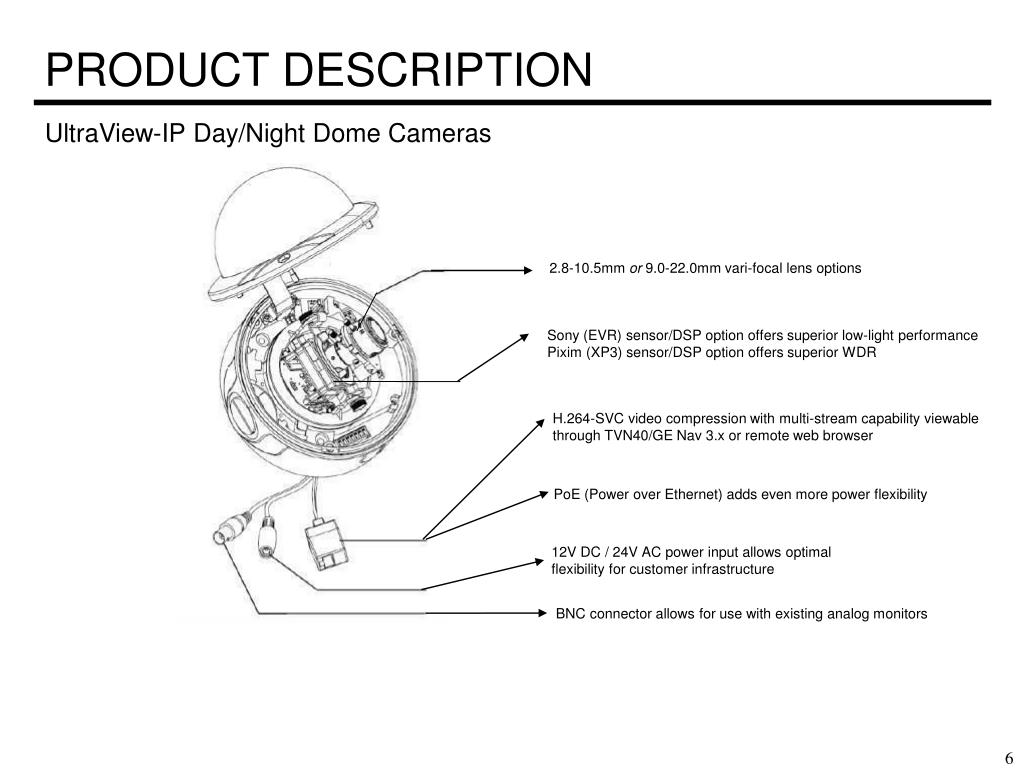

  5. PRODUCT DESCRIPTION UltraView-IP Day/Night Dome Cameras 2.8-10.5mm or 9.0-22.0mm vari-focal lens options Sony (EVR) sensor/DSP option offers superior low-light performance Pixim (XP3) sensor/DSP option offers superior WDR H.264-SVC video compression with multi-stream capability viewable through TVN40/GE Nav 3.x or remote web browser PoE (Power over Ethernet) adds even more power flexibility 12V DC / 24V AC power input allows optimal flexibility for customer infrastructure BNC connector allows for use with existing analog monitors

  6. SKU MANAGEMENT NEW Mini-Dome Type Traditional Box Type (Full Product Availability – November 2010)

  7. COMPETITIVE ASSESSMENT 8

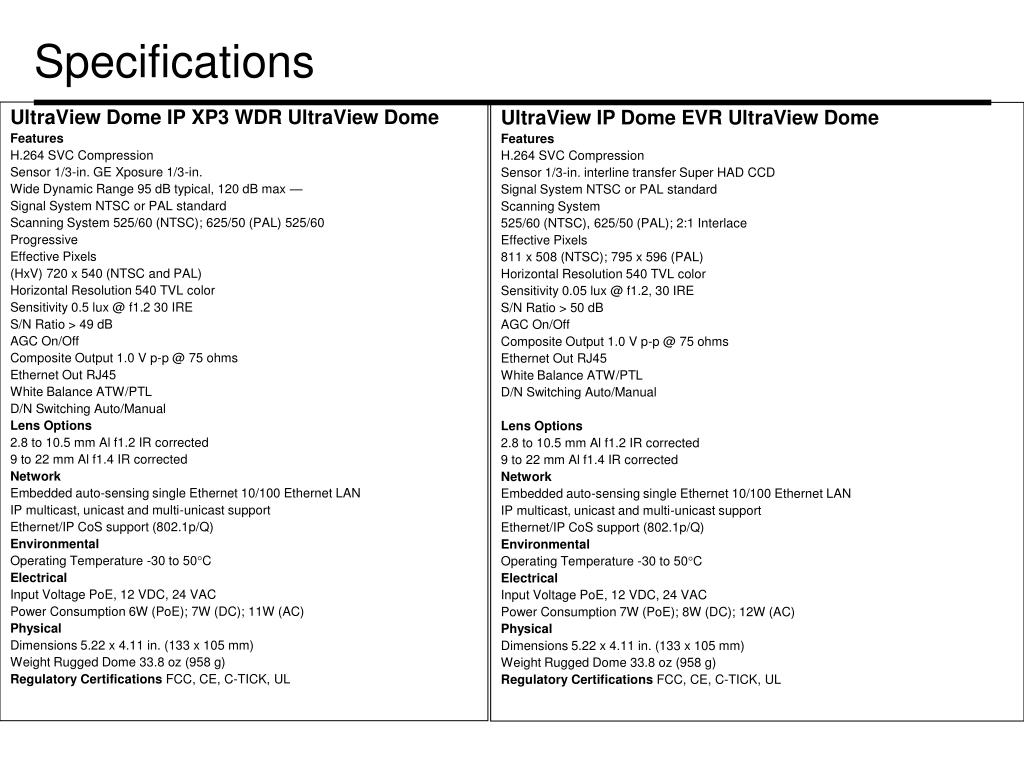

  8. Specifications UltraView IP Dome EVR UltraView Dome Features H.264 SVC Compression Sensor 1/3-in. interline transfer Super HAD CCD Signal System NTSC or PAL standard Scanning System 525/60 (NTSC), 625/50 (PAL); 2:1 Interlace Effective Pixels 811 x 508 (NTSC); 795 x 596 (PAL) Horizontal Resolution 540 TVL color Sensitivity 0.05 lux @ f1.2, 30 IRE S/N Ratio > 50 dB AGC On/Off Composite Output 1.0 V p-p @ 75 ohms Ethernet Out RJ45 White Balance ATW/PTL D/N Switching Auto/Manual Lens Options 2.8 to 10.5 mm Al f1.2 IR corrected 9 to 22 mm Al f1.4 IR corrected Network Embedded auto-sensing single Ethernet 10/100 Ethernet LAN IP multicast, unicast and multi-unicast support Ethernet/IP CoS support (802.1p/Q) Environmental Operating Temperature -30 to 50°C Electrical Input Voltage PoE, 12 VDC, 24 VAC Power Consumption 7W (PoE); 8W (DC); 12W (AC) Physical Dimensions 5.22 x 4.11 in. (133 x 105 mm) Weight Rugged Dome 33.8 oz (958 g) Regulatory Certifications FCC, CE, C-TICK, UL • UltraView Dome IP XP3 WDR UltraView Dome • Features • H.264 SVC Compression • Sensor 1/3-in. GE Xposure 1/3-in. • Wide Dynamic Range 95 dB typical, 120 dB max — • Signal System NTSC or PAL standard • Scanning System 525/60 (NTSC); 625/50 (PAL) 525/60 • Progressive • Effective Pixels • (HxV) 720 x 540 (NTSC and PAL) • Horizontal Resolution 540 TVL color • Sensitivity 0.5 lux @ f1.2 30 IRE • S/N Ratio > 49 dB • AGC On/Off • Composite Output 1.0 V p-p @ 75 ohms • Ethernet Out RJ45 • White Balance ATW/PTL • D/N Switching Auto/Manual • Lens Options • 2.8 to 10.5 mm Al f1.2 IR corrected • 9 to 22 mm Al f1.4 IR corrected • Network • Embedded auto-sensing single Ethernet 10/100 Ethernet LAN • IP multicast, unicast and multi-unicast support • Ethernet/IP CoS support (802.1p/Q) • Environmental • Operating Temperature -30 to 50°C • Electrical • Input Voltage PoE, 12 VDC, 24 VAC • Power Consumption 6W (PoE); 7W (DC); 11W (AC) • Physical • Dimensions 5.22 x 4.11 in. (133 x 105 mm) • Weight Rugged Dome 33.8 oz (958 g) • Regulatory Certifications FCC, CE, C-TICK, UL
