Presentation Transcript

  1. Stateless user-plane architecture for virtualized EPC (vEPC)http://tools.ietf.org/html/draft-matsushima-stateless-uplane-vepc-01 Ryuji Wakikawa Satoru Matsushima

  2. Splitting Control and User Plane vEPC Control-Plane Internet Core Backbone NW RAN • User-plane • No tunnel (GTP/IP-in-IP) • Simply Routing “Requirements and use cases for separating control and user planes in mobile network architectures” draft-wakikawa-req-mobile-cp-separation-00.txt

  3. Simple Configuration Mobility Management Edge Router Access NW (LTE) Internet Router Core NW Access NW (WiFi) anycast address

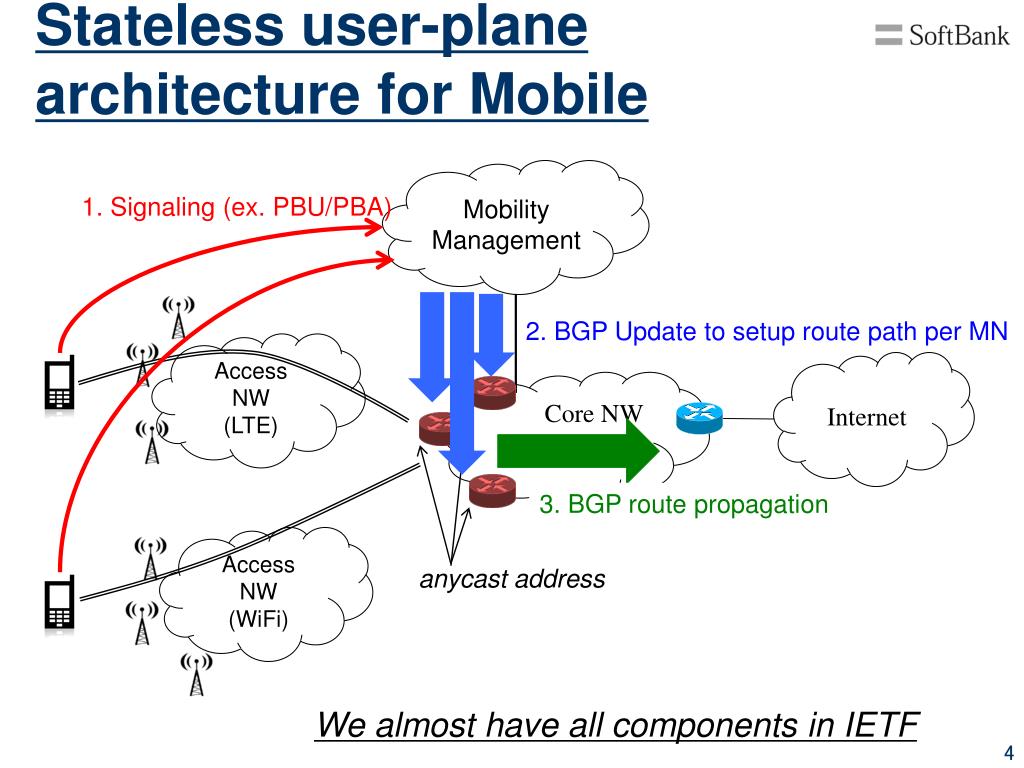

  4. Stateless user-plane architecture for Mobile Mobility Management 1. Signaling (ex. PBU/PBA) 2. BGP Update to setup route path per MN Access NW (LTE) Internet Core NW 3. BGP route propagation Access NW (WiFi) anycast address We almost have all components in IETF
