Flowchart for the Laboratory

Flowchart for the Laboratory. Sampling. Subsample. Analyte A. Result A. QC. LIMS. Total Sample results. LIMS. Subsample. Analyte B. Result B. QC. Sample. Other sample info and invoice data. Subsample. Analyte C. Result C. QC. Subsample. Analyte D. Result D.

nay
Download Presentation

Flowchart for the Laboratory

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Flowchart for the Laboratory Sampling Subsample Analyte A Result A QC LIMS Total Sample results LIMS Subsample Analyte B Result B QC Sample Other sample info and invoice data Subsample Analyte C Result C QC Subsample Analyte D Result D QC Logistic Analyte D Result D QC Subsample Result Y Final approval & signiture Sub- suplying lab Analytical report Invoice Analyte Y Customer

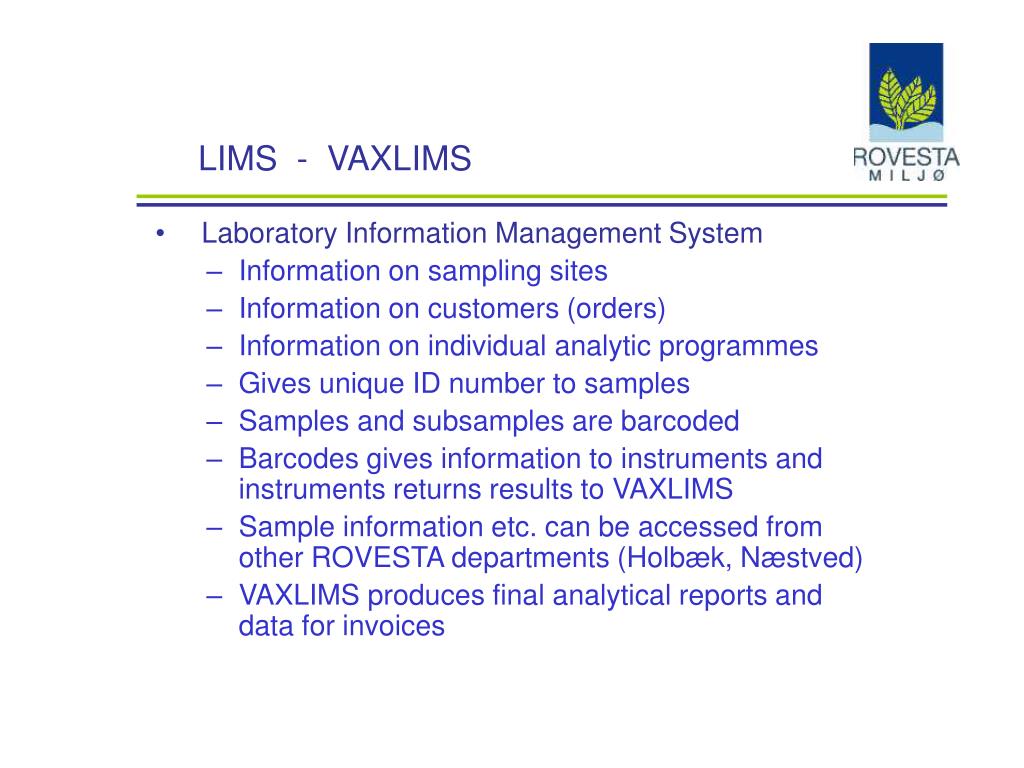

  2. LIMS - VAXLIMS • Laboratory Information Management System • Information on sampling sites • Information on customers (orders) • Information on individual analytic programmes • Gives unique ID number to samples • Samples and subsamples are barcoded • Barcodes gives information to instruments and instruments returns results to VAXLIMS • Sample information etc. can be accessed from other ROVESTA departments (Holbæk, Næstved) • VAXLIMS produces final analytical reports and data for invoices

  3. Analytical selection • Waste water: • pH • Suspended solids • Biochemical and chemical oxygen demand (BOD & COD) • Nitrite, nitrate, ammonium, kjeldahl-N and total nitrogen • Ortho phosphate and total phosphorus • Chloride • Sulfate

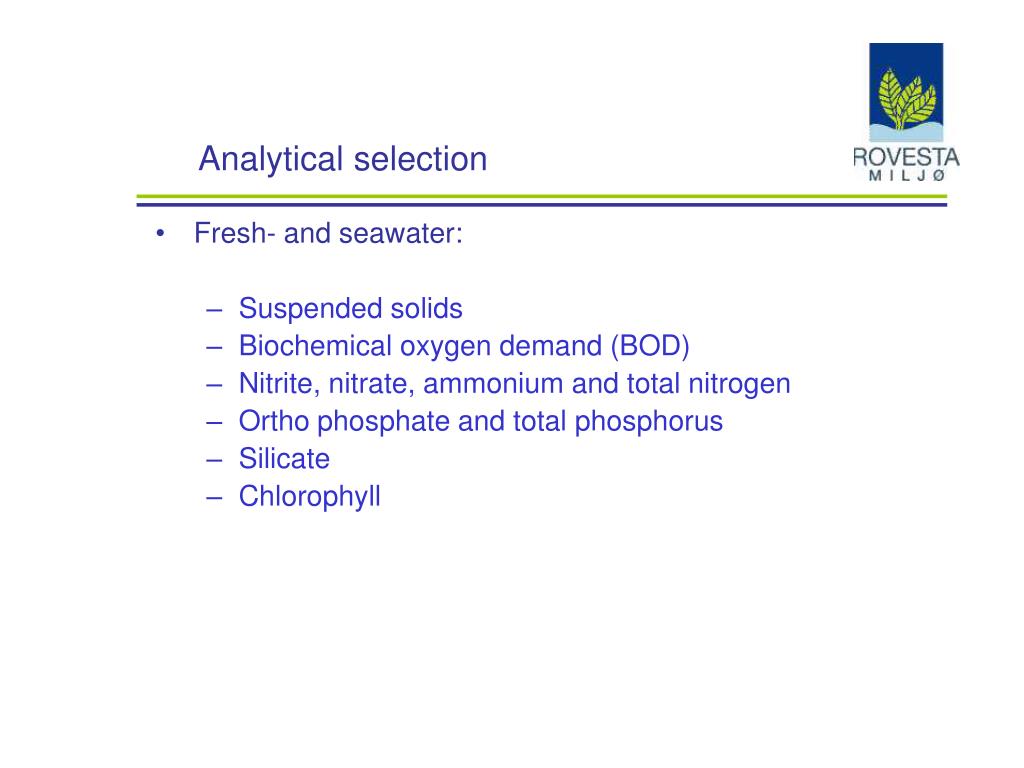

  4. Analytical selection • Fresh- and seawater: • Suspended solids • Biochemical oxygen demand (BOD) • Nitrite, nitrate, ammonium and total nitrogen • Ortho phosphate and total phosphorus • Silicate • Chlorophyll

  5. Analytical selection • Drinking water: • pH, conductivity, oxygen • Total solids, color, turbidity • Bicarbonate • Nitrite, nitrate, ammonium • Total phosphorus • Chloride, sulfate, fluoride • Hydrogen sulfide

  6. Analytical selection • Sludge: • Total solids • Volatile solids • Total nitrogen • Nitrite+nitrate, ammonium, ortho-P (special)

  7. Quality System – DS/EN ISO 17025 • Part 1: Management requirements • Organization • Quality System • Document control • Review of requests, tenders and contracts • Subcontracting of tests and calibrations • Purchasing services and supplies • Service to clients - complaints • Control of nonconforming tests • Corrective and preventive action • Internal audits • Management reviews

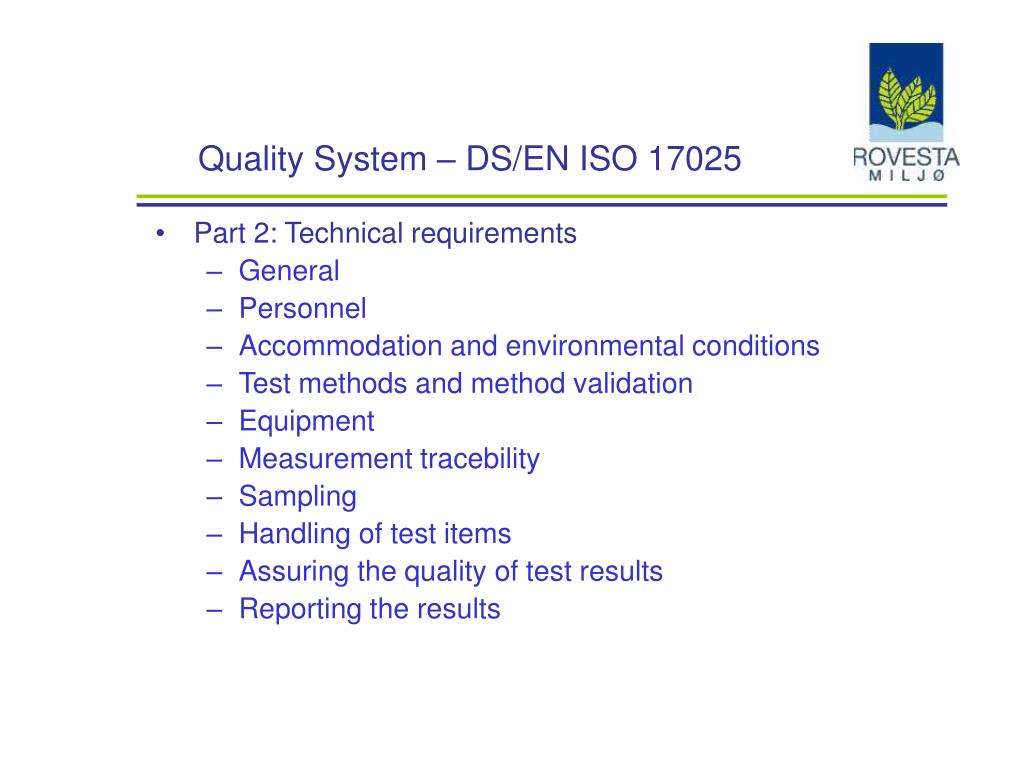

  8. Quality System – DS/EN ISO 17025 • Part 2: Technical requirements • General • Personnel • Accommodation and environmental conditions • Test methods and method validation • Equipment • Measurement tracebility • Sampling • Handling of test items • Assuring the quality of test results • Reporting the results
