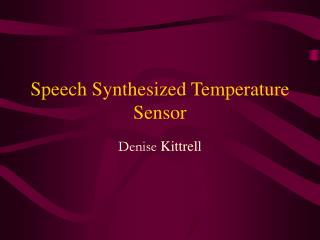

  1. Speech Synthesized Temperature Sensor Denise Kittrell

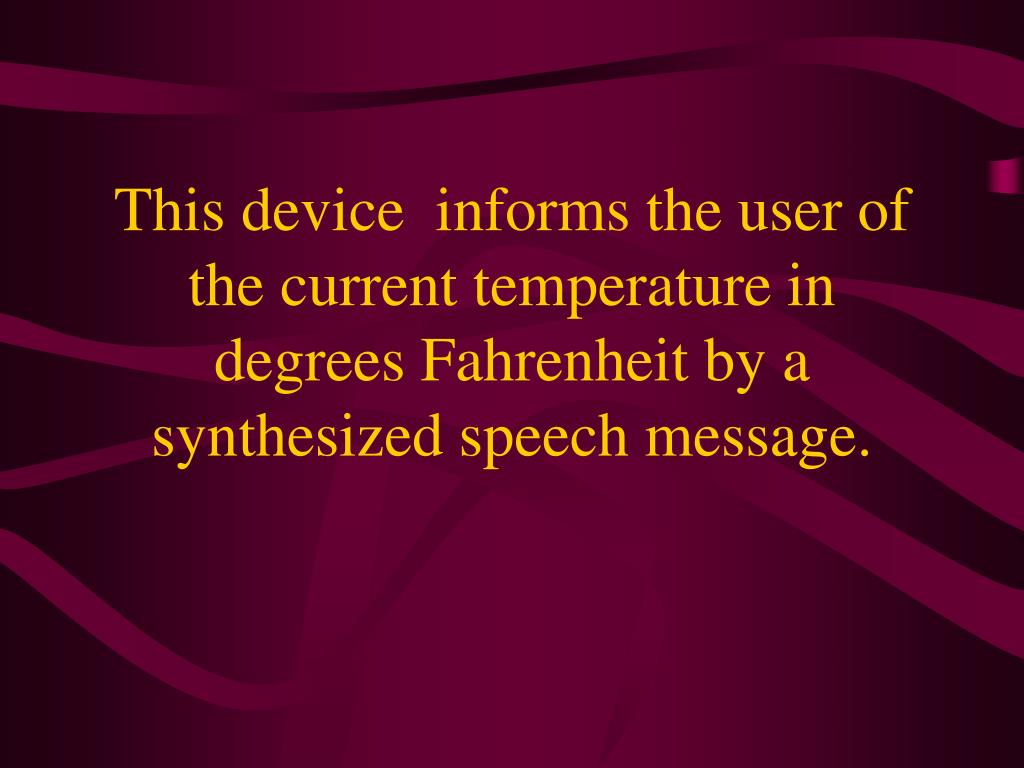

  2. This device informs the user of the current temperature in degrees Fahrenheit by a synthesized speech message.

  3. Performance • Range must span 60 degrees • Resolution must be 1 degree • Speaker output must be clear • Coherent Speech Message • Device Must operate in various temperatures

  4. Inspiration for This Project • High temperature alert device for vehicles • Aid to the visually impaired • Convenient in Laboratory Settings

  5. Type one is a high temperature alert system. This system only requires storage of one speech message. Type two is the original Speech Synthesized Temperature Sensor Due to the memory requirements of this device an upgrade from the 16F84 to the 16F873 was made. Two Types of Designs Depending upon the Application

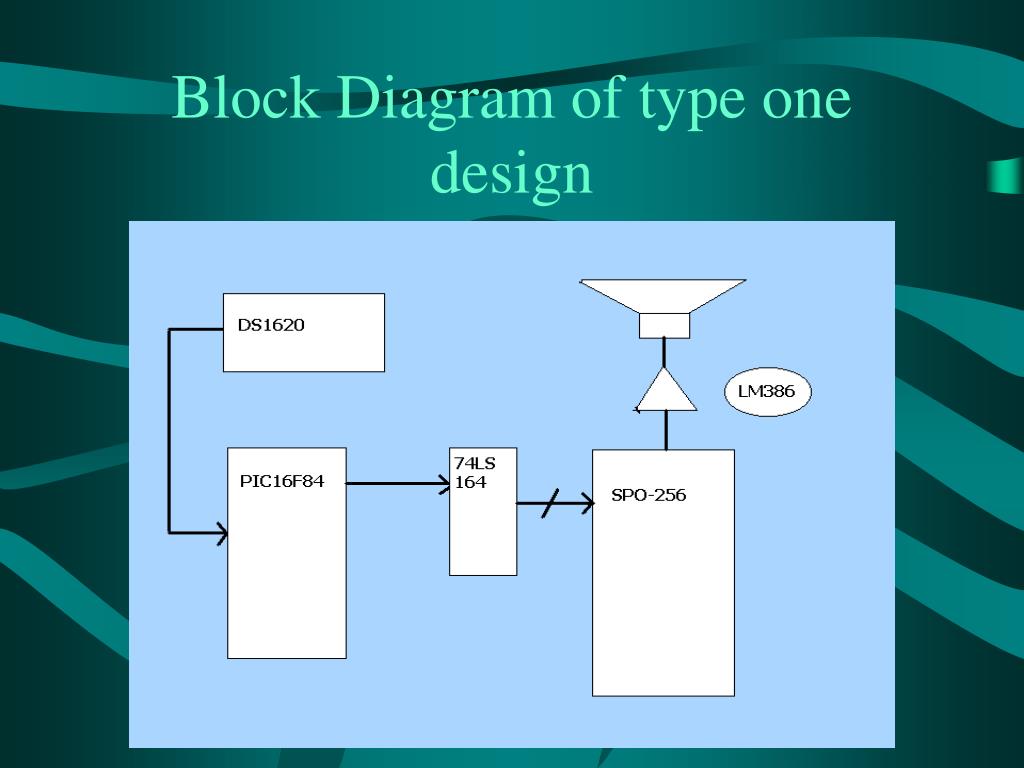

  6. Block Diagram of type one design

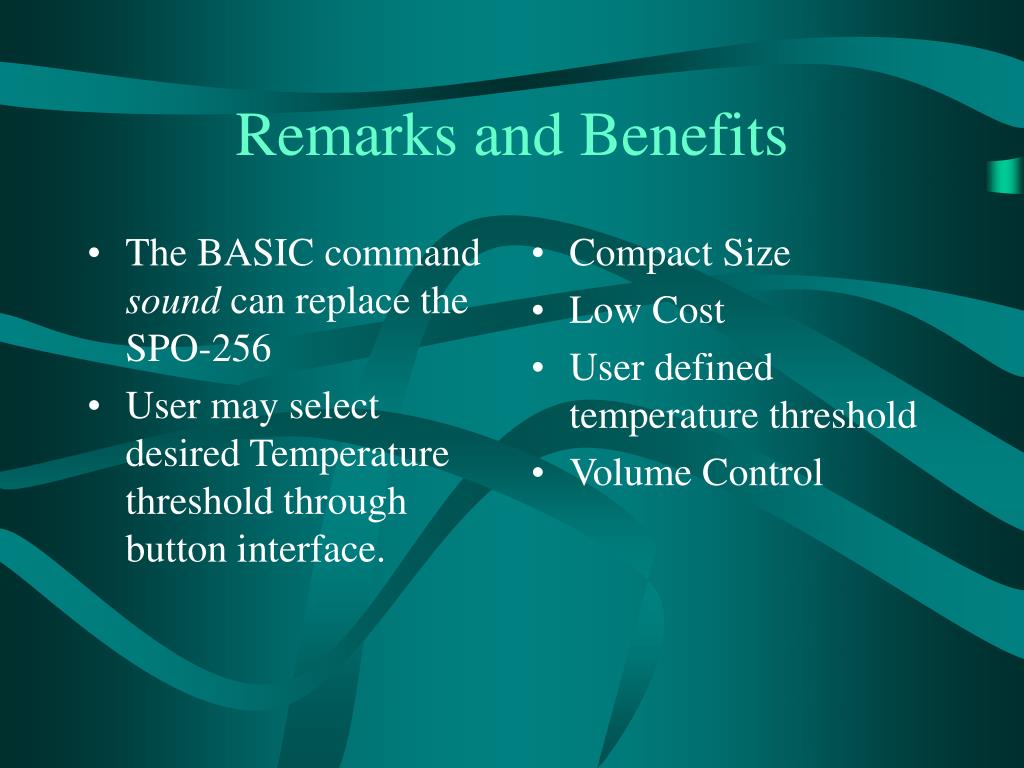

  7. The BASIC command sound can replace the SPO-256 User may select desired Temperature threshold through button interface. Compact Size Low Cost User defined temperature threshold Volume Control Remarks and Benefits

  8. Block Diagram of Type Two Design

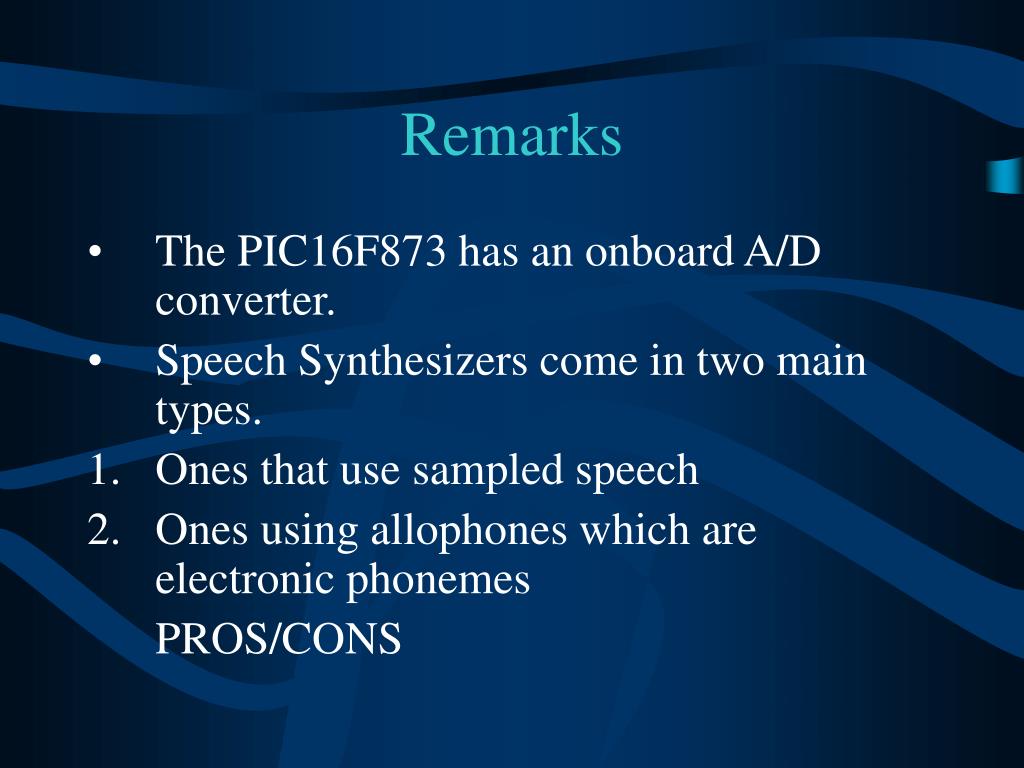

  9. Remarks • The PIC16F873 has an onboard A/D converter. • Speech Synthesizers come in two main types. • Ones that use sampled speech • Ones using allophones which are electronic phonemes PROS/CONS

  10. Example Intriguing = IH NN1 PA3 TT2 RR2 IY PA1 GG3 IH NG More art than engineering or maybe this is just the art of engineering?

  11. Flow Chart of Speech Code

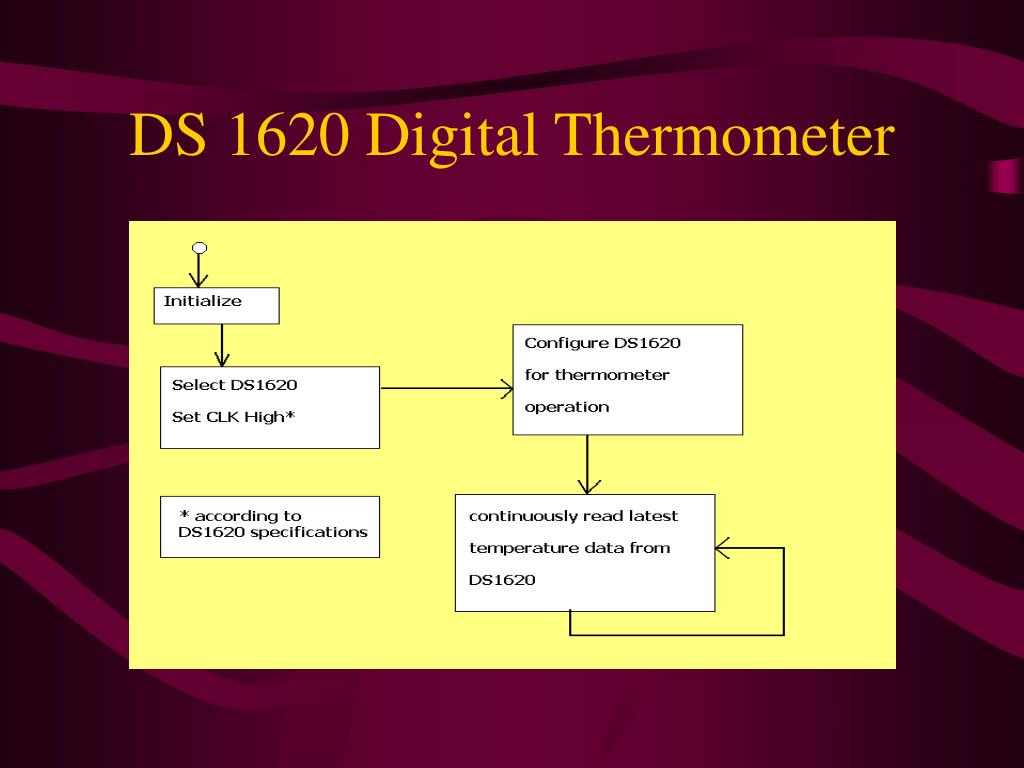

  12. DS 1620 Digital Thermometer

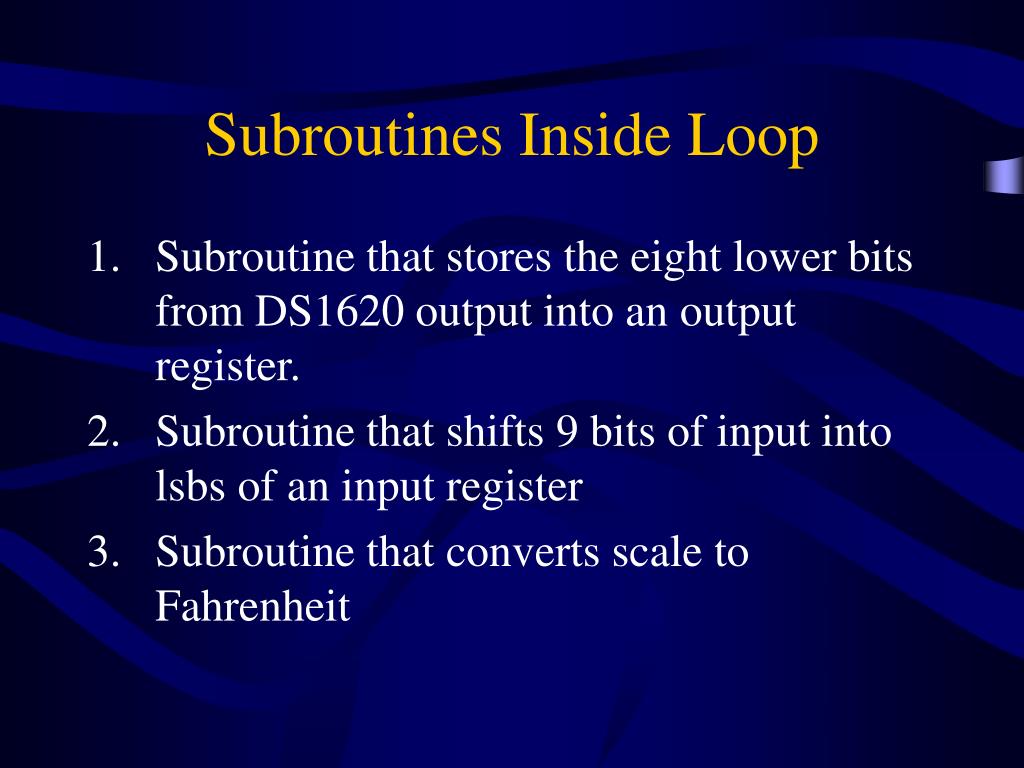

  13. Subroutines Inside Loop • Subroutine that stores the eight lower bits from DS1620 output into an output register. • Subroutine that shifts 9 bits of input into lsbs of an input register • Subroutine that converts scale to Fahrenheit

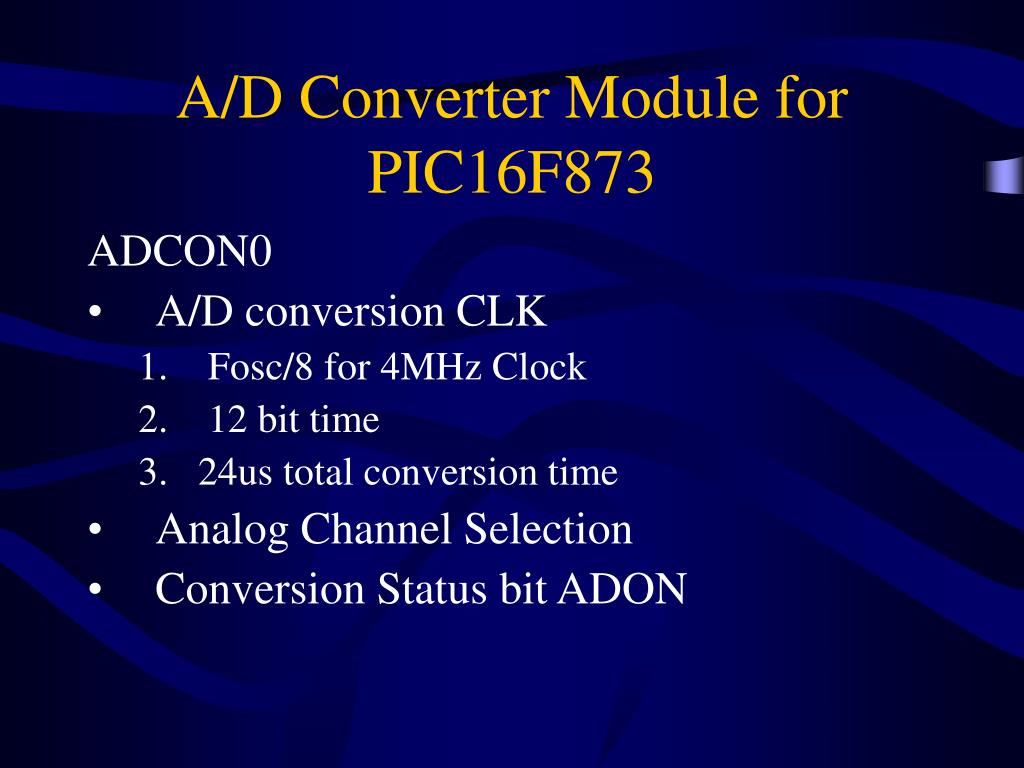

  14. A/D Converter Module for PIC16F873 ADCON0 • A/D conversion CLK • Fosc/8 for 4MHz Clock • 12 bit time • 24us total conversion time • Analog Channel Selection • Conversion Status bit ADON

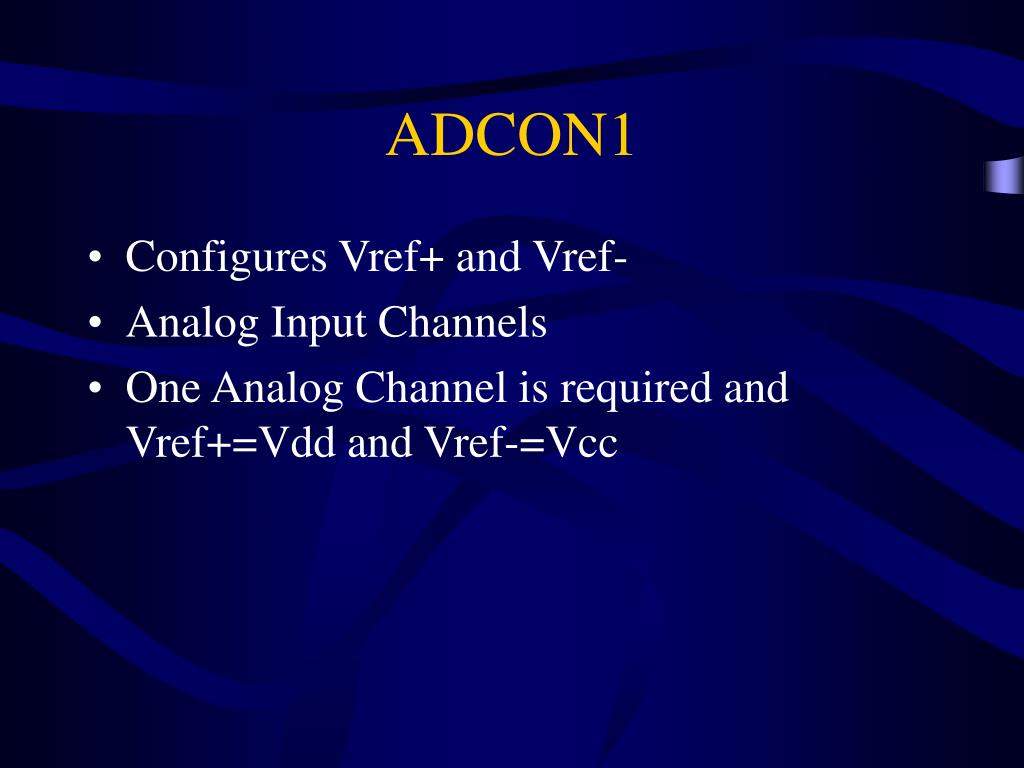

  15. ADCON1 • Configures Vref+ and Vref- • Analog Input Channels • One Analog Channel is required and Vref+=Vdd and Vref-=Vcc

  16. A/D Code Outline for 16F873 • Initialize ADCON0 and ADCON1 • Wait 20us for internal capacitor at input to charge • Select A/D conversion CLK • Turn on A/D module

  17. Outline Continued • Select A/D input channel • Configure input channel • Set GO bit • Wait 24us for GO to clear • Read result from ADRESH and ADRESL

  18. Design Challenges • PIC16F84 has only 1k of program memory • Difficulty maintaining stable Vref+ for TLC549 • Determining which allophones should be concatenated to produce clear message

  19. Old Code Improved Code 13 messages 1136 words 52 messages 2657 words 15 messages 2324 words 72 messages 3560 words 1 message 594 Words 1 message 45 words Memory Issues

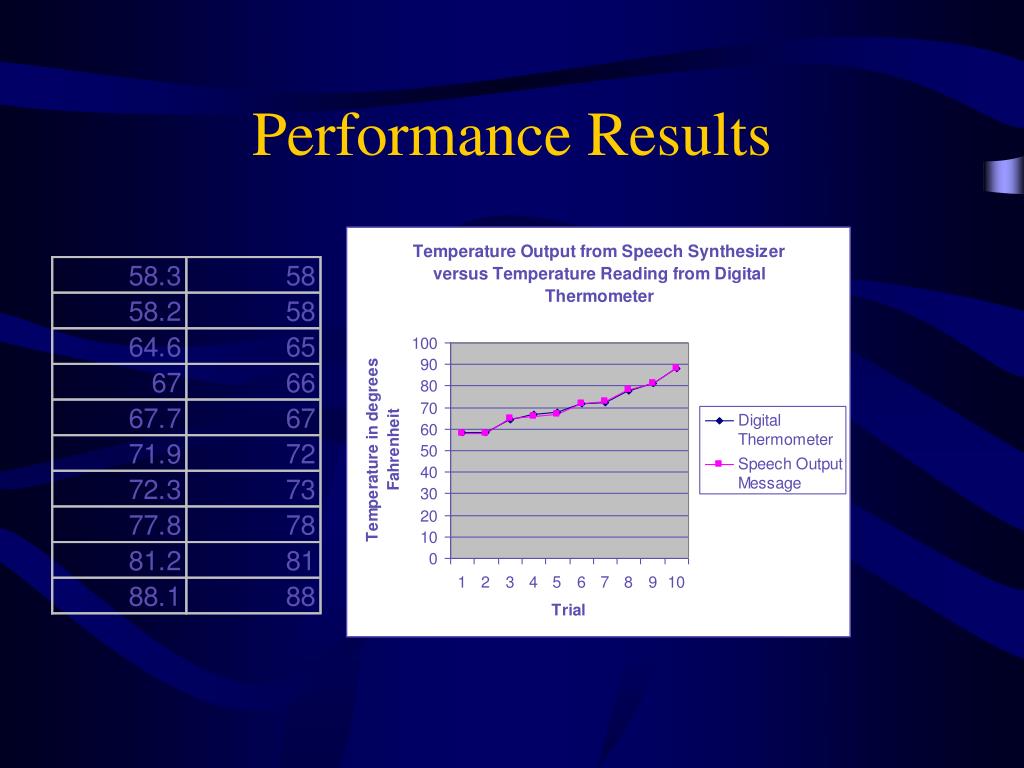

  20. Performance Results

  21. Possible Extensions • Other types of sensors may be added to extend the functionality of this device. • The data could also be displayed on an LCD screen. • Remote communication system
