  1. 燃料電池技術(II) H.K. MaDepartment of Mechanical Engineering National Taiwan University, Taipei, Taiwan November, 2009 台灣大學機械工程系能源環境實驗室

  2. Introduction of Fuel Cell Polymer Electrolyte Membrane Fuel Cell (PEMFC) Direct Methanol Fuel Cell (DMFC) Unitilized Regenerative Fuel Cell (URFC) Solid Oxide Fuel Cell (SOFC) Clean H- Energy, Green Si-Island

  3. Polymer Electrolyte Membrane (PEM) Anode Cathode ) H+ Methanol (CH3OH) + Water Oxygen (O2) from the Air H2O MeOH Carbon Dioxide (CO2) Water (H2O) Electrical Circuit e- 直接甲醇燃料電池(DMFC)之工作原理 Clean H- Energy, Green Si-Island 電池溫度(temperature):60~80°C 陽極(Anode): 白金-釕(Pt-Ru) supported on 碳粉(carbon) 陰極(Cathode):白金(Pt) supported on 碳粉(carbon) 電解質(Electrolyte): Perfluorinated sulfonic acid in solid polymer form (Nafion) • Anode reaction: CH3OH + H2O Þ CO2 (g) + 6H+ + 6e– • Cathode reaction: 3/2 O2 + 6H+ + 6e–Þ 3 H2O • Net cell reaction: CH3OH + 3/2 O2 Þ CO2 (g) + 2H2O + We + Waste Heat DMFC

  4. 91~94Y關鍵技術的研發 DMFC

  5. (25 cm2) 5-cell 10W Stack Clean H- Energy, Green Si-Island Performance Membrane: Nafion 117 Anode: Pt-Ru-4mg/cm2 (Pt-Ru black) Cathode: Pt-4mg/cm2 (Pt black) Cell temp:70oC Fuel/Oxidant : 2M MeOH/O2 Active area:25cm2 DMFC

  6. methanol 電池堆技術 O2 DMFC

  7. 國內DMFC技術應用 Clean H- Energy, Green Si-Island 工研院材料所 (手機,筆記型電腦) 核研所, 2003/2 (手機) 元智大學,2004/9 (手機充電器) DMFC

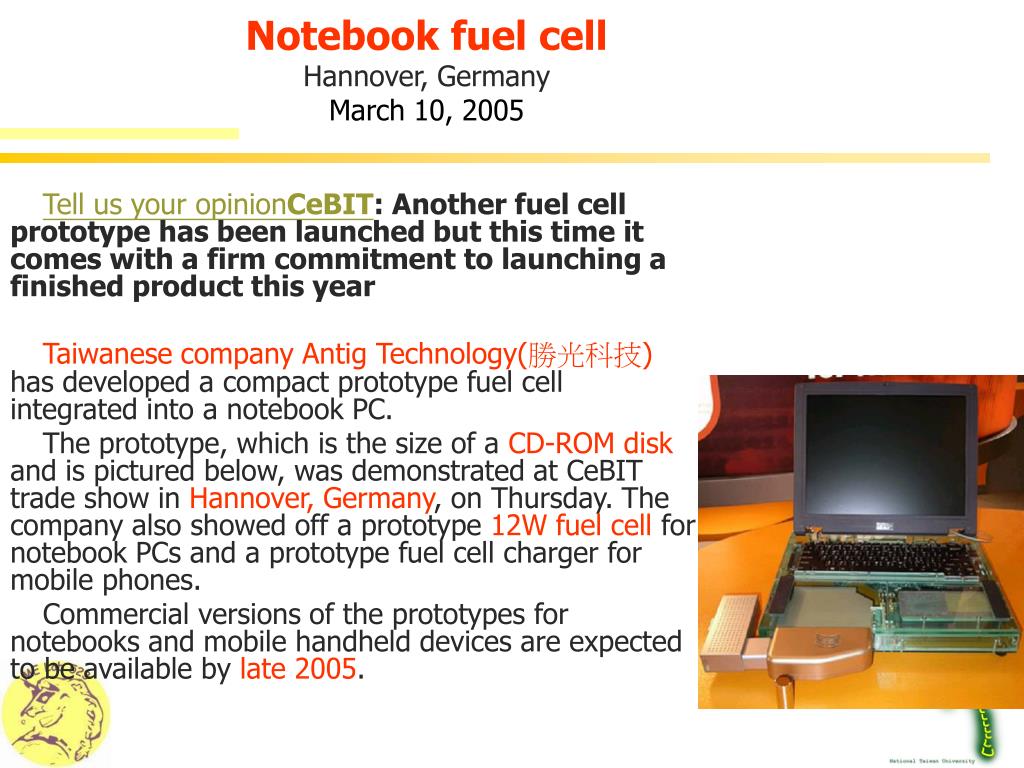

  8. Notebook fuel cell Hannover, Germany March 10, 2005 Tell us your opinionCeBIT: Another fuel cell prototype has been launched but this time it comes with a firm commitment to launching a finished product this year Taiwanese company Antig Technology(勝光科技) has developed a compact prototype fuel cell integrated into a notebook PC. The prototype, which is the size of a CD-ROM disk and is pictured below, was demonstrated at CeBIT trade show in Hannover, Germany, on Thursday. The company also showed off a prototype 12W fuel cell for notebook PCs and a prototype fuel cell charger for mobile phones. Commercial versions of the prototypes for notebooks and mobile handheld devices are expected to be available by late 2005.

  9. Anting’s Strategy

  10. DMFC技術於軍事運用 燃料槽 Specification: 12V, 50W, 80Hr 38x26x15cm, 8kG Fuel cartridge: M5, 4kwh, 5L, 4.2kg Sale price: USD $3490 DMFC

  11. Clean H- Energy, Green Si-Island Introduction of Fuel Cell Proton Exchange Membrane Fuel Cell (PEMFC) Direct Methanol Fuel Cell (DMFC) Unitilized Regenerative Fuel Cell (URFC) Solid Oxide Fuel Cell (SOFC)

  12. 燃料電池(Fuel Cell) 與水電解(Electrolyzer)之工作原理 Clean H- Energy, Green Si-Island URFC

  13. 再生型燃料電池(Regenerative FC) 均一化再生型燃料電池(URFC) Clean H- Energy, Green Si-Island Regenerative Fuel Cell (RFC) Unitized Regenerative Fuel Cell (URFC) URFC

  14. URFC材料考量 Clean H- Energy, Green Si-Island URFC

  15. URFC應用 Clean H- Energy, Green Si-Island 2004/9(教具) NASA(USA) 無人偵察機系統 URFC

  16. Introduction of Fuel Cell Proton Exchange Membrane Fuel Cell (PEMFC) Direct Methanol Fuel Cell (DMFC) Unitilized Regenerative Fuel Cell (URFC) Solid Oxide Fuel Cell (SOFC) Clean H- Energy, Green Si-Island

  17. 固態氧化物燃料電池 (Solid Oxide Fuel Cell, SOFC) Clean H- Energy, Green Si-Island 電池溫度(temperature):800-1000°C 陽極(Anode): Nickel-Zirconia cermet (Ni-ZrO2) 陰極(Cathode): Modified lanthanum manganite Electrolyte: Yttria (Y2O3) stabilized Zirconia (ZrO2) • Anode (half-cell) reaction: H2 + O2 –Þ H2O + 2e– (CO + O2 –Û CO2 + 2e–) • Cathode (half-cell) reaction: ½ O2 + 2e–Þ O2 – • Net cell reaction: H2 + ½ O2 Þ H2O + We + Waste Heat (CO + ½ O2Þ CO2) SOFC

  18. Material Components Clean H- Energy, Green Si-Island 空氣(Air) Flow field plate(Stainless) Cathode ((LaSrMn)O3) Electrolyte(YSZ (8Y)) Anode (NiO+YSZ) Natural Gas SOFC Anode supported electrolyte (Leatech)

  19. 電池堆設計(Stack Design) Clean H- Energy, Green Si-Island Characteristics • 平板型設計(Planar cell design) • 內部分流(Internally manifolded) • 不繡鋼雙極板(Stainless steel interconnects, current collector, end plates) • 金屬密封材質(metal seal) • 陶瓷骨架設計(Frame Design) SOFC

  20. 表2-2-1 各種燃料電池的種類與特性

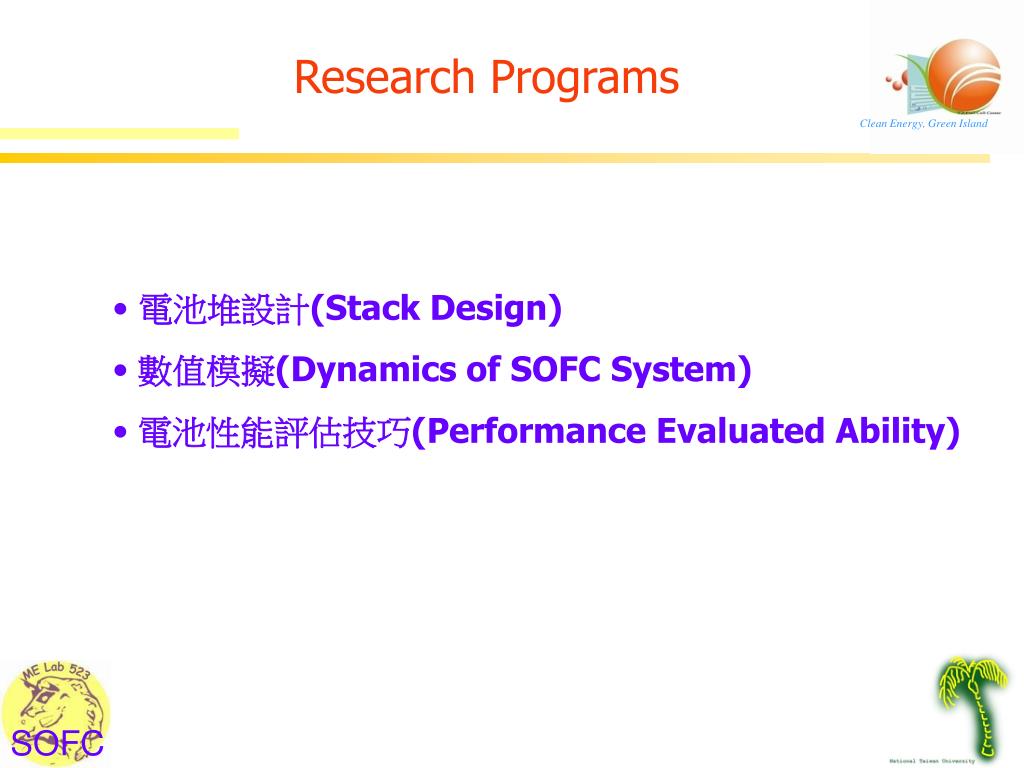

  21. Research Programs Clean Energy, Green Island • 電池堆設計(Stack Design) • 數值模擬(Dynamics of SOFC System) • 電池性能評估技巧(Performance Evaluated Ability) SOFC
