The CGC and the Cronin effect

The CGC and the Cronin effect. This is my attempt to understand the reconciliation between the Jamal-Marian CGC “Cronin” calculation and the Kharzeev et al prediction for dA. It is not meant to be a tutorial on the CGC but simply to clarify a few points. Hope its helpful. Richard Seto

neila
Download Presentation

The CGC and the Cronin effect

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

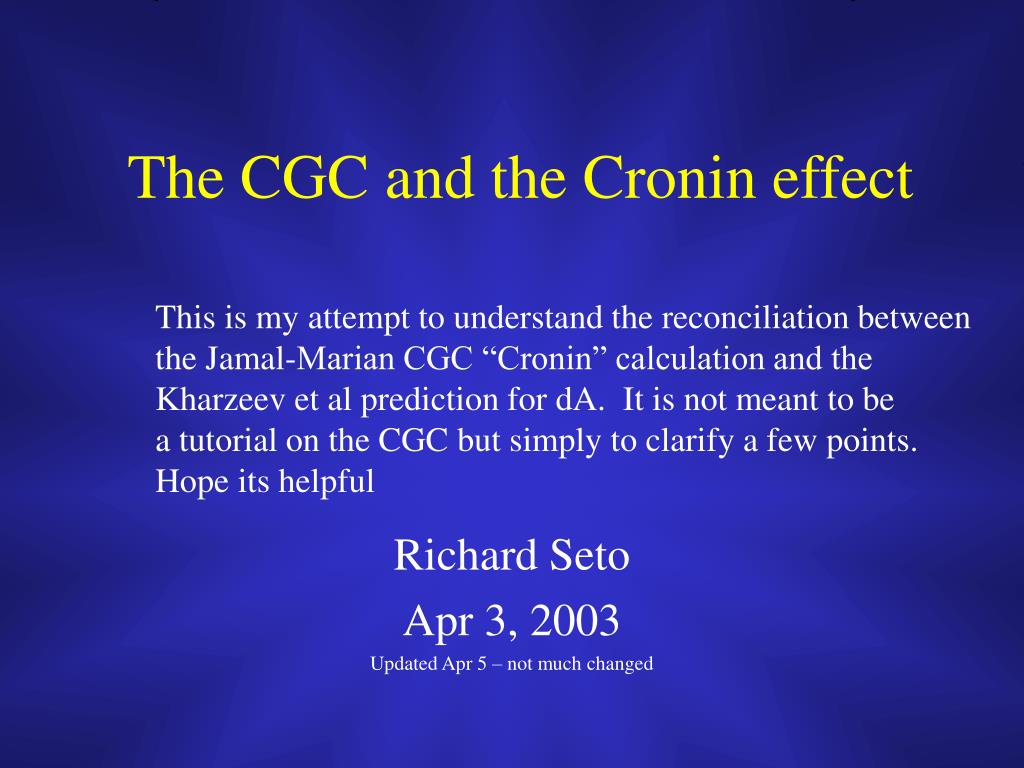

  1. The CGC and the Cronin effect This is my attempt to understand the reconciliation between the Jamal-Marian CGC “Cronin” calculation and the Kharzeev et al prediction for dA. It is not meant to be a tutorial on the CGC but simply to clarify a few points. Hope its helpful Richard Seto Apr 3, 2003 Updated Apr 5 – not much changed

  2. Putting the CGC into context Quantum Field Theory Abelian: QED (high temp) Non-Abelian: QCD-High Temp QFT Lattice Calculations Single Particle:QM Many Body:Stat-Mech (F-D, B-E, M-B gasses) Quantum Renomalization Group R-G allows The addition of all tree level QCD graphs in region of “small” s Harder to Calculate Approx Colored Glass Condensate Single particle:Mechanics Many Body: Kinetic Theory of gasses Classical Classical Field Theory Abelian: Maxwell Eqns Non-Abelian: Yang Mills Fields Intrinsically Many body But (non)Abelelian Particles Approx

  3. Relevant regions of calculability for QCD The CGC has split into 2 regions (the CGC and the CQF) Quantum Field Theory Gas Low All Tree graphs via Renormalization group Quantum Kharzeev et al (no “Cronin” – good above pt~4-6 GeV) Colored QuantumFluid Liquid Occupation number calculable in “high Q2” region, I.e. weak coupling but non-perturbative Colored Glass Condensate Solid? Condensate? Classical Dumitru, Gelis, Jililian-Marian (includes “Cronin” No Tree graphs included for now) High Classical Field Theory

  4. Regions • Q2=Sxy • Higher S • Larger A Colored Glass Condensate Saturation More accessible } 10-5 Colored Quantum Fluid • CGC – region of occ number where lowest order is good enough • CQF – region of occ number where higher order tree graphs are important High Occupation number pQCD Gas 10-4 Moderate Occupation number 1/x Low Occupation number 10-3 RHIC? 10-2 Calculable: s(Q2) ~ small 10-1 QCD Qs (at RHIC) 1 1 10 100 Q (GeV)

  5. Notes on the CGC • Dima is only willing to predict total charged spectrum at high pt and not pions • I don’t completely understand why but you can ask • (it has something to do with the unkown fragmentation functions of very virtual quarks, different than the almost on-shell nature of fragmenting quarks in e+e- ) • They ignore final state interactions (jet suppression, flow, coalecence…) If these are present then they “hide” the CGC • Hence we cannot make a direct comparison with the 0 which I believe is the cleanest handle we have on jets • Our charged suppression is ~ 0.5 so Rd+Au=RAu+Au=0.5=0.7 • My guess as to the relationship between “shadowing” and the CGC • The CGC is really a word describing a region (high occ number) which can be calculated from “first principles” using QCD. It is less a model than an approximation. Hence it can describe shadowing from “first principles” • Its not clear that the CGC theorists agree with each other on all this

  6. Predictions HIJING 1.37 simulation; X.N.Wang and M.Gyulassy, Phys.Rev.Lett. 68, (1992) D.Kharzeev, E.Levin and M.Nardi, hep-ph/0212316 dNch/d Not much Difference Between “standard” Models and CGC b=0 fm More standard “jet suppression” models “CGC” Vitev Rd+Au=RAu+Au 0.5=0.7<1 RAA RAA>1 See next page 2 pT 4 6

  7. Typical prediction for dA for final state Interaction “jet quenching” scenarios New CGC “Cronin”Calculation From Jililian-Marian et al A guess of what would happen If CGC Cronin were added to CQF-CGC Band of dA prediction from Dima et al (CQF-CGC) tot charged Dima believes His calculation Is OK at high pt 6 GeV Where cronin-like Effects are small Y=0 Phenix AA data

  8. Exp result: Multiplicity: is as CGC ( or other models) predicts High pt dA: NOT suppressed RHIC in regime in which CGC affects only low pt (mult) but not high pt Exp result: Multiplicity: is as CGC ( or other models) predicts High pt dA: suppressed RHIC in regime in which CGC affects high pt A couple possibilities for the CGC Colored Glass Condensate Colored Glass Condensate 10-4 10-4 Colored Quantum Fluid Colored Quantum Fluid pQCD Gas pQCD Gas 10-4 10-4 1/x 1/x RHIC? 10-3 10-3 RHIC? 10-2 10-2 10-1 10-1 Qs (at RHIC) Qs (at RHIC) 1 1 Q (GeV) Q (GeV) 1 1 10 100 10 100

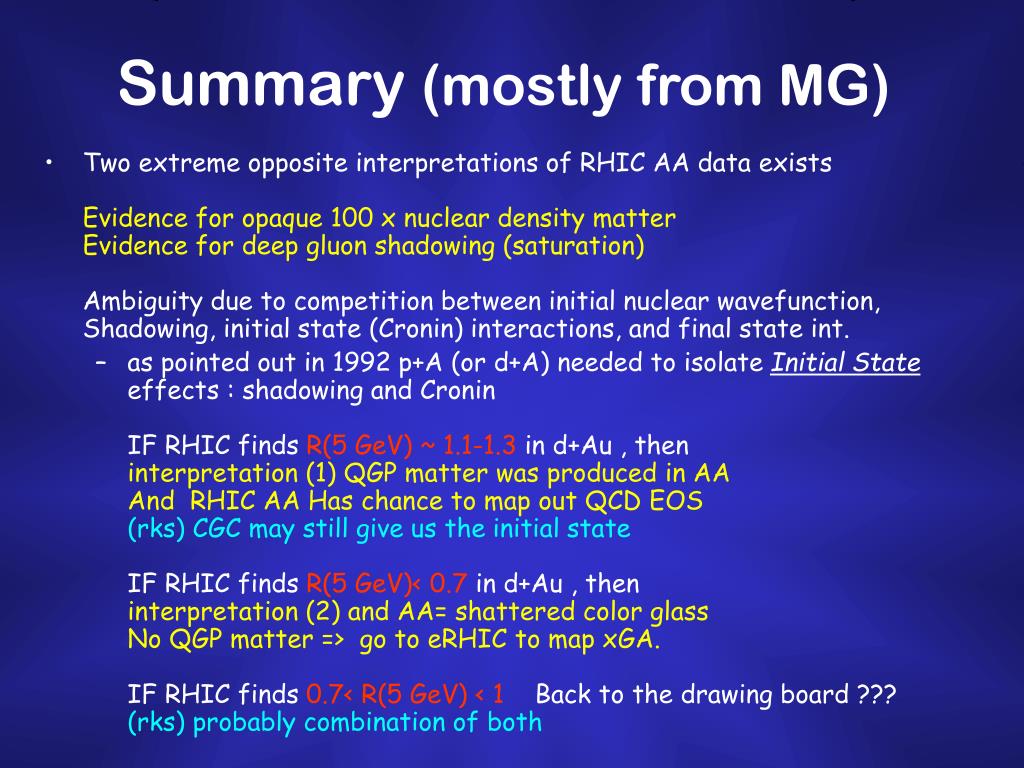

  9. Summary (mostly from MG) • Two extreme opposite interpretations of RHIC AA data existsEvidence for opaque 100 x nuclear density matterEvidence for deep gluon shadowing (saturation)Ambiguity due to competition between initial nuclear wavefunction, Shadowing, initial state (Cronin) interactions, and final state int. • as pointed out in 1992 p+A (or d+A) needed to isolate Initial State effects : shadowing and CroninIF RHIC finds R(5 GeV) ~ 1.1-1.3 in d+Au , theninterpretation (1) QGP matter was produced in AA And RHIC AA Has chance to map out QCD EOS(rks) CGC may still give us theinitial stateIF RHIC finds R(5 GeV)< 0.7 in d+Au , theninterpretation (2) and AA= shattered color glassNo QGP matter => go to eRHIC to map xGA.IF RHIC finds 0.7< R(5 GeV) < 1 Back to the drawing board ???(rks) probably combination of both

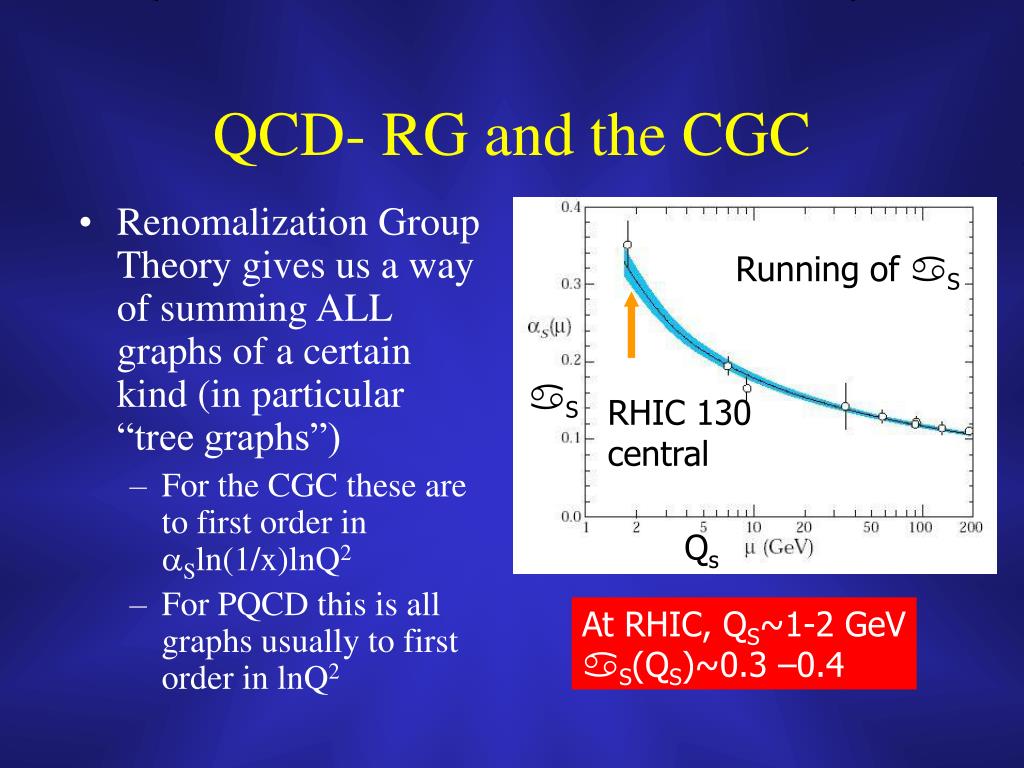

  10. Running of S S RHIC 130 central Qs QCD- RG and the CGC • Renomalization Group Theory gives us a way of summing ALL graphs of a certain kind (in particular “tree graphs”) • For the CGC these are to first order in Sln(1/x)lnQ2 • For PQCD this is all graphs usually to first order in lnQ2 At RHIC, QS~1-2 GeV S(QS)~0.3 –0.4
