The Periodic Table

The Periodic Table. How is the Periodic Table Arranged?. In order of increasing atomic number in specific columns and rows. Groups - vertical columns of the PT. Periods- horizontal row on the PT. Groups are important on the PT. Why?

neila
Download Presentation

The Periodic Table

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. The Periodic Table

  2. How is the Periodic Table Arranged? • In order of increasing atomic number in specific columns and rows.

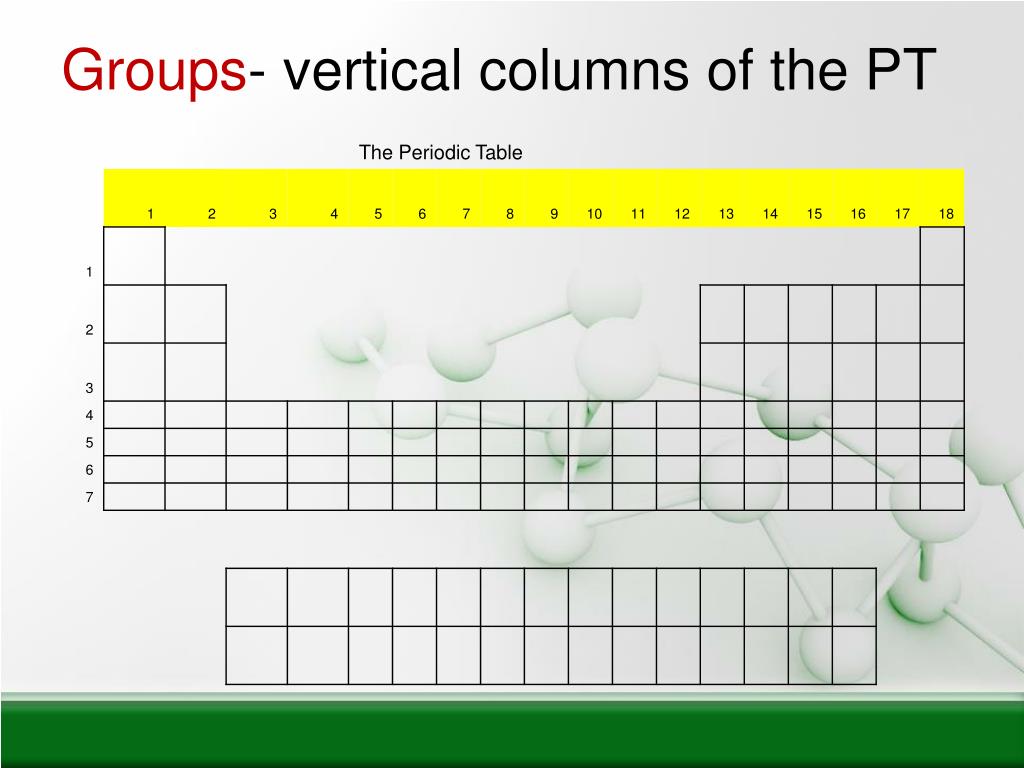

  3. Groups- vertical columns of the PT

  4. Periods- horizontal row on the PT

  5. Groups are important on the PT • Why? • The elements in a group have similar chemical and physical properties!

  6. Alkali Metals – Group 1

  7. ALKALI METALS Group 1 • Hydrogen is not a member, it is a non-metal • 1 electron in the outer shell • Soft and silvery metals • Very reactive, esp. with water • Conduct electricity Image: http://www.learner.org/interactives/periodic/groups2.html

  8. Alkaline Earth Metals – Group 2

  9. ALKALINE EARTH METALS Group 2 • 2 electrons in the outer shell • White and malleable • Reactive, but less than Alkali metals • Conduct electricity

  10. Halogens – Group 17

  11. Halogens Group 7 • 7 electrons in the outer shell • All are non-metals • Very reactive are often bonded with elements from Group 1

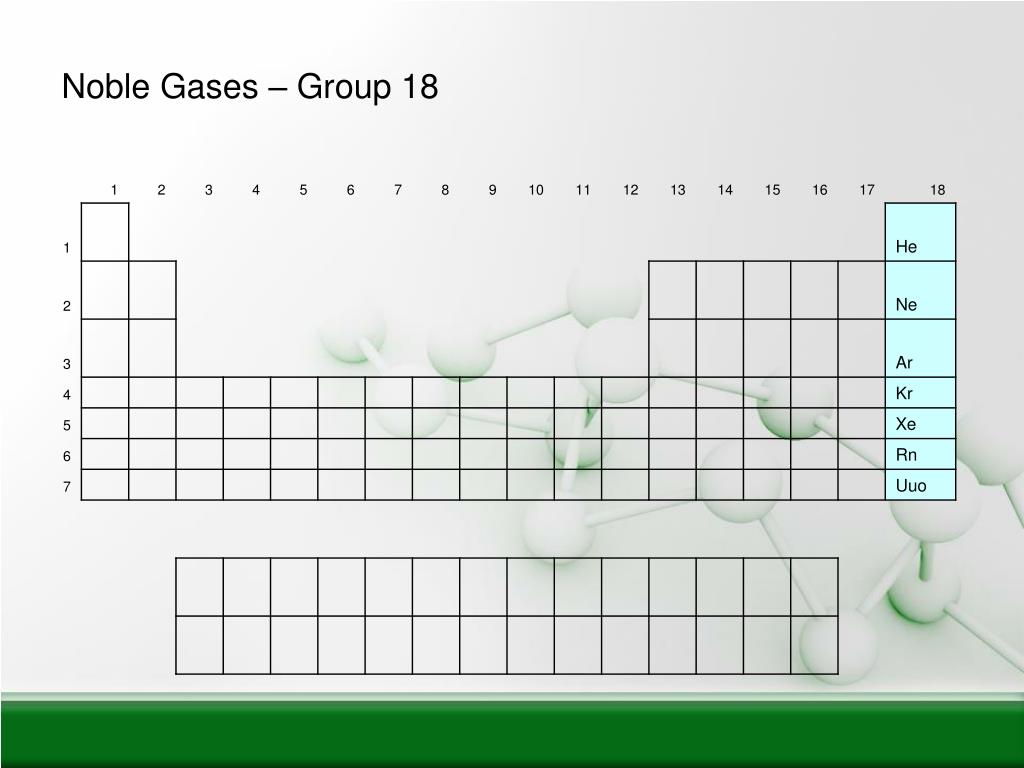

  12. Noble Gases – Group 18

  13. Noble Gases Group 8 • Exist as gases • Non-metals • 8 electrons in the outer shell = Full • Helium (He) has only 2 electrons in the outer shell = Full • Not reactive with other elements

  14. Transition Metals – Groups 3 - 12

  15. TRANSITION METALS Groups in the middle • Good conductors of heat and electricity. • Some are used for jewelry. • The transition metals are able to put up to 32 electrons in their second to last shell. • Can bond with many elements in a variety of shapes.

  16. Inner Transition Metals

  17. This is where the 2 rows really belong. So why is it never shown there? It would make the P.T. too long to fit on a single page.

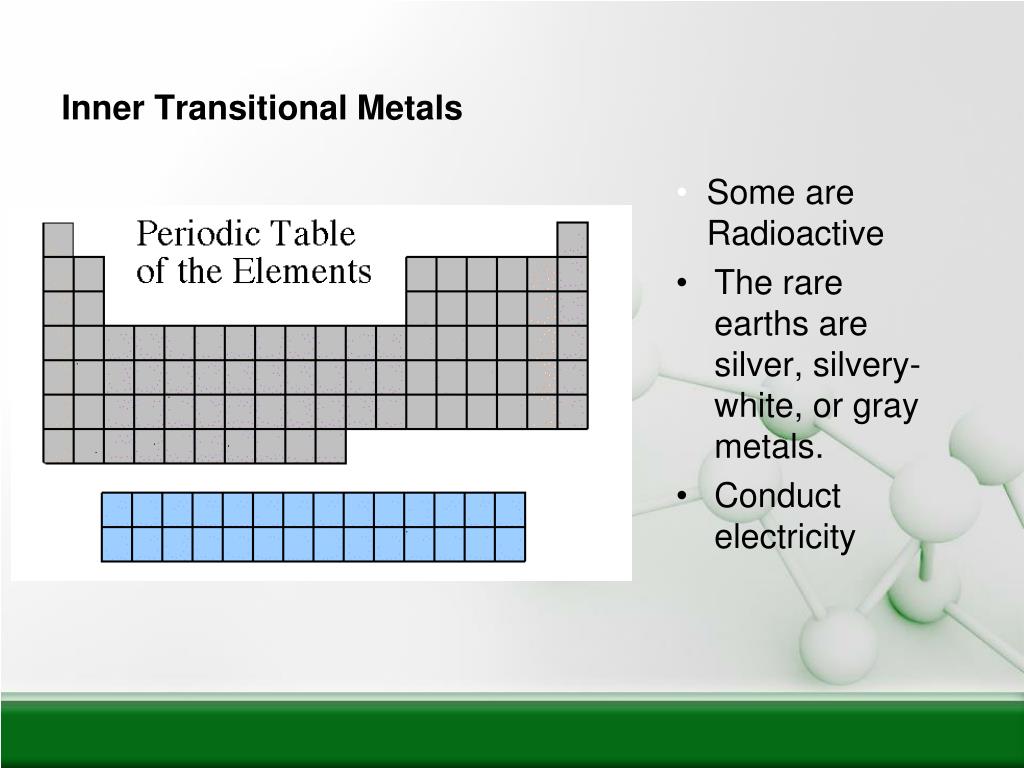

  18. Inner Transitional Metals • Some are Radioactive • The rare earths are silver, silvery-white, or gray metals. • Conduct electricity

  19. Metals • Lustrous • Good conductors of heat & electricity • Malleable – can be pounded into thin sheets • Ductile – can be drawn into thin wire

  20. MetalsNon-metalsmetalloids

  21. Metalloids

  22. MMetalloids • Metalloids • Are between the metals and the nonmetals on the P.T. • Can have properties of both metals and nonmetals • There are 7 METALLOIDS- • Boron • Silicon • Germanium • Arsenic • Antimony • Tellurium • Polonium

  23. Non-metals S Cl • Nonmetals • Are BRITTLE (shatter easily when hit) solids, or liquid or gas at room temperature • Are INSULATORS of heat and electricity • Solids are DULL

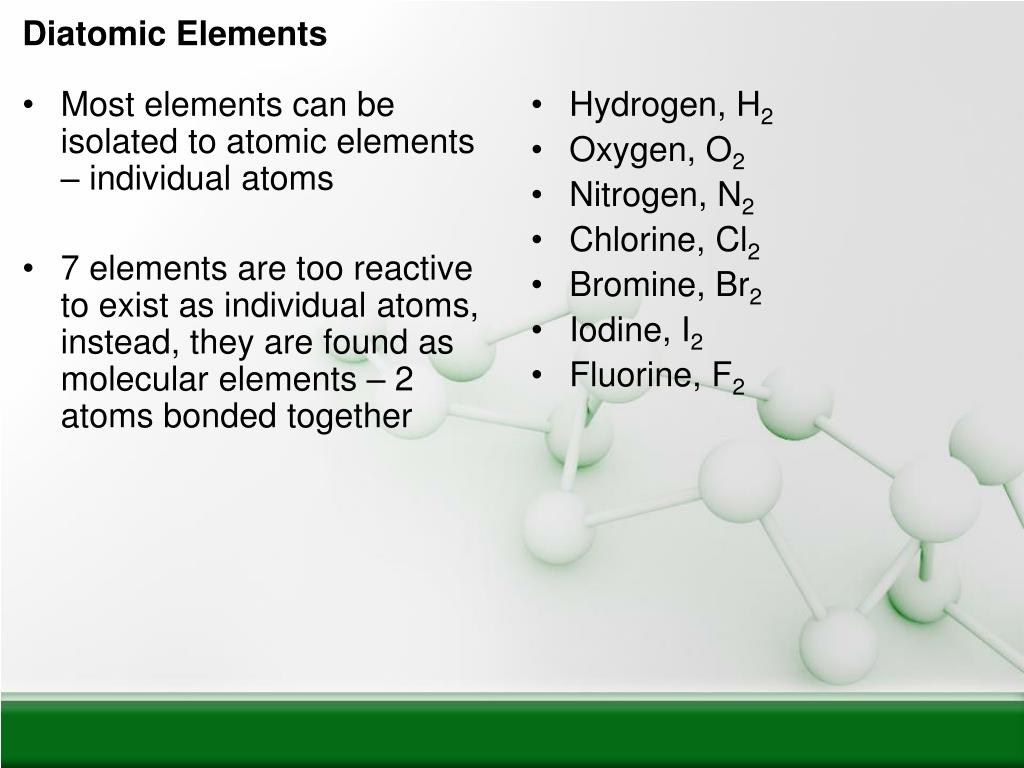

  24. Diatomic Elements • Most elements can be isolated to atomic elements – individual atoms • 7 elements are too reactive to exist as individual atoms, instead, they are found as molecular elements – 2 atoms bonded together • Hydrogen, H2 • Oxygen, O2 • Nitrogen, N2 • Chlorine, Cl2 • Bromine, Br2 • Iodine, I2 • Fluorine, F2
