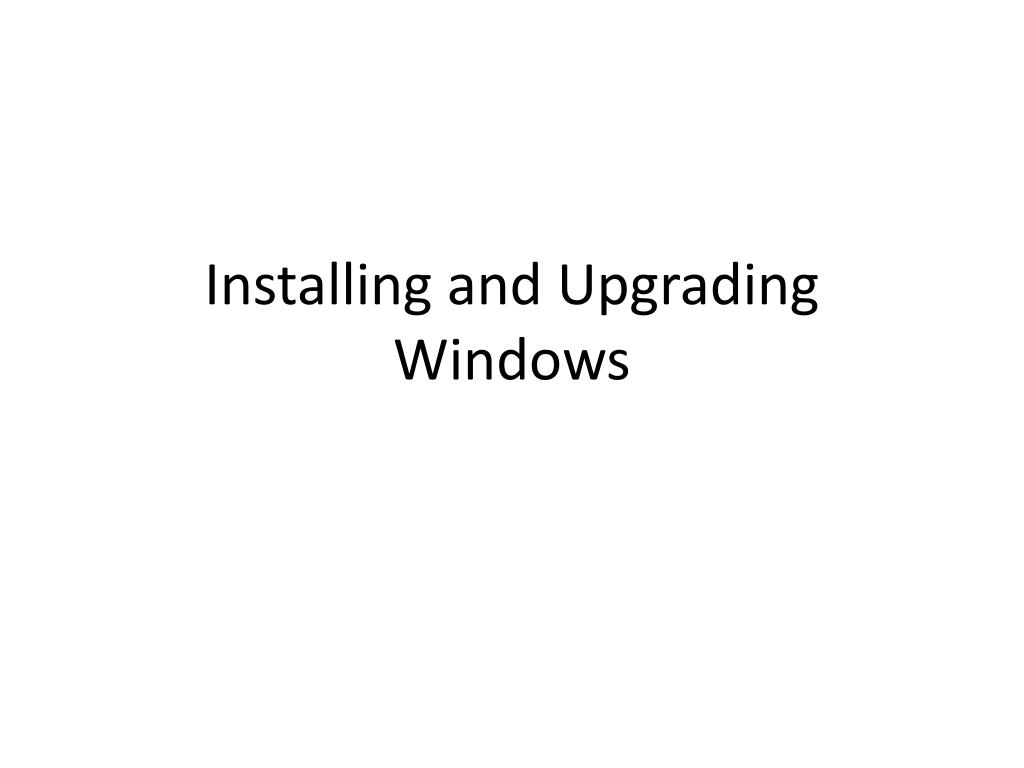

  1. Installing and Upgrading Windows

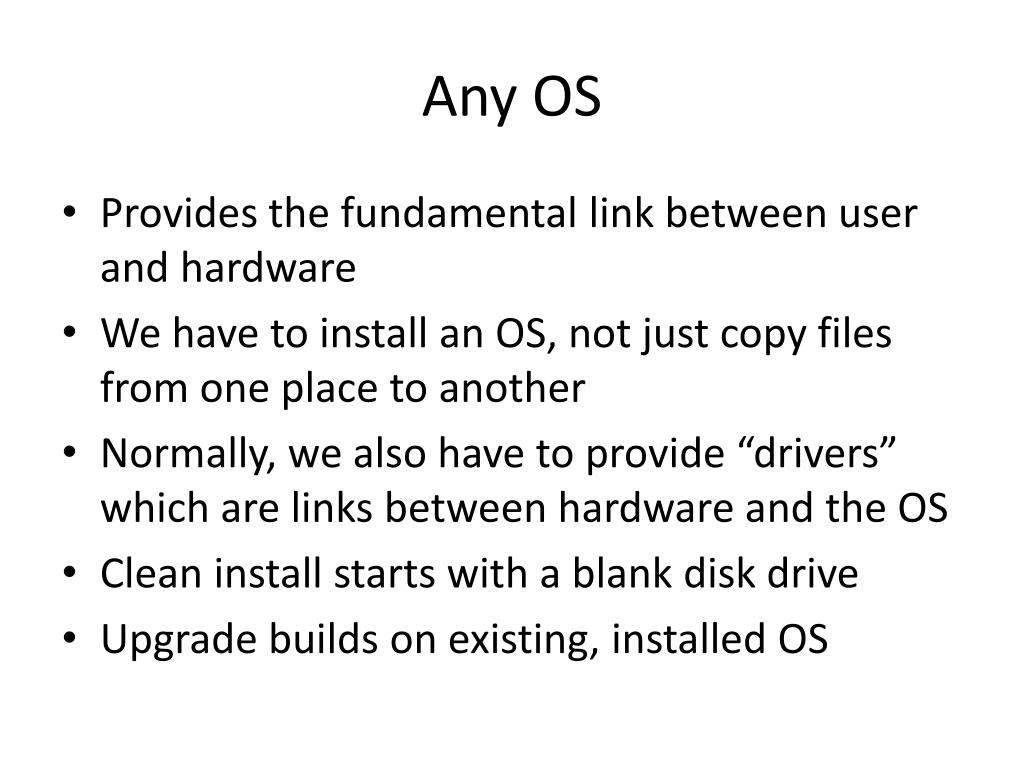

  2. Any OS • Provides the fundamental link between user and hardware • We have to install an OS, not just copy files from one place to another • Normally, we also have to provide “drivers” which are links between hardware and the OS • Clean install starts with a blank disk drive • Upgrade builds on existing, installed OS

  3. Steps to successful install • Identify hardware requirements • Verify hardware and software compatibility • Decide what type of installation to perform • Determine how to back up and restore existing data, if necessary • Select an installation method • Determine how to partition the hard drive and what file system to use • Determine your computer’s network role • Decide on your computer’s language and locale settings • Plan for post-installation tasks

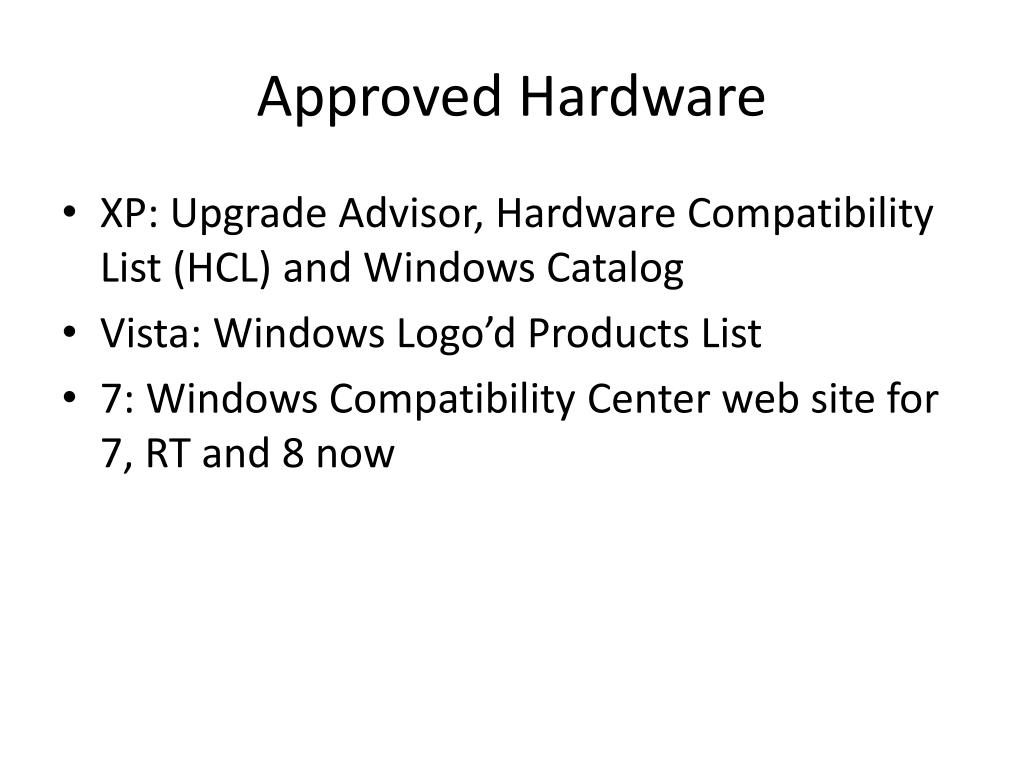

  4. Approved Hardware • XP: Upgrade Advisor, Hardware Compatibility List (HCL) and Windows Catalog • Vista: Windows Logo’d Products List • 7: Windows Compatibility Center web site for 7, RT and 8 now

  5. XP Requirements • 233 MHz or better CPU • 64 MB RAM or better • 1.5 GB hard disk space • Network, video and optical drive really handy

  6. Installing XP

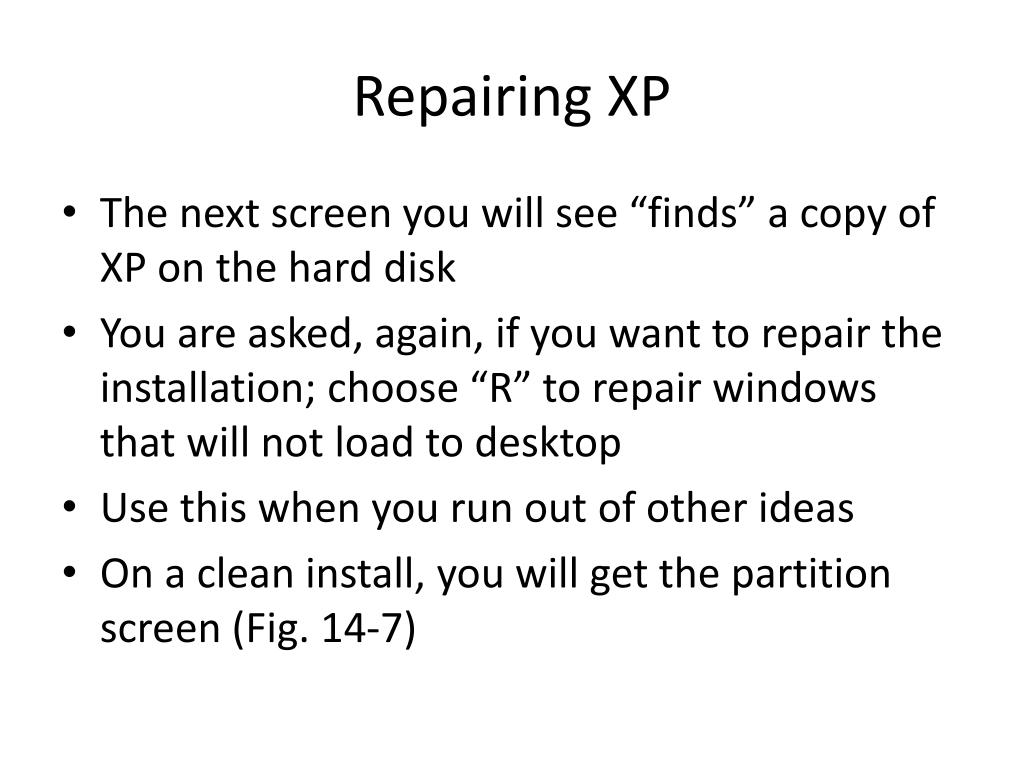

  7. Repairing XP • The next screen you will see “finds” a copy of XP on the hard disk • You are asked, again, if you want to repair the installation; choose “R” to repair windows that will not load to desktop • Use this when you run out of other ideas • On a clean install, you will get the partition screen (Fig. 14-7)

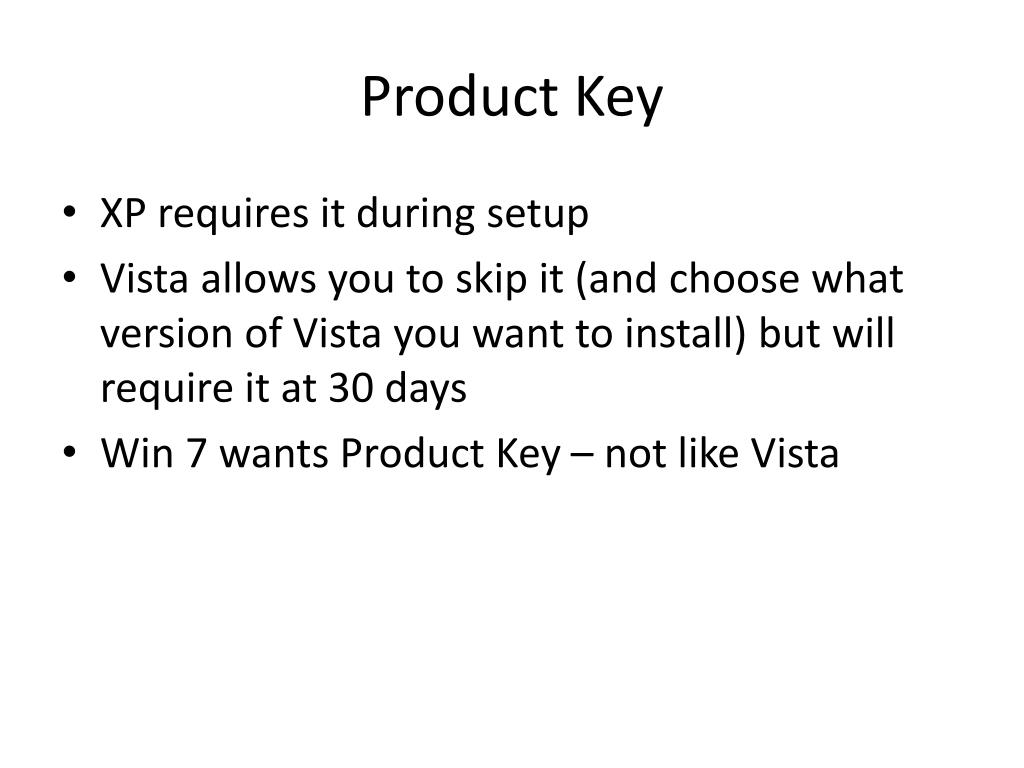

  8. Product Key • XP requires it during setup • Vista allows you to skip it (and choose what version of Vista you want to install) but will require it at 30 days • Win 7 wants Product Key – not like Vista

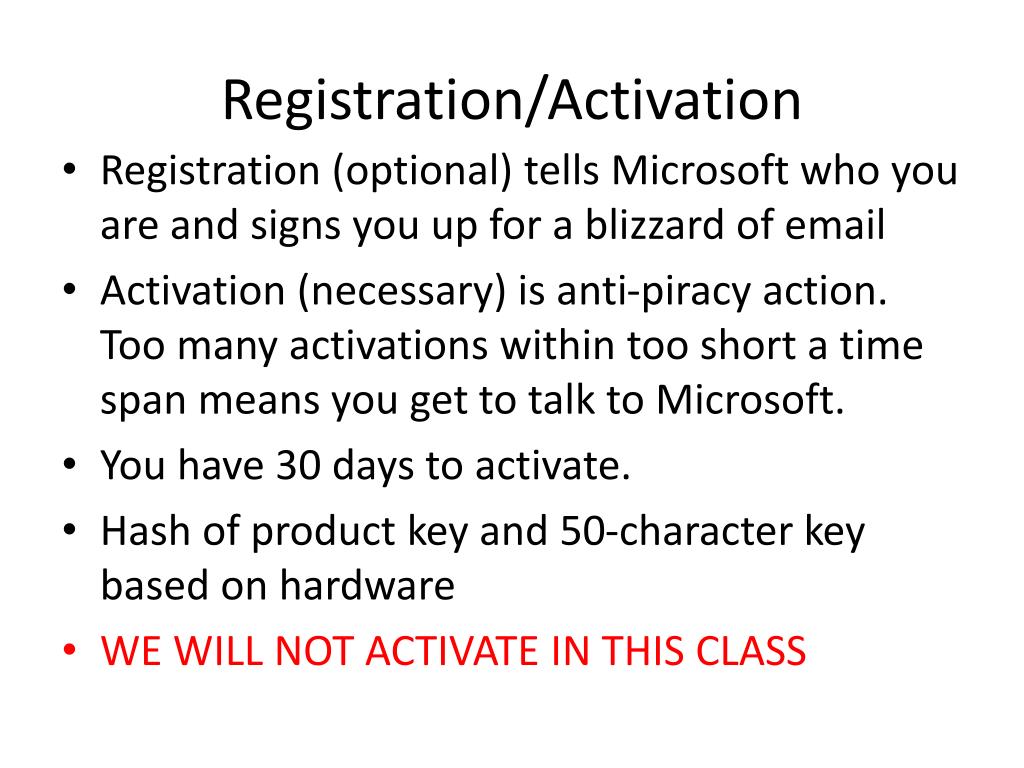

  9. Registration/Activation • Registration (optional) tells Microsoft who you are and signs you up for a blizzard of email • Activation (necessary) is anti-piracy action. Too many activations within too short a time span means you get to talk to Microsoft. • You have 30 days to activate. • Hash of product key and 50-character key based on hardware • WE WILL NOT ACTIVATE IN THIS CLASS

  10. Vista Requirements • 1 GHz CPU or better • 512 MB of RAM or better • 40 GB hard disk drive with 15 GB free or bigger • Network card with Internet access • DirectX 9 and 32MB graphics memory • DVD drive

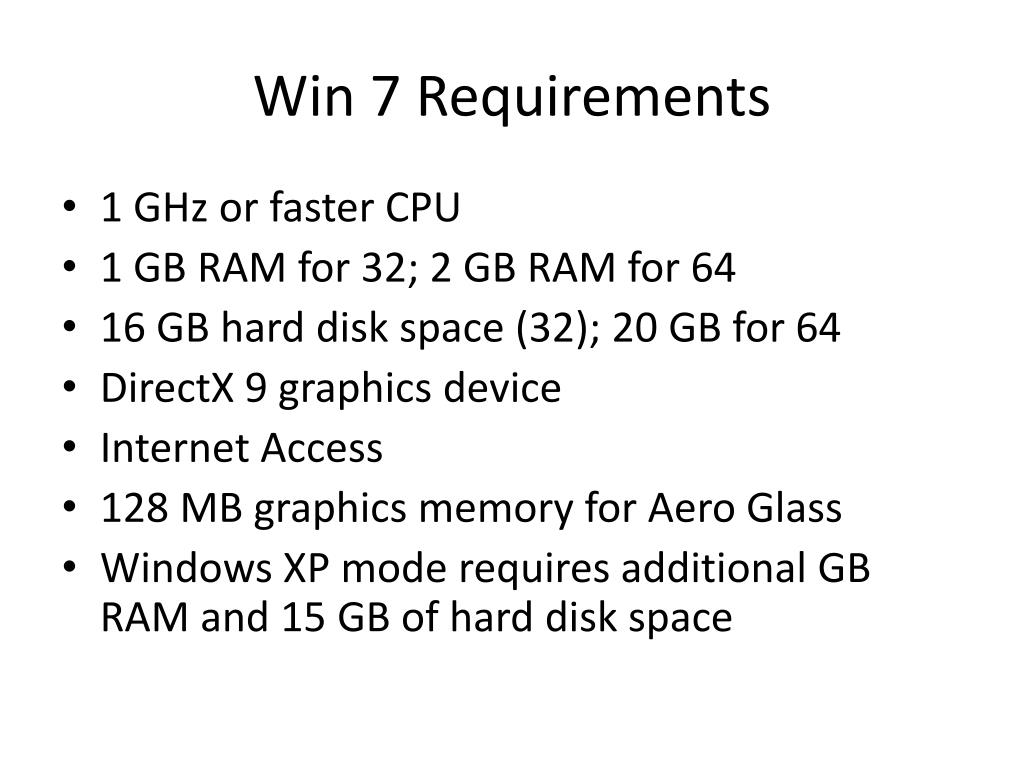

  11. Win 7 Requirements • 1 GHz or faster CPU • 1 GB RAM for 32; 2 GB RAM for 64 • 16 GB hard disk space (32); 20 GB for 64 • DirectX 9 graphics device • Internet Access • 128 MB graphics memory for Aero Glass • Windows XP mode requires additional GB RAM and 15 GB of hard disk space

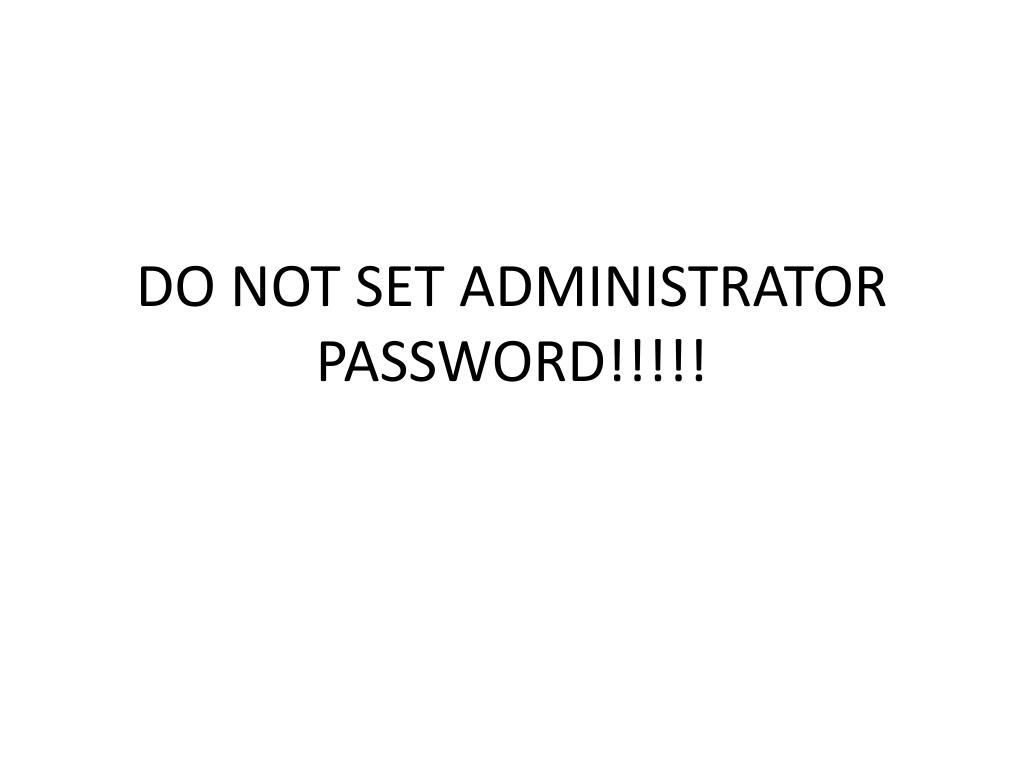

  12. DO NOT SET ADMINISTRATOR PASSWORD!!!!!

  13. Vista/7 Installation • All graphical now • I made $90 just by clicking Repair My Computer and choosing Startup Issues; I also tanked an installation of Win 7 by choosing Memory Test and that was all it would do – over and over • We will use the “hard disk drive” that Vmware sets up for the install disk and a single partition • Follow the prompts, you will be fine

  14. Install Notes • Vista does not require a product key at first, but will later on • Upgrade (not too likely) or Custom (clean install) option • Please do not use a password • Set up Windows Updates – Ask me later so we don’t have to wait for them • Choose Work as current location for network

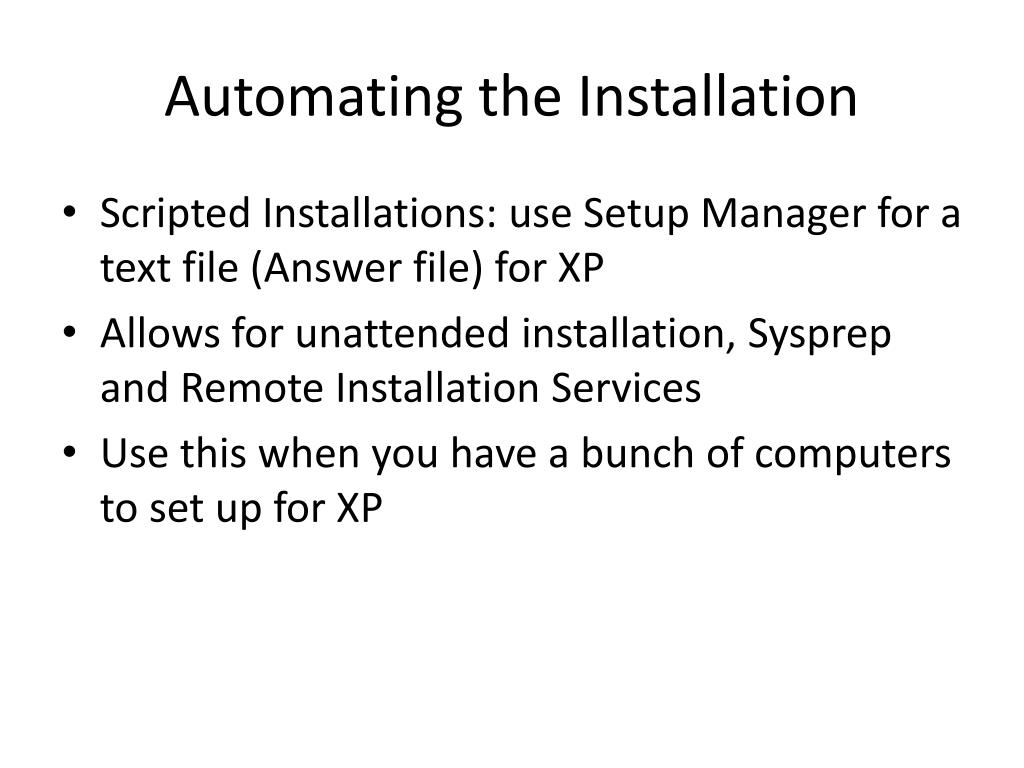

  15. Automating the Installation • Scripted Installations: use Setup Manager for a text file (Answer file) for XP • Allows for unattended installation, Sysprep and Remote Installation Services • Use this when you have a bunch of computers to set up for XP

  16. Automated Installation Kit • Windows System Image Manager to create answer file • Use the answer file to build a Master Installation file (burn to DVD) • Master Installation file goes to thumb drive • Good thing CompTIA does not test on this

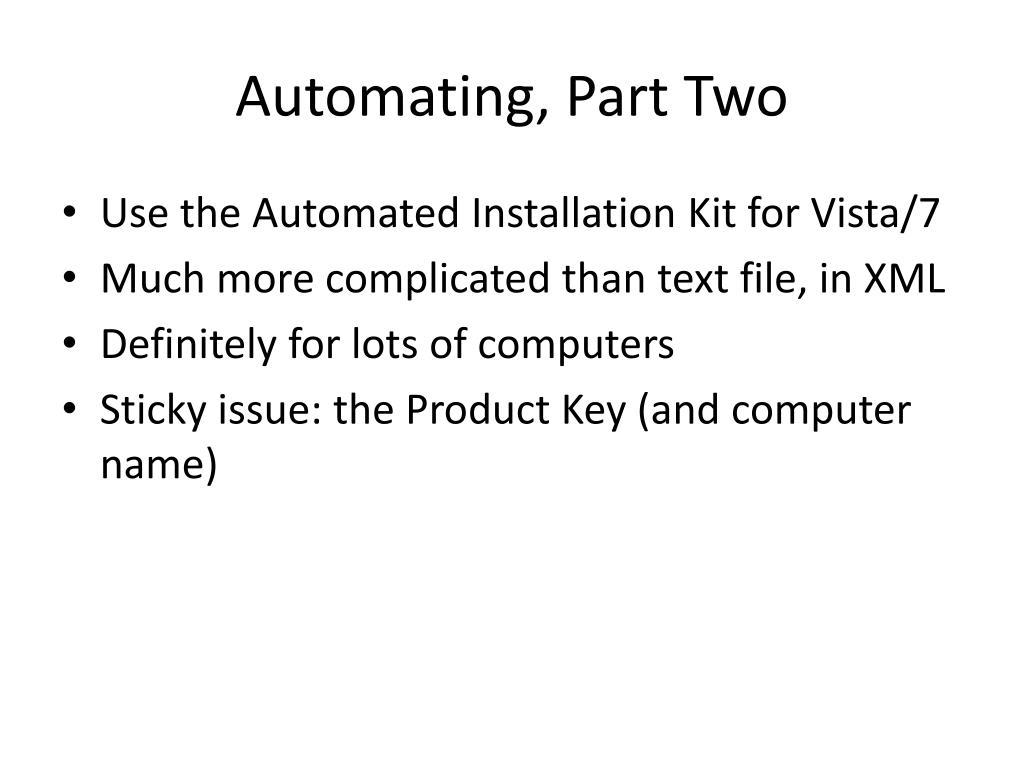

  17. Automating, Part Two • Use the Automated Installation Kit for Vista/7 • Much more complicated than text file, in XML • Definitely for lots of computers • Sticky issue: the Product Key (and computer name)

  18. Cloning • Use Norton Ghost to make copies of hard disk contents – going away end of month • Problem: computer ID (would be the same for all systems – confuses the network); Product Key, again • Hardware has to be identical

  19. Sysprep • For systems with slightly different hardware • This is what HP, Dell etc. do • Set up a system, run Sysprep then clone the result to other systems

  20. Network Install • Set up one system to be server and connect target systems (clients) to it • Server hosts an image of the hard disk drive • Handled by network administrator

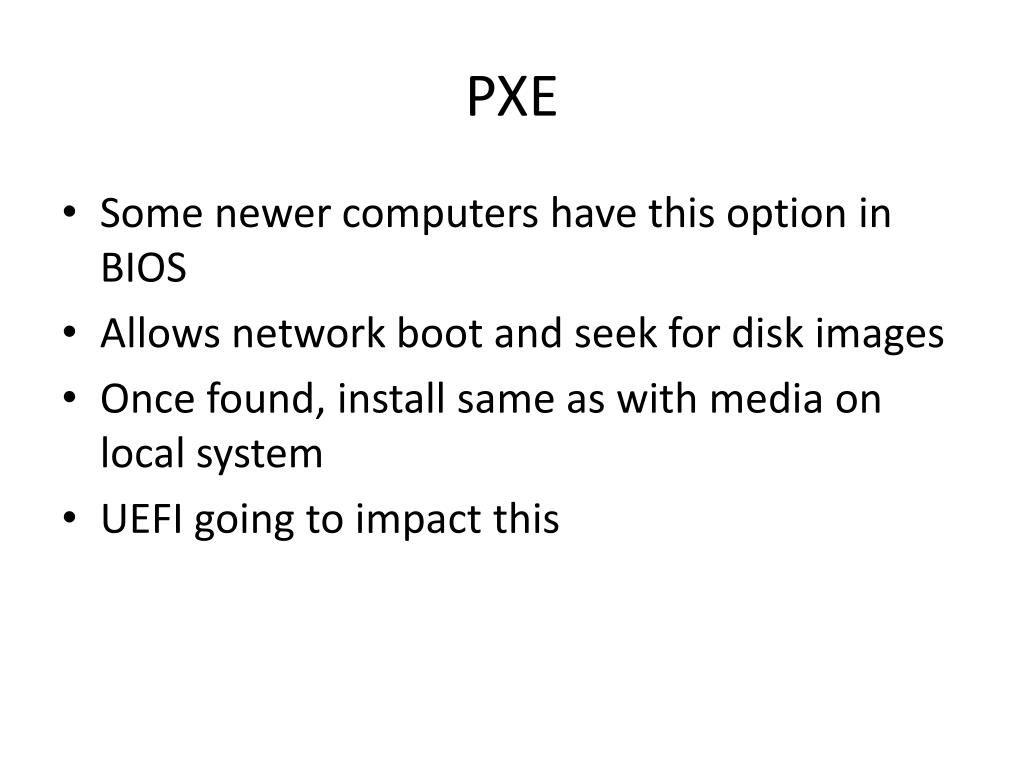

  21. PXE • Some newer computers have this option in BIOS • Allows network boot and seek for disk images • Once found, install same as with media on local system • UEFI going to impact this

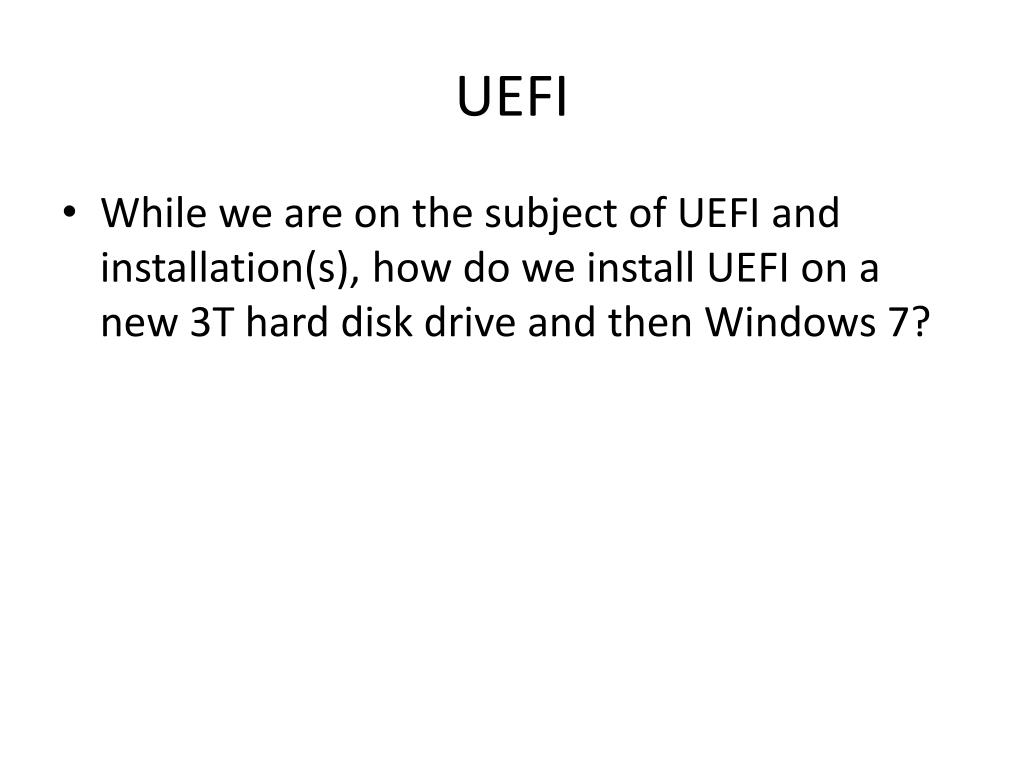

  22. UEFI • While we are on the subject of UEFI and installation(s), how do we install UEFI on a new 3T hard disk drive and then Windows 7?

  23. Installation Problems • Text-mode errors (XP): driver for hard disk/array? The F6 and what to do for floppy • No boot device: set optical drive as first boot device in CMOS • A BSoD at end of text mode: real trouble, likely hardware not compatible • Hardware detection error – often can fix this later

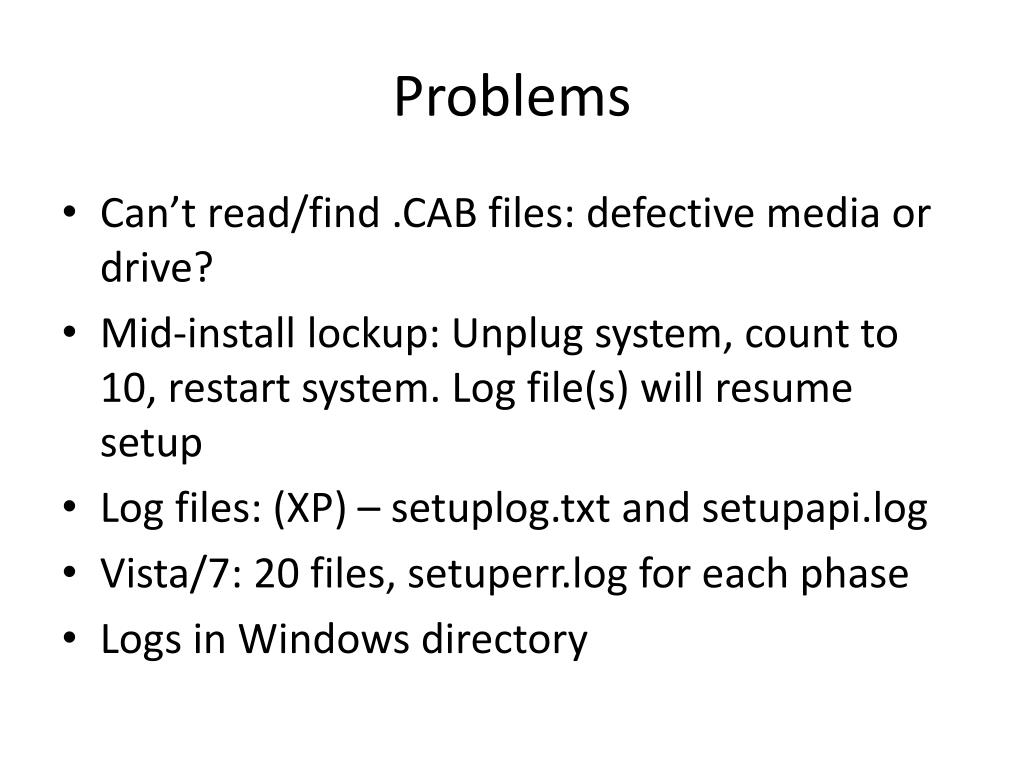

  24. Problems • Can’t read/find .CAB files: defective media or drive? • Mid-install lockup: Unplug system, count to 10, restart system. Log file(s) will resume setup • Log files: (XP) – setuplog.txt and setupapi.log • Vista/7: 20 files, setuperr.log for each phase • Logs in Windows directory

  25. Post-Installation • You did do a data backup? • Patches, Service Packs and Updates • Upgrading Drivers: Use Windows Drivers then update from source website • New software? Or reinstall

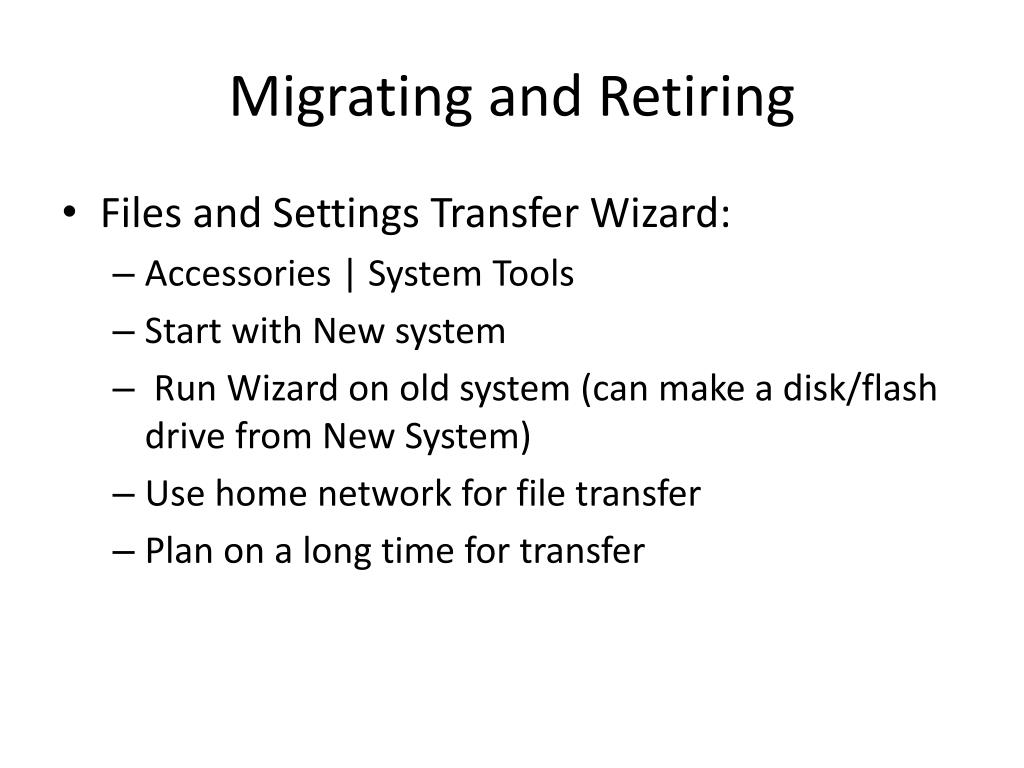

  26. Migrating and Retiring • Files and Settings Transfer Wizard: • Accessories | System Tools • Start with New system • Run Wizard on old system (can make a disk/flash drive from New System) • Use home network for file transfer • Plan on a long time for transfer

  27. Migrating and Retiring • User State Migration Tool: • Runs on a server/Domain • Useful in business setting • More feature rich • Usually use File and Settings Transfer Wizard for single PC

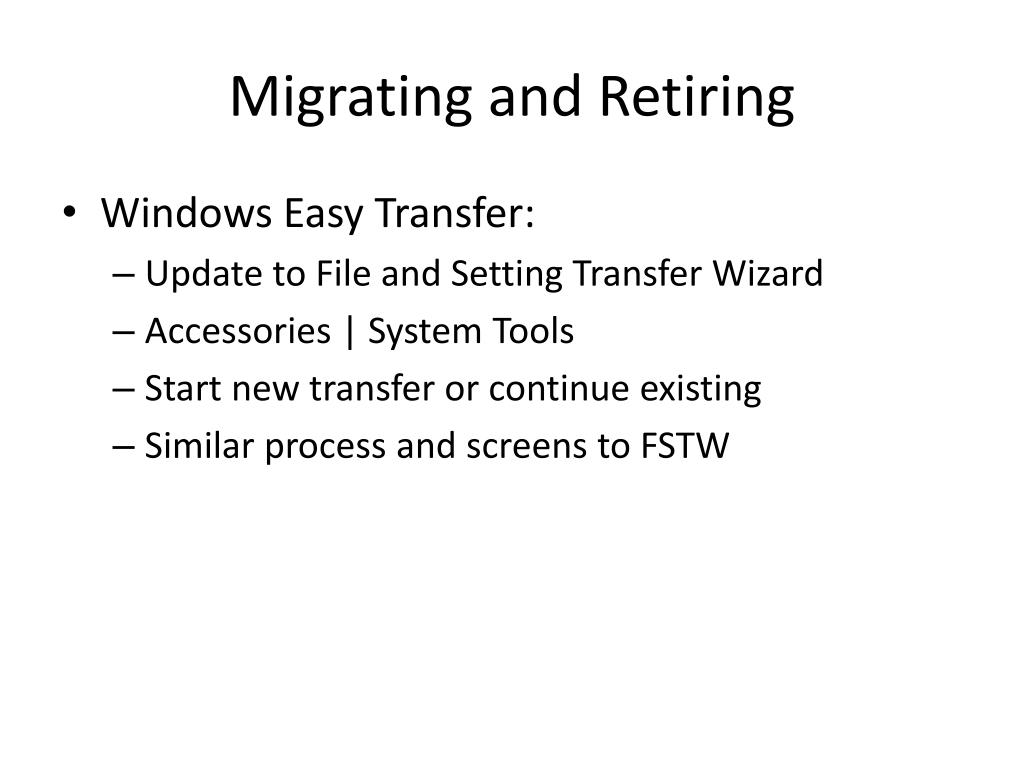

  28. Migrating and Retiring • Windows Easy Transfer: • Update to File and Setting Transfer Wizard • Accessories | System Tools • Start new transfer or continue existing • Similar process and screens to FSTW

  29. Migration to New Hardware • What to do with old drive/system? • Migrate in a secure environment • Remove data remnents from hard disk drive • Fdisk (or equal) usually works • There are “scrubber” programs that will write random patterns on disk once or more • Recycle, don’t trash • Don’t start a copy then go to lunch

  30. Data Destruction • Savor the moment, and the hammer! • Low-level format not really possible with today’s drives – scrub or zero-fill • Deleting files does nothing to remove data from the disk surface – only the directory entry gets a change • Its not exactly legal to give someone your old computer with Windows installed • Recycle, recycle
