Atelectasis. LUNG RECRUITMENT. Recruitment, PEEP titration and Open Lung Tool®. Stepwise alternating PC level procedure. Open Lung Tool. Preparations Pressure Control Ventilation 6 ml/kg PBW (Predicted Body Weight) I:E Ratio 1 to 1 Set Upper Pressure Limit Alarm Stabile Hemodynamics

nhu
Download Presentation

LUNG RECRUITMENT

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Atelectasis LUNG RECRUITMENT Recruitment, PEEP titration and Open Lung Tool®

  2. Stepwise alternating PC level procedure EDU-08-0007, ver 00

  3. Open Lung Tool Preparations • Pressure Control Ventilation • 6 ml/kg PBW (Predicted Body Weight) • I:E Ratio 1 to 1 • Set Upper Pressure Limit Alarm • Stabile Hemodynamics • Sedation • Relaxation? • Have a maximum pressure target before starting the procedure • Press Quick Access/Open Lung Tool EDU-08-0007, ver 00

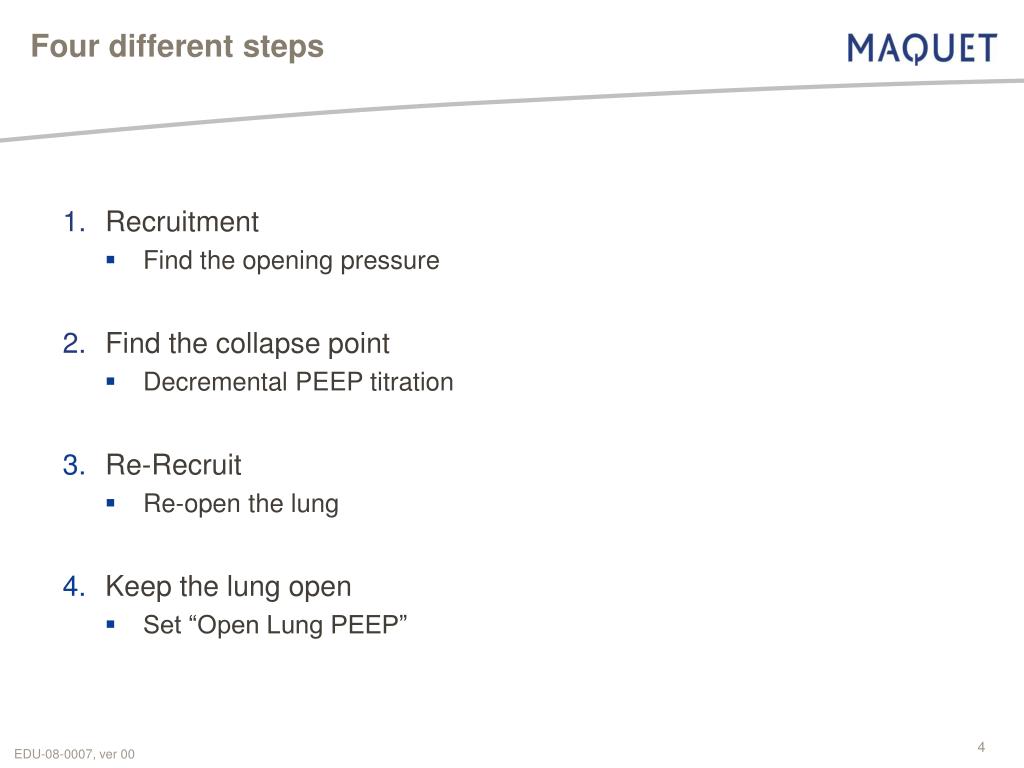

  4. Four different steps • Recruitment • Find the opening pressure • Find the collapse point • Decremental PEEP titration 3. Re-Recruit • Re-open the lung 4. Keep the lung open • Set “Open Lung PEEP” EDU-08-0007, ver 00

  5. Step 1 – Find opening pressure • Start with normal tidal volume (baseline) (6 ml/kg). • First increase PEEP to (e.g.) 15-20-30 cm/H20 in steps of 5 cm/H20, looking at the compliance curve when increasing PEEP. • Stepwise increase of Pressure Control level above PEEP with intermittent periods of baseline ventilation. • Increase Pressure Above PEEP stepwise in steps of (e.g.) 3 cm/H20 until a decrease in the VTCO2 curve, decrease in compliance curve or no more increase in FRC (baseline of tidal volume). EDU-08-0007, ver 00

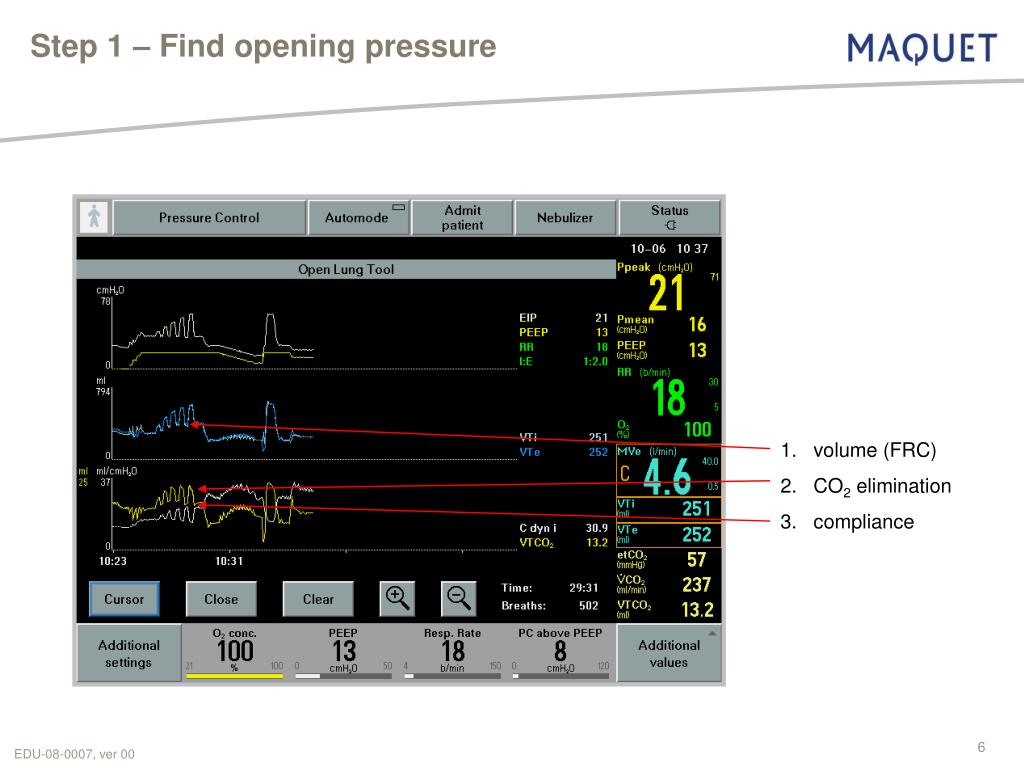

  6. Step 1 – Find opening pressure 1. volume (FRC) 2. CO2 elimination 3. compliance EDU-08-0007, ver 00

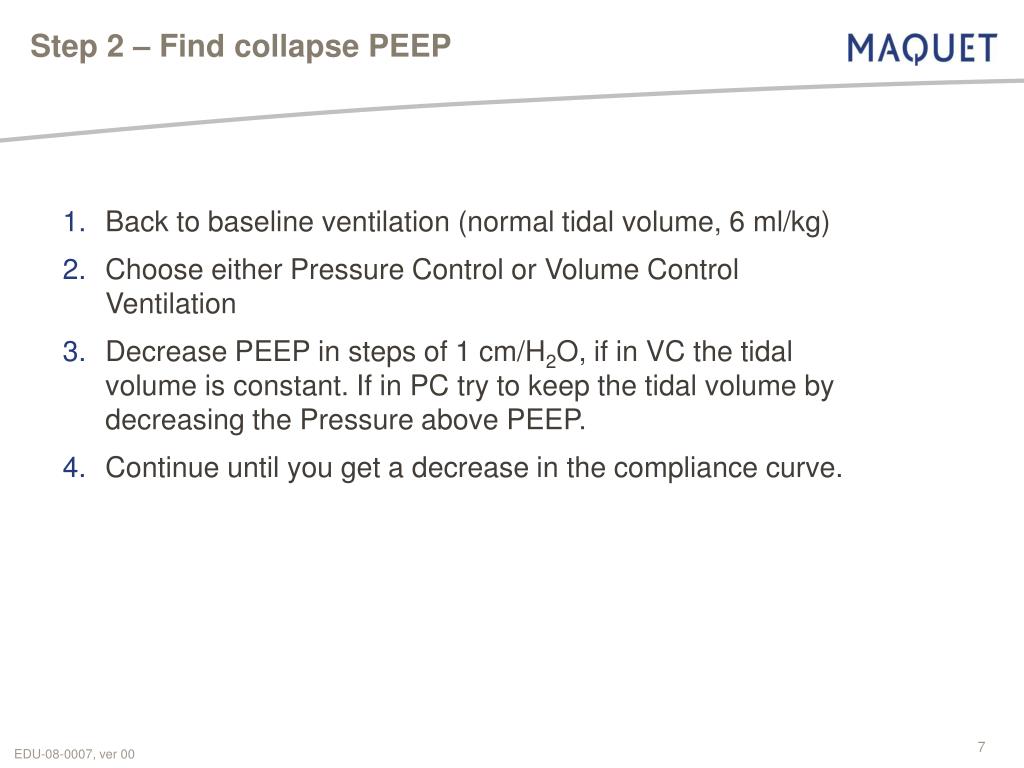

  7. Step 2 – Find collapse PEEP • Back to baseline ventilation (normal tidal volume, 6 ml/kg) • Choose either Pressure Control or Volume Control Ventilation • Decrease PEEP in steps of 1 cm/H2O, if in VC the tidal volume is constant. If in PC try to keep the tidal volume by decreasing the Pressure above PEEP. • Continue until you get a decrease in the compliance curve. EDU-08-0007, ver 00

  8. Step 2 – Find collapse PEEP Closing PEEP Maximum compliance before lung starts to collapse. EDU-08-0007, ver 00

  9. Step 3 – Re-open the lung • Activate the OLT cursor and define the highest value of • VTCO2 elimination • Tidal volume baseline • Compliance • Look for the EIP at that point and memories. • (Compliance curve may lower first of these 3 curves above due to some overdistention). EDU-08-0007, ver 00

  10. Step 3 – Re-open the lung • 1. Initial PEEP • 2. EIP (opening pressure) EDU-08-0007, ver 00

  11. Step 4 – Keep the lung open • Back to normal tidal volume • Set Open Lung PEEP • Adjust to normal tidal volume • Set Upper Pressure Alarm to be clinically relevant EDU-08-0007, ver 00

  12. Step 4 – Keep the lung open • compliance • before • after 1. Open Lung PEEP 2. Delta pressure (driving pressure) EDU-08-0007, ver 00

  13. Benefits with Stepwise Recruitment • Minimized negative hemodynamic influence • Allows for less stress and resting of lung tissue during periods of baseline ventilation • Possibility to evaluate the pulmonary response to each change of ventilator setting EDU-08-0007, ver 00

  14. Atelectasis No atelectasis Result after a successful recruitment • Increased compliance value • Lower mean airway pressure • Lower Delta-P (lower difference between EIP and PEEP) • Better oxygenation / PF-Ratio EDU-08-0007, ver 00

  15. References • SERVO education – Study Guide Lung Recruitment, PEEP titration and Open Lung Tool • SERVO-i ventilator system Operating Manual EDU-08-0007, ver 00
