  1. Firewall issues for Globus 2 and EDG Andrew McNab High Energy Physics University of Manchester ETF Firewall Meeting, NeSC, 5 Nov 2002

  2. Sources for this • (I did NOT consult this book! ) • I DID use my experiences maintaining the EDG Testbed site at Manchester HEP and: • Von Welsh’s “Globus Firewall Requirements” • EDG WP6 “Installation Guide” ETF Firewall Meeting, NeSC, 5 Nov 2002

  3. Overview • “Well known” vs ephemeral ports • Globus 2 “well known” services • Globus 2 ephemeral services • Additional EDG “well known” services • The way EDG uses Globus on sites • Possible solutions • Going to HTTPS based services • see next talk for Grid Services and Firewalls ETF Firewall Meeting, NeSC, 5 Nov 2002

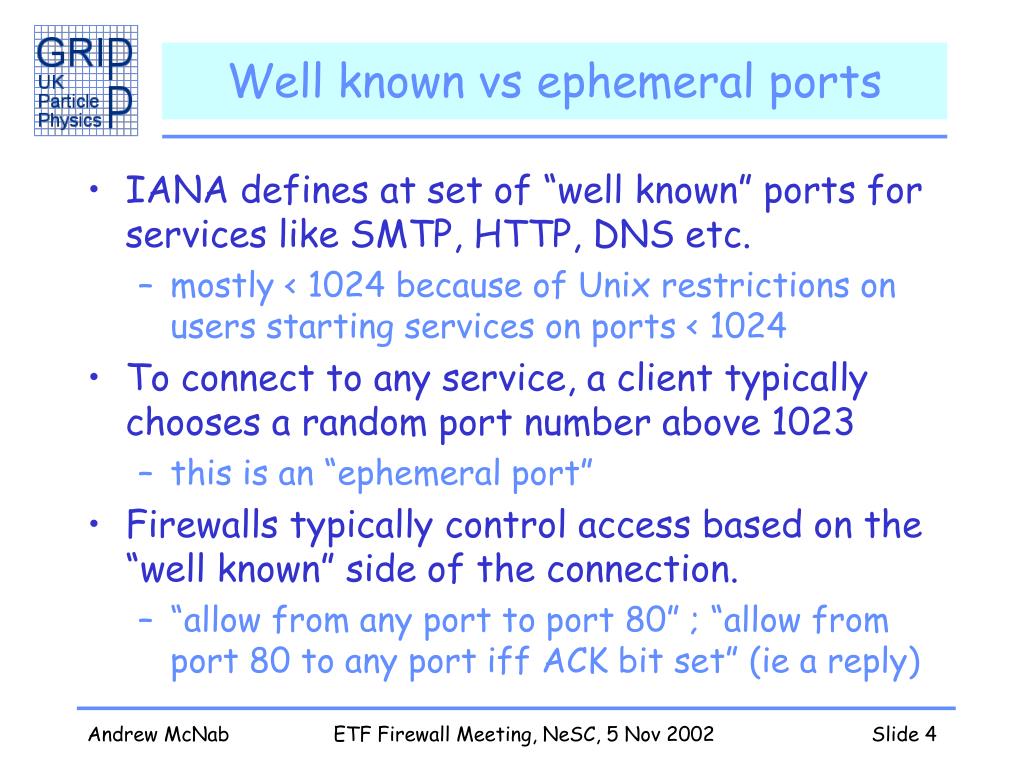

  4. Well known vs ephemeral ports • IANA defines at set of “well known” ports for services like SMTP, HTTP, DNS etc. • mostly < 1024 because of Unix restrictions on users starting services on ports < 1024 • To connect to any service, a client typically chooses a random port number above 1023 • this is an “ephemeral port” • Firewalls typically control access based on the “well known” side of the connection. • “allow from any port to port 80” ; “allow from port 80 to any port iff ACK bit set” (ie a reply) ETF Firewall Meeting, NeSC, 5 Nov 2002

  5. Globus 2 “well known” services • All of this is TCP • GRAM for job submission • server listens on port 2119 • client’s range of ephemeral ports can be restricted by setting GLOBUS_TCP_PORT_RANGE • MDS for information services • LDAP GRIS and GIIS listen on 2135 • LDAP client’s choose ephermeral ports randomly • GridFTP for bulk file transfer • Server listens for control channel on 2811 • Clients connect with a range of ephemeral ports ETF Firewall Meeting, NeSC, 5 Nov 2002

  6. Globus 2 ephemeral services (1) • The “well-known” ports picture looks ok • no worse than running HTTP or SMTP etc • However, Globus may use many services bound to ephemeral ports as well! • GASS - temporary, https servers • Started by client (!) during job submission for job input and output files and executables • By jobmanager to listen for job control signals • All controllable by GLOBUS_TCP_PORT_RANGE • BUT, if your firewall imposes ranges, clients and servers must agree this beforehand. ETF Firewall Meeting, NeSC, 5 Nov 2002

  7. Globus 2 ephemeral services (2) • GridFTP • some of the same issues as existing FTP PASV • ephemeral ports chosen on client and server for data channels (range can be controlled) • single stream transfers: from client to server • multiple stream transfers: in same direction as data flow! • (So basically impossible to do through NAT, unless you start reserving blocks of NAT ports per node) • GASS/GridFTP bottom line: unless you agree port ranges with everyone you talk to, you have to make >1023 wide open. ETF Firewall Meeting, NeSC, 5 Nov 2002

  8. EU DataGrid “well known” services • These are well-behaved like HTTP or LDAP • Top-level GIIS used by Resource Broker • LDAP on port 2170 • Replica Catalog used by RB to find sites with data • LDAP on fixed port, advertised in URL (eg 9011) • Resource Broker (sends jobs to “best” site) • port 7771 • Logging and Bookeeping service • port 7846 ETF Firewall Meeting, NeSC, 5 Nov 2002

  9. EU DataGrid job submission ETF Firewall Meeting, NeSC, 5 Nov 2002

  10. How EDG uses Globus on sites • GRAM/GASS used to submit job to site • connection actually comes from Job Submission Service on Resource Broker • so need GRAM/GASS to work from RB to CE (gatekeeper) • Input and output sandboxes transferred by GridFTP • this is done from Worker Nodes so they must have inbound and outbound GridFTP • Storage Elements need access to other SE’s and Replica Catalogs ETF Firewall Meeting, NeSC, 5 Nov 2002

  11. Possible solutions • Most frequent current problem is Worker Node farms with private IP’s • there are ways of doing the GridFTP copies on the CE gatekeeper instead (eg an rsh wrapper) • A longer term solution would be to support HTTP/HTTPS for data as well as GridFTP • HTTP(S) more friendly to firewalls, NAT and application proxies are available. • Still leaves problem of many ports to manually allow for all the various information services ETF Firewall Meeting, NeSC, 5 Nov 2002

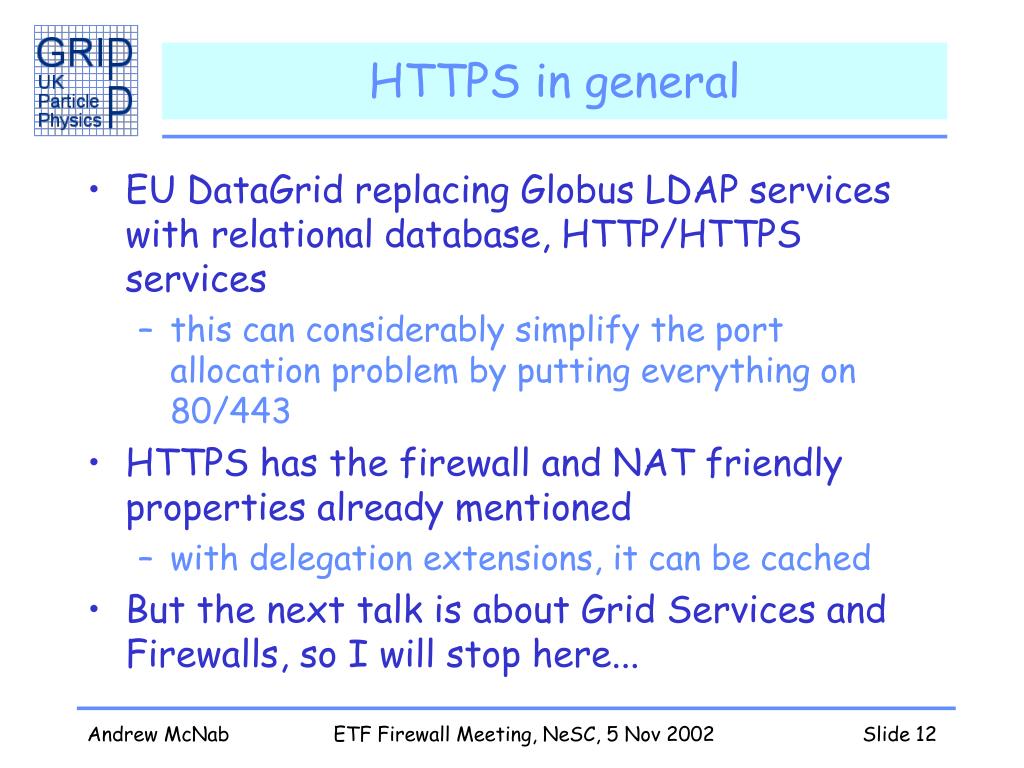

  12. HTTPS in general • EU DataGrid replacing Globus LDAP services with relational database, HTTP/HTTPS services • this can considerably simplify the port allocation problem by putting everything on 80/443 • HTTPS has the firewall and NAT friendly properties already mentioned • with delegation extensions, it can be cached • But the next talk is about Grid Services and Firewalls, so I will stop here... ETF Firewall Meeting, NeSC, 5 Nov 2002
