Presentation Transcript

  1. CHEMISTRYThe Central Science 9th Edition Chapter 5Thermochemistry David P. White Chapter 5

  2. The Nature of Energy • Kinetic Energy and Potential Energy • Kinetic energy is the energy of motion: • Potential energy is the energy an object possesses by virtue of its position. • Potential energy can be converted into kinetic energy. Example: a bicyclist at the top of a hill. Chapter 5

  3. The Nature of Energy • Kinetic Energy and Potential Energy • Electrostatic potential energy, Ed, is the attraction between two oppositely charged particles, Q1 and Q2, a distance d apart: • The constant  = 8.99  109 J-m/C2. • If the two particles are of opposite charge, then Ed is the electrostatic repulsion between them. Chapter 5

  4. The Nature of Energy • Units of Energy • SI Unit for energy is the joule, J: • We sometimes use the calorie instead of the joule: • 1 cal = 4.184 J (exactly) • A nutritional Calorie: • 1 Cal = 1000 cal = 1 kcal Chapter 5

  5. The Nature of Energy • Systems and Surroundings • System: part of the universe we are interested in. • Surroundings: the rest of the universe. Chapter 5

  6. The Nature of Energy • Transferring Energy: Work and Heat • Force is a push or pull on an object. • Work is the product of force applied to an object over a distance: • Energy is the work done to move an object against a force. • Heat is the transfer of energy between two objects. • Energy is the capacity to do work or transfer heat. Chapter 5

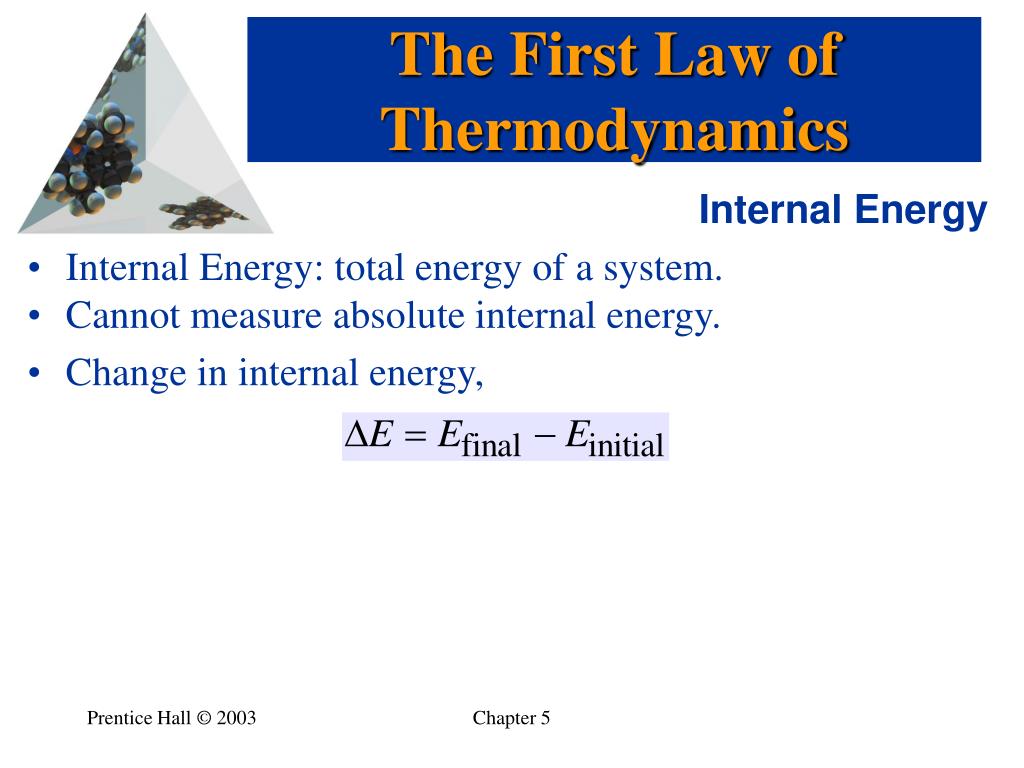

  7. The First Law of Thermodynamics • Internal Energy • Internal Energy: total energy of a system. • Cannot measure absolute internal energy. • Change in internal energy, Chapter 5

  8. The First Law of Thermodynamics • Relating DE to Heat and Work • Energy cannot be created or destroyed. • Energy of (system + surroundings) is constant. • Any energy transferred from a system must be transferred to the surroundings (and vice versa). • From the first law of thermodynamics: • when a system undergoes a physical or chemical change, the change in internal energy is given by the heat added to or absorbed by the system plus the work done on or by the system: Chapter 5

  9. The First Law of Thermodynamics

  10. The First Law of Thermodynamics • Exothermic and Endothermic Processes • Endothermic: absorbs heat from the surroundings. • Exothermic: transfers heat to the surroundings. • An endothermic reaction feels cold. • An exothermic reaction feels hot. Chapter 5

  11. The First Law of Thermodynamics • State Functions • State function: depends only on the initial and final states of system, not on how the internal energy is used. Chapter 5

  12. State Functions

  13. Enthalpy • Chemical reactions can absorb or release heat. • However, they also have the ability to do work. • For example, when a gas is produced, then the gas produced can be used to push a piston, thus doing work. • Zn(s) + 2H+(aq)  Zn2+(aq) + H2(g) • The work performed by the above reaction is called pressure-volume work. • When the pressure is constant, Chapter 5

  14. Enthalpy

  15. Enthalpy • Enthalpy, H: Heat transferred between the system and surroundings carried out under constant pressure. • Enthalpy is a state function. • If the process occurs at constant pressure, Chapter 5

  16. Enthalpy • Since we know that • We can write • When DH, is positive, the system gains heat from the surroundings. • When DH, is negative, the surroundings gain heat from the system. Chapter 5

  17. Enthalpy Chapter 5

  18. Enthalpies of Reaction • For a reaction: • Enthalpy is an extensive property (magnitude DH is directly proportional to amount): • CH4(g) + 2O2(g)  CO2(g) + 2H2O(g) DH = -802 kJ • 2CH4(g) + 4O2(g) 2CO2(g) + 4H2O(g) DH = -1604 kJ Chapter 5

  19. Enthalpies of Reaction • When we reverse a reaction, we change the sign of DH: • CO2(g) + 2H2O(g)  CH4(g) + 2O2(g) DH = +802 kJ • Change in enthalpy depends on state: • H2O(g)  H2O(l) DH = -88 kJ Chapter 5

  20. Calorimetry • Heat Capacity and Specific Heat • Calorimetry = measurement of heat flow. • Calorimeter = apparatus that measures heat flow. • Heat capacity = the amount of energy required to raise the temperature of an object (by one degree). • Molar heat capacity = heat capacity of 1 mol of a substance. • Specific heat = specific heat capacity = heat capacity of 1 g of a substance. Chapter 5

  21. Calorimetry • Constant Pressure Calorimetry • Atmospheric pressure is constant! Chapter 5

  22. Calorimetry Constant Pressure Calorimetry Chapter 5

  23. Calorimetry Bomb Calorimetry (Constant Volume Calorimetry) • Reaction carried out under constant volume. • Use a bomb calorimeter. • Usually study combustion. Chapter 5

  24. Hess’s Law • Hess’s law: if a reaction is carried out in a number of steps, H for the overall reaction is the sum of H for each individual step. • For example: • CH4(g) + 2O2(g)  CO2(g) + 2H2O(g) H = -802 kJ • 2H2O(g)  2H2O(l) H = -88 kJ • CH4(g) + 2O2(g)  CO2(g) + 2H2O(l) H = -890 kJ Chapter 5

  25. Hess’s Law Note that: H1 = H2 + H3 Chapter 5

  26. Enthalpies of Formation • If 1 mol of compound is formed from its constituent elements, then the enthalpy change for the reaction is called the enthalpy of formation, Hof . • Standard conditions (standard state): 1 atm and 25 oC (298 K). • Standard enthalpy, Ho, is the enthalpy measured when everything is in its standard state. • Standard enthalpy of formation: 1 mol of compound is formed from substances in their standard states. Chapter 5

  27. Enthalpies of Formation • If there is more than one state for a substance under standard conditions, the more stable one is used. • Standard enthalpy of formation of the most stable form of an element is zero. Chapter 5

  28. Enthalpies of Formation Chapter 5

  29. Enthalpies of Formation • Using Enthalpies of Formation of Calculate Enthalpies of Reaction • We use Hess’ Law to calculate enthalpies of a reaction from enthalpies of formation. Chapter 5

  30. Enthalpies of Formation • Using Enthalpies of Formation of Calculate Enthalpies of Reaction • For a reaction Chapter 5

  31. Foods and Fuels • Foods • Fuel value = energy released when 1 g of substance is burned. • 1 nutritional Calorie, 1 Cal = 1000 cal = 1 kcal. • Energy in our bodies comes from carbohydrates and fats (mostly). • Intestines: carbohydrates converted into glucose: • C6H12O6 + 6O2 6CO2 + 6H2O, DH = -2816 kJ • Fats break down as follows: • 2C57H110O6 + 163O2 114CO2 + 110H2O, DH = -75,520 kJ Chapter 5

  32. Foods and Fuels • Foods • Fats: contain more energy; are not water soluble, so are good for energy storage. Chapter 5

  33. Foods and Fuels • Fuels • In 2000 the United States consumed 1.03  1017 kJ of fuel. • Most from petroleum and natural gas. • Remainder from coal, nuclear, and hydroelectric. • Fossil fuels are not renewable. Chapter 5

  34. Foods and Fuels Chapter 5

  35. Foods and Fuels • Fuels • Fuel value = energy released when 1 g of substance is burned. • Hydrogen has great potential as a fuel with a fuel value of 142 kJ/g. Chapter 5

  36. End of Chapter 5:Thermochemistry Chapter 5
