1. Video Surveillance systems for Traffic Monitoring Simeon Indupalli

2. Presentation Overview • Video surveillance systems. • Traffic monitoring issues. • Object tracking techniques. • Vehicle tracking strategies. • A real time system Explanation. • Future Work

3. what is video surveillance? • Present Implementations? • Human detection systems. • vehicle monitoring systems. • Advantages of video surveillance? • Keep track of information video data for future use. • Helpful in identifying people in the crime scenes etc.. • Disadvantages of the present system? • It’s difficult to maintain heavy amount of raw video data • Human interaction. • Require higher bandwidth for transmitting the visual data.

4. Video surveillance in the context of Computer Vision • Detection and tracking of moving objects are the important tasks of the computer vision. • The video surveillance systems not only need to track the moving objects but also interpret their patterns of behaviours. This means solving the information and integration the pattern. • Advantages • Minimizes the user interaction. • Less amount of prohibitive bandwidth. • Minimizes the cost and time.

5. Need for Traffic Monitoring • To reduce the traffic congestion on highways • Reduce the road accidents • Identifying suspicious vehicles. Etc..,

6. Traffic Monitoring in Computer Vision • The quest for better traffic information, an increasing reliance on traffic surveillance has resulted in a better vehicle detection. • Taking some intelligent actions based on the conditions. • Traffic scene analysis in 3 categories. • A strait forward vehicle detection and counting system . • Congestion monitoring and traffic scene analysis. • Vehicle classification and tracking systems which involve much more detailed scene traffic analysis.

7. Responsibilities of reliable Traffic Monitoring System • Adaptive to changes in the real world environments • Easy to set up • Capable of operating independently of human operators. • Capable of intelligent decisions. • Capable of monitoring multiple cameras and continuous operation. • Reasons for unsuccessful implementation**

8. A Traffic Monitoring System

9. Object Classification • Shape based classification. • Image blob area, blob bounding box • Classification based on above info. • Motion-based classification. • Human motion shows periodic property. • Time frequency analysis applied. • Residual flow taken under consideration.

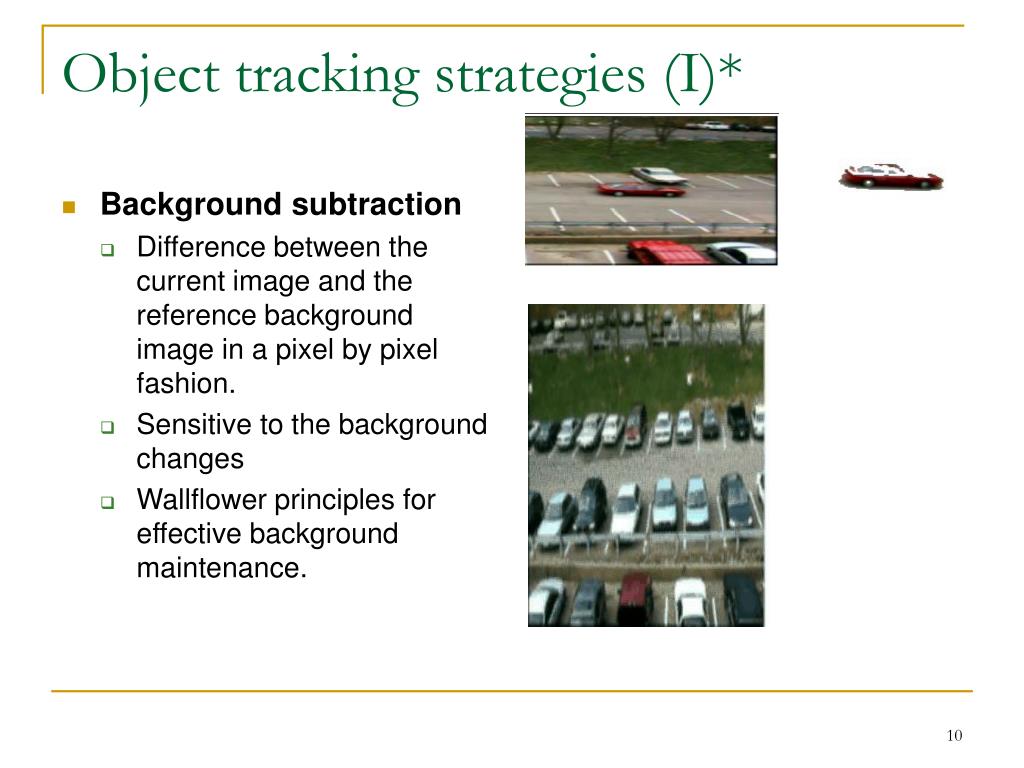

10. Object tracking strategies (I)* • Background subtraction • Difference between the current image and the reference background image in a pixel by pixel fashion. • Sensitive to the background changes • Wallflower principles for effective background maintenance.

11. Object tracking strategies (II) • Temporal differencing • Moving objects changes intensity faster than static ones • Uses consecutive frames to identify the difference. • Adaptive to dynamic scene changes • Problems in extracting all relevant features. • Improved versions uses three frames instead of two

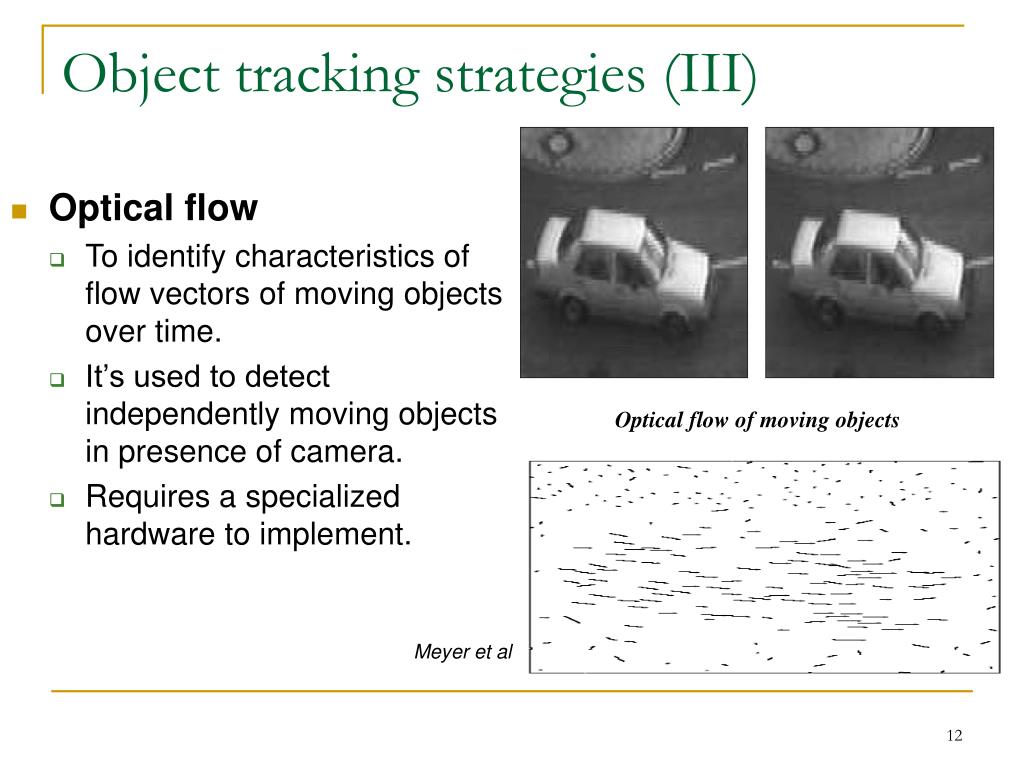

12. Object tracking strategies (III) • Optical flow • To identify characteristics of flow vectors of moving objects over time. • It’s used to detect independently moving objects in presence of camera. • Requires a specialized hardware to implement. Optical flow of moving objects Meyer et al

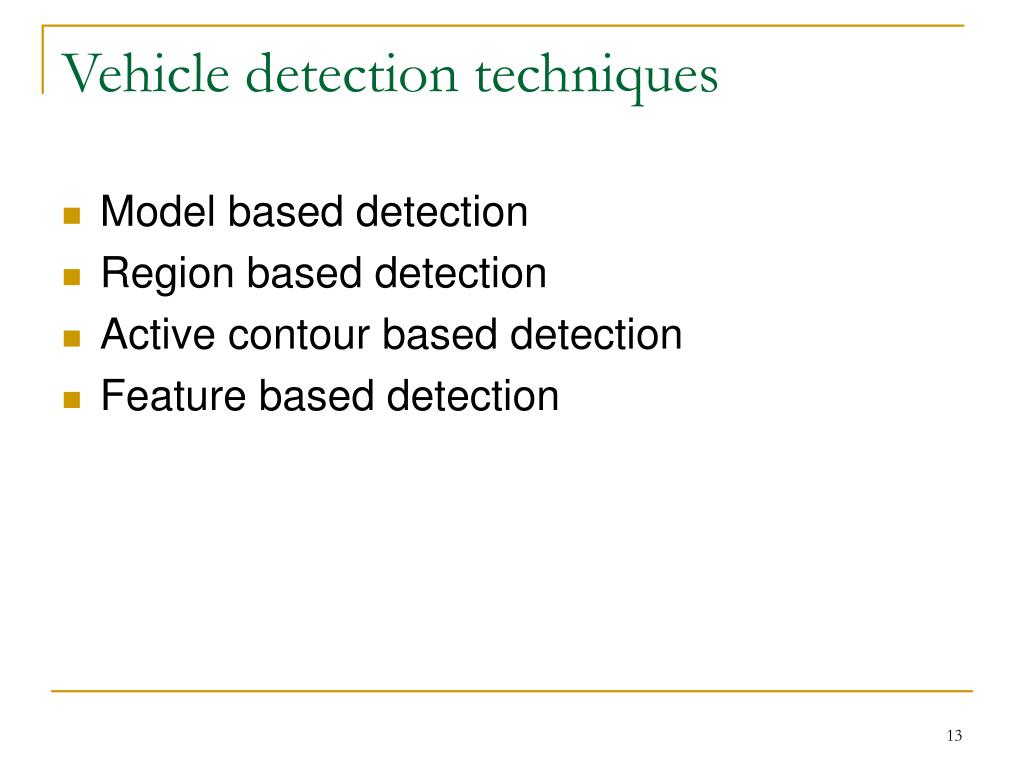

13. Vehicle detection techniques • Model based detection • Region based detection • Active contour based detection • Feature based detection

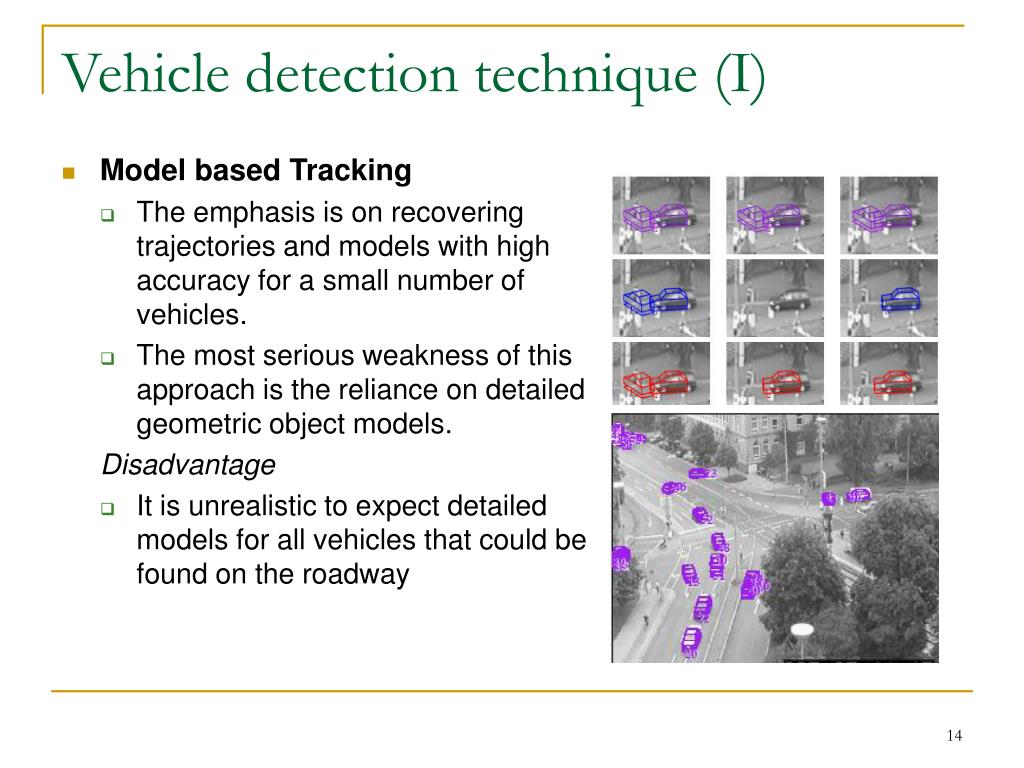

14. Vehicle detection technique (I) • Model based Tracking • The emphasis is on recovering trajectories and models with high accuracy for a small number of vehicles. • The most serious weakness of this approach is the reliance on detailed geometric object models. Disadvantage • It is unrealistic to expect detailed models for all vehicles that could be found on the roadway

15. Vehicle detection technique (II) • Region based tracking • It detects each vehicle blob using a cross correlation function. • Vehicle detection based on back ground subtraction. Disadvantage • Difficult to detect the vehicles under congested traffic, because vehicles partly occlude with one another Potential segmentation problem

16. Vehicle detection technique (III) • Active contour based detection • Tracking is based on active contour models, or snakes. • Representing object in bounding contour and keep updating it dynamically. • It reduced computational complexity compared to the region based detection. Disadvantage: • The inability to segment vehicles that are partially occluded remains a problem. Bounding counters

17. Vehicle detection technique (IV) • Feature based detection • Tracks sub-features such as distinguishable points or lines on the object • Effectiveness improved by the addition of common motion constraint. Features are grouped together based on common motion, avoiding segmentation problem due to occlusion

18. A typical vehicle tracking procedure

19. Wallflower Principles & Practice of Background Maintenance. • Foreground capture • Stopped car • Moving car • Shadows • Bootstrapping • Moved objects • Time of day • Light switch • Waving trees • camouflage

20. Wallflower: Three levels of abstraction • Pixel level • Maintains models of back ground of each individual pixel. • Processing makes the preliminary classification between foreground and background • Dynamic to scene changes. • Region level • Emphasis is on interrelationship between the pixels • Helps to refine raw classification at pixel level • Frame level • It watches for the sudden changes in the large parts of the image and swaps in alternative background models.

21. A real time traffic monitoring system Feature based tracking algorithm • Camera calibration • Feature detection • Vehicle tracking • Feature grouping Benjamin Coifman, Jitendra Malik, David Beymer

22. Offline camera definition • Line correspondences for a projective mapping. • A detection region near the image bottom and an exit region at the image top • And multiple fiducial points for camera calibration Based on the above information the system computes the homography between the image coordinates(x,y) and the world coordinates(X,Y)

23. On-line tracking and grouping • Detector • Detecting corners at the bottom of image, where brightness varies in more than one direction. • Detection operationalzed by the points in the image I • Tracker • Uses kalman filters to predict the velocity in the next image. • Normalized correlation is used to search the small region of image. • Group • Grouper uses common motion constraint. • Once all the corner features are identified they are grouped together. • Monitoring the distance between the point d(t)=P1(t)-p2(t)

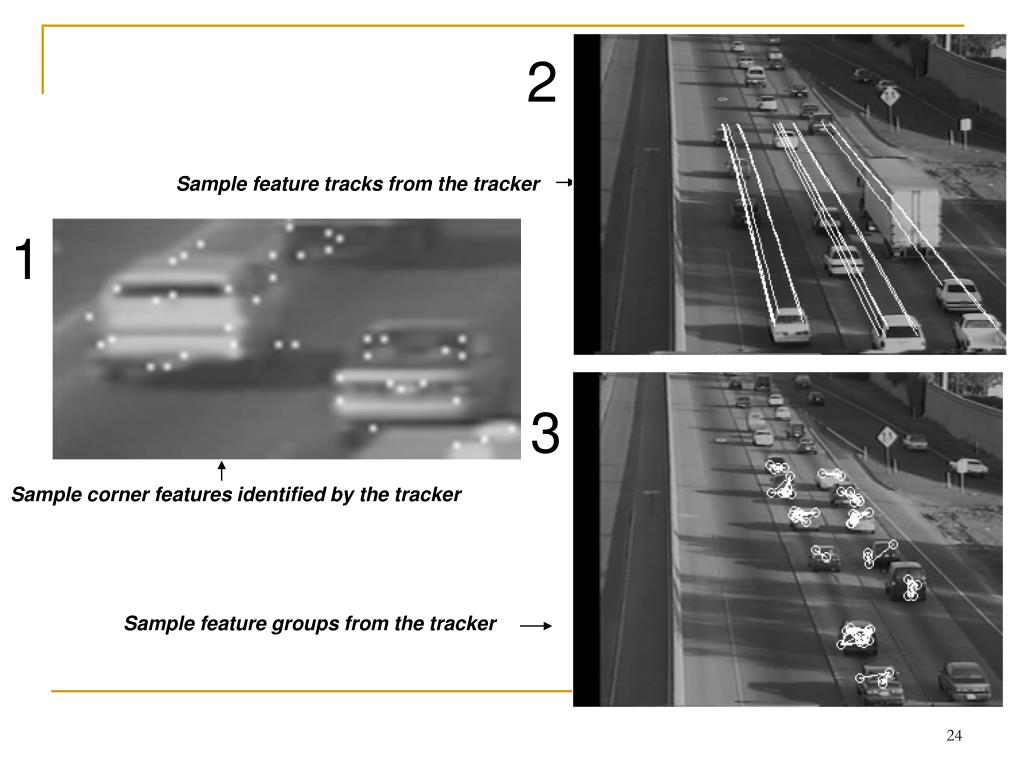

24. 2 Sample feature tracks from the tracker 1 3 Sample corner features identified by the tracker Sample feature groups from the tracker

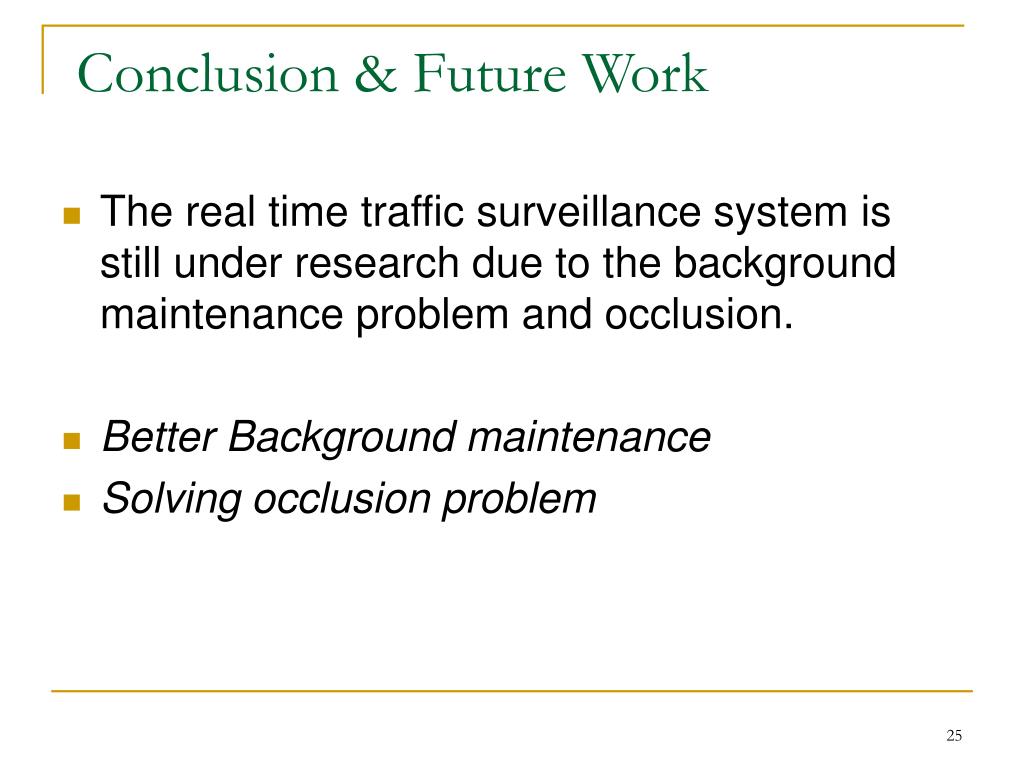

25. Conclusion & Future Work • The real time traffic surveillance system is still under research due to the background maintenance problem and occlusion. • Better Background maintenance • Solving occlusion problem
