  1. More ArcView RD 415 September 19, 2001

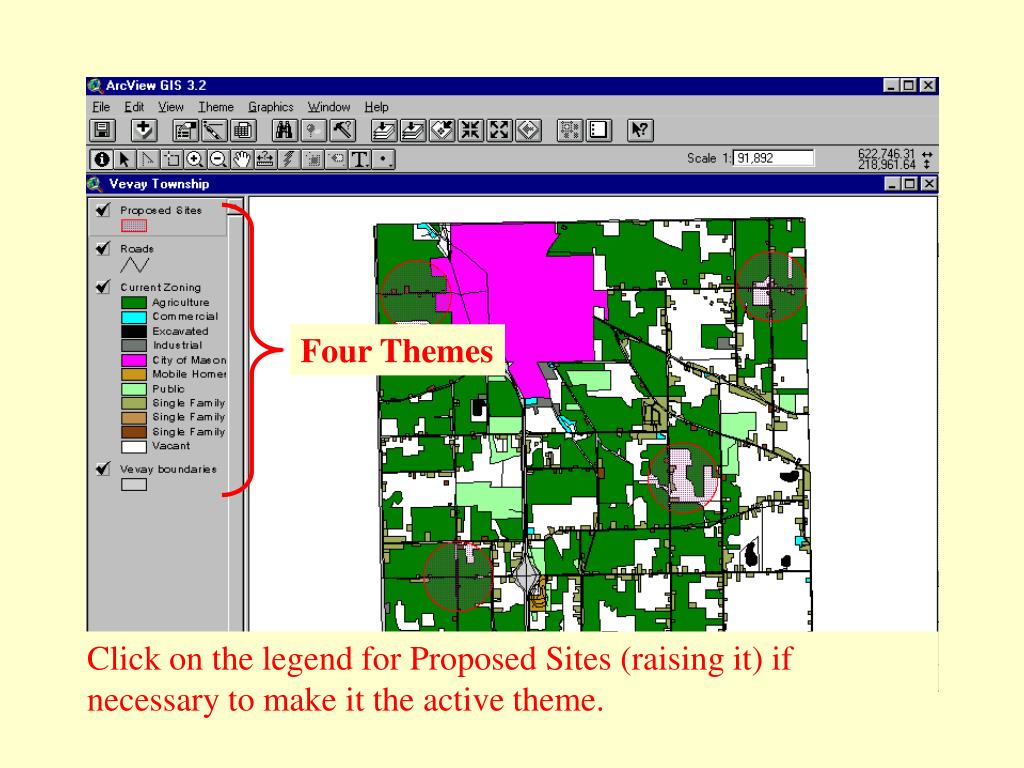

  2. Four Themes Click on the legend for Proposed Sites (raising it) if necessary to make it the active theme.

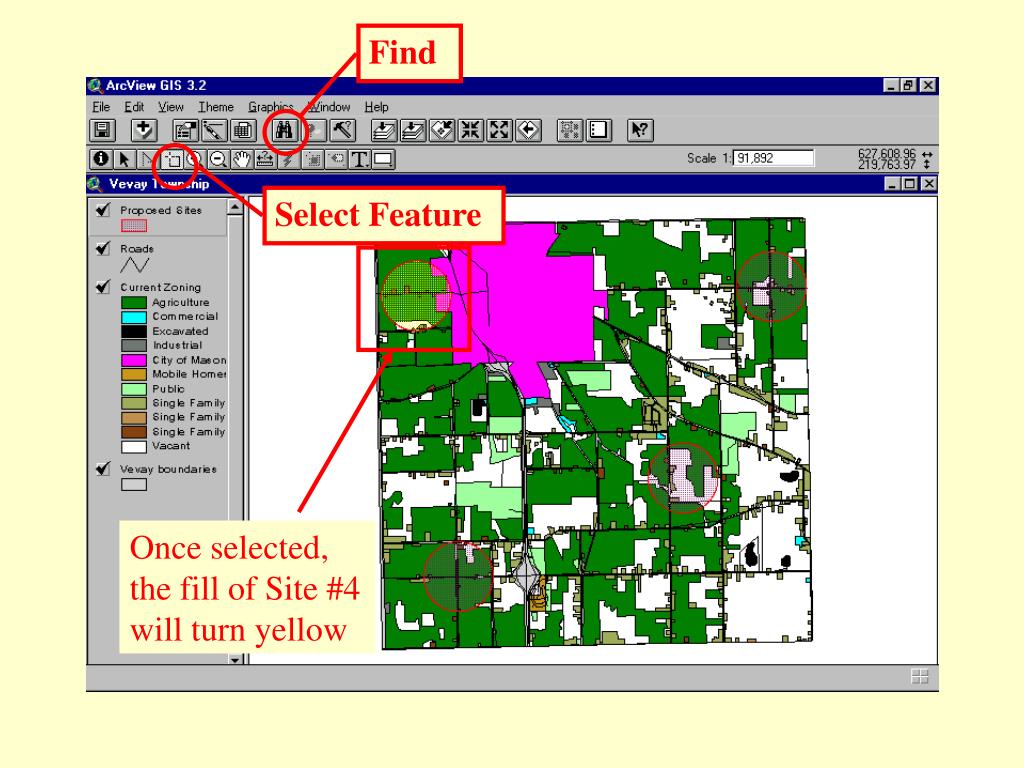

  3. Find Select Feature Once selected, the fill of Site #4 will turn yellow

  4. Make sure Current Zoning is active (the legend is raised) in the Table of Contents

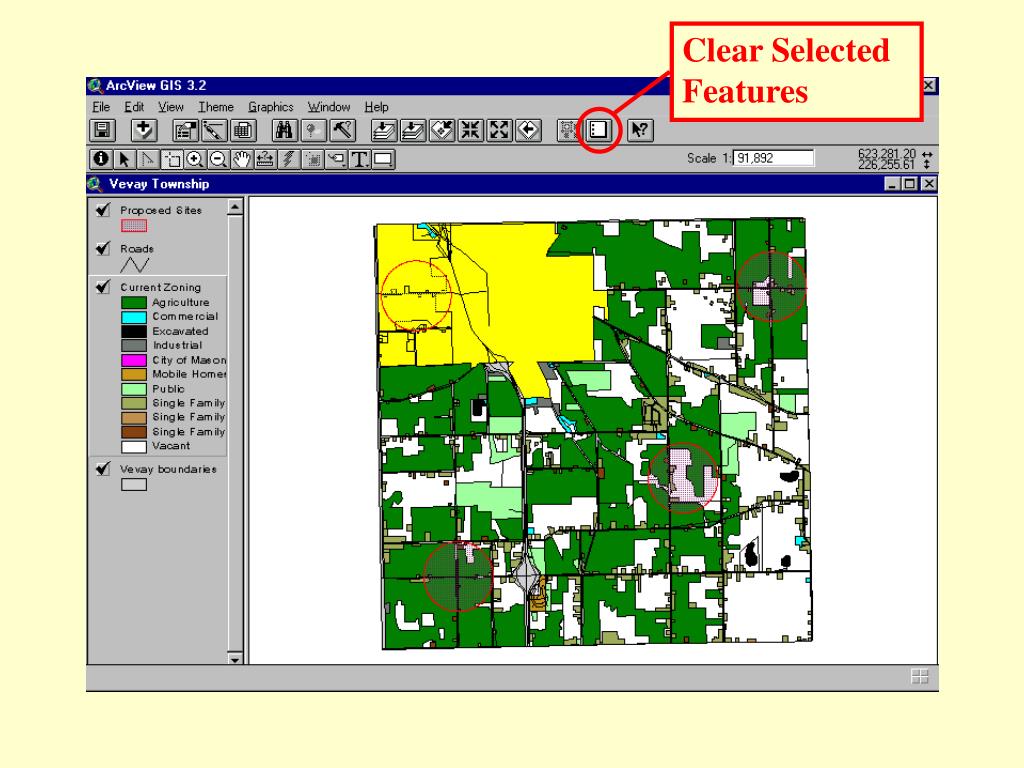

  5. Clear Selected Features

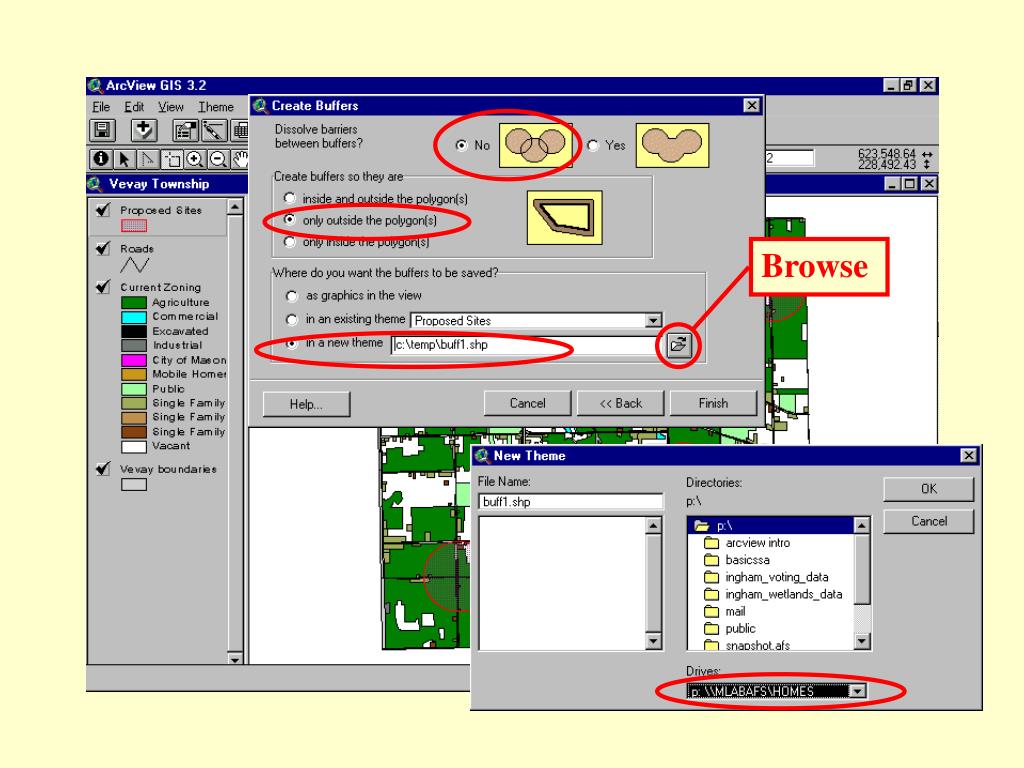

  6. Browse

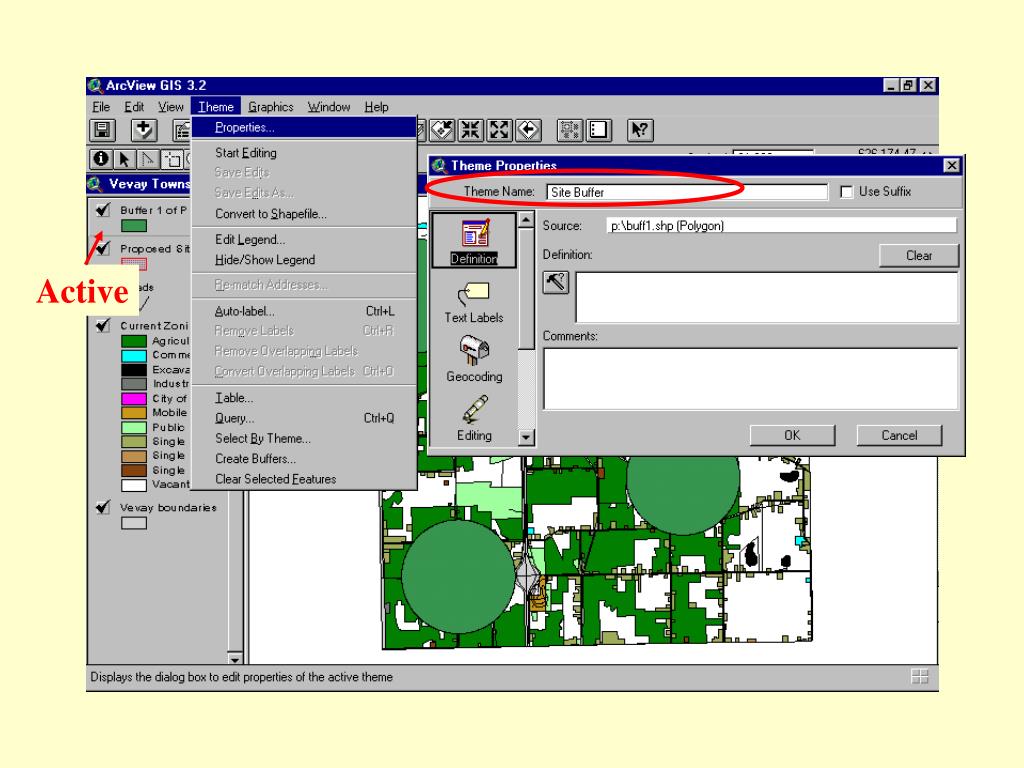

  7. Active

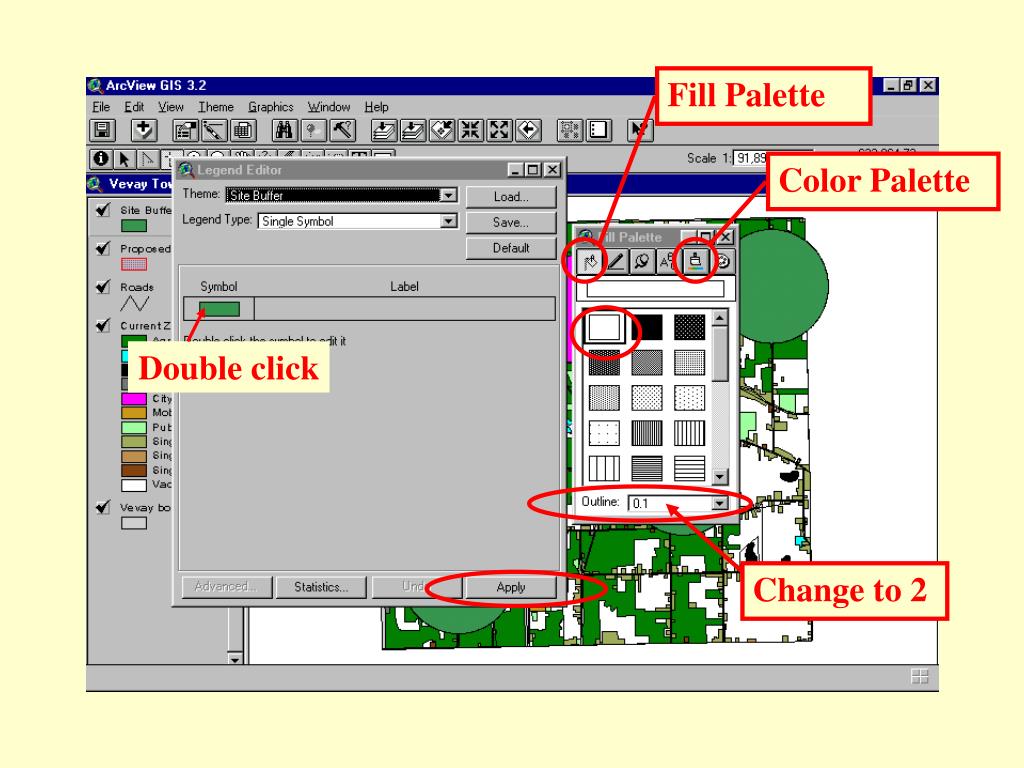

  8. Fill Palette Color Palette Double click Change to 2

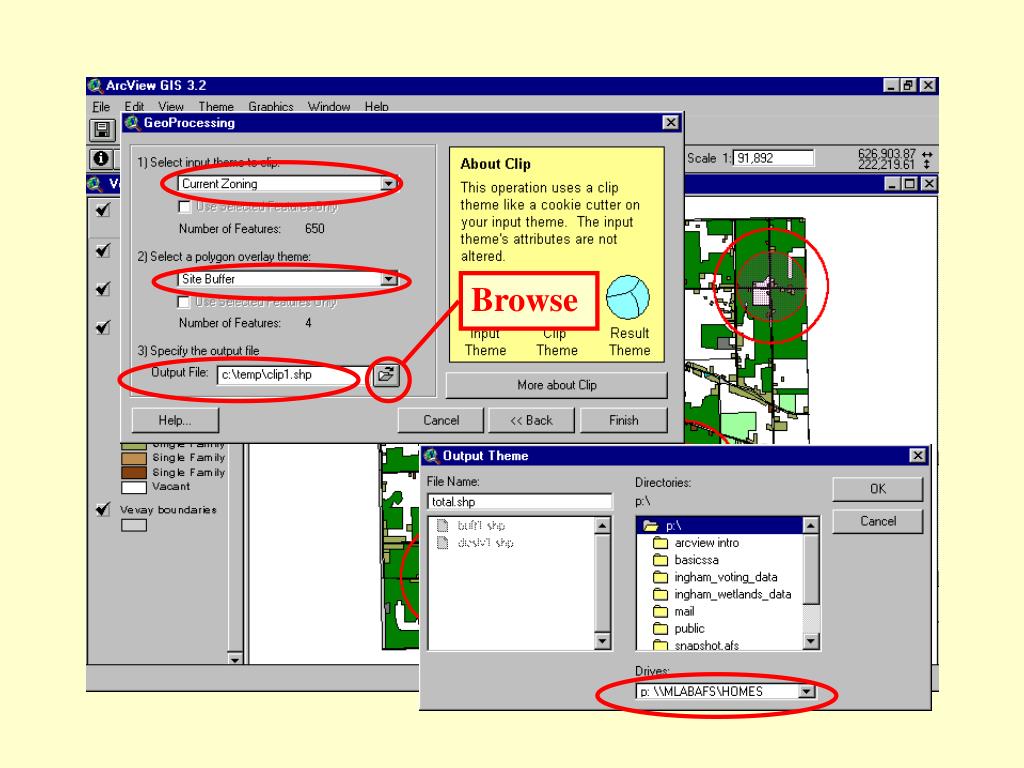

  9. Browse

  10. Open Theme Table

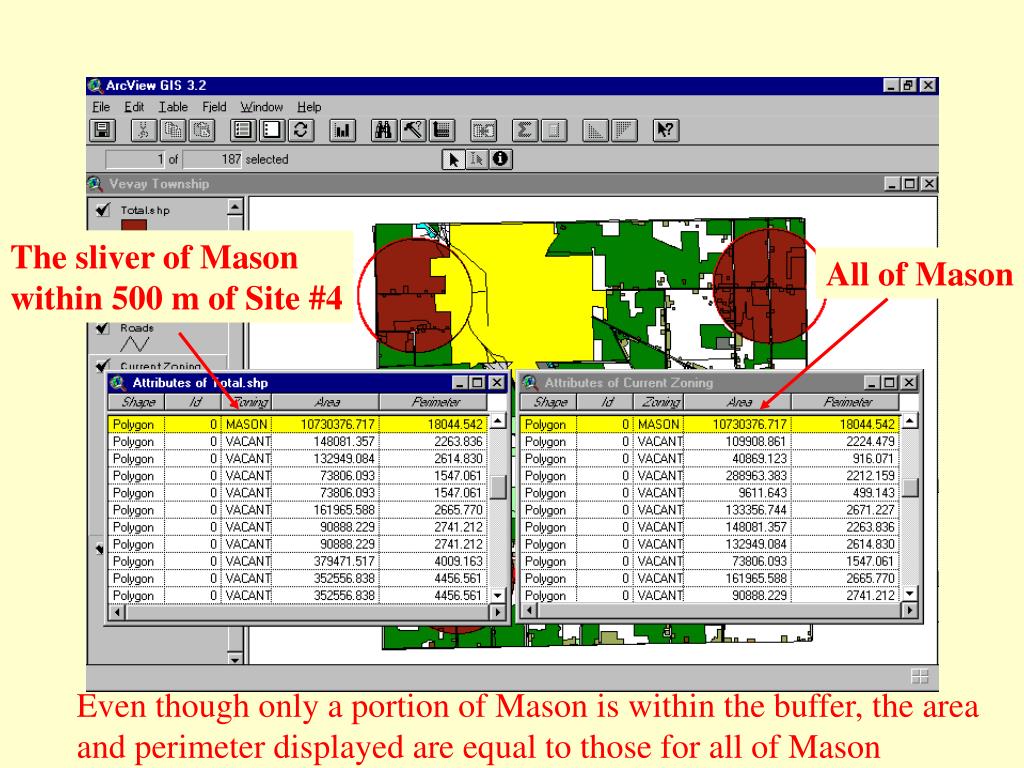

  11. The sliver of Mason within 500 m of Site #4 All of Mason Even though only a portion of Mason is within the buffer, the area and perimeter displayed are equal to those for all of Mason

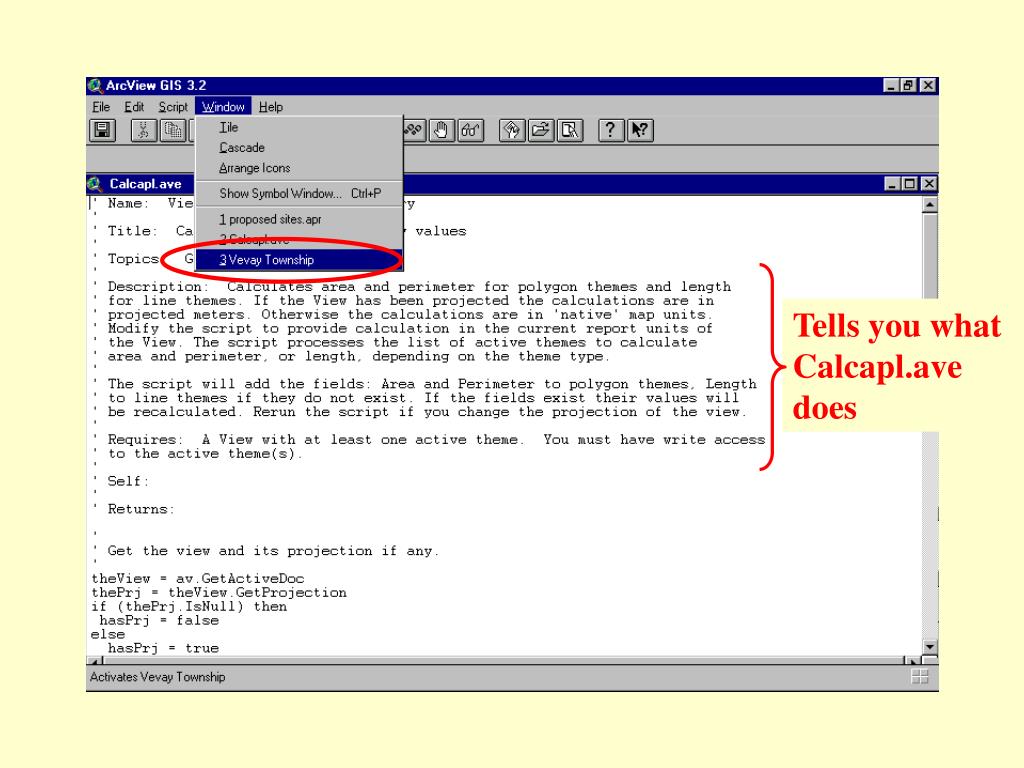

  12. Tells you what Calcapl.ave does

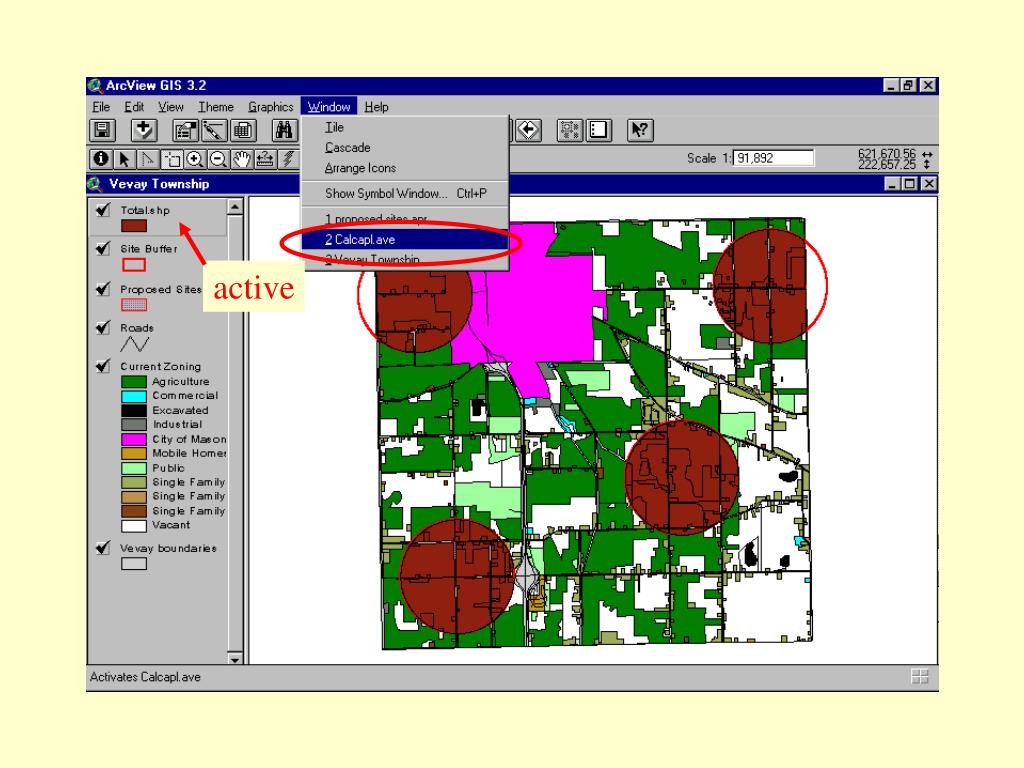

  13. active

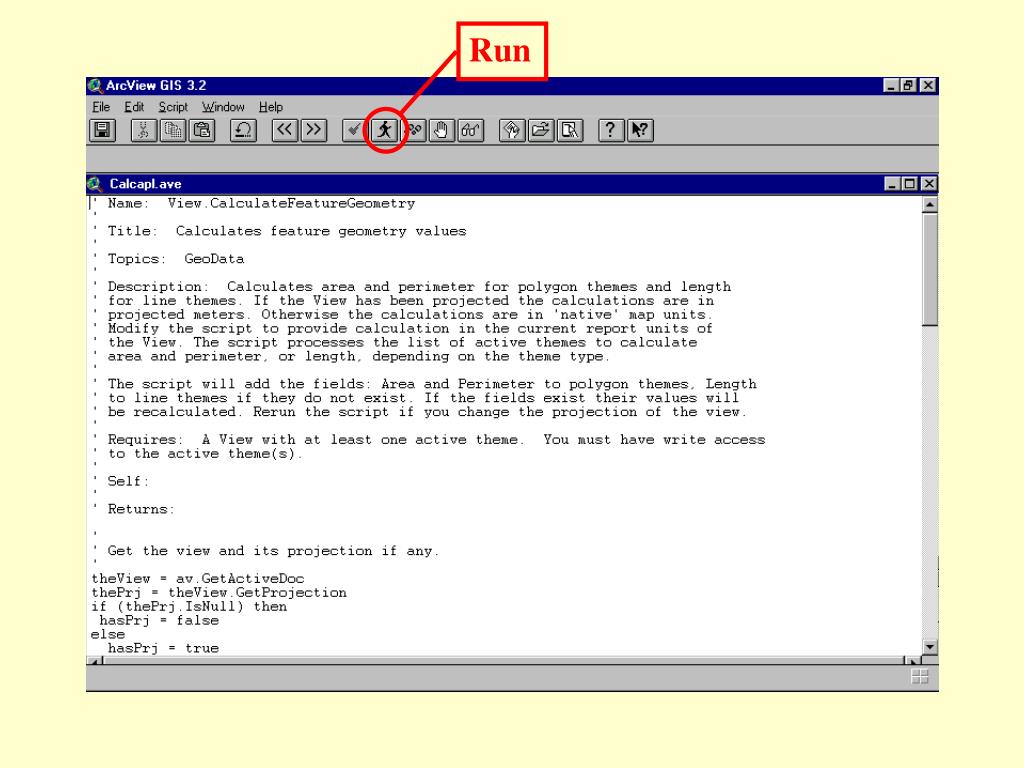

  14. Run

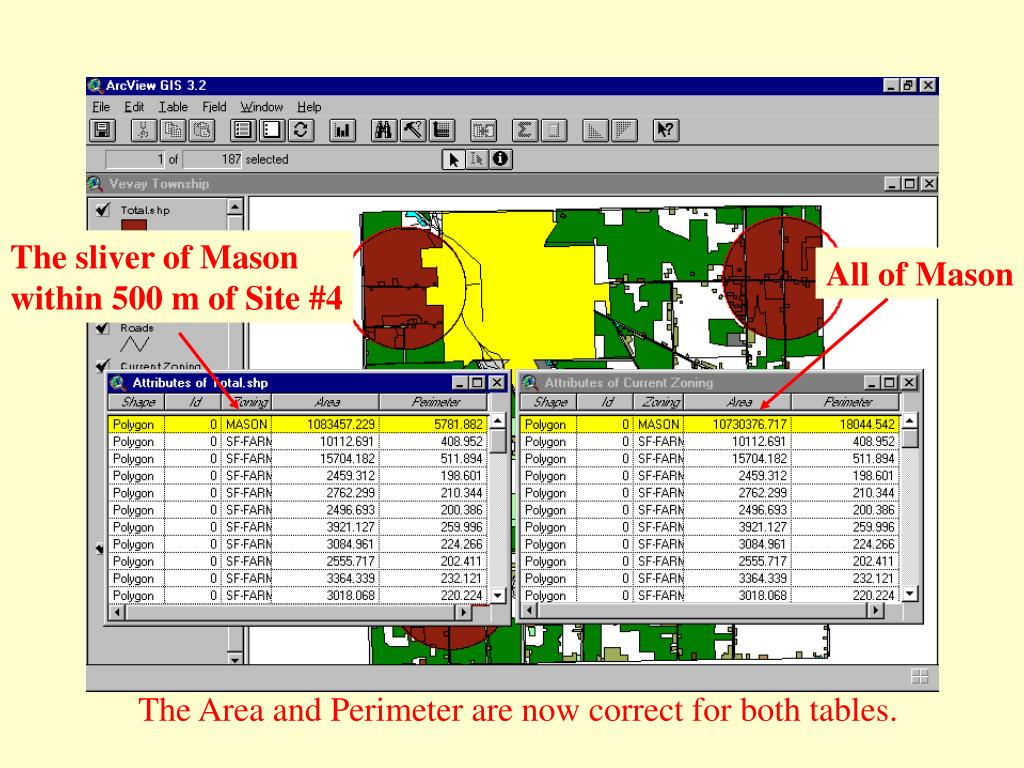

  15. The sliver of Mason within 500 m of Site #4 All of Mason The Area and Perimeter are now correct for both tables.

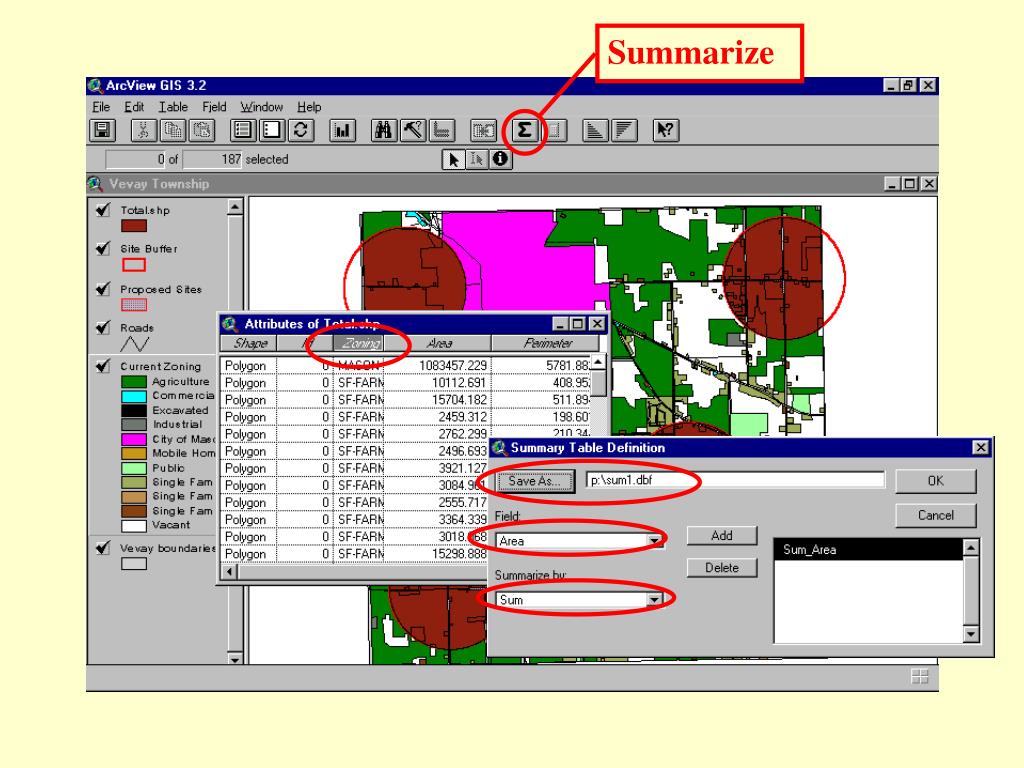

  16. Summarize

  17. Agricultural = 13,379,652 Residential = 1,008,056

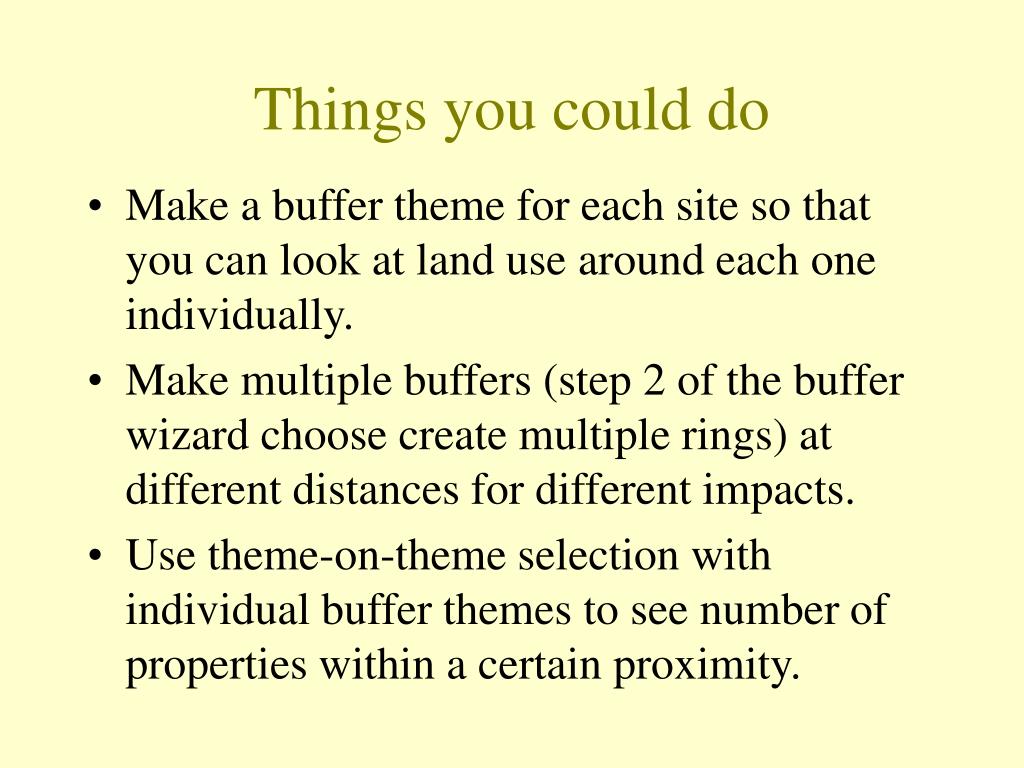

  18. Things you could do • Make a buffer theme for each site so that you can look at land use around each one individually. • Make multiple buffers (step 2 of the buffer wizard choose create multiple rings) at different distances for different impacts. • Use theme-on-theme selection with individual buffer themes to see number of properties within a certain proximity.
