  1. GALILEO

  2. GALILEO – The Beginning • Council Resolution 1999 • GALILEO Definition Phase • GALILEOSat Programme • Financed by • European Commission • European Space Agency • Member States • Partner States • Future Concessionaire

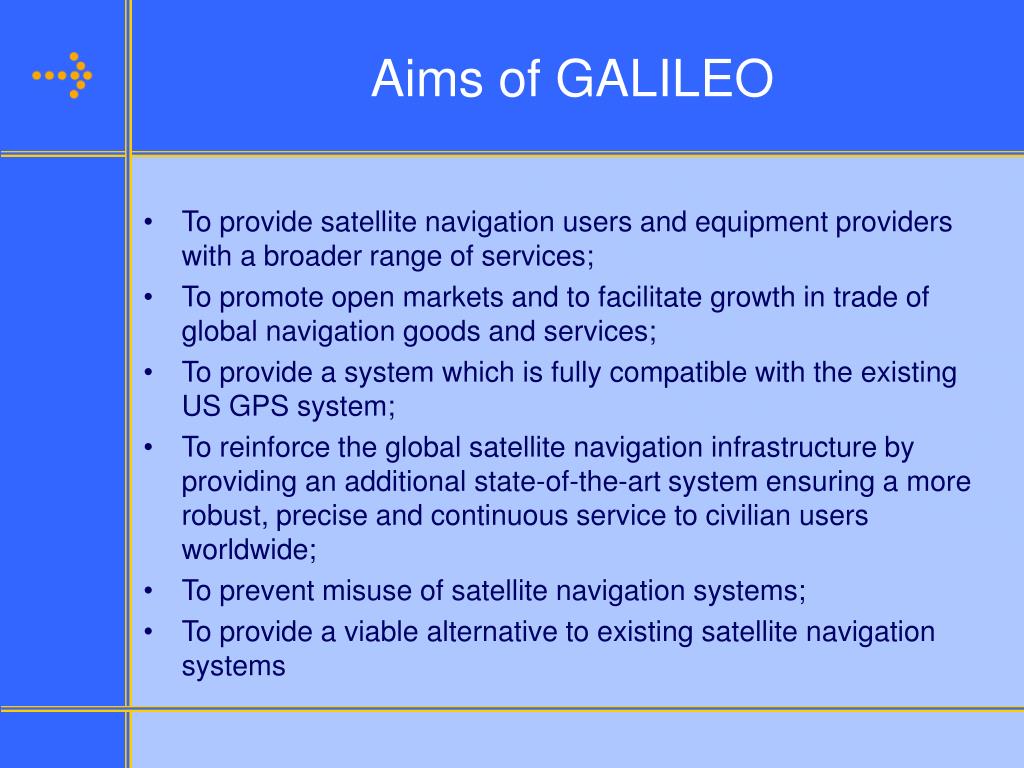

  3. Aims of GALILEO • To provide satellite navigation users and equipment providers with a broader range of services; • To promote open markets and to facilitate growth in trade of global navigation goods and services; • To provide a system which is fully compatible with the existing US GPS system; • To reinforce the global satellite navigation infrastructure by providing an additional state-of-the-art system ensuring a more robust, precise and continuous service to civilian users worldwide; • To prevent misuse of satellite navigation systems; • To provide a viable alternative to existing satellite navigation systems

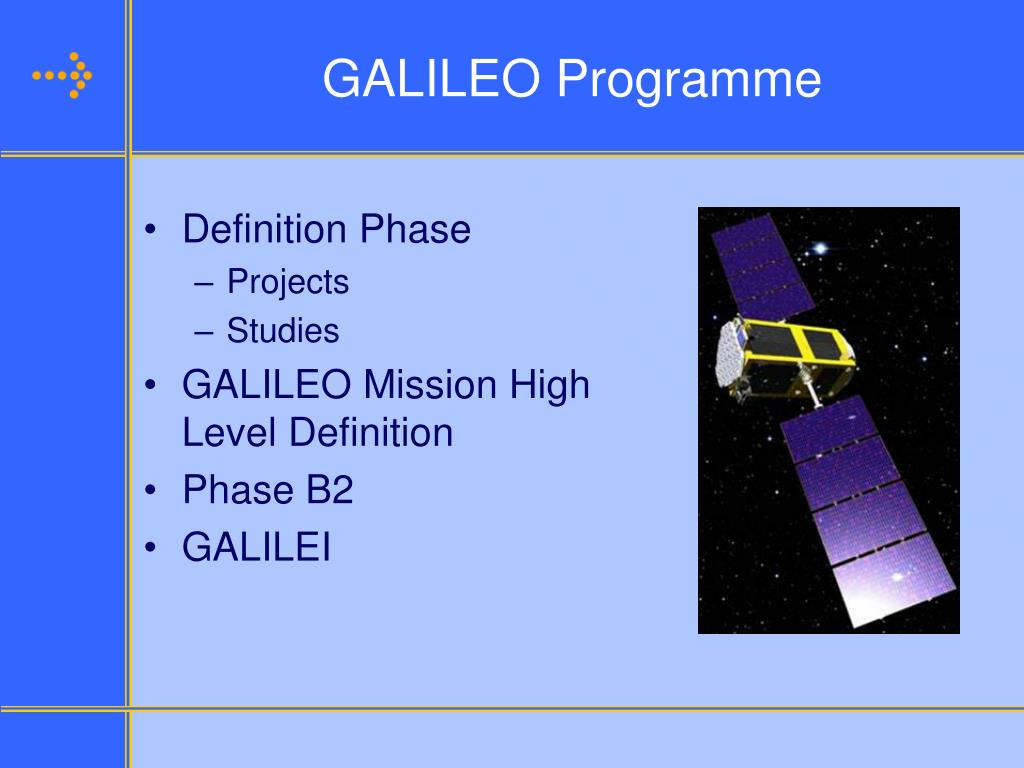

  4. GALILEO Programme • Definition Phase • Projects • Studies • GALILEO Mission High Level Definition • Phase B2 • GALILEI

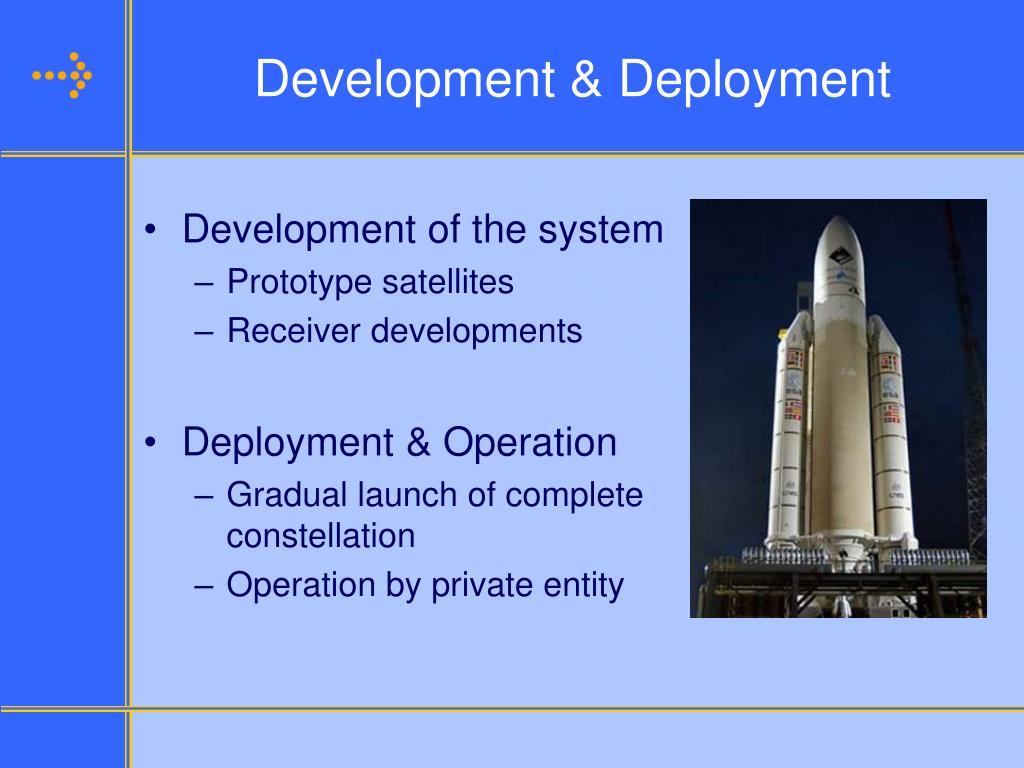

  5. Development & Deployment • Development of the system • Prototype satellites • Receiver developments • Deployment & Operation • Gradual launch of complete constellation • Operation by private entity

  6. Pre-Developments • Critical Technology Developments Completed • GALILEO System Test Be (GSTB-V1) developed to experiment with GALILEO-like processing algorithms based on GPS observables • GSTB v2 Development started July 03 • The GALILEO Development preparatory phase (Phase C0) was Kicked-off in Dec 03 and concluded in Oct 04 with the GALILEO Segment PDRs

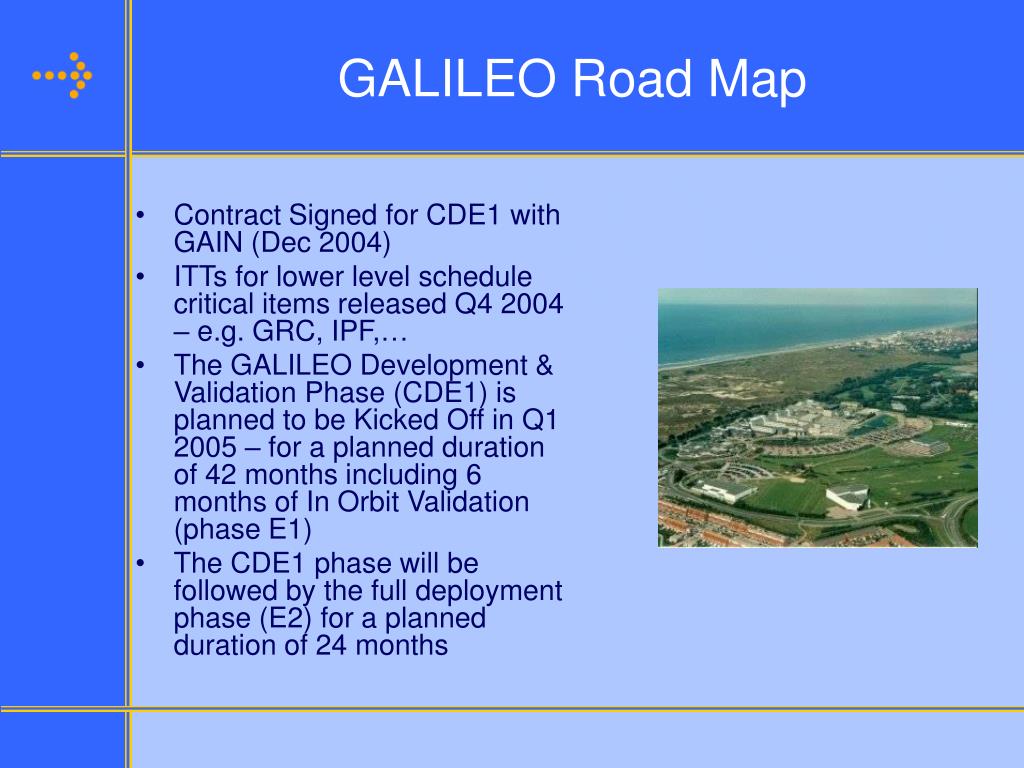

  7. GALILEO Road Map • Contract Signed for CDE1 with GAIN (Dec 2004) • ITTs for lower level schedule critical items released Q4 2004 – e.g. GRC, IPF,… • The GALILEO Development & Validation Phase (CDE1) is planned to be Kicked Off in Q1 2005 – for a planned duration of 42 months including 6 months of In Orbit Validation (phase E1) • The CDE1 phase will be followed by the full deployment phase (E2) for a planned duration of 24 months

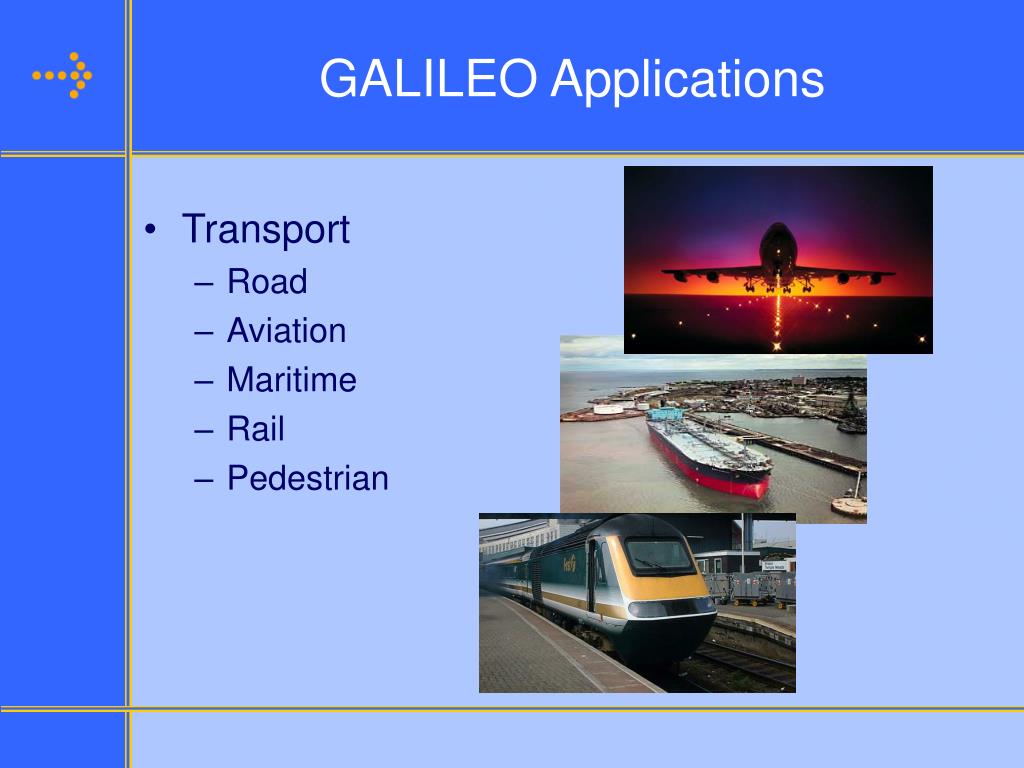

  8. GALILEO Applications • Transport • Road • Aviation • Maritime • Rail • Pedestrian

  9. GALILEO Applications • Safety • Road • Emergency & Incident Handling • Train Safety

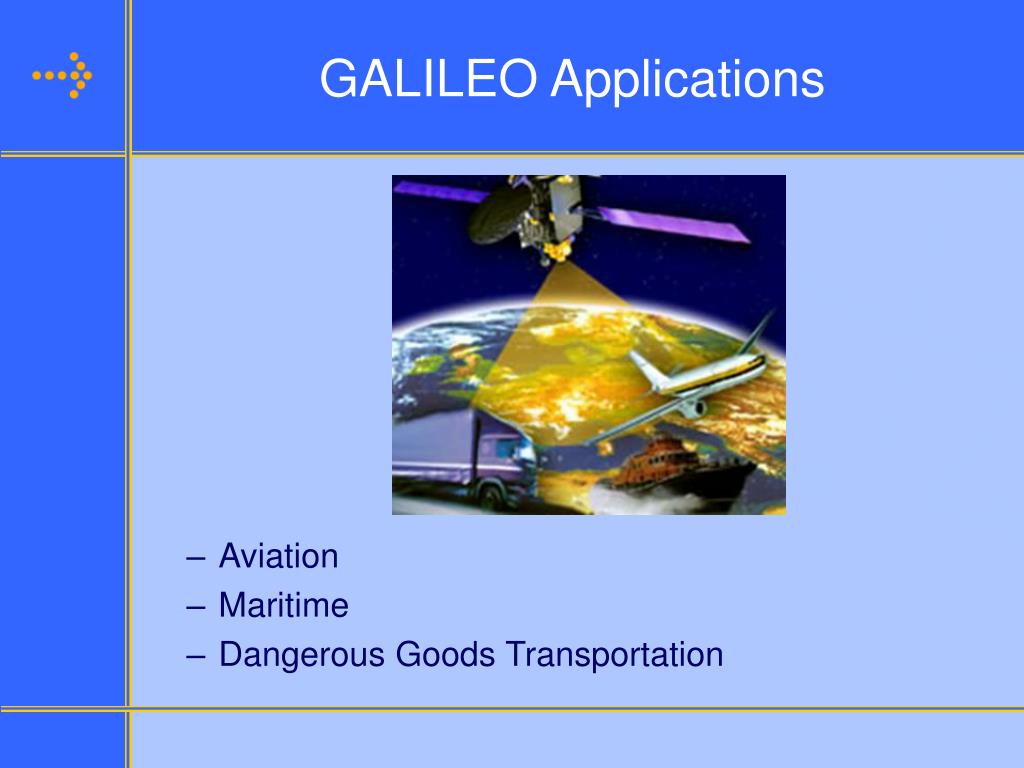

  10. GALILEO Applications • Aviation • Maritime • Dangerous Goods Transportation

  11. GALILEO Applications • Energy • Network Synchronisation • Infrastructure Mapping • Oil Rig Anchoring • Seismic Exploration

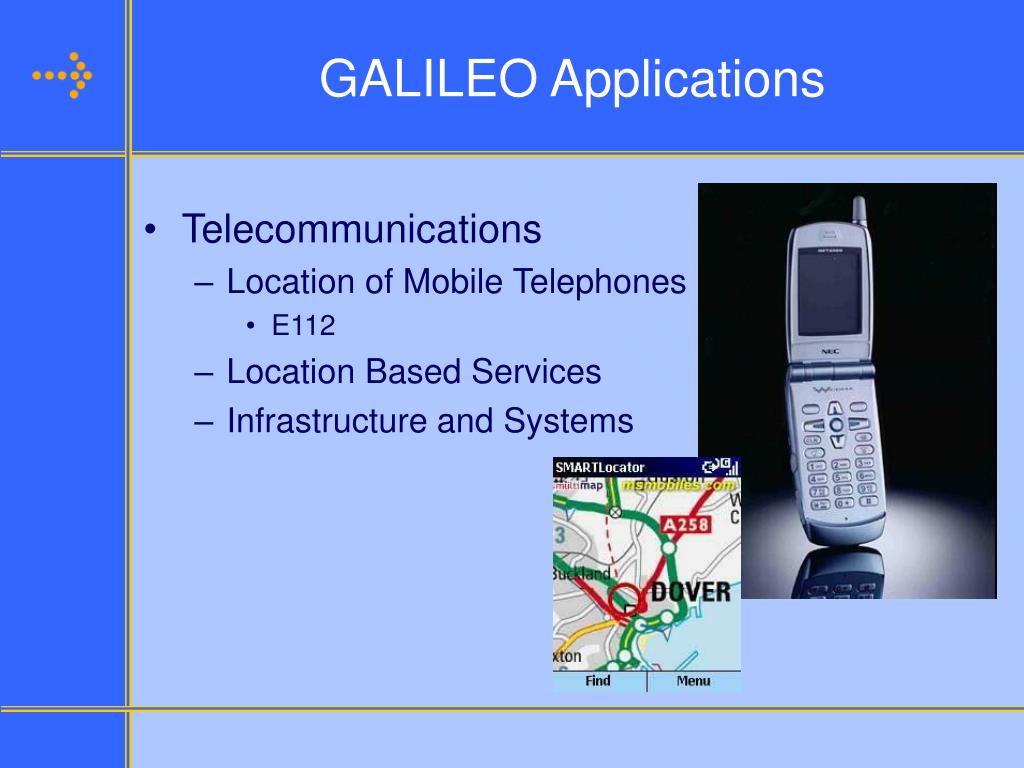

  12. GALILEO Applications • Telecommunications • Location of Mobile Telephones • E112 • Location Based Services • Infrastructure and Systems

  13. GALILEO Applications • Finance, Banking & Insurance • Secure Documents • Encryption • Insurance

  14. GALILEO Applications • Civil Engineering • Structure Monitoring • Machine Guidance • Construction Site Management • Road/Rail Infrastructure Maintenance

  15. GALILEO Applications • Agriculture • Chemical Spraying • Crop Yield Monitoring • Fisheries • Monitoring of Fishing Vessels • Monitoring Fishing Applications

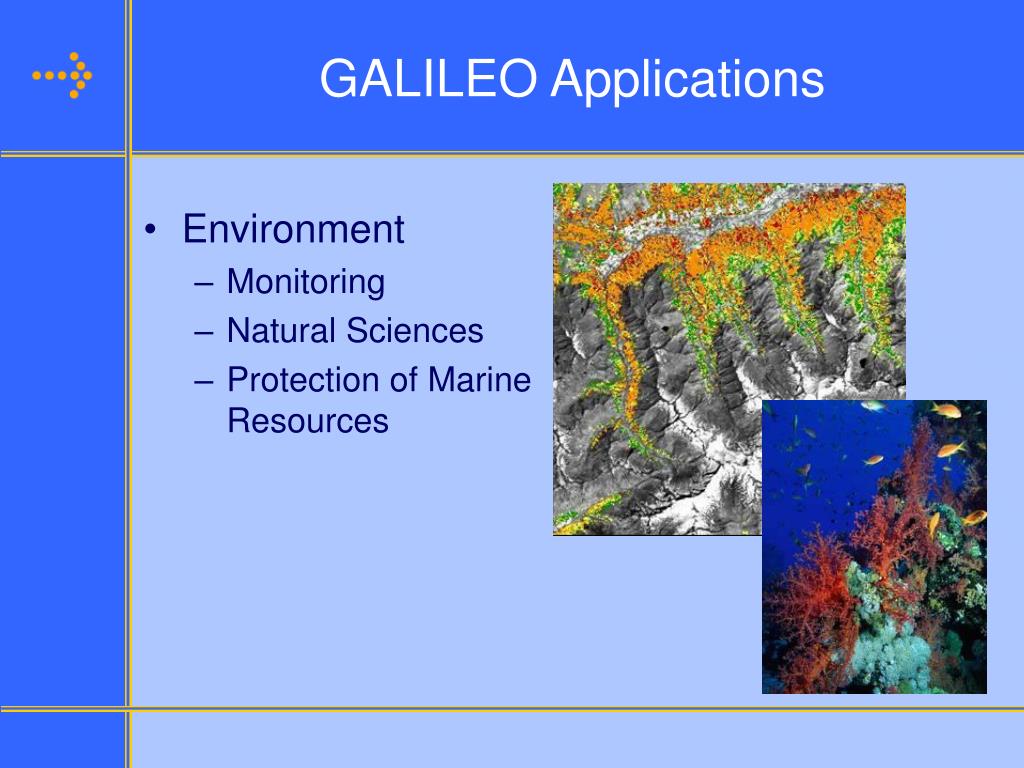

  16. GALILEO Applications • Environment • Monitoring • Natural Sciences • Protection of Marine Resources

  17. GALILEO Applications • Civil Protection • Disaster Monitoring & Prediction • Optimising Disaster Relief Operations • Facilitation Humanitarian Aid Operations

  18. GALILEO Applications • Timing • Time Tagging • Time Synchronisation • Scientific Applications • Leisure

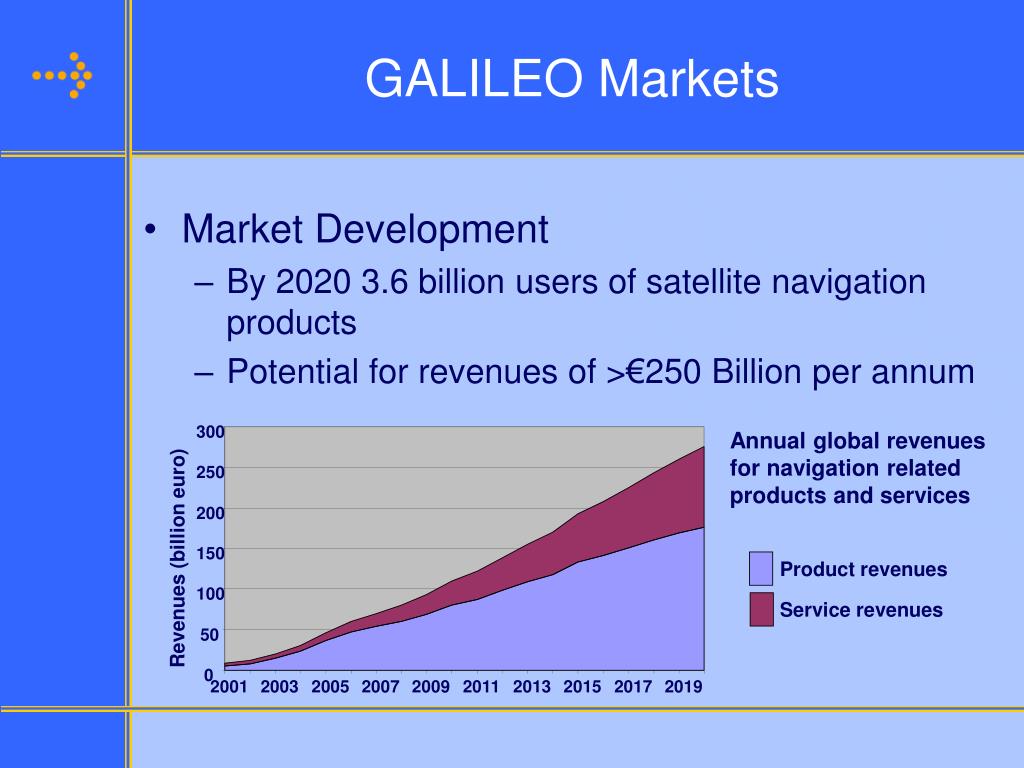

  19. Product revenues Service revenues 300 250 200 150 100 Revenues (billion euro) 50 0 2001 2003 2005 2007 2009 2011 2013 2015 2017 2019 GALILEO Markets • Market Development • By 2020 3.6 billion users of satellite navigation products • Potential for revenues of >€250 Billion per annum Annual global revenues for navigation related products and services

  20. GALILEO & GPS • US and EU Agreement • June 2004 • Interoperability • Compatibility

  21. Interoperable GPS & GALILEO

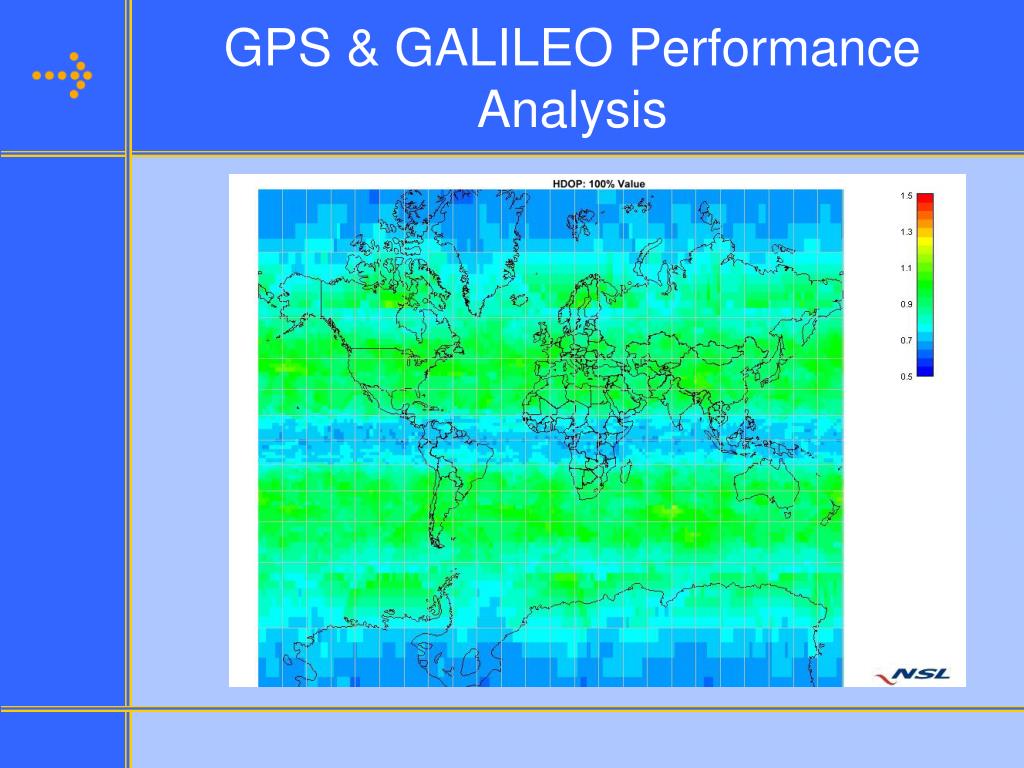

  22. GPS & GALILEO Performance Analysis

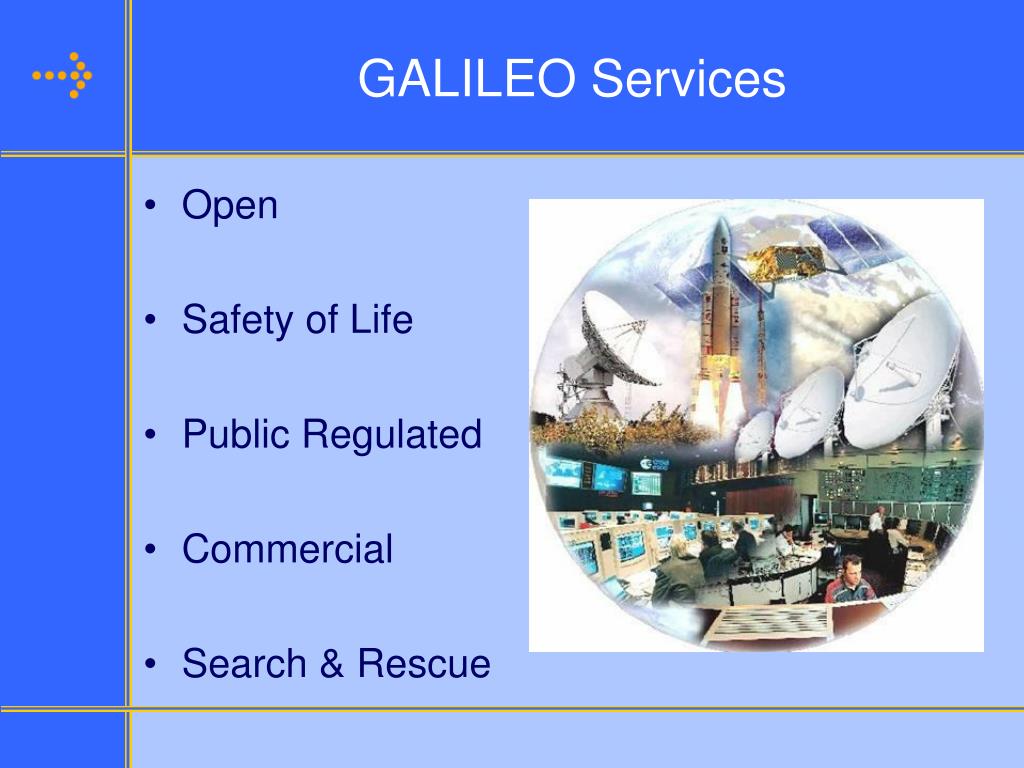

  23. GALILEO Services • Open • Safety of Life • Public Regulated • Commercial • Search & Rescue

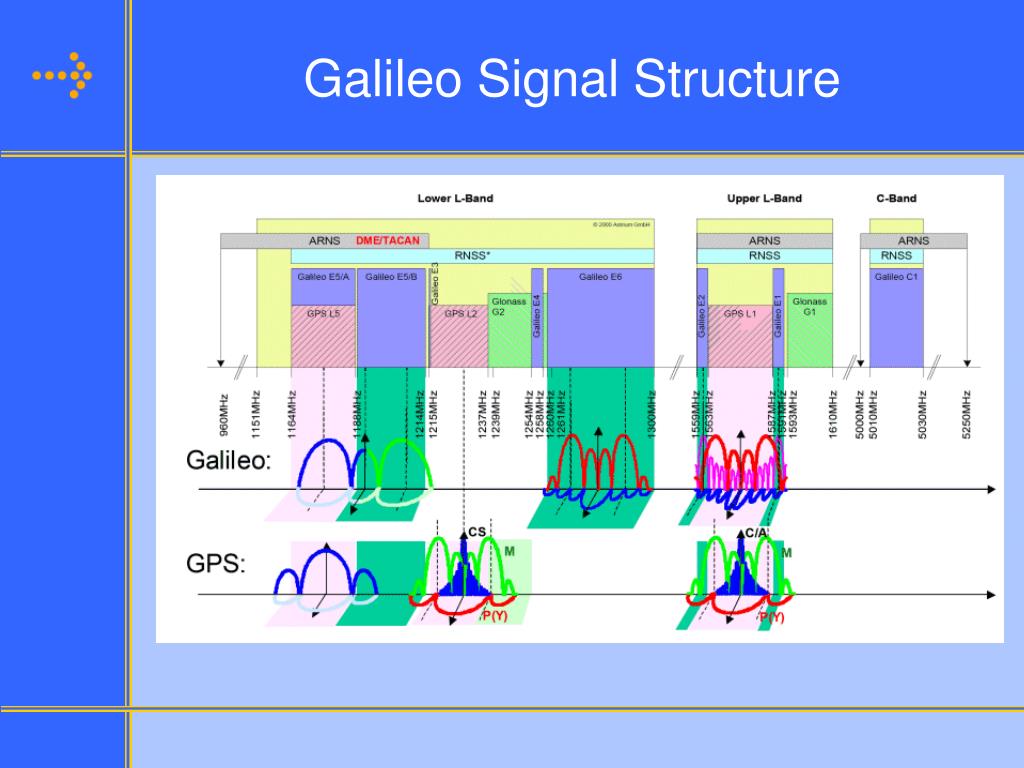

  24. Galileo Signal Structure

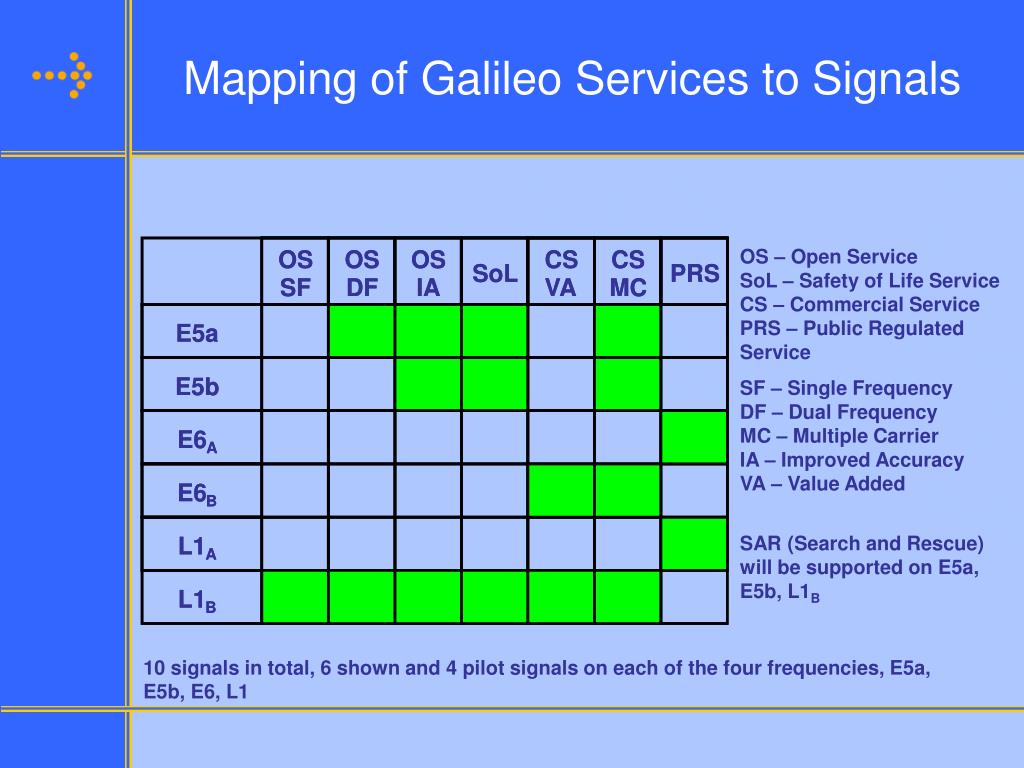

  25. OS OS OS OS OS OS CS CS CS CS SoL SoL PRS PRS SF SF DF DF IA IA VA VA MC MC E5a E5a E5b E5b E6 E6 A A E6 E6 B B L1 L1 A A L1 L1 B B Mapping of Galileo Services to Signals OS – Open ServiceSoL – Safety of Life ServiceCS – Commercial Service PRS – Public Regulated Service SF – Single Frequency DF – Dual Frequency MC – Multiple CarrierIA – Improved AccuracyVA – Value Added SAR (Search and Rescue)will be supported on E5a, E5b, L1B 10 signals in total, 6 shown and 4 pilot signals on each of the four frequencies, E5a, E5b, E6, L1

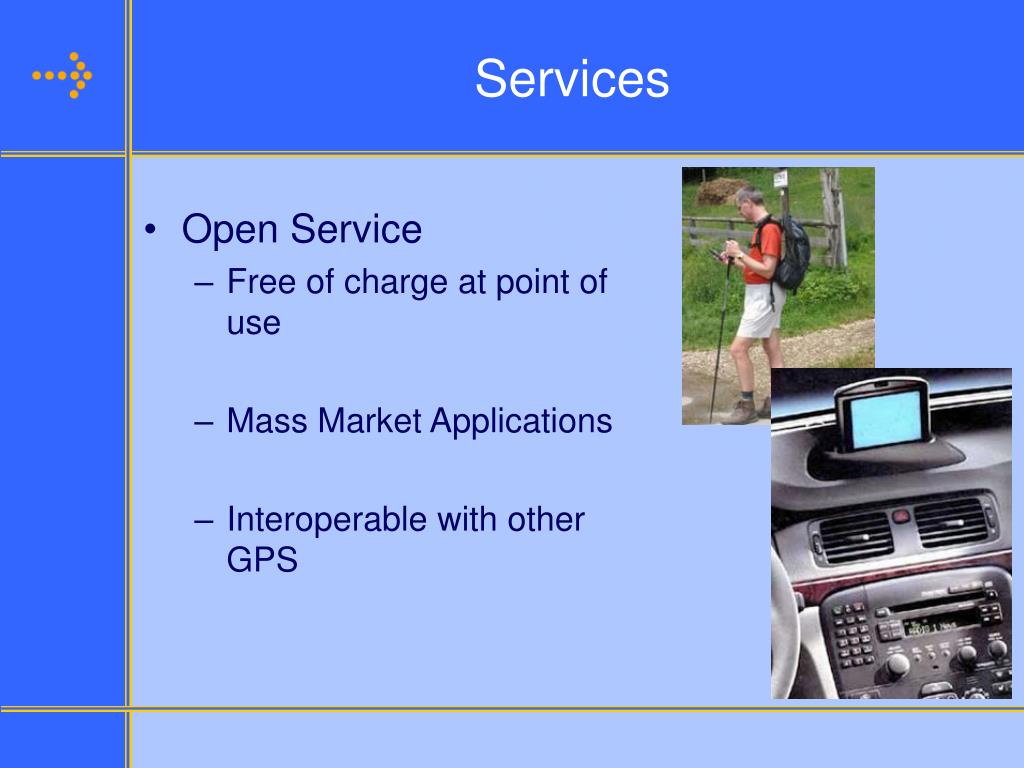

  26. Services • Open Service • Free of charge at point of use • Mass Market Applications • Interoperable with other GPS

  27. Services • Safety of Life Service • Safety critical users • Aviation, Maritime and Trains are targeted user groups • Provision of Global Integrity • Integrity to be broadcast on E1 and E5b bands

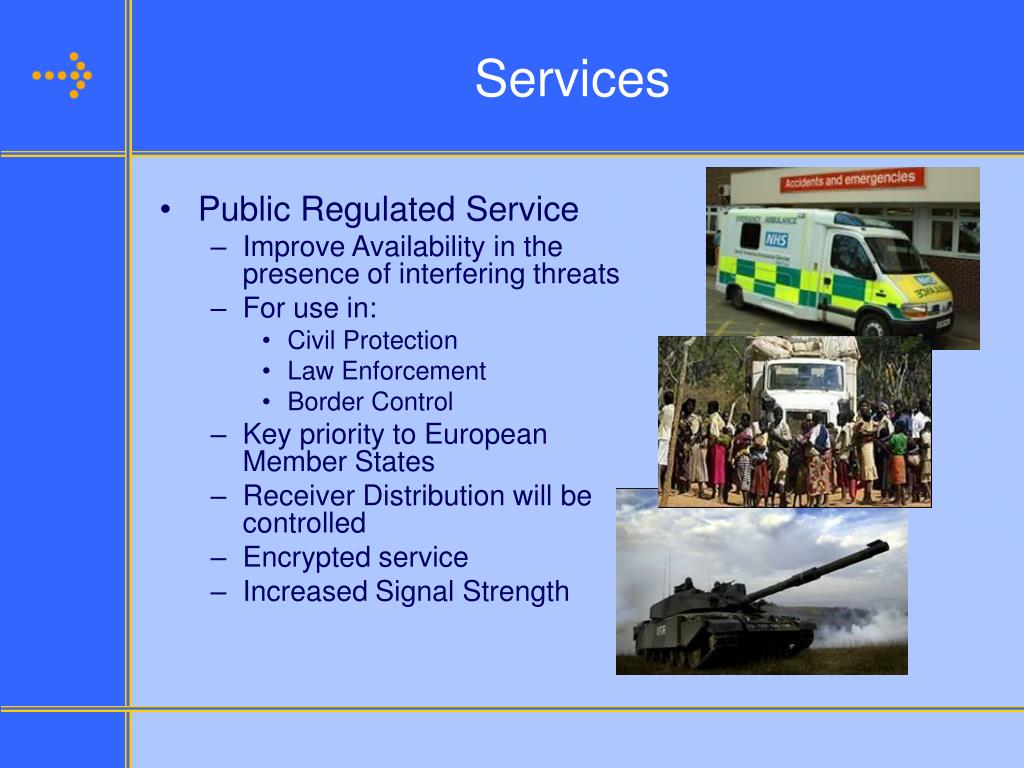

  28. Services • Public Regulated Service • Improve Availability in the presence of interfering threats • For use in: • Civil Protection • Law Enforcement • Border Control • Key priority to European Member States • Receiver Distribution will be controlled • Encrypted service • Increased Signal Strength

  29. Services • Commercial Service • Increased navigation performances over the Open Service • Possibilities for Data Dissemination at 500 bps • Dual Frequency Capabilities • Variety of services including integrity data and local area differential corrections

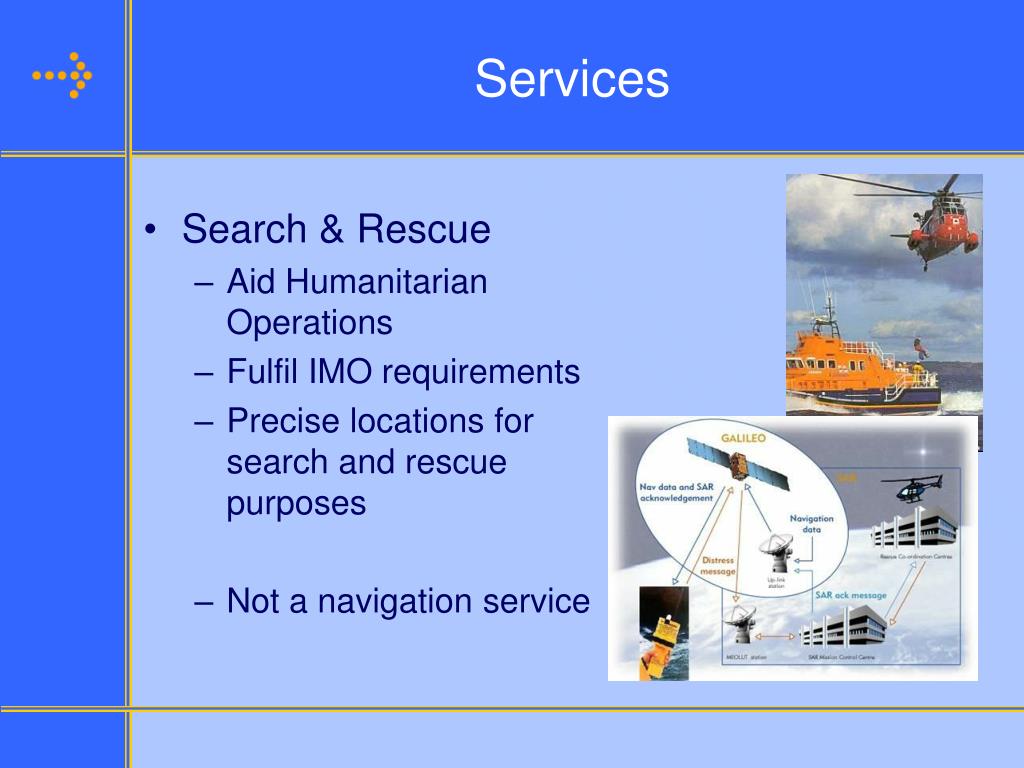

  30. Services • Search & Rescue • Aid Humanitarian Operations • Fulfil IMO requirements • Precise locations for search and rescue purposes • Not a navigation service

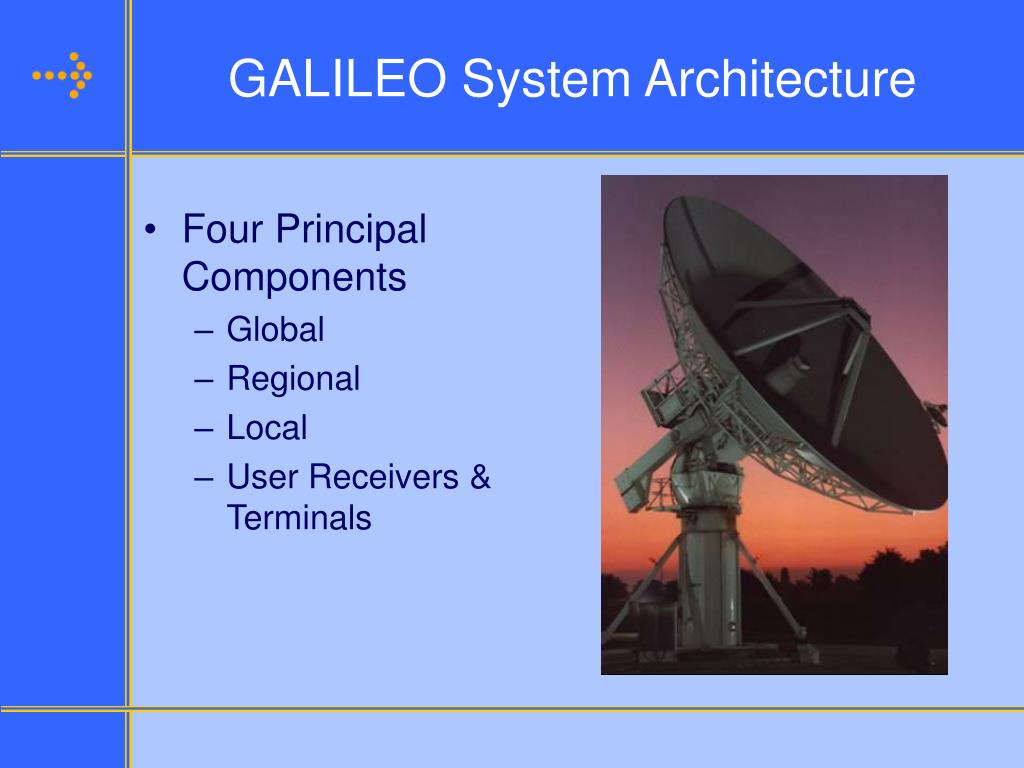

  31. GALILEO System Architecture • Four Principal Components • Global • Regional • Local • User Receivers & Terminals

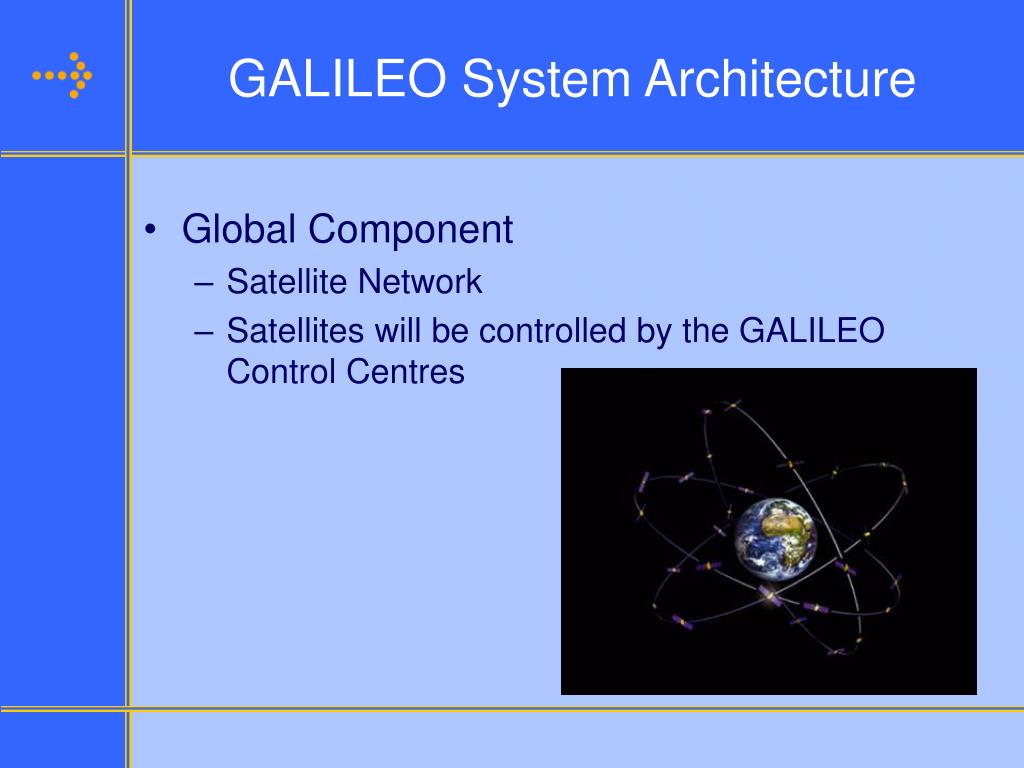

  32. GALILEO System Architecture • Global Component • Satellite Network • Satellites will be controlled by the GALILEO Control Centres

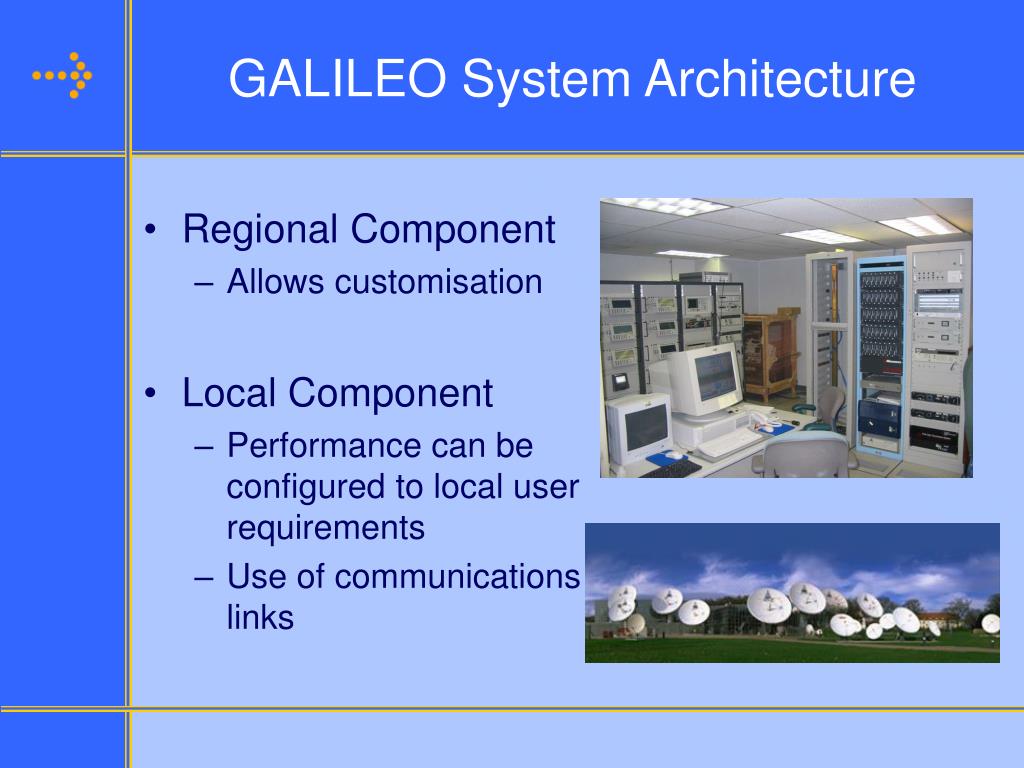

  33. GALILEO System Architecture • Regional Component • Allows customisation • Local Component • Performance can be configured to local user requirements • Use of communications links

  34. GALILEO System Architecture • User Receivers & Terminals • Competitive Performance • Tailoring to user needs • Potential for change • Multi-modal use

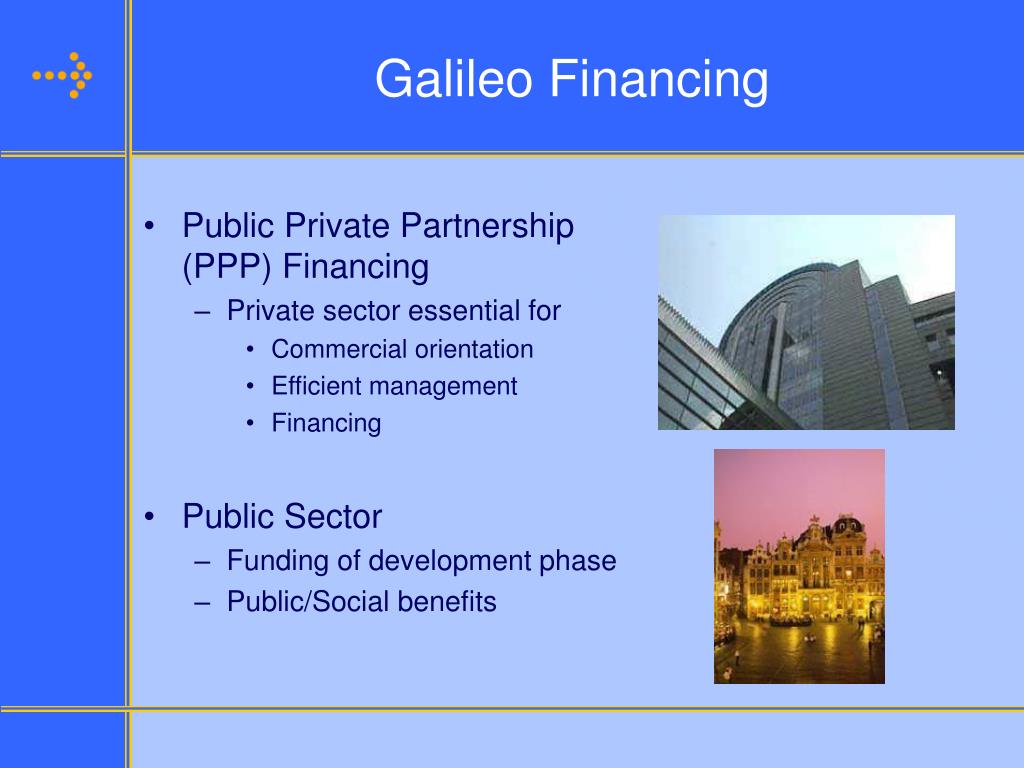

  35. Galileo Financing • Public Private Partnership (PPP) Financing • Private sector essential for • Commercial orientation • Efficient management • Financing • Public Sector • Funding of development phase • Public/Social benefits
